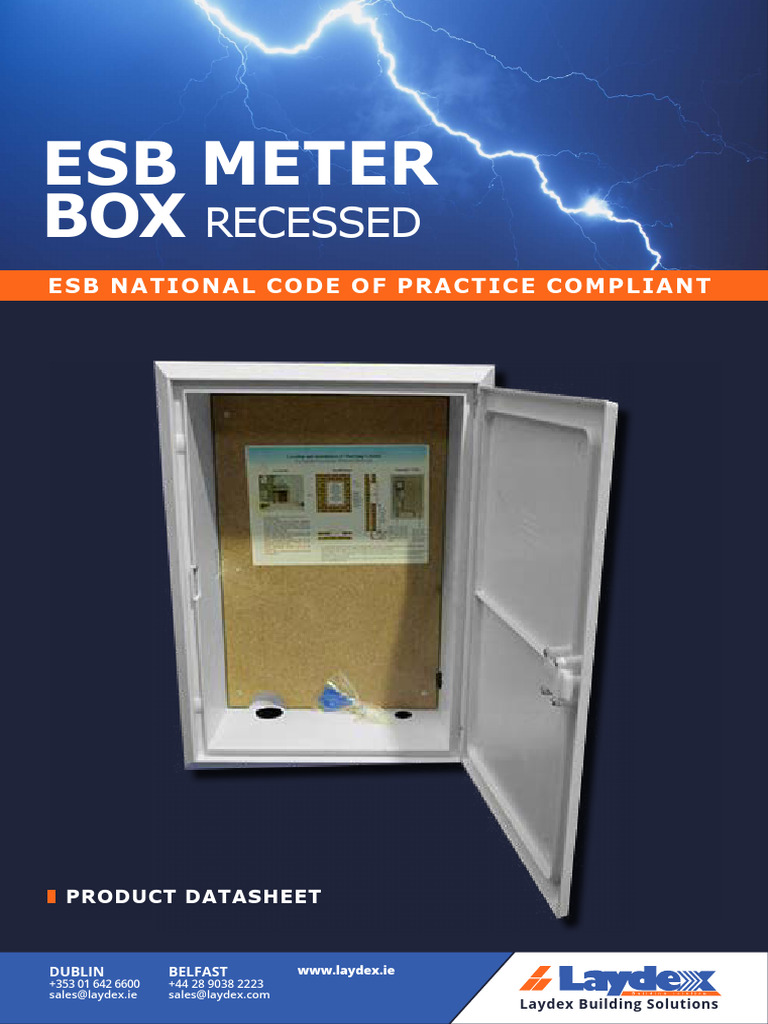

ESB METER

BOX RECESSED
ESB NATIONAL CODE OF PRACTICE COMPLIANT

PRODUCT DATASHEET

DUBLIN BELFAST www.laydex.ie

+353 01 642 6600 +44 28 9038 2223
sales@laydex.ie sales@laydex.com
Laydex Building Solutions
 QUALITY & MATERIAL
Laydex ESB Meter BOX meets and conforms to the following standards:
BS 476 Part 7 1997 Class 2
ESI Standard 12-3 1986.
ESB National Code of Practice Interface
- 4th Edition 2008

ESB Networks specify that every house

must have a meter box to house the
electricity meter.
The builder/ house owner must supply
and install an ESB Networks approved
outdoor meter box, which must be
continuously accessible to ESB Networks
and unobstructed by side gates.

The ‘slam shut’ lock

Door hinge on the right side Spare keys The hockey stick

ESB METER BOX NATIONAL CODE OF PRACTICE COMPLIANT

 GENERAL REQUIREMENTS
General requirements for domestic metering equipment as per latest National Code of Practice:

NOTE: Entry point for customer tails will be accepted at the right-hand side wall of the box.
This entry point shall be DRILLED as close as possible to the bottom right-hand corner.
Only ESB equipment should be fitted in outdoor metering carbinets.
The diagram below shows a typical outdoor metering cabinet.
Where it is possible to ESB equipment into an accessible outdoor location, contact the local
ESB office during the planning stage to identify an alternatively suitable location.
485 Note:
Meter cabinet
must comply
with ESB
specifications

Flange of
cabinet to be
water sealed
ESB and polythene
Equipment only damp proof
to be fitted in
outside meter box course to be
fitted by builder
685

Customer
meter tails to
enter at the
bottom right
of the meter
cabinet.
See notes
below.
ESB supply Customer tails

From finished ground level

entry point entry point

1.2m Max. 1m Min.

50mm diameter red electric cable duct, projecting
25mm inside the meter cabinet.

Water drain hole in the lowest section of the pipe.

10mm draw-in rope (free of knots) to draw ESB

supply cable. Depth
600mm
Hockey stick
210

for service cable

Fixing spikes

SPECIFICATION & KEY FEATURES

SPECIFICATION KEY FEATURES
Highly durable Weather resistant

Manufactured from GRP* Will not rot or corrode

Glass Reinforced Plastic
*

Suitable for all domestic electric meters

White available
Meter box key included
Easy to clean and can be painted
Fitted baseboard

INSTALLATION OPTIONAL EXTRAS

Easy installation - cable entry on the face Replacement door M35045
of the wall or via the cavity 425mm wide x 625mm high

BOX DIMENSIONS
WIDTH 485mm DEPTH 210mm HEIGHT 685mm
