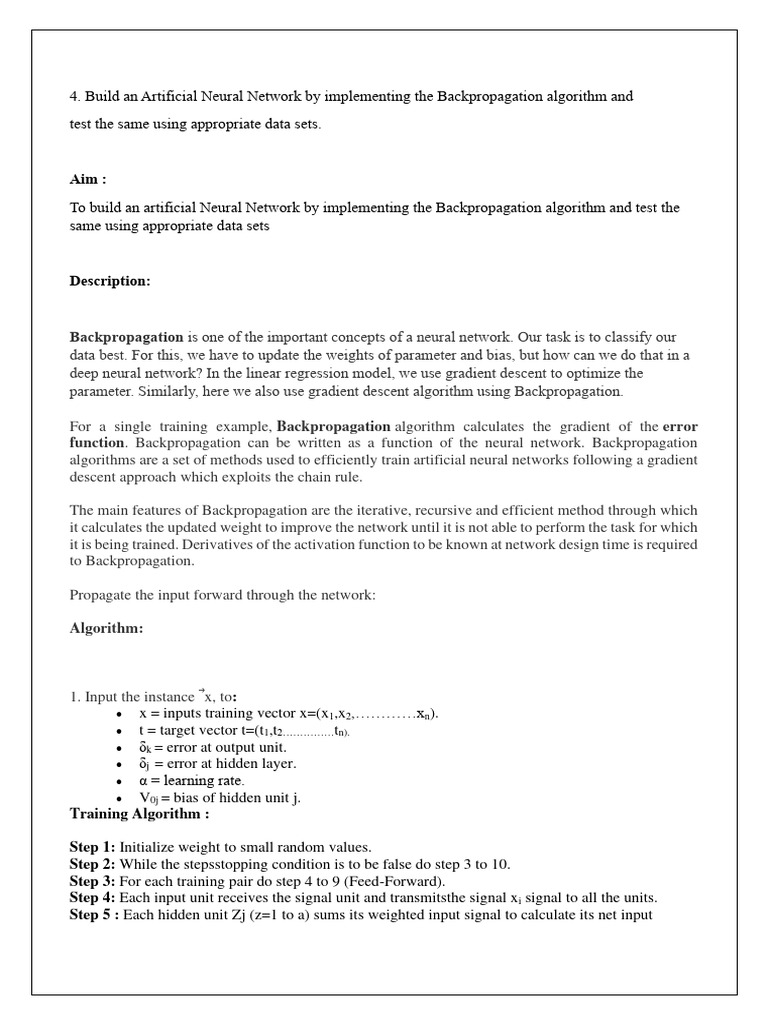

4.

Build an Artificial Neural Network by implementing the Backpropagation algorithm and

test the same using appropriate data sets.

Aim :
To build an artificial Neural Network by implementing the Backpropagation algorithm and test the
same using appropriate data sets

Description:

Backpropagation is one of the important concepts of a neural network. Our task is to classify our
data best. For this, we have to update the weights of parameter and bias, but how can we do that in a
deep neural network? In the linear regression model, we use gradient descent to optimize the
parameter. Similarly, here we also use gradient descent algorithm using Backpropagation.

For a single training example, Backpropagation algorithm calculates the gradient of the error
function. Backpropagation can be written as a function of the neural network. Backpropagation
algorithms are a set of methods used to efficiently train artificial neural networks following a gradient
descent approach which exploits the chain rule.

The main features of Backpropagation are the iterative, recursive and efficient method through which
it calculates the updated weight to improve the network until it is not able to perform the task for which
it is being trained. Derivatives of the activation function to be known at network design time is required
to Backpropagation.

Propagate the input forward through the network:

Algorithm:

1. Input the instance ⃗x, to:

• x = inputs training vector x=(x1,x2,…………xn).
• t = target vector t=(t1,t2……………tn).
• δk = error at output unit.
• δj = error at hidden layer.
• α = learning rate.
• V0j = bias of hidden unit j.
Training Algorithm :

Step 1: Initialize weight to small random values.

Step 2: While the stepsstopping condition is to be false do step 3 to 10.
Step 3: For each training pair do step 4 to 9 (Feed-Forward).
Step 4: Each input unit receives the signal unit and transmitsthe signal xi signal to all the units.
Step 5 : Each hidden unit Zj (z=1 to a) sums its weighted input signal to calculate its net input
 zinj = v0j + Σxivij ( i=1 to n)
Applying activation function zj = f(zinj) and sends this signals to all units in the layer about i.e
output units
For each output l=unit yk = (k=1 to m) sums its weighted input signals.
yink = w0k + Σ ziwjk (j=1 to a)
and applies its activation function to calculate the output signals.
yk = f(yink)
Backpropagation Error :

Step 6: Each output unit yk (k=1 to n) receives a target pattern corresponding to an input pattern
then error is calculated as:
δk = ( tk – yk ) + yink
Step 7: Each hidden unit Zj (j=1 to a) sums its input from all units in the layer above
δinj = Σ δj wjk
The error information term is calculated as :
δj = δinj + zinj
Updation of weight and bias :

Step 8: Each output unit yk (k=1 to m) updates its bias and weight (j=1 to a). The weight correction
term is given by :
Δ wjk = α δk zj
and the bias correction term is given by Δwk = α δk.
therefore wjk(new) = wjk(old) + Δ wjk
w0k(new) = wok(old) + Δ wok
for each hidden unit zj (j=1 to a) update its bias and weights (i=0 to n) the weight connection
term
Δ vij = α δj xi
and the bias connection on term
Δ v0j = α δj
Therefore vij(new) = vij(old) + Δvij
v0j(new) = v0j(old) + Δv0j
Step 9: Test the stopping condition. The stopping condition can be the minimization of error,
number of epochs.

Program:
import numpy as np

X = np.array(([2, 9], [1, 5], [3, 6]), dtype=float) # X = (hours sleeping, hours studying)
y = np.array(([92], [86], [89]), dtype=float) # y = score on test

# scale units
X = X/np.amax(X, axis=0) # maximum of X array
y = y/100 # max test score is 100
class Neural_Network(object):
def __init__(self):
# Parameters
self.inputSize = 2
self.outputSize = 1
 self.hiddenSize = 3
# Weights
self.W1 = np.random.randn(self.inputSize, self.hiddenSize) # (3x2) weight matrix from
input to hidden layer
self.W2 = np.random.randn(self.hiddenSize, self.outputSize) # (3x1) weight matrix from
hidden to output layer

def forward(self, X):

#forward propagation through our network
self.z = np.dot(X, self.W1) # dot product of X (input) and first set of 3x2 weights
self.z2 = self.sigmoid(self.z) # activation function
self.z3 = np.dot(self.z2, self.W2) # dot product of hidden layer (z2) and second set of 3x1
weights
o = self.sigmoid(self.z3) # final activation function
return o

def sigmoid(self, s):

return 1/(1+np.exp(-s)) # activation function

def sigmoidPrime(self, s):

return s * (1 - s) # derivative of sigmoid

def backward(self, X, y, o):

# backward propgate through the network
self.o_error = y - o # error in output
self.o_delta = self.o_error*self.sigmoidPrime(o) # applying derivative of sigmoid to
self.z2_error = self.o_delta.dot(self.W2.T) # z2 error: how much our hidden layer weights
contributed to output error
self.z2_delta = self.z2_error*self.sigmoidPrime(self.z2) # applying derivative of sigmoid to z2
error
self.W1 += X.T.dot(self.z2_delta) # adjusting first set (input --> hidden) weights
self.W2 += self.z2.T.dot(self.o_delta) # adjusting second set (hidden --> output) weights

def train (self, X, y):

o = self.forward(X)
self.backward(X, y, o)
NN = Neural_Network()
for i in range(1000): # trains the NN 1,000 times
print ("\nInput: \n" + str(X))
print ("\nActual Output: \n" + str(y))
print ("\nPredicted Output: \n" + str(NN.forward(X)))
print ("\nLoss: \n" + str(np.mean(np.square(y - NN.forward(X))))) # mean sum squared loss)
NN.train(X, y)
output:
