KONE Signalisation System (KSS)

Maintenance Instruction

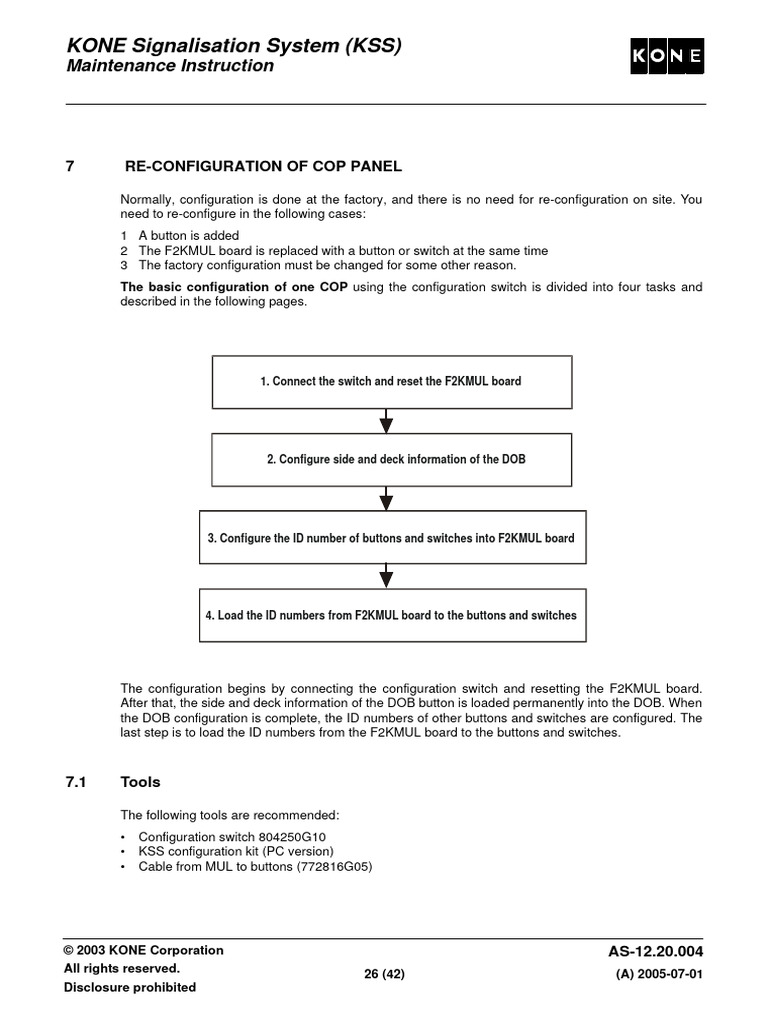

7 RE-CONFIGURATION OF COP PANEL

Normally, configuration is done at the factory, and there is no need for re-configuration on site. You
need to re-configure in the following cases:
1 A button is added
2 The F2KMUL board is replaced with a button or switch at the same time
3 The factory configuration must be changed for some other reason.
The basic configuration of one COP using the configuration switch is divided into four tasks and
described in the following pages.

1. Connect the switch and reset the F2KMUL board

2. Configure side and deck information of the DOB

3. Configure the ID number of buttons and switches into F2KMUL board

4. Load the ID numbers from F2KMUL board to the buttons and switches

The configuration begins by connecting the configuration switch and resetting the F2KMUL board.
After that, the side and deck information of the DOB button is loaded permanently into the DOB. When
the DOB configuration is complete, the ID numbers of other buttons and switches are configured. The
last step is to load the ID numbers from the F2KMUL board to the buttons and switches.

7.1 Tools

The following tools are recommended:

• Configuration switch 804250G10
• KSS configuration kit (PC version)
• Cable from MUL to buttons (772816G05)

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 26 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

7.2 Safety

Follow the KONE and local safety regulations.

7.3 Connecting switch and reset of multi-board

Step 1
A B Connect C
Turn RDF ON Configuration Turn power ON
and power OFF Switch

Turn
configuration and COP display
switch ON shows

D OFF
FC
Clear F2KMUL ON
board memory

1026802.wmf

Step Action Note

A Drive the elevator to a suitable floor (the
same floor as MAP or the floor closest to
machine room). Turn RDF ON from the
MAP or control panel, and switch the power
OFF.
B Connect the configuration switch (1) to an
empty plug on the communication line (2). 2
(Communication line is connected to the
connector J6 on the multiboard.) J6

C Switch the power ON.

1029225.wmf

D Clear the memory of the F2KMUL board by The characters “FC” (Floor Configuration)
turning the configuration switch ON. appear on the COP display.

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 27 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

7.4 Updating door open button (DOB) information

The Door Open Button (DOB) is used for configuring the F2KMUL board configuration table. The DOB
ID number is always same (113) and it is permanently programmed in the button. In the step two the
DOB button side and deck information are configured as following.

Step Action Illustration/Note

E Configure the door open button (DOB) by Note! With the older software versions also
pressing it continuously until the characters the “Overload” text (with “dd”) appears on
“dd” appear on the COP display. the display.
• Release the DOB, and the COP display
shows the characters “01”.
F Select the correct side and deck value by See Appendix 1 for deck and side values.
pressing the DOB shortly until the correct (Deck 1= car, side = car wall)
value appears on the display. Example: Car with door on A-wall, value is
If you have the door only on a A-wall you “01”. Door on rear wall (C-wall) value is “02”.
can store the value “01”.
G Store the ID value by pressing the DOB
continuously until you hear a buzzer signal.

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 28 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

7.5 Configuring ID numbers for buttons and switches

This section describes configurations for the ID numbers of the buttons and keys into the F2KMUL
board (See appendix 3 “ID Codes”).

Step 3
Turn configuration COP display COP display
ID-numbers shows
switch shows
Press DOB
H Turn conf. OFF and ON
FC (short press) 01
OFF OFF
Switch OFF ON ON

and ON

and COP buzzer

gives “beep” signal

All ID-numbers are set

Set COP display

Shows correct Display Value
value 0...99 >100 >200
Press DOB
I as many times as 01
ID -number

Press DOB and COP buzzer

for 2 seconds gives “beep” signal
J
Store
ID -number

COP display
configuration shows
K switch OFF
--
Turn conf. OFF
switch OFF ON

and COP buzzer

gives “beep” signal

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 29 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction
Step Action
H Turn the configuration switch OFF and ON.
The COP display shows characters FC
(Floor Configuration).
Then press the DOB shortly, and the COP
display shows the Side/deck value”01”.
I Select the correct side/deck value:
push the DOB as many times as needed till
the correct value is displayed.
(See Appendix 1 for deck and side values.)
When entering ID codes the elevator layout
must be known (for example possible
dummy floors).
When the ID is 01-99, arrow is not activated
on COP display.
When the ID is 100 - 199, the “UP” arrow on
the COP display will be activated and the
display restarts from 0.
When the ID is 200 - 255, the “centre field”
(diamond) of “UP” arrow will be activated
and the number on the COP display restarts
from 0.
J Store the ID number:
Push the DOB for 2 seconds, the buzzer
beeps when the code has stored.
Repeat the steps I-J to store the ID numbers
for all needed components one by one.
K Turn the configuration switch OFF.
© 2003 KONE Corporation
All rights reserved. 30 (42)
Disclosure prohibited
Illustration/Note
When entering ID codes the elevator layout
must be known (For example possible
dummy floors, see appendix 2)
NOTE! Note! The LCD display with a new
software version shows the “Display
Value” directly as numbers. (For
example: OSS key switch = 217).
NOTE! These indications are valid for 7-
segment display after rev. 2.0.
Before that the correct indications
are shown in document 827328.
The number on the COP
display restarts from 0.
1029221.wmf
The number on the COP
display restarts from 0.
1029223.wmf
NOTE! There is no reverse, if you
accidentally push too many times.
You have to start from the beginning:
A. Start from the step D again switching
configuration switch OFF and ON!
B. or push over ID 255 to return ID 01.
The side/deck value is programmed into the
DOB.
COP display shows “- -”.
AS-12.20.004
(A) 2005-07-01
KONE Signalisation System (KSS)
Maintenance Instruction

7.6 Loading ID numbers for the buttons and switches

This section describes how to load ID numbers for the buttons and switches.

Step 4

COP display Press button or

turn switch gives “beep” signal
Start from
L lowest --
1
Load ID numbers ID number
for buttons and
switches

No
All ID numbers
are loaded

Yes

M
Switch the
power OFF

N Remove O P
Turn RDF OFF Verify the
configuration
operation
switch

Step Action Illustration/Note

L Load the ID numbers by pressing the button
or turning the switch continuously until you
hear a buzzer signal.
• Start from the lowest ID number
• Repeat step L until all ID numbers are
loaded.
M When you have loaded all ID numbers,
switch the power OFF.
N Remove configuration switch
O Turn RDF OFF
P Verify the operation by pressing all the
buttons and switches.

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 31 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

7.7 Re-configuration of F2KMUL board when Through Type Car (TTC)

The elevator with two entrances can have one COP or two COPs in the car. Therefore different
versions of F2KMUL are needed (G01 and G02).
In case of both communication lines (A-side, plug J6 and B-side, plug J8) are used in the F2KMUL
board, then both configurations must be done separately in plug J6.
The B-side must be configured first.

1. Connect the switch and reset the B-side configuration table (F2KMUL)

2. Replace communication line plug temporarily (Disconnect A-side flat cable

from plug J6 and connect B-side flat cable to plug J6 on F2KMUL board)

3. Configure side and deck information of the B-side DOB

4. Configure B-side ID numbers of buttons and switches into F2KMUL board

5. Load the B-side ID numbers from F2KMUL board to the B-side

buttons and switches

6. Connect communication line back to original positions (A-side flat cable

to plug J6 and B-side flat cable to plug J8 on F2KMUL board)

7. Configure A-side as earlier described

Step Action Illustration /Note

1 Switch the power OFF.

Disconnect the A-side communication line

from the connector J6. J6
Connect the configuration switch to the
empty plug into B-side communication line J8
connected to the J8.

Switch the power ON.

Turn the configuration switch to the position

ON. (Reset B-side buttons and switches)

A-side A

B-side
1029230.wmf

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 32 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

Step Action Illustration /Note

2 Switch the power OFF.

Change the B-side communication line from

the connector J8 to the connector J6. J6

J8

A
A-side
B-side
1029232.wmf

3 Update the door open button (DOB)

information on B-side COP.(section 7.4 on
page 28)
4 Configure ID numbers of buttons and
switches on B-side COP. (section 7.5 on
page 29)
5 Load ID numbers for the buttons and
switches on B-side COP. (section 7.6 on
page 31)
6 Connect the communication lone into
original connectors. (B-side to the J8 and A-
side to the connector J6)
7 Re-configurate A-side buttons and switches.
(According to sections 7.3, 7.4, 7.5, 7.6)

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 33 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

7.7.1 TTC explanation

Through Type Car (TTC) and nonselective door control

• TTC DON = Shaft doors on different levels, two COP panels, nonselective door control
• TTC DTN = Shaft doors on different levels, one COP panel, nonselective door control
• TTC CON = At least one common level, one COP panel, nonselective door control
• TTC CTN = At least one common level, two COP panels, nonselective door control

TTC DON, TTC DTN TTC CON TTC CTN Button bus connection to F2KMUL
bord 772850G02
(One button bus)

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 34 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

Through Type Car (TTC) and selective door control

• TTC CTF= At least one common level, two COP panels, selective door control
• TTC CTS = At least one common level, two COP panels selective door control

TTC CTF, TTC CTS Button bus connection to F2KMUL board

772850G01 (Two button buses)

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 35 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

8 APPENDIX 1: DOOR SIDE/DOUBLE DECKER VALUES

Door side = car wall C For example C = rear wall

D B

A 1015082.wmf

Deck = car; Normal elevators 1 deck (Car), double decker 2 decks (Cars)
Bold = normally needed values

Deck Side (A) Side (B) Side (C) Side (D)

1 01 03 02 04
2 (Upper car of 05 07 06 08
double decker)

9 APPENDIX 2: COP CONFIGURATION EXAMPLE FOR XXX ELEVATOR

Car call pressels ID codes

0 1
1 2
2 3
3 4
4 5
Dummy floor -
6 7
7 8
8 9
9 10
10 11

DOB 113
DCB 114
OSS Key switch 217
PRC Key switch 219

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 36 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

10 APPENDIX 3: ID CODES

Buttons (Source data 817922)

BPI ID Input Output Signal BPI ID Input Signal Output Signal
Msg Signal Name Msg Name Name
Byte Name Byte
msb 1 Car call 1 Call indication 1 4 25 Car call 25 Call indication 25
1 2 Car call 2 Call indication 2 26 Car call 26 Call indication 26
lsb 3 Car call 3 Call indication 3 27 Car call 27 Call indication 27
4 Car call 4 Call indication 4 28 Car call 28 Call indication 28
5 Car call 5 Call indication 5 29 Car call 29 Call indication 29
6 Car call 6 Call indication 6 30 Car call 30 Call indication 30
7 Car call 7 Call indication 7 31 Car call 31 Call indication 31
8 Car call 8 Call indication 8 32 Car call 32 Call indication 32
2 9 Car call 9 Call indication 9 5 33 Car call 33 Call indication 33
10 Car call 10 Call indication 10 34 Car call 34 Call indication 34
11 Car call 11 Call indication 11 35 Car call 35 Call indication 35
12 Car call 12 Call indication 12 36 Car call 36 Call indication 36
13 Car call 13 Call indication 13 37 Car call 37 Call indication 37
14 Car call 14 Call indication 14 38 Car call 38 Call indication 38
15 Car call 15 Call indication 15 39 Car call 39 Call indication 39
16 Car call 16 Call indication 16 40 Car call 40 Call indication 40
3 17 Car call 17 Call indication 17 6 41 Car call 41 Call indication 41
18 Car call 18 Call indication 18 42 Car call 42 Call indication 42
19 Car call 19 Call indication 19 43 Car call 43 Call indication 43
20 Car call 20 Call indication 20 44 Car call 44 Call indication 44
21 Car call 21 Call indication 21 45 Car call 45 Call indication 45
22 Car call 22 Call indication 22 46 Car call 46 Call indication 46
23 Car call 23 Call indication 23 47 Car call 47 Call indication 47
24 Car call 24 Call indication 24 48 Car call 48 Call indication 48

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 37 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

BPI ID Input Output Signal BPI ID Input Signal Output Signal

Msg Signal Name Msg Name Name
Byte Name Byte
7 49 Car call 49 Call indication 49 11 85 Reserved Reserved
50 Car call 50 Call indication 50 86 Reserved Reserved
51 Car call 51 Call indication 51 87 Reserved Reserved
52 Car call 52 Call indication 52 88 Reserved Reserved
53 Car call 53 Call indication 53 12 89 Reserved C. Reserved
54 Car call 54 Call indication 54 proc. button
55 Car call 55 Call indication 55 90 Reserved C. Reserved
56 Car call 56 Call indication 56 proc. button
8 57 Car call 57 Call indication 57 91 Reserved C. Reserved
58 Car call 58 Call indication 58 proc. button
59 Car call 59 Call indication 59 92 Reserved C. Reserved
60 Car call 60 Call indication 60 proc. button
61 Car call 61 Call indication 61 93 Reserved C. Reserved
62 Car call 62 Call indication 62 proc. button
63 Car call 63 Call indication 63 94 Reserved C. Reserved
64 Configuration proc. button
9 65 Reserved FRD indication 95 Reserved C. Reserved
(NA) proc. button
66 Reserved MES indication 96 Reserved C. Reserved
(NA) proc. button
67 Reserved Reserved 13 97 Reserved Reserved C.
68 Reserved Reserved proc. button
69 Reserved Reserved 98 Reserved Reserved C.
70 Reserved Reserved proc. button
71 Reserved Reserved 99 Reserved Reserved C.
72 Reserved Reserved proc. button
10 73 Reserved Reserved 100 Reserved Reserved C.
74 Reserved Reserved proc. button
75 Reserved Reserved 101 Reserved Reserved C.
76 Reserved Reserved proc. button
77 Reserved Reserved 102 Reserved Reserved C.
78 Reserved Reserved proc. button
79 Reserved Reserved 103 Reserved Reserved C.
80 Reserved Reserved proc. button
11 81 81 Reserved 104 Reserved Reserved C.
82 82 Reserved proc. button
83 83 Reserved
84 84 Reserved

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 38 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

BPI ID Input Output Signal BPI ID Input Signal Output Signal

Msg Signal Name Msg Name Name
Byte Name Byte
14 105 Reserved Reserved 15 118 Call Cancel Cancel Indicator
106 Reserved Reserved 119 HAN B Button HAN B Indicator
107 Reserved Reserved 120 Attendant Up Attendant Up
Button Indication
108 Reserved Reserved 16 121 Attendant Attendant Down
109 Reserved Reserved Down Button Indication
110 Reserved Reserved 122 Attendant Attendant Bypass
111 Reserved Reserved Bypass Button Indication
112 Reserved Reserved 123 Reserved Reserved
15 113 Door open Open Indication 124 Reserved Reserved
114 Door closed Closed Indication 125 Reserved Reserved
115 Open Open Ext. 126 Reserved Reserved
extension Indicator 127 Reserved Reserved
116 Fan button Fan Indicator 128 Reserved Reserved
117 Menu Button Menu Indicator 128 Reserved Reserved

Switches
BPI ID Input Output Signal BPI ID Input Signal Output Signal
Msg Signal Name Msg Name Name
Byte Name Byte
msb 129 Call lock 1 Lock Indicator 1 19 149 Call lock 21 Lock Indicator 21
17 130 Call lock 2 Lock Indicator 2 150 Call lock 22 Lock Indicator 22
lsb 131 Call lock 3 Lock Indicator 3 151 Call lock 23 Lock Indicator 23
132 Call lock 4 Lock Indicator 4 152 Call lock 24 Lock Indicator 24
133 Call lock 5 Lock Indicator 5 20 153 Call lock 25 Lock Indicator 25
134 Call lock 6 Lock Indicator 6 154 Call lock 26 Lock Indicator 26
135 Call lock 7 Lock Indicator 7 155 Call lock 27 Lock Indicator 27
136 Call lock 8 Lock Indicator 8 156 Call lock 28 Lock Indicator 28
18 137 Call lock 9 Lock Indicator 9 157 Call lock 29 Lock Indicator 29
138 Call lock 10 Lock Indicator 10 158 Call lock 30 Lock Indicator 30
139 Call lock 11 Lock Indicator 11 159 Call lock 31 Lock Indicator 31
140 Call lock 12 Lock Indicator 12 160 Call lock 32 Lock Indicator 32
141 Call lock 13 Lock Indicator 13 21 161 Call lock 33 Lock Indicator 33
142 Call lock 14 Lock Indicator 14 162 Call lock 34 Lock Indicator 34
143 Call lock 15 Lock Indicator 15 163 Call lock 35 Lock Indicator 35
144 Call lock 16 Lock Indicator 16 164 Call lock 36 Lock Indicator 36
19 145 Call lock 17 Lock Indicator 17 165 Call lock 37 Lock Indicator 37
146 Call lock 18 Lock Indicator 18 166 Call lock 38 Lock Indicator 38
147 Call lock 19 Lock Indicator 19 167 Call lock 39 Lock Indicator 39
148 Call lock 20 Lock Indicator 20 168 Call lock 40 Lock Indicator 40

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 39 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

BPI ID Input Output Signal BPI ID Input Signal Output Signal

Msg Signal Name Msg Name Name
Byte Name Byte
22 169 Call lock 41 Lock Indicator 41 26 201 Reserved C Reserved
170 Call lock 42 Lock Indicator 42 proc. switch
171 Call lock 43 Lock Indicator 43 202 Reserved C Reserved
172 Call lock 44 Lock Indicator 44 proc. switch
173 Call lock 45 Lock Indicator 45 203 Reserved C Reserved
174 Call lock 46 Lock Indicator 46 proc. switch
175 Call lock 47 Lock Indicator 47 204 Reserved C Reserved
176 Call lock 48 Lock Indicator 48 proc. switch
23 177 Call lock 49 Lock Indicator 49 205 Reserved C Reserved
178 Call lock 50 Lock Indicator 50 proc. switch
179 Call lock 51 Lock Indicator 51 206 Reserved C Reserved
180 Call lock 52 Lock Indicator 52 proc. switch
181 Call lock 53 Lock Indicator 53 207 Reserved C Reserved
182 Call lock 54 Lock Indicator 54 proc. switch
183 Call lock 55 Lock Indicator 55 208 Reserved C Reserved
184 Call lock 56 Lock Indicator 56 proc. switch
24 185 Call lock 57 Lock Indicator 57 27 209 Fire fighter Reserved
buzzer
186 Call lock 58 Lock Indicator 58 210 FRD Switch 2 Reserved
187 Call lock 59 Lock Indicator 59 211 Reserved LAC Arrow Up
188 Call lock 60 Lock Indicator 60 212 Reserved LAC Arrow Up
189 Call lock 61 Lock Indicator 61 213 OCL Remote Reserved
190 Call lock 62 Lock Indicator 62 214 OCV Remote Reserved
191 Call lock 63 Lock Indicator 63 215 MES Switch 1 Reserved
192 Service Service Indicator 216 MES Switch 2 Reserved
switch
25 193 LOC G Reserved 28 217 OSS Remote Reserved
Group 1
194 LOC G Reserved 218 OSS Switch Reserved
Group 2
195 Reserved Reserved 219 PRC Remote Reserved
Group Lock 3
196 Reserved Reserved 220 PRC Switch Reserved
Group Lock 4
197 Reserved Reserved 221 HEL Switch1 Reserved
Group Lock 5
198 Reserved Reserved 222 HEL Switch2 Reserved
Group Lock 6
199 Reserved Reserved 223 ATS-C Reserved
Group Lock 7 Switch1
200 Reserved Reserved 224 ATS-C Reserved
Group Lock 8 Switch2

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 40 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

BPI ID Input Output Signal BPI ID Input Signal Output Signal

Msg Signal Name Msg Name Name
Byte Name Byte
29 225 OCL AT Reserved 30 233 Reserved ATS Up Arrow
226 OCL AT Reserved 234 Reserved ATS Down Arrow
227 Fan Switch1 Reserved 235 General Lock Reserved
Switch
228 Fan Switch2 Reserved 236 IAC Override Reserved
Switch
229 FSC Switch1 Reserved 237 OLV Switch1 Reserved
230 FSC Switch2 Reserved 238 OLV Switch2 Reserved
231 Menu Switch Reserved 239 Reserved Reserved
232 ATS Switch Reserved 240 Reserved Reserved

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 41 (42) (A) 2005-07-01
Disclosure prohibited
KONE Signalisation System (KSS)
Maintenance Instruction

11 APPROVALS AND VERSION HISTORY

Compiled by: Technical Editor Seppo Starck

Checked by: Life Cycle Manager Matti Kujala
Life Cycle Manager Paolo Airaghi
Life Cycle Manager John Wyeth
SEB Maintainability Manager Seppo Vallivuo
Approved by: SEB LCM Team Michael Williams

Issue Date Description of change Ref CR Approved by

- 2004-06-22 First issue. Michael Williams
A 2005-07-01 Configuration instruction rewritten. Michael Williams

© 2003 KONE Corporation AS-12.20.004

All rights reserved. 42 (42) (A) 2005-07-01
Disclosure prohibited
