ENGINEERING CLIENT Doc. No. : PE-D-VA11/422.

001-ME-DAS-006-D3-E
COMPANY Rev. No. : D3
PROJECT. NO. 945-VA11/422.001 Date: 22/08/2013
CONTRCT.NO.
DISCIPLINE MECHANICAL

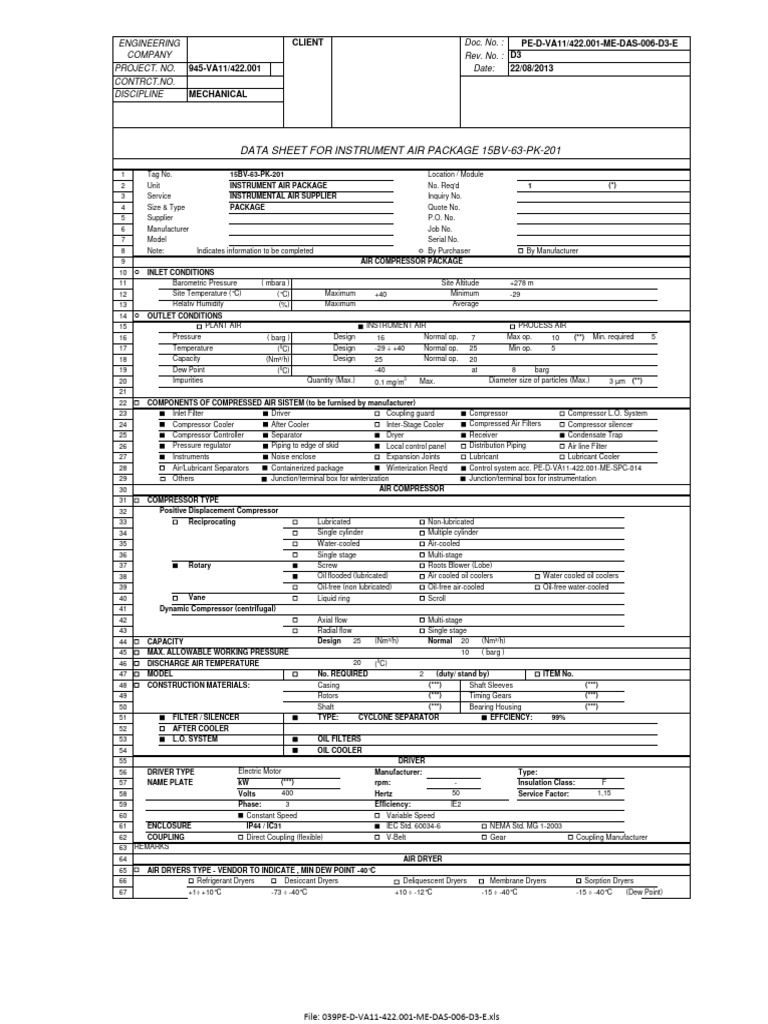

DATA SHEET FOR INSTRUMENT AIR PACKAGE 15BV-63-PK-201

1 Tag No. 15BV-63-PK-201 Location / Module

2 Unit INSTRUMENT AIR PACKAGE No. Req'd 1 (*)
3 Service INSTRUMENTAL AIR SUPPLIER Inquiry No.
4 Size & Type PACKAGE Quote No.
5 Supplier P.O. No.
6 Manufacturer Job No.
7 Model Serial No.
8 Note: Indicates information to be completed By Purchaser By Manufacturer
9 AIR COMPRESSOR PACKAGE
10 INLET CONDITIONS
11 Barometric Pressure ( mbara ) Site Altitude +278 m
12 Site Temperature (°C) (°C) Maximum +40 Minimum -29
13 Relativ Humidity (%) Maximum Average
14 OUTLET CONDITIONS
15 PLANT AIR INSTRUMENT AIR PROCESS AIR
16 Pressure ( barg ) Design 16 Normal op. 7 Max op. 10 (**) Min. required 5
17 Temperature (0C) Design -29 ÷ +40 Normal op. 25 Min op. 5
18 Capacity (Nm³/h) Design 25 Normal op. 20
19 Dew Point (0C) -40 at 8 barg
20 Impurities Quantity (Max.) 0.1 mg/m3 Max. Diameter size of particles (Max.) 3 µm (**)
21
22 COMPONENTS OF COMPRESSED AIR SISTEM (to be furnised by manufacturer)
23 Inlet Filter Driver Coupling guard Compressor Compressor L.O. System
24 Compressor Cooler After Cooler Inter-Stage Cooler Compressed Air Filters Compressor silencer
25 Compressor Controller Separator Dryer Receiver Condensate Trap
26 Pressure regulator Piping to edge of skid Local control panel Distribution Piping Air line Filter
27 Instruments Noise enclose Expansion Joints Lubricant Lubricant Cooler
28 Air/Lubricant Separators Containerized package Winterization Req'd Control system acc. PE-D-VA11-422.001-ME-SPC-014
29 Others Junction/terminal box for winterization Junction/terminal box for instrumentation
30 AIR COMPRESSOR
31 COMPRESSOR TYPE
32 Positive Displacement Compressor
33 Reciprocating Lubricated Non-lubricated
34 Single cylinder Multiple cylinder
35 Water-cooled Air-cooled
36 Single stage Multi-stage
37 Rotary Screw Roots Blower (Lobe)
38 Oil flooded (lubricated) Air cooled oil coolers Water cooled oil coolers
39 Oil-free (non lubricated) Oil-free air-cooled Oil-free water-cooled
40 Vane Liquid ring Scroll
41 Dynamic Compressor (centrifugal)
42 Axial flow Multi-stage
43 Radial flow Single stage
44 CAPACITY Design 25 (Nm³/h) Normal 20 (Nm³/h)
45 MAX. ALLOWABLE WORKING PRESSURE 10 ( barg )
46 DISCHARGE AIR TEMPERATURE 20 (0C)
47 MODEL No. REQUIRED 2 (duty/ stand by) ITEM No.
48 CONSTRUCTION MATERIALS: Casing (***) Shaft Sleeves (***)
49 Rotors (***) Timing Gears (***)
50 Shaft (***) Bearing Housing (***)
51 FILTER / SILENCER TYPE: CYCLONE SEPARATOR EFFCIENCY: 99%
52 AFTER COOLER
53 L.O. SYSTEM OIL FILTERS
54 OIL COOLER
55 DRIVER
56 DRIVER TYPE Electric Motor Manufacturer: Type:
57 NAME PLATE kW (***) rpm: - Insulation Class: F
58 Volts 400 Hertz 50 Service Factor: 1,15
59 Phase: 3 Efficiency: IE2
60 Constant Speed Variable Speed
61 ENCLOSURE IP44 / IC31 IEC Std. 60034-6 NEMA Std. MG 1-2003
62 COUPLING Direct Coupling (flexible) V-Belt Gear Coupling Manufacturer
63 REMARKS
64 AIR DRYER
65 AIR DRYERS TYPE - VENDOR TO INDICATE , MIN DEW POINT -40°C
66 Refrigerant Dryers Desiccant Dryers Deliquescent Dryers Membrane Dryers Sorption Dryers
67 +1÷ +10°C -73 ÷ -40°C +10 ÷ -12°C -15 ÷ -40°C -15 ÷ -40°C (Dew Point)

File: 039PE‐D‐VA11‐422.001‐ME‐DAS‐006‐D3‐E.xls
 ENGINEERING CLIENT Doc. No. : PE-D-VA11/422.001-ME-DAS-006-D3-E
COMPANY Rev. No. : D3
PROJECT. NO. 945-VA11/422.001 Date: 22/08/2013
CONTRCT.NO.
DISCIPLINE MECHANICAL

DATA SHEET FOR INSTRUMENT AIR PACKAGE 15BV-63-PK-201

68 NUMBER REQUIRED 2 ITEM No.
69 INLET FLOW 20 (Nm3/h) INLET TEMP. (***) (oC)
70 MAXIMUM ΔP 0,2 (barg) ACTUAL ΔP 0,1 (oC)
77 RECEIVER VESSEL (BUFFER)
78 CAPACITY Minimum 1,00 ( m3 ) (***)
79 TYPE Horizontal Vertical
80 SIZE (***) ( mm ) (***) ( mm )
81 PRESSURE Operating 7 ( barg ) Design 16 ( barg )
82 RELIEF / SAFETY VALVE Set pressure 10 ( barg )
83 DRAIN VALVE Automatic Manual
84 DESIGN CODE SR EN 13445
85 OTHER REQUIREMENTS
86 EX ELECTRICAL AREA CLASSIFICATION NO Zone - Group - Temp. Class -
87 NAMEPLATE MATERIAL : STAINLESS STEEL
88 SURFACE PREPARATION AND PAINTING SR EN ISO 8501 SR EN ISO 12944 VENDORS STD. SPECIAL SYSTEM
89 TESTING OPERATING TEST
90 PREPARATION FOR SHIPMENT DOMESTIC EXPORT
91 VENDOR'S DOCUMENTS REQUIRED
92 SPARE PARTS COMMISSIONING START UP 2 YEAR (OP. )
93 ALLOWABLE NOISE LEVEL 85dBA @ 1 m
94 PIPING MATERIALS : STAINLESS STEEL
95 SPECIAL TOOLS
96 INTERFACE COMUNICATION: RS485
97 SIGNALS ONE SIGNAL / SKID: DEW POINT FLOW PRESSURE
98 TO PCS: ONE SIGNAL / EACH COMPRESSOR: RUNNING / STOPED FAULT
99 REMARKS
100 (*) One buffer air receiver vessel shall be provided common for the two (2x100%) packages, in accordance with EP FA IN 01 PH
101 (**) The requirements for the instrument air are in accordance with EN 60654 and with EP FA IN 01 PH
102 (***) To be filled in by Vendor
103 Philosophies and Standards OMV Petrom.
104 RO-EP-FE-IN-PHL-001-01-E - Philosophy for Control and Instrumentation in packaged units.
105 EP-FA-IN-01-PH -Philosophy for Instrumentation and Instrument Air.
106 PE-D-IN-STD-001-01-E-Standard for Instrumentation cables
The module instrumental air control system shall send to the process control system (PCS), the following information:
‐ high water dew point alarm;
‐ state of module 1 (running/stopped);
‐ fault alarm for module 1;
107 ‐ state of module 2 (running/stopped);
‐ fault alarm for module 2;
‐ air instrumental pressure;
‐ air flow indication.
This information shall be send throught RS485 serial communication to the PCS system.
The battery limits for the scope of supply are:
∙Ambient air intake ‐ air intake filter outside container wall;
∙Instrument air outlet: Flanged connection outside container Dn50, Pn16;
∙Electrical : Electrical control panel of the container
108
∙Drainage: flanged connection outside container, Dn50, Pn16;
∙Instrumentation: junction box in C&I cabinet.
‐Electrical heating: juction box
‐ Two connections for plant earthing

File: 039PE‐D‐VA11‐422.001‐ME‐DAS‐006‐D3‐E.xls
