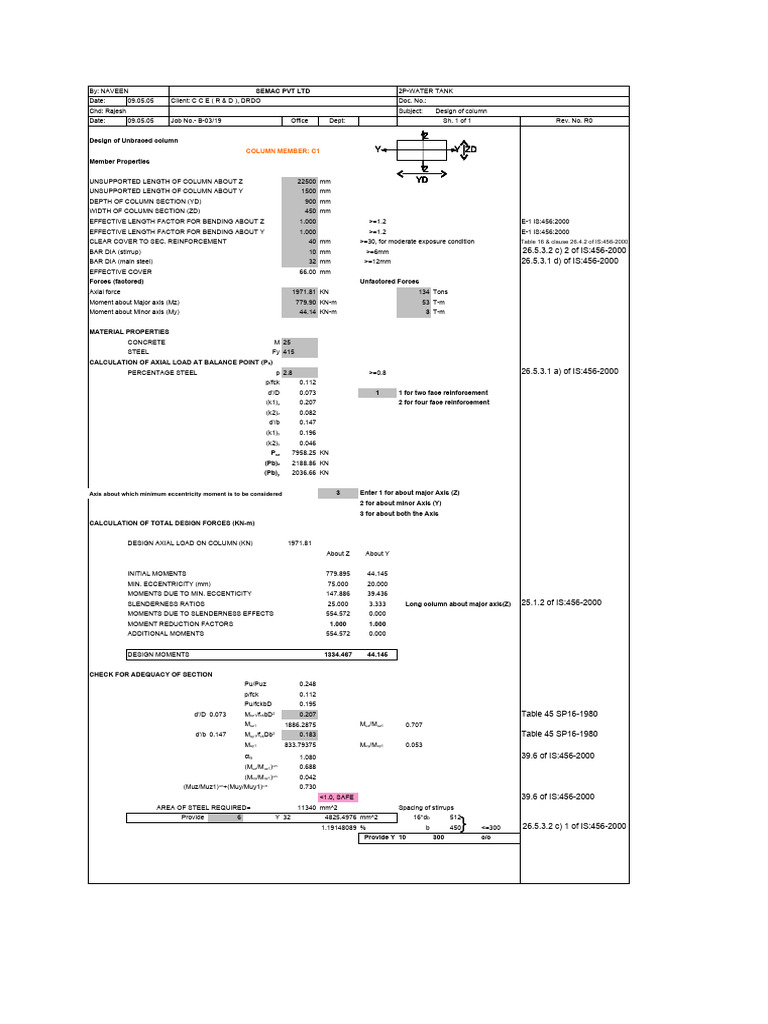

By: NAVEEN SEMAC PVT LTD 2P-WATER TANK

Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:

Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 22500 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 1500 mm
DEPTH OF COLUMN SECTION (YD) 900 mm
WIDTH OF COLUMN SECTION (ZD) 450 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 10 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 66.00 mm
Forces (factored) Unfactored Forces
Axial force 1971.81 KN 134 Tons
Moment about Major axis (Mz) 779.90 KN-m 53 T-m
Moment about Minor axis (My) 44.14 KN-m 3 T-m

MATERIAL PROPERTIES
CONCRETE M 25
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 2.8 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.112
d'/D 0.073 1 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.082
d'/b 0.147
(k1)y 0.196
(k2)y 0.046
Puz 7958.25 KN
(Pb)z 2188.86 KN
(Pb)y 2036.66 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 1971.81

About Z About Y

INITIAL MOMENTS 779.895 44.145

MIN. ECCENTRICITY (mm) 75.000 20.000
MOMENTS DUE TO MIN. ECCENTICITY 147.886 39.436
SLENDERNESS RATIOS 25.000 3.333 Long column about major axis(Z) 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 554.572 0.000
MOMENT REDUCTION FACTORS 1.000 1.000
ADDITIONAL MOMENTS 554.572 0.000

DESIGN MOMENTS 1334.467 44.145

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.248
p/fck 0.112
Pu/fckbD 0.195
d'/D 0.073 Muz1/fckbD 2
0.207 Table 45 SP16-1980
Muz1 1886.2875 Muz/Muz1 0.707
d'/b 0.147 Muy1/fckDb2 0.183 Table 45 SP16-1980
Muy1 833.79375 Muy/Muy1 0.053
an 1.080 39.6 of IS:456-2000
(Muz/Muz1)an 0.688
an
(Muy/Muy1) 0.042
(Muz/Muz1)an+(Muy/Muy1)an 0.730
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 11340 mm^2 Spacing of stirrups
Provide 6 Y 32 4825.4976 mm^2 16*db 512
1.19148089 % b 450 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 10 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 22500 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4200 mm
DEPTH OF COLUMN SECTION (YD) 900 mm
WIDTH OF COLUMN SECTION (ZD) 450 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 10 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 66.00 mm
Forces (factored) Unfactored Forces
Axial force 1751.09 KN 119 Tons
Moment about Major axis (Mz) 0.00 KN-m 0 T-m
Moment about Minor axis (My) 353.16 KN-m 24 T-m

MATERIAL PROPERTIES
CONCRETE M 25
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 2.8 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.112
d'/D 0.073 1 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.082
d'/b 0.147
(k1)y 0.196
(k2)y 0.046
Puz 7958.25 KN
(Pb)z 2188.86 KN
(Pb)y 2036.66 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 1751.09

About Z About Y

INITIAL MOMENTS 0.000 353.160

MIN. ECCENTRICITY (mm) 75.000 23.400
MOMENTS DUE TO MIN. ECCENTICITY 131.331 40.975
SLENDERNESS RATIOS 25.000 9.333 Long column about major axis(Z) 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 492.493 0.000
MOMENT REDUCTION FACTORS 1.000 1.000
ADDITIONAL MOMENTS 492.493 0.000

DESIGN MOMENTS 623.824 353.160

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.220
p/fck 0.112
Pu/fckbD 0.173
d'/D 0.073 Muz1/fckbD 2
0.208 Table 45 SP16-1980
Muz1 1895.4 Muz/Muz1 0.329
d'/b 0.147 Muy1/fckDb2 0.185 Table 45 SP16-1980
Muy1 842.90625 Muy/Muy1 0.419
an 1.033 39.6 of IS:456-2000
(Muz/Muz1)an 0.317
an
(Muy/Muy1) 0.407
(Muz/Muz1)an+(Muy/Muy1)an 0.724
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 11340 mm^2 Spacing of stirrups
Provide 6 Y 32 4825.4976 mm^2 16*db 512
1.19148089 % b 450 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 10 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 22500 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4200 mm
DEPTH OF COLUMN SECTION (YD) 900 mm
WIDTH OF COLUMN SECTION (ZD) 450 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 10 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 66.00 mm
Forces (factored) Unfactored Forces
Axial force 2943.00 KN 200 Tons
Moment about Major axis (Mz) 573.89 KN-m 39 T-m
Moment about Minor axis (My) 147.15 KN-m 10 T-m

MATERIAL PROPERTIES
CONCRETE M 25
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 2.7 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.108
d'/D 0.073 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.147
(k1)y 0.196
(k2)y 0.203
Puz 7836.75 KN
(Pb)z 2454.54 KN
(Pb)y 2206.48 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 2943.00

About Z About Y

INITIAL MOMENTS 573.885 147.150

MIN. ECCENTRICITY (mm) 75.000 23.400
MOMENTS DUE TO MIN. ECCENTICITY 220.725 68.866
SLENDERNESS RATIOS 25.000 9.333 Long column about major axis(Z) 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 827.719 0.000
MOMENT REDUCTION FACTORS 0.909 0.869
ADDITIONAL MOMENTS 752.600 0.000

DESIGN MOMENTS 1326.485 147.150

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.376
p/fck 0.108
Pu/fckbD 0.291
d'/D 0.073 Muz1/fckbD 2
0.185 Table 45 SP16-1980
Muz1 1685.8125 Muz/Muz1 0.787
d'/b 0.147 Muy1/fckDb2 0.165 Table 45 SP16-1980
Muy1 751.78125 Muy/Muy1 0.196
an 1.293 39.6 of IS:456-2000
(Muz/Muz1)an 0.734
an
(Muy/Muy1) 0.121
(Muz/Muz1)an+(Muy/Muy1)an 0.855
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 10935 mm^2 Spacing of stirrups
Provide 6 Y 32 4825.4976 mm^2 16*db 512
1.19148089 % b 450 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 10 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 2900 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 5250 mm
DEPTH OF COLUMN SECTION (YD) 350 mm
WIDTH OF COLUMN SECTION (ZD) 500 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.200 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.200 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 25 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 60.50 mm
Forces (factored) Unfactored Forces
Axial force 1496.10 KN 99.74 Tons
Moment about Major axis (Mz) 139.80 KN-m 9.32 T-m
Moment about Minor axis (My) 13.20 KN-m 0.88 T-m

MATERIAL PROPERTIES
CONCRETE M 30
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 2.5 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.083
d'/D 0.173 2 1 for two face reinforcement
(k1)z 0.184 2 for four face reinforcement
(k2)z 0.028
d'/b 0.121
(k1)y 0.196
(k2)y 0.203
Puz 3665.16 KN
(Pb)z 978.25 KN
(Pb)y 1117.81 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 1496.10

About Z About Y

INITIAL MOMENTS 139.800 13.200

MIN. ECCENTRICITY (mm) 20.000 27.167
MOMENTS DUE TO MIN. ECCENTICITY 29.922 40.644
SLENDERNESS RATIOS 9.943 12.600 Long column about minor axis(Y) 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 59.380
MOMENT REDUCTION FACTORS 0.807 0.851
ADDITIONAL MOMENTS 0.000 50.562

DESIGN MOMENTS 139.800 91.206

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.408
p/fck 0.083
Pu/fckbD 0.285
d'/D 0.173 Muz1/fckbD 2
0.11 Table 45 SP16-1980
Muz1 202.125 Muz/Muz1 0.692
d'/b 0.121 Muy1/fckDb2 0.11 Table 45 SP16-1980
Muy1 288.75 Muy/Muy1 0.316
an 1.347 39.6 of IS:456-2000
(Muz/Muz1)an 0.609
an
(Muy/Muy1) 0.212
(Muz/Muz1)an+(Muy/Muy1)an 0.820
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 4375 mm^2 Spacing of stirrups
Provide 4 Y 25 1963.5 mm^2 16*db 400
1.122 % b 500 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 7239.78 KN 492 Tons
Moment about Major axis (Mz) 40.47 KN-m 2.75 T-m
Moment about Minor axis (My) 154.51 KN-m 10.5 T-m

MATERIAL PROPERTIES
CONCRETE M 40
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 5.2 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.130
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 11969.64 KN
(Pb)z 3594.82 KN
(Pb)y 3594.82 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 7239.78

About Z About Y

INITIAL MOMENTS 40.466 154.508

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 202.714 202.714
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.565 0.565
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 202.714 202.714

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.605
p/fck 0.130
Pu/fckbD 0.503
d'/D 0.107 Muz1/fckbD 2
0.13 Table 45 SP16-1980
Muz1 1123.2 Muz/Muz1 0.180
d'/b 0.107 Muy1/fckDb2 0.13 Table 45 SP16-1980
Muy1 1123.2 Muy/Muy1 0.180
an 1.675 39.6 of IS:456-2000
(Muz/Muz1)an 0.057
an
(Muy/Muy1) 0.057
(Muz/Muz1)an+(Muy/Muy1)an 0.114
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 18720 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 6209.73 KN 422 Tons
Moment about Major axis (Mz) 147.15 KN-m 10 T-m
Moment about Minor axis (My) 971.19 KN-m 66 T-m

MATERIAL PROPERTIES
CONCRETE M 40
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 5.2 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.130
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 11969.64 KN
(Pb)z 3594.82 KN
(Pb)y 3594.82 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 6209.73

About Z About Y

INITIAL MOMENTS 147.150 971.190

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 173.872 173.872
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.688 0.688
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 173.872 971.190

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.519
p/fck 0.130
Pu/fckbD 0.431
d'/D 0.107 Muz1/fckbD 2
0.14 Table 45 SP16-1980
Muz1 1209.6 Muz/Muz1 0.144
d'/b 0.107 Muy1/fckDb2 0.14 Table 45 SP16-1980
Muy1 1209.6 Muy/Muy1 0.803
an 1.531 39.6 of IS:456-2000
(Muz/Muz1)an 0.051
an
(Muy/Muy1) 0.715
(Muz/Muz1)an+(Muy/Muy1)an 0.766
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 18720 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 5606.42 KN 381 Tons
Moment about Major axis (Mz) 88.29 KN-m 6 T-m
Moment about Minor axis (My) 88.29 KN-m 6 T-m

MATERIAL PROPERTIES
CONCRETE M 30
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 3.4 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.113
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 8504.46 KN
(Pb)z 2637.07 KN
(Pb)y 2637.07 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 5606.42

About Z About Y

INITIAL MOMENTS 88.290 88.290

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 156.980 156.980
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.494 0.494
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 156.980 156.980

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.659
p/fck 0.113
Pu/fckbD 0.519
d'/D 0.107 Muz1/fckbD 2
0.115 Table 45 SP16-1980
Muz1 745.2 Muz/Muz1 0.211
d'/b 0.107 Muy1/fckDb2 0.115 Table 45 SP16-1980
Muy1 745.2 Muy/Muy1 0.211
an 1.765 39.6 of IS:456-2000
(Muz/Muz1)an 0.064
an
(Muy/Muy1) 0.064
(Muz/Muz1)an+(Muy/Muy1)an 0.128
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 12240 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 4488.08 KN 305 Tons
Moment about Major axis (Mz) 73.58 KN-m 5 T-m
Moment about Minor axis (My) 1116.87 KN-m 75.9 T-m

MATERIAL PROPERTIES
CONCRETE M 40
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 4.6 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.115
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 11336.22 KN
(Pb)z 3523.97 KN
(Pb)y 3523.97 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 4488.08

About Z About Y

INITIAL MOMENTS 73.575 1116.869

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 125.666 125.666
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.877 0.877
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 125.666 1116.869

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.396
p/fck 0.115
Pu/fckbD 0.312
d'/D 0.107 Muz1/fckbD 2
0.145 Table 45 SP16-1980
Muz1 1252.8 Muz/Muz1 0.100
d'/b 0.107 Muy1/fckDb2 0.145 Table 45 SP16-1980
Muy1 1252.8 Muy/Muy1 0.891
an 1.327 39.6 of IS:456-2000
(Muz/Muz1)an 0.047
an
(Muy/Muy1) 0.859
(Muz/Muz1)an+(Muy/Muy1)an 0.906
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 16560 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 3605.18 KN 245 Tons
Moment about Major axis (Mz) 58.86 KN-m 4 T-m
Moment about Minor axis (My) 257.51 KN-m 17.5 T-m

MATERIAL PROPERTIES
CONCRETE M 30
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 3.2 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.107
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 8290.08 KN
(Pb)z 2613.46 KN
(Pb)y 2613.46 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 3605.18

About Z About Y

INITIAL MOMENTS 58.860 257.513

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 100.945 100.945
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.825 0.825
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 100.945 257.513

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.435
p/fck 0.107
Pu/fckbD 0.334
d'/D 0.107 Muz1/fckbD 2
0.13 Table 45 SP16-1980
Muz1 842.4 Muz/Muz1 0.120
d'/b 0.107 Muy1/fckDb2 0.13 Table 45 SP16-1980
Muy1 842.4 Muy/Muy1 0.306
an 1.391 39.6 of IS:456-2000
(Muz/Muz1)an 0.052
an
(Muy/Muy1) 0.192
(Muz/Muz1)an+(Muy/Muy1)an 0.244
<1.0, SAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 11520 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
By: NAVEEN SEMAC PVT LTD 2P-WATER TANK
Date: 09.05.05 Client: C C E ( R & D ), DRDO Doc. No.:
Chd: Rajesh Subject: Design of column
Date: 09.05.05 Job No.- B-03/19 Office Dept: CV Sh. 1 of 1 Rev. No. R0

Z
Design of Unbraced column
COLUMN MEMBER: C1 Y Y ZD
Member Properties
Z
UNSUPPORTED LENGTH OF COLUMN ABOUT Z 4000 mm YD
UNSUPPORTED LENGTH OF COLUMN ABOUT Y 4000 mm
DEPTH OF COLUMN SECTION (YD) 600 mm
WIDTH OF COLUMN SECTION (ZD) 600 mm
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Z 1.000 >=1.2 E-1 IS:456:2000
EFFECTIVE LENGTH FACTOR FOR BENDING ABOUT Y 1.000 >=1.2 E-1 IS:456:2000
CLEAR COVER TO SEC. REINFORCEMENT 40 mm >=30, for moderate exposure condition Table 16 & clause 26.4.2 of IS:456-2000
BAR DIA (stirrup) 8 mm >=6mm 26.5.3.2 c) 2 of IS:456-2000
BAR DIA (main steel) 32 mm >=12mm 26.5.3.1 d) of IS:456-2000
EFFECTIVE COVER 64.00 mm
Forces (factored) Unfactored Forces
Axial force 2943.00 KN 200 Tons
Moment about Major axis (Mz) 44.14 KN-m 3 T-m
Moment about Minor axis (My) 912.33 KN-m 62 T-m

MATERIAL PROPERTIES
CONCRETE M 30
STEEL Fy 415
CALCULATION OF AXIAL LOAD AT BALANCE POINT (P b)
PERCENTAGE STEEL p 3.2 >=0.8 26.5.3.1 a) of IS:456-2000
p/fck 0.107
d'/D 0.107 2 1 for two face reinforcement
(k1)z 0.207 2 for four face reinforcement
(k2)z 0.328
d'/b 0.107
(k1)y 0.207
(k2)y 0.328
Puz 8290.08 KN
(Pb)z 2613.46 KN
(Pb)y 2613.46 KN

Axis about which minimum eccentricity moment is to be considered 3 Enter 1 for about major Axis (Z)
2 for about minor Axis (Y)
3 for about both the Axis
CALCULATION OF TOTAL DESIGN FORCES (KN-m)

DESIGN AXIAL LOAD ON COLUMN (KN) 2943.00

About Z About Y

INITIAL MOMENTS 44.145 912.330

MIN. ECCENTRICITY (mm) 28.000 28.000
MOMENTS DUE TO MIN. ECCENTICITY 82.404 82.404
SLENDERNESS RATIOS 6.667 6.667 Short column about both axis 25.1.2 of IS:456-2000
MOMENTS DUE TO SLENDERNESS EFFECTS 0.000 0.000
MOMENT REDUCTION FACTORS 0.942 0.942
ADDITIONAL MOMENTS 0.000 0.000

DESIGN MOMENTS 82.404 912.330

CHECK FOR ADEQUACY OF SECTION

Pu/Puz 0.355
p/fck 0.107
Pu/fckbD 0.273
d'/D 0.107 Muz1/fckbD 2
0.14 Table 45 SP16-1980
Muz1 907.2 Muz/Muz1 0.091
d'/b 0.107 Muy1/fckDb2 0.1465 Table 45 SP16-1980
Muy1 949.32 Muy/Muy1 0.961
an 1.258 39.6 of IS:456-2000
(Muz/Muz1)an 0.049
an
(Muy/Muy1) 0.951
(Muz/Muz1)an+(Muy/Muy1)an 1.000
>1.0, UNSAFE 39.6 of IS:456-2000
AREA OF STEEL REQUIRED= 11520 mm^2 Spacing of stirrups
Provide 4 Y 32 3216.9984 mm^2 16*db 512
0.89361067 % b 600 <=300 26.5.3.2 c) 1 of IS:456-2000
Provide Y 8 300 c/c
