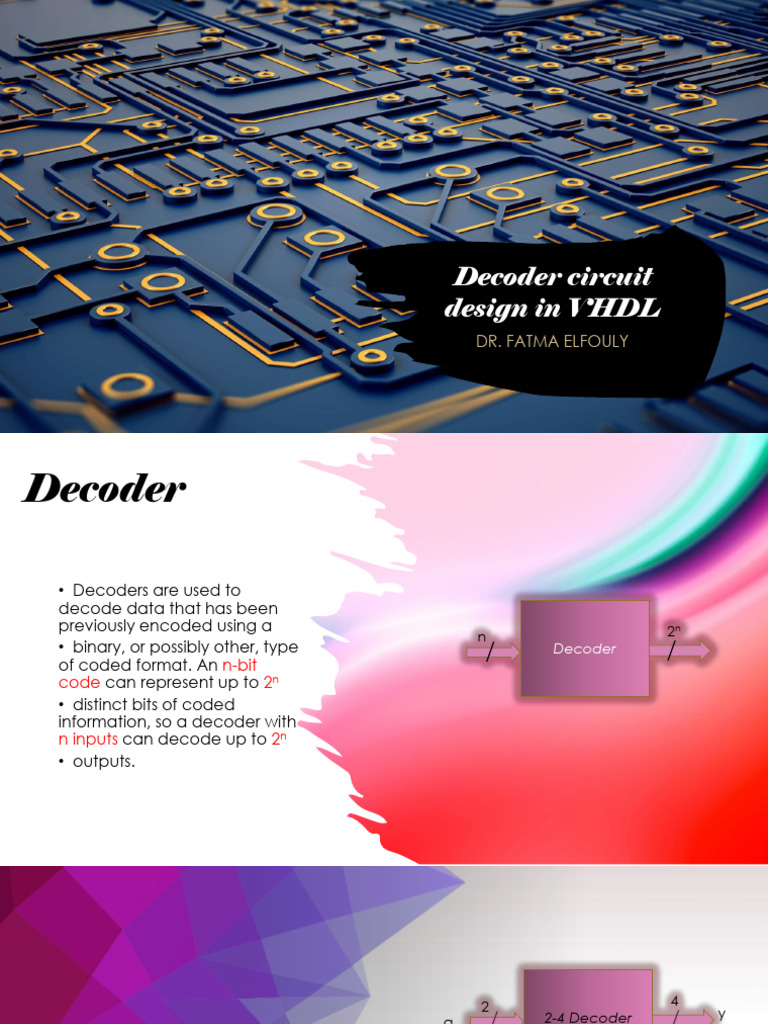

Decoder circuit

design in VHDL
DR. FATMA ELFOULY
Decoder

• Decoders are used to

decode data that has been
previously encoded using a 2n
n
• binary, or possibly other, type Decoder
of coded format. An n-bit
code can represent up to 2n
• distinct bits of coded
information, so a decoder with
n inputs can decode up to 2n
• outputs.
 2 4
2-4 Decoder y
a

2-4 Decoder
a1 a0 y3 y2 y1 y0
0 0 0 0 0 1
0 1 0 0 1 0
1 0 0 1 0 0
1 1 1 0 0 0
d d 0 0 0 0
2-4 Decoder
• library ieee;
• use ieee.std_logic_1164.all;
• use ieee.std_logic_arith.all;
• entity decoder2_4 is
• port (a: in std_logic_vector(1 downto 0);
• y: out std_logic_vector(3 downto 0));
2 4
end entity decoder2_4; 2-4 Decoder y
•
a
• architecture rtl of decoder2_4 is
• Begin
• Process(a)
• begin
• If (a = “00” ) then y <= “0001” ;
• elsif (a = “01”) then Y<=“0010” ;
• Elsif (a = “10” ) then Y<= “0100” ;
• Else Y<= “1000”;
• End if ;
• End process;
• end architecture rtl;
2-4 Decoder

2 4
2-4 Decoder y
a
en

en a1 a0 y3 y2 y1 y0
1 0 0 0 0 0 1
1 0 1 0 0 1 0
1 1 0 0 1 0 0
1 1 1 1 0 0 0
0 d d 0 0 0 0
2-4 Decoder
• library ieee;
• use ieee.std_logic_1164.all;
• use ieee.std_logic_arith.all;
• entity decoder2_4 is
• port (a: in std_logic_vector(1 downto 0);
• en: in std_logic;
• y: out std_logic_vector(3 downto 0));
• end entity decoder2_4;
• architecture rtl of decoder2_4 is 2 4
2-4 Decoder y
• Begin a
• Process(a,en)
en
• Begin
• If (en = „1‟) then
• If (a = “00” ) then y <= “0001” ;
• elsif (a = “01”) then Y<=“0010” ;
• Elsif (a = “10” ) then Y<= “0100” ;
• Else Y<= “1000”;
• End if ;
• Else y<= “0000”;
• End if;
• End process;
• end architecture rtl;
 3-8 Decoder

3 8
a 3-8 Decoder y
3-8 Decoder
inputs outputs
a2 a1 a0 y7 y6 y5 y4 y3 y2 y1 y0
0 0 0 0 0 0 0 0 0 0 1
0 0 1 0 0 0 0 0 0 1 0
0 1 0 0 0 0 0 0 1 0 0
0 1 1 0 0 0 0 1 0 0 0
1 0 0 0 0 0 1 0 0 0 0
1 0 1 0 0 1 0 0 0 0 0
1 1 0 0 1 0 0 0 0 0 0
1 1 1 1 0 0 0 0 0 0 0
Solved Problems
Solved Problems a(1→0) 2
4
2-4
decoder

 Construct a 3-to-8 decoder using only y 8

2-to-4 decoders.

4
2-4
decoder
a(2)
 a Y
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0
0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0
0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0
0 1 0 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0
0 1 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0

4-16 Decoder 0
1
1 1 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
1 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
1 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
1 0 1 1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
1 1 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
1 1 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
 C 2-4
D decoder
en

2-4
A 2-4
decoder
en
B decoder

2-4

Solved Problems decoder

en

2-4
decoder
en

Construct a 4-to-16 decoder using

only 2-to-4 decoders
 3-8
Decoder

3-8
Decoder
2-4
Decoder

Solved
3-8
Decoder

Problems 3-8
Decoder
Construct a 5-to-32 decoder using only 2-
to-4 decoders and 3-to-8 decoders.
