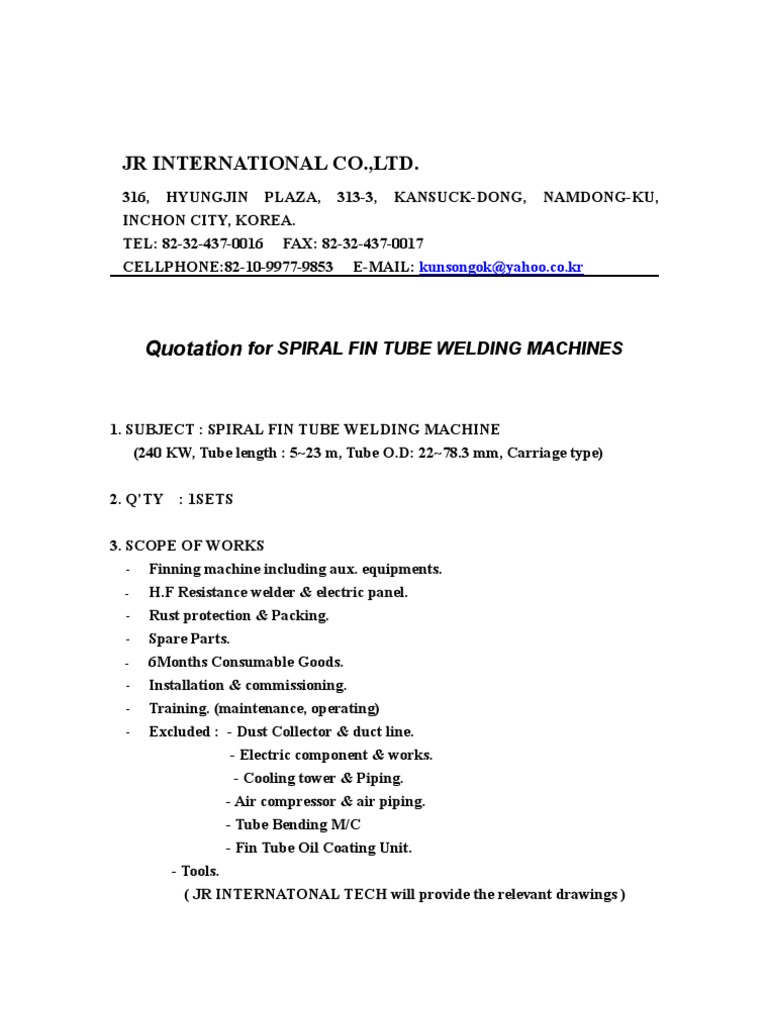

JR INTERNATIONAL CO.,LTD.

316, HYUNGJIN PLAZA, 313-3, KANSUCK-DONG, NAMDONG-KU,

INCHON CITY, KOREA.
TEL: 82-32-437-0016 FAX: 82-32-437-0017
CELLPHONE:82-10-9977-9853 E-MAIL: kunsongok@yahoo.co.kr

Quotation for SPIRAL FIN TUBE WELDING MACHINES

1. SUBJECT : SPIRAL FIN TUBE WELDING MACHINE

(240 KW, Tube length : 5~23 m, Tube O.D: 22~78.3 mm, Carriage type)

2. Q’TY : 1SETS

3. SCOPE OF WORKS
- Finning machine including aux. equipments.
- H.F Resistance welder & electric panel.
- Rust protection & Packing.
- Spare Parts.
- 6Months Consumable Goods.
- Installation & commissioning.
- Training. (maintenance, operating)
- Excluded : - Dust Collector & duct line.
- Electric component & works.
- Cooling tower & Piping.
- Air compressor & air piping.
- Tube Bending M/C
- Fin Tube Oil Coating Unit.
- Tools.
( JR INTERNATONAL TECH will provide the relevant drawings )
No Scope Q’ty Specification Unit price Amount
(USD) ( USD)
1 Spiral fin tube welding 1 Set φ78 x 23 ML 328,000
MC
2 H.F Resistance welder & 1 Set 240KW x 450 225,000
Electric part KHZ
3 Packing & 1 Set 40ft container 13,000
Transportation (10EA)
4 Spare Part 19,158

5 6Months Consumable 18,779

6 Installation, 2 Eng. x 30day 350 21,000

Commissioning USD/Man-day
7 Training 2 Eng. x 30day 350 21,000
(Operating) USD/Man-day
8 Management & 35,000
Communication
TOTAL 680,937

4. TOTAL PRICES : USD 680,937 $ (FOB Busan Port in Korea)

5. TERMS OF PAYMENT

- Irrevocable L/C : 90%

- Balance(Trial Run Finish) : 10%
6. DELIVERY (Based on 1 machines)
- Within 120 Days(FOB Busan Port in Korea).
ⓐ Manufacturing ---------- 75 Days.
ⓑ Installation, Trial Run in Factory, Packing, Inland Transportation –
45 Days.
- Installation, Trial Run in Customer’s Factory ---------30 Days.
- Training for Operating & Maintenance ----------30 Days.

7. VALIDITY OF QUOTATION : Until MAY . 30 .2008

8. FINNING MACHINE PARTS (Per 1 machine)

Part name Specification Q’ty Unit price Amount

(USD) (USD)
FIN UNCOILER FIN COIL O.D 1,600mm 2Set 4,000 8,000

FIN ACCUMULATOR FIN CAP. 300M 1Set 20,000

FIN SERRATOR POWER 30HP 1Set 35,000

FIN DANCER STROKE 900mm 1Set 5,000

TUBE ENTRY CONVEYOR TUBE SIZE Φ114 x 23ML 1Set 38,000

PINCH ROLLER DEVICE MAX. TUBE DIA. Φ114 1Set 13,000

BELT SANDER MAX. TUBE DIA. Φ114 1Set 11,000

FIN WELDING DEVICE MAX. TUBE DIA. Φ114 40HP 1Set 31,400

CARRIAGE 7.85-1.1 FIN PER INCH 1Set 76,000

RAIL FRAME & TUBE LENGTH 27,350mm 1Set 82,000

SUPPORTING ROLLER
FIN BUTT WELDER UNIT FIN WIDTH 35mm 1Set 9,000

TOTAL 328,000

H.F RESISTENCE WELDER & 240KW x 450KHZ 1Set 225,000

ELECTRIC PANEL
9. 1 YEAR SPARE PARTS (Per 1 machine)

Part name Size Q’ty Unit price Amount

(USD) (USD)
1. FIN ACCUMULATOR 　 　 　 　

FIN BRAKE SET 　 2Set 167 334

2. FIN SERRATOR 　 　 　 　

SHAFT Ø70*566L 1EA 200

SPRING Φ77xφ7x85 1EA 14

CAM CLUTCH B-207A 1EA 120

TIMMING BELT M14x1300L 1EA 35

3. TUBE ENTRY CONVEYOR

SCREW JACK SJ44 2EA 400 800

4. PINCH ROLLER DEVICE 　 　 　 　

U-JOINT BSL25 3Set 278 834

SLIDING METAL Ø270*Ø320*28L 1EA 278

RUBBER ROLLER Ø100*100L 6EA 110 660

SHAFT Ø35*248L 3EA 56 168

TIMMING BELT M14x1000L 1EA 34

5. BELT SANDER 　 　 　 　

RUBBER ROLLER Ø100*100L 4EA 110 440

SPLINE UP DOWN ROLLER SET 　 2EA 278 556

6. FIN WELDING DEVICE 　 　 　

GEARED MOTOR 0.5HP*4P*1/60 1EA 220

COOLANT HOSE Ø20*350L 10EA 28 280

BACK UP ROLL BRACKET 125*90*100 1EA 167

WORM GEAR&WORM SHAFT 　 1Set 167

(DEFORMING WHEEL PART)
LM GUIDE BLOCK MSA30LASS 2EA 89 178

7. CARRIAGE 　 　 　

BRAKE HOUSING 2021S 1Set 220

BRAKE PAD 10*30*40 10EA 56 560

BRAKE CYLINDER Ø50*20L 4EA 45 180

WORM GEAR Ø170*60L 2EA 445 890

OIL PUMP 　 1EA 445

ROTARY CYLINDER Y1225 1EA 778

AIR CYLINDER Ø30*25L 2Set 56 112

TIMMING BELT M14x1000L 1EA 34

COLLET 1″ 1EA 330

COLLET 1 1/4″ 1EA 330

COLLET 1 1/2 1EA 330

COLLET 2″ 1EA 330

COLLET 2 1/2″ 1EA 330

8. RAIL FRAME & TUBE 　 　 　

SUPPORTING ROLLER

　
ROLLER STAND SET 　 2Set 1,332 2,664

BEARING UCP210 4EA 14 56

AIR CYLINDER Ø50x200L 2Set 78 156

SOL. VALVE SV 5220 2EA 67 134

SOL. VALVE SV 3120 2EA 56 112

9. FIN BUTT WELDER UNIT.

KNIFE 35B 2Set 170 340

10. HIGH FREQUENCY & ELECTRIC

H.F POWER S.C.R 　 2EA 534 1,068

H.F POWER FUSE 　 2EA 134 268

TANK CAPACITOR 　 4EA 178 712

BLOWER FAN 　 1EA 122

INDUCTION MATCHING TRANS 　 1EA 1,250

1st, COIL
RECTFIER DIODE DSAI 35-16i 30EA 13 390

DC MOTOR S.C.R MODULE 　 2EA 89 178

DC MOTOR POWER FUSE 　 4EA 56 224

DC MOTOR DUST FILTER 　 4EA 33 132

DC MOTOR CARBON BRUSH 　 4EA 28 112

ROTARY ENCODER 　 1EA 223

 GRID RESISTOR 　 2EA 56 112

11. ETC

AIR HOSE Φ6 x 100M 1Roll 35

AIR HOSE Φ8 x 100M 1Roll 60

AIR HOSE Φ10 X 100M 1Roll 100

SPEED CONTROLLER & ONE 300EA 1 300

TOUCH NIPPLE
REGULATOR 3/8” 2EA 28 56

TOTAL　 19,158

10. 6 MONTHS CONSUMABLE (Per 1 machine)

● Produced on 40 pcs/1day (10 Hr)

( Tube diameter : 38.1 mm , Tube length : 20,000 mm, Fin width : 15 mm, Fin thickness : 1.2 mm , Fin pitch 4mm )

● Total Q’ty : 40 pcs/day x 1 machine x 30day/months x 6months = 7,200 pcs (Carbon Steel)
　 　 　 　
Part name Consumption Total Q,ty Unit Price Amount

(USD) (USD)
FIN ROLLER 10pcs / ea 720EA 9.00 6,480

SERRATE CUTTER 200pcs / ea 36EA 133.00 4,788

KNURLING ROLLER 2000pcs/ea 4EA 22.00 88

SAND PAPER 4pcs / sheet 1,800EA 1.60 2,880

FIN TIP HOLDER 500pcs / ea 15EA 11.00 165

TUBE TIP HOLDER 500pcs / ea 15EA 11.00 165

FIN TIP 10pcs / ea 720EA 1.40 1,008

TUBE TIP 10pcs / ea 720EA 2.20 1,584

BACKUP ROLLER 300pcs/ea 24EA 12.20 293

WHEEL PAPER 20pcs/ea 360EA 1.10 396

FIN TIP AIR CYLINDER 500pcs/ea 14EA 33.30 466

TUBE TIP AIR CYLINDER 500pcs/ea 14EA 33.30 466

TOTAL 18,779
11. REMARKS
- WE WILL SUPPLY DRAWINGS, SPECIFICATION OF PURCHASING EQUIPMENTS,
INSTALLATION AND TOOLS AND CONSUMABLES (CUTTING WHEELS AND FIN &
TUBE HOLDER, ETC.)
- WE WILL SUPPLY A NOTE BOOK COMPUTER WITH SOFTWARE KEY FOR THE
PROGRAM.
- SOFTWARE & PANEL OPERATOR CAN USE ONLY ENGLISH LANGUAGE.
- MACHINES ARE PROTECTED AGAINST ELECTRIC FAULT OUT ON ELECTRICITY
LINE.
- MACHINES COMPLY WITH CHARACTERISTIC OF ELECTRICITY IN USER.

12. INFORMATION IN DETAIL

a. Followings are excluded in quotation (USER Scope)
- Dust Collector & duct line.
- Electric component & works.
- Cooling tower & Piping.
- Air compressor & air piping.
- Tube Bending M/C
- Fin Tube Oil Coating Unit.
( JR INTERNATIONAL TECH will provide the relevant drawings )

b. After – Service & Guarantee

- 24-Month(2 years) guaranteed after installation in your plant.
- 2,000-hour guaranteed for Vacuum Tubes, but we can’t guarantee in case
of customer’s faults or natural disaster.
- After-Service without compensation is limited to 4 times, and J-TECH
should pay for the expense (Air tickets round trip), meals & hotel for 2
times, and USER should pay for the expense for next 2 times.
- If you ask for more after-services, USER should pay the Cost of parts,
Service-visit at the rate of $ 350 USD /day per one engineer, and
expense for air ticket(round trip), hotel & meals for service-visit.
- In case the machine out of order due to our fault, we provide you with the
components for no cost of USER for 1 year.
c. Installation & Training
- Required number of people for installation in USER plant: 10 men
a. JR INTERNATIONAL TECH : 2 Men
b. From the USER: 10 men (electric-2, install the machine-8)
- Period of installation is 30 days, and if there is 3days additional period
because of conditions, then expense of Shall be paid by USER.
- 1 Engineer will be sent for repair & maintenance training for 30 days.
(not for production training)

※ Training for maintenance

The USER should offer ---- Notebook computer Pentium4 1 PC
One Electric PLC Programmer who can use
Mitsubishi PLC
1 Mechanical Engineer

※ Training for operation ---- 2 people for 30 days.

The USER should offer ---- 2 assistant for 1 machine.
※ Non-free training If required the additional training, USER shall pay to
JR INTERNATIONAL TECH with $ 350 USD /man/day, and supply the all
expenses such as hotel, meals & other.

--- THE END --
