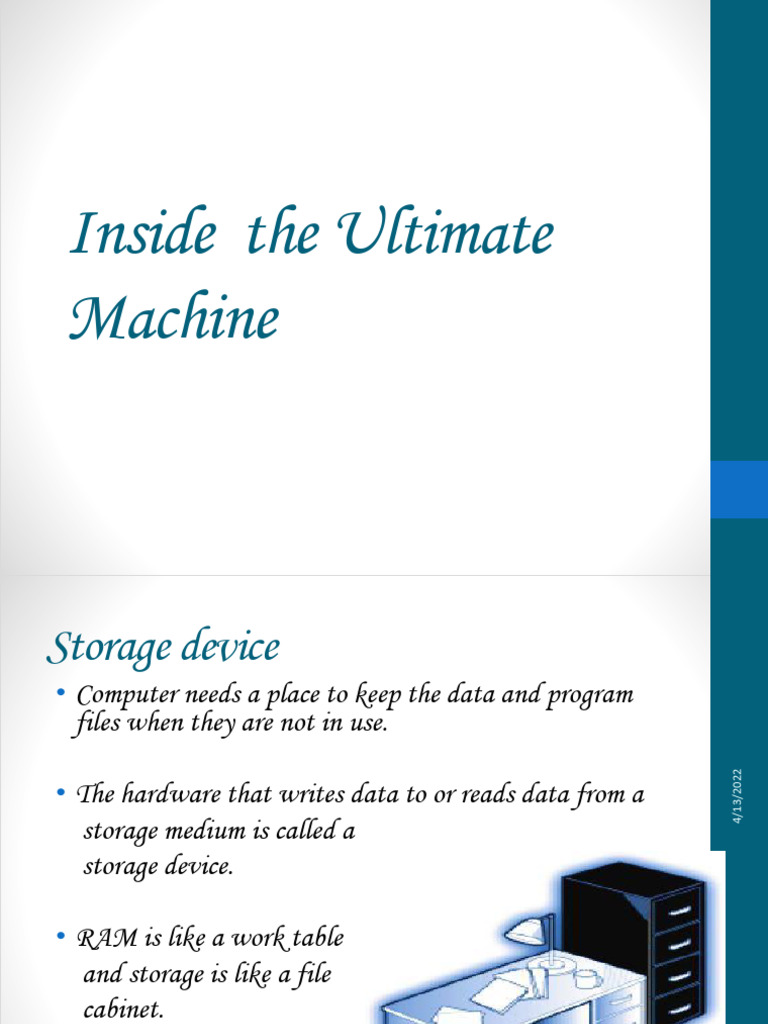

Inside the Ultimate

Machine
Storage device
• Computer needs a place to keep the data and program
files when they are not in use.

4/13/2022
• The hardware that writes data to or reads data from a
storage medium is called a
storage device.

• RAM is like a work table

and storage is like a file
cabinet.
2
• Users often confuse storage
with memory.
Storage device
Distinction between storage and memory:

4/13/2022
• There is more room in storage than there is in memory.

• Contents are retained in storage when the computer is

turned off, whereas the programs or data you put into
memory disappear when you shut down the computer.

• Storage is much slower compared to memory, but also 3

much cheaper than memory.
Storage device
The two primary storage technologies are magnetic and
optical.

4/13/2022
The primary types of magnetic storage are:

• Diskettes (floppy disks)

• Hard disks
• High-capacity floppy disks
• Magnetic tape 4
Storage device
The two primary storage technologies are magnetic and
optical.

4/13/2022
The primary types of optical storage are:

• Compact Disk Read-Only Memory (CD-ROM)

• Digital Video Disk Read-Only Memory (DVD-ROM)
• CD-Recordable (CD-R)
• CD-Rewritable (CD-RW) 5
Magnetic Storage Device
How Magnetic Storage Works
• A magnetic disk's medium contains iron particles, which
can be polarized—given a magnetic charge—in one of

4/13/2022
two directions.

• Each particle's direction represents a 1 (on) or 0 (off),

representing each bit of data that the CPU can
recognize.

• A disk drive uses read/write heads containing 6

electromagnets to create magnetic charges on the
medium.
How Magnetic Storage Works

7
4/13
/202
2
How Magnetic Storage Works

• When the direction of the flow of electric current or

4/13/2022
polarity is reversed, the magnetic field’s polarity also is
reversed. (1819 by Danish physicist Hans Christian Oersted)

• As the polarity of the magnetic field changes, so does the

direction of the electric current’s flow. (Michael Faraday in
1831)

8
How Magnetic Storage Works

• When applied to magnetic storage devices, this two-way

operation of electromagnetism makes it possible to record

4/13/2022
data on a disk and read that data back later.

• When recording, the head changes electrical impulses to

magnetic fields, and when reading, the head changes
magnetic fields back into electrical impulses.

• Because electromagnetism works two ways, a motor can

9
become a generator, and vice versa.
Magnetic Storage Devices –
Formatting
• Before a magnetic disk can be used, it must be
formatted—a process that maps the disk's surface and

4/13/2022
determines how data will be stored.

• During formatting, the drive creates circular tracks

around the disk's surface, then divides each track into
sectors.

• The OS organizes sectors into groups, called clusters, 10

then tracks each file's location according to the clusters it
occupies.
Magnetic Storage Devices –
Formatting

4/13/2022
11
Magnetic Storage Devices - How
OS finds Data
When a disk is formatted, the OS creates four areas on its surface:

4/13/2022
• Boot sector – stores the master boot record, a small program that
runs when you first start (boot) the computer

• File allocation table (FAT) – a log that records each file's location
and each sector's status

• Root folder – enables the user to store data on the disk in a logical
way
12

• Data area – the portion of the disk that actually holds data
How OS finds Data

4/13/2022
13
Magnetic Storage Devices - Hard
Disks
• Hard disks use multiple platters, stacked on a

4/13/2022
spindle. Each platter has two read/write
heads, one for each side.

• Hard disks use higher-quality media and a

faster rotational speed than diskettes.

• Removable hard disks combine high

14
Capacity with the convenience of diskettes.
Magnetic Storage Devices - Hard
Disks
• A hard drive will often have an "access time" listed in it's
specifications.

4/13/2022
• This is the time between first command and when the
data can finally be sent back to the computer.
• Access time is broken down further into "seek time," and
"settling time."
• Seek time is how long it takes for the heads to arrive in
the general vicinity of the requested data.
• The settling time is how long it takes for the heads to be
15
still enough to read (or write) the data under the head.
Magnetic Storage Devices - Hard
Disks
To minimize settling time,

4/13/2022
• it requires careful computation of the momentum the
head/weight system will posses,
• as well as it's angular velocity,
• how much power will be required to bring it to a stop,
and
• when the application of that power should start.

16
Hard Disks

4/13/2022
17
Hard Disks

4/13/2022
18
Optical Storage Devices –
How Optical Storage Works
• An optical disk is a high-capacity storage medium. An optical

4/13/2022
drive uses reflected light to read data.

• To store data, the disk's metal surface is covered with tiny dents
(pits) and flat spots (lands), which cause light to be reflected
differently.

• When an optical drive shines light into a pit, the light cannot be
reflected back. This represents a bit value of 0 (off). A land reflects
light back to its source, representing a bit value of 1 (on). 19
Optical Storage Devices –
CD-ROM
• In PCs, the most commonly used optical storage technology is
called Compact Disk Read-Only Memory (CD-ROM).

4/13/2022
• A standard CD-ROM disk can store up to 650 MB of data, or
about 70 minutes of audio.

• Once data is written to a standard CD-ROM disk, the data

cannot be altered or overwritten.

20
Optical Storage Devices –
DVD-ROM
• A variation of CD-ROM is called Digital Video Disk Read-Only
Memory (DVD-ROM), and is being used in place of CD-ROM in

4/13/2022
many newer PCs.

• Standard DVD disks store up to 9.4 GB of data—enough to store

an entire movie. Dual-layer DVD disks can store up to 17 GB.

• DVD disks can store so much data because both sides of the disk
are used, along with sophisticated data compression technologies.
21
