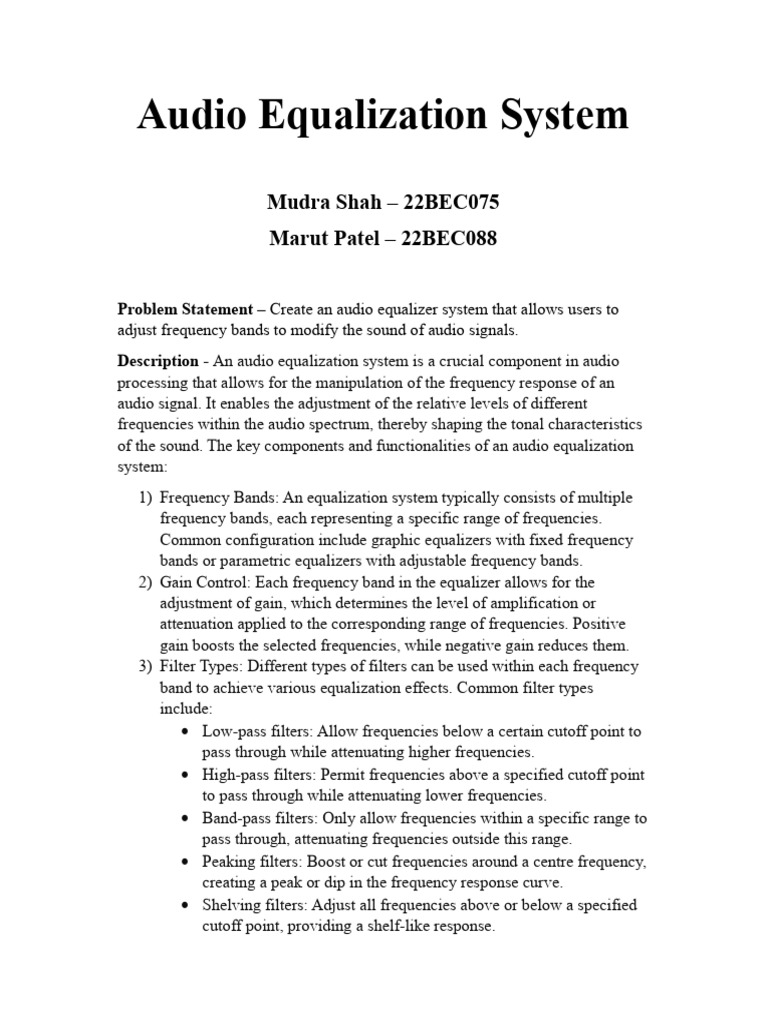

Audio Equalization System
Mudra Shah – 22BEC075

Marut Patel – 22BEC088
Problem Statement – Create an audio equalizer system that allows users to

adjust frequency bands to modify the sound of audio signals.
Description - An audio equalization system is a crucial component in audio
processing that allows for the manipulation of the frequency response of an
audio signal. It enables the adjustment of the relative levels of different
frequencies within the audio spectrum, thereby shaping the tonal characteristics
of the sound. The key components and functionalities of an audio equalization
system:
1) Frequency Bands: An equalization system typically consists of multiple
frequency bands, each representing a specific range of frequencies.
Common configuration include graphic equalizers with fixed frequency
bands or parametric equalizers with adjustable frequency bands.
2) Gain Control: Each frequency band in the equalizer allows for the
adjustment of gain, which determines the level of amplification or
attenuation applied to the corresponding range of frequencies. Positive
gain boosts the selected frequencies, while negative gain reduces them.
3) Filter Types: Different types of filters can be used within each frequency
band to achieve various equalization effects. Common filter types
include:
 Low-pass filters: Allow frequencies below a certain cutoff point to
pass through while attenuating higher frequencies.
 High-pass filters: Permit frequencies above a specified cutoff point
to pass through while attenuating lower frequencies.
 Band-pass filters: Only allow frequencies within a specific range to
pass through, attenuating frequencies outside this range.
 Peaking filters: Boost or cut frequencies around a centre frequency,
creating a peak or dip in the frequency response curve.
 Shelving filters: Adjust all frequencies above or below a specified
cutoff point, providing a shelf-like response.
4) Adjustable Parameters: Parametric equalizers offer more flexibility by
allowing adjustment of additional parameters such as centre frequency,
bandwidth (Q-factor), and filter slope. This enables precise control over
the shape and width of the frequency response curve for each band.
5) Real-time Processing: Modern equalization systems often operate in real-
time, allowing adjustments to be made dynamically while audio is being
played or recorded. This enables audio engineers and users to fine-tune
the sound to their preferences or requirements during playback or live
performances.
6) Presets and Profiles: Modern equalization systems often operate in real-
time, allowing adjustments to be made dynamically while audio is being
played or recorded. This enables audio engineers and users to fine-tune
the sound to their preferences or requirements during playback or live
performances.
7) Graphical User Interface (GUI): Equalization systems are often
accompanied by user-friendly GUIs that visually represent the frequency
response curve and allow users to interactively adjust the equalizer
settings using sliders, knobs, or graphical displays.
Flowchart-
Input- Read audio signal
Run MATLAB GUI to

equalize
Reconstruct signal
components
Output waveform of
Original Audio and Applied
filter Audio
Matlab Code (App Designer Code)-
classdef tes < matlab.apps.AppBase
% Properties that correspond to app components

properties (Access = public)
UIFigure matlab.ui.Figure
AxesPanel matlab.ui.container.Panel
AppliedFilterWaveformLabel matlab.ui.control.Label
OriginalLabel matlab.ui.control.Label
UIAxes_2 matlab.ui.control.UIAxes
UIAxes matlab.ui.control.UIAxes
SettingsPanel matlab.ui.container.Panel
PauseButton matlab.ui.control.Button
StopButton matlab.ui.control.Button
ResumeButton matlab.ui.control.Button
PlayButton matlab.ui.control.Button
PresetsPanel matlab.ui.container.Panel
CLASSICALButton matlab.ui.control.Button
PARTYButton matlab.ui.control.Button
TECHNOButton matlab.ui.control.Button
ROCKButton matlab.ui.control.Button
REGGAEButton matlab.ui.control.Button
POPButton matlab.ui.control.Button
EqualizerPanel matlab.ui.container.Panel
kHzLabel_6 matlab.ui.control.Label
kHzLabel matlab.ui.control.Label
HzLabel_4 matlab.ui.control.Label
HzLabel matlab.ui.control.Label
HzSlider_10 matlab.ui.control.Slider
HzSlider matlab.ui.control.Slider
Panel matlab.ui.container.Panel
BrowseButton matlab.ui.control.Button
FileAddressEditField matlab.ui.control.EditField
FileAddressEditFieldLabel matlab.ui.control.Label
end
% Callbacks that handle component events

methods (Access = private)
% Button pushed function: BrowseButton

function BrowseButtonPushed(app, event)
[filename, pathname] = uigetfile({'*.wav'}, 'File Selector');
if isequal(filename, 0)
% User clicked Cancel button
return;
else
fullpathname = fullfile(pathname, filename);
app.FileAddressEditField.Value = fullpathname;
end
end
% Button pushed function: PauseButton

function PauseButtonPushed(app, event)
global player;
% Check if the player exists
if isempty(player) || ~isvalid(player)
disp('No audio is currently playing.');
return;
end
% Pause the audio

pause(player);
disp('Audio paused.');
end
% Button pushed function: ResumeButton

function ResumeButtonPushed(app, event)
global player;
disp('No audio to resume.');
return;
end
% Resume the audio

resume(player);
disp('Audio resumed.');
end
% Button pushed function: StopButton

function StopButtonPushed(app, event)
global player;
disp('No audio to stop.');
return;
end
% Stop the audio

stop(player);
disp('Audio stopped.');
end
% Button pushed function: POPButton

function POPButtonPushed(app, event)
% Check if a file is selected
if isempty(app.FileAddressEditField.Value)
disp('Please select a file before popping.');
return;
end
% Adjust the sliders based on the POP genre preset

app.HzSlider.Value = 5; % Adjust slider for 0-200Hz
app.HzSlider_2.Value = 3; % Adjust slider for 201-400Hz
app.HzSlider_4.Value = -1; % Adjust slider for 801-1500Hz
app.HzSlider_5.Value = -2; % Adjust slider for 1.5-3kHz
app.HzSlider_6.Value = -4; % Adjust slider for 3-5kHz
app.HzSlider_10.Value = -10; % Adjust slider for >15kHz
% Read the audio file

filepath = string(app.FileAddressEditField.Value);
[audio, Fs] = audioread(filepath);
% Apply the pop effect (example: add zeros at midpoint)

midpoint = floor(length(audio) / 2);
audio(midpoint) = 0;
player = audioplayer(audio, Fs);

play(player);
% Plot the modified audio

plotAudio(app, audio, Fs);
% Helper function to plot audio waveform

function plotAudio(app, audio, Fs)
% Plot the audio waveform in UIAxes
t = (0:length(audio)-1) / Fs;
plot(app.UIAxes_2, t, audio);
xlabel(app.UIAxes_2, 'Time (s)');
ylabel(app.UIAxes_2, 'Amplitude');
title(app.UIAxes_2, 'Popped Waveform');
end
end
% Button pushed function: REGGAEButton

function REGGAEButtonPushed(app, event)
% Adjust the sliders based on the REGGAE genre preset
app.HzSlider_5.Value = 7; % Adjust slider for 1.5-3kHz
app.HzSlider_6.Value = 5; % Adjust slider for 3-5kHz
app.HzSlider_10.Value = 1; % Adjust slider for >15kHz
% Display message indicating that REGGAE preset has been applied

disp('REGGAE preset applied.');
% Apply the REGGAE effect (example: reverse the audio)

audio = flipud(audio);
play(player);


title(app.UIAxes_2, 'REGGAE Waveform');
end
end
% Button pushed function: ROCKButton

function ROCKButtonPushed(app, event)
% Adjust the sliders based on the ROCK genre preset
% Display message indicating that ROCK preset has been applied

disp('ROCK preset applied.');
% Apply the ROCK effect (example: increase amplitude)

audio = audio * 1.2;

play(player);


title(app.UIAxes_2, 'ROCK Waveform');
end
end
% Button pushed function: TECHNOButton

function TECHNOButtonPushed(app, event)
% Adjust the sliders based on the TECHNO genre preset
% Display message indicating that TECHNO preset has been applied

disp('TECHNO preset applied.');
% Apply the TECHNO effect (example: low-pass filter)

fc = 4000; % Cut-off frequency
[b, a] = butter(4, fc/(Fs/2), 'low');
audio = filter(b, a, audio);

play(player);


title(app.UIAxes_2, 'TECHNO Waveform');
end
end
% Button pushed function: PARTYButton

function PARTYButtonPushed(app, event)
% Adjust the sliders based on the PARTY genre preset
% Display message indicating that PARTY preset has been applied

disp('PARTY preset applied.');
% Apply the PARTY effect (example: add reverb)
try
audio = reverberator(audio, 'RoomSize', 0.5);
catch
disp('Error applying PARTY effect. Playback will continue without
effect.');
end
% Play the audio

try
play(player);
catch
disp('Error playing audio.');
end


title(app.UIAxes_2, 'PARTY Waveform');
end
end
% Button pushed function: CLASSICALButton

function CLASSICALButtonPushed(app, event)
% Adjust the sliders based on the CLASSICAL genre preset
% Display message indicating that CLASSICAL preset has been applied

disp('CLASSICAL preset applied.');
% Apply the CLASSICAL effect (example: add chorus)

chorusDelay = 0.025; % 25 milliseconds
audio = chorus(audio, Fs, 'Depth', 0.5, 'Delay', chorusDelay);

play(player);


title(app.UIAxes_2, 'CLASSICAL Waveform');
end
end
% Button pushed function: PlayButton

function PlayButtonPushed(app, event)
if isempty(filepath)
disp('Please select a file before playing.');
return;
end
% Plot original audio waveform

plot(app.UIAxes, t, audio);
title(app.UIAxes, 'Original Audio Waveform');
xlabel(app.UIAxes, 'Time (s)');
ylabel(app.UIAxes, 'Amplitude');
% Create and play audioplayer object

global player;
play(player);
end
end
% Component initialization
methods (Access = private)
% Create UIFigure and components

function createComponents(app)
% Create UIFigure and hide until all components are created

app.UIFigure = uifigure('Visible', 'off');
app.UIFigure.Position = [100 100 1480 718];
app.UIFigure.Name = 'MATLAB App';
% Create Panel
app.Panel = uipanel(app.UIFigure);
app.Panel.Position = [31 632 596 77];
% Create FileAddressEditFieldLabel
app.FileAddressEditFieldLabel = uilabel(app.Panel);
app.FileAddressEditFieldLabel.HorizontalAlignment = 'right';
app.FileAddressEditFieldLabel.Position = [11 26 92 22];
app.FileAddressEditFieldLabel.Text = 'File Address';
% Create FileAddressEditField
app.FileAddressEditField = uieditfield(app.Panel, 'text');
app.FileAddressEditField.Position = [115 23 363 33];
% Create BrowseButton
app.BrowseButton = uibutton(app.Panel, 'push');
app.BrowseButton.ButtonPushedFcn = createCallbackFcn(app,
@BrowseButtonPushed, true);
app.BrowseButton.Position = [501 26 80 30];
app.BrowseButton.Text = 'Browse';
% Create EqualizerPanel
app.EqualizerPanel = uipanel(app.UIFigure);
app.EqualizerPanel.Title = 'Equalizer';
app.EqualizerPanel.Position = [31 309 643 320];
% Create HzSlider
app.HzSlider = uislider(app.EqualizerPanel);
app.HzSlider.Limits = [-15 15];
app.HzSlider.Orientation = 'vertical';
app.HzSlider.Position = [26 109 3 173];
% Create HzSlider_2
app.HzSlider_2 = uislider(app.EqualizerPanel);
app.HzSlider_2.Limits = [-15 15];
app.HzSlider_2.Orientation = 'vertical';
app.HzSlider_2.Position = [86 109 3 173];
% Create HzSlider_3
% Create HzSlider_4
% Create HzSlider_5
% Create HzSlider_6
% Create HzSlider_7
% Create HzSlider_8
% Create HzSlider_9
% Create HzSlider_10
% Create HzLabel_2
app.HzLabel_2 = uilabel(app.EqualizerPanel);
app.HzLabel_2.Position = [81 74 64 25];
app.HzLabel_2.Text = '201-400Hz';
% Create HzLabel
app.HzLabel = uilabel(app.EqualizerPanel);
app.HzLabel.Position = [21 52 57 27];
app.HzLabel.Text = '0-200Hz';
% Create HzLabel_3
% Create HzLabel_4
% Create kHzLabel
app.kHzLabel = uilabel(app.EqualizerPanel);
app.kHzLabel.Position = [281 55 70 24];
app.kHzLabel.Text = '1.5-3kHz';
% Create kHzLabel_2
app.kHzLabel_2 = uilabel(app.EqualizerPanel);
app.kHzLabel_2.Position = [351 75 64 24];
app.kHzLabel_2.Text = '3-5kHz';
% Create kHzLabel_3
% Create kHzLabel_4
% Create kHzLabel_5
% Create kHzLabel_6
app.kHzLabel_6.Text = '>15kHz';
% Create PresetsPanel
app.PresetsPanel = uipanel(app.UIFigure);
app.PresetsPanel.Title = 'Presets';
app.PresetsPanel.Position = [21 169 670 130];
% Create POPButton
app.POPButton = uibutton(app.PresetsPanel, 'push');
app.POPButton.ButtonPushedFcn = createCallbackFcn(app,
@POPButtonPushed, true);
app.POPButton.Position = [11 36 93 53];
app.POPButton.Text = 'POP';
% Create REGGAEButton
app.REGGAEButton = uibutton(app.PresetsPanel, 'push');
app.REGGAEButton.ButtonPushedFcn = createCallbackFcn(app,
@REGGAEButtonPushed, true);
app.REGGAEButton.Position = [111 36 103 53];
app.REGGAEButton.Text = 'REGGAE';
% Create ROCKButton
app.ROCKButton = uibutton(app.PresetsPanel, 'push');
app.ROCKButton.ButtonPushedFcn = createCallbackFcn(app,
@ROCKButtonPushed, true);
app.ROCKButton.Position = [221 37 100 52];
app.ROCKButton.Text = 'ROCK';
% Create TECHNOButton
app.TECHNOButton = uibutton(app.PresetsPanel, 'push');
app.TECHNOButton.ButtonPushedFcn = createCallbackFcn(app,
@TECHNOButtonPushed, true);
app.TECHNOButton.Position = [331 37 100 52];
app.TECHNOButton.Text = 'TECHNO';
% Create PARTYButton
app.PARTYButton = uibutton(app.PresetsPanel, 'push');
app.PARTYButton.ButtonPushedFcn = createCallbackFcn(app,
@PARTYButtonPushed, true);
app.PARTYButton.Position = [441 37 100 52];
app.PARTYButton.Text = 'PARTY';
% Create CLASSICALButton
app.CLASSICALButton = uibutton(app.PresetsPanel, 'push');
app.CLASSICALButton.ButtonPushedFcn = createCallbackFcn(app,
@CLASSICALButtonPushed, true);
app.CLASSICALButton.Position = [551 37 100 52];
app.CLASSICALButton.Text = 'CLASSICAL';
% Create SettingsPanel
app.SettingsPanel = uipanel(app.UIFigure);
app.SettingsPanel.Title = 'Settings';
app.SettingsPanel.Position = [20 21 671 137];
% Create PlayButton
app.PlayButton = uibutton(app.SettingsPanel, 'push');
app.PlayButton.ButtonPushedFcn = createCallbackFcn(app,
@PlayButtonPushed, true);
app.PlayButton.Position = [22 38 115 58];
app.PlayButton.Text = 'Play';
% Create ResumeButton
app.ResumeButton = uibutton(app.SettingsPanel, 'push');
app.ResumeButton.ButtonPushedFcn = createCallbackFcn(app,
@ResumeButtonPushed, true);
app.ResumeButton.Position = [374 38 115 58];
app.ResumeButton.Text = 'Resume';
% Create StopButton
app.StopButton = uibutton(app.SettingsPanel, 'push');
app.StopButton.ButtonPushedFcn = createCallbackFcn(app,
@StopButtonPushed, true);
app.StopButton.Position = [532 38 115 58];
app.StopButton.Text = 'Stop';
% Create PauseButton
app.PauseButton = uibutton(app.SettingsPanel, 'push');
app.PauseButton.ButtonPushedFcn = createCallbackFcn(app,
@PauseButtonPushed, true);
app.PauseButton.Position = [209 38 115 58];
app.PauseButton.Text = 'Pause';
% Create AxesPanel
app.AxesPanel = uipanel(app.UIFigure);
app.AxesPanel.Title = 'Axes';
app.AxesPanel.Position = [721 133 720 556];
% Create UIAxes
app.UIAxes = uiaxes(app.AxesPanel);
title(app.UIAxes, 'Title')
xlabel(app.UIAxes, 'X')
ylabel(app.UIAxes, 'Y')
zlabel(app.UIAxes, 'Z')
app.UIAxes.Position = [91 275 547 200];
% Create UIAxes_2
app.UIAxes_2 = uiaxes(app.AxesPanel);
title(app.UIAxes_2, 'Title')
xlabel(app.UIAxes_2, 'X')
ylabel(app.UIAxes_2, 'Y')
zlabel(app.UIAxes_2, 'Z')
app.UIAxes_2.Position = [91 15 547 200];
% Create OriginalLabel
app.OriginalLabel = uilabel(app.AxesPanel);
app.OriginalLabel.Position = [301 485 136 40];
app.OriginalLabel.Text = 'Original';
% Create AppliedFilterWaveformLabel
app.AppliedFilterWaveformLabel = uilabel(app.AxesPanel);
app.AppliedFilterWaveformLabel.Position = [321 215 136 40];
app.AppliedFilterWaveformLabel.Text = 'Applied Filter Waveform';
% Show the figure after all components are created

app.UIFigure.Visible = 'on';
end
end
% App creation and deletion

methods (Access = public)
% Construct app
function app = tes
% Create UIFigure and components

createComponents(app)
% Register the app with App Designer

registerApp(app, app.UIFigure)
if nargout == 0
clear app
end
end
% Code that executes before app deletion

function delete(app)
% Delete UIFigure when app is deleted

delete(app.UIFigure)
end
end
end
Output Waveform:
Observation-
1. User Interface (UI): The UI consists of several panels, buttons, sliders,
labels, and axes for visualization. There are panels for Equalizer settings,
Presets selection, Settings like play, pause, stop, and axes for displaying
original and modified audio waveforms.
2. Equalizers Sliders: Sliders are provided for adjusting frequency bands
ranging from 0-200Hz up to >15kHz. Each slider corresponds to a
specific frequency range, and its value determines the amount of
equalization applied to that range.
3. Presets: There are preset buttons for different music genres like POP,
REGGAE, ROCK, TECHNO, PARTY, and CLASSICAL. When a preset
button is clicked, the sliders adjust to predefined values suitable for that
genre.
4. Audio Processing: Each preset button has a corresponding function that
applies a specific effect to the audio. Effects include modifying frequency
bands, adding reverb, applying filters, etc. After applying the effect, the
modified audio waveform is plotted in one of the UI axes.
5. Playback Controls: Play, pause, stop, and resume buttons control the
playback of the audio. These buttons interact with an ‘audioplayer’ object
to manage audio playback.
6. File Selection: Users can select an audio file by browsing and selecting
the file address using the browse button.
7. Audio Visualization: Both the original and modified audio waveforms are
displayed in separate UIs axes for comparison.

Audio Equalization

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Audio Equalization

Uploaded by

Copyright:

Available Formats

Audio Equalization System

Mudra Shah – 22BEC075

Problem Statement – Create an audio equalizer system that allows users to

Run MATLAB GUI to

% Properties that correspond to app components

% Callbacks that handle component events

% Button pushed function: BrowseButton

% Button pushed function: PauseButton

% Pause the audio

% Button pushed function: ResumeButton

% Resume the audio

% Button pushed function: StopButton

% Stop the audio

% Button pushed function: POPButton

% Adjust the sliders based on the POP genre preset

% Read the audio file

% Apply the pop effect (example: add zeros at midpoint)

player = audioplayer(audio, Fs);

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: REGGAEButton

% Display message indicating that REGGAE preset has been applied

% Apply the REGGAE effect (example: reverse the audio)

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: ROCKButton

% Display message indicating that ROCK preset has been applied

% Apply the ROCK effect (example: increase amplitude)

player = audioplayer(audio, Fs);

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: TECHNOButton

% Display message indicating that TECHNO preset has been applied

% Apply the TECHNO effect (example: low-pass filter)

player = audioplayer(audio, Fs);

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: PARTYButton

% Display message indicating that PARTY preset has been applied

% Play the audio

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: CLASSICALButton

% Display message indicating that CLASSICAL preset has been applied

% Apply the CLASSICAL effect (example: add chorus)

player = audioplayer(audio, Fs);

% Plot the modified audio

% Helper function to plot audio waveform

% Button pushed function: PlayButton

% Plot original audio waveform

% Create and play audioplayer object

% Create UIFigure and components

% Create UIFigure and hide until all components are created

% Show the figure after all components are created

% App creation and deletion

% Create UIFigure and components

% Register the app with App Designer

% Code that executes before app deletion

% Delete UIFigure when app is deleted

You might also like
