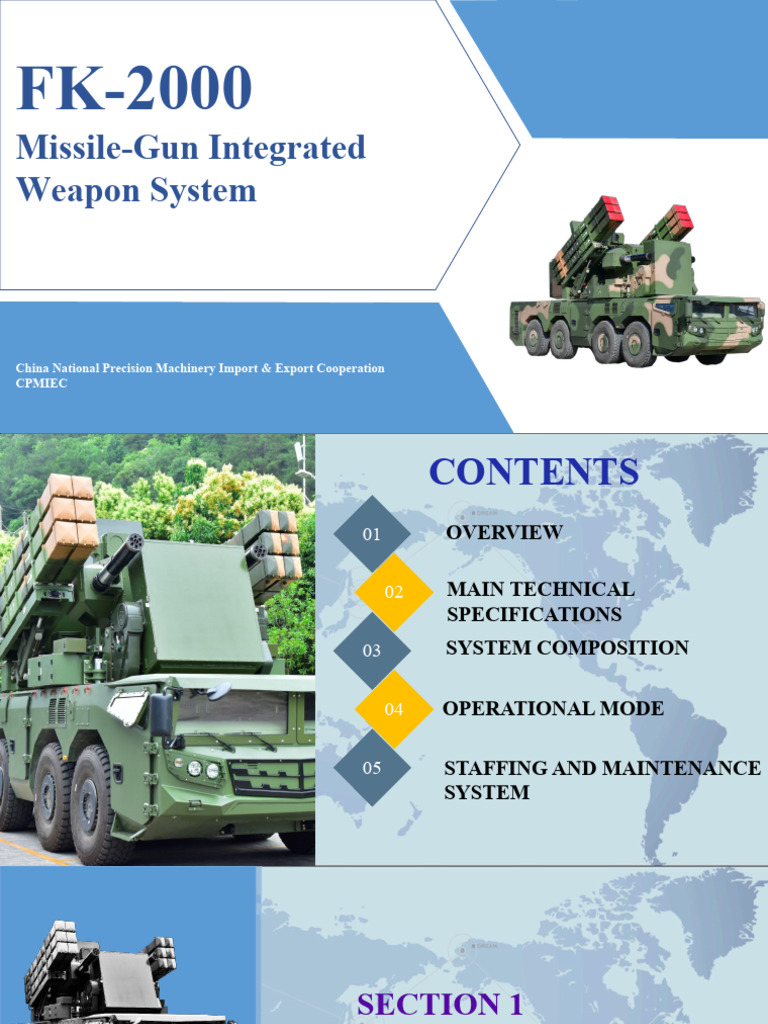

FK-2000

Missile-Gun Integrated
Weapon System

China National Precision Machinery Import & Export Cooperation

CPMIEC
 CONTENTS
01 OVERVIEW

02 MAIN TECHNICAL
SPECIFICATIONS
03 SYSTEM COMPOSITION

04 OPERATIONAL MODE

05 STAFFING AND MAINTENANCE

SYSTEM
SECTION 1
OVERVIEW

3
1 OVERVIEW-Application

FK-2000
Missile-Gun Integrated Weapon System is an
advanced all-weather medium-low-altitude and
short-range air defense weapon system for
undertaking escort air defense and key point air
defense missions. It is capable of intercepting cruise
missiles, precision guided bombs, air-to-ground
missiles, armed helicopters, fixed-wing aircraft,
UAVs, etc.

4
1 OVERVIEW–Main Features

Single-vehicle integration and combating-while-marching

A single Combat Vehicle is the min. operational unit of the weapon system, which integrates
command & control, target detection and firing functions with the features of fast response,
deployment and mobility. The Combat Vehicle is capable of operating while marching at the
speed of 20km/h

Missile-gun integration and fire complementation

The combat vehicle adopts high-velocity and high-acceleration missile and high firing rate
anti-aircraft gun. A combat vehicle can carry 12 rounds of missile-in-container (MIC) s and
1000 projectiles (30mm caliber) , able to intercept 4 targets simultaneously, which form a fire
complementation within the killing zone. The near boundary is 0.2 km (AA gun) and the far
boundary is 25 km (missile). The defense area of single combat vehicle almost covers
2,000km2
Advanced REFP and Fragment Composite Warhead, intercept multi
targets.
The system adopts radial explosively formed projectile (REFP) + fragment composite
warhead, which is capable of penetrating the steel shell of guided bomb to initiate its
explosive inside. It can effectively destroy air strike targets like guided bomb, cruise missile,
air-to-surface missile, armed helicopter, UAV, etc.
2 Overview–Main Features

Radar/photoelectric compound detection, good anti-jamming

capability
The Combat Vehicle is equipped with several detection systems, i.e. dual-
band radar and Photoelectric Equipment. It adopts all-the-way radio
command guidance of the missile, comprehensive target identification and
information fusion techniques which ensure strong anti-jamming capability
and complicated battlefield adaptability.

Multi operational modes and strong self-adaptive combat

capability
The Combat Vehicle friendly man-machine interface. Several operational
modes including stand-alone combat mode of a single Combat Vehicle and
master-slave combat mode of several Combat Vehicles are available. It can
also coordinate / network with other weapon systems if configured with
tactical command & control center.
SECTION 2
MAIN TECHNICAL
SPECIFICATIONS
2 MAIN TECHNICAL SPECIFICATION–Typical Targets

Cruise Missile Precision Guided Bomb Air-To-Ground Missile

RCS: 0.1m2 RCS: 0.1m2 RCS: 0.1m2

Flight Speed：780m/s Flight Speed： Flight Speed：
300m/s 250-1020m/s

8
2 MAIN TECHNICAL SPECIFICATION–Typical Targets

Armed Helicopter Large UAV

Fix-Wing Aircraft RCS: 0.1m2

Small UAV
Flight Speed：
RCS: 5m2 120m/s
Flight Speed：
0-110m/s

RCS: 2m2 RCS: 0.01m2-0.1m2

Flight Speed：250-600m/s Flight Speed：50m/s
2 MAIN TECHNICAL SPECIFICATION–Killing Zone
Missile： Anti-Aircraft Gun：
Against ammunition Against ammunition
Slant range：
Slant range：
1.2km-10km
1.0 km
Altitude：
15m-8km

Missile： Anti-Aircraft Gun：

Against aircraft Against aircraft
Slant range：
1.2km-25km Slant range：
Altitude： 1.5 km
15m-12km

Missile： Anti-Aircraft Gun：

Against small UAV Against small UAV
Slant range：
Slant range：
1.2km-5km
1.0km
Altitude：
15m-1km
2 MAIN TECHNICAL SPECIFICATION–Killing Zone

Killing Zone： Killing Zone： Killing Zone：

Target Flight Speed：300m/s Target Flight Speed：300m/s Target Flight Speed：300m/s
Target RCS: 2m2 Target RCS: 0.1m2 Target RCS: 0.05m2
2 MAIN TECHNICAL SPECIFICATION–Killing Zone

Killing Zone： Killing Zone：

Target Flight Speed：600m/s Target Flight Speed：600m/s
Target RCS: 2m2 Target RCS: 0.1m2
2 MAIN TECHNICAL SPECIFICATION–Killing Zone

Killing Zone：
Target Flight Speed：1020m/s
Target RCS: 0.1m2
2 MAIN TECHNICAL SPECIFICATION–Others

Guidance System

Radar/ photoelectric detection, and radio command guidance system.

Multi-Target Capability
Each Combat Vehicle is capable of guiding 8 missiles to intercept 4 targets
simultaneously.

Launching Mode
Both missile and Anti-Aircraft Gun adopt oblique tracking servo launching
mode.

Combat Preparation Time

The min. time from power on to combat normally is not more than 5min.
2 MAIN TECHNICAL SPECIFICATION–Others

Reaction Time

From reception of target designation information by the Guidance

Radar to first-shot of missile/Cartridge moving is not more than 4s.

Launching Interval Time

Missile—Missile：≤ 2s
Missile—AA Gun：≤ 2s
AA Gun—Missile：≤ 3s

Communication mode
Wired/Wireless mode（Between Combat Vehicle），Wireless communication
distance≮5km

Mobility
Max.running speed of the Combat Vehicle: 100km/h.
2 MAIN TECHNICAL SPECIFICATION–Others

Transportation Environment
Railway, highway/cross country, see, air

Power Supply
Powered by its own diesel generator and energy storage equipment,
or by mains.
Self power supply： 50kW Diesel generator＋4kWh Energy storage
system

Operational Environment
Altitude：4500m
Operational Temperature：-40℃～+60℃
Relative humidity：≤93%（35℃）
Wind speed：≯ 10m/s（Move operation）
≯ 20m/s（Key-point operation）
Work normally under rainy, snowy, hail, foggy, dust, thunder,
lightning, salty and fungus conditions
2 MAIN TECHNICAL SPECIFICATION–Others

Storage Life of MIC

10 years
（In warehouse under the temperature
5℃～30℃、relative humidity of 30%～
80%；lifetime extension is available
）

Service life of Ground Equipment

15 year
（Time to first overhaul for
ground equipment under normal
operation and maintenance）

17
SECTION 3
SYSTEM COMPOSITION
3 SYSTEM COMPOSITION–WEAPON SYSTEM

Combat vehicle (1-6)

MIC 12 rounds/vehicle
Ammunition
projectiles 1000 shots/vehicle
FK-2000
Weapon system
Transport & loading vehicle（
Support 1~3） Test training MIC (2)

Test & nitrogen gas supply Loading training MIC

vehicle （1） (12-36)

Spare parts & collimation mast Training MIC

vehicle （1） (1-6 boxes)

19
3 SYSTEM COMPOSITION–Combat Vehicle

Anti- Photoelectric
aircraft gun equipment
MIC

Searching
radar
General- purpose
launching platform Guidance
radar

General-purpose
transportation platform Command &
Control platform
3 SYSTEM COMPOSITION–Combat Vehicle

Missile-In-Container
Dimension： ≯3600 mm×250 mm×330mm

MIC Mass： ≯155kg

Max. range： ≮25km
Max. Speed： ≮1350m/s
Max. Overload： ≮30g

Anti-Aircraft Gun
Type： left/right six-barrel 30mm
automatons
Effective 0.2km-1.5km
range:
Fire rate： ≮2×4000 shots/min
Ammunition： Anti-explosive cartridges
Armor piercing cartridges
3 SYSTEM COMPOSITION–Combat Vehicle

Searching Radar

Type： Solid active phased array radar

Working band： C Band

Angle coverage： Azimuth：0°～360°
Elevation：-5°～49°
Effective range： Against ammunition target （RCS:0.1
㎡）≥26km
Against aircraft target （RCS:2㎡）
≥45km
Min. Designated ≯3km
range：
Target capability： Tracks of 30 batches of targets.
3 SYSTEM COMPOSITION–Combat Vehicle

Guidance radar

Type： Multi-function solid active phased

array radar
Working band： Ku band
Angle coverage：
Azimuth：0°～360°（Turning with
turret）
Elevation：-5°～+75° （Mechanical
scan+ electrical scan）
±20°（azimuth, elevation scan）
Max. tracking range： 35km（Target RCS：2m2)
20km（Target RCS：0.1m2)
Min. tracking range： ≯0.2km
3 SYSTEM COMPOSITION–Combat Vehicle

Photoelectric Equipment

Equipment type： Infrared thermal imager

Working band： 3μm~5μm
Effective range： Azimuth：0°～360°（Turning with
turret）
-20°~+20° （
Photoelectric servo）
Elevation：-5°~+80°
Max. tracking range： ≮16km (Head on, flight altitude:
15m~8km)
Min. tracking range： ≯0.2km (Head on, Flight
altitude:15m~8km)
3 SYSTEM COMPOSITION–Combat Vehicle

Launching system

Azimuth: 0°~360°
Azimuth acceleration: ≯40(°)/s2
Elevation： 0°~67°
Elevation ≯30(°)/s2
acceleration:
Transportation Platform

System power supply: Diesel generator + energy storage by

lithium battery
Max. speed: 100km/h
range: ≮500km
3 SYSTEM COMPOSITION–Support & Maintenance

Transport & Load vehicle

MIC reloading time: ≤20 min

Loading capacity of ≮24rounds
MICs:
Loading capacity of ≮2000 rounds
Cartridges:

Test & Nitrogen gas

Supply vehicle

MIC test time: ≯10 min

(from missile power-on to output of
test result)
3 SYSTEM COMPOSITION–Support & Maintenance
Spare Parts & Collimation Mast
Vehicle
Storage capacity of Spare parts for not less than 6
spare parts: vehicle
Maximum lifting 12m (Relative to the ground)
height of lifting
tower

Test training MIC

Mass: ≯155kg
Usage: MIC test training as per MIC test items and
technical specifications after connection
with Test & Nitrogen Gas Supply Vehicle can
be conducted, which covers all the MIC test
items and specifications.。
Loading Training MIC
Mass: ≯155kg
Usage: Overall dimension and mechanical interface
are agreeable to those of MIC.
SECTION 4
OPERTIONAL MODE
4 OPERTIONAL MODE
Stand alone Ops RCS =2㎡

Single combat vehicle can Warning Coverage

fulfill target searching, 6362km2
acquisition, tacking,
missile/gun fire, missile Interception Area
guidance to intercept 1963km2
targets independently

Master-slave Ops

Several combat vehicle

Warning Area
operate jointly under the 7853km2
command of master combat
vehicle. Interception Area
2827km2

29
4 OPERTIONAL MODE-Coordinate Combat

Wired Communication Wireless Communication

Connection Configuration Connection Configuration

For wired communication between weapon systems, For wireless communication, the maximum
maximum communication distance can reach 30km. communication distance can reach 25km.
4 OPERTIONAL MODE

acqui Guida
Target Missile
Preparat Lock sitio nce
Launching Targ Asses
detected by ion the Target stable Tracking by n et sment
searching target Fire
tracking by photoelectric dest
radar equipment distribution
guidance roy
radar Fire the
AA gun
4 OPERTIONAL MODE

When multiple targets of enemy

coming from various directions,
3-6 combat vehicle can be
ng deployed in circular
ki
t ac configuration and operate in
at n netted operation mode.
y
n em ctio Any one of the combat vehicle can
E re
di act as the master to dispatch
combat mission and ensure all
direction airspace be covered by
weapon system. The interception
of 12-24 targets can be realized.
SECTION 5
STAFFING &
MAINTENANCE
5 STAFFING & MAINTENANCE– Staffing

Staffing of combat vehicle

TASK
● CV equipment coordinated control
● Air situation info receiving, processing and
1 Staff Photoelectric &
display
Radar Control
● Info processing, firing decision making
Operational control ●Command control, operational control, target
1 Staff
detection and tracking control, missile/gun firing
control, radar control, photoelectric equipment
1 staff Driving control
● Unified command & coordinated control of
other combat vehicles
●Maintenance and rush repair
● combat vehicle driving

34
5 STAFFING & MAINTENANCE– Staffing
Transport & Load vehicle
Test & Nitrogen gas supply
vehicle
Spare parts & Collimation Mast
vehicle
Driver 1 staff
TASK
3 staff Mechanical 1 staff
Electromechanical 1 staff ● MIC/Projectile box loading/unloading
●Routine maintenance and field rush
repair
● Camouflage net covering/removing
● Driving/chassis maintenance
Driver 1 staff TASK
3 staff Mechanical 1 staff
Electromechanical 1 staff ● MIC test
● Nitrogen gas filling
● Driving/chassis maintenance
Driver 1 staff TASK
3 staff Mechanical 1 staff
Electromechanical 1 staff ●Detection & tracking system calibration
● Spare parts management
● Special equipment maintenance
● Driving/chassis maintenance
THANKS!
