Question 1

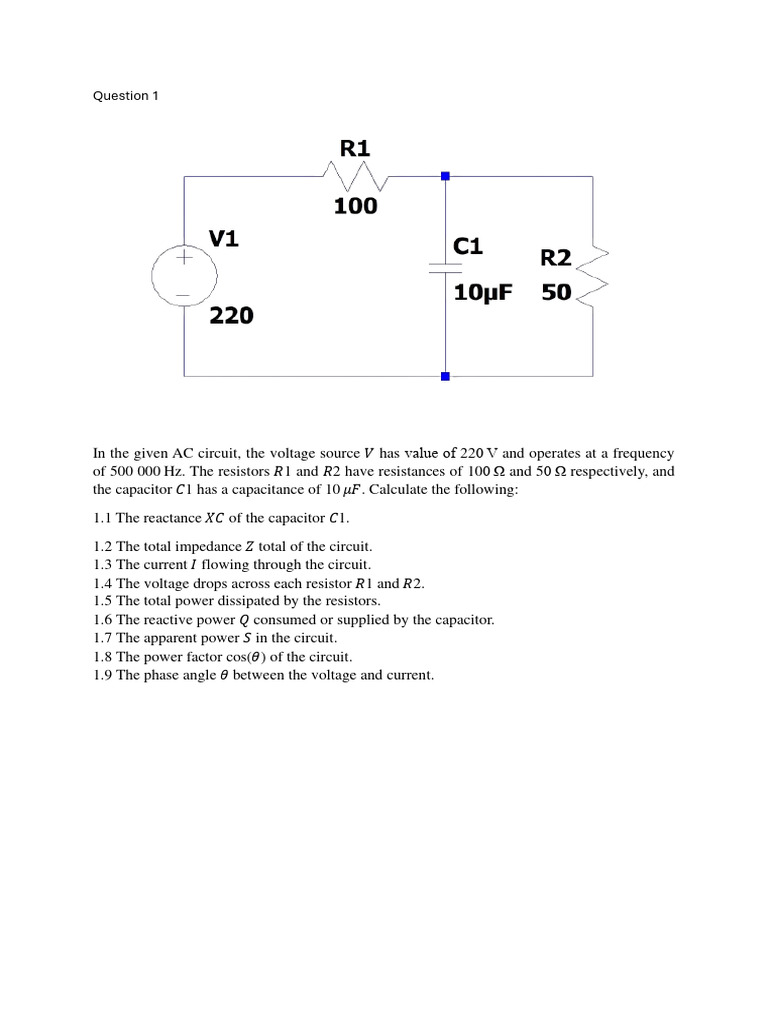

In the given AC circuit, the voltage source 𝑉 has value of 220 V and operates at a frequency
of 500 000 Hz. The resistors 𝑅1 and 𝑅2 have resistances of 100 Ω and 50 Ω respectively, and
the capacitor 𝐶1 has a capacitance of 10 𝜇𝐹. Calculate the following:
1.1 The reactance 𝑋𝐶 of the capacitor 𝐶1.
1.2 The total impedance 𝑍 total of the circuit.
1.3 The current 𝐼 flowing through the circuit.
1.4 The voltage drops across each resistor 𝑅1 and 𝑅2.
1.5 The total power dissipated by the resistors.
1.6 The reactive power 𝑄 consumed or supplied by the capacitor.
1.7 The apparent power 𝑆 in the circuit.
1.8 The power factor cos(𝜃) of the circuit.
1.9 The phase angle 𝜃 between the voltage and current.
Question 2

In the given AC circuit, the sinusoidal voltage source 𝑉 has a peak value of 320 V and
operates at a frequency of 500 Hz. The resistors 𝑅1 and 𝑅2 have resistances of 100 Ω and
50 Ω respectively, and the inductor L1 has an inductance of 50 mH. Calculate the following:
2.1.The total impedance 𝑍 total of the circuit.
2.2.The current 𝐼 flowing through the circuit.
2.3.The voltage drops across each resistor 𝑅1 and 𝑅2.
2.4.The reactance 𝑋l of the inductor l1.
2.5.The total power dissipated by the resistors.
2.6.The reactive power 𝑄 consumed or supplied by the capacitor.
2.7.The apparent power 𝑆 in the circuit.
2.8.The power factor cos(𝜃) of the circuit.
2.9.The phase angle 𝜃 between the voltage and current.
