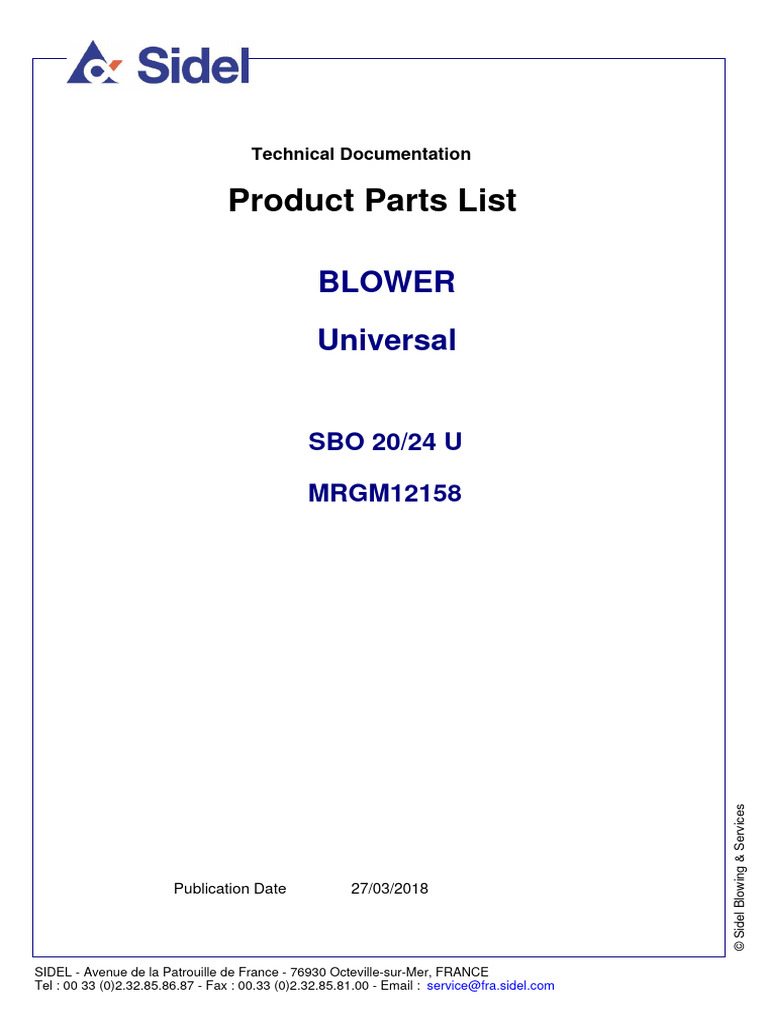

Blower

Technical Documentation
Product Parts List
BLOWER
Universal
SBO 20/24 U
MRGM12158
© Sidel Blowing & Services
Publication Date 27/03/2018
SIDEL - Avenue de la Patrouille de France - 76930 Octeville-sur-Mer, FRANCE

Tel : 00 33 (0)2.32.85.86.87 - Fax : 00.33 (0)2.32.85.81.00 - Email : service@fra.sidel.com
SIDEL
Avenue de la Patrouille de France
76930 Octeville-sur-Mer
FRANCE
© Sidel Blowing & Services
All rights reserved.

No part of this publication may be translated, stored in a electronic retrieval system, reproduced or
modified by any means (including microfilms and photostats) without the prior written authorization
of Sidel Blowing & Services.
Indexing Table Edited on
Table d'indexage Editée le 27/03/18
Master-Unit
Unité principale MRGM12158
Description MACHINE SBO20 12158 PROGRESS

Désignation MACHINE SBO20 12158 PROGRESS
Item Code Description Table of contents
Code article Désignation Index
RRGM12158 WHEEL SBO20/24 12158 10
ROUE SBO20/24 12158
01127263902 COLUMN C009
COLONNE PRISE DE NIVEAU GM
01131454005 FRAME ASSEMBLY C010
CHASSIS EQUIPE GM
01131278301 FRAME C011
CHASSIS SUPERIEUR GM
01124118803 LOCKING PIN C012
BROCHE DE BLOCAGE
01124194204 RINGS C040
VIROLE
99000417935 FERRULE KIT GM 2
KIT VIROLE GM COMPLEMENT MECA
01125115202 AIR RESERVE C045
RESERVE D'AIR GM
01131962304 DRIVE SYSTEM C050
MOTORISATION 7,5 KW
01126743503 GEAR MOTOR 2
MOTOREDUCTEUR
01124030005 DRIVE PINION C055
PIGNON DE COMMANDE
01125129004 PNEUMATIC BRAKE SYSTEM C056
CIRCUIT FREIN PNEUMATIQUE
01125136902 PLATE 1
PLATINE NOVAFLEX GM 3 FREINSBO
01131860901 AIR ROTARY UNION C060
JOINT TOURNANT AIR STEP 3
01131860801 AIR ROTARY UNION § 1
JOINT TOURNANT AIR 40 7B 46433
01134190001 AIR INLET 40 ET 7 B C060
ENTREE AIR 40 ET 7 B
01131673501 DISTRIBUTION C065
DISTRIBUTION AIR 40-13-7 BARS GM
01130697201 WATER ROTARY UNION C070
RACCORD ROTATIF EAU
01132063101 TWO CIRCUITS WATER ROTARY UNION C070
JOINT TOURNANT EAU DEUX CIRCUITS GM
01124031406 BELT AND TENSIONER GM C080
COURROIE ET TENDEUR GM
01124031702 TIGHTENER D180 H65 6
TENDEUR D180 H65
01124031802 TIGHTENER§ 7
TENDEUR D180 H90§
Master-Unit

01128027403 BELT CASING C081
PROTECTION COURROIE MOTORISATION
01126776903 ENCODER WHEEL C100
ROUE CODEUSE STEP3
01126037501 ENCODER C101
CODEUR
01131861501 ELECTRICAL COLLECTOR C105
COLLECTEUR ELECTRIQUE 10 BAGUES
01131861601 COLLECTOR § 1
COLLECTEUR ELEC 10 BAGUES 6P4010240 §
01131849701 CENTRALIZED GREASING C121
GRAISSAGE CENTRALISE GM MILLESIME
01130328001 PUMP 21
POMPE AP3633
01129571903 SPRAY SYSTEM GREASING C122
GRAISSAGE PULVERISATION
01130111101 BOX AP3631 1
COFFRET AP3631
01124028906 PREFORM TRANSFER BEARING C205
PALIER DE TRANSFERT
01125767602 HYDRAULIC PANEL C230
TABLEAU HYDRAULIQUE
01126388301 HYDRAULIC PANEL 2
TUYAUTERIE TABLEAU HYDRAULIQUE 11257622
01126119101 HYDRAULIC PANEL POWER SUPPLY C230
ALIMENTATION TABLEAU HYDRAULIQUE
01127768101 OVEN WATER HOSE C231
FLEXIBLE EAU ALIMENTATION FOUR GM
01131959703 OPEN-CLOSE CAM SETTING TOOL C252
OUTILLAGE DE REGL.CAME D'O-F
01129392902 SOLENOID VALVE PILOTING AIR C345
CIRCUIT AIR PILOT.ELECTROVANNE
01126362104 WHEEL CYLINDER AIR C346
CIRCUIT AIR VERINAGE ROUE
01126389301 HOSE PUS54 1EMBOUT PB52 G4Z2 3
FLEXIBLE PUS54 1EMBOUT PB52 G4Z2
01129508501 PRESSURE REDUCTION C375
DETENTE 40-7B AVEC RECUPERATION AIR V3
01127078605 AIR RECOVERY V3 C376
RECUPERATION AIR V3
01126984701 AIR RECOVERY LINE L708500A 1
LIGNE RECUPERATION AIR L708500A
01124074502 GATE VALVE 22
VANNE DE PURGE EQUIPEE @
Master-Unit

01125687404 SKID C377
SKID AIR
01125466703 PRESS. REDUCTION LINE L698AX33WNI1175§ 3
LIGNE DE DETENTE 40B L698AX33WNI1175@§
01125822301 LINE 7B R24 PILOTEE + 2F68 G 1' 1/2 4
LIGNE 7B R24 PILOTEE + 2F68 G 1' 1/2
01129268301 STOP VALVE CONTROL SYSTEM C380
CIRCUIT PILOTE CLAPET VERIN ELONGATION
01125084801 PRESSURE REDUCTION LINE C386
LIGNE DE DETENTE L704
01125318301 PRESSURE REDUCTION LINE§ 1
LIGNE DE DETENTE L704AX82WNI1122@§
01126755403 AIR RECYCLING C387
RECUPERATION AIR V3
01126764401 PRESSURE REDUCTION LINE§ 12
01127937101 FILTER § 26
FILTRE HD 0072
01124125407 MOLD OPEN CLOSE CAM§ C395
CAME O-F MOULE§
01124150406 MOLD BASE UP DOWN CAM C405
CAME MONTEE DESCENTE FOND DE MOULE
01131456002 STRETCHING ROD DOWN-CAM C415
CAME DE DESCENTE ELONGATION STEP3 ROUGE
01128669301 STRETCH SAFETY CAM C417
CAME SECURITE ELONGATION GM
01128984704 NOZZLE UP SAFETY CAM C418
CAME SECURITE REMONTEE TUYERE
01132040201 DOUBLE-ROLLER LOCKING CAM C430
CAME DE VERROUILLAGE DOUBLE GALET
01131323702 UNLOCKING CAM C435
CAME DE DEVERROUILLAGE GM HR-1800
01124120505 LEVER SAFETY O-F MOULE C455
SECURITE LEVIER O-F MOULE
01129677306 SAFETY C456
SECURITE GM (AVEC CAME SECURITE TUYERE)
01124070704 BOTTLE AND PREFORM EJECTION C465
EJECTION BOUTEILLES ET PREFORMES
01124226501 DOUBLE-ACTING CYLINDER 3
VERIN DOUBLE EFFET A 822 931 014
01126997604 BOTTLE OUTFEED WHEEL C475
ROUE SORTIE BOUTEILLES
01124149402 IDLER ROLLER FLASQUE§ C476
GALET DE RENVOI FLASQUE
Master-Unit

01124149502 TIGHTENER§ C476
TENDEUR DIA 90 H65 FLASQUE
01128564601 PULLEY C476
POULIE SORTIE BOUTEILLES
01123898503 RETRACTABLE BOTTLE OUTFEED GUIDE C477
GUIDE ESCAMOTABLE SORTIE BOUTEILLES
01126151301 DOUBLE-ACTING CYLINDER 2
VERIN DOUBLE EFFET R 424 B03 629 @
01133027501 BOTTLE GUIDE C477
GUIDE BOUTEILLE FIXE
01133028103 PROTECTION C478
PROTECTION CHASSIS GM SORTIE BOUTEILLE
01128545602 BRACKET C480
EQUERRE LIAISON
01126055804 BLOW WHEEL ROOF C495
TOIT SOUFFLEUSE COLLE GM
01127549502 GATE TOITTURE VISSEE 15
TRAPPE TOITTURE VISSEE
01127560103 OVEN SIDE HATCH 16
TRAPPE COTE FOUR
01126076702 HYDRAULIC PIPE SUPPORT 18
SUPPORT TUYAU HYDRAULIQUE
01126078102 PNEUMATIC PIPE SUPPORT 19
SUPPORT TUYAU PNEUMATIQUE
01127447001 REAR UPPER SIDE C495
FACADE SUPERIEURE ARRIERE
01127456401 OVEN UPPER SIDE C495
FACADE SUPERIEURE COTE FOUR
01127460501 FRONT UPPER SIDE C495
FACADE SUPERIEURE AVANT
01127479801 FRONT-SIDE C495
FACADE SUPERIEURE COTE SORTIE BOUT
01127502103 DOOR C495
PORTE SUPERIEURE EQUIPEE
01127668803 TRANSFER FLOOR C495
PLANCHER DE TRANSFERT
01127836704 TOOL C495
OUTILLAGE HMA ROUE GM
01128124102 LABEL C495
ETIQUETTE HMA ROUGE
01128836605 LABEL C495
ETIQUETTE SBO UNIVERSAL RUSSE
01129638901 LOCKING KIT C495
KIT VERROUILLAGE NORME RUSSE
Master-Unit

01131382402 FRONT-SIDE C495
FACADE AVANT
01131384101 HINGE 24
CHARNIERE HAUTE DROITE
01131384201 HINGE 25
CHARNIERE HAUTE GAUCHE
01131411301 DOOR 26
PORTE 14.95 DEGRES GAUCHE EQUIPEE
01131408702 DOOR 27
PORTE 14.95 DEGRES DROITE EQUIPEE
01127653902 LOCKING 14
VERROUILLAGE 3PT PORTE
01131403602 DOOR 28
PORTE BAC PREFORMES EQUIPEE
01131398502 DOOR 29
PORTE BAC BOUTEILLES EQUIPEE
01131409402 FRONT-SIDE C495
FACADE ARRIERE
01131414701 DOOR 10
PORTE 1025 GAUCHE EQUIPEE
01131384201 HINGE 11
01131414802 DOOR 12
PORTE 1025 DROITE EQUIPEE
01131384101 HINGE 13
01131409602 DOOR 14
PORTE ANGLE DROITE EQUIPEE
01131409502 DOOR 15
PORTE ANGLE GAUCHE EQUIPEE
01131441702 FRONT-SIDE C495
FACADE DROITE
01131384201 HINGE 7
01131384101 HINGE 9
01131414701 DOOR 15
01131414802 DOOR 16
01126085804 MOBILE PANEL 17
PANNEAU MOBILE 0495 EQUIPE
Master-Unit

01127649002 LOCKING 10
VERROUILLAGE 3PTS PANNEAU
01131441903 FRONT-SIDE C495
FACADE INF GAUCHE
01131384101 HINGE 16
01131384201 HINGE 17
01131414802 DOOR 18
01131414701 DOOR 19
01131870901 PARTITION C495
CLOISON REMPLISSEUSE
01133637701 FLOOR C496
PLANCHER FIXE GM
01127590604 COLLECTOR C500
COLLECTEUR
01127596204 BIN 5
BAC BOUTEILLE
01127595503 BIN 6
BAC PREFORME
01132117102 CHUTE C500
GOULOTTE BOUTEILLES GM
01132156602 CHUTE C500
GOULOTTE PREFORMES DEPOUSSIERAGE GM
01126536401 MACHINE EQUIPMENT EC01
EQUIPEMENT MACHINE
01126577601 CONNECTION PROFIBUS STANDARD ROUE GM EC02
LIAISON PROFIBUS STANDARD ROUE GM
01131347701 FIXED REMOTE INPUT EF01
ENTREE DECENTRALISEE FIXE E10
01124143601 FIXED DECENTRALIZED OUTPUT - A10 EF02
SORTIE DECENTRALISEE FIXE - A10
01128780501 BOX 20
COFFRET K3 EQUIPE ISO
01128780401 BOX K2 120
Master-Unit

01131352001 FIXED REMOTE INPUT E14 EF04
01124143702 FIXED DECENTRALIZED OUTPUT EF05
01126577501 PLC EQUIPMENT EF06
EQUIPEMENT AUTOMATE - E/S ROUE
01124143801 PLC EQUIPMENT EF07
EQUIPEMENT AUTOMATE - E/S FOUR
01131625701 DETECTION SYNCHRO WHEEL/OVEN EF08
DETECTION SYNCHRO ROUE/FOUR
01133031401 BOX EK01
COFFRET SKID
01134370301 PLC EQUIPMENT COFFRET SKID EK02
EQUIPEMENT AUTOMATE COFFRET SKID
01134370201 ANALOG INPUT EW1100 EK03
ENTREE ANALOGIQUE EW1100
01131530001 ANALOG INPUT EK04
01133031601 ANALOG OUTPUT EK05
SORTIE ANALOGIQUE AW1100 > AW1112
01132441401 ON/OFF CONTROL INPUTS EK06
ENTREE TOR E20>E22
01131444701 ALL-OR-NOTHING OUTPUT EK07
SORTIE TOR A20>A22
ENTREE ANALOGIQUE COL/FOND STD
ENTREE ANALOGIQUE CORPS STD
01124146301 UPPER BOX ES01
COFFRET SUPERIEUR
01125471701 JOG ES02
CABLAGE PRISES JOG
01124146101 TRANSFER BOX ET01
COFFRET TRANSFERT
01124143201 PLC EQUIPMENT ET02
EQUIPEMENT AUTOMATE - COFFRET TRANSFERT
01124428901 DISTRIBUTOR WIRING ET03
CABLAGE REPARTITEUR MODULE AV FOUR
01131353901 ON OFF CONTROL INPUT ET04
ENTREE TOR E30>E32
01124143101 ALL-OR-NOTHING OUTPUT - A30>A32 ET05
SORTIE TOR - A30>A32
01135517101 ALL-OR-NOTHING PLC INPUT - E33 > E35 ET06
ENTREE AUTOMATE TOR - E33 > E35
Master-Unit

01131423901 POLE SUPPLY CABINET EV01
COFFRET ALIMENTATION POLE
01124145902 POLE BOX EV02
COFFRET POLE 1
01124146002 POLE BOX EV03
COFFRET POLE 2
01124419901 AIR COOLING EV04
BALAYAGE OU RECUPERATION AIR
01124420001 AIR COOLING EV04
BALAYAGE OU RECUPERATION AIR 20
01124421401 CONTROLLED COMPENSATION EV05
COMPENSATION PILOTEE
01124421501 CONTROLLED COMPENSATION EV05
COMPENSATION PILOTEE 20
01131633901 WIRING EV05
CABLAGE REPARTITEURS
01131634101 WIRING EV05
CABLAGE REPARTITEURS 20
01131423601 MOBILE BOX POWER SUPPLY EV10
ALIMENTATION COFFRET MOBILE
01124144003 WIRING EV11
CABLAGE JOINT TOURNANT
01124397102 CODER TO CARDS CONNECTION FM EV12
LIAISON CODEUR-CARTE FM
01131423801 MOBILE REMOTE INPUT EV20
ENTREE DECENTRALISEE MOBILE E40
01124144201 MOBILE DECENTRALIZED OUTPUT EV22
SORTIE DECENTRALISEE MOBILE A40
01124402501 PLC EQUIPMENT EV26
EQUIPEMENT AUTOMATE - AB52
01124144901 ANALOG INPUT - EW1400>EW1414 EV30
ENTREE ANALOGIQUE - EW1400>EW1414
Master-Unit

01124145501 ANALOG OUTPUT - AW1400>AW1406 EV34
SORTIE ANALOGIQUE - AW1400>AW1406
01124397301 CARD EV43
CARTE FM - A548
01124397201 CARD FM - A580 EV45
CARTE FM - A580
01124421301 CARD EV46
CARTE FM - A596
01124145601 PLC EQUIPMENT FOR MOBILE SECTION EV50
EQUIPEMENT AUTOMATE - PARTIE MOBILE
01124145701 PLC EQUIPMENT FOR MOBILE SECTION EV50
EQUIPEMENT AUTOMATE PARTIE MOBILE SBO20
01131424701 PROFIBUS WIRING EV60
CABLAGE PROFIBUS DP CRITIQUE
01126140903 TERMINAL BLOCK SUPPORT S040
SUPPORT REPARTITEUR
01126140903 TERMINAL BLOCK SUPPORT S040
SUPPORT REPARTITEUR
01125339701 AIR HOSE GM S061
FLEXIBLE DISTRIBUTION AIR GM
01127599901 HOSE RECUPERATION AIR GM S062
FLEXIBLE RECUPERATION AIR GM
01125437901 WATER DISTRIBUTING HOSES S072
FLEXIBLE DISTRIBUTION EAU
01124193002 OVEN CONNECTING PULLEY S095
POULIE LIAISON FOUR SBO20 PAS DE 50
01126658201 PREFORM TRANSFER CAM S206
CAME TRANSFERT PREFORMES SBO20 PAS50
01128586102 SYNCHRONIZATION DISC S210
DISQUE SYNCHRONISATION 20M
01130635801 BOTTLE TRANSFER CAM S211
CAME DE TRANSFERT BOUTEILLE SBO16 45PI
01131600501 ARM SUPPORT PLATE S213
PLATEAU SUPPORT BRAS SBO 20
01127166609 CONSOLE S250
CONSOLE
01124410507 CYLINDRICAL MOLD SUPPORT UNIT (GUPM) S253
UNITE PORTE MOULE GUPM CYLINDRIQUE
01125841904 HALF-MOLD SUPPORT § S254
SUPPORTS COQUILLES EQUIPES §
01129189906 STRETCH UNIT S280
ELONGATION
01125325901 BALL-MOUNTED GUIDE 13
GUIDE A BILLES
Master-Unit

01129149801 STRETCH CYLINDER U STD 15
VERIN ELONGATION U STD
01131572901 KIT BAGUE SECURITE TUYERE 2T D50 S281
KIT BAGUE SECURITE TUYERE 2T D50
01131571601 NOZZLE CYLINDER § S285
VERIN TUYERE 2T D50 §
01131572602 END-PIECE 2T D50 S285
EMBOUT CLOCHE 2T D50
01125313002 DISTRIBUTION - CYL GUPM SHELL SUPPORT S315
DISTRIBUTION SUPPORT COQUILLE GUPM CYL
01125338902 DISTRIBUTION - CYLIND & SQUARE GUPM BASE S316
DISTRIBUTION FOND GUPM CYLIND ET CARRE
01135255001 BLOW PREBLOW WITH AIR RECYCLING S340
SOUFFLAGE PRESOUFFL.RECUPERATION AIR
01135255201 BLOW PREBLOW WITH AIR RECYCLING
01124452203 BLOW UNIT§ 5
BLOC DE SOUFFLAGE§
01126933301 ROD KIT DIAM 14 70
KIT TIGE DIAM 14
01135255101 BLOCK 1
BLOC DE SOUFFLAGE AVEC RECUP
99000440247 PREBLOW VALVE (RETROFIT)§ 15
VANNE PRESOUFFLAGE RETROFITEE§
99000440248 EXHAUST VALVE (RETROFIT)§ 25
VANNE DEGAZAGE RETROFITEE§
01126933301 ROD KIT DIAM 14 70
KIT TIGE DIAM 14
01127243802 CYLINDER AIR S360
AIR VERIN 2T COURSE 40
01127244201 DISTRIBUTOR 2T C40 1
DISTRIBUTEUR 2T C40
01126735506 MOLD BASE S400
FOND DE MOULE
01124526303 PNEUMATIC SUPPORT PLATE§ S401
SELLETTE PNEUMATIQUE§
01131128010 ARM S450
BRAS TRANSFERT STANDARD GM
01132304809 ARM HEAD STANDARD BI-AXE S450
TETE DE BRAS STANDARD BI-AXE
01128125503 LOGO FACADE SUP HMA SBO20 S495
LOGO FACADE SUP HMA SBO20
01132019904 COMPENSATION WITH SOLENOID VALVE S587
COMPENSATION AVEC ELECTROVANNE
Master-Unit

01125066804 DISTRIBUTION BLOCK S590
BLOC DE DISTRIBUTION D'EAU
FRGM12158 OVEN SBO20/24 12158 20
FOUR SBO20/24 12158
01124225517 MODULE C601
MODULE AVANT
01124325201 TIGHTENER DIA 90 H 56 MODULE AVANT C601
TENDEUR DIA 90 H 56 MODULE AVANT
01133777601 EJECTION CHUTE C601
GOULOTTE EJECTION
01124258610 REAR MODULE C602
MODULE ARRIERE
01129249401 OVEN SAFETY C603
SECURITE FOUR
01124585102 TOOL C605
OUTILLAGE ACCOUPLEMENT FOUR
01131431901 DETECTION C607
01124638502 SPINDLE ROTATION CHAIN C620
CHAINE ROTATION TOURNETTE
01133499302 OVEN TRANSMISSION SHAFT C630
ARBRE TRANSMISSION FOUR
01126503504 TIGHTENER WHEEL C650
ROUE TENDEUR P50 TOURNETTE 12D
01127220307 OVEN WHEEL C660
ROUE FOUR PAS DE 50
01133987301 CENTRALIZED GREASING C665
GRAISSAGE CENTRALISE FOUR
01131207705 PUMP FRAME C690
ALIMENTATION PREFORME
01124804601 CYLINDER ASSEMBLY 28
VERIN EQUIPE
01124800801 CYLINDER ASSEMBLY 29
VERIN EQUIPE
01128098405 DUST REMOVAL WHEEL C691
ROUE DE DEPOUSSIERAGE P50
01127438706 DUST REMOVAL MODULE C692
MODULE DE DEPOUSSIERAGE
01111402502 TIGHTENER 5
TENDEUR DIAM. 90 H 56 $
01127436805 TRANSFER WHEEL C693
ROUE DE TRANSFERT
01128080303 SUCTION HOOD P50 C694
HOTTE D ASPIRATION P50
Master-Unit

01127440606 ASPIRATION SYSTEM C695
SYSTEME D'ASPIRATION
01133407001 ASPIRATOR 12
ASPIRATEUR ELECTROJET 8 VENTIL. 35-0.42
01127440903 DUST REMOVAL AIR SUPPLY C696
ALIMENTATION AIR DEPOUSSIERAGE GM
01125850801 7 BARS LINE 5
LIGNE 7 BARS
01124236908 LAMP BASE VENTILATION C701
VENTILATION CULOTS DE LAMPE MODULE AVAN
01134037401 FAN ASSEMBLY 13
VENTILATEUR SUPER COBRA EQUIPE
01124293009 LAMP BASE VENTILATION C711
VENTILATION CULOTS LAMPES MODULE ARRIER
01134037401 FAN ASSEMBLY 13
01127771910 EJECTION C730
EJECTION 3 PREFORMES 50
01124923606 OVEN WATER SYSTEM C740
CIRCUIT EAU FOUR AVEC POMPE
01125188402 OVEN AIR SYSTEM C750
CIRCUIT AIR FOUR
01124711902 PREFORM FEED AIR JET C753
SOUFFLETTE ALIMENTATION PREFORME
01124180405 FIXED GUIDE C765
GUIDE FIXE SORTIE FOUR
01126355603 THRUST KIT C770
KIT BUTEE PORTE FOUR
01128371002 FLOOR ALIMENTATION GM C770
PLANCHER ALIMENTATION GM
01128402505 EXTRACTOR Ø800 EQUIPE C770
EXTRACTEUR Ø800 EQUIPE
01128430701 RECUPERATION PREFORMS C770
BAC RECUPERATION PREFORMES MAL VETIES
01128483502 FIXED CHUTE C770
GOULOTTE FIXE
01131492103 DEDUST INFEED SIDE C770
FACADE ALIM.DEPOUSSIERAGE
PANNEAU MOBILE BAS ALIM PREF
01127285601 SCREEN 24
ECRAN ALIM
PANNEAU MOBILE HAUT ALIM PREF
Master-Unit

01131486402 DOOR 26
01131384101 HINGE 27
01131486803 DOOR 28
PORTE CINTREE GAUCHE
01131384201 HINGE 29
01128378902 PANEL 30
PANNEAU R650
01131488201 PANEL 31
PANNEAU INFERIEURE DEPOUSSIERAGE EQUIPE
01131848501 OVEN LIFTING TOOL C770
OUTILLAGE DE LEVAGE FOUR 14-16-20M
01132354001 FLOOR C770
PLANCHER FOUR
01131569001 ELECTRICAL CHUTE C771
GOULOTTE ELECTRIQUE DEPOUSSIERAGE
01124348502 OVEN INITIALIZATION C777
INITIALISATION FOUR
01124348802 TEMPERATURE PROBE § C779
SONDE DE TEMPERATURE §
01124343703 CAMERA SUPPORT IR C795
SUPPORT CAMERA IR
01128886001 CONNECTION PROFIBUS STANDARD 20/24 EC02
LIAISON PROFIBUS STANDARD 20/24
01131440501 OVEN PLUG WIRING EC03
CABLAGE PRISE FOUR
01132643401 OVEN VENTILATION MOTOR BOX EVM0
COFFRET MOTEURS VENTILATION FOURS
01132643701 BOX MOTEURS RH28M VENTIL FOURS EVM3
COFFRET MOTEURS RH28M VENTIL FOURS
01129248903 SIDE RAIL ASSEMBLIES S600
LONGERONS EQUIPES 24M
01128349406 FRAME S606
CHASSIS INF POUR COFFRETS 24M
01125579309 SPINDLE S610
TOURNETTE 50
01131773501 PIVOT 1
PIVOT PAS DE 50
01135990301 PINION FASTENING 11
SERTISSAGE PIGNON BAS
01135990401 PINION FASTENING
Master-Unit

01135990501 PINION FASTENING 13
SERTISSAGE PIGNON HAUT
01135990601 PINION FASTENING
01128170503 GUIDE AND ROTATION CHAIN S621
GUIDE ET CHAINE DE ROTATION
01113239701 LAMPS S680
LAMPES PHILIPS
01126480206 IR OVEN KIT 6 MODULES S680
FOUR IR KIT 6 MODULES
01125369204 RACK 1
RATELIER
01131310102 EQUIPPED REFLECTOR S680
REFLECTEUR EQUIPEE SANS POUSSOIR
01126481102 RAMP S681
RAMPE 6 MODULES EQUIPE
01128241301 GRIP ASSEMBLY SUPPORT STUD S682
PLOT SUPPORT PINCE EQUIPE
01129249104 HEATING BOX S710
CAISSON DE CHAUFFE 6 MODULES
01131254805 VENTILATION MODULE S711
MODULE DE VENTILATION 6M
01131254604 VENTILATION KIT S714
KIT VENTILATION MONO TURBINE
01129887002 OVEN WATER SYSTEM HOSE S740
FLEXIBLE CIRCUIT EAU FOUR 24 MODULE
01130562604 EXTRACTION HOOD S770
HOTTE D'EXTRACTION 24M
01131392803 FRONT-SIDE S770
FACADE ARRIERE FOUR 24M
01131384101 HINGE 9
01131384201 HINGE 10
01131380002 OVEN DOOR 13
PORTE FOUR 0870 GAUCHE EQUIPEE
01131391802 OVEN DOOR 14
PORTE FOUR 6M DROITE EQUIPEE
01126172303 LOCK 8
VERROU 3 POINTS PORTE FOUR
01131390901 OVEN DOOR 15
PORTE FOUR 6M GAUCHE EQUIPEE
01131729902 HEAT OVEN UPRIGHT ASSEMBLY 17
BATTANT FOUR RECUP EQUIPE
Master-Unit

01127763501 LOCKING 19
VERROUILLAGE 3PTS BATTANT RECUP
01129989301 PANEL 18
PANNEAU INFERIEUR PORTE 870
01129924001 PANEL 19
PANNEAU INFERIEUR 6M
01131393303 FRONT-SIDE S770
FACADE AVANT FOUR 24M
01131384101 HINGE 9
01131384201 HINGE 10
01131379202 OVEN DOOR 13
PORTE FOUR 0870 DROITE EQUIPEE
01131391802 OVEN DOOR 14
01126172303 LOCK 8
01131390901 OVEN DOOR 15
01129989301 PANEL 18
01129924001 PANEL 19
01134314201 OVEN CONNECTION S770
JONCTION FOUR 24M
ARGM12158 CABINET SBO20/24 12158 30
ARMOIRE SBO20/24 12158
01132314601 ELECTRICAL CABINET FIXING
FIXATION ARMOIRE ELECTRIQUE
01131829702 CABINET EQUIPMENT 10
EQUIPEMENT ARMOIRE
01131829801 METAL WORKING FOR CABINET 20
TOLERIE ARMOIRE
01131855901 CABINET 1600X2000X800 RITTAL 10
ARMOIRE 2 CELLULES 1600X2000X800 RITTAL
01131830001 CABINET FRAME 30
CHASSIS ARMOIRE
01131830301 CABINET TERMINAL BLOCK 40
BORNIER ARMOIRE
01131832302 CABINET OUTLET 50
DEPART ARMOIRE
01131832901 CABINET OUTLET 50
DEPART ARMOIRE SBO20
Master-Unit

01131837901 CABLEWAY PLATE 56
PLAQUE PASSE-CABLE
01131833901 POWER SUPPLY 1250 A 100
ALIMENTATION ELECTRIQUE 1250 A
01124734301 FUSERBLOCK 10
FUSERBLOC TRI T.4 1250 36SG3120 SOCOMEC@
01124139602 PLC POWER SUPPLY 1A0
ALIMENTATION AUTOMATE TEMPO
01124713201 CONNECTION PROFIBUS STANDARD 3A0
LIAISON PROFIBUS STANDARD
01124141303 AUXILIARY EQUIPMENT POWER SUPPLY 16KW 470
ALIMENTATION PERIPHERIQUE 16KW
01128637701 AUXILIARY EQUIPMENT POWER SUPPLY RE.35KW 47R
ALIMENTATION PERIPHERIQUE RE.35KW
01131335101 WHEEL ROT. 69C
ROTATION ROUE - 7,5KW
01128638301 DOOR SAFETY 69E
SECURITE PORTE REMPLISSEUSE
01124141801 LAMP VENTILATION 87A
VENTILATION LAMPES
01132640801 OVEN VENTILATION 87C
VENTILATION FOUR - 2 MODULES
01131336001 EXTRACTION HOOD 87H
HOTTE D'EXTRACTION - 7,5KW
01131830901 PUMP 87I
POMPE DE GRAISSAGE ROUE
01131831101 PUMP 87I
POMPE DE GRAISSAGE CAMES
01124142201 MACHINE LIGHTING 1090
ECLAIRAGE MACHINE
01128920201 CABINET COOLING 13A0
REFROIDISSEMENT ARMOIRE
01124140001 OVEN HEATING 9A01
CHAUFFE FOURS 1 & 2
CHAUFFE FOURS 3 & 4
CHAUFFE FOURS 5 & 6
CHAUFFE FOURS 7 & 8
CHAUFFE FOURS 9 & 10
Master-Unit

01131444401 ALL-OR-NOTHING OUTPUT A000
SORTIE TOR A0>A2
01129427801 PLC EQUIPMENT A500
EQUIPEMENT AUTOMATE GRAISSAGE
01124492701 ON OFF CONTROL INPUT E0 E000
ENTREE TOR E0
ENTREE TOR E4
01131434201 PLC EQUIPMENT E530
EQUIPEMENT AUTOMATE - EB53
01124142503 PLC EQUIPMENT EA00
EQUIPEMENT AUTOMATE - ARMOIRE
EQUIPEMENT AUTOMATE REMPLISSEUSE
01128656001 ALL-OR-NOTHING OUTPUT EA00
SORTIE TOR A0 A2
EQUIPEMENT AUTOMATE 24
01118894805 CONSOLE LAYOUT EP01
IMPLANTATION PUPITRE
01133794001 CONTROL STATION SUPPLY EP02
ALIMENTATION PUPITRE
01127758601 FILTER DE SORTIE 8300172 RITTAL @ 50
FILTRE DE SORTIE 8300172 RITTAL @
01126359901 UPS SYSTEM RS 500VA R.BR500I APC@ 60
ONDULEUR BACK-UPS RS 500VA R.BR500I APC@
99000753504 No description available for: EN EP02
PUPITRE DE COMMANDE
01145222201 FLAT PC DC94F8-HFE08041§ 10
PC PLAT DC94F8-HFE08041§
Master-Unit

01133834801 INKJET PRINTER HP SERIE K5000 15
IMPRIMANTE JET D'ENCRE SERIE K5000 HP @
01124142401 ANALOG INPUT - EW1000>EW1010 EW10
01129987601 OUTPUT CARD EW10
EQUIPEMENT AUTO-*RECUP. CHALEUR/HOTTE
01117487201 KEY LOCK 1242E PCC OP00
SERRURE A CLE 1242E PCC
01129365002 OPTION SERRURE A CLE 1242E ARMOIRE OP00
OPTION SERRURE A CLE 1242E ARMOIRE
01131833301 CONNECTION OP70
LIAISON REMPLISSEUSE
01131348501 DEDUST MODULE OP75
01129427901 CAM GREASING OPGC
GRAISSAGE CAME OPTION
01126659401 LUBRICATION OPGR
OPTION GRAISSAGE ROUE
01133057301 OVEN HOOD OPHF
HOTTE FOUR
01132052101 OPTION FILTER AIR RECOVERY OPIC
OPTION FILTRE AIR DEGAZAGE
01131348502 DEDUST MODULE OPMD
01128780401 BOX K2 260
DRGM12158 PREFORM DISPENSER SBO20/24 12158 40
DISTRIBUTEUR DE PREFORMES SBO20/24 12158
01129365201 KEY LOCK 1
SERRURE A CLE 1242E COFFRET ALIMENTATEUR
01131804803 HOPPER 10
TREMIE 4M3 MILLESIME
01131678803 ELEVATING COLUMN 20
COLONNE ELEVATRICE GM MILLESIME
01132647803 ORIENTING ROLLER 30
ROULEAU ORIENTEUR GM
01132698702 ROLLER FRAME SHELL ASSY 31
COQUE CHASSIS ROULEAU EQUIPEE GM
01133364901 MODULE 41
MODULE AVANT GM
01125210203 UNSCRAMBLER 50
DEMELEUR STEP3
01131749004 RECYCLING CHUTE 60
GOULOTTE DE RECYCLAGE GM MILLESIME
Master-Unit

01125501302 INFEED RAIL 70
RAIL D'ALIMENTATION 1,5M
01132741401 SUPPORT 80
SUPPORT RAIL STANDARD
01128358104 ROLLER OUTFEED RAIL WITH EJECTION 90
RAIL SORTIE ROULEAUX AVEC EJECTION
01126178801 DISTRIBUTION UNIT 43
BLOC DE DISTRIBUTION
01133180001 ELECTRICAL CHUTE 110
GOULOTTE ELECTRIQUE GM A DROITE
01129007103 HOPPER COWLING 130
CAPOTAGE TREMIE STEP3
01129298004 CAPOTAGE TREMIE MODULABLE STEP3 135
CAPOTAGE TREMIE MODULABLE STEP3
01124792406 ROLLER CABIN LAYOUT E000
IMPLANTATION COFFRET ROULEAU
01124804103 HOPPER BOX EQUIPMENT E000
EQUIPEMENT COFFRET TREMIE
01124784204 PLC ON/OFF CONTROL INPUTS E100
ENTREE TOR E100
01127945904 ON/OFF CONTROL INPUTS E103
ENTREE TOR E103
01124784703 PLC INPUTS E105
ENTREE COMPTEUR AUTOMATE EB105
01124838101 PLC CARD E122
CARTE AUTOMATE E122
01124767808 ROLLER BOX POWER SUPPLY E1K0
ALIMENTATION COFFRET ROULEAU
01124776601 BOX POWER SUPPLY E1X0
ALIMENTATION COFFRET TREMIE
01124776702 TIPPER INFEED E47A
ALIMENTATION BASCULEUR
01124780802 DOOR SAFETY E69A
SECURITE PORTE ROULEAU
01124781102 HOPPER DOOR SAFETY E69A
SECURITE PORTE TREMIE
01124781208 ELEVATOR E69E
ELEVATEUR
01126652202 VARIATOR § E69E
VARIATEUR 0,75KW §
Master-Unit

01127924102 BELT E69E
TAPIS TREMIE
01124782104 ORIENTATING DEVICE E69F
ORIENTEUR
01124782303 RECYCLING CONVEYOR E69F
CONVOYEUR RECYCLAGE
01124782502 UNSCRAMBLER E69F
DEMELEUR 45°
01124783707 COWLING E69H
CAPOTAGE NIVEAU 3 VERIN
01124829201 LEVEL TIPPER SLAVING 3 E69H
ASSERVISSEMENT BASCULEUR NIVEAU 3
ENTREE TOR E70
01124839101 PLC CARD E740
CARTE AUTOMATE E74
01124839302 PLC CARD E750
CARTE AUTOMATE E75
01124839401 PLC CARD E760
CARTE AUTOMATE E76
01124839701 PLC CARD E77 E770
CARTE AUTOMATE E77
ENTREE TOR E78
01130514902 ON OFF CONTROL INPUT E800
ENTREE TOR E80
01130937902 BLOCKAGE E800
BOURRAGE TETE DE COLONNE
EQUIPEMENT AUTOMATE TREMIE
01128380601 PLC OUTPUT A100 EA10
SORTIE AUTOMATE A100
01124838401 PLC CARD A71 EA71
CARTE AUTOMATE A71
01124838501 PLC CARD A72 EA72
CARTE AUTOMATE A72
01131829201 PLC CARD EA75
CARTE AUTOMATE
01124830701 PLC EQUIPMENT EAR0
EQUIPEMENT AUTOMATE
01129058902 WIRING ECE0
CABLAGE COLONNE ELEVATRICE
01124805604 MACHINE WIRING ECR0
CABLAGE MACHINE ROULEAUX
Master-Unit

01124820202 ROLL PROFIBUS LINK ECR0
LIAISON PROFIBUS ROULEAUX
01124819803 MACHINE WIRING ECT0
CABLAGE MACHINE TREMIE
01124820302 HOPPER PROFIBUS LINK ECT0
LIAISON PROFIBUS TREMIE
01129770802 HOPPER EMPTYING EVT0
VIDAGE TREMIE
VRGM12158 TOOL SUPPLIED WITH SBO20/24 12158 50
OUTILLAGES LIVRES AVEC SBO20/24 12158
01137470101 ARM LAYING TOOL 1
OUTILLAGE POSE DE BRAS
01130710101 HEIGHT SYNCHRO TOOL 2
OUTILLAGE HAUTEUR-SYNCHR BRASV4
01130710201 EQUIPPED DUMMY ARM HEAD TOOL V4 1
OUTILLAGE FAUSSE TETE DE BRAS EQUIPEE V4
01125068103 NOZZLE CYLINDER TOOLS 4
OUTILLAGE VERIN DE TUYERE 2T D50
01127795720 TOOL COMMUN UNIVERSAL 5
OUTILLAGE COMMUN UNIVERSAL
01127795809 TOOL BOX 1
COFFRET D'OUTILLAGE
01111329701 COMPARATOR SUPPORT 5
SUPPORT COMPARATEUR $
01145236701 SUITCASE KIT INDICE DE RIZNAR + CHLORURE 69
VALISE KIT INDICE DE RIZNAR
01127798402 TOOL CONSOMMABLE SERIE 3 6
OUTILLAGE CONSOMMABLE SERIE 3
01127802501 START UP TOOL SERIE 3 8
OUTILLAGE DE MISE EN ROUTE SERIE 3
01128032902 TOOLS 9
OUTILLAGE TRANSPORT GRAND MODELE
01128730002 MACHINE SHIM 32
CALE MACHINE DE 2 A 30MM
01131856601 TOOL 33
OUTILLAGE ACCOUPLEMENT
01135187601 TOOL 34
OUTILLAGE FAUX SECTEUR ROUE FOUR
01134511002 TOOL 35
OUTILLAGE FAUSSE PINCE
PPER20798 PERSO PARTS.SBO20 12158 1L5 11016350 100
PERSO.SBO20 12158 1L5 11016350
01130535401 BENT RAIL 10
RAIL COUDE
Master-Unit

01124922501 KIT FOR CUSTOMIZED ELBOW 20
KIT PERSO COUDE 90 A DROITE R320
01127115701 BODY GUIDE 30
GUIDE CORPS 90° A DROITE DIAMETRE MOYEN
01112359901 FEELER GAUGE AND SPACER 40
PIGE ET ENTRETOISE
01111877501 RAIL ADJUSTMENT 50
REGLAGE DE RAIL
01129269902 KIT FOR INFEED WHEEL PERSO PART 60
KIT PERSO.ROUE D'ALIMENTATION
01132661402 INFEED WHEEL 70
ROUE D'ALIMENTATION DEPOUSSIERAGE P50
01129602101 INFEED NECK GUIDE 80
GUIDE COL ALIMENTATION
01129329502 KIT FOR DEDUST WHEEL PERSO PT. 90
KIT PERSO.ROUE DE DEPOUSSIERAGE
01132664701 DEDUSTWHEEL P50 100
ROUE DEPOUSSIERAGE P50
01129602701 DEDUST NECK GUIDE 110
GUIDE COL DEPOUSSIERAGE
01129603003 DEDUST CAM 120
CAME DE DEPOUSSIERAGE COURSE 143
01129329602 KIT-PREFORM TRANSF.WHEEL PERSO PT 130
KIT PERSO.ROUE DE TRANSFERT PREF.
01132920302 TRANSFER WHEEL 140
ROUE TRANSFERT
01129603302 NECK GUIDE TRANSFER 150
GUIDE COL TRANSFERT
01130537401 INFEED PLATE 160
PLATEAU D'ALIMENTATION
01131202001 OVEN OUTFEED GUIDE 170
GUIDE SORTIE FOUR
01130670601 SPINDLE NOSE 180
NEZ DE TOURNETTE U
01130104503 TRANSFER GRIP 190
PINCE TRANSFERT
01126859403 ERTALYTE STD GRIPPER CUSTOM KIT 200
KIT PERSO PINCE ERTALYTE STD
01128552902 PERSO PART-KIT 210
KIT PERSO. PLATEAU
01129654002 TRAY 220
PLATEAU
01128662901 KIT 230
KIT GUIDE BOUTEILLE ROUE COMBI
Master-Unit

01130507202 BOTTLE GUIDE 240
GUIDE BOUTEILLE
01128750502 BODY GUIDE KIT 250
KIT GUIDES CORPS FIXE
01129879204 FIXED GUIDE BELOW NECK 260
GUIDE SOUS COL FIXE
01128964802 ON-NECK GUIDE FIXE 270
GUIDE SUR COL FIXE
01129714401 CIRCULAR GUIDE 280
GUIDE CIRCULAIRE
01129213701 UNDER-NECK GUIDE KIT MOBILE 290
KIT GUIDE SOUS COL MOBILE
01129704502 MOBILE GUIDE UNDER NECK 300
GUIDE SOUS COL MOBILE
01125223803 BOTTLE GUIDE BODY GUIDE 310
GUIDE BOUTEILLE GUIDE CORPS BTL 0-5
01129278701 GUIDE LATERAL MOBILE 320
GUIDE LATERAL MOBILE
01133257101 THRUST 330
BUTEE ELONGATION C 334 A 382
01130979401 STRETCHING ROD 340
TIGE D'ELONGATION
01128697503 KIT FOR STRETCH ROD 350
KIT PERSO TIGE ELONGATION
01136023201 NECK RIM RETAINER 360
APPUI BUVANT
01114974103 BELL SEAL 370
JOINT CLOCHE
01133275303 SCREWED WASHER 380
RONDELLE VISSEE
PPER34387 Adaptation parts 0.33L sbo 20 # 12158 101
Adaptation parts 0.33L sbo 20 # 12158
01130535401 BENT RAIL 10
RAIL COUDE
01124923503 KIT FOR ELBOW PERSO PART 20
KIT PERSO.COUDE 90 A DROITE R320
01127115701 BODY GUIDE 30
PIGE ET ENTRETOISE
REGLAGE DE RAIL
Master-Unit

01158614901 INFEED WHEEL DEPOUSSIERAGE P50 70
01129541505 DEDUST WHEEL KIT 90
KIT ROUE DEPOUSSIERAGE
01158615301 DEDUSTWHEEL 100
ROUE DEPOUSSIERAGE
01129660307 DEDUST CAM COURSE 46 120
ROUE DE TRANSFERT
GUIDE COL TRANSFERT
01128043602 PLATE D' ALIMENTATION 160
PLATEAU D' ALIMENTATION
GUIDE SORTIE FOUR
01143354104 SPINDLE NOSE 180
NEZ DE TOURNETTE UNIVERSAL
PINCE TRANSFERT
01132554101 PERSO PART-KIT VIS PINCE 200
KIT PERSO. VIS PINCE
01128552704 PLATE PERSO PART KIT 210
KIT PERSO.PLATEAU
01129654005 PLATE 220
PLATEAU
01128661404 COMBI WHEEL BOTTLE GUIDE KIT 230
01155366001 BODY GUIDE 240
GUIDE CORPS
01128750503 KIT GUIDES CORPS FIXE § 250
KIT GUIDES CORPS FIXE §
01129879205 FIXED UNDER-NECK GUIDE 260
GUIDE SOUS COL FIXE
GUIDE SUR COL FIXE
01140921002 CIRCULAR GUIDE 280
GUIDE CIRCULAIRE
Master-Unit

01129704503 MOBILE UNDER-NECK GUIDE 300
01125223804 KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5 310
KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5
01139457401 MOBILE BODY GUIDE 320
GUIDE CORPS MOBILE
01126827304 STRETCH STROKE THRUST 330
BUTEE ELONGATION COURSE 154 A 214
TIGE D'ELONGATION
01128630106 STRETCHING ROD PERSO PART KIT 350
KIT PERSO.TIGE D'ELONGATION
APPUI BUVANT
01114974104 BELL SEAL 370
JOINT CLOCHE
RONDELLE VISSEE
PPER34389 Adaptation parts 0.50L sbo 20 # 12158 102
Adaptation parts 0.50L sbo 20 # 12158
01130535401 BENT RAIL 10
RAIL COUDE
01124923503 KIT FOR ELBOW PERSO PART 20
01127115701 BODY GUIDE 30
PIGE ET ENTRETOISE
REGLAGE DE RAIL
01158614901 INFEED WHEEL DEPOUSSIERAGE P50 70
01129541505 DEDUST WHEEL KIT 90
01158615301 DEDUSTWHEEL 100
ROUE DEPOUSSIERAGE
Master-Unit

01129660307 DEDUST CAM COURSE 46 120
ROUE DE TRANSFERT
GUIDE COL TRANSFERT
01128043602 PLATE D' ALIMENTATION 160
GUIDE SORTIE FOUR
01143354104 SPINDLE NOSE 180
PINCE TRANSFERT
01128552704 PLATE PERSO PART KIT 210
KIT PERSO.PLATEAU
01129654005 PLATE 220
PLATEAU
01128661404 COMBI WHEEL BOTTLE GUIDE KIT 230
01128259502 BOTTLE GUIDE 240
GUIDE BOUTEILLE
01128750503 KIT GUIDES CORPS FIXE § 250
01129879205 FIXED UNDER-NECK GUIDE 260
GUIDE SOUS COL FIXE
GUIDE SUR COL FIXE
01129656402 CIRCULAR GUIDE LATERAUX 280
GUIDE CIRCULAIRE LATERAUX
01129704503 MOBILE UNDER-NECK GUIDE 300
01125223804 KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5 310
01129708501 SIDE GUIDE 320
01126827404 STRETCHING THRUST C=214 A 274 330
BUTEE D'ELONGATION C=214 A 274
Master-Unit

TIGE D'ELONGATION
01128630106 STRETCHING ROD PERSO PART KIT 350
APPUI BUVANT
01114974104 BELL SEAL 370
JOINT CLOCHE
RONDELLE VISSEE
PPER36146 PERSO.SBO20 12158 REINF.TRANSFER ARMS 103
PERSO.SBO20 12158 REINF.TRANSFER ARMS
PINCE TRANSFERT
VXBO35442 MOULE 1.50L # 11064273.01 200
COQ150 AL ST 1.5L PROGRESS MSO1
01158867901 ASSEMBLY
ENSEMBLE
01158868201 ASSY SHELL UNIVERSAL 2
ENS COQUILLE UNIVERSAL
01158868001 ASSY BASE UNIVERSAL DIAM MAXI 101,4 MM 3
ENS FOND UNIVERSAL DIAM MAXI 101,4 MM
01133740801 MONOBLOC UNIVERSAL PEDESTAL ( 25 à 65MM) 2
ENTRETOISE GEN UNIVERSAL X=27,46 MM
VXBO35443 MOULE 0.33L # 11064252.01 201
01158678001 ASSEMBLY 1
ENSEMBLE
01158678401 ASSY BASE UNIVERSAL DIAM MAXI 63.4 MM 2
ENS FOND UNIVERSAL DIAM MAXI 63.4 MM
01158680701 MODULAR SPACER =169.13MM 3
MODULAIRE SPACER=169.13MM
01140909001 ASSY SPACER 1
ENS ENTRETOISE
VXBO35444 MOULE 0.50L # 11064269.01 202
01158677401 ASSEMBLY 1
ENSEMBLE
Master-Unit

01158677801 ASSY BASE UNIVERSAL DIAM MAXI 73,4 MM 2
01158679401 MODULAR SPACER UNIVERSAL X=137.64MM 3
MODULAR SPACER UNIVERSAL X=137.64MM
01137641701 ASSY SPACER UNIVERSAL V2
ENS ENTRETOISE
VXMO30137 MOLDS COMPLEMENTAIRES MOULERIE VXMO35443 203
BC P/VXBO35443 PROGRESS MSO4
Product Parts List Edited on
Product Parts List Editée le 27/03/18
Sub-Unit Table of contents

Sous-ensemble MRGM12158 Index
Mark Item Code Classification Description Quantity QU
Rep. Code article Classification Désignation Quantite UQ
0010 RRGM12158 01 WHEEL SBO20/24 12158 1 PCE
01 ROUE SBO20/24 12158
0011 SRGM12158 01 SPECIFIC WHEEL SBO20/24 12158 1 PCE
01 SPECIFIQUE ROUE SBO20/24 12158
0020 FRGM12158 02 OVEN SBO20/24 12158 1 PCE
02 FOUR SBO20/24 12158
0030 ARGM12158 03 CABINET SBO20/24 12158 1 PCE
03 ARMOIRE SBO20/24 12158
0040 DRGM12158 04 PREFORM DISPENSER SBO20/24 12158 1 PCE
04 DISTRIBUTEUR DE PREFORMES SBO20/24 12158
0050 VRGM12158 00 TOOL SUPPLIED WITH SBO20/24 12158 1 PCE
00 OUTILLAGES LIVRES AVEC SBO20/24 12158
0100 PPER20798 05 PERSO PARTS.SBO20 12158 1L5 11016350 1 PCE
05 PERSO.SBO20 12158 1L5 11016350
0101 PPER34387 05 Adaptation parts 0.33L sbo 20 # 12158 1 PCE
05 Adaptation parts 0.33L sbo 20 # 12158
0102 PPER34389 05 Adaptation parts 0.50L sbo 20 # 12158 1 PCE
05 Adaptation parts 0.50L sbo 20 # 12158
0103 PPER36146 05 PERSO.SBO20 12158 REINF.TRANSFER ARMS 1 PCE
05 PERSO.SBO20 12158 REINF.TRANSFER ARMS
0200 VXBO35442 06 MOULE 1.50L # 11064273.01 1 PCE
06 COQ150 AL ST 1.5L PROGRESS MSO1
0201 VXBO35443 06 MOULE 0.33L # 11064252.01 1 PCE
0202 VXBO35444 06 MOULE 0.50L # 11064269.01 1 PCE
0203 VXMO30137 06 MOLDS COMPLEMENTAIRES MOULERIE 1 PCE
06 VXMO35443
BC P/VXBO35443 PROGRESS MSO4

Sous-ensemble RRGM12158 Index 10
Description WHEEL SBO20/24 12158

Désignation ROUE SBO20/24 12158
C009 01127263902 COLUMN 2 PCE
COLONNE PRISE DE NIVEAU GM
C010 01131454005 FRAME ASSEMBLY 1 PCE
CHASSIS EQUIPE GM
C011 01131278301 FRAME 1 PCE
CHASSIS SUPERIEUR GM
C012 01124118803 LOCKING PIN 1 PCE
BROCHE DE BLOCAGE
C020 01126424705 TRANSMISSION KINEMATIC CHAIN 1 PCE
CINEMATIQUE TRANSMISSION
C040 01124194204 RINGS 1 PCE
VIROLE
C045 01125115202 AIR RESERVE 1 PCE
RESERVE D'AIR GM
C050 01131962304 DRIVE SYSTEM 1 PCE
MOTORISATION 7,5 KW
C055 01124030005 DRIVE PINION 1 PCE
PIGNON DE COMMANDE
C056 01125129004 PNEUMATIC BRAKE SYSTEM 1 PCE
C060 01131860901 AIR ROTARY UNION 1 PCE
C060 01134190001 AIR INLET 40 ET 7 B 1 PCE
C065 01131673501 DISTRIBUTION 1 PCE
C070 01130697201 WATER ROTARY UNION 1 PCE
RACCORD ROTATIF EAU
C070 01132063101 TWO CIRCUITS WATER ROTARY UNION 1 PCE
JOINT TOURNANT EAU DEUX CIRCUITS GM
C080 01124031406 BELT AND TENSIONER GM 1 PCE
C081 01128027403 BELT CASING 1 PCE
C100 01126776903 ENCODER WHEEL 1 PCE
ROUE CODEUSE STEP3
C101 01126037501 ENCODER 1 PCE
CODEUR
C105 01131861501 ELECTRICAL COLLECTOR 1 PCE
C121 01131849701 CENTRALIZED GREASING 1 PCE


C122 01129571903 SPRAY SYSTEM GREASING 1 PCE
C205 01124028906 PREFORM TRANSFER BEARING 2 PCE
PALIER DE TRANSFERT
C230 01125767602 HYDRAULIC PANEL 1 PCE
TABLEAU HYDRAULIQUE
C230 01126119101 HYDRAULIC PANEL POWER SUPPLY 1 PCE
C231 01127768101 OVEN WATER HOSE 1 PCE
FLEXIBLE EAU ALIMENTATION FOUR GM
C252 01131959703 OPEN-CLOSE CAM SETTING TOOL 1 PCE
C345 01129392902 SOLENOID VALVE PILOTING AIR 1 PCE
CIRCUIT AIR PILOT.ELECTROVANNE
C346 01126362104 WHEEL CYLINDER AIR 1 PCE
C375 01129508501 PRESSURE REDUCTION 1 PCE
DETENTE 40-7B AVEC RECUPERATION AIR V3
C375 01131071701 AIR RECOVERY PNEUMATIC DRAWING 1 PCE
SCHEMA PNEUMATIQUE RECUPERATION AIR
C376 01127078605 AIR RECOVERY V3 1 PCE
RECUPERATION AIR V3
C377 01125687404 SKID 1 PCE
SKID AIR
C380 01129268301 STOP VALVE CONTROL SYSTEM 1 PCE
CIRCUIT PILOTE CLAPET VERIN ELONGATION
C386 01125084801 PRESSURE REDUCTION LINE 1 PCE
LIGNE DE DETENTE L704
C387 01126755403 AIR RECYCLING 1 PCE
RECUPERATION AIR V3
C395 01124125407 MOLD OPEN CLOSE CAM§ 1 PCE
CAME O-F MOULE§
C405 01124150406 MOLD BASE UP DOWN CAM 1 PCE
CAME MONTEE DESCENTE FOND DE MOULE
C415 01131456002 STRETCHING ROD DOWN-CAM 1 PCE
CAME DE DESCENTE ELONGATION STEP3
ROUGE
C417 01128669301 STRETCH SAFETY CAM 1 PCE
C418 01128984704 NOZZLE UP SAFETY CAM 1 PCE
CAME SECURITE REMONTEE TUYERE
C430 01132040201 DOUBLE-ROLLER LOCKING CAM 1 PCE


C435 01131323702 UNLOCKING CAM 1 PCE
CAME DE DEVERROUILLAGE GM HR-1800
C455 01124120505 LEVER SAFETY O-F MOULE 1 PCE
C456 01129677306 SAFETY 1 PCE
SECURITE GM (AVEC CAME SECURITE TUYERE)
C465 01124070704 BOTTLE AND PREFORM EJECTION 1 PCE
EJECTION BOUTEILLES ET PREFORMES
C475 01126997604 BOTTLE OUTFEED WHEEL 1 PCE
ROUE SORTIE BOUTEILLES
C476 01124149402 IDLER ROLLER FLASQUE§ 1 PCE
C476 01124149502 TIGHTENER§ 1 PCE
C476 01128564601 PULLEY 1 PCE
POULIE SORTIE BOUTEILLES
C477 01123898503 RETRACTABLE BOTTLE OUTFEED GUIDE 1 PCE
GUIDE ESCAMOTABLE SORTIE BOUTEILLES
C477 01133027501 BOTTLE GUIDE 1 PCE
C478 01133028103 PROTECTION 1 PCE
C480 01128545602 BRACKET 1 PCE
EQUERRE LIAISON
C495 01126055804 BLOW WHEEL ROOF 1 PCE
TOIT SOUFFLEUSE COLLE GM
C495 01127447001 REAR UPPER SIDE 1 PCE
FACADE SUPERIEURE ARRIERE
C495 01127456401 OVEN UPPER SIDE 1 PCE
FACADE SUPERIEURE COTE FOUR
C495 01127460501 FRONT UPPER SIDE 1 PCE
FACADE SUPERIEURE AVANT
C495 01127479801 FRONT-SIDE 1 PCE
FACADE SUPERIEURE COTE SORTIE BOUT
C495 01127502103 DOOR 1 PCE
C495 01127668803 TRANSFER FLOOR 1 PCE
C495 01127836704 TOOL 1 PCE
C495 01128124102 LABEL 1 PCE
ETIQUETTE HMA ROUGE


C495 01128836605 LABEL 1 PCE
ETIQUETTE SBO UNIVERSAL RUSSE
C495 01129638901 LOCKING KIT 1 PCE
C495 01131382402 FRONT-SIDE 1 PCE
FACADE AVANT
C495 01131409402 FRONT-SIDE 1 PCE
FACADE ARRIERE
C495 01131441702 FRONT-SIDE 1 PCE
FACADE DROITE
C495 01131441903 FRONT-SIDE 1 PCE
FACADE INF GAUCHE
C495 01131870901 PARTITION 1 PCE
C496 01133637701 FLOOR 1 PCE
PLANCHER FIXE GM
C500 01127590604 COLLECTOR 1 PCE
COLLECTEUR
C500 01132117102 CHUTE 1 PCE
GOULOTTE BOUTEILLES GM
C500 01132156602 CHUTE 1 PCE
EC01 01126536401 MACHINE EQUIPMENT 1 PCE
EQUIPEMENT MACHINE
EC01 01132642201 MACHINE WIRING 1 PCE
CABLAGE MACHINE
EC02 01126577601 CONNECTION PROFIBUS STANDARD ROUE GM 1 PCE
LIAISON PROFIBUS STANDARD ROUE GM
EF01 01131347701 FIXED REMOTE INPUT 1 PCE
EF02 01124143601 FIXED DECENTRALIZED OUTPUT - A10 1 PCE
EF04 01131352001 FIXED REMOTE INPUT E14 1 PCE
EF05 01124143702 FIXED DECENTRALIZED OUTPUT 1 PCE
EF06 01126577501 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE - E/S ROUE


EF07 01124143801 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE - E/S FOUR
EF08 01131625701 DETECTION SYNCHRO WHEEL/OVEN 1 PCE
EK01 01133031401 BOX 1 PCE
COFFRET SKID
EK02 01134370301 PLC EQUIPMENT COFFRET SKID 1 PCE
EQUIPEMENT AUTOMATE COFFRET SKID
EK03 01134370201 ANALOG INPUT EW1100 1 PCE
EK04 01131530001 ANALOG INPUT 1 PCE
EK05 01133031601 ANALOG OUTPUT 1 PCE
EK06 01132441401 ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR E20>E22
EK07 01131444701 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR A20>A22
ENTREE ANALOGIQUE COL/FOND STD
ENTREE ANALOGIQUE CORPS STD
ES01 01124146301 UPPER BOX 1 PCE
COFFRET SUPERIEUR
ES02 01125471701 JOG 1 PCE
CABLAGE PRISES JOG
ET01 01124146101 TRANSFER BOX 1 PCE
COFFRET TRANSFERT
ET02 01124143201 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE - COFFRET TRANSFERT
ET03 01124428901 DISTRIBUTOR WIRING 1 PCE
ET04 01131353901 ON OFF CONTROL INPUT 1 PCE
ENTREE TOR E30>E32
ET05 01124143101 ALL-OR-NOTHING OUTPUT - A30>A32 1 PCE
ET06 01135517101 ALL-OR-NOTHING PLC INPUT - E33 > E35 1 PCE
ENTREE AUTOMATE TOR - E33 > E35
EV01 01131423901 POLE SUPPLY CABINET 1 PCE
COFFRET ALIMENTATION POLE
EV02 01124145902 POLE BOX 1 PCE
COFFRET POLE 1


EV03 01124146002 POLE BOX 1 PCE
COFFRET POLE 2
EV04 01124419901 AIR COOLING 1 PCE
BALAYAGE OU RECUPERATION AIR
EV04 01124420001 AIR COOLING 1 PCE
BALAYAGE OU RECUPERATION AIR 20
EV04 01124518027 POLE LABEL - ENGLISH/RUSSIAN 1 PCE
ETIQUETTES POLES - ANGLAIS/RUSSE
EV05 01124421401 CONTROLLED COMPENSATION 1 PCE
COMPENSATION PILOTEE
EV05 01124421501 CONTROLLED COMPENSATION 1 PCE
COMPENSATION PILOTEE 20
EV05 01131633901 WIRING 1 PCE
EV05 01131634101 WIRING 1 PCE
CABLAGE REPARTITEURS 20
EV10 01131423601 MOBILE BOX POWER SUPPLY 1 PCE
ALIMENTATION COFFRET MOBILE
EV11 01124144003 WIRING 1 PCE
EV12 01124397102 CODER TO CARDS CONNECTION FM 1 PCE
EV20 01131423801 MOBILE REMOTE INPUT 1 PCE
ENTREE DECENTRALISEE MOBILE E40
EV22 01124144201 MOBILE DECENTRALIZED OUTPUT 1 PCE
EV26 01124402501 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE - AB52
EV30 01124144901 ANALOG INPUT - EW1400>EW1414 1 PCE


EV34 01124145501 ANALOG OUTPUT - AW1400>AW1406 1 PCE
SORTIE ANALOGIQUE - AW1400>AW1406
EV40 01124133001 CARD - A500 1 PCE
CARTE FM - A500
EV41 01124133101 CARD- A516 1 PCE
CARTE FM - A516
EV42 01124133301 CARD- A532 1 PCE
CARTE FM - A532
EV43 01124133401 CARD- A612 1 PCE
CARTE FM - A612
EV43 01124397301 CARD 1 PCE
CARTE FM - A548
EV44 01124133501 CARD FM - A564 1 PCE
CARTE FM - A564
EV45 01124133701 CARD FM - A580 1 PCE
CARTE FM - A580
EV45 01124397201 CARD FM - A580 1 PCE
CARTE FM - A580
EV46 01124133801 CARD- A596 1 PCE
CARTE FM - A596
EV46 01124421301 CARD 1 PCE
CARTE FM - A596
EV50 01124145601 PLC EQUIPMENT FOR MOBILE SECTION 1 PCE
EQUIPEMENT AUTOMATE - PARTIE MOBILE
EV50 01124145701 PLC EQUIPMENT FOR MOBILE SECTION 1 PCE
EQUIPEMENT AUTOMATE PARTIE MOBILE SBO20
EV60 01131424701 PROFIBUS WIRING 1 PCE
S040 01126140903 TERMINAL BLOCK SUPPORT 16 PCE
SUPPORT REPARTITEUR
S040 01126140903 TERMINAL BLOCK SUPPORT 4 PCE
SUPPORT REPARTITEUR
S061 01125339701 AIR HOSE GM 20 PCE
FLEXIBLE DISTRIBUTION AIR GM
S062 01127599901 HOSE RECUPERATION AIR GM 20 PCE
FLEXIBLE RECUPERATION AIR GM
S072 01125437901 WATER DISTRIBUTING HOSES 20 PCE
S095 01124193002 OVEN CONNECTING PULLEY 1 PCE
POULIE LIAISON FOUR SBO20 PAS DE 50
S206 01126658201 PREFORM TRANSFER CAM 1 PCE
CAME TRANSFERT PREFORMES SBO20 PAS50


S210 01128586102 SYNCHRONIZATION DISC 1 PCE
DISQUE SYNCHRONISATION 20M
S211 01130635801 BOTTLE TRANSFER CAM 1 PCE
S213 01131600501 ARM SUPPORT PLATE 2 PCE
S250 01127166609 CONSOLE 20 PCE
CONSOLE
S253 01124410507 CYLINDRICAL MOLD SUPPORT UNIT (GUPM) 20 PCE
S254 01125841904 HALF-MOLD SUPPORT § 20 PCE
SUPPORTS COQUILLES EQUIPES §
S280 01129189906 STRETCH UNIT 20 PCE
ELONGATION
S281 01131572901 KIT BAGUE SECURITE TUYERE 2T D50 20 PCE
S285 01131571601 NOZZLE CYLINDER § 20 PCE
VERIN TUYERE 2T D50 §
S285 01131572602 END-PIECE 2T D50 20 PCE
S315 01125313002 DISTRIBUTION - CYL GUPM SHELL SUPPORT 20 PCE
S316 01125338902 DISTRIBUTION - CYLIND & SQUARE GUPM BASE 20 PCE
DISTRIBUTION FOND GUPM CYLIND ET CARRE
S340 01135255001 BLOW PREBLOW WITH AIR RECYCLING 20 PCE
S360 01127243802 CYLINDER AIR 20 PCE
AIR VERIN 2T COURSE 40
S400 01126735506 MOLD BASE 20 PCE
FOND DE MOULE
S401 01124526303 PNEUMATIC SUPPORT PLATE§ 20 PCE
SELLETTE PNEUMATIQUE§
S450 01131128010 ARM 20 PCE
BRAS TRANSFERT STANDARD GM
S450 01132304809 ARM HEAD STANDARD BI-AXE 20 PCE
TETE DE BRAS STANDARD BI-AXE
S495 01128125503 LOGO FACADE SUP HMA SBO20 1 PCE
LOGO FACADE SUP HMA SBO20
S587 01132019904 COMPENSATION WITH SOLENOID VALVE 20 PCE
COMPENSATION AVEC ELECTROVANNE
S590 01125066804 DISTRIBUTION BLOCK 20 PCE

Sous-ensemble 01127263902 Index C009
Description COLUMN
Désignation COLONNE PRISE DE NIVEAU GM
0000 01127263702 LEVEL COLUMN 1 PCE
COLONNE DE NIVEAU
0001 01130927001 REWORK DRAWING - WORM 1 PCE
PLAN DE REPRISE VIS
0002 01127263801 COLUMN 1 PCE
COLONNE
0003 00000013009 NUT ISO4032-M12-10 1 PCE
ECROU H ISO4032-M12-10
0004 00000012192 SCREW ISO4026-M16X040-45H 1 PCE
VIS HC ISO4026-M16X040-45H

Description FRAME ASSEMBLY

Désignation CHASSIS EQUIPE GM
0000 01131453605 FRAME ASSEMBLY 1 PCE
CHASSIS EQUIPE GM
0001 01130936305 FRAME 1 PCE
CHASSIS GM
0002 01114544802 ADJUSTABLE RING 1 PCE
COURONNE ORIENT.01.1295.02.ZZ20 AVECJEU§
0003 01125017601 ROTATING PLATE 1 PCE
PLATEAU TOURNANT GM
0004 01072312104 FIXING BRACKET 4 PCE
EQUERRE DE FIXATION
0005 01074680102 LEVELLING PRISM 1 PCE
PRISME MISE A NIVEAU
0006 01118819601 BENT PIPE 1 PCE
TUBE CINTRE
0008 00000108313 SHIM DK2/10 DIA.100 3204-05 7 PCE
CALE DK2/10 DIA.100 3204-05
0009 00000103118 CABLE CLIP ALU AL7 3 PCE
CLIP SERRE-CABLES ALU AL7
0010 00000014750 CYLINDRICAL PIN ISO8735-08X030-A 8 PCE
GOUPILLE CYL. ISO8735-08X030-A
0011 00000129945 SCREW ISO4014-M16X130-10.9 24 PCE
VIS H ISO4014-M16X130-10.9
0012 00000011368 SCREW H-M16X080-10.9 24 PCE
VIS H-M16X080-10.9
0013 00000012472 SCREW ISO4017-M16X030-8.8 8 PCE
VIS H ISO4017-M16X030-8.8
0014 00000014130 WASHER CS-NFE25511-M16-16,4X32X2,8 8 PCE
RONDELLE CS-NFE25511-M16-16,4X32X2,8
0015 00000014054 WASHER ISO7089-16-200HV 72 PCE
RONDELLE M ISO7089-16-200HV
0016 00000129944 NUT M16 -8 Z/B 24 PCE
ECROU H M16 -8 Z/B
0017 00000011626 SCREW ISO4762-M10X050-10.9 2 PCE
VIS CHC ISO4762-M10X050-10.9
0018 00000014076 NARROW NOTCHED WASHER SPS-10-ZING 2 PCE
RONDELLE CRANTEE ETROITE SPS-10-ZING
0019 00000011521 SCREW ISO4762-M04X010-10.9 3 PCE
VIS CHC ISO4762-M04X010-10.9
0020 01131717102 SUPPORT 3 PCE
SUPPORT
0021 01131923101 CASING 1 PCE
CARTER CHEMIN CABLE

Description FRAME ASSEMBLY

Désignation CHASSIS EQUIPE GM
0022 00000011644 SCREW ISO4762-M12X025-10.9 8 PCE
VIS CHC ISO4762-M12X025-10.9
0025 00000013007 NUT ISO4032-M10-10 8 PCE
0026 00000010055 SCREW ISO4014-M10X070-8.8 8 PCE
VIS H ISO4014-M10X070-8.8
0027 00000011245 SCREW ISO4762-M08X012-12.9 8 PCE
VIS CHC ISO4762-M08X012-12.9
0029 00000011600 SCREW ISO4762-M08X020-10.9 3 PCE
VIS CHC ISO4762-M08X020-10.9
0030 01126251403 CASING 2 PCE
CARTER
0031 01119061901 PEELABLE SHIM 6 PCE
CALE PELABLE
0032 01118570702 LEVEL SCALE 3 PCE
BARRETTE DE NIVEAU
0033 01118570902 LEVEL SCALE 3 PCE
BARRETTE DE NIVEAU
0034 00000012516 SCREW ISO10642-M04X016-10-9 12 PCE
VIS FHC ISO10642-M04X016-10-9
0036 00000096042 ELASTIC STUD RADIAFLEX 521 340 4 PCE
PLOT ELASTIQUE RADIAFLEX 521 340
0037 00000013554 NUT ISO4032-M08-10 4 PCE
0038 01131462801 PROTECTIVE CASING 1 PCE
CARTER DE PROTECTION
0039 00000010034 SCREW ISO4017-M08X016-8.8 3 PCE
VIS H ISO4017-M08X016-8.8
0040 01131909401 FRAME BOX SUPPORT 1 PCE
SUPPORT COFFRET CHASSIS
0041 01133415201 SUPPORT 1 PCE
SUPPORT

Description FRAME
Désignation CHASSIS SUPERIEUR GM
0000 01130977401 FRAME 1 PCE
CHASSIS SUPERIEUR
0001 01130980401 FRAME 1 PCE
CADRE SUPERIEUR
0002 01124083302 ANTITORQUE FRAME 1 PCE
CADRE ANTI COUPLE
0003 01131872801 ANTI-ROTATION LOCKING PLATE 1 PCE
PLAQUE ANTI-ROTATION
0004 01126836201 ANTI-TORQUE SUPPORT 1 PCE
SUPPORT ANTI-COUPLE
0005 01126835601 ANTI-TORQUE SUPPORT 1 PCE
SUPPORT ANTI-COUPLE COLLECTEUR
0006 00000010064 SCREW ISO4017-M12X035-8.8 10 PCE
VIS H ISO4017-M12X035-8.8
0008 00000011600 SCREW ISO4762-M08X020-10.9 4 PCE
VIS CHC ISO4762-M08X020-10.9
0010 00000010093 SCREW ISO4017-M16X040-8.8 16 PCE
VIS H ISO4017-M16X040-8.8
0012 01125571501 BOX UPPER SUPPORT 1 PCE
SUPPORT COFFRET SUPERIEUR
0013 00000011601 SCREW ISO4762-M08X025-10.9 4 PCE
VIS CHC ISO4762-M08X025-10.9
0014 00000013554 NUT ISO4032-M08-10 8 PCE
0016 01122381201 NEON LAMP SUPPORT 8 PCE
SUPPORT NEON
0017 00000013415 SCREW M06X020-10.9 8 PCE
VIS CHC M06X020-10.9

Description LOCKING PIN

Désignation BROCHE DE BLOCAGE
0000 01124118903 LOCKING PIN 1 PCE
AXE DE VERROUILLAGE
0001 01124119103 SUPPORT 1 PCE
SUPPORT
0002 01124119001 PIN 1 PCE
BROCHE
0003 00000011695 SCREW ISO4762-M16X040-10.9 4 PCE
VIS CHC ISO4762-M16X040-10.9

Description RINGS
Désignation VIROLE
0000 01124194304 RING 1 PCE
VIROLE ET SUPPORT COFFRET
0001 01124215003 FERRULE 1 PCE
VIROLE BASSE GM
0002 99000417935 FERRULE KIT GM 1 PCE
KIT VIROLE GM COMPLEMENT MECA

Sous-ensemble 99000417935 Index 2
Description FERRULE KIT GM

Désignation KIT VIROLE GM COMPLEMENT MECA
0002 01124215104 STRETCHING SUPPORT CONNECTION 1 PCE
LIAISON SUPPORT ELONGATION
0009 00000013554 NUT ISO4032-M08-10 16 PCE
0015 01126135101 BOX SUPPORT STRENGTHENING 4 PCE
RENFORT SUPPORT COFFRET
0016 00000010036 SCREW ISO4017-M08X025-8.8 HEX 8 PCE
VIS H ISO4017-M08X025-8.8

Description AIR RESERVE

Désignation RESERVE D'AIR GM
0000 01125114202 AIR RESERVE 1 PCE
RESERVE D' AIR
0001 01122043601 SUPPORT 1 PCE
SUPPORT RESERVE D'AIR
0002 01121274801 TANK§ 1 PCE
RESERVOIR AC16L V 20/28.6B DIA250(INOX)§
0003 01125085702 ARCHED TUBE 1 PCE
TUBE CINTRE
0004 01073106802 UPPER UNION 1 PCE
RACCORD SUPERIEUR
0005 00000110828 UNION 24°-SDS-L42-G1-NBR 1 PCE
RACCORD 24°-SDS-L42-G1-NBR
0006 00000101128 NUT EO2 FM42LSSA 2 PCE
ECROU EO2 FM42LSSA
0007 00000027805 O-RING _82,15X 3,53 SH88 NIT 1 PCE
JOINT TORIQUE _82,15X 3,53 SH88 NIT
0008 00000014704 ELASTIC PIN ISO8752-08X040 2 PCE
GOUPILLE ELASTIQUE ISO8752-08X040
0009 00000101265 SWIVELLING ELBOW EW42LOMDCF 1 PCE
COUDE ORIENTABLE EW42LOMDCF
0011 00000010106 SCREW ISO4017-M16X045-10.9 16 PCE
VIS H ISO4017-M16X045-10.9
0012 00000101510 SEAL USIT U 48,70X59,00X3,00 2 PCE
JOINT USIT U 48,70X59,00X3,00

Description DRIVE SYSTEM

Désignation MOTORISATION 7,5 KW
0000 01131923804 MOTORIZATION 1 PCE
MOTORISATION
0001 01126734303 MOTOR SUPPORT 1 PCE
SUPPORT MOTEUR
0002 01126743503 GEAR MOTOR 1 PCE
MOTOREDUCTEUR
0003 01123928302 REDUCER SHAFT 1 PCE
ARBRE REDUCTEUR
0004 00000121688 PARALLEL KEY FORME A 14X 9X 85 1 PCE
CLAVETTE PARALLELE FORME A 14X 9X 85
0006 00000010094 SCREW ISO4017-M16X060-8.8 7 PCE
VIS H ISO4017-M16X060-8.8
0007 00000013011 NUT ISO4032-M16-10 7 PCE
0008 00000011368 SCREW H-M16X080-10.9 4 PCE
VIS H-M16X080-10.9
0009 00000106650 TORQUE LIMITER 3/490.710.0/50 1 PCE
LIMITEUR DE COUPLE 3/490.710.0/50
0010 00000091490 POSITION SENSOR 055.000.5 MAYR 1 PCE
CAPTEUR DE POSITION 055.000.5 MAYR
0011 01121386101 ETECTOR SUPPORT 1 PCE
SUPPORT DETECTEUR
0012 00000014358 WASHER ISO7094-08-100HV 1 PCE
RONDELLE LL ISO7094-08-100HV
0013 00000011404 SCREW M08X016-10.9 1 PCE
0014 01123928802 PULLEY 1 PCE
POULIE 60-AT15 44.0
0015 01123928702 PULLEY 1 PCE
POULIE 85-AT15 33.0
0016 00000011608 SCREW ISO4762-M08X060-10.9 8 PCE
VIS CHC ISO4762-M08X060-10.9
0019 00000010020 SCREW ISO4017-M06X016-8.8 2 PCE
VIS H ISO4017-M06X016-8.8

Description DRIVE SYSTEM

Désignation MOTORISATION 7,5 KW
0021 00000013002 NUT ISO4032-M04-10 2 PCE
0023 00000011522 SCREW ISO4762-M04X016-10.9 2 PCE
VIS CHC ISO4762-M04X016-10.9
0024 00000011656 SCREW ISO4762-M12X090-10.9 4 PCE
VIS CHC ISO4762-M12X090-10.9
0025 01124525802 EXTENSION 1 PCE
RALLONGE
0026 00000017462 ELBOW CRANK 12-031-200-22 1 PCE
MANIVELLE COUDEE 12-031-200-22
0027 01132512501 CLAMPING RING 1 PCE
BAGUE DE SERRAGE MOTORISATION DIA 50
0028 00000125092 SCREW ISO4017-M16X070-8.8 1 PCE
VIS H ISO4017-M16X070-8.8

Description GEAR MOTOR

Désignation MOTOREDUCTEUR
0001 00000150015 MOTOR DFV132M4/TH 1 PCE
MOTEUR DFV132M4/TH
0002 00000152546 FLANGE PLATE 13613138 # 1 PCE
FLASQUE 13613138 #
0003 00000152547 SEALING RING 120693 # 1 PCE
BAGUE D'ETANCHEITE 120693 #
0004 00000152548 DEFLECTOR 116653 # 1 PCE
DEFLECTEUR 116653 #

Description DRIVE PINION

Désignation PIGNON DE COMMANDE
0000 01123947204 DRIVE PINION 1 PCE
COMMANDE PIGNON
0001 01123995601 PINION SHAFT 1 PCE
ARBRE DE PIGNON
0002 01074743703 TOOTHED PINION 1 PCE
PIGNON DENTE
0003 01123945402 PULLEY 1 PCE
POULIE
0005 01071434202 BRAKE DISC 1 PCE
DISQUE DE FREIN
0007 01123995802 BEARING 1 PCE
PALIER
0009 00000092050 COUPLING ELEMENT RLK402 75X115 1 PCE
ELEMENT D'ASSEMBLAGE RLK402 75X115
0010 00000093420 COUPLING ELEMENT RLK131 50X 80 1 PCE
ELEMENT D'ASSEMBLAGE RLK131 50X 80
0011 00000001869 RIGID BEARING 6313-2RS1 2 PCE
ROULEMENT RIGIDE 6313-2RS1
0012 00000015177 ELASTIC RING INTERIEUR 140X4,00 1 PCE
ANNEAU ELASTIQUE INTERIEUR 140X4,00
0013 00000015179 ELASTIC RING EXTERIEUR _65X2,50 2 PCE
ANNEAU ELASTIQUE EXTERIEUR _65X2,50
0017 00000106656 PNEUMATIC BRAKE D3N-12-17KN / A2955 3 PCE
FREIN PNEUMATIQUE D3N-12-17KN / A2955
0019 00000011272 SCREW ISO4017-M16X050-10.9 8 PCE
VIS H ISO4017-M16X050-10.9
0020 00000010076 SCREW ISO4017-M12X140-8.8 5 PCE
VIS H ISO4017-M12X140-8.8
0028 00000013009 NUT ISO4032-M12-10 8 PCE
0039 01071434102 ROLLER CASING 1 PCE
BOITIER DE ROULEMENT
VIS H ISO4017-M08X025-8.8
0041 00000014125 WASHER CS-NFE25511-Z08-8,2X16X1,4 4 PCE
RONDELLE CS-NFE25511-Z08-8,2X16X1,4

Description DRIVE PINION

Désignation PIGNON DE COMMANDE
0048 01114380301 PINION CASING BRACKET 1 PCE
EQUERRE CARTER PIGNON
0049 00000010069 SCREW ISO4014-M12X050-8.8 3 PCE
VIS H ISO4014-M12X050-8.8
0050 01114380001 PINION CASING 1 PCE
CARTER PIGNON
0051 01114380201 PINION CASING BRACKET 2 PCE
EQUERRE CARTER PIGNON
0052 01071321602 PINION CASING 1 PCE
CARTER PIGNON ROLLIX
0053 01121986202 CASING 1 PCE
CARTER
0054 01121986302 CASING 1 PCE
CARTER GAUCHE
0055 00000010019 SCREW ISO4017-M06X012-8.8 25 PCE
VIS H ISO4017-M06X012-8.8
0056 00000010276 SCREW H-M12X040-8.8 8 PCE
VIS H-M12X040-8.8
0059 00000014135 WASHER CS-NFE25511-L06-6,1X18X1,4 25 PCE
RONDELLE CS-NFE25511-L06-6,1X18X1,4
0065 01073777401 SUPPORT WASHER 1 PCE
RONDELLE D'APPUI
0066 00000010086 SCREW ISO4017-M12X120-8.8 1 PCE
VIS H ISO4017-M12X120-8.8
0069 01074749401 SAFETY CASING 1 PCE

Description PNEUMATIC BRAKE SYSTEM

Désignation CIRCUIT FREIN PNEUMATIQUE
0000 01125131404 PNEUMATIC BRAKE SYSTEM 1 PCE
0001 01125136902 PLATE 1 PCE
PLATINE NOVAFLEX GM 3 FREINSBO
0002 01132396701 DISTRIBUTOR SUPPORT 1 PCE
SUPPORT DISTRIBUTEUR
0005 00000013002 NUT ISO4032-M04-10 2 PCE
0008 00000011528 SCREW ISO4762-M04X040-10.9 2 PCE
VIS CHC ISO4762-M04X040-10.9
0011 00000080282 PIPE RILSAN _6X 8 NATUREL 215 CM
TUYAU RILSAN _6X 8 NATUREL

Description PLATE
Désignation PLATINE NOVAFLEX GM 3 FREINSBO
0001 00000117724 DISTRIBUTOR G1/4 NO DLEL2214RA3O 1 PCE
DISTRIBUTEUR G1/4 NO DLEL2214RA3O
0002 00000117727 DISTRIBUTOR G1/4 NF DLEL2214RA3F 1 PCE
DISTRIBUTEUR G1/4 NF DLEL2214RA3F
0003 00000118750 SHUTTLE VALVE G 1-4 CLOU14L3000A 1 PCE
SELECTEUR CIRCUIT G 1-4 CLOU14L3000A
0004 00000126767 COIL 24VCC BS22DIN024DC 1 PCE
BOBINE 24VCC BS22DIN024DC
0005 00000118096 SILENCER G1/4 SA30C1400P 1 PCE
SILENCIEUX G1/4 SA30C1400P
0006 00000118752 DISTRIBUTOR DLEB4018RM32 1 PCE
DISTRIBUTEUR DLEB4018RM32
0007 00000118753 PUSH-BUTTON MONOSTABLE DBPA4002RM0R 1 PCE
BOUTON-POUSSOIR MONOSTABLE
DBPA4002RM0R
0008 00000118097 MALE ELBOW REF_IC03C1808L 1 PCE
COUDE MALE REF_IC03C1808L
0009 00000118099 SILENCER G1/4 SN10C1400L 1 PCE
SILENCIEUX G1/4 SN10C1400L
0010 00000118755 MALE ELBOW REF IC03C1408L 1 PCE
COUDE MALE REF IC03C1408L
0011 00000118754 MALE TEE CON. FEM. AT07G1414L 1 PCE
TE MALE CON. FEM. AT07G1414L
0012 00000118755 MALE ELBOW REF IC03C1408L 1 PCE
COUDE MALE REF IC03C1408L
0013 00000118102 STRAIGHT FITTING MALE CYL ID03C1410L 1 PCE
RACCORD DROIT MALE CYL ID03C1410L
0014 00000118756 SILENCER G 1/8 REF SA30C1800P 1 PCE
SILENCIEUX G 1/8 REF SA30C1800P
0015 00000118757 NIPPLE CONIQUE AD02G1414L 1 PCE
MAMELON CONIQUE AD02G1414L
0016 00000118761 MALE ELBOW IC03C1406L 1 PCE
COUDE MALE IC03C1406L
0017 00000118103 REDUCTION M/F 1/2 1/4 AR03G1214L 1 PCE
REDUCTION M/F 1/2 1/4 AR03G1214L
0018 00000118106 RAPID RELEASE VALVE VE01C1200 1 PCE
SOUPAPE D'ECHAPPEMENT RAPIDE VE01C1200
0019 00000130726 SILENCER 1/2 SN10C1200L 1 PCE
SILENCIEUX 1/2" SN10C1200L
0020 00000118760 CONICAL UNION 3 PIECES AD12G1212L 1 PCE
UNION CONIQUE 3 PIECES AD12G1212L
0021 00000137880 BLOCK BS03C3814A 1 PCE
BLOC BS03C3814A

Description PLATE
Désignation PLATINE NOVAFLEX GM 3 FREINSBO
0022 00000082632 CAP VSTI R 3/4" ED/CF 1 PCE
BOUCHON VSTI R 3/4" ED/CF
0023 00000126770 MALE CONNECTOR 3/8 1/4 REF AR02G3814L 1 PCE
RACCORD MALE 3/8 1/4 REF AR02G3814L
0024 00000080979 STRAIGHT TEE MALE BSP 3101 06 13 1 PCE
PIQUAGE DROIT MALE BSP 3101 06 13

Description AIR ROTARY UNION

Désignation JOINT TOURNANT AIR STEP 3
0000 01131860701 AIR ROTARY UNION 1 PCE
0001 01131860801 AIR ROTARY UNION § 1 PCE
JOINT TOURNANT AIR 40 7B 46433
0003 00000011602 SCREW ISO4762-M08X030-12.9 8 PCE
VIS CHC ISO4762-M08X030-12.9

Description AIR ROTARY UNION §

Désignation JOINT TOURNANT AIR 40 7B 46433
0002 00000141039 TUBE 79298 1 PCE
TUBE 79298
0008 99000425524 O-RING FKM DIAM 44.1 X 3.5@ 1 PCE
JOINT TORIQUE FKM DIAM 44.1 X 3.5@
0016 00000223986 ANTI-TORQUE 74217 1 PCE
ANTI-COUPLE 74217
0100 00000097129 ADHESIVE LOCTITE 641-50 1 PCE
COLLE LOCTITE 641-50
KIT4 00000153453 MAINTENANCE KIT 85311 # § 1 PCE
KIT DE MAINTENANCE 85311 #§
OUT6 00000153455 TOOL 85457 1 PCE
OUTILLAGE 85457

Description AIR INLET 40 ET 7 B

Désignation ENTREE AIR 40 ET 7 B
0000 01134189901 AIR INLET 1 PCE
0001 01126081001 ARCHED TUBE 1 PCE
TUBE CINTRE
0002 01134190801 ARCHED TUBE 1 PCE
TUBE CINTRE
0003 01125426801 HOSE 1 PCE
FLEXIBLE 2802 24 LG 0,865
0004 01127470001 HOSE 1 PCE
FLEXIBLE 2802 24 LG 0,485 M @
0005 00000084685 UNION 24°-SDS-L42-G1"1/2-FKM 2 PCE
RACCORD 24°-SDS-L42-G1"1/2-FKM
0006 00000101128 NUT EO2 FM42LSSA 8 PCE
ECROU EO2 FM42LSSA
0007 00000082415 EQUAL UNION G42LCFX 4 PCE
UNION EGALE G42LCFX
0008 01126107501 SUPPORT 1 PCE
SUPPORT
0009 00000010063 SCREW ISO4017-M12X020-8.8 3 PCE
VIS H ISO4017-M12X020-8.8
0011 01126081801 SUPPORT 2 PCE
SUPPORT
0012 00000010142 SCREW ISO4017-M10X030-8.8 4 PCE
VIS H ISO4017-M10X030-8.8
0015 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 162 CM
TUBE INOX D 42,0-EP3,0-1.4571
0016 01126086801 ARCHED TUBE 1 PCE
TUBE CINTRE
0017 00000082865 SOCKET UNION GAI42LRA3CX 2 PCE
UNION FEMELLE GAI42LRA3CX
0018 01126087701 SUPPORT 1 PCE
SUPPORT
1014 00000013007 NUT ISO4032-M10-10 4 PCE

Description DISTRIBUTION
Désignation DISTRIBUTION AIR 40-13-7 BARS GM
0000 01131669301 AIR DISTRIBUTION 1 PCE
0001 01131596301 DISTRIBUTOR 1 PCE
DISTRIBUTEUR 40-13-7 BARS GM
0002 00000027805 O-RING _82,15X 3,53 SH88 NIT 1 PCE
0003 00000015293 STUD-BOLT M16- 50,BM 24,CL.8.8 8 PCE
GOUJON M16- 50,BM 24,CL.8.8
0005 00000013011 NUT ISO4032-M16-10 8 PCE
0006 00000024133 SEAL USIT U 34,30X43,00X2,00 1 PCE
JOINT USIT U 34,30X43,00X2,00
0007 01072493202 EXTENSION 1 PCE
RALLONGE
0008 00000082283 UNION 24°-SDS-L22-G3/4-NBR 1 PCE
RACCORD 24°-SDS-L22-G3/4-NBR
0009 00000086697 UNION 24°-SDS-L28-G1-FKM 1 PCE
RACCORD 24°-SDS-L28-G1-FKM
0010 00000126417 CAP VSTI R 1" ED/71 JV/V 3 PCE
BOUCHON VSTI R 1" ED/71 JV/V
0012 00000082827 CAP VSTI R 1/2" ED/CF NIT 10 PCE
BOUCHON VSTI R 1/2" ED/CF NIT
0013 00000084847 CAP VSTI R 1/4" ED/CF JV/V 1 PCE
BOUCHON VSTI R 1/4" ED/CF JV/V

Description WATER ROTARY UNION

Désignation RACCORD ROTATIF EAU
0000 01130433201 WATER ROTARY UNION 1 PCE
RACCORD ROTATIF EAU
0001 00000126915 WATER ROTARY UNION 45762 1 PCE
JOINT TOURNANT EAU 45762

Description TWO CIRCUITS WATER ROTARY UNION

Désignation JOINT TOURNANT EAU DEUX CIRCUITS GM
0000 01132063001 TWO CIRCUITS WATER ROTARY UNION§ 1 PCE
JOINT TOURNANT EAU DEUX CIRCUITS§
0001 01071425102 LOWER DISTRIBUTOR 1 PCE
DISTRIBUTEUR INFERIEUR
0002 01071425202 FLANGE 1 PCE
BRIDE
0003 01073107301 CLOSURE PLATE 1 PCE
PLAQUE D'OBTURATION
0004 01124681401 DISTRIBUTOR SUPERIEUR 1 PCE
DISTRIBUTEUR SUPERIEUR
0005 01132064201 ANTI-TORQUE 1 PCE
ANTI-COUPLE
0006 01124691701 HOSE 1 PCE
FLEXIBLE BEVERA 10 Ø38 X Ø48 LG 3300MM
0007 01124691701 HOSE 1 PCE
FLEXIBLE BEVERA 10 Ø38 X Ø48 LG 3300MM
0008 01125247801 HOSE 1 PCE
FLEXIBLE PL801-16GRA 260-C328-C328-00
0009 01126467001 HOSE ASSEMBLY 1 PCE
FLEXIBLE PL801-16N 275-C328-C528-00
0010 00000023707 O-RING _44,04X 3,53 SH70 VIT 1 PCE
JOINT TORIQUE _44,04X 3,53 SH70 VIT
0011 00000023709 O-RING _66,27X 3,53 SH70 VIT 1 PCE
0012 00000020841 O-RING _28,17X 3,53 SH70 VIT 1 PCE
0013 00000023712 O-RING 110,72X 3,53 SH70 VIT/V 2 PCE
JOINT TORIQUE 110,72X 3,53 SH70 VIT/V
0014 00000023711 O-RING 180,00X 5,00 SH70 VIT 1 PCE
JOINT TORIQUE 180,00X 5,00 SH70 VIT
0015 00000101487 O-RING 202,57X 5,33 SH70 VIT/V 1 PCE
JOINT TORIQUE 202,57X 5,33 SH70 VIT/V
0018 00000011621 SCREW ISO4762-M10X025-10.9 5 PCE
VIS CHC ISO4762-M10X025-10.9
0019 00000011701 SCREW ISO4762-M16X070-10.9 1 PCE
VIS CHC ISO4762-M16X070-10.9
0020 00000011604 SCREW ISO4762-M08X040-10.9 10 PCE
VIS CHC ISO4762-M08X040-10.9

Description TWO CIRCUITS WATER ROTARY UNION

Désignation JOINT TOURNANT EAU DEUX CIRCUITS GM
0021 00000011616 SCREW ISO4762-M08X100-10.9 10 PCE
VIS CHC ISO4762-M08X100-10.9
0022 00000011272 SCREW ISO4017-M16X050-10.9 8 PCE
VIS H ISO4017-M16X050-10.9
0023 00000013011 NUT ISO4032-M16-10 1 PCE
0028 00000127070 CAP 1/8G 1 PCE
BOUCHON 1/8G
0030 00000082651 SOCKET UNION GAI28LRCFX 2 PCE
UNION FEMELLE GAI28LRCFX
0032 00000122738 NUT ISO4032-M36-10 1 PCE

Description BELT AND TENSIONER GM

Désignation COURROIE ET TENDEUR GM
0000 01123956306 BELT AND TENSIONER 1 PCE
0001 00000118414 BELT 75 AT15/4515 BFX SD 1 PCE
COURROIE 75 AT15/4515 BFX SD
0003 00000108848 BELT 75 AT15/3645 BFX SD 1 PCE
0004 00000108849 BELT 50 AT15/2670 BFX SD 1 PCE
0005 01121387802 INTERFACE 4 PCE
INTERFACE
0006 01124031702 TIGHTENER D180 H65 2 PCE
TENDEUR D180 H65
0007 01124031802 TIGHTENER§ 2 PCE
TENDEUR D180 H90§
0008 00000010067 SCREW ISO4017-M12X040-8.8 32 PCE
VIS H ISO4017-M12X040-8.8
0010 00000013009 NUT ISO4032-M12-10 16 PCE
0011 01128184001 PULLEY 2 PCE
POULIE 85 AT15-80-0
0012 01123997202 PULLEY 1 PCE
POULIE

Description TIGHTENER D180 H65

Désignation TENDEUR D180 H65
0000 01123952102 TENSIONER 1 PCE
TENDEUR D180 H65
0001 01071066403 FOLLOWER SUPPORT 1 PCE
SUPPORT GALET LONG
0002 01123783902 ROLLER GUIDE 1 PCE
GALET D180 H65
0003 01069992501 THRUST 1 PCE
BUTEE
0004 01071858001 ADJUSTING SCREW 1 PCE
VIS DE REGLAGE
0005 01071062501 RING 1 PCE
BAGUE
0006 01071858301 SPACER 1 PCE
ENTRETOISE
0007 01071858401 WASHER 1 PCE
RONDELLE
0009 00000002473 SPRING C 0244.0535X0460.0510 A 1 PCE
RESSORT C 0244.0535X0460.0510 A
0010 00000010067 SCREW ISO4017-M12X040-8.8 6 PCE
VIS H ISO4017-M12X040-8.8
0011 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0014 00000014088 FLAT WASHER M ISO7089 12 200HV 1 PCE
RONDELLE PLATE M ISO7089 12 200HV
0015 00000013009 NUT ISO4032-M12-10 1 PCE
0016 00000013214 NUT ISO4035-M12-05 2 PCE
ECROU HM ISO4035-M12-05
0018 00000014050 WASHER ISO7089-12-200HV 4 PCE
0019 01073073802 SHORT PIN 1 PCE
AXE COURT

Description TIGHTENER§
Désignation TENDEUR D180 H90§
0000 01123952202 TENSIONER 1 PCE
TENDEUR D180 H90
SUPPORT GALET LONG
0002 01123783802 ROLLER 1 PCE
GALET D180 H90
0003 01069992501 THRUST 1 PCE
BUTEE
VIS DE REGLAGE
0005 01071062501 RING 1 PCE
BAGUE
0006 01124109001 SPACER 1 PCE
ENTRETOISE
0007 01071858401 WASHER 1 PCE
RONDELLE
0009 00000002473 SPRING C 0244.0535X0460.0510 A 1 PCE
RESSORT C 0244.0535X0460.0510 A
0010 00000010067 SCREW ISO4017-M12X040-8.8 6 PCE
VIS H ISO4017-M12X040-8.8
0011 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0015 00000013009 NUT ISO4032-M12-10 1 PCE
0016 00000013214 NUT ISO4035-M12-05 2 PCE
0018 00000014050 WASHER ISO7089-12-200HV 4 PCE
0020 01124108901 PIN 1 PCE
AXE

Description BELT CASING

Désignation PROTECTION COURROIE MOTORISATION
0000 01128027203 MOTORIZATION BELT GUARD 1 PCE
0001 01128027503 CASING SUPPORT PLATE 1 PCE
TOLE SUPPORT CARTER
0002 01128024303 SUPPORT SHEET 1 PCE
TOLE SUPPORT CARTER
0004 00000010019 SCREW ISO4017-M06X012-8.8 9 PCE
VIS H ISO4017-M06X012-8.8
0005 01128038003 BELT CASING 1 PCE
CARTER COURROIE
0006 01128037303 BELT CASING 1 PCE
CARTER COURROIE

Description ENCODER WHEEL

Désignation ROUE CODEUSE STEP3
0000 01126781703 ENCODER WHEEL 1 PCE
ROUE CODEUSE STEP3
0001 01126785101 SWIVELLING SUPPORT 1 PCE
SUPPORT PIVOTANT
0002 01126786102 SWIVELLING SUPPORT PIN 1 PCE
AXE SUPPORT PIVOTANT
0003 01126787301 CODER PIN 1 PCE
AXE CODEUR
0004 01071438703 TOOTHED WHEEL 1 PCE
ROUE DENTEE
0006 00000000936 SELF-LUB.BEARING BP25 C _14/ 20X 14 2 PCE
COUSSINET AUTOLUB. BP25 C _14/ 20X 14
0008 00000001848 BALL-BEARING 3001-2Z 1 PCE
ROULEMENT A BILLES 3001-2Z
0009 00000128574 CONSTANT DRIVE SPEED COUPLING 1 PCE
ACCOUPLEMENT HOMOCINETIQUE
0010 01126836901 INCREMENTAL CODER RI58T 1800 1 PCE
HENGSTLER@§
CODEUR INCREMENT. RI58T 1800 HENGSTLER@§
0013 00000011505 SCREW ISO4762-M03X016-10.9 3 PCE
VIS CHC ISO4762-M03X016-10.9
0014 00000128145 TORSION SPRING D.270.300.0700 1 PCE
RESSORT DE TORSION D.270.300.0700
0015 00000011569 SCREW ISO4762-M06X055-10.9 1 PCE
VIS CHC ISO4762-M06X055-10.9

Description ENCODER
Désignation CODEUR
0000 01128412301 ENCODER 1 PCE
CODEUR
0001 01128267001 REDUCING RING 1 PCE
BAGUE DE REDUCTION GM
0003 00000118923 ENCODER RI80E 2048 A A 1 G30 T B-K0 1 PCE
CODEUR RI80E 2048 A A 1 G30 T B-K0
0005 00000014140 WASHER CS-NFE25511-L04-4,1X14X1 2 PCE
RONDELLE CS-NFE25511-L04-4,1X14X1
0006 00000010282 SCREW ISO4017-M04X012-8.8 1 PCE
VIS H ISO4017-M04X012-8.8
0007 00000013311 NUT DIN 985-M04-05 1 PCE
ECROU HMFR DIN 985-M04-05

Description ELECTRICAL COLLECTOR

Désignation COLLECTEUR ELECTRIQUE 10 BAGUES
0000 01131861201 ELECTRICAL COLLECTOR 1 PCE
0001 01131861601 COLLECTOR § 1 PCE
COLLECTEUR ELEC 10 BAGUES 6P4010240 §

Description COLLECTOR §
Désignation COLLECTEUR ELEC 10 BAGUES 6P4010240 §
0001 00000141868 MAINTENANCE KIT GP4010180§ 1 PCE
KIT DE MAINTENANCE GP4010180§

Description CENTRALIZED GREASING

Désignation GRAISSAGE CENTRALISE GM MILLESIME
0000 01131856501 CENTRALIZED GREASING 1 PCE
0001 01129440901 BRACKET 1 PCE
EQUERRE
0002 01126704501 PUMP SUPPORT ARM 1 PCE
BRAS SUPPORT POMPE
0004 01129440801 LUBRICATION FLAT 1 PCE
PLAT DE GRAISSAGE
0006 01127872201 LUBRICATOR BAR 1 PCE
BARRETTE 4 GRAISSEUR
0008 01129708001 PIPE 1 PCE
TUYAU RILSAN DIA 6 X 3 EQUIPE LG=1095
FLEXIBLE RILSAN DIA 6 X 3 EQUIPE LG 4670
FLEXIBLE EQUIPE F1
FLEXIBLE EQUIPE F2
FLEXIBLE EQUIPE F3
0017 01129542601 DISTRIBUTOR FB1081 1 PCE
REPARTITEUR FB1081
REPARTITEUR FB1082
REPARTITEUR FB1083
REPARTITEUR FB1084
0021 01130328001 PUMP 1 PCE
POMPE AP3633
0023 00000080052 TUBE CUIVRE RECUIT D 6 EP1 260 CM
TUBE CUIVRE RECUIT D 6 EP1


0036 00000107866 CONNECTION 2 VOIES 1/8NPT 1 PCE
JONCTION 2 VOIES 1/8NPT
0037 00000003160 GREASER 9.20.00.01 HYD. 6X100 DROIT 2 PCE
GRAISSEUR 9.20.00.01 HYD. 6X100 DROIT
0039 00000087029 SMOOTHED END-PIECE DIA. 6 AR-1532 2 PCE
EMBOUT LISSE DIA. 6 AR-1532
0040 00000125447 PIPE AF240 DIA 4.1X8.3 (BASE) 150 CM
TUYAU AF240 DIA 4.1X8.3 (BASE)
0041 00000118657 RIVET SIM TYPE U D3.86 ACIER DOUX 26 PCE
RIVET SIM TYPE U D3.86 ACIER DOUX
0042 00000085719 FIXING FLANGE B6537 DIA. 6 13 PCE
BRIDE DE FIXATION B6537 DIA. 6
0043 00000052691 FIXING FLANGE AV 113 1 PCE
BRIDE DE FIXATION AV 113
0046 00000085625 MALE UNION AR 138-1/8 NPT-D6 9 PCE
UNION MALE AR 138-1/8 NPT-D6
0047 00000085791 MALE UNION AR960 R 1/4 DIA. 6 3 PCE
UNION MALE AR960 R 1/4 DIA. 6
0048 00000085468 DOUBLE UNION AR143 1/8 DIA. 6 5 PCE
UNION DOUBLE AR143 1/8 DIA. 6


0049 00000087427 MALE ELBOW AR904 M 10X1 DIA. 6 4 PCE
COUDE MALE AR904 M 10X1 DIA. 6
0050 00000125839 MALE ELBOW BSPT D=06 R1/4 S 1 PCE
COUDE MALE BSPT D=06 R1/4 S
0051 00000106495 MALE ELBOW BSPT D=08 R1/4 L 1 PCE
COUDE MALE BSPT D=08 R1/4 L
0053 00000085469 CONNECTOR DROIT AR-101 2 PCE
CONNECTEUR DROIT AR-101
0054 00000088771 CONNECTOR COUDE 90° AR106 M10 X 150 3 PCE
CONNECTEUR COUDE 90° AR106 M10 X 150
0055 00000011547 SCREW ISO4762-M05X040-10.9 2 PCE
VIS CHC ISO4762-M05X040-10.9
0056 00000011863 SCREW ISO4762-M06X012-12.9 2 PCE
VIS CHC ISO4762-M06X012-12.9
0057 00000011561 SCREW ISO4762-M06X016-10.9 4 PCE
VIS CHC ISO4762-M06X016-10.9
0058 00000011566 SCREW ISO4762-M06X040-10.9 8 PCE
VIS CHC ISO4762-M06X040-10.9
0059 00000010029 SCREW ISO4014-M06X030-8.8 1 PCE
VIS H ISO4014-M06X030-8.8
0060 00000010461 SCREW ISO4014-M08X040-8.8 3 PCE
VIS H ISO4014-M08X040-8.8
0061 00000010498 SCREW ISO4014-M08X045-8.8 2 PCE
VIS H ISO4014-M08X045-8.8
0062 00000013003 NUT ISO4032-M05-10 2 PCE
0063 00000013554 NUT ISO4032-M08-10 5 PCE
0065 00000014155 WASHER CS-M06-6,1X14X1,3-Z/B 15 PCE
RONDELLE CS-M06-6,1X14X1,3-Z/B
0069 01130651401 PUMP SUPPORT 1 PCE
SUPPORT POMPE
0070 01131835701 GREASING SUPPORT BRACKET 1 PCE
EQUERRE SUPPORT GRAISSAGE
0071 01131835801 GREASING FIXING BRACKET 1 PCE
EQUERRE DE FIXATION GRAISSAGE


0072 00000014045 WASHER ISO7089-06-200HV 4 PCE
0073 00000011562 SCREW ISO4762-M06X020-10.9 2 PCE
VIS CHC ISO4762-M06X020-10.9
0074 00000013004 NUT ISO4032-M06-10 2 PCE
0075 01131836001 HOSE 1 PCE
FLEXIBLE R1 SUR FOUR
0076 01131836501 HOSE 1 PCE

Description PUMP
Désignation POMPE AP3633
0001 99000436233 ENSEMBLE DE TRAITEMENT D'AIR AK551 1 PCE
ENSEMBLE DE TRAITEMENT D'AIR AK551 @
0002 00000149515 TANK 4KG AO330 1 PCE
RESERVOIR 4KG AO330
0003 00000174247 DELIVERY VALVE 140B REF:224743 1 PCE
SOUPAPE 140B REF:224743
0004 00000244139 MOTORIZATION KIT 317114 1 PCE
KIT MOTORISATION 317114

Description SPRAY SYSTEM GREASING

Désignation GRAISSAGE PULVERISATION
0000 01129571803 SPRAY SYSTEM GREASING 1 PCE
0001 01130111101 BOX AP3631 1 PCE
COFFRET AP3631
0002 00000108086 SPRAY NOZZLE U922C G 1/4 2 PCE
BUSE DE PULV. U922C G 1/4
0003 00000125447 PIPE AF240 DIA 4.1X8.3 (BASE) 1.500 CM
TUYAU AF240 DIA 4.1X8.3 (BASE)
0005 00000080170 PIPE RILSAN _8X10 NATUREL 1.500 CM
TUYAU RILSAN _8X10 NATUREL
0006 00000125838 MALE ELBOW D=10 1/4NPT 2 PCE
COUDE MALE D=10 1/4NPT
0008 00000108088 FIXING FLANGE B6508 DIA.10 6 PCE
BRIDE DE FIXATION B6508 DIA.10
0011 01118634401 HOOK 2 PCE
CROCHET
0013 00000013554 NUT ISO4032-M08-10 2 PCE
0014 00000010034 SCREW ISO4017-M08X016-8.8 2 PCE
VIS H ISO4017-M08X016-8.8
0015 01129564201 SPRAYER SUPPORT 1 PCE
SUPPORT PULVERISATEUR
0017 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9
0020 01130176202 BOX SUPPORT 1 PCE
SUPPORT COFFRET
0021 00000101982 SCREW ISO4017-M08X035-10.9 2 PCE
VIS H ISO4017-M08X035-10.9
0022 00000125839 MALE ELBOW BSPT D=06 R1/4 S 2 PCE
COUDE MALE BSPT D=06 R1/4 S

Description BOX AP3631

Désignation COFFRET AP3631
0001 00000137973 MULTIPORT 2KG 1DEP 380TRI A/CN MULTI2BE 1 PCE
MULTIPORT 2KG 1DEP 380TRI A/CN MULTI2BE
REPARTITEUR FB1142
0003 00000137974 INDUCTIVE DETECTOR 669251311 1 PCE
DETECTEUR INDUCTIF 669251311
0004 00000101599 FILTER 1/4 500 HUILE/GRAISSE 1 PCE
FILTRE 1/4 500 HUILE/GRAISSE
0009 00000137977 VALVE 3 VOIES EN L G 3/8 AK468 1 PCE
ROBINET 3 VOIES EN L G 3/8 AK468
0010 00000137978 AIR TREATMENT + RACCORD AK551 1 PCE
TRAITEMENT D'AIR + RACCORD AK551
0014 00000137980 FILTER A4239M 1 PCE
FILTRE A4239M
0028 00000137981 EXTENDER AE708 1 PCE
PROLONGATEUR AE708
0029 00000137982 CONNECTOR AE709 1 PCE
CONNECTEUR AE709
0030 00000137983 EXTENDER 60CM M12F/M12M 1 PCE
PROLONGATEUR 60CM M12F/M12M
0031 00000137984 EXTENDER 2M M12M AE690 1 PCE
PROLONGATEUR 2M M12M AE690

Description PREFORM TRANSFER BEARING

Désignation PALIER DE TRANSFERT
0000 01123796206 TRANSFER BEARING 1 PCE
PALIER DE TRANSFERT
0001 01123800904 TRANSFER BEARING 1 PCE
PALIER DE TRANSFERT
0002 01123996502 TRANSFER SHAFT 1 PCE
ARBRE DE TRANSFERT
0003 00000000438 BALL-BEARING 3217-2RS 1 PCE
ROULEMENT A BILLES 3217-2RS
0005 01123981801 FLANGE 1 PCE
FLASQUE
CALE PELABLE
0012 00000010142 SCREW ISO4017-M10X030-8.8 6 PCE
VIS H ISO4017-M10X030-8.8
0014 00000010106 SCREW ISO4017-M16X045-10.9 6 PCE
VIS H ISO4017-M16X045-10.9
0023 01127304801 CHUTE 2 PCE
GOULOTTE
0024 00000012551 SCREW ISO10642-M06X010-10-9 4 PCE
VIS FHC ISO10642-M06X010-10-9

Description HYDRAULIC PANEL

Désignation TABLEAU HYDRAULIQUE
0000 01125762202 HYDRAULIC PANEL 1 PCE
TABLEAU HYDRAULIQUE
0001 01127889301 HYDRAULIC FRAME 1 PCE
CHASSIS HYDRAULIQUE A.C.E
0002 01126388301 HYDRAULIC PANEL 1 PCE
TUYAUTERIE TABLEAU HYDRAULIQUE 11257622

Description HYDRAULIC PANEL

Désignation TUYAUTERIE TABLEAU HYDRAULIQUE 11257622
0004 99000416576 SOLENOID VALVE 2" PN10 FF@ 2 PCE
ELECTROVANNE 2" PN10 FF @
0006 00000131011 FILTER 2 PCE
FILTRE Y 2" G FF 112 microns@
0008 00000131008 BALL VALVE SPHERIQUE 2"G PN 10 FF@ 5 PCE
ROBINET BOISSEAU SPHERIQUE 2"G PN 10 FF@
0010 00000131009 BALL VALVE SPHERIQUE1/2"G PN10 FF@ 4 PCE
ROBINET BOISSEAU SPHERIQUE1/2"G PN10 FF@
0015 00000106108 FLOW CONTROLLER DW 181/C/0534/DN50@ 2 PCE
CONTROLEUR DE DEBIT DW 181/C/0534/DN50@
0021 99000418556 SOLENOID VALVE ¾" G PN10 FF @ § 1 PCE
ELECTROVANNE ¾" G PN10 FF @

Description HYDRAULIC PANEL POWER SUPPLY

Désignation ALIMENTATION TABLEAU HYDRAULIQUE
0000 01126117401 HYDRAULIC PANEL POWER SUPPLY 1 PCE
0001 01126116201 PIPE 4 PCE
TUBE FILETE 2' G
0002 00000113104 SLEEVE FF G2" INOX 316L 8 PCE
MANCHON FF G2" INOX 316L

Description OVEN WATER HOSE

Désignation FLEXIBLE EAU ALIMENTATION FOUR GM
0000 01127767701 OVEN WATER HOSE 1 PCE
FLEXIBLE EAU FOUR
0002 01127748401 HOSE 1 PCE
FLEXIBLE PL837-12B 535 -C522-C322-00
0003 01127748501 HOSE 1 PCE
FLEXIBLE PL837-12R 610 -C522-C322-00

Description OPEN-CLOSE CAM SETTING TOOL

Désignation OUTILLAGE DE REGL.CAME D'O-F
0000 01131959603 OPEN-CLOSE CAM SETTING TOOL 1 PCE
0001 01132369402 SUPPORT 1 PCE
SUPPORT
0002 01132360902 CAM 1 PCE
CAME
0003 00000014351 FREE CENTERING DEVICE 12/18X12 1 PCE
CIMBLOT DEGAGE 12/18X12
0004 00000014854 CYL.CENTERING DEVICE 12/18X12 1 PCE
CIMBLOT CYLINDRIQUE 12/18X12
0005 00000130714 STAR-SHAPED BUTTON 15-540-40-8-45 1 PCE
BOUTON ETOILE 15-540-40-8-45
0006 00000014048 WASHER ISO7089-10-200HV 4 PCE
0008 00000010142 SCREW ISO4017-M10X030-8.8 4 PCE
VIS H ISO4017-M10X030-8.8

Description SOLENOID VALVE PILOTING AIR

Désignation CIRCUIT AIR PILOT.ELECTROVANNE
0000 01129392501 SOLENOID VALVE PILOTING AIR 1 PCE
CIRCUIT AIR PILOT. ELECROVANNE
0002 00000106755 PRESSURE REGULATOR R123F1551REE108@ 1 PCE
REGULATEUR DE PRESSION R123F1551REE108@
0004 00000011454 SCREW CHC-M05X085-10.9 4 PCE
VIS CHC-M05X085-10.9
0005 00000013003 NUT ISO4032-M05-10 4 PCE
0006 00000013095 WASHER CS-NFE25511-M05-5,1X12X1,1-A2 8 PCE
RONDELLE CS-NFE25511-M05-5,1X12X1,1-A2
0007 00000053012 AIR FILTER 0 821 303 514 2 PCE
FILTRE A AIR 0 821 303 514
0008 00000051483 PRESSURE CONTROL MAR-S2 1/2" 3916 2 PCE
CONTROLE DE PRESSION MAR-S2 1/2" 3916
0009 00000053014 ASSEMBLY KIT NL4-W04 2 PCE
KIT DE MONTAGE NL4-W04
0010 01122472102 PIPING SUPPORT 1 PCE
SUPPORT TUYAUTERIE
0011 00000080940 COLLAR SP 322 PP IS 2 PCE
COLLIER SP 322 PP IS
0012 00000051981 SHUTTLE VALVE G1/2 1 PCE
SELECTEUR CIRCUIT G1/2
0013 00000106754 SAFETY VALVE 125P 3/4 X 1 13B 1 PCE
SOUPAPE SURETE 125P 3/4 X 1 13B
0015 00000106767 SILENCER P6M PA B8 1 G 1 PCE
SILENCIEUX P6M PA B8 1 G
0017 00000082010 SOCKET UNION GAI22LRA3C 1 PCE
UNION FEMELLE GAI22LRA3C
0019 00000082420 REDUCTION RED15/10LOMDCF 2 PCE
REDUCTION RED15/10LOMDCF
0020 00000086326 TUBE REDUCTION RED22/10PL 1 PCE
REDUCTION TUBE RED22/10PL
0021 00000081993 SOCKET UNION MAVE10LRCF 4 PCE
UNION FEMELLE MAVE10LRCF
0023 00000053276 PRESSURE GAUGE 400179 DIA.63 0 A 25B 1 PCE
MANOMETRE 400179 DIA.63 0 A 25B
0024 00000082015 EQUAL UNION GZ22LA3C 1 PCE
UNION EGALE GZ22LA3C
0026 00000084488 TUBE INOX D 15,0-EP1,5-1.4571 9 CM
TUBE INOX D 15,0-EP1,5-1.4571
0027 00000084504 TUBE INOX D 22,0-EP2,0-1.4571 17 CM
TUBE INOX D 22,0-EP2,0-1.4571


0030 00000082364 REDUCTION M/F-G1/2"-G1/4" 1 PCE
REDUCTION M/F-G1/2"-G1/4"
0031 01124825901 PIPE 1 PCE
TUBE
0035 00000084409 SWIVELLING ELBOW EW22LVITOMDCF 3 PCE
COUDE ORIENTABLE EW22LVITOMDCF
0036 00000084724 SWIVELLING ELBOW EW15LA3C JV/V 4 PCE
COUDE ORIENTABLE EW15LA3C JV/V
0039 00000084711 UNION 24°-SWOSDS-L15-G1/2"-FKM 3 PCE
RACCORD 24°-SWOSDS-L15-G1/2"-FKM
0042 00000084982 SWIVELLING TEE EL15LVITOMDCF 1 PCE
TE ORIENTABLE EL15LVITOMDCF
0043 00000087904 EQUAL TEE T15ZLCF 1 PCE
TE EGAL T15ZLCF
0044 00000082895 EQUAL ELBOW W15LA3CX 1 PCE
COUDE EGAL W15LA3CX
0045 00000082344 EQUAL TEE T22LA3CX 2 PCE
TE EGAL T22LA3CX
COUDE EGAL W22LA3CX
0048 00000083427 MALE ELBOW 90 OR. C64PB 8-1/4 1 PCE
COUDE MALE 90 OR. C64PB 8-1/4
0050 00000080170 PIPE RILSAN _8X10 NATUREL 200 CM
0054 01008721801 HOSE 1 PCE
FLEXIBLE POLYFLEX 2040H-12V11 1,020 @ §
0056 00000082965 EQUAL TEE JPB 08 1 PCE
TE EGAL JPB 08
0059 00000084504 TUBE INOX D 22,0-EP2,0-1.4571 17 CM
TUBE INOX D 22,0-EP2,0-1.4571
0062 00000082834 MALE ELBOW 90 OR. C64PB10-1/4 2 PCE
COUDE MALE 90 OR. C64PB10-1/4


0063 00000083460 OBTURATOR VKA15CF 1 PCE
OBTURATEUR VKA15CF
0064 00000101137 NUT EO2 FM15LSSA 2 PCE
ECROU EO2 FM15LSSA
0066 00000101125 NUT EO2 FM22LSSA 12 PCE
ECROU EO2 FM22LSSA
0067 00000084410 UNION 24°-SWOSDS-L10-G1/4"-FKM 1 PCE
RACCORD 24°-SWOSDS-L10-G1/4"-FKM
0068 00000084878 SWIVELLING TEE ET 10-PL JV/V 1 PCE
TE ORIENTABLE ET 10-PL JV/V
0071 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0073 00000011440 NUT M15LCFX 1 PCE
ECROU M15LCFX

Description WHEEL CYLINDER AIR

Désignation CIRCUIT AIR VERINAGE ROUE
0000 01126362003 WHEEL CYLINDER AIR 1 PCE
0001 00000053126 DISPENSER SMALL BAR 2X3/8 1/4X3 1 PCE
BARRETTE DE DISTRIBUTION 2X3/8 1/4X3
0003 01126389301 HOSE PUS54 1EMBOUT PB52 G4Z2 1 PCE
FLEXIBLE PUS54 1EMBOUT PB52 G4Z2
0004 00000087636 MALE END 23SFAK13SXN 1 PCE
EMBOUT MALE 23SFAK13SXN
0005 00000035449 PRESSURE SWITCH XML-A020-A2S11 1 PCE
PRESSOSTAT XML-A020-A2S11
0007 01061252100 WASHER 2 PCE
RONDELLE
0008 00000081894 MALE PLUG HC BSPT 3/8 ACIER 1 PCE
BOUCHON MALE HC BSPT 3/8 ACIER
0010 00000087662 SWIVELLING MALE TEE REN R64PB14 3/8 1 PCE
TE MALE ORIENTABLE REN R64PB14 3/8
0011 00000106167 CAP FNPB8 1 PCE
BOUCHON FNPB8
0012 00000011546 SCREW ISO4762-M05X035-10.9 2 PCE
VIS CHC ISO4762-M05X035-10.9
0013 00000113459 UNEQUAL TEE 3104 08 10 1 PCE
TE INEGAL 3104 08 10
0015 00000106567 EQUAL UNION 3606 14 00 1 PCE
UNION EGALE 3606 14 00
0016 00000086843 UNEQUAL COUPLING YJPK8 1 PCE
RACCORD INEGAL YJPK8
0017 00000082965 EQUAL TEE JPB 08 1 PCE
TE EGAL JPB 08
0018 00000080282 PIPE RILSAN _6X 8 NATUREL 1.500 CM
0019 00000082982 PIPE RILSAN 11X14 NATUREL 1.200 CM
TUYAU RILSAN 11X14 NATUREL
0020 00000011548 SCREW ISO4762-M05X045-10.9 2 PCE
VIS CHC ISO4762-M05X045-10.9

Description HOSE PUS54 1EMBOUT PB52 G4Z2

Désignation FLEXIBLE PUS54 1EMBOUT PB52 G4Z2
0001 00000039691 COUPLER FEMELLE PB 52 G4 Z2 1 PCE
COUPLEUR FEMELLE PB 52 G4 Z2

Description PRESSURE REDUCTION

Désignation DETENTE 40-7B AVEC RECUPERATION AIR V3
0000 01129584501 PRESSURE REDUCTION 1 PCE
DETENTE 40-7 B AVEC RECUPERATION AIR V3
0001 00000053041 PRESSURE REDUCING VALVE D178LG25WNL0572 1 PCE
DETENDEUR D178LG25WNL0572
0002 00000084526 UNION 24°-SWOSDS-L28-G1"-FKM 1 PCE
RACCORD 24°-SWOSDS-L28-G1"-FKM
0003 00000084415 TUBE REDUCTION RED42/28LVITOMDCF 1 PCE
REDUCTION TUBE RED42/28LVITOMDCF
0004 00000087676 SWIVELLING TEE EL42LA3C 2 PCE
TE ORIENTABLE EL42LA3C
0009 00000086326 TUBE REDUCTION RED22/10PL 1 PCE
REDUCTION TUBE RED22/10PL
0012 00000055277 PRESSURE GAUGE 400177 D63-10B 1/4 TYPE D 1 PCE
MANOMETRE 400177 D63-10B 1/4 TYPE D
0013 00000113143 SWIVELLING TEE ET22LVITOMDCF 1 PCE
TE ORIENTABLE ET22LVITOMDCF
0014 00000101125 NUT EO2 FM22LSSA 2 PCE
ECROU EO2 FM22LSSA
0015 00000084504 TUBE INOX D 22,0-EP2,0-1.4571 10 CM
TUBE INOX D 22,0-EP2,0-1.4571
0017 00000050289 DELIVERY VALVE E=M3/4"NPT S=F1"1/4NPT10B 1 PCE
SOUPAPE E=M3/4"NPT S=F1"1/4NPT10B
0018 00000081417 REDUCTION M/F NPTF PTRS 1"1/4X1" 1 PCE
REDUCTION M/F NPTF PTRS 1"1/4X1"
0019 00000084734 VALVE SILENCER 1"NPT P10/600 1 PCE
SILENCIEUX A SOUPAPE 1"NPT P10/600
0020 01129577501 ARCHED TUBE 1 PCE
TUBE CINTRE

Description PRESSURE REDUCTION

Désignation DETENTE 40-7B AVEC RECUPERATION AIR V3
0021 00000101805 SWIVELLING TEE EL28LOMDCF 1 PCE
TE ORIENTABLE EL28LOMDCF
0022 00000101126 NUT EO2 FM28LSSA 2 PCE
ECROU EO2 FM28LSSA
0023 00000101128 NUT EO2 FM42LSSA 2 PCE
ECROU EO2 FM42LSSA
0024 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 20 CM
TUBE INOX D 42,0-EP3,0-1.4571

Description AIR RECOVERY V3

Désignation RECUPERATION AIR V3
0000 01127084805 AIR RECOVERY 1 PCE
RECUPERATION AIR V3
0001 01126984701 AIR RECOVERY LINE L708500A 1 PCE
LIGNE RECUPERATION AIR L708500A
0003 00000101126 NUT EO2 FM28LSSA 7 PCE
ECROU EO2 FM28LSSA
0004 01126990502 ARCHED TUBE 1 PCE
TUBE CINTRE
0005 00000106695 PRESSURE REDUC. VALVE D390LX84WNL1599§ 1 PCE
DETENDEUR DN12 D390LX84WNL1599§
0006 01126990901 BENT PIPE 1 PCE
TUBE CINTRE
0009 00000086845 TUBE REDUCTION RED28/10LOMDCF JV/V 1 PCE
REDUCTION TUBE RED28/10LOMDCF JV/V
0010 00000102880 SWIVELLING TEE EL10LVITOMDCF 1 PCE
TE ORIENTABLE EL10LVITOMDCF
0011 01127057901 HOSE 2040HCACF-10-10-05 510 @ 1 PCE
FLEXIBLE 2040HCACF-10-10-05 510 @
0012 01127057901 HOSE 2040HCACF-10-10-05 510 @ 1 PCE
FLEXIBLE 2040HCACF-10-10-05 510 @
0013 00000083048 UNION 24°-SDS-L42-G1"1/2-NBR 1 PCE
RACCORD 24°-SDS-L42-G1"1/2-NBR
0014 00000101128 NUT EO2 FM42LSSA 9 PCE
ECROU EO2 FM42LSSA
0015 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 19 CM
TUBE INOX D 42,0-EP3,0-1.4571
0016 01126992802 SUPPORT 2 PCE
SUPPORT
0017 00000010054 SCREW ISO4014-M10X060-8.8 8 PCE
VIS H ISO4014-M10X060-8.8
0019 00000013007 NUT ISO4032-M10-10 8 PCE
TE EGAL T42LA3CX


0022 01124074502 GATE VALVE 1 PCE
VANNE DE PURGE EQUIPEE @
0026 00000082689 REDUCTION TRPB 14- 8 1 PCE
REDUCTION TRPB 14- 8
0027 00000083492 EQUAL TEE JPB14 1 PCE
TE EGAL JPB14
0031 01126992701 SUPPORT 1 PCE
SUPPORT
VIS H ISO4017-M08X025-8.8
0034 01126992502 SUPPORT 1 PCE
SUPPORT
0036 00000083833 TUBE INOX D 28,0-EP2,0-1.4571 25 CM
TUBE INOX D 28,0-EP2,0-1.4571
0038 00000085116 BALL VALVE G1" 1 PCE
ROBINET A BOISSEAU G1"
0040 00000050601 ONE WAY STOP VALVE RHD28LOMDCF 1 PCE
CLAPET ANTI-RETOUR RHD28LOMDCF
0047 00000084686 OBTURATOR VKA42VITCF 1 PCE
OBTURATEUR VKA42VITCF
0049 01127098603 BENT PIPE 1 PCE
TUBE CINTRE
0050 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 20 CM
TUBE INOX D 42,0-EP3,0-1.4571
0051 01127079301 BENT PIPE 1 PCE
TUBE CINTRE
0055 01127079202 ARCHED TUBE 1 PCE
TUBE CINTRE


COUDE EGAL W28LA3CX

Description AIR RECOVERY LINE L708500A

Désignation LIGNE RECUPERATION AIR L708500A
0003 00000130184 OVERFLOW OUTLET 2 PCE
DEVERSOIR REF L708100
0005 00000130105 PRESSURE GAUGE HML210C3 1 PCE
MANOMETRE REF HML210C3
0015 00000130075 JOINT 2 PCE
JOINT REF: HJN01477
0016 99000414755 SILENCER L698056 1 PCE
SILENCIEUX L698056
0017 00000128202 RATE VALVE D366LG83NNL1722 1 PCE
VANNE PROPORTIONNELLE D366LG83NNL1722
0021 00000130175 PRESSURE REDUCING VALVE 1 PCE
DETENDEUR D396 REF D396LX23WNL1689
0023 00000130069 JOINT 4 PCE
JOINT REF: HJN01075
0024 00000130190 HOSE 1 PCE
FLEXIBLE REF HDZF0025
0026 00000130100 PRESSURE GAUGE 1 PCE

Description GATE VALVE

Désignation VANNE DE PURGE EQUIPEE @
0001 00000050983 EXHAUST SILENCER 1/8 IN 1 PCE
SILENCIEUX ECHAPPEMENT 1/8 IN
0002 00000051620 SILENCER ECHAP.1 827 000 002 3/8" 1 PCE
SILENCIEUX ECHAP.1 827 000 002 3/8"

Description SKID
Désignation SKID AIR
0000 01125809704 AIR SKID 1 PCE
SKID AIR
0001 01127845601 PNEUMATIC FRAME 1 PCE
CHASSIS PNEUMATIQUE A.C.E
0002 01125273301 LINE SUPPORT 2 PCE
SUPPORT LIGNE
0003 01125466703 PRESS. REDUCTION LINE L698AX33WNI1175§ 1 PCE
LIGNE DE DETENTE 40B L698AX33WNI1175@§
0004 01125822301 LINE 7B R24 PILOTEE + 2F68 G 1' 1/2 1 PCE
LIGNE 7B R24 PILOTEE + 2F68 G 1' 1/2
0005 00000010142 SCREW ISO4017-M10X030-8.8 8 PCE
VIS H ISO4017-M10X030-8.8
0007 00000013007 NUT ISO4032-M10-10 8 PCE
0008 01125450401 ARCHED TUBE 1 PCE
TUBE CINTRE
0009 00000101128 NUT EO2 FM42LSSA 4 PCE
ECROU EO2 FM42LSSA
0010 01125449501 ARCHED TUBE 1 PCE
TUBE CINTRE
0011 01125715201 SUPPORT 2 PCE
SUPPORT

Description PRESS. REDUCTION LINE L698AX33WNI1175§

Désignation LIGNE DE DETENTE 40B L698AX33WNI1175@§
0001 00000133962 PRESSURE REDUCTION LINE L698400A 1 PCE
LIGNE DE DETENTE L698400A
0002 00000130143 VALVE INOX REF HDIR0016 1 PCE
ROBINET INOX REF HDIR0016
0003 00000130158 GATE VALVE V612AX02WNA1031 1 PCE
VANNE CDE PNEU V612AX02WNA1031
0005 00000132374 DELIVERY VALVE S187 TARAGE 50B @ 1 PCE
SOUPAPE S187 TARAGE 50B @
0006 00000131906 SENSOR HDZC0021 1 PCE
CAPTEUR HDZC0021
0007 00000128202 RATE VALVE D366LG83NNL1722 1 PCE
VANNE PROPORTIONNELLE D366LG83NNL1722
0008 00000101640 SOCKET KV 71 HCZJ0071 1 PCE
FICHE FEMELLE KV 71 HCZJ0071
MANOMETRE HML210C1
0011 00000130113 DRAINING UNIT REF HDZE0007 1 PCE
PURGEUR REF HDZE0007
0012 00000130188 HOSE 1 PCE
FLEXIBLE REF HDAU0021
0013 00000130071 JOINT 1 PCE
JOINT REF: HJN01236
0016 00000030682 PRESSURE SENSOR PA21SC 50BAR KELLER 2 PCE
CAPTEUR DE PRESSION PA21SC 50BAR KELLER
0017 00000130099 PRESSURE GAUGE MESA REF HDZM0001 1 PCE
MANOMETRE MESA REF HDZM0001
0019 99000414754 SILENCER 40B M1/4"G HDSZ0002 1 PCE
SILENCIEUX BRONZE 40B M1/4"G HDSZ0002
0022 00000130193 JOINT REF HDCJ0015 2 PCE
JOINT REF HDCJ0015
0030 00000084841 MALE UNION G12LR1/2EDOMDA3C 1 PCE
UNION MALE G12LR1/2EDOMDA3C
0031 00000105323 SWIVELLING ELBOW. 90 EW 12-LR ED OMD A3C 1 PCE
COUDE ORIENT. 90 EW 12-LR ED OMD A3C
0037 00000130074 JOINT 1 PCE
JOINT REF: HJN01442
0038 00000130069 JOINT 2 PCE
JOINT REF: HJN01075

Description PRESS. REDUCTION LINE L698AX33WNI1175§

Désignation LIGNE DE DETENTE 40B L698AX33WNI1175@§
0040 99000414755 SILENCER L698056 1 PCE
SILENCIEUX L698056
0042 00000101803 SWIVELLING ELBOW EW10LOMDA3C 1 PCE
COUDE ORIENTABLE EW10LOMDA3C
0044 00000130191 SHEATH HDZ00072 1 PCE
GAINE HDZ00072
0046 00000130166 CONNECTOR HDZC0024 1 PCE
CONNECTEUR HDZC0024
0049 00000127637 DELIVERY VALVE S187 42BARS 1 PCE
SOUPAPE S187 42BARS
0050 00000137979 SOLENOID VALVE E236AXF3NPI1228@ 1 PCE
ELECTROVANNE E236AXF3NPI1228@

Description LINE 7B R24 PILOTEE + 2F68 G 1' 1/2

Désignation LIGNE 7B R24 PILOTEE + 2F68 G 1' 1/2
0001 00000053240 FILTERING ELEMENT 5882-98 @ 1 PCE
ELEMENT FILTRANT 5882-98 @
0002 00000053222 FILTERING ELEMENT 5µ 5311-017@ 1 PCE
ELEMENT FILTRANT 5µ 5311-01 @
0003 00000101476 SILENCER MB006B G3/4 1 PCE
SILENCIEUX MB006B G3/4
0004 00000052849 SILENCER MB008B G1 IN 1 PCE
SILENCIEUX MB008B G1 IN
0005 00000101473 CONTROLLER 1 1/2" R18-B00-RNXD 1 PCE
REGULATEUR 1 1/2" R18-B00-RNXD
0006 00000105951 SHUT OFF VALVE 3/2 T68C-AGB-B2N @ 1 PCE
VANNE D'ARRET 3/2 T68C-AGB-B2N @
0007 00000105764 PRESSURE RELEASE VALVE V68H-NND-RMN 1 PCE
SOUPAPE DE DECHARGE V68H-NND-RMN
0008 00000101135 REGULATEUR PILOTE 1/4" 11-204-006 1 PCE
REGULATEUR PILOTE 1/4" 11-204-006
0009 00000052873 PRESSURE GAUGE D40 NORGREN 1/8 " 2 PCE
MANOMETRE D40 NORGREN 1/8 "
0010 00000132565 COIL V10633-A33N 1 PCE
BOBINE V10633-A33N
0011 00000101489 DRAINING UNIT REF 3000-97 1 PCE
PURGEUR 3000-97
0012 00000185855 REPAIR KIT F18-100A (5Μ) @ § 1 PCE
KIT DE REPARATION F18-100A (5Μ) @§
0013 00000151597 PURGE 6000-51 1 PCE
PURGE 6000-51@
0014 00000201744 TEE À FILET LATÉRAL 101751028 1 PCE
TE À FILET LATÉRAL 101751028

Description STOP VALVE CONTROL SYSTEM

Désignation CIRCUIT PILOTE CLAPET VERIN ELONGATION
0000 01129271001 STOP VALVE CONTROL SYSTEM 1 PCE
PILOTAGE CLAPET
0001 00000081252 UNION 24°-SWOSDS-L10-G1/4"-NBR 1 PCE
RACCORD 24°-SWOSDS-L10-G1/4"-NBR
0003 00000082768 SWIVELLING TEE EVL10LA3C 1 PCE
TE ORIENTABLE EVL10LA3C
0005 00000105103 BASE MULTIPLE POUR DISTRIB. 3/2-G1/8 1 PCE
EMBASE MULTIPLE POUR DISTRIB. 3/2-G1/8
0006 00000108926 SOLENOID VALVE 0 820 019 501 1 PCE
ELECTROVANNE 0 820 019 501
0011 00000083194 EQUAL TEE JPB6 1 PCE
TE EGAL JPB6

Description PRESSURE REDUCTION LINE

Désignation LIGNE DE DETENTE L704
0000 01125111401 PRESSURE REDUCTION 1 PCE
DETENTE 40 13B
0001 01125318301 PRESSURE REDUCTION LINE§ 1 PCE
0003 00000083833 TUBE INOX D 28,0-EP2,0-1.4571 6 CM
TUBE INOX D 28,0-EP2,0-1.4571
0004 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 8 CM
TUBE INOX D 42,0-EP3,0-1.4571
0006 00000101126 NUT EO2 FM28LSSA 2 PCE
ECROU EO2 FM28LSSA
COUDE EGAL W42LA3CX
0008 00000101128 NUT EO2 FM42LSSA 2 PCE
ECROU EO2 FM42LSSA

Description PRESSURE REDUCTION LINE§

Désignation LIGNE DE DETENTE L704AX82WNI1122@§
DETENDEUR L704 REF L704100
0003 00000119392 VALVE S187AX29WNA1075 PT=18 BARS 1 PCE
SOUPAPE S187AX29WNA1075 PT=18 BARS
0005 00000128079 PRESSURE REDUCING VALVE D366LG82NNL1722 1 PCE
DETENDEUR D366LG82NNL1722
MANOMETRE REF HML209A3
0013 00000084900 UNION MAV10LROMDCF 1 PCE
UNION MAV10LROMDCF
0014 00000101803 SWIVELLING ELBOW EW10LOMDA3C 1 PCE
COUDE ORIENTABLE EW10LOMDA3C
0016 00000101011 ADJUSTABLE MALE UNION EGE10-LR-ED/A3C 1 PCE
UNION MALE ORIENTABLE EGE10-LR-ED/A3C
0018 00000105694 SOLENOID VALVE E272 A022 24VCC 2/2NO1/4G 1 PCE
ELECTROVANNE E272 A022 24VCC 2/2NO1/4G

Description AIR RECYCLING

0000 01126755303 AIR RECOVERY 1 PCE
RECUPERATION AIR V3
0001 01116514502 AIR RING 1 PCE
COURONNE AIR
0002 00000101126 NUT EO2 FM28LSSA 8 PCE
ECROU EO2 FM28LSSA
0004 01119026001 TUBE INOX D28 EP:2 LG:295 STP 4 738680 2 PCE
TUBE INOX D28 EP:2 LG:295 STP 4 738680
0005 01072495601 FOOT 8 PCE
PIED DE COURONNE
0006 00000010142 SCREW ISO4017-M10X030-8.8 8 PCE
VIS H ISO4017-M10X030-8.8
0008 00000010050 SCREW ISO4017-M10X040-8.8 8 PCE
VIS H ISO4017-M10X040-8.8
TE EGAL T42LA3CX
0011 00000101128 NUT EO2 FM42LSSA 6 PCE
ECROU EO2 FM42LSSA
0012 01126764401 PRESSURE REDUCTION LINE§ 1 PCE
TE EGAL T28LA3CX
0016 00000087907 TUBE REDUCTION RED28/22ZLA3C JV/V 4 PCE
REDUCTION TUBE RED28/22ZLA3C JV/V
0017 01128457001 HOSE 1 PCE
FLEXIBLE PL837-12R 130-C322-C322-00
0018 01008726700 HOSE 1 PCE
FLEXIBLE PL837-12R 070-C322-C322-00
0019 01133304101 ARCHED TUBE 1 PCE
TUBE CINTRE
0020 00000083833 TUBE INOX D 28,0-EP2,0-1.4571 55 CM
TUBE INOX D 28,0-EP2,0-1.4571

Description AIR RECYCLING

0022 00000083456 TEE ENCLIQUETABLE G1/4 D10 1 PCE
PIQUAGE ENCLIQUETABLE G1/4 D10
0023 01128617301 SUPPORT 1 PCE
SUPPORT
0024 01128617001 SUPPORT 1 PCE
SUPPORT
0025 01133303601 ARCHED TUBE 1 PCE
TUBE CINTRE
0026 01127937101 FILTER § 1 PCE
FILTRE HD 0072
0027 00000101768 FILTERING ELEMENT MFP 10/30 1 PCE
ELEMENT FILTRANT MFP 10/30
0029 00000132649 TUBE INOX D 10,0-EP1,0-1.4307 9 CM
TUBE INOX D 10,0-EP1,0-1.4307
0030 00000132649 TUBE INOX D 10,0-EP1,0-1.4307 9 CM
TUBE INOX D 10,0-EP1,0-1.4307
0031 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 35 CM
TUBE INOX D 42,0-EP3,0-1.4571
0032 00000052061 CLOGGING INDICATOR 120 AA 00 AAA 1 PCE
INDICATEUR DE COLMATAGE 120AA-00-A(AA)
0033 00000087447 MALE UNION GE10L1/4NPTA3C 2 PCE
UNION MALE GE10L1/4NPTA3C
0034 00000084685 UNION 24°-SDS-L42-G1"1/2-FKM 2 PCE
RACCORD 24°-SDS-L42-G1"1/2-FKM
COUDE EGAL W42LA3CX
0039 00000010047 SCREW ISO4017-M10X025-8.8 2 PCE
VIS H ISO4017-M10X025-8.8
0041 00000013007 NUT ISO4032-M10-10 2 PCE

Description PRESSURE REDUCTION LINE§

Désignation LIGNE DE DETENTE L709AX21WNI1126@§
DETENDEUR REF L709100
0002 00000130165 ONE WAY STOP VALVE 1 PCE
CLAPET ANTI-RETOUR REF L709032
0004 00000149656 DELIVERY VALVE S187AX26WNA1075 10 BARS 1 PCE
SOUPAPE S187AX26WNA1075 10 BARS
0005 99000414755 SILENCER L698056 1 PCE
SILENCIEUX L698056
DETENDEUR D396 REF D396LX23WNL1689

Description FILTER §
Désignation FILTRE HD 0072
0003 00000191608 SEAL 1C361260-AS @ 1 PCE
JOINT 1C361260-AS @

Description MOLD OPEN CLOSE CAM§

Désignation CAME O-F MOULE§
0000 01124126107 MOLD OPEN CLOSE CAM 1 PCE
CAME D'O-F MOULE
0001 01124126005 MOLD OPEN CLOSE CAM § 1 PCE
CAME D'O-F MOULE §
0002 01124125904 FALSE RETRACTABLE OPENING CLOSING CAM 1 PCE
CAME ESCAMOTABLE O-F
0003 01069651202 TIGHTENER PLATE 1 PCE
PLAT TENDEUR
0004 01071742702 SHORT FASTENER 1 PCE
ATTACHE COURTE
0005 01071742803 LONG FASTENER 1 PCE
ATTACHE LONGUE
CALE PELABLE
0007 01124125803 THRUST 1 PCE
BUTEE
0008 01072733901 PIN 1 PCE
AXE
0009 01072782202 RING 1 PCE
BAGUE
CALE PELABLE
0011 01124125602 SPACER 1 PCE
ENTRETOISE
0012 01124125502 CAM GUIDE 1 PCE
GUIDE CAME
0013 01069651302 SPACER 1 PCE
ENTRETOISE
0014 01072552901 DRAW-SPRING TYPE C 1 PCE
RESSORT DE TRACTION TYPE C
0015 00000105517 WASHER 1 PCE
RONDELLE BMSSI D28 EP3
0016 00000001896 SHOE SOML-38X 75 2 PCE
PATIN SOML-38X 75
0017 00000001764 SELF-LUB.RING SOB _25/ 35X 16 2 PCE
BAGUE AUTOLUB. SOB _25/ 35X 16
0019 00000014630 CYLINDRICAL PIN HN8735-08X036 2 PCE
GOUPILLE CYLINDRIQUE HN8735-08X036
0020 00000011986 SCREW CHC-M16X085-10.9 5 PCE

Description MOLD OPEN CLOSE CAM§

Désignation CAME O-F MOULE§
0021 00000010093 SCREW ISO4017-M16X040-8.8 1 PCE
VIS H ISO4017-M16X040-8.8
0022 00000011695 SCREW ISO4762-M16X040-10.9 1 PCE
VIS CHC ISO4762-M16X040-10.9
0023 00000012339 SCREW ISO4028-M12X055-45H 1 PCE
0024 00000011605 SCREW ISO4762-M08X045-10.9 2 PCE
VIS CHC ISO4762-M08X045-10.9
0025 00000011945 SCREW M06X035-10.9 1 PCE
0026 00000010037 SCREW ISO4017-M08X030-8.8 3 PCE
VIS H ISO4017-M08X030-8.8
0027 00000011599 SCREW ISO4762-M08X016-10.9 1 PCE
VIS CHC ISO4762-M08X016-10.9
0028 00000011560 SCREW ISO4762-M06X010-10.9 4 PCE
VIS CHC ISO4762-M06X010-10.9
0029 00000013009 NUT ISO4032-M12-10 1 PCE
0035 00000011699 SCREW ISO4762-M16X060-10.9 1 PCE
VIS CHC ISO4762-M16X060-10.9
0036 00000013004 NUT ISO4032-M06-10 1 PCE

Description MOLD BASE UP DOWN CAM

Désignation CAME MONTEE DESCENTE FOND DE MOULE
0000 01124151906 MOLD -BASE UP DOWN-CAM 1 PCE
CAME MONTEE DESCENTE FDM
0001 01124151803 UP DOWN-CAM 1 PCE
CAME MONTEE DESCENTE
0002 01124150602 CAM SUPPORT 2 PCE
SUPPORT CAME
0003 01124151501 THRUST 2 PCE
BUTEE
EQUERRE DE FIXATION
0005 01126073801 DETECTOR SUPPORT 1 PCE
SUPPORT DETECTEUR
0006 00000011622 SCREW ISO4762-M10X030-10.9 8 PCE
VIS CHC ISO4762-M10X030-10.9
0007 00000011624 SCREW ISO4762-M10X040-10.9 4 PCE
VIS CHC ISO4762-M10X040-10.9
0009 00000011828 SCREW ISO4026-M10X040-45H 2 PCE
0010 00000010319 SCREW ISO4017-M10X035-8.8 2 PCE
VIS H ISO4017-M10X035-8.8
0011 01126077102 MOLD-BASE CAM CASING 1 PCE
CARTER CAME FOND DE MOULE
0013 00000013415 SCREW M06X020-10.9 6 PCE
0014 00000013324 NUT ISO7040-M10-10 2 PCE
ECROU HFR ISO7040-M10-10
0016 00000013004 NUT ISO4032-M06-10 2 PCE
0017 00000010039 SCREW ISO4017-M08X035-8.8 2 PCE
VIS H ISO4017-M08X035-8.8
0018 00000013554 NUT ISO4032-M08-10 2 PCE
0020 00000014525 DOWEL PIN CYLINDRIQUE _6X12 501 2 PCE
GOUPILLE CYLINDRIQUE _6X12 501

Description MOLD BASE UP DOWN CAM

Désignation CAME MONTEE DESCENTE FOND DE MOULE
0021 00000014048 WASHER ISO7089-10-200HV 4 PCE
0022 00000014045 WASHER ISO7089-06-200HV 4 PCE

Description STRETCHING ROD DOWN-CAM

Désignation CAME DE DESCENTE ELONGATION STEP3 ROUGE
0000 01131455202 STRETCHING ROD DOWN-CAM 1 PCE
CAME DE DESCENTE ELONGATION GM
0001 01131455002 STRETCHING ROD DOWN-CAM 1 PCE
CAME DE DESCENTE ELONGATION
0002 01124404401 BRACKET 1 PCE
EQUERRE
0003 00000011602 SCREW ISO4762-M08X030-12.9 2 PCE
VIS CHC ISO4762-M08X030-12.9
0005 00000016572 SCREW ISO4762-M12X035-12.9 5 PCE
VIS CHC ISO4762-M12X035-12.9

Description STRETCH SAFETY CAM

Désignation CAME SECURITE ELONGATION GM
0000 01128669101 STRETCHING SAFETY CAM 1 PCE
0001 01128668901 STRETCHING SAFETY CAM 1 PCE
CAME DE SECURITE ELONGATION GM
0002 01072323501 RETRACTABLE CAM 1 PCE
CAME ESCAMOTABLE
0003 01114424001 CAM PIN 1 PCE
AXE DE CAME
0004 01072323301 THRUST 1 PCE
BUTEE POUSSOIR
0005 01071828004 STRAIGHT STRETCH CAM 1 PCE
CAME DROITE ELONGATION
0006 01116142603 STRAIGHT CAM 1 PCE
CAME DROITE
0007 01072323002 SENSOR SUPPORT 1 PCE
SUPPORT CAPTEUR
0008 01116142503 STRAIGHT CAM 1 PCE
CAME DROITE
0009 01072799501 CAM SUPPORT 1 PCE
SUPPORT CAME
0010 00000002366 SPRING C 117.125.0630 A 1 PCE
RESSORT C 117.125.0630 A
0011 00000011646 SCREW ISO4762-M12X035-10.9 5 PCE
VIS CHC ISO4762-M12X035-10.9
0012 00000011562 SCREW ISO4762-M06X020-10.9 2 PCE
VIS CHC ISO4762-M06X020-10.9
0013 00000011602 SCREW ISO4762-M08X030-12.9 2 PCE
VIS CHC ISO4762-M08X030-12.9
0014 00000011609 SCREW ISO4762-M08X065-10.9 2 PCE
VIS CHC ISO4762-M08X065-10.9
0018 00000013043 NUT ISO4035-M10-05 1 PCE
0019 00000013554 NUT ISO4032-M08-10 2 PCE
0020 00000011605 SCREW ISO4762-M08X045-10.9 1 PCE
VIS CHC ISO4762-M08X045-10.9

Description STRETCH SAFETY CAM

Désignation CAME SECURITE ELONGATION GM
0021 00000013042 NUT ISO4035-M08-04 1 PCE
0023 01128555101 SAFETY BRACKET 1 PCE
EQUERRE DE SECURITE

Description NOZZLE UP SAFETY CAM

Désignation CAME SECURITE REMONTEE TUYERE
0000 01128983804 CAM SECURITE REMONTEE TUYERE COTE BOUT 1 PCE
CAME SECURITE REMONTEE TUYERE COTE
BOUT
0001 01128916703 CONSOLE SUPPORT 1 PCE
SUPPORT CONSOLE
0002 01128917301 PIVOT BLOCK 1 PCE
BLOC PIVOT
0003 01114372601 PIVOT PIN 1 PCE
AXE PIVOT
0004 01128936102 INTERMEDIATE SUPPORT 1 PCE
SUPPORT INTERMEDIAIRE
0005 01128945003 NOZZLE UP CAM 1 PCE
CAME DE REMONTEE TUYERE MM
0006 01114372901 THRUST 1 PCE
BUTEE
0007 01114373001 SPRING PIN 2 PCE
AXE DE RESSORT
0008 01114373101 SPRING SCREW 1 PCE
VIS RESSORT
0009 01114373201 SCREW SUPPORT 1 PCE
SUPPORT VIS
SUPPORT DETECTEUR
0011 01063247500 SPACER 1 PCE
ENTRETOISE
0012 01063247800 WASHER 1 PCE
RONDELLE
0013 01128919001 SPACER 1 PCE
ENTRETOISE
0014 00000000251 NEEDLE BEARING NKX 40 Z 2 PCE
ROULEMENT AIGUILLES NKX 40 Z
0015 00000001561 RING IR 35X40X20 2 PCE
BAGUE IR 35X40X20
0016 00000101350 DRAW-SPRING MS 605 2 PCE
RESSORT DE TRACTION MS 605
0017 00000015105 ELASTIC RING EXTERIEUR __8X0,80 4 PCE
ANNEAU ELASTIQUE EXTERIEUR __8X0,80
0018 00000013332 NUT ISO7040-M20-10 1 PCE
0019 00000012084 SCREW ISO4017-M10X060-8.8 1 PCE
VIS H ISO4017-M10X060-8.8
0020 00000011813 SCREW ISO4762-M10X025-12.9 9 PCE
VIS CHC ISO4762-M10X025-12.9

Description NOZZLE UP SAFETY CAM

Désignation CAME SECURITE REMONTEE TUYERE
0021 00000011711 REPLACED BY 1000014296 2 PCE
REMPLACE PAR 1000014296
0022 00000010997 SCREW CZHC-DIN7984-M08X020-10.9 4 PCE
VIS CZHC-DIN7984-M08X020-10.9
0023 00000011576 SCREW CHC-M06X110-10.9 2 PCE
0024 00000011730 SCREW CHC-M06X010/010-12.9 2 PCE
VIS CHC-M06X010/010-12.9
0028 00000013007 NUT ISO4032-M10-10 5 PCE
0030 01114373401 THRUST SUPPORT 1 PCE
SUPPORT BUTEE
0031 00000010102 SCREW H-M10X050/050-8.8 1 PCE
VIS H-M10X050/050-8.8
0032 00000011565 SCREW ISO4762-M06X035-10.9 2 PCE
VIS CHC ISO4762-M06X035-10.9
0033 00000011247 SCREW ISO4762-M10X030-12.9 4 PCE
VIS CHC ISO4762-M10X030-12.9
0037 00000013043 NUT ISO4035-M10-05 2 PCE

Description DOUBLE-ROLLER LOCKING CAM

Désignation CAME DE VERROUILLAGE DOUBLE GALET
0000 01132039801 DOUBLE-ROLLER LOCKING CAM 1 PCE
0001 01130661501 LOCKING SUPPORT 1 PCE
SUPPORT VERROUILLAGE
0002 01132040301 LOCKING CAM 1 PCE
CAME DE VERROUILLAGE
0003 01130538001 CAM SUPPORT 1 PCE
SUPPORT CAME
0004 01130569701 FOAM SEAL 1 PCE
JOINT MOUSSE
0005 01130661801 LOCKING COUNTER-CAM GM 1 PCE
CONTRE-CAME DE VERROUILLAGE GM
0006 01125680501 PIVOT PIN 1 PCE
AXE PIVOT
0007 01074365201 PIN SUPPORT 1 PCE
SUPPORT AXE
0008 01073154501 PIN 1 PCE
AXE
0009 01071570001 WASHER 1 PCE
RONDELLE
0010 01074676301 DRAW-SPRING 1 PCE
RESSORT DE TRACTION
0011 01127554702 THRUST 1 PCE
BUTEE
0012 00000001319 SELF-LUB.BEARING FP20 C _30/ 38X 30 2 PCE
COUSSINET AUTOLUB. FP20 C _30/ 38X 30
0013 00000106825 DAMPER SP21899§ 1 PCE
AMORTISSEUR SP21899§
0014 00000052416 NUT JN M27X3,0 1 PCE
ECROU H JN M27X3,0
0016 00000014359 WASHER ISO7093-1-M16-200HV 1 PCE
RONDELLE L ISO7093-1-M16-200HV
0017 00000010157 SCREW ISO4017-M16X025-8.8 1 PCE
VIS H ISO4017-M16X025-8.8
0018 00000014054 WASHER ISO7089-16-200HV 2 PCE
0019 00000011564 SCREW ISO4762-M06X030-10.9 1 PCE
VIS CHC ISO4762-M06X030-10.9
0020 00000016555 SCREW ISO4762-M06X012-10.9 1 PCE
VIS CHC ISO4762-M06X012-10.9

Description DOUBLE-ROLLER LOCKING CAM

Désignation CAME DE VERROUILLAGE DOUBLE GALET
0022 00000011603 SCREW ISO4762-M08X035-10.9 1 PCE
VIS CHC ISO4762-M08X035-10.9
0023 00000014309 WASHER ISO7093-1-08-200HV 1 PCE
RONDELLE L ISO7093-1-08-200HV
0024 00000011599 SCREW ISO4762-M08X016-10.9 1 PCE
VIS CHC ISO4762-M08X016-10.9
0026 00000011601 SCREW ISO4762-M08X025-10.9 5 PCE
VIS CHC ISO4762-M08X025-10.9
0027 00000012217 SCREW ISO4026-M08X030-45H 11 PCE
0028 00000013042 NUT ISO4035-M08-04 3 PCE
0029 00000010276 SCREW H-M12X040-8.8 1 PCE
VIS H-M12X040-8.8
0030 00000013009 NUT ISO4032-M12-10 1 PCE
0032 00000010053 SCREW ISO4014-M10X045-8.8 8 PCE
VIS H ISO4014-M10X045-8.8
0034 01130661901 FOAM SEAL 1 PCE
JOINT EN MOUSSE

Description UNLOCKING CAM

Désignation CAME DE DEVERROUILLAGE GM HR-1800
0000 01131323902 UNLOCKING CAM 1 PCE
CAME DE DEVERROUILLAGE HR-1800
0001 01130538001 CAM SUPPORT 2 PCE
SUPPORT CAME
0002 01131324001 UNLOCKING CAM 1 PCE
CAME DE DEVERROUILLAGE
0003 01130569701 FOAM SEAL 2 PCE
JOINT MOUSSE
0005 00000010053 SCREW ISO4014-M10X045-8.8 4 PCE
VIS H ISO4014-M10X045-8.8
0007 00000011601 SCREW ISO4762-M08X025-10.9 4 PCE
VIS CHC ISO4762-M08X025-10.9
0008 00000012217 SCREW ISO4026-M08X030-45H 10 PCE
0009 00000013042 NUT ISO4035-M08-04 2 PCE

Description LEVER SAFETY O-F MOULE

Désignation SECURITE LEVIER O-F MOULE
0000 01124120905 MOLD OPENING CLOSING LEVER SAFETY 1 PCE
0001 01124120704 BASE 1 PCE
PIED
0002 01124120802 DETECTION PLATE 1 PCE
PLAQUE DE DETECTION
0003 00000017856 HINGE REF: 85.7.1108 1 PCE
CHARNIERE REF: 85.7.1108
0005 00000010047 SCREW ISO4017-M10X025-8.8 4 PCE
VIS H ISO4017-M10X025-8.8
0006 00000052944 MAGNETIC TAPPET 02-20-613-10 1 PCE
TAQUET MAGNETIQUE 02-20-613-10
0007 00000012553 SCREW ISO10642-M06X020-10.9 4 PCE
VIS FHC ISO10642-M06X020-10.9
0008 00000013004 NUT ISO4032-M06-10 4 PCE

Description SAFETY
Désignation SECURITE GM (AVEC CAME SECURITE TUYERE)
0000 01129675506 SAFETY DEVICE 1 PCE
SECURITE
SUPPORT DETECTEUR
0002 01072312302 FLAG 1 PCE
DRAPEAU
SUPPORT DETECTEUR
0004 01124450903 GRIP PRESENCE DETECTOR SUPPORT 2 PCE
SUPPORT DETECTEUR PRESENCE PINCE
0005 01126266801 DETECTION ROD 1 PCE
TIGE DE DETECTION
TIGE DE DETECTION
0008 00000033723 ANGULAR MOVEMENT HEAD ZCK-E05 TELE 4 PCE
TETE MOUVEMENT ANGULAIRE ZCK-E05 TELE
0009 00000033729 SWITCH MECA GALET ZCK-Y51 TELE. 4 PCE
INTERRUPTEUR MECA GALET ZCK-Y51 TELE.
0010 00000033722 SWITCH MECA CORPS ZCK-J1 TELE. 4 PCE
INTERRUPTEUR MECA CORPS ZCK-J1 TELE.
0011 01073857501 BUSHING 1 PCE
CANON
0012 01126297101 TUBE 1 PCE
TUBE
0013 01124974801 SAFETY LEVER 1 PCE
LEVIER SECURITE
0014 01129623501 ARM GUIDE 1 PCE
GUIDE BRAS
0015 01117054501 LABEL 1 PCE
ETIQUETTE
0016 01124460102 CAM DOWN FLAG 1 PCE
DRAPEAU CAME DESCENTE ELONG
0017 00000010032 SCREW ISO4017-M08X012-8.8 4 PCE
VIS H ISO4017-M08X012-8.8
0018 00000011561 SCREW ISO4762-M06X016-10.9 4 PCE
VIS CHC ISO4762-M06X016-10.9
0021 00000010035 SCREW ISO4017-M08X020-8.8 4 PCE
VIS H ISO4017-M08X020-8.8

Description SAFETY
0022 00000013537 WASHER ISO7092-05-200HV 4 PCE
RONDELLE Z ISO7092-05-200HV
0023 00000013003 NUT ISO4032-M05-10 4 PCE
0024 00000011547 SCREW ISO4762-M05X040-10.9 12 PCE
VIS CHC ISO4762-M05X040-10.9
0025 00000011549 SCREW ISO4762-M05X050-10.9 4 PCE
VIS CHC ISO4762-M05X050-10.9
0027 00000011521 SCREW ISO4762-M04X010-10.9 2 PCE
VIS CHC ISO4762-M04X010-10.9
0029 00000103118 CABLE CLIP ALU AL7 2 PCE
CLIP SERRE-CABLES ALU AL7
0030 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
SUPPORT CAPTEUR
TIGE DE DETECTION
0033 01132550801 STRUCTURE 4 PCE
STRUCTURE 45X45 LG 425
0034 01132551101 STRUCTURE 1 PCE
STRUCTURE 1122171901 LG 1080 MM
0035 01125982501 BRACKET 12 PCE
EQUERRE JONCTION EQUIPEE
0036 01129816402 WIRE 1 PCE
FIL
0037 01129816701 WIRE 1 PCE
FIL
0038 00000110597 SCREW T BOSCH-R10-M08X25+ECROU 8 PCE
VIS T BOSCH-R10-M08X25+ECROU
0039 01124054001 STRUCTURE 1 PCE
0040 01127003201 STRUCTURE 1 PCE
0041 01126790101 STRUCTURE 1 PCE
0042 00000117345 MASK PROFIL 45X45 @BOSCH 4 PCE
CACHE PROFIL 45X45 @BOSCH

Description SAFETY
SUPPORT DETECTEUR
0045 00000011622 SCREW ISO4762-M10X030-10.9 4 PCE
VIS CHC ISO4762-M10X030-10.9

Description BOTTLE AND PREFORM EJECTION

Désignation EJECTION BOUTEILLES ET PREFORMES
0000 01124066304 EJECTION BTLES ET PREFORMES COMPACT 1 PCE
EJECTION BTLES ET PREFORMES COMPACT
0001 01124070801 EJECTOR 2 PCE
EJECTEUR
0002 01124064803 CYLINDER SUPPORT 2 PCE
SUPPORT VERIN
0003 01124226501 DOUBLE-ACTING CYLINDER 2 PCE
VERIN DOUBLE EFFET A 822 931 014
0004 00000011569 SCREW ISO4762-M06X055-10.9 8 PCE
VIS CHC ISO4762-M06X055-10.9
0006 00000011407 SCREW ISO4762-M06X016-12.9 8 PCE
VIS CHC ISO4762-M06X016-12.9
0008 00000011601 SCREW ISO4762-M08X025-10.9 3 PCE
VIS CHC ISO4762-M08X025-10.9
0009 00000011600 SCREW ISO4762-M08X020-10.9 5 PCE
VIS CHC ISO4762-M08X020-10.9

Description DOUBLE-ACTING CYLINDER

Désignation VERIN DOUBLE EFFET A 822 931 014
0001 00000053046 DISTRIBUTOR 0.820.038.152 1 PCE
DISTRIBUTEUR 0.820.038.152
0002 00000053111 FILTERING DISC 1827430804 1 PCE
DISQUE FILTRANT 1827430804
0003 99000414680 SEAL KIT R 424 B03 845 @ 1 PCE
KIT JOINT R 424 B03 845 @
0004 01008738800 UNION 1 PCE
RACCORD EQUERRE 1 823 372 820

Description BOTTLE OUTFEED WHEEL

Désignation ROUE SORTIE BOUTEILLES
0000 01128268404 BOTTLE OUTFEED WHEEL 1 PCE
ROUE SORTIE BOUTEILLE
0001 01123953001 BOTTLE OUTFEED WHEEL BEARING 1 PCE
PALIER ROUE SORTIE BOUTEILLE
0002 01128464502 DRIVE SHAFT 1 PCE
ARBRE D'ENTRAINEMENT
0003 00000000076 BEARING 6210 2RS 1 PCE
ROULEMENT 6210 2RS
0007 00000017870 DISENGAGEABLE HANDLE MR.63P-M 8X20 41511 1 PCE
POIGNEE DEBRAY. MR.63P-M 8X20 41511
0008 01132994601 DOWEL PIN 1 PCE
GOUPILLE ANTI-ROTATION
0009 00000011623 SCREW ISO4762-M10X035-10.9 6 PCE
VIS CHC ISO4762-M10X035-10.9
0012 00000015040 ELASTIC RING INTERIEUR _90X3,00 1 PCE
ANNEAU ELASTIQUE INTERIEUR _90X3,00
0013 00000123819 WASHER ISO7094-08-100HV-A2 1 PCE
RONDELLE LL ISO7094-08-100HV-A2
0016 01128455302 MOUNTING 1 PCE
CHAISE
SUPPORT DETECTEUR
0018 00000000284 BALL JOINT BEARING 2208 E-2RS1TN9 1 PCE
ROULEMENT A ROTULE 2208 E-2RS1TN9
0022 00000010065 SCREW ISO4017-M12X030-8.8 8 PCE
VIS H ISO4017-M12X030-8.8

Description BOTTLE OUTFEED WHEEL

Désignation ROUE SORTIE BOUTEILLES
0024 00000010034 SCREW ISO4017-M08X016-8.8 2 PCE
VIS H ISO4017-M08X016-8.8
0027 00000012440 SCREW CHC-M04X016-10.9 2 PCE
0028 00000013002 NUT ISO4032-M04-10 2 PCE

Description IDLER ROLLER FLASQUE§

Désignation GALET DE RENVOI FLASQUE
0000 01124125202 RETURN FOLLOWER 1 PCE
0001 01069638702 COUNTERSHAFT PIN 1 PCE
AXE DE RENVOI COURROIE SORTIE BOUT.
0002 01124107502 FLANGE ROLLER 1 PCE
GALET FLASQUE
0003 01071858301 SPACER 1 PCE
ENTRETOISE
0004 01071858401 WASHER 1 PCE
RONDELLE
0006 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0007 00000010067 SCREW ISO4017-M12X040-8.8 4 PCE
VIS H ISO4017-M12X040-8.8
0009 01073073802 SHORT PIN 1 PCE
AXE COURT
0010 00000014050 WASHER ISO7089-12-200HV 4 PCE

Description TIGHTENER§
Désignation TENDEUR DIA 90 H65 FLASQUE
0000 01124124102 TENSIONER 1 PCE
SUPPORT GALET LONG
GALET FLASQUE
0003 01069992501 THRUST 1 PCE
BUTEE
VIS DE REGLAGE
0005 01071062501 RING 1 PCE
BAGUE
0006 01071858301 SPACER 1 PCE
ENTRETOISE
0007 01071858401 WASHER 1 PCE
RONDELLE
0009 00000002473 SPRING C 0244.0535X0460.0510 A 1 PCE
RESSORT C 0244.0535X0460.0510 A
0010 00000010067 SCREW ISO4017-M12X040-8.8 6 PCE
VIS H ISO4017-M12X040-8.8
0011 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0014 00000014050 WASHER ISO7089-12-200HV 4 PCE
0015 00000013009 NUT ISO4032-M12-10 1 PCE
0016 00000013214 NUT ISO4035-M12-05 2 PCE
0019 01073073802 SHORT PIN 1 PCE
AXE COURT

Description PULLEY
Désignation POULIE SORTIE BOUTEILLES
0000 01128564901 PULLEY § 1 PCE
POULIE SORTIE BOUTEILLE §
0001 01128539701 PULLEY 1 PCE
POULIE 60AT10-36
0004 00000002616 SELF-LUB.BEARING BP25 _40/ 50X 25 1 PCE
COUSSINET AUTOLUB. BP25 _40/ 50X 25
0008 00000011571 SCREW ISO4762-M06X065-10.9 6 PCE
VIS CHC ISO4762-M06X065-10.9

Description RETRACTABLE BOTTLE OUTFEED GUIDE

Désignation GUIDE ESCAMOTABLE SORTIE BOUTEILLES
0000 01123856102 BOTTLE OUTFEED RETRACTABLE GUIDE 1 PCE
GUIDE ESCAMOTABLE SORTIE BLLE
0001 01123858102 PLATE 1 PCE
PLATINE
0002 01126151301 DOUBLE-ACTING CYLINDER 1 PCE
VERIN DOUBLE EFFET R 424 B03 629 @
0003 01123858302 UNDER-NECK GUIDE SUPPORT 1 PCE
SUPPORT GUIDE SOUS COL
0004 01123858801 PIN 1 PCE
AXE
0005 01123858701 SUPPORT PIN§ 1 PCE
AXE SUPPORT§
CALE PELABLE
0010 01123858601 BLOCKIAGE 1 PCE
BLOCAGE
0012 00000011563 SCREW ISO4762-M06X025-10.9 3 PCE
VIS CHC ISO4762-M06X025-10.9
0013 00000010029 SCREW ISO4014-M06X030-8.8 2 PCE
VIS H ISO4014-M06X030-8.8
0014 00000014107 WASHER ISO7093-1-06-200HV 2 PCE
0016 00000013004 NUT ISO4032-M06-10 2 PCE
0017 00000014300 SCREW CHC-M08X075-10.9 1 PCE
0018 00000011600 SCREW ISO4762-M08X020-10.9 3 PCE
VIS CHC ISO4762-M08X020-10.9
0019 00000010040 SCREW H-M08X035-8.8 1 PCE
VIS H-M08X035-8.8
0020 00000014358 WASHER ISO7094-08-100HV 1 PCE

Description RETRACTABLE BOTTLE OUTFEED GUIDE

Désignation GUIDE ESCAMOTABLE SORTIE BOUTEILLES
0021 00000013554 NUT ISO4032-M08-10 1 PCE
0023 00000011621 SCREW ISO4762-M10X025-10.9 1 PCE
VIS CHC ISO4762-M10X025-10.9
0025 00000013044 NUT ISO8675-M16X1,5-05 1 PCE
ECROU HM ISO8675-M16X1,5-05
0026 00000013322 NUT NYL M 8 -8 Z/B 1 PCE
ECROU HFR NYL M 8 -8 Z/B

Description DOUBLE-ACTING CYLINDER

Désignation VERIN DOUBLE EFFET R 424 B03 629 @
0001 00000051844 SWIVEL END 1.822.124.005 1 PCE
EMBOUT A ROTULE 1.822.124.005
0002 00000053116 DOUBLE-ACTING CYLINDER 1 827 003 865 1 PCE
VERIN DOUBLE EFFET 1 827 003 865
0003 00000104973 DISTRIBUTOR 0.820.038.652 1 PCE
0004 00000052555 FEMALE JOINT 1 825 805 248 1 PCE
ARTICULATION FEMELLE 1 825 805 248
0005 00000053032 ELECTRICAL SOCKET 1 834 484 187 1 PCE
PRISE FEMELLE 1 834 484 187
0007 00000052191 REPAIR BAG 1.827.009.394 @ 1 PCE
POCHETTE REPARATION 1.827.009.394 @

Description BOTTLE GUIDE

Désignation GUIDE BOUTEILLE FIXE
0000 01132716701 FIXED BOTTLE GUIDE 1 PCE
0001 01132716501 FIXED GUIDE FOOT 1 PCE
PIED GUIDE FIXE
0002 01132716401 SHEATH 1 PCE
FOURREAU
CALE PELABLE
0004 01132716601 FIXED GUIDE SUPPORT 1 PCE
SUPPORT GUIDE FIXE
0005 01091663101 CUSTOM PART 1 PCE
PIECE PERSO.(GUIDE SOUS COL)
0007 01132716301 PIN 1 PCE
AXE CENTRAGE MOLETE
0008 00000015175 CYLINDRICAL PIN ISO8734-06X040-C1 2 PCE
GOUPILLE CYL. ISO8734-06X040-C1
0009 00000011954 SCREW ISO4762-M12X040-A4-70 3 PCE
VIS CHC ISO4762-M12X040-A4-70
0011 00000012202 SCREW M06X025-A4-70 5 PCE
VIS CHC M06X025-A4-70

Description PROTECTION
Désignation PROTECTION CHASSIS GM SORTIE BOUTEILLE
0000 01132996902 PROTECTION FRAME 1 PCE
0001 01132993301 FRAME COVER PLATE 1 PCE
TOLE PROTECTION CHASSIS
0002 01132724101 MASK 1 PCE
CACHE
0003 01132724601 MASK 1 PCE
CACHE
0004 01132725001 HOLDING RING 1 PCE
BAGUE DE MAINTIEN
0005 01132726101 SMALL COLUMN 2 PCE
COLONNETTE
0006 00000131299 V RING SEAL 60VA D.58 A 63 FKM 1 PCE
JOINT V-RING 60VA D.58 A 63 FKM
0007 00000011626 SCREW ISO4762-M10X050-10.9 2 PCE
VIS CHC ISO4762-M10X050-10.9
0009 00000124531 SCREW ISO4762-M06X025-A4-70 2 PCE
0010 00000011416 SCREW RLS M 4X 10/10 A2-70 10 PCE
VIS RLS M 4X 10/10 A2-70
0011 00000011359 SCREW RLS M 6X 10/10 A2-70 6 PCE
VIS RLS M 6X 10/10 A2-70

Description BRACKET
Désignation EQUERRE LIAISON
0000 01128545402 CONNECTING BRACKET 1 PCE
EQUERRE DE LIAISON
0001 01128696802 ANGLE IRON 1 PCE
CORNIERE
0002 01128699001 CENTERING PIN 2 PCE
CENTREUR
0003 01128699101 BRACKET 1 PCE
EQUERRE
0006 00000014309 WASHER ISO7093-1-08-200HV 4 PCE
0008 00000011600 SCREW ISO4762-M08X020-10.9 6 PCE
VIS CHC ISO4762-M08X020-10.9
0010 00000011645 SCREW ISO4762-M12X030-10.9 4 PCE
VIS CHC ISO4762-M12X030-10.9
0011 00000014360 FLAT WASHER 10 U ZING/BIC 4 PCE
RONDELLE PLATE 10 U ZING/BIC
0013 00000011623 SCREW ISO4762-M10X035-10.9 4 PCE
VIS CHC ISO4762-M10X035-10.9
0015 00000011603 SCREW ISO4762-M08X035-10.9 2 PCE
VIS CHC ISO4762-M08X035-10.9
0016 00000013554 NUT ISO4032-M08-10 2 PCE

Description BLOW WHEEL ROOF

Désignation TOIT SOUFFLEUSE COLLE GM
0000 01126055904 PASTED ROOF 1 PCE
TOIT COLLE
0001 01127572502 PANEL 1 PCE
PANNEAU ARRIERE
0002 01127573302 OVEN PANEL 1 PCE
PANNEAU FOUR
0003 01127573502 OUTFEED PANEL 1 PCE
PANNEAU SORTIE
0004 01127573602 PANEL 1 PCE
PANNEAU AVANT
0005 01127573802 CENTRAL PANEL 1 PCE
PANNEAU CENTRAL COTE SORTIE
0006 01127573902 CENTRAL PANEL 1 PCE
PANNEAU CENTRAL
0007 01126791901 STRUCTURE 3 PCE
0008 01126792001 STRUCTURE 2 PCE
0009 01126792101 STRUCTURE 2 PCE
STRUCTURE 1122170801 LG 1119,5 MM
0010 01127715501 STRUCTURE 1 PCE
0011 01127715601 STRUCTURE 90X45 L=0555 1 PCE
STRUCTURE 90X45 L=0555
0012 01127715701 STRUCTURE 2 PCE
STRUCTURE 1122170801 LG 756,5 MM
0014 00000113870 CAP GPN 300 F52 2 PCE
BOUCHON GPN 300 F52
0015 01127549502 GATE TOITTURE VISSEE 1 PCE
TRAPPE TOITTURE VISSEE
0016 01127560103 OVEN SIDE HATCH 1 PCE
TRAPPE COTE FOUR
0017 01125982501 BRACKET 39 PCE
0018 01126076702 HYDRAULIC PIPE SUPPORT 1 PCE
0019 01126078102 PNEUMATIC PIPE SUPPORT 1 PCE
SUPPORT TUYAU PNEUMATIQUE
0020 01127574202 CLOSING SHEET 1 PCE
TOLE FERMETURE
TOLE FERMETURE

Description BLOW WHEEL ROOF

Désignation TOIT SOUFFLEUSE COLLE GM
TOLE FERMETURE
TOLE FERMETURE
0024 00000110598 NUT T BOSCH-R10-M08-H8,7 29 PCE
ECROU T BOSCH-R10-M08-H8,7
0027 00000014358 WASHER ISO7094-08-100HV 29 PCE
0028 00000113959 SCREW RLS M 8X 20/20 4-8 Z/B 19 PCE
VIS RLS M 8X 20/20 4-8 Z/B
VIS RLS M 8X 25/25 4-8 Z/B
0030 01127590101 LIFE-LINE FASTENER 1 PCE
ATTACHE LIGNE VIE

Description GATE TOITTURE VISSEE

Désignation TRAPPE TOITTURE VISSEE
0000 01127549802 ROOF GATE 1 PCE
TRAPPE TOIT VISSEE
0001 01127550301 ROOF HATCH 1 PCE
TRAPPE TOITURE
0002 01126298002 REINFORCING PIECE 3 PCE
RENFORT
0003 00000113860 CAP GPN 270 R3525 6 PCE
BOUCHON GPN 270 R3525
0004 00000017996 HANDLE NORMANDIE 6901 (112 A 118) 1 PCE
POIGNEE NORMANDIE 6901 (112 A 118)
0005 00000018039 HANDLE ACCESSORY 6921 2 PCE
ACCESSOIRE POIGNEE 6921
0006 00000013554 NUT ISO4032-M08-10 2 PCE
0007 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0008 00000101073 ADHESIVE SEAL 10X3 254 CM
JOINT ADHESIF 10X3
JOINT ADHESIF 10X3
0010 00000113870 CAP GPN 300 F52 2 PCE
BOUCHON GPN 300 F52
0011 00000102681 DOUBLE-COATED TAPE 4943 EP1 1 PCE
ADHESIF DOUBLE FACE 4943 EP1

Description OVEN SIDE HATCH

Désignation TRAPPE COTE FOUR
0000 01127560403 GATE ASSEMBLY 1 PCE
TRAPPE EQUIPEE
0001 01126055402 OVEN SIDE HATCH 1 PCE
TRAPPE COTE FOUR
0002 00000012283 SCREW ISO10642-M05X025-10-9 4 PCE
VIS FHC ISO10642-M05X025-10-9
0003 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0004 00000113553 SCREWABLE HINGE 1054-U28 2 PCE
CHARNIERE A VISSER 1054-U28
0005 00000102987 CAM 1000_20 1 PCE
CAME 1000-20
JOINT ADHESIF 10X3
0008 00000017996 HANDLE NORMANDIE 6901 (112 A 118) 1 PCE
POIGNEE NORMANDIE 6901 (112 A 118)
0009 00000018039 HANDLE ACCESSORY 6921 2 PCE
ACCESSOIRE POIGNEE 6921
0010 00000012528 SCREW ISO10642-M05X016-10-9 4 PCE
VIS FHC ISO10642-M05X016-10-9
0011 00000013554 NUT ISO4032-M08-10 2 PCE
0012 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0013 00000012516 SCREW ISO10642-M04X016-10-9 2 PCE
VIS FHC ISO10642-M04X016-10-9
RENFORT
0018 00000113832 FLUSH NUT MPO M 4-0.5/3 2 PCE
ECROU NOYE MPO M 4-0.5/3
0019 00000133346 CAP GPN 270 R3020 5 PCE
BOUCHON GPN 270 R3020
0020 01133924701 DETECTION SUPPORT 1 PCE
SUPPORT DETECTION
RENFORT
0023 00000013003 NUT ISO4032-M05-10 4 PCE

Description OVEN SIDE HATCH

Désignation TRAPPE COTE FOUR
0027 00000096662 ELASTIC THRUST 512501 2 PCE
BUTEE ELASTIQUE 512501
0028 00000014046 WASHER ISO7089-08-200HV 2 PCE
0029 00000013554 NUT ISO4032-M08-10 2 PCE
0030 00000130619 SAFETY WASHER VS M22 ZING/BLANC 1 PCE
RONDELLE DE SECURITE VS M22 ZING/BLANC
0031 01133924301 SHIM 1 PCE
CALE
0032 00000011994 SCREW ISO4762-M04X008-10.9 2 PCE
VIS CHC ISO4762-M04X008-10.9

Description HYDRAULIC PIPE SUPPORT

Désignation SUPPORT TUYAU HYDRAULIQUE
0000 01126078902 HYDRAULIC PIPE SUPPORT 1 PCE
0001 01126801201 STRUCTURE 1 PCE
0002 00000114004 COLLAR SP 760.3 PPH DP-AS 4 PCE
COLLIER SP 760.3 PPH DP-AS
0003 00000011005 SCREW CHC-M05X110-10.9 8 PCE
0006 01125982501 BRACKET 2 PCE

Description PNEUMATIC PIPE SUPPORT

Désignation SUPPORT TUYAU PNEUMATIQUE
0000 01126079202 SUPPORT 1 PCE
SUPPORT TUYAUX PNEUMATIQUES
0001 01126792901 STRUCTURE 1 PCE
0002 00000113968 COLLAR SP 542 PPH DP-AS 2 PCE
COLLIER SP 542 PPH DP-AS
0003 00000013442 SCREW CHC-M05X075-12.9 4 PCE
0006 01125982501 BRACKET 2 PCE

Description REAR UPPER SIDE

Désignation FACADE SUPERIEURE ARRIERE
0000 01127447101 FRONT-SIDE 1 PCE
FACADE
0001 01127448301 STRUCTURE 1 PCE
STRUCTURE
0002 01126108401 STRUCTURE 2 PCE
STRUCTURE
0003 01126793101 STRUCTURE 1122171901 LG 1130 MM 2 PCE
0004 01125602301 PANEL 1 PCE
PANNEAU SUPERIEUR ARRIERE
0005 01125982501 BRACKET 12 PCE
0006 01127445601 OUT OF LINE JOINTING PLATE ASSY 3 PCE
PLATINE DE JONCTION DECALEE EQUIPEE
0007 01127448101 STRUCTURE 1 PCE
STRUCTURE

Description OVEN UPPER SIDE

Désignation FACADE SUPERIEURE COTE FOUR
0000 01127456601 OVEN FRONT-SIDE 1 PCE
FACADE SUPERIEURE FOUR
0001 01126793001 STRUCTURE 2 PCE
0003 01125600701 OVEN SIDE PANEL 1 PCE
PANNEAU COTE FOUR SUPERIEUR
0005 01125982501 BRACKET 8 PCE
0006 01126793201 STRUCTURE 1 PCE

Description FRONT UPPER SIDE

Désignation FACADE SUPERIEURE AVANT
0000 01127460801 FRONT-SIDE 1 PCE
FACADE SUPERIEURE FOUR
0001 01127489901 STRUCTURE 2 PCE
STRUCTURE
0002 01126793201 STRUCTURE 2 PCE
0004 01126019501 UPPER PANEL 1 PCE
PANNEAU SUPERIEUR
0005 01126611001 JUNCTION LUG 2 PCE
PATTE DE JONCTION
0006 01127490101 CONNECTING PIECE 1 PCE
JONCTION
0007 01127490501 CONNECTING PIECE 1 PCE
JONCTION
0008 01127490201 FASTENING BRACKET 1 PCE
EQUERRE DE FIXATION
EQUERRE DE FIXATION
0010 01126195201 RIGHT BRACKET 1 PCE
EQUERRE DROITE
0011 01126195301 LEFT BRACKET 1 PCE
EQUERRE GAUCHE
0013 01127490401 SUPPORT BRACKET 1 PCE
EQUERRE SUPPORT TRAVERSE
0015 01127490001 PART 1 PCE
PIECE COLLAGE GAUCHE
0016 01126160801 PART 1 PCE
PIECE COLLAGE DROITE

Description FRONT-SIDE
Désignation FACADE SUPERIEURE COTE SORTIE BOUT
0000 01127480001 OUTLET SIDE 1 PCE
FACADE SORTIE
0001 01125982501 BRACKET 8 PCE
0006 01127725901 STRUCTURE 2 PCE
STRUCTURE 1122171901 LG 3222,5 MM
0007 01125602501 UPPER PANEL 1 PCE
PANNEAU SUPERIEUR SORTIE BOUTEILLE

Description DOOR
Désignation PORTE SUPERIEURE EQUIPEE
0000 01127502303 DOOR ASSEMBLY 1 PCE
0001 01127502401 CROSS-BAR 1 PCE
TRAVERSE BASSE PORTE SUP
0002 01126040801 WASHER 1 PCE
RONDELLE
0003 01126744501 FRAME PROFILE 1 PCE
PROFIL CHARNIERE 1125998201 L=1219
0004 01126256902 DOOR 1 PCE
PORTE SUPERIEURE
0005 01126257101 SEAL EDGE 1 PCE
BORDURE JOINT SUPERIEURE
0006 01126257201 SEAL EDGE 1 PCE
BORDURE JOINT INFERIEURE
0007 01126744601 EDGE 1 PCE
BORDURE 1122000601 LG 1219 MM
0008 01127514201 HINGE 1 PCE
CHARNIERE SUPERIEURE
0009 00000012528 SCREW ISO10642-M05X016-10-9 6 PCE
VIS FHC ISO10642-M05X016-10-9
0011 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0012 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0013 00000116292 PROFILE ADHESIVE SEAL 494 382 CM
JOINT ADHESIF PROFILE 494
0015 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9
0017 01131440901 CHUTE 1131333401 LG 0400 1 PCE
GOULOTTE 1131333401 LG 0400
0018 01131441001 PROTECTION 1131332401 LG 0400 MM 1 PCE
PROTECTION 1131332401 LG 0400 MM

Description TRANSFER FLOOR

Désignation PLANCHER DE TRANSFERT
0000 01127669603 FLOOR 1 PCE
PLANCHER TRANSFERT
0001 01126789801 STRUCTURE 1 PCE
0002 01127913001 STRUCTURE 2 PCE
STRUCTURE 1122170801 LG 1110,5 MM
0003 01127913201 STRUCTURE 1 PCE
0004 01127877001 STRUCTURE 1 PCE
0005 01127003201 STRUCTURE 1 PCE
0006 01126790101 STRUCTURE 1 PCE
0007 01125982501 BRACKET 11 PCE
0008 01126567202 CEILING 1 PCE
PLAFOND
0009 01126308302 FLOOR 1 PCE
PLANCHER TRANSFERT
0010 01126567403 CEILING ALIM 1 PCE
PLAFOND ALIM
0011 01127689601 FLOOR BRACKET 1 PCE
EQUERRE PLANCHER
0012 01127681501 TRANSFER FLOOR 1 PCE
PATTE DE JONCTION
0015 01126319801 CONNECTING BRACKET 4 PCE
EQUERRE DE LIAISON
0016 01126567501 FLOOR BRACKET 1 PCE
EQUERRE PLANCHER
0017 00000014358 WASHER ISO7094-08-100HV 6 PCE
VIS RLS M 8X 20/20 4-8 Z/B
0021 01124178001 STRUCTURE 1 PCE

Description TRANSFER FLOOR

Désignation PLANCHER DE TRANSFERT
0022 00000011294 CREW ISO10462-M08X016-10.9 4 PCE
VIS FHC ISO10462-M08X016-10.9
0023 00000113552 ADHESIVE SEAL 1016-82 375 CM
JOINT ADHESIF 1016-82
0024 01127692301 JOINTING PLATE 2 PCE
PLAQUE DE JONCTION

Description TOOL
Désignation OUTILLAGE HMA ROUE GM
0000 01127836804 TOOL 1 PCE
0001 01127896702 FRONT-SIDE TOOL 1 PCE
OUTILLAGE FACADE DROITE
0002 01126726005 TOOL 1 PCE
OUTILLAGE AVANT DROIT
0003 01126351102 TOOLS 1 PCE
OUTILLAGE
0004 01126351002 TOOL 3 PCE
OUTILLAGE SKID
0005 01127897101 TOOL 2 PCE
OUTILLAGE TIRANT
0006 01126351303 TIE ROD TOOLING 2 PCE
OUTILLAGE TIRANT
0007 01127897302 TOOL 1 PCE
OUTILLAGE AVANT RENFORT
0009 00000011600 SCREW ISO4762-M08X020-10.9 12 PCE
VIS CHC ISO4762-M08X020-10.9
0010 00000011601 SCREW ISO4762-M08X025-10.9 6 PCE
VIS CHC ISO4762-M08X025-10.9
0011 00000011644 SCREW ISO4762-M12X025-10.9 4 PCE
VIS CHC ISO4762-M12X025-10.9
0012 01126725803 TOOL 1 PCE
OUTILLAGE AVANT GAUCHE
0013 00000014309 WASHER ISO7093-1-08-200HV 20 PCE
0016 00000013554 NUT ISO4032-M08-10 6 PCE
0017 00000013011 NUT ISO4032-M16-10 4 PCE
0018 01126725902 TOOLS 1 PCE
OUTILLAGE
0019 00000016572 SCREW ISO4762-M12X035-12.9 2 PCE
VIS CHC ISO4762-M12X035-12.9

Description TOOL
Désignation OUTILLAGE HMA ROUE GM
0021 00000011083 SCREW M10X030-12.9 4 PCE
0022 01127897001 TOOLS 2 PCE
OUTILLAGE
0023 01126367303 FRONT-SIDE TOOL 1 PCE
OUTILLAGE FACADE
0024 00000011690 SCREW ISO4762-M10X040-12.9 3 PCE
VIS CHC ISO4762-M10X040-12.9
0025 01131571001 BRACKET 1 PCE
EQUERRE
0026 00000014046 WASHER ISO7089-08-200HV 4 PCE

Description LABEL
Désignation ETIQUETTE HMA ROUGE
0000 01128124001 LABEL 1 PCE
ETIQUETTE
0001 01128124201 NUMBER 1 PCE
NUMERO
0002 00000129452 TRIANGULAR PICTOGRAM HTE TEMPERATUR 6 PCE
PICTOGRAMME TRIANGULAIRE HTE
TEMPERATUR
0003 01091658901 SEE LABELS SUB-UNIT 9 PCE
VOIR S/E ETIQUETTES
0004 00000118349 CIRCULAR PICTOGRAM ANTI-CHUTE 1 PCE
PICTOGRAMME CIRCULAIRE ANTI-CHUTE
0005 01128163301 MACHINE SAFETY LABEL 10 PCE
ETIQUETTE DE SECURITE MACHINE

Description LABEL
Désignation ETIQUETTE SBO UNIVERSAL RUSSE
0003 01068314501 SAFETY LABEL 17 PCE
ETIQUETTE DE SECURITE MACHINE
0021 01121179701 LUBRICATION LABEL IN RUSSIAN 1 PCE
ETIQUETTE DE GRAISSAGE EN RUSSE
0025 01114179501 NUMBERS H16 N°1 A 20 1 PCE
NUMERO H16 N°1 A 20
0026 01063220500 NUMBER 1 PCE
NUMERO H=16MM NO 1 A 24
0030 01073294301 PNEUMATIC LABEL 1 PCE
ETIQUETTE PNEUMATIQUE
0035 01073294401 HYDRAULIC LABEL 1 PCE
ETIQUETTE HYDRAULIQUE
0036 01128840801 PNEUMATIC LABEL IN RUSSIAN 1 PCE
ETIQUETTE PNEUMATIQUE RUSSE
0037 01133561601 LABEL 1 PCE
ETIQUETTE 3EME CIRCUIT RUSSE

Description LOCKING KIT

Désignation KIT VERROUILLAGE NORME RUSSE
0000 01129638401 LOCKING KIT 1 PCE
0001 00000017892 LATCH 1000-U271+CLE 333 17 PCE
LOQUET 1000-U271+CLE 333

Désignation FACADE AVANT
0000 01131381802 FRONT-SIDE 1 PCE
FACADE
0001 01127718601 STRUCTURE 1 PCE
STRUCTURE
0002 01128075501 STRUCTURE 1 PCE
STRUCTURE 1122170801 LG 1238,5 MM
0003 01126789801 STRUCTURE 1 PCE
0004 01127013601 STRUCTURE 2 PCE
0005 01127013701 STRUCTURE 1 PCE
0006 01128075601 STRUCTURE 1 PCE
0007 01127014001 STRUCTURE 1 PCE
0008 01127677201 STRENGTHENING PIECE 2 PCE
RENFORT
PATTE DE JONCTION
0011 01126610501 HINGE 1 PCE
CHARNIERE BASSE DROITE
0012 01126610601 HINGE 1 PCE
CHARNIERE BASSE GAUCHE
0013 01127676801 HINGE 1 PCE
CHARNIERE INTERMEDIAIRE DROITE
0014 01127718801 HINGE 1 PCE
CHARNIERE INTERMEDIAIRE GAUCHE
0015 01126040801 WASHER 2 PCE
RONDELLE
0016 01127718901 FLAP 1 PCE
BAVETTE
0017 01127677501 SEAL RETAINER 1 PCE
APPUI JOINT
0018 01126612001 BRACKET 1 PCE
EQUERRE
0019 01126612101 BRACKET 1 PCE
EQUERRE
0020 01127677701 STOP BLOCK 1 PCE
BUTOIR
0021 01127677901 STOP BLOCK 1 PCE
BUTOIR

Désignation FACADE AVANT
0022 01125982501 BRACKET 7 PCE
0023 01126017102 FOOT ASSEMBLY 4 PCE
PIED EQUIPE
0024 01131384101 HINGE 1 PCE
0025 01131384201 HINGE 1 PCE
0026 01131411301 DOOR 1 PCE
PORTE 14.95 DEGRES GAUCHE EQUIPEE
0027 01131408702 DOOR 1 PCE
PORTE 14.95 DEGRES DROITE EQUIPEE
0028 01131403602 DOOR 1 PCE
0029 01131398502 DOOR 1 PCE
PORTE BAC BOUTEILLES EQUIPEE
0031 00000012528 SCREW ISO10642-M05X016-10-9 4 PCE
VIS FHC ISO10642-M05X016-10-9
0033 00000117436 SPRING CLIP H11 2 PCE
SAUTERELLE H11
0035 00000011522 SCREW ISO4762-M04X016-10.9 2 PCE
VIS CHC ISO4762-M04X016-10.9
0036 01127677601 SEAL RETAINER 1 PCE
APPUI JOINT
0038 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9

Description HINGE
Désignation CHARNIERE HAUTE DROITE
0000 01131383401 HINGE ASSEMBLY 1 PCE
CHARNIERE HAUTE DROITE EQUIPEE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description HINGE
Désignation CHARNIERE HAUTE GAUCHE
0000 01131383601 HINGE 1 PCE
CHARNIERE HAUTE GAUCHE EQUIPEE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
Désignation PORTE 14.95 DEGRES GAUCHE EQUIPEE
PORTE EQUIPEE GAUCHE
0001 01126605202 DOOR 1 PCE
PORTE GAUCHE
0002 01126740501 HINGE PROFILE 11259982 L=1605 1 PCE
0003 01126605901 ARCHED EDGING 1 PCE
CHANT SUPERIEUR CINTRE
CHANT INFERIEUR CINTRE
0005 01127655101 DOOR STOP 1 PCE
BUTEE PORTE FERMIERE
0006 01126605801 WINDOW EDGING 2 PCE
CHANT VITRE
0007 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0008 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
0009 01122547501 FRAME WRENCH FOR GLASS SHEET 1 PCE
CLE CADRE VITRE
0010 01126606201 ARCHED WINDOW 1 PCE
VITRE CINTREE
0011 01122000901 EDGE 4.112 MM
BORDURE 11220009 L 0622
0012 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0014 01131556201 CHUTE 1 PCE
GOULOTTE
0015 00000116907 SCREW CBLZ ISO7049-ST3,5X06,5-F Z/B 2 PCE
VIS CBLZ ISO7049-ST3,5X06,5-F Z/B
0017 00000106953 PROFILE JOINT U REF 418 404 CM
JOINT PROFILE U REF 418
0019 01126605501 LOCKING BRACKET 1 PCE
EQUERRE DE VERROUILLAGE
0021 00000014044 WASHER ISO7089-05-200HV 4 PCE
0022 00000012140 SCREW M05X016-10.9 2 PCE

Description DOOR
Désignation PORTE 14.95 DEGRES GAUCHE EQUIPEE
0024 01131556101 PROTECTION 1 PCE
PROTECTION R4649 L=1014

Description DOOR
Désignation PORTE 14.95 DEGRES DROITE EQUIPEE
PORTE EQUIPEE DROITE
0001 01126606802 DOOR 1 PCE
PORTE DROITE
0005 01127707001 ARCHED DOOR EDGE 1 PCE
BORDURE PORTE CINTREE
0006 01126605801 WINDOW EDGING 2 PCE
CHANT VITRE
0007 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0008 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
VITRE CINTREE
0011 01122000901 EDGE 4.112 MM
BORDURE 11220009 L 0622
0012 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0014 01127653902 LOCKING 1 PCE
VERROUILLAGE 3PT PORTE
0021 01126605501 LOCKING BRACKET 1 PCE
EQUERRE DE VERROUILLAGE
0023 00000014044 WASHER ISO7089-05-200HV 4 PCE

Description DOOR
Désignation PORTE 14.95 DEGRES DROITE EQUIPEE
0024 00000012140 SCREW M05X016-10.9 2 PCE

Description LOCKING
Désignation VERROUILLAGE 3PT PORTE
0000 01127654002 DOOR LOCKING 1 PCE
VERROUILLAGE PORTE AVANT
0001 01127654101 ROLLER ROD 1 PCE
TRINGLE GALET INF
0002 01126637201 ROLLER ROD 1 PCE
TRINGLE GALET SUPERIEUR
0003 00000113718 BUTTERFLY BUTTON 1000-U269 1 PCE
BOUTON PAPILLON 1000-U269
0004 00000017435 ROD GUIDE 1001 U11 4 PCE
GUIDE TRINGLE 1001 U11
0005 00000017436 ADAPTER 1000-U 49 2 PCE
ADAPTATEUR 1000-U 49
0006 00000106957 CAM 1000-U 27 1 PCE
CAME 1000-U 27
0007 00000012502 SCREW ISO4026-M06X025-45H 4 PCE

Description DOOR
Désignation PORTE BAC PREFORMES EQUIPEE
0000 01131404202 DOOR 1 PCE
0001 01126616302 PREFORM BIN SUPPORT 1 PCE
SUPPORT BAC PREFORME
0002 01126743801 EDGE 1 PCE
BORDURE 1122000601 LG 590 MM
PROFIL CHARNIERE 1125998201 L= 590
0006 01131319703 HANDLE 1 PCE
POIGNEE PORTE BAC
0010 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0011 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0013 00000014045 WASHER ISO7089-06-200HV 8 PCE
VIS RLS M 6X 16/16 4-8 Z/B
0015 01127712601 FLAP 1 PCE
BAVETTE

Description DOOR
Désignation PORTE BAC BOUTEILLES EQUIPEE
0000 01131398402 BOTTLE BIN DOOR ASSEMBLY 1 PCE
PORTE BAC BOUTEILLE EQUIPEE
0001 01126612802 BOTTLE BIN SUPPORT 1 PCE
SUPPORT BAC BOUTEILLE
0002 01127711201 TANK DOOR THRUST 1 PCE
BUTEE PORTE BAC
PROFIL CHARNIERE 1125998201 L= 590
0006 01131319703 HANDLE 1 PCE
POIGNEE PORTE BAC
0010 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0011 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0013 00000014045 WASHER ISO7089-06-200HV 8 PCE
VIS RLS M 6X 16/16 4-8 Z/B
0015 01127711501 FLAP 1 PCE
BAVETTE

Désignation FACADE ARRIERE
0000 01131408602 SIDE 1 PCE
FACADE
0001 01126802901 STRUCTURE 1 PCE
0002 01127013601 STRUCTURE 2 PCE
0003 01127603801 DOOR CABLE 2 PCE
CABLE PORTE
0004 01128550001 FLAP 2 PCE
BAVETTE
0005 01131321901 BRACKET 1 PCE
EQUERRE
0006 01125982501 BRACKET 6 PCE
PIED EQUIPE
0008 01125991601 HINGE 2 PCE
CHARNIERE BASSE EQUIPEE G
0009 01125988001 HINGE 2 PCE
CHARNIERE BASSE EQUIPEE D
0010 01131414701 DOOR 1 PCE
0011 01131384201 HINGE 2 PCE
0012 01131414802 DOOR 1 PCE
0013 01131384101 HINGE 2 PCE
0014 01131409602 DOOR 1 PCE
PORTE ANGLE DROITE EQUIPEE
0015 01131409502 DOOR 1 PCE
PORTE ANGLE GAUCHE EQUIPEE
0018 00000011522 SCREW ISO4762-M04X016-10.9 4 PCE
VIS CHC ISO4762-M04X016-10.9
0020 00000117439 SCREW CBLZ ISO7049-ST3,5X16-F Z/B 4 PCE
VIS CBLZ ISO7049-ST3,5X16-F Z/B

Désignation FACADE ARRIERE
0021 01127611001 SPACER 1 PCE
ENTRETOISE
0023 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9
0024 01128802201 STRUCTURE 2 PCE
0025 01128802301 STRUCTURE 1 PCE
0026 01128552101 FLAP 1 PCE
BAVETTE
0027 01124706602 PLATE 2 PCE
PLAQUE JONCTION EQUIPEE

Description DOOR
Désignation PORTE 1025 GAUCHE EQUIPEE
0000 01131413301 DOOR 1 PCE
PORTE GAUCHE EQUIPEE
0001 01127499801 DOOR 1 PCE
PORTE 1025 GAUCHE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127500401 WHEEL DOOR THRUST 1 PCE
BUTEE PORTE ROUE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0018 01131417901 CHUTE 1 PCE
GOULOTTE LG 0830 MM
0021 01131418001 PROTECTION 1 PCE

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
Désignation PORTE 1025 DROITE EQUIPEE
0001 01127484901 DOOR 1 PCE
PORTE DROITE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127498401 EDGE 1 PCE
BORDURE PORTE DROITE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0014 01127475301 LOCKING 1 PCE
VERROUILLAGE 3PTS GRAND PORTE

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
Désignation PORTE ANGLE DROITE EQUIPEE
0000 01131409302 CORNER DOOR ASSEMBLY 1 PCE
PORTE D'ANGLE DROITE EQUIPEE
0001 01131312601 DOOR 1 PCE
PORTE ANGLE DROITE
0002 01127910701 EDGE 2 PCE
BORDURE 1122000801 LG 0586,5 MM
0003 01126744101 EDGE 1 PCE
BORDURE 1122000801 LG 1314 MM
0004 01126744201 EDGE 1 PCE
BORDURE 1122000801 LG 1544 MM
CLE CADRE VITRE
0006 01131312801 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 4.300 MM
BORDURE 11220009 L 0622
0009 01126190201 SEAL EDGING 1 PCE
BORDURE JOINT
0010 01126190301 SEAL EDGE 1 PCE
BORDURE JOINT
0011 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0012 01126190401 SEAL EDGE 1 PCE
BORDURE JOINT
0013 01126190501 SEAL EDGE 1 PCE
BORDURE JOINT
0014 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
RENFORT
0020 01127475301 LOCKING 1 PCE
0022 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9

Description DOOR
Désignation PORTE ANGLE DROITE EQUIPEE
0027 00000117149 BLIND RIVET POP 3,2 ALU 1-5MM 16 PCE
RIVET AVEUGLE POP 3,2 ALU 1-5MM

Description DOOR
Désignation PORTE ANGLE GAUCHE EQUIPEE
0000 01131408902 CORNER DOOR ASSEMBLY 1 PCE
PORTE D'ANGLE EQUIPEE GAUCHE
0001 01131318301 CORNER DOOR 1 PCE
PORTE D'ANGLE GAUCHE
0002 01127910701 EDGE 2 PCE
BORDURE 1122000801 LG 0586,5 MM
0003 01126744101 EDGE 1 PCE
BORDURE 1122000801 LG 1314 MM
0004 01126744201 EDGE 1 PCE
BORDURE 1122000801 LG 1544 MM
CLE CADRE VITRE
0006 01131318201 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 4.300 MM
BORDURE 11220009 L 0622
0009 01126190201 SEAL EDGING 1 PCE
BORDURE JOINT
0010 01126190301 SEAL EDGE 1 PCE
BORDURE JOINT
0011 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0012 01126190401 SEAL EDGE 1 PCE
BORDURE JOINT
0013 01126190501 SEAL EDGE 1 PCE
BORDURE JOINT
0014 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
RENFORT
0017 01127475301 LOCKING 1 PCE
0019 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9

Description DOOR
Désignation PORTE ANGLE GAUCHE EQUIPEE

Désignation FACADE DROITE
0000 01131441402 FRONT-SIDE 1 PCE
FACADE DROITE
0001 01128083401 STRUCTURE 1 PCE
0002 01127013601 STRUCTURE 3 PCE
0003 01128083501 STRUCTURE 1 PCE
0004 01125982501 BRACKET 7 PCE
PIED EQUIPE
0006 01125991601 HINGE 2 PCE
0007 01131384201 HINGE 2 PCE
0008 01125988001 HINGE 2 PCE
0009 01131384101 HINGE 2 PCE
0010 01127704101 SPACER 1 PCE
ENTRETOISE
0013 01127072901 BRACKET 1 PCE
EQUERRE
0014 01126584802 FLAP 1 PCE
BAVETTE
0015 01131414701 DOOR 1 PCE
0016 01131414802 DOOR 1 PCE
0017 01126085804 MOBILE PANEL 1 PCE
0019 01126198202 BRACKET 2 PCE
EQUERRE DE RENFORT

Désignation FACADE DROITE
0021 00000011522 SCREW ISO4762-M04X016-10.9 4 PCE
VIS CHC ISO4762-M04X016-10.9

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
0000 01131413301 DOOR 1 PCE
0001 01127499801 DOOR 1 PCE
PORTE 1025 GAUCHE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
BUTEE PORTE ROUE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0018 01131417901 CHUTE 1 PCE
GOULOTTE LG 0830 MM
0021 01131418001 PROTECTION 1 PCE

Description DOOR
0001 01127484901 DOOR 1 PCE
PORTE DROITE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127498401 EDGE 1 PCE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0014 01127475301 LOCKING 1 PCE

Description MOBILE PANEL

Désignation PANNEAU MOBILE 0495 EQUIPE
0000 01126167204 MOBILE PANEL ASSY 1 PCE
PANNEAU MOBILE 0495
0003 01126166701 SEAL EDGE 1 PCE
BORDURE JOINT
0004 01126166801 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0007 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0008 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0010 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9


0000 01127645104 MOBILE PANEL ASSEMBLY 1 PCE
PANNEAU MOBILE EQUIPE
PANNEAU MOBILE
0003 01126180601 SEAL EDGE 1 PCE
BORDURE JOINT
0004 01126180701 EDGE 1 PCE
BORDURE JOINT
0005 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0006 01124046401 EDGE 3 PCE
BORDURE 11220004 L=0111
0007 01124046501 EDGE 1 PCE
BORDURE 11220004 L=0066
0008 01122562901 EDGING 1 PCE
CHANT ARU ALIM
0010 01127649002 LOCKING 1 PCE
0012 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9

Description LOCKING
Désignation VERROUILLAGE 3PTS PANNEAU
0000 01127649202 PANEL LOCKING 1 PCE
0001 01122477901 ROLLER ROD 1 PCE
TRINGLE GALET INFERIEUR
0002 01126637201 ROLLER ROD 1 PCE
0003 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0004 00000017435 ROD GUIDE 1001 U11 6 PCE
0005 00000017436 ADAPTER 1000-U 49 2 PCE
0006 00000105136 CAM 1000-U 34 1 PCE
CAME 1000-U 34
0007 00000012502 SCREW ISO4026-M06X025-45H 6 PCE

Désignation FACADE INF GAUCHE
0000 01131382203 FRONT-SIDE 1 PCE
FACADE INF
0001 01128083901 STRUCTURE 2 PCE
0002 01127013601 STRUCTURE 2 PCE
0003 01127014001 STRUCTURE 1 PCE
0004 01127686801 SPACER 1 PCE
ENTRETOISE
0005 01125982501 BRACKET 6 PCE
0006 01124694001 CONNECTING PLATE 2 PCE
PLAQUE DE LIAISON
0008 01126565802 FLAP 1 PCE
BAVETTE
0009 01127072901 BRACKET 1 PCE
EQUERRE
0010 01127603801 DOOR CABLE 2 PCE
CABLE PORTE
PIED EQUIPE
0013 00000011522 SCREW ISO4762-M04X016-10.9 2 PCE
VIS CHC ISO4762-M04X016-10.9
0014 01125988001 HINGE 2 PCE
0015 01125991601 HINGE 1 PCE
0016 01131384101 HINGE 2 PCE
0017 01131384201 HINGE 1 PCE
0018 01131414802 DOOR 1 PCE
0019 01131414701 DOOR 1 PCE

Désignation FACADE INF GAUCHE
0021 01126198202 BRACKET 2 PCE
EQUERRE DE RENFORT
0023 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
0001 01127484901 DOOR 1 PCE
PORTE DROITE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127498401 EDGE 1 PCE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0014 01127475301 LOCKING 1 PCE

Description DOOR
0000 01131413301 DOOR 1 PCE
0001 01127499801 DOOR 1 PCE
PORTE 1025 GAUCHE
0002 01126042801 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126042901 SEAL EDGE 1 PCE
BORDURE JOINT
BUTEE PORTE ROUE
0006 01126002301 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.742 MM
BORDURE 11220009 L 0622
0008 01126752501 EDGE 2 PCE
BORDURE 1122000801 LG 0829 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131319603 HANDLE 1 PCE
POIGNEE PORTE ROUE
0018 01131417901 CHUTE 1 PCE
GOULOTTE LG 0830 MM
0021 01131418001 PROTECTION 1 PCE


0000 01131772502 MOBILE PANEL A 1 PCE
PANNEAU MOBILE EQUIPE
PANNEAU MOBILE
0003 01126071701 SEAL EDGE 1 PCE
BORDURE JOINT
0004 01126071801 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0006 01124046401 EDGE 3 PCE
BORDURE 11220004 L=0111
0007 01124046501 EDGE 1 PCE
BORDURE 11220004 L=0066
0008 01122562901 EDGING 1 PCE
CHANT ARU ALIM
0010 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0011 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0012 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9
0014 01130118101 EDGE 2 PCE
BORDURE 1122000401 LG 0061 MM
0015 01131780801 EDGE 1 PCE
BORDURE 1122000401 LG 226 MM
0016 01131780901 EDGE 1 PCE
BORDURE 1122000401 LG 181 MM

Description PARTITION
Désignation CLOISON REMPLISSEUSE
0000 01131868601 FILLER PARTITION 1 PCE
0001 01131868801 FILLER PARTITION 1 PCE
0002 01128846603 SIDE SHEET 1 PCE
TOLE LATERALE
0003 01128846801 BRACKET 2 PCE
EQUERRE CLOISON
0004 01128846904 SHEET 1 PCE
TOLE
0005 01128846703 GATE 1 PCE
TRAPPE
0008 01130543502 SIDE SHEET 1 PCE
TOLE LATERALE
0009 01131864601 PARTITION 1 PCE
CLOISON
0011 00000015812 SCREW RLS M 6X 20/20 A2-70 24 PCE
VIS RLS M 6X 20/20 A2-70
0012 00000014990 NUT ISO4032-M06-A4-70 4 PCE
ECROU H ISO4032-M06-A4-70
0014 00000132490 HANDLE 1095-19 1 PCE
POIGNEE 1095-19
0015 00000122612 NUT DIN985-M06-A4-035 2 PCE
ECROU HMFR DIN985-M06-A4-035
0016 00000010244 SCREW H-M06X020-A4-80 2 PCE
VIS H-M06X020-A4-80
0017 00000101828 LATCH 1000-U45+1000-U3 1 PCE
LOQUET 1000-U45+1000-U3
0018 00000017688 CAM 1000-21 1 PCE
CAME 1000-21

Description FLOOR
Désignation PLANCHER FIXE GM
0000 01133638001 FLOOR 1 PCE
PLANCHER FIXE GM
0001 01125982501 BRACKET 8 PCE
PIED EQUIPE
0006 00000124552 SCREW M08X020/020-8.8-Z/B 2 PCE
VIS CHC M08X020/020-8.8-Z/B
0007 00000130406 JUMPER TYPE C30 4 PCE
CAVALIER TYPE C30
0008 00000131136 SCREW CHC-M08X045/045-10.9 4 PCE
VIS CHC-M08X045/045-10.9
0009 01126351002 TOOL 2 PCE
OUTILLAGE SKID
0011 01133638601 STRUCTURE 2 PCE
0012 01133638501 STRUCTURE 2 PCE
STRUCTURE 90X45 L 0600
0013 01133638701 STRUCTURE 1 PCE
STRUCTURE 90X45 L 1485
0014 01132252802 PLATE 1 PCE
PLAQUE

Description COLLECTOR
Désignation COLLECTEUR
0000 01127590204 PREFORM AND BOTTLE COLLECTOR 1 PCE
COLLECTEUR PREFORME ET BOUTEILLE
0001 01127591204 PREFORM AND BOTTLE COLLECTOR 1 PCE
COLLECTEUR PREF ET BOUT
0002 01127591503 BOTTLE GATE 1 PCE
TRAPPE BOUTEILLE
0003 01127591302 PREFORM GATE 1 PCE
TRAPPE PREFORME
0005 01127596204 BIN 1 PCE
BAC BOUTEILLE
0006 01127595503 BIN 1 PCE
BAC PREFORME
0007 01132745501 SWIVELLING CASTER 4 PCE
ROULETTE PIVOTANTE 550875/M20 ECROUS
0010 00000118834 CAP D12 8 PCE
BOUCHON D12
0011 00000096040 ELASTIC THRUST 511110 1 PCE
BUTEE ELASTIQUE 511110

Description BIN
Désignation BAC BOUTEILLE
0000 01127596604 BOTTLE BIN 1 PCE
BAC BOUTEILLE
0001 01127596703 BOTTLE BIN 1 PCE
BAC BOUTEILLE
0002 01127596804 BOTTLE SACKCLOTH 1 PCE
SAC TOILE BOUTEILLE
0003 00000131618 CASTER D50 218050A 2 PCE
ROULETTE D50 218050A
0004 00000131619 SWIVELLING CASTER 518868AS 2 PCE
ROULETTE PIVOTANTE 518868AS
0005 00000011605 SCREW ISO4762-M08X045-10.9 2 PCE
VIS CHC ISO4762-M08X045-10.9
0006 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0008 00000013364 NUT ISO7040-M08-10 2 PCE
0009 00000131302 CAP GPN320 D20 8 PCE
BOUCHON GPN320 D20

Description BIN
Désignation BAC PREFORME
0000 01127595703 PREFORM BIN 1 PCE
BAC PREFORME
0001 01127595802 PREFORM BIN 1 PCE
BAC PREFORME
0002 01127596003 PREFORM BAG 1 PCE
SAC TOILE PREFORME
0003 00000131618 CASTER D50 218050A 2 PCE
ROULETTE D50 218050A
0004 00000131619 SWIVELLING CASTER 518868AS 2 PCE
ROULETTE PIVOTANTE 518868AS
0005 00000011605 SCREW ISO4762-M08X045-10.9 2 PCE
VIS CHC ISO4762-M08X045-10.9
0006 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0008 00000013364 NUT ISO7040-M08-10 2 PCE

Description CHUTE
Désignation GOULOTTE BOUTEILLES GM
0000 01132115702 BOTTLE CHUTE 1 PCE
GOULOTTE BOUTEILLE GM
0001 01132116902 BOTTLE CHUTE 1 PCE
GOULOTTE BOUTEILLE
0002 01132116802 BOTTLE NET 1 PCE
FILET BOUTEILLE
0003 00000010497 SCREW ISO4017-M08X050-8.8 4 PCE
VIS H ISO4017-M08X050-8.8
0004 00000013554 NUT ISO4032-M08-10 4 PCE
0005 00000014309 WASHER ISO7093-1-08-200HV 8 PCE

Description CHUTE
Désignation GOULOTTE PREFORMES DEPOUSSIERAGE GM
0000 01132151102 DEDUST PREFORM CHUTE 1 PCE
0001 01132151402 PREFORM CHUTE 1 PCE
GOULOTTE PREFORME
0002 01132151802 PREFORM NET 1 PCE
FILET PREFORME
0003 01132152002 BACKGROUND SHEET 1 PCE
TOILE DE FOND
0004 00000010497 SCREW ISO4017-M08X050-8.8 4 PCE
VIS H ISO4017-M08X050-8.8
0005 00000013554 NUT ISO4032-M08-10 4 PCE
0006 00000014309 WASHER ISO7093-1-08-200HV 8 PCE

Sous-ensemble 01126536401 Index EC01
Description MACHINE EQUIPMENT

Désignation EQUIPEMENT MACHINE
0010 00000113440 ISOLATED SHUNT IBS 50-330-10 1 PCE
SHUNT ISOLE IBS 50-330-10

Description CONNECTION PROFIBUS STANDARD ROUE GM

Désignation LIAISON PROFIBUS STANDARD ROUE GM
0010 00000112696 CABLE ECOFAST PRECON. L=0,6M HARTING 1 PCE
CABLE ECOFAST PRECON. L=0,6M HARTING
0020 00000112694 WIRE ECOFAST PRECONFECTIONNE LG.8,00M@ 1 PCE
CABLE ECOFAST PRECONFECTIONNE LG.8,00M@
0030 00000112693 CABLE ECOFAST PRECONFECTIONNE L=7M 1 PCE
CABLE ECOFAST PRECONFECTIONNE L=7M
0040 00000109121 PLUG 09120063001 HART 1 PCE
PRISE MALE 09120063001 HART
0050 00000031147 CONTACT MALE 09150006104 HARTING 2 PCE
CONTACT MALE 09150006104 HARTING
0060 00000110857 COVER PRISE 19200030426 HARTING 2 PCE
CAPOT PRISE 19200030426 HARTING
0070 00000109231 STUFFING BOX ISO M20 POLYA-SILVER 1 PCE
PRESSE-ETOUPE ISO M20 POLYA-SILVER
0080 00000102319 FLEXIBLE CABLE PROFIBUS 6XV1830-3EH10 § 500 CM
CABLE SOUPLE PROFIBUS 6XV1830-3EH10 §

Sous-ensemble 01131347701 Index EF01
Description FIXED REMOTE INPUT

Désignation ENTREE DECENTRALISEE FIXE E10
0000 01131366001 DIGITAL INPUT ET200 ECO 1 PCE
ENTREE TOR ET200 ECO
0010 00000112381 LEAD 4POLE-M12-MALE DROIT L=5M 2 PCE
CORDON 4POLE-M12-MALE DROIT L=5M
0020 00000117071 INDUCTIVE DETECT. IE5318 IEK3002BBPKG/US 1 PCE
DETECTEUR INDUC. IE5318 IEK3002BBPKG/US
0030 00000117967 LEAD 3POLE-M12-M DROIT/F COUDE L=3M 1 PCE
CORDON 3POLE-M12-M DROIT/F COUDE L=3M
0050 00000112379 LEAD 3POLES-M12-M DROIT/F COUDE L=2M 2 PCE
CORDON 3POLES-M12-M DROIT/F COUDE L=2M
0060 00000117081 CELL REFLEX OG5027 1 PCE
CELLULE REFLEX OG5027
0070 00000117086 REFLECTOR D21X6 IFM E20003 1 PCE
REFLECTEUR D21X6 IFM E20003
0100 00000117081 CELL REFLEX OG5027 1 PCE
CELLULE REFLEX OG5027
0110 00000117086 REFLECTOR D21X6 IFM E20003 1 PCE
REFLECTEUR D21X6 IFM E20003

Description FIXED DECENTRALIZED OUTPUT - A10

Désignation SORTIE DECENTRALISEE FIXE - A10
0000 01124132601 ALL-OR-NOTHING OUTPUT - A10 1 PCE
SORTIE TOR - A10
0010 00000109255 LEAD M12 DIN-A 5P 1,5M E850A0A58M015 1 PCE
CORDON M12 DIN-A 5P 1,5M E850A0A58M015
0020 00000112383 LEAD M12/C DIN 2M H850A0A58M020 WOOD 2 PCE
CORDON M12/C DIN 2M H850A0A58M020 WOOD
0030 00000109255 LEAD M12 DIN-A 5P 1,5M E850A0A58M015 1 PCE
CORDON M12 DIN-A 5P 1,5M E850A0A58M015


0000 01124132401 ON OFF CONTROL INPUT 1 PCE
ENTREE TOR - E12
0020 01128780501 BOX 1 PCE
0070 00000117076 INDUCTIVE DETECTOR M18 NO 24VCC IGS204 1 PCE
DETECTEUR INDUCTIF M18 NO 24VCC IGS204
0100 00000112690 LEAD 4POLES-M12-MALE DROIT L=7M 1 PCE
CORDON 4POLES-M12-MALE DROIT L=7M
0110 00000112377 LEAD M12 COUDE F 804001E02M050 WOODH 1 PCE
CORDON M12 COUDE F 804001E02M050 WOODH
0120 01128780401 BOX K2 1 PCE
0130 00000117077 DETECTOR NDUCT. M18 NF 24V= IGS206 IFM 1 PCE
DETECTEUR NDUCT. M18 NF 24V= IGS206 IFM
0140 00000112360 LEAD M12 COUDE BG18567M100 WOOD 1 PCE
CORDON M12 COUDE BG18567M100 WOOD

Description BOX
Désignation COFFRET K3 EQUIPE ISO
0000 01128775101 BOX 1 PCE
COFFRET K3 EQUIPE ISO - PERCAGES
0010 00000032228 TERMINAL BLOCK KS10 0.D10 WEIDMULLER 1 PCE
BORNIER KS10 0.D10 WEIDMULLER
0020 00000109245 STUFFING BOX IS0 M16 POLYA-SILVER 6 PCE
PRESSE-ETOUPE IS0 M16 POLYA-SILVER
0030 00000109702 PLUG ISO M20 5213 DELAUNAY 1 PCE
BOUCHON ISO M20 5213 DELAUNAY
0050 00000037587 TRIANGLE SIG.AT41/05 CATUELEC 1 PCE
TRIANGLE SIG.AT41/05 CATUELEC
0060 00000109703 CAP ISO M16 GREY 3 PCE
BOUCHON ISO M16 GREY
0080 00000032168 BOX 70X165X40,5 K3 034220 WEIDMULLER 1 PCE
COFFRET 70X165X40,5 K3 034220 WEIDMULLER

Description BOX K2
0000 01128775001 BOX 1 PCE
0010 00000032234 SMALL BAR CONNEXION KS6 6P 014062 WEIDM 1 PCE
BARRETTE CONNEXION KS6 6P 014062 WEIDM
0030 00000109703 CAP ISO M16 GREY 2 PCE
0050 00000109703 CAP ISO M16 GREY 2 PCE
0060 00000032143 BOX 70X100X40,5 K 2 034210 WEIDM 1 PCE
COFFRET 70X100X40,5 K 2 034210 WEIDM


ENTREE TOR E14
0040 00000103590 PUSHBUTTON BODY 2F VIS ZB4BZ103 TELE 1 PCE
BP CORPS 2F VIS ZB4BZ103 TELE
0050 00000103551 PUSH-BUTTON HEAD ZB4BA2 BLACK SCH 1 PCE
TETE BOUTON-POUSSOIR ZB4BA2 BLACK SCH
0070 00000030418 ULTRASONIC CELL UEDK30P5103S14 BAUMER 1 PCE
CELLULE ULTRASON UEDK30P5103S14 BAUMER
0080 00000112359 LEAD M12 COUDE M/F BG18567M020 WOOD 1 PCE
CORDON M12 COUDE M/F BG18567M020 WOOD
0090 00000030416 ULTRASONIC CELL USDK30D9003S14 BAUMER @ 1 PCE
CELLULE ULTRASON USDK30D9003S14 BAUMER
@
0100 00000112359 LEAD M12 COUDE M/F BG18567M020 WOOD 1 PCE
CORDON M12 COUDE M/F BG18567M020 WOOD
0110 00000109256 CONNECTOR Y M12 081205EMF00000/885A30W 1 PCE
CONNECTEUR Y M12 081205EMF00000/885A30W
0120 00000112360 LEAD M12 COUDE BG18567M100 WOOD 1 PCE
CORDON M12 COUDE BG18567M100 WOOD

Description FIXED REMOTE INPUT E14


Description FIXED DECENTRALIZED OUTPUT

Désignation SORTIE DECENTRALISEE FIXE - A12
0000 01124132701 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR A12
0010 00000109258 LEAD M12/C DIN 1,5M H850A0A58M015WOOD 2 PCE
CORDON M12/C DIN 1,5M H850A0A58M015WOOD
0020 00000109259 LEAD M12/A DIN 5M E850A0A58M050 WOOD@ 1 PCE
CORDON M12/A DIN 5M E850A0A58M050 WOOD@
0030 00000036870 INDICATOR DEL24V~=WHITE XB4BVB1TELE 1 PCE
VOYANT COMPLET DEL24V~=BLANC
XB4BVB1TELE
0040 00000103490 LAMP DEL 24V=~ BLANC ZBV-B1 TELE 1 PCE
LAMPE DEL 24V=~ BLANC ZBV-B1 TELE
0050 00000032148 BOX 2 PER. D22 80X80 XAPM 1502 1 PCE
BOITIER 2 PER. D22 80X80 XAPM 1502

Description PLC EQUIPMENT

Désignation EQUIPEMENT AUTOMATE - E/S ROUE
0010 00000109063 DISTRIBUTOR 6ES71413BH000XA0 SIEM 2 PCE
REPARTITEUR 6ES71413BH000XA0 SIEM
0020 00000109065 DISTRIBUTED I/O STATION 6ES71943AA000AA 2 PCE
BLOC ECOFAST 6ES71943AA000AA0 SIEM@
0050 00000109081 PLUG M12 3RX98020AA00 SIEM 4 PCE
BOUCHON M12 3RX98020AA00 SIEM


Désignation EQUIPEMENT AUTOMATE - E/S FOUR

Description DETECTION SYNCHRO WHEEL/OVEN

Désignation DETECTION SYNCHRO ROUE/FOUR
0020 00000117967 LEAD 3POLE-M12-M DROIT/F COUDE L=3M 1 PCE
CORDON 3POLE-M12-M DROIT/F COUDE L=3M

Sous-ensemble 01133031401 Index EK01
Description BOX
Désignation COFFRET SKID
0000 01131519801 BOX SKID - IMPLANTATION 1 PCE
COFFRET SKID - IMPLANTATION
0000 01131520101 BOX 1 PCE
COFFRET SKID - PERCAGE
0000 01133031301 BOX 1 PCE
COFFRET SKID - DEPARTS/BORNIER
0010 01131626001 BOX 1 PCE
COFFRET 8300187 500X500X210@RITTAL
0020 00000096697 TRIANGULAR PICTOGRAM DANGER ELEC. 1 PCE
PICTOGRAMME TRIANGULAIRE DANGER ELEC.
0030 00000036044 PROFILE AM1DE200 SCHNEIDER 1 PCE
PROFILE AM1DE200 SCHNEIDER
0040 00000030458 CONNECTING BAR CU 12X4 37389 LEGR 40 CM
BARRE DE RACCORDEMENT CU 12X4 37389 LEG
0050 00000030435 SPACER TYPE MF 30H4070-35 ACME 5 PCE
ENTRETOISE TYPE MF 30H4070-35 ACME
0060 00000030447 CABLE CLIP ALU AL3 RICHCO 30 PCE
CLIP SERRE-CABLES ALU AL3 RICHCO
0080 00000039653 TERMINAL 4C PAS 5 2,5MM² FRONT 280-633 14 PCE
BORNE 4C PAS 5 2,5MM² FRONT 280-633
0090 00000035460 END PLATE EP2,5 280-326 WAGO 1 PCE
PLAQUE EXTREMITE EP2,5 280-326 WAGO
0110 00000035446 STOP THRUST PAS 6 249-116 WAGO 2 PCE
BUTEE D'ARRET PAS 6 249-116 WAGO
0130 00000109244 CHECK-NUT ISO M16 POLYA-SILVER 14 PCE
CONTRE-ECROU ISO M16 POLYA-SILVER
0150 00000109248 REDUCER M20/M16 POLYA 7 PCE
REDUCTEUR M20/M16 POLYA
0160 00000109227 CHECK-NUT ISO M20X1.5 12 PCE
CONTRE-ECROU ISO M20X1.5
0170 00000109703 CAP ISO M16 GREY 1 PCE

Description BOX
Désignation COFFRET SKID
0205 00000110652 MULTICABLE RING M32-2X9 1 PCE
BAGUE MULTICABLE M32-2X9
0220 00000109313 STUFFING BOX M32 154M32UM 4X8 DELAUNAY 1 PCE
PRESSE-ETOUPE M32 154M32UM 4X8 DELAUNAY
0230 00000119894 MULTICABLE RING M20-3X5,3 1 PCE
BAGUE MULTICABLE M20-3X5,3
0240 00000110302 REDUCER M32/M20 POLYAMIDE 1 PCE
REDUCTEUR M32/M20 POLYAMIDE
0250 00000030288 CABLE H05VV5-F 7G1MM2 1.200 CM
CABLE H05VV5-F 7G1MM2
0260 00000111908 SIDE COVER ISO20 19300101530 HARTING 1 PCE
CAPOT LATERAL ISO20 19300101530 HARTING
0270 00000034878 PLUG 10P+T 09330102616 HARTING 1 PCE
PRISE MALE 10P+T 09330102616 HARTING
0280 00000034604 GUIDING PIN 09330009908 HARTING 2 PCE
BROCHE DE DETROMPAGE 09330009908
HARTING
0290 00000034605 FOOLPROOFING BUSHING 09330009909 HARTING 2 PCE
DOUILLE DE DETROMPAGE 09330009909HARTING
0300 00000109241 CABLE GLAND PG16 CMA 061400 CAPRI 1 PCE
PRESSE ETOUPE PG16 CMA 061400 CAPRI
0310 00000109242 ADAPTER M20 M/PG16 F 753140 CAPRI 1 PCE
ADAPTATEUR M20 M/PG16 F 753140 CAPRI
0320 00000030462 THROTTLE VALVE PG 7 P-A 7714 DELAUNAY 30 PCE
OBTURATEUR PG 7 POLYAMIDE 7714 DELAUNAY
0330 00000030545 THROTTLE VALVE PG9 P-A 7715 DELAUNAY 6 PCE
0340 00000117147 BONDING STRIP MBJ 16-100-6 ERICO 1 PCE
TRESSE DE MASSE MBJ 16-100-6 ERICO

Description PLC EQUIPMENT COFFRET SKID

Désignation EQUIPEMENT AUTOMATE COFFRET SKID
0010 00000109000 COUPLER IM151 6ES71511BA020AB0 SIEM 1 PCE
COUPLEUR IM151 6ES71511BA020AB0 SIEM
0020 00000103361 CONNECTOR PROFIBUS 6ES7972-0BB52-0XA0 1 PCE
CONNECTEUR PROFIBUS 6ES7972-0BB52-0XA0
0030 00000103292 POWER SUPPLY 2 PCE
ALIMENTATION 10A
0040 00000108994 BASE PM-E 6ES71934CD300AA0 SIEM 2 PCE
EMBASE PM-E 6ES71934CD300AA0 SIEM
0050 00000108995 OUTPUT CARD 6ES7132-4BD02-0AA0 4DO 2 PCE
CARTE SORTIE 6ES7132-4BD02-0AA0 4DO
0060 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0090 00000109015 MODULE 4DI 6ES71314BD010AB0 SIEM 1 PCE
MODULE 4DI 6ES71314BD010AB0 SIEM
0100 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6
0110 00000103293 INLET ANA 2 I 6ES71344GB010AB0 SIEM 2 PCE
ENTREE ANA 2 I 6ES71344GB010AB0 SIEM
0120 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
0130 00000130763 ANALOG INPUT 6ES71344MB020AB0 SIEME 2 PCE
ENTREE ANALOGIQUE 6ES71344MB020AB0 SIEME
0140 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
0150 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6
0160 00000110053 MODULE 2AO-U 6ES71354FB010AB0 SIEMENS 1 PCE
MODULE 2AO-U 6ES71354FB010AB0 SIEMENS

Description ANALOG INPUT EW1100

Désignation ENTREE ANALOGIQUE EW1100
0000 01134370001 ANALOG INPUT EW1100 1 PCE
0020 00000109281 LEAD BL C/9,4 7M E001551-700 WOODHEAD 1 PCE
CORDON BL C/9,4 7M E001551-700 WOODHEAD

Description ANALOG INPUT

Désignation ENTREE ANALOGIQUE EW1112
0000 01131529901 ANALOG INPUT 1 PCE
0020 00000102588 PRESSURE SENSOR PA21SC 16B KELLER 1 PCE
CAPTEUR DE PRESSION PA21SC 16B KELLER

Description ANALOG OUTPUT

Désignation SORTIE ANALOGIQUE AW1100 > AW1112
0000 01133031501 ANALOG OUTPUT AW1100 > AW1112 1 PCE
0010 99000422235 RATE VALVE§ 1 PCE
VANNE PROPORTIONNELLE (VOIR NOM.MECA.)§

Description ON/OFF CONTROL INPUTS

Désignation ENTREE TOR E20>E22
ENTREE TOR ET200S E20>E22
0010 00000113737 LEAD M12 DROIT F 804000E02M100 WOODH 1 PCE
CORDON M12 DROIT F 804000E02M100 WOODH

Description ALL-OR-NOTHING OUTPUT

Désignation SORTIE TOR A20>A22
SORTIE TOR ET200S
0010 00000112355 LEAD A DIN 10M E452A3A10K1RSOH WOODHE 4 PCE
CORDON A DIN 10M E452A3A10K1RSOH WOODHE
0020 00000112356 LEAD B IND 10M E462A3A10K2RS0H WOODHE 2 PCE
CORDON B IND 10M E462A3A10K2RS0H WOODHE
0030 00000118938 RELAY 24V 2F ABR 1S418B TELE 1 PCE
RELAIS BORNE 24V 2F ABR 1S418B TELE


Désignation ENTREE ANALOGIQUE COL/FOND STD
0010 01125877101 SLEEVE CSRDIN CORREGE @ 1 PCE
FOURREAU DE SONDE CSRDIN CORREGE @
0020 01125877201 ELEMENT PT100 OHMS 0/100°C CORREGE @ 1 PCE
ELEMENT PT100 OHMS 0/100°C CORREGE @
0030 99000421507 FLOWMETER 1 PCE
DEBIMETRE (VOIR EN NOMENCLATURE MECA)


Désignation ENTREE ANALOGIQUE CORPS STD
0020 01125878101 SENSOR PT100 OHMS 0/200°C CORREGE @ 1 PCE
SONDE PT100 OHMS 0/200°C CORREGE @
0030 99000421507 FLOWMETER 1 PCE
DEBIMETRE (VOIR EN NOMENCLATURE MECA)

Sous-ensemble 01124146301 Index ES01
Description UPPER BOX

Désignation COFFRET SUPERIEUR
0000 01124137201 UPPER BOX 1 PCE
COFFRET SUPERIEUR - IMPLANTATION
0000 01124137301 UPPER BOX 1 PCE
COFFRET SUPERIEUR - DEPARTS
0010 00000109348 BOX SUPERIEUR 600X300X120 RITTAL @ 1 PCE
COFFRET 8300162 300X600X120 RITTAL @
0030 00000035896 CHUTE GO 60X100 L F30 WATTOHM § 140 CM
GOULOTTE GO 60X100 L F30 WATTOHM §
0050 00000104208 TERMINAL 2 ETAGES 3 CONDUCTEURS WAGO 65 PCE
BORNE 2 ETAGES 3 CONDUCTEURS WAGO
0060 00000104212 GROUND TERMINAL WAGO 870-537 9 PCE
BORNE TERRE WAGO 870-537
0070 00000104642 PLATE EXTREM POUR BORNE 870-574 2 PCE
PLAQUE EXTREM POUR BORNE 870-574
0080 00000104643 COMB DE PONTAGE ENFICHABLE 2 POLES 53 PCE
PEIGNE DE PONTAGE ENFICHABLE 2 POLES
0115 00000030462 THROTTLE VALVE PG 7 P-A 7714 DELAUNAY 4 PCE
OBTURATEUR PG13 POLYAMIDE 7717 DELAUNAY


0200 00000109080 CABLE H05VV5-F 25G1MM2 600 CM
0210 00000111948 COVER 24 ISO32 19300240537 HARTING 1 PCE
CAPOT 24 ISO32 19300240537 HARTING
HARTING
0260 00000030108 CABLE H05VV5-F 18G1MM2 600 CM
0280 00000034881 PLUG 16P+T 09330162616 1 PCE
PRISE MALE 16P+T 09330162616
HARTING
0320 00000030299 CABLE H07RN-F 3G1,5MM2 600 CM
CABLE H07RN-F 3G1,5MM2
0330 00000111950 COVER 10B ISO20 19300101530 HARTING 1 PCE
CAPOT 10B ISO20 19300101530 HARTING
HARTING


0370 00000109426 CABLE GLAND PG13,5 CMA 061204 CAPRI 1 PCE
PRESSE ETOUPE PG13,5 CMA 061204 CAPRI
0380 00000109427 ADAPTER M20 M/PG13,5 F 752884 CAPRI 1 PCE
ADAPTATEUR M20 M/PG13,5 F 752884 CAPRI

Description JOG
Désignation CABLAGE PRISES JOG
0000 01124146701 CONNECTION 1 PCE
LIAISON JOG
0010 00000110573 ELECTRICAL SOCKET 10P+T 09200102812 HART 7 PCE
PRISE FEMELLE 10P+T 09200102812 HART
0020 00000110574 BASE 6B 19200100295 HARTING 7 PCE
EMBASE 6B 19200100295 HARTING
0050 00000030102 CABLE H05VV5-F 12G1MM2 1 CM
0055 00000104210 WALL SUPPORT REF: 29600100 ROSE 1 PCE
SUPPORT MURAL REF: 29600100 ROSE
0060 00000104422 CONTROL STATION PILOT20 29300100 ROSE 1 PCE
POSTE DE COMMANDE PILOT20 29300100 ROSE
0080 00000104423 CABLE SPIREX 400P 12G1MM² 70002670 LAPP 1 PCE
CABLE SPIREX 400P 12G1MM² 70002670 LAPP
0100 00000110576 COVER LATERAL ISO20 19200101540 HART 1 PCE
CAPOT LATERAL ISO20 19200101540 HART

Sous-ensemble 01124146101 Index ET01
Description TRANSFER BOX

Désignation COFFRET TRANSFERT
0000 01124136901 TRANSFER BOX 1 PCE
COFFRET TRANSFERT - IMPLANTATION
0000 01124137001 TRANSFER BOX 1 PCE
COFFRET TRANSFERT - DEPARTS/BORNIER
0000 01127815501 BOX DRILLING 1 PCE
PERCAGE COFFRET FIXE 300X380X210
0010 01125577401 BOX 1 PCE
0040 00000035936 CHUTE GO 30X 80 L F30 WATTOHM § 40 CM
GOULOTTE GO 30X 80 L F30 WATTOHM §
0050 00000035429 TERMINAL 3C V/J PAS 5 2,5MM² FR 280-687 6 PCE
BORNE 3C V/J PAS 5 2,5MM² FR 280-687
0060 00000039647 TERMINAL 3C P5 2,5MM2 FRONT. 280681 WAGO 38 PCE
BORNE 3C P5 2,5MM2 FRONT. 280681 WAGO
0080 00000039657 SHUNT ISOLE HORIZ. 2P GRIS 280402 WAGO 10 PCE
SHUNT ISOLE HORIZ. 2P GRIS 280402 WAGO
0115 00000109703 CAP ISO M16 GREY 1 PCE

Description TRANSFER BOX

Désignation COFFRET TRANSFERT
0175 00000110647 CAP ISO M32 GREY 2 PCE
0177 00000118382 STUFFING BOX M32 154M32UM 4X6,5 DELAUN 2 PCE
PRESSE-ETOUPE M32 154M32UM 4X6,5 DELAUN
0220 00000030108 CABLE H05VV5-F 18G1MM2 600 CM
0230 00000111907 COVER 19 30 016 1531 HARTING 1 PCE
CAPOT 19 30 016 1531 HARTING
0240 00000034881 PLUG 16P+T 09330162616 1 PCE
PRISE MALE 16P+T 09330162616
HARTING


Désignation EQUIPEMENT AUTOMATE - COFFRET TRANSFERT
ALIMENTATION 10A
0060 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0100 00000108996 EMBASE UNIV 2 4 PCE
EMBASE UNIV 2 X 6

Description DISTRIBUTOR WIRING

Désignation CABLAGE REPARTITEUR MODULE AV FOUR
0000 01124428801 DISTRIBUTOR WIRING 1 PCE
0010 00000109314 DISTRIBUTOR M12 8DI/8DO BTY803PFBC 1 PCE
REPARTITEUR M12 8DI/8DO BTY803PFBC
0020 00000115318 CON. WIRE M23 COUDE 10M K03001B20M100 WO 1 PCE
CORDON M23 COUDE 10M K03001B20M100
WOOD@
0030 00000109344 CAP M12 BG12103 (EX 13213) WOOD 4 PCE
BOUCHON M12 BG12103 (EX 13213) WOOD

Description ON OFF CONTROL INPUT

Désignation ENTREE TOR E30>E32
ENTREE TOR ET200S
0020 00000112376 LEAD M12 COUDE F 804001E02M100 WOODD 1 PCE
CORDON M12 COUDE F 804001E02M100 WOODD
0090 00000129300 TIMER DKZADK5 7940022161 WEIDM @ 1 PCE
TEMPO.DKZADK5 7940022161 WEIDM @
0100 00000101742 CLOSING PLATE AP DK5 826887 WEIDMU 1 PCE
PLAQUE DE FERMETURE AP DK5 826887 WEIDMU
0130 00000129300 TIMER DKZADK5 7940022161 WEIDM @ 2 PCE
TEMPO.DKZADK5 7940022161 WEIDM @
0140 00000101742 CLOSING PLATE AP DK5 826887 WEIDMU 2 PCE
PLAQUE DE FERMETURE AP DK5 826887 WEIDMU
0170 00000117080 CELL PHOTO.M18 PROX NO24V= OG5029IFM 1 PCE
CELLULE PHOTO.M18 PROX NO24V= OG5029IFM

Description ALL-OR-NOTHING OUTPUT - A30>A32

Désignation SORTIE TOR - A30>A32
0010 00000117975 LEAD M12/C DIN 5M H850A0A58M050 WOOD@ 1 PCE
CORDON M12/C DIN 5M H850A0A58M050 WOOD@
0030 00000112357 LEAD C DIN 10M E492A2A10K11S0H WOODHE 2 PCE
CORDON C DIN 10M E492A2A10K11S0H WOODHE

Description ALL-OR-NOTHING PLC INPUT - E33 > E35

Désignation ENTREE AUTOMATE TOR - E33 > E35
0000 01124131802 ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR AUTOMATE E33>E35

Sous-ensemble 01131423901 Index EV01
Description POLE SUPPLY CABINET

Désignation COFFRET ALIMENTATION POLE
0000 01124135601 POWER SUPPLY BOX 1 PCE
COFFRET ALIM POLES - IMPLANTATION
PERCAGE COFFRET MOBILE 600X400X210
0000 01131425301 OUTPUT OF POWER SUPPLY BOX 1 PCE
COFFRET ALIMENTATION DEPART
0010 01124742801 BOX 1 PCE
0020 01125931901 FRAME SP109 SATIE 1 PCE
CHASSIS ALU SP109 SATIE
0060 00000035428 PROTECTION TERMINAL 2C PAS5 2,5²280-907 1 PCE
BORNE DE PROTECTION 2C PAS5 2,5²280-907
0080 00000039656 END PLATE EP2,5 280309 WAGO 1 PCE
PLAQUE EXTREMITE EP2,5 280309 WAGO
0165 00000109703 CAP ISO M16 GREY 3 PCE

Description POLE SUPPLY CABINET

Désignation COFFRET ALIMENTATION POLE
0195 00000110647 CAP ISO M32 GREY 6 PCE

Description POLE BOX

Désignation COFFRET POLE 1
0000 01124135801 POLE BOX 1 PCE
COFFRET POLE 1 - IMPLANTATION
0000 01124135902 POLE BOX 1 PCE
COFFRET POLE 1 - DEPARTS/BORNIER
0010 01124742801 BOX 1 PCE
0145 00000109703 CAP ISO M16 GREY 1 PCE




0000 01124136001 POLE BOX 1 PCE
COFFRET POLE 3 - IMPLANTATION
0000 01124136102 POLE BOX 1 PCE
COFFRET POLE 2 - DEPARTS/BORNIER
0010 01124742801 BOX 1 PCE
0145 00000109703 CAP ISO M16 GREY 5 PCE


0205 00000110647 CAP ISO M32 GREY 2 PCE

Description AIR COOLING

Désignation BALAYAGE OU RECUPERATION AIR

Description AIR COOLING

Désignation BALAYAGE OU RECUPERATION AIR 20

Description CONTROLLED COMPENSATION

Désignation COMPENSATION PILOTEE

Description CONTROLLED COMPENSATION

Désignation COMPENSATION PILOTEE 20

Description WIRING
Désignation CABLAGE REPARTITEURS
0000 01131633701 WIRING 1 PCE
0010 00000109290 DISTRIBUTOR M12 16X BTY805PFBP05 WOOD @ 5 PCE
REPARTITEUR M12 16X BTY805PFBP05 WOOD @

Description WIRING
Désignation CABLAGE REPARTITEURS 20
0000 01131633801 WIRING 1 PCE
0010 00000109290 DISTRIBUTOR M12 16X BTY805PFBP05 WOOD @ 5 PCE
REPARTITEUR M12 16X BTY805PFBP05 WOOD @

Description MOBILE BOX POWER SUPPLY

Désignation ALIMENTATION COFFRET MOBILE
0000 01131424901 BOX POWER SUPPLY 1 PCE
ALIMENTATION COFFRET S7
0010 00000109011 SINGLE-POLE CIRCUIT BREAKER C60 UL 10A-C 5 PCE
DISJONCTEUR UNIPOLAIRE C60 UL 10A-C
0020 00000103866 CIRCUIT BREAKER AUX.CONTACT 1OF 26925 5 PCE
CONTACT AUX.DISJONCTEUR 1OF 26925
0030 00000109011 SINGLE-POLE CIRCUIT BREAKER C60 UL 10A-C 1 PCE
DISJONCTEUR UNIPOLAIRE C60 UL 10A-C
0040 00000109320 CIRCUIT BREAKER C60N BI D 1A(UL)24516MG 1 PCE
DISJONCTEUR C60N BI D 1A(UL) 24516 MG
0060 00000109012 CIRCUIT BREAKER C60N BI 2A-D UL 24517 SC 1 PCE
DISJONCTEUR C60N BI 2A-D UL 24517 SC
0080 00000035743 SECTION TERMINAL PAS 8 6 PCE
BORNE SECTIONNABLE PAS 8
0090 00000035435 TERMINAL SHUNT 2P GR 281-402 WAGO 5 PCE
SHUNT BORNES 2P GR 281-402 WAGO
0120 00000110440 FAN 230V-50/60 IP43 3322107 RIT@ 3 PCE
VENTILATEUR 230V-50/60 IP43 3322107 RIT@
0130 00000110059 OUTLET FILTER 3322.207 RITTAL 3 PCE
FILTRE SORTIE 3322.207 RITTAL
0140 00000108822 STAB.SUPPLY 400/24VCC 40A 6EP1437-3BA00 1 PCE
ALIM.STAB. 400/24VCC 40A 6EP1437-3BA00
0150 00000108823 SIGNALLING MODULE 6EP1961-3BA10 1 PCE
MODULE DE SIGNALISATION 6EP1961-3BA10
0160 00000109319 STAB.SUPPLY 230/24VCC 10A 6EP1 334-3BA00 1 PCE
ALIM.STAB. 230/24VCC 10A 6EP1 334-3BA00
0170 00000103500 BODY LAMP DEL400/6V BLANC 1 PCE
VOYANT CORPS DEL400/6V BLANC
0180 00000103507 LAMP DEL BA9S 6V 1,2W BLANC 1 PCE
LAMPE DEL BA9S 6V 1,2W BLANC
0190 00000103496 SIGNAL LAMP TETE BA9S BLANC 1 PCE
VOYANT TETE BA9S BLANC
0200 00000108817 TRANSFORMER 160VA 4AM3842-8JD40 SIEM 1 PCE
TRANSFORMATEUR 160VA 4AM3842-8JD40 SIEM

Description WIRING
Désignation CABLAGE JOINT TOURNANT
0000 01124080703 WIRING 1 PCE
0010 00000039569 SOCKET 3P 638603006 JAEGER 1 PCE
PRISE FEMELLE 3P 638603006 JAEGER
0020 00000034613 WIRE CLAMP 633421006 JAEGER 1 PCE
SERRE-CABLE 633421006 JAEGER
0030 00000039570 PLUG 3P 638703006 JAEGER 1 PCE
PRISE MALE 3P 638703006 JAEGER
0040 00000034613 WIRE CLAMP 633421006 JAEGER 1 PCE
SERRE-CABLE 633421006 JAEGER
0050 00000034612 SOCKET 7P 638607006 JAEGER 1 PCE
PRISE FEMELLE 7P 638607006 JAEGER
0060 00000036184 AMPLIFIER PG11 M-PG13 F 111300 CAPRI 1 PCE
AMPLIFICATEUR PG11 M-PG13 F 111300 CAPRI
0070 00000030629 WIRE CLAMP PG13 REF.DEL 19213 ETN 1 PCE
SERRE-CABLE PG13 REF.DEL 19213 ETN
0080 00000039571 PLUG 7P 638707006 JAEGER 1 PCE
PRISE MALE 7P 638707006 JAEGER
0090 00000036184 AMPLIFIER PG11 M-PG13 F 111300 CAPRI 1 PCE
AMPLIFICATEUR PG11 M-PG13 F 111300 CAPRI
0100 00000030629 WIRE CLAMP PG13 REF.DEL 19213 ETN 1 PCE
SERRE-CABLE PG13 REF.DEL 19213 ETN
0110 00000030297 CABLE H07RN-F 4G1,5MM2 500 CM
HARTING
0160 00000109426 CABLE GLAND PG13,5 CMA 061204 CAPRI 1 PCE
PRESSE ETOUPE PG13,5 CMA 061204 CAPRI
0170 00000109427 ADAPTER M20 M/PG13,5 F 752884 CAPRI 1 PCE
ADAPTATEUR M20 M/PG13,5 F 752884 CAPRI

Description CODER TO CARDS CONNECTION FM

Désignation LIAISON CODEUR-CARTE FM
0000 01124080902 CODER TO CARDS CONNECTION 1 PCE
0010 00000034520 PLUG SUBD MALE 15P 09670155604 HARTING 4 PCE
PRISE MALE SUBD 15P 09670155604 HARTING
0020 00000031121 COVER SUBD 15P 09670150443 HARTING 4 PCE
CAPOT SUBD 15P 09670150443 HARTING
0030 01126836901 INCREMENTAL CODER RI58T 1800 1 PCE
HENGSTLER@§
CODEUR INCREMENT. RI58T 1800 HENGSTLER@§
0040 00000135294 SOCKET CONNECTOR 12P 3539202 HENGSTLER 1 PCE
CONNECTEUR FEMELLE 12P 3539202 HENGSTLE

Description MOBILE REMOTE INPUT

Désignation ENTREE DECENTRALISEE MOBILE E40
ENTREE TOR ET200 ECO

Description MOBILE DECENTRALIZED OUTPUT

Désignation SORTIE DECENTRALISEE MOBILE A40
0000 01124134101 MOBILE DECENTRALIZED OUTPUT- A40 1 PCE
SORTIE DECENTRALISEE MOBILE - A40
0015 00000110646 CON. WIRE M12/B DIN 3M D850A0A58M030 WOO 5 PCE
CORDON M12/B DIN 3M D850A0A58M030 WOOD @


0000 01124134201 MOBILE DECENTRALIZED OUTPUT - A42 1 PCE
SORTIE DECENTRALISEE MOBILE - A42


0000 01124134301 MOBILE DIGITAL OUTPUT -A44 1 PCE
SORTIES DECENTRALISEES MOBILES - A44


0000 01124134501 MOBILE DECENTRALIZED OUTPUT A46 1 PCE


Désignation EQUIPEMENT AUTOMATE - AB52
0000 01124134801 MOBILE DECENTRALIZED OUTPUT A52 1 PCE
SORTIES DECENTRALISEES MOBILES - A52
0020 00000109062 CONNECTOR Y M12 6ES7-194-1KA01-0XA0 SIEM 1 PCE
CONNECTEUR Y M12 6ES71941KA010XA0 SIEM

Description ANALOG INPUT - EW1400>EW1414

Désignation ENTREE ANALOGIQUE - EW1400>EW1414
0000 01124134901 ANALOG INPUT - EW1400 1 PCE
ENTREE ANALOGIQUE - EW1400






0000 01124135201 ANALOG INPUT EW1448 1 PCE

Description ANALOG OUTPUT - AW1400>AW1406

Désignation SORTIE ANALOGIQUE - AW1400>AW1406
0000 01124135501 ANALOG OUTPUT 1 PCE
SORTIE ANALOGIQUE - AW1400
0010 00000030461 RATE VALVE NG6E1B20AZ 1/4IMF § 1 PCE
VANNE PROPORTIONNELLE NG6E1B20AZ 1/4IMF§

Description CARD
Désignation CARTE FM - A548
0010 00000031524 CARD FM352 6ES73521AH020AE0 SIEM @ 1 PCE
CARTE FM352 6ES73521AH020AE0 SIEM @

Description CARD FM - A580


Description CARD

Description PLC EQUIPMENT FOR MOBILE SECTION

Désignation EQUIPEMENT AUTOMATE - PARTIE MOBILE
0010 00000103301 COUPLER IM153-1 6ES71531AA030XB0 SIEM 2 PCE
COUPLEUR IM153-1 6ES71531AA030XB0 SIEM
0020 00000102313 CONNECTOR PROFIBUS 6ES7 972-0BA50-0XA0 2 PCE
CONNECTEUR PROFIBUS 6ES7 972-0BA50-0XA0
0030 00000030384 PROFILE SUPP.530MM 6ES73901AF300AA0 SIEM 2 PCE
PROFILE SUPP.530MM 6ES73901AF300AA0 SIEM
0060 00000031495 CONNECTOR 20PTS 6ES73921AJ000AA0 SIEM 4 PCE
CONNECTEUR 20PTS 6ES73921AJ000AA0 SIEM
0070 00000031489 INLET ANA 8 6ES73317KF020AB0 SIEM 3 PCE
ENTREE ANA 8 6ES73317KF020AB0 SIEM
0090 00000031490 OUTLET ANA 4 6ES73325HD010AB0 SIEM 1 PCE
SORTIE ANA 4 6ES73325HD010AB0 SIEM
0140 00000109004 UNIT M12-7/8" 6ES71943AA000BA0 SIEM 1 PCE
BLOC M12-7/8" 6ES71943AA000BA0 SIEM
0200 00000120391 PLUG M12 7/8" 6ES71943JA000AA0 2 PCE
BOUCHON M12 7/8" 6ES71943JA000AA0

Description PLC EQUIPMENT FOR MOBILE SECTION

Désignation EQUIPEMENT AUTOMATE PARTIE MOBILE SBO20
0010 00000031489 INLET ANA 8 6ES73317KF020AB0 SIEM 1 PCE
ENTREE ANA 8 6ES73317KF020AB0 SIEM
0070 00000120391 PLUG M12 7/8" 6ES71943JA000AA0 1 PCE
BOUCHON M12 7/8" 6ES71943JA000AA0

Description PROFIBUS WIRING

Désignation CABLAGE PROFIBUS DP CRITIQUE
0000 01131425901 WIRING PROFIBUS DP CRITIQUE 1 PCE
0010 00000109305 CABLE PROFIBUS DP 15M 6XV18303DN15 SIEM 1 PCE
CABLE PROFIBUS DP 15M 6XV18303DN15 SIEM
0020 00000102319 FLEXIBLE CABLE PROFIBUS 6XV1830-3EH10 § 1.100 CM
0030 00000109301 WIRE DP M12 1,5M 6XV18303DH15 SIEMENS 7 PCE
CABLE DP M12 1,5M 6XV18303DH15 SIEMENS
0040 00000109303 CABLE PROFIBUS DP 5M 6XV18303DH50 SIEM 1 PCE
CABLE PROFIBUS DP 5M 6XV18303DH50 SIEM
0050 00000109304 WIRE DP M12 10,0M 6XV18303DN10 SIEMENS 1 PCE
CABLE DP M12 10,0M 6XV18303DN10 SIEMENS
0060 00000110860 CABLE DE LIAISON 1,5M 6XV18225BH15 SIEM. 1 PCE
CABLE DE LIAISON 1,5M 6XV18225BH15 SIEM.
0070 00000109343 CABLE DE LIAISON 3M 6XV18225BH30 SIEM. 3 PCE
CABLE DE LIAISON 3M 6XV18225BH30 SIEM.
0080 00000110861 CONNECTING CABLE 5M 6XV18225BH50 SIEM. 2 PCE
CABLE DE LIAISON 5M 6XV18225BH50 SIEM.

Sous-ensemble 01126140903 Index S040
Description TERMINAL BLOCK SUPPORT

Désignation SUPPORT REPARTITEUR
SUPPORT REPARTITEUR
SUPPORT REPARTITEUR
0002 00000000687 SCREW ISO4017-M06X010-8.8 2 PCE
VIS H ISO4017-M06X010-8.8

Description TERMINAL BLOCK SUPPORT

Désignation SUPPORT REPARTITEUR
SUPPORT REPARTITEUR
SUPPORT REPARTITEUR
0002 00000000687 SCREW ISO4017-M06X010-8.8 2 PCE
VIS H ISO4017-M06X010-8.8

Description AIR HOSE GM

Désignation FLEXIBLE DISTRIBUTION AIR GM
0000 01125343001 AIR HOSE 1 PCE
FLEXIBLE DISTRIBUTION AIR
0001 01125814501 HOSE 1 PCE
FLEXIBLE 2040HCECF-18-18-10 -1440 @
0002 01125814601 HOSE 1 PCE
FLEXIBLE F2040HCACE-22-22-12_1360_@
0005 00000083491 SNAP-ON UNION D14 G1/2" 1 PCE
UNION ENCLIQUETABLE D14 G1/2"
0006 00000082982 PIPE RILSAN 11X14 NATUREL 128 CM

Description HOSE RECUPERATION AIR GM

Désignation FLEXIBLE RECUPERATION AIR GM
0000 01127561801 AIR RECOVERY HOSE 1 PCE
FLEXIBLE DE RECUPERATION AIR
FLEXIBLE F2040HCECF-18-18-10 1430 @

Description WATER DISTRIBUTING HOSES

Désignation FLEXIBLE DISTRIBUTION EAU
0000 01125437701 WATER DISTRIBUTING HOSE 1 PCE
FLEXIBLE PL837-08R 85 C315 VD14
FLEXIBLE PL837-08R 85 C315 VD14
FLEXIBLE PL837-08B 85 C315 VD14
FLEXIBLE PL837-08B 85 C315 VD14

Description OVEN CONNECTING PULLEY

Désignation POULIE LIAISON FOUR SBO20 PAS DE 50
0000 01124192802 OVEN CONNECTING PULLEY 1 PCE
POULIE LIAISON FOUR SBO20
0001 01124192902 PULLEY 1 PCE
POULIE 60-AT15 60 DENTS
0002 00000108845 BELT 50 AT15/3285 BFX SD 1 PCE
0003 00000011609 SCREW ISO4762-M08X065-10.9 6 PCE
VIS CHC ISO4762-M08X065-10.9

Description PREFORM TRANSFER CAM

Désignation CAME TRANSFERT PREFORMES SBO20 PAS50
0000 01126657701 PREFORM TRANSFER CAM 1 PCE
CAME TRANSFERT PREFORME
0001 01126657801 PREFORM TRANSFER CAM 1 PCE
CAME TRANSFERT PREF SBO20 PAS50
0003 00000011697 SCREW ISO4762-M16X050-10.9 3 PCE
VIS CHC ISO4762-M16X050-10.9

Description SYNCHRONIZATION DISC

Désignation DISQUE SYNCHRONISATION 20M
0000 01128586402 SYNC.DISC 1 PCE
DISQUE DE SYNCHRONISATION 20M
0001 01128546102 SYNCHRONIZATION SUPPORT 1 PCE
SUPPORT SYNCHRONISATION
0002 01074044702 SYNC.DISC 1 PCE
DISQUE DE SYNCHRONISATION
0003 01073237401 SPLIT RING 1 PCE
BAGUE FENDUE
0004 00000010037 SCREW ISO4017-M08X030-8.8 4 PCE
VIS H ISO4017-M08X030-8.8
0006 00000010029 SCREW ISO4014-M06X030-8.8 3 PCE
VIS H ISO4014-M06X030-8.8
0007 00000013004 NUT ISO4032-M06-10 3 PCE
0009 00000011546 SCREW ISO4762-M05X035-10.9 2 PCE
VIS CHC ISO4762-M05X035-10.9
0010 00000013003 NUT ISO4032-M05-10 2 PCE
0012 00000011506 SCREW ISO4762-M03X020-10.9 2 PCE
VIS CHC ISO4762-M03X020-10.9
0013 00000013550 NUT ISO4032-M03-10 2 PCE

Description BOTTLE TRANSFER CAM

Désignation CAME DE TRANSFERT BOUTEILLE SBO16 45PI
0000 01130635701 BOTTLE TRANSFER CAM 1 PCE
CAME DE TRANSFERT BOUTEILLE SBO16
0001 01130635601 BOTTLE TRANSFER CAM 1 PCE
0003 00000011697 SCREW ISO4762-M16X050-10.9 3 PCE
VIS CHC ISO4762-M16X050-10.9

Description ARM SUPPORT PLATE

Désignation PLATEAU SUPPORT BRAS SBO 20
0000 01131592901 ARM SUPPORT PLATE 1 PCE
0001 01131451801 ARM SUPPORT PLATE 1 PCE
PLATEAU SUPPORT BRAS USINE SBO 20
0002 01071439301 SYNCHRONISATION DISC 1 PCE
DISQUE DE SYNCHRONISATION
0003 00000011600 SCREW ISO4762-M08X020-10.9 1 PCE
VIS CHC ISO4762-M08X020-10.9
0005 00000011649 SCREW ISO4762-M12X050-10-9 3 PCE
VIS CHC ISO4762-M12X050-10-9
0008 00000013004 NUT ISO4032-M06-10 2 PCE
0009 00000012419 SCREW M06X040-45H-B.PL 2 PCE
VIS HC M06X040-45H-B.PL
0010 00000014050 WASHER ISO7089-12-200HV 3 PCE

Description CONSOLE
Désignation CONSOLE
0000 01127165209 CONSOLE 1 PCE
CONSOLE
0001 01126805706 CONSOLE 1 PCE
CONSOLE
0002 01069655701 BASE CONNECTING ROD 1 PCE
BIELLE DE FOND
0003 01126805204 PIN 1 PCE
AXE
0004 01124310502 SHAFT 1 PCE
ARBRE
0005 01124307702 SPACER 1 PCE
ENTRETOISE
0006 01124311502 EXTERNAL RING 1 PCE
BAGUE EXTERIEURE HAUTE
0007 01124311601 INTERNAL RING 1 PCE
BAGUE INTERIEURE HAUTE
0008 01124307602 RING 1 PCE
BAGUE INTERIEURE
0009 01124311401 RING 1 PCE
BAGUE EXTERIEURE
0010 01127476702 LOCK THRUST 1 PCE
BUTEE DE VERROU
0011 01127527101 PIN 1 PCE
AXE
0012 01069655901 SPACER 1 PCE
ENTRETOISE
0013 01069633002 WASHER 2 PCE
RONDELLE
0014 00000001880 DRAWN CUP NEEDLE BEARING HK 4520 4 PCE
DOUILLE A AIGUILLES HK 4520
0015 00000013051 NUT ISO4035-M24-05 1 PCE
0016 00000000439 BALL-BEARING ROLLER § 2 PCE
GALET A BILLESU §
0017 00000011136 WASHER HEAD SCREW 1021-M12X 40 2 PCE
VIS EPAULEE 1021-M12X 40
0018 01127650501 THRUST 1 PCE
BUTEE
0021 00000003162 GREASER DIN71412-A-M10X150 0° 2 PCE
GRAISSEUR DIN71412-A-M10X150 0°

Description CONSOLE
Désignation CONSOLE
0022 00000003210 GREASER DIN71412-C-M10X150 90° 2 PCE
GRAISSEUR DIN71412-C-M10X150 90°
0023 00000011142 WASHER HEAD SCREW 1021-M12X 20 1 PCE
VIS EPAULEE 1021-M12X 20
0024 00000011695 SCREW ISO4762-M16X040-10.9 3 PCE
VIS CHC ISO4762-M16X040-10.9
0026 00000014050 WASHER ISO7089-12-200HV 2 PCE
0027 00000013217 NUT DIN 985-M12-05 2 PCE
0028 00000103937 SCREW M08X012-45H-B.TC 1 PCE
VIS HC M08X012-45H-B.TC
0030 00000010175 SCREW ISO4017-M10X060-10.9 1 PCE
VIS H ISO4017-M10X060-10.9
0031 00000118770 SCREW ISO4027-M06X008-LAITON 1 PCE
VIS HC ISO4027-M06X008-LAITON
0032 00000014093 FLAT WASHER Z 24 U ZING/BIC 1 PCE
RONDELLE PLATE Z 24 U ZING/BIC
0033 00000012055 SCREW ISO4029-M10X035-45H 1 PCE
0034 01126948805 SLEEVE 1 PCE
FOURREAU
0035 01126949301 WASHER 1 PCE
RONDELLE
0037 00000012260 SCREW ISO4026-M10X030-45H 1 PCE
0040 00000022390 O-RING _45,00X 3,15 SH70 NIT 1 PCE

Description CYLINDRICAL MOLD SUPPORT UNIT (GUPM)

Désignation UNITE PORTE MOULE GUPM CYLINDRIQUE
0000 01124410407 CYLINDRICAL MOLD SUPPORT UNIT (GUPM) 1 PCE
0001 01071554103 RIGHT BRACKET 1 PCE
EQUERRE DROITE
0002 01071552301 BRACKET 1 PCE
EQUERRE GAUCHE #
0003 01062198300 PIN 2 PCE
AXE
0004 01060902100 CONNECTING ROD 4 PCE
BIELLE
0005 01124410101 CONNECTING ROD 1 PCE
BIELLE
0006 01060703400 PIN 1 PCE
AXE
0007 01060256900 WASHER 2 PCE
RONDELLE
0008 00000000111 RIGID BEARING 6204-2RS 8 PCE
ROULEMENT RIGIDE 6204-2RS
0011 00000011623 SCREW ISO4762-M10X035-10.9 2 PCE
VIS CHC ISO4762-M10X035-10.9
0012 01074257203 YOKE 1 PCE
NOIX
0013 01131943401 SHAFT 1 PCE
ARBRE
0014 01074290504 ANTI-TORQUE GUIDE 1 PCE
GUIDE ANTI COUPLE
CALE PELABLE
0016 01069215901 CLOSING THRUST 1 PCE
BUTEE DE FERMETURE
0017 01131943601 LOCKING PIN§ 1 PCE
DOIGT DE VERROUILLAGE§
0018 01071552801 STROKE PIN 3 PCE
TIGE DE LIAISON
0019 01131943501 LOCKING PIN§ 2 PCE
DOIGT DE VERROUILLAGE§
0020 01071552702 RING 7 PCE
BAGUE 25X30X10


0023 01073307402 SHEATH 1 PCE
FOURREAU
0024 01073335005 LATCH 1 PCE
VERROU DE MAINTIEN
0025 01069215803 LOCK THRUST 1 PCE
BUTEE DE VERROU
0026 00000116500 BALL-BEARING ROLLER SURM.F551 694-02 POM 1 PCE
GALET A BILLES SURM.F551 694-02 POM
0027 00000013992 CASTLE LOCK NUT CN-M012X100 Z/B 1 PCE
ECROU ENCOCHES FREINE CN-M012X100 Z/B
0028 00000011813 SCREW ISO4762-M10X025-12.9 2 PCE
VIS CHC ISO4762-M10X025-12.9
0029 01071554202 RING 7 PCE
BAGUE 25X30X20
0030 00000011291 SCREW ISO10642-M06X012-10-9 2 PCE
VIS FHC ISO10642-M06X012-10-9
0031 00000011585 SCREW ISO4762-M06X020-12.9 3 PCE
VIS CHC ISO4762-M06X020-12.9
0032 01073335101 SPRING 1 PCE
RESSORT
0033 00000012527 SCREW ISO10642-M05X010-10-9 Flat head 2 PCE
VIS FHC ISO10642-M05X010-10-9
0034 01069215704 SHOCK ABSORBER THRUST 1 PCE
BUTEE AMORTISSEUR
0035 00000117735 DAMPER § 1 PCE
AMORTISSEUR §
0036 00000052416 NUT JN M27X3,0 1 PCE
ECROU H JN M27X3,0
0037 00000001722 DRAWN CUP NEEDLE BEARING HK 4020 2RS 1 PCE
DOUILLE A AIGUILLES HK 4020 2RS
0038 00000001708 DRAWN CUP NEEDLE BEARING 11 PCE
DOUILLE A AIGUILLES
0039 00000001723 DRAWN CUP NEEDLE BEARING 2 PCE
DOUILLE A AIGUILLES
0040 00000001050 NEEDLE THRUST AXW 40 2 PCE
BUTEE A AIGUILLES AXW 40
0041 00000001328 THRUST WASHER AS 4060 2 PCE
RONDELLE BUTEE AS 4060
CALE PELABLE
0043 01069215501 REAR SHIM 1 PCE
CALE ARRIERE


0044 01069215402 SLIDE 1 PCE
GLISSIERE ARRIERE
0045 00000011017 SCREW ISO1207-M04X010-4.8 4 PCE
VIS CS ISO1207-M04X010-4.8
0046 01069215602 FRONT SHIM 1 PCE
CALE AVANT
0047 01069215303 FRONT SLIDE 1 PCE
GLISSIERE AVANT
0054 01122104201 COMPENSATION SEAL@§ 1 PCE
JOINT DE COMPENSATION@§
0060 00000011605 SCREW ISO4762-M08X045-10.9 2 PCE
VIS CHC ISO4762-M08X045-10.9
0063 01074593801 BOX 8 PCE
BOITIER DE TAMPON
0064 01073432604 COMPENSATION STUD-BOLT 4 PCE
GOUJON DE COMPENSATION
0067 00000013009 NUT ISO4032-M12-10 4 PCE
0068 01071552202 SCREW 4 PCE
VIS
0069 00000002248 SPRING U167-95 SHORES POLYURETHANE @ 4 PCE
RESSORT U167-95 SHORES POLYURETHANE @
0070 00000013408 NUT DIN 985-M10-05 4 PCE
0071 01124410002 SMALL PLATE 1 PCE
PLAQUETTE
0072 00000014044 WASHER ISO7089-05-200HV 2 PCE
0073 00000010142 SCREW ISO4017-M10X030-8.8 1 PCE
VIS H ISO4017-M10X030-8.8
0075 01074290601 LOCKING THRUST 1 PCE
BUTEE DE VERROUILLAGE
0076 01073644701 WASHER 1 PCE
RONDELLE
0077 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9


0080 01073332601 LOWER GUIDE RING 1 PCE
BAGUE DE GUIDAGE INFERIEURE
0081 01073332502 UPPER GUIDE RING 1 PCE
BAGUE DE GUIDAGE SUPERIEURE
0082 01073332701 SPRING 1 PCE
RESSORT
0083 01127190901 SPACER 1 PCE
ENTRETOISE
0084 01073311702 LOCK BOX 1 PCE
BOITIER DE VERROU
0085 01074124006 CYLINDRICAL GUPM CASING § 1 PCE
CARTER GUPM CYLINDRIQUE §
0086 00000014109 WASHER ISO7093-1-10-200HV 4 PCE
0089 00000000354 BALL-BEARING ROLLER LR 201 NPPU 1 PCE
GALET A BILLES LR 201 NPPU
0091 01127190501 WASHER 1 PCE
RONDELLE
RONDELLE D'APPUI Ø 28

Description HALF-MOLD SUPPORT §

Désignation SUPPORTS COQUILLES EQUIPES §
0000 01125843404 SHELL SUPPORT ASSEMBLY 1 PCE
SUPPORT COQUILLE EQUIPE
0001 01071553608 LEFT HALF-MOLD SUPPORT§ 1 PCE
SUPPORT COQUILLE GAUCHE §
0002 01071553508 HALF-MOLD SUPPORT§ 1 PCE
SUPPORT COQUILLE§
0003 01071553403 WASHER FOR MOLD BASE QC INTERFACE 2 PCE
RONDELLE SELLETTE
0004 01114702303 THRUST 2 PCE
BUTEE
0005 01122484804 RETAINING BAR 2 PCE
BARRETTE DE MAINTIEN
0006 01069743002 WASHER 4 PCE
PASTILLE
0007 00000020154 O-RING _48,00X 2,00 SH70 NIT 2 PCE
0008 00000020077 O-RING _11,00X 2,00 SH70 NIT 4 PCE
0009 00000020175 O-RING _44,00X 2,00 SH70 NIT 4 PCE
0010 01122478204 RETAINING BAR 2 PCE
BARRETTE DE MAINTIEN
0011 00000011625 SCREW CHC-M10X045/045-10.9 8 PCE
VIS CHC-M10X045/045-10.9
0014 00000011585 SCREW ISO4762-M06X020-12.9 8 PCE
VIS CHC ISO4762-M06X020-12.9

Description STRETCH UNIT

Désignation ELONGATION
0000 01129189206 STRETCHING 1 PCE
ELONGATION
0001 01128921004 STRETCHING SUPPORT 1 PCE
SUPPORT ELONGATION USINE
0002 01129102103 SLIDE 1 PCE
COULISSEAU USINE
0003 01131429002 THRUST SUPPORT 1 PCE
SUPPORT BUTEE USINE
0004 01129123001 DAMPER THRUST 1 PCE
BUTEE AMORTISSEUR
0005 01129122901 NUT 1 PCE
ECROU
0007 01124303305 TRETCHING SUPPORT COVER 1 PCE
COUVERCLE SUPPORT ELONG
0008 01128657301 BOX 1 PCE
BOITIER
0009 01128631001 THRUST SHIM 1 PCE
CALE BUTEE SUPERIEURE
0010 01124294903 THRUST SHIM§ 1 PCE
CALE BUTEE§
0011 01124468002 ROLLER PIN 1 PCE
AXE GALET
0013 01125325901 BALL-MOUNTED GUIDE 1 PCE
GUIDE A BILLES
0014 00000011607 SCREW ISO4762-M08X055-10.9 1 PCE
VIS CHC ISO4762-M08X055-10.9
0015 01129149801 STRETCH CYLINDER U STD 1 PCE
VERIN ELONGATION U STD
0016 00000000310 BALL-BEARING ROLLER LR5204 1 PCE
GALET A BILLES LR5204
0017 00000106825 DAMPER SP21899§ 1 PCE
AMORTISSEUR SP21899§
0018 00000119116 POSITIONING PIN 1 PCE
DOIGT D'INDEXAGE
0019 00000109250 SUPPORT WASHER S-020X028X2.0 1 PCE
RONDELLE D'APPUI S-020X028X2.0
0020 00000013004 NUT ISO4032-M06-10 2 PCE

Description STRETCH UNIT

Désignation ELONGATION
0028 00000011568 SCREW ISO4762-M06X050-10.9 4 PCE
VIS CHC ISO4762-M06X050-10.9
0029 00000011585 SCREW ISO4762-M06X020-12.9 2 PCE
VIS CHC ISO4762-M06X020-12.9
0030 00000011600 SCREW ISO4762-M08X020-10.9 8 PCE
VIS CHC ISO4762-M08X020-10.9
0031 00000011602 SCREW ISO4762-M08X030-12.9 9 PCE
VIS CHC ISO4762-M08X030-12.9
0032 00000011622 SCREW ISO4762-M10X030-10.9 4 PCE
VIS CHC ISO4762-M10X030-10.9
0033 00000012588 SCREW ISO4026-M06X020-A2-21H 2 PCE
VIS HC ISO4026-M06X020-A2-21H
0034 00000012472 SCREW ISO4017-M16X030-8.8 2 PCE
VIS H ISO4017-M16X030-8.8
0035 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9
0038 00000014363 FLAT WASHER D.10 10,5X30X3 ZIN/BIC 1 PCE
RONDELLE PLATE D.10 10,5X30X3 ZIN/BIC
0039 00000014309 WASHER ISO7093-1-08-200HV 6 PCE
0040 00000011605 SCREW ISO4762-M08X045-10.9 6 PCE
VIS CHC ISO4762-M08X045-10.9
0042 01129123101 SHACKLE 1 PCE
MANILLE
0043 01129123201 INSERT 3 PCE
INSERT ACIER MANILLE
0044 00000011570 SCREW ISO4762-M06X060-10.9 1 PCE
VIS CHC ISO4762-M06X060-10.9

Description BALL-MOUNTED GUIDE

Désignation GUIDE A BILLES
0001 00000128045 FIXING 161973950@ 1 PCE
FIXATION 161973950@

Description STRETCH CYLINDER U STD

Désignation VERIN ELONGATION U STD
0002 00000119590 DISTRIBUTOR 1 PCE
DISTRIBUTEUR
0006 00000126465 BACKFLOW VALVE 0821 003 028 1/8 VE U 1 PCE
CLAPET ANTI-RETOUR 0821 003 028
0008 00000104295 EXHAUST MUFFLER.1 827 430 808 VE US2 2 PCE
SILENCIEUX ECHAP.1 827 430 808
0009 00000132708 ACTING CYLINDER R 424 B06 873§ 1 PCE
VERIN NU R 424 B06 873§
0010 00000105605 BRASS TUBE 8X14 1.820.420.808 1 PCE
TUBE LAITON 8X14 1.820.420.808
0011 99000082341 FRONT EQUIPPED BASE 7472B01846 1 PCE
FOND AV EQUIPE REF : 7472B01846 @

Description KIT BAGUE SECURITE TUYERE 2T D50

Désignation KIT BAGUE SECURITE TUYERE 2T D50
0000 01131437501 NOZZLE SAFETY RING KIT 1 PCE
0001 01131433301 SAFETY RING 1 PCE
BAGUE DE SECURITE
0002 01129008501 SPACER 1 PCE
ENTRETOISE BAGUE SECURITE

Description NOZZLE CYLINDER §

Désignation VERIN TUYERE 2T D50 §
0000 01131443201 NOZZLE CYLINDER 1 PCE
VERIN TUYERE 2T D50
0001 01127229902 BODY 2T D50 C40 1 PCE
CORPS 2T D50 C40
0002 01125037601 PISTON 1 PCE
PISTON 2T D50 C45
0003 01125104101 CYLINDER 1 PCE
CYLINDRE 2T D50 C45
0004 01125034101 THRUST 1 PCE
BUTEE SUPERIEURE
0005 01124229103 DIFFUSER 1 PCE
DIFFUSEUR
0006 00000113193 SEGMENT PEHD 66,0 x 9,7 x 2,5 1 PCE
SEGMENT PEHD 66,0 x 9,7 x 2,5
0007 00000113194 SEGMENT PEHD 50,0 x 9,7 x 2,5 x 161,5 2 PCE
SEGMENT PEHD 50,0 x 9,7 x 2,5 x 161,5
0008 00000112469 PISTON SEAL 80X72,5X2,9 1 PCE
JOINT DE PISTON 80X72,5X2,9
0009 00000115606 SCRAPER SEAL 1 PCE
JOINT RACLEUR
0010 00000113196 ROD SEAL 159050HGK6 50X57,5X3X3,2 2 PCE
JOINT DE TIGE 159050HGK6 50X57,5X3X3,2
0011 00000113197 ROD SEAL 159066HGK6 66X73,5X3X3,2 1 PCE
JOINT DE TIGE 159066HGK6 66X73,5X3X3,2
0012 00000015025 ELASTIC RING INTERIEUR _35X1,50 $ 1 PCE
ANNEAU ELASTIQUE INTERIEUR _35X1,50 §
0013 00000013255 NUT ISO2982-2-KM 13-M65X2 1 PCE
ECROU ISO2982-2-KM 13-M65X2
0014 00000011562 SCREW ISO4762-M06X020-10.9 4 PCE
VIS CHC ISO4762-M06X020-10.9
0015 00000012777 SCREW M08X070-10.9 4 PCE
0016 01125901601 L-SEAL 1 PCE
JOINT L
0017 01124324401 FLAG 1 PCE
DRAPEAU PAS MACHINE
0019 01128286401 WASHER 4 PCE
RONDELLE
0020 01131569601 SPACER 1 PCE
ENTRETOISE

Description NOZZLE CYLINDER §

Désignation VERIN TUYERE 2T D50 §
0021 00000112466 O-RING _72,62X 3,53 SH70 NIT 1 PCE
0023 00000011385 SCREW M08X030-12.9 4 PCE

Description END-PIECE 2T D50

Désignation EMBOUT CLOCHE 2T D50
0000 01131437902 BELL END-PIECE 1 PCE
0001 99000038122 PERSO PART§ 1 PCE
PIECE PERSO. JOINT DE TUYERE§
0002 01091690001 CUSTOM PART 1 PCE
PIECE PERSO.(EMBOUT BUVANT)
0003 99000416645 PREFORM 1 PCE
PREFORME
0004 01091518000 CUSTOM PART 1 PCE
PIECE PERSO.(RONDELLE)
0006 01131438302 BELL END-PIECE 1 PCE
0007 01073885102 NOZZLE RING 1 PCE
BAGUE DE TUYERE
0008 01131563901 SPRING THRUST 1 PCE
BUTEE RESSORT
0009 01129991201 COMPRESSION SPRING 1 PCE
RESSORT DE COMPRESSION
0010 00000022273 O-RING _62,00X 4,00 SH70 NIT 1 PCE

Description DISTRIBUTION - CYL GUPM SHELL SUPPORT

Désignation DISTRIBUTION SUPPORT COQUILLE GUPM CYL
0000 01125310602 SHELL SUPPT DISTRIBUTION 1 PCE
0001 01126957901 HOSE PL830M-06-R/SID 107-C510-UB14 1 PCE
FLEXIBLE PL830M-06-R/SID 107-C510-UB14
0003 01126958301 HOSE PL830M-06-B/SID 85-C510-UB14 1 PCE
FLEXIBLE PL830M-06-B/SID 85-C510-UB14

Description DISTRIBUTION - CYLIND & SQUARE GUPM BASE

Désignation DISTRIBUTION FOND GUPM CYLIND ET CARRE
0000 01125340702 DISTRIBUTION BASE 1 PCE
DISTRIBUTION FOND
0001 01002384301 COUPLING ELBOW 90° NS251-2SDL 2 PCE
RACCORD COUDE 90° NS251-2SDL

Description BLOW PREBLOW WITH AIR RECYCLING

Désignation SOUFFLAGE PRESOUFFL.RECUPERATION AIR
0000 01135255201 BLOW PREBLOW WITH AIR RECYCLING 1 PCE
0001 01135255101 BLOCK 1 PCE
BLOC DE SOUFFLAGE AVEC RECUP
0002 01005218001 SILENCER EP4-44 M12 1 1/4" NPT+GRILL§ 1 PCE
SILENCIEUX EP 4-44 M12 1-1/4"+GRILL§
0004 00000108061 SWIVELLING ELBOW WEE22ZLRA3C 1 PCE
COUDE ORIENTABLE WEE22ZLRA3C

Sous-ensemble 01135255201 Index
Description BLOW PREBLOW WITH AIR RECYCLING
Désignation SOUFFLAGE PRESOUFFL.RECUPERATION AIR
0005 01124452203 BLOW UNIT§ 1 PCE
BLOC DE SOUFFLAGE§
0006 01005218001 SILENCER EP4-44 M12 1 1/4" NPT+GRILL§ 1 PCE
SILENCIEUX EP 4-44 M12 1-1/4"+GRILL§
0007 01127333501 RECOVERY VALVE§ 1 PCE
VANNE DE RECUPERATION§

Description BLOW UNIT§

Désignation BLOC DE SOUFFLAGE§
0010 00000115981 BASE 155.036.01 1 PCE
EMBASE 155.036.01
0020 00000115982 SOLENOID VALVE 154.003.00NEV§ 2 PCE
ELECTROVANNE 154.003.00NEV§
0030 00000134842 FLOW LIMITER 800.423.00@ 1 PCE
LIMITEUR DE DEBIT 800.423.00@
0060 99000425381 COMMAND PIPE KIT REF. 250.230.00 1 PCE
KIT CONDUITE PILOTAGE REF. 250.230.00 @
0070 01126933301 ROD KIT DIAM 14 1 PCE
KIT TIGE DIAM 14
0082 00000134477 O-RING 109.126.21 1 PCE
JOINT TORIQUE 109.126.21
0083 00000230421 BASE SILENCIEUX 155.712.01 1 PCE
EMBASE SILENCIEUX 155.712.01

Description ROD KIT DIAM 14

Désignation KIT TIGE DIAM 14
0000 01126923901 ROD KIT 1 PCE
KIT TIGE
0001 01124352301 GUIDING RING 1 PCE
BAGUE DE GUIDAGE
0002 01124350501 ROD BUSH§ 1 PCE
CANON TIGE§
0003 01126926801 TOOL FOR WIPER SEAL 1 PCE
OUTILLAGE JOINT RACLEUR
0004 00000114674 SCRAPER SEAL _14X22X4 1 PCE
JOINT RACLEUR _14X22X4
0005 00000114673 ROD ADAPTER 14X18,9X2 1 PCE
JOINT DE TIGE 14X18,9X2
0006 00000020815 O-RING _23,47X 2,62 SH70 NIT 1 PCE

Description BLOCK
Désignation BLOC DE SOUFFLAGE AVEC RECUP
0010 00000115981 BASE 155.036.01 1 PCE
EMBASE 155.036.01
0015 99000440247 PREBLOW VALVE (RETROFIT)§ 1 PCE
VANNE PRESOUFFLAGE RETROFITEE§
0025 99000440248 EXHAUST VALVE (RETROFIT)§ 1 PCE
VANNE DEGAZAGE RETROFITEE§
0030 00000134842 FLOW LIMITER 800.423.00@ 1 PCE
LIMITEUR DE DEBIT 800.423.00@
0070 01126933301 ROD KIT DIAM 14 1 PCE
KIT TIGE DIAM 14
0082 00000134477 O-RING 109.126.21 1 PCE
JOINT TORIQUE 109.126.21

Description PREBLOW VALVE (RETROFIT)§

Désignation VANNE PRESOUFFLAGE RETROFITEE§
0001 00000134975 PISTON KIT 186.453.0001@§ 1 PCE
KIT PISTON 186.453.0001@§
0002 00000138235 PISTON PEEK 154.056.01§ 1 PCE
PISTON PEEK 154.056.01§
0003 00000141754 PISTON VALVE REPLACEMENT KIT 154.003.02§ 1 PCE
PILOTE154.003.02§

Description EXHAUST VALVE (RETROFIT)§

Désignation VANNE DEGAZAGE RETROFITEE§
0001 00000134975 PISTON KIT 186.453.0001@§ 1 PCE
KIT PISTON 186.453.0001@§
0002 00000138235 PISTON PEEK 154.056.01§ 1 PCE
PISTON PEEK 154.056.01§
0003 00000141758 DRIVER 155.865.02§ 1 PCE
PILOTE 155.865.02§

Description ROD KIT DIAM 14

Désignation KIT TIGE DIAM 14
0000 01126923901 ROD KIT 1 PCE
KIT TIGE
0001 01124352301 GUIDING RING 1 PCE
BAGUE DE GUIDAGE
0002 01124350501 ROD BUSH§ 1 PCE
CANON TIGE§
0004 00000114674 SCRAPER SEAL _14X22X4 1 PCE
JOINT RACLEUR _14X22X4
0005 00000114673 ROD ADAPTER 14X18,9X2 1 PCE
JOINT DE TIGE 14X18,9X2
0006 00000020815 O-RING _23,47X 2,62 SH70 NIT 1 PCE

Description CYLINDER AIR

Désignation AIR VERIN 2T COURSE 40
0000 01127244002 CYLINDER AIR SYSTEM 1 PCE
CIRCUIT AIR VERIN 2T COURSE 40
0001 01127244201 DISTRIBUTOR 2T C40 1 PCE
DISTRIBUTEUR 2T C40

Description DISTRIBUTOR 2T C40

Désignation DISTRIBUTEUR 2T C40
0001 00000112596 DISTRIBUTOR 5/2 24VDC 10.10390 3 1 PCE
DISTRIBUTEUR 5/2 24VDC 10.10390 3
0002 00000117110 BASE AVEC VISSERIE ET JOINT 20.10634 1 PCE
EMBASE AVEC VISSERIE ET JOINT 20.10634
0003 00000112599 ELBOWED UNION G1/4-8 N108-008-0001 1 PCE
RACCORD COUDE G1/4-8 N108-008-0001
0004 00000053070 SILENCER M2MB BSPT 1/4" 2 PCE
SILENCIEUX M2MB BSPT 1/4"
0005 00000112601 WASHER LIMITEUR D.4 G1/4 28.10450 4 1 PCE
RONDELLE LIMITEUR D.4 G1/4 28.10450 4

Description MOLD BASE

Désignation FOND DE MOULE
0000 01126735406 MOLD BASE 1 PCE
FOND DE MOULE
0001 01124042903 MOLD BASE SUPPORT 1 PCE
SUPPORT FOND MOULE
CALE PELABLE
0003 01126736303 SPRING GUIDE 2 PCE
GUIDE RESSORT
0004 01135322101 COMPRESSION SPRING 2 PCE
RESSORT DE COMPRESSION
0005 01126736502 SPRING SUPPORT 2 PCE
SUPPORT RESSORT
0006 01126737102 SPRING SUPPORT 2 PCE
SUPPORT RESSORT BAS
0007 01124041902 FUSE PIN 1 PCE
AXE FUSIBLE
0009 01127838401 RING 1 PCE
BAGUE
0010 00000000336 BALL-BEARING ROLLER LR5202-2RS 1 PCE
GALET A BILLES LR5202-2RS
GUIDE A BILLES
0012 00000013139 NUT H-M12XP1,00 -8 1 PCE
ECROU H-M12XP1,00 -8
0013 00000112405 SCREW M12X060-P1,00-45H-B.TL 1 PCE
VIS HC M12X060-P1,00-45H-B.TL
0014 00000013047 NUT ISO4035-M16-04 2 PCE
0015 00000014090 WASHER ISO7092-16-200HV 2 PCE
0016 00000124532 SCREW M06X030-10.9 3 PCE
0018 00000011564 SCREW ISO4762-M06X030-10.9 3 PCE
VIS CHC ISO4762-M06X030-10.9
0019 00000011562 SCREW ISO4762-M06X020-10.9 4 PCE
VIS CHC ISO4762-M06X020-10.9
0020 00000010063 SCREW ISO4017-M12X020-8.8 1 PCE
VIS H ISO4017-M12X020-8.8

Description MOLD BASE

Désignation FOND DE MOULE
0022 00000010034 SCREW ISO4017-M08X016-8.8 1 PCE
VIS H ISO4017-M08X016-8.8
0023 00000014046 WASHER ISO7089-08-200HV 1 PCE
0024 00000012171 SCREW ISO4026-M06X016-45H 2 PCE
0025 00000013040 NUT ISO4035-M06-05 2 PCE

Description PNEUMATIC SUPPORT PLATE§

Désignation SELLETTE PNEUMATIQUE§
0000 01124451003 PNEUMATIC CARRIAGE 1 PCE
SELLETTE PNEUMATIQUE
0001 01124451102 CARRIAGE 1 PCE
SELLETTE
0002 01124464203 CARRIAGE COVER 1 PCE
COUVERCLE SELLETTE
0003 01116429804 PISTON 1 PCE
PISTON §
0004 01124459003 BODY 1 PCE
CORPS
0005 01114876301 CENTERING DEVICE 1 PCE
CIMBLOT
0006 01115006701 BALL 6 PCE
BILLE
0007 00000001758 SPRING C 075.110.0320 I 8 PCE
RESSORT C 075.110.0320 I
0009 00000012003 SCREW ISO4029-M04X005-45H 1 PCE
0011 00000011561 SCREW ISO4762-M06X016-10.9 4 PCE
VIS CHC ISO4762-M06X016-10.9
0012 00000020762 O-RING _30,00X 2,00 SH70 VIT 2 PCE
0013 00000020617 O-RING _57,00X 2,00 SH70 VIT 1 PCE
0014 00000087007 MALE END 23SFAK10SXNS 1 PCE
EMBOUT MALE 23SFAK10SXNS
0015 00000012533 SCREW ISO10642-M05X008-10-9 2 PCE
VIS FHC ISO10642-M05X008-10-9

Description ARM
Désignation BRAS TRANSFERT STANDARD GM
0001 01130259204 ARM SUPPORT USINE GM 1 PCE
SUPPORT BRAS USINE GM
0002 01131329102 PIVOT PIN 1 PCE
AXE PIVOT
0003 01131328001 PIN SUPPORT 1 PCE
SUPPORT AXE
0004 01131326002 ROLLER CASING 1 PCE
BOITIER ROULEMENT
0005 01131323302 COVER 1 PCE
COUVERCLE
0006 01129125503 SPEED ROLLER PIN 1 PCE
AXE GALET VITESSE
0008 01130347101 THRUST WASHER 1 PCE
RONDELLE BUTEE
0009 01136338801 DRAW-SPRING§ 2 PCE
RESSORT DE TRACTION GM§
0010 01125203101 SPACER 1 PCE
ENTRETOISE
GUIDE A BILLES STD GM
0013 00000011806 SCREW ISO4762-M05X016-12.9 4 PCE
VIS CHC ISO4762-M05X016-12.9
VIS FHC ISO10642-M05X010-10-9
0018 00000011117 SCREW ISO4762-M05X020-12.9 2 PCE
0020 00000010020 SCREW ISO4017-M06X016-8.8 6 PCE
VIS H ISO4017-M06X016-8.8

Description ARM
Désignation BRAS TRANSFERT STANDARD GM
0023 00000013111 NUT M16X1,00-04 1 PCE
ECROU HM M16X1,00-04
0024 00000011601 SCREW ISO4762-M08X025-10.9 3 PCE
VIS CHC ISO4762-M08X025-10.9
0026 00000011560 SCREW ISO4762-M06X010-10.9 3 PCE
VIS CHC ISO4762-M06X010-10.9
0027 00000108854 ADJUSTMENT WASHER DIN988-012X018X0,5 10 PCE
RONDELLE D'AJUSTAGE DIN988-012X018X0,5
0028 01125232901 SYNTHETIC ROLLER § 2 PCE
GALET SYNTHETIQUE §
0030 00000013217 NUT DIN 985-M12-05 1 PCE
0031 00000013009 NUT ISO4032-M12-10 1 PCE
0032 01138671801 SPRING SPACER 2 PCE
ENTRETOISE RESSORT
0033 01141110601 WASHER 4 PCE
RONDELLE
0034 01142527201 SPACER 1 PCE
ENTRETOISE

Description ARM HEAD STANDARD BI-AXE

Désignation TETE DE BRAS STANDARD BI-AXE
0001 01132220905 GRIP SUPPORT 1 PCE
SUPPORT PINCE BI-AXE USINE
0002 01132298904 GRIP SUPPORT § 1 PCE
SUPPORT PINCE DROIT §
0003 01132304204 GRIP SUPPORT § 1 PCE
SUPPORT PINCE GAUCHE §
0004 00000011041 WASHER HEAD SCREW NFE27191-M06-D08X016 2 PCE
VIS EPAULEE NFE27191-M06-D08X016
0005 01130488904 ROLLER PIN § 1 PCE
AXE GALET POSITION §
0006 01138671801 SPRING SPACER 2 PCE
ENTRETOISE RESSORT
0007 01131369801 WASHER 2 PCE
RONDELLE
0008 01131935602 SPRING 1 PCE
RESSORT DE COMPRESSION STD
0009 01098001600 CUSTOM PART 1 PCE
PIECE PERSO.(PINCE BOUTEILLES) §
0010 01098089300 CUSTOM PART 1 PCE
PIECE PERSO.(PINCE PREFORMES)
0011 00000126999 BALL-BEARING 2 PCE
ROULEMENT A BILLES
0015 00000103458 SCREW M05X012-10.9 2 PCE
0016 01091517800 PERSO PART-SCREW 2 PCE
PERSO.VIS
0017 01091518000 CUSTOM PART 2 PCE
PIECE PERSO.(RONDELLE)

Description LOGO FACADE SUP HMA SBO20

Désignation LOGO FACADE SUP HMA SBO20
0000 01128125603 LOGO 1 PCE
LOGO
0001 01132657501 LOGO 1 PCE
LOGO SBO UNIVERSAL
0002 01124089201 ADHESIVE SIDEL LOGO 1 PCE
ADHESIF SIDEL
0003 01132658401 LOGO 1 PCE
LOGO SBO20

Description COMPENSATION WITH SOLENOID VALVE

Désignation COMPENSATION AVEC ELECTROVANNE
0000 01132019704 COMPENSATION WITH SOLENOID VALVE§ 1 PCE
COMPENSATION AVEC ELECTROVANNE§
0001 01123429701 COMPENSATION ELECTROV.800.340.00§ 1 PCE
ELECTROV. COMPENSATION 800.340.00§
0002 01132030701 HOSE 2040HCFCF-10-10-05-430 MIC 1 PCE
FLEXIBLE 2040HCFCF-10-10-05-430 MIC
0003 01126430201 HOSE F2040HCACA_10_10_05_730_MI_0_0 1 PCE
FLEXIBLE F2040HCACA_10_10_05_730_MI_0_0
0004 01132015103 VALVE SUPPORT 1 PCE
SUPPORT VANNE INVERSÉE
0005 01074194201 SHIM 1 PCE
CALE
0006 01071808102 HOLE SCREW 1 PCE
VIS ORIFICE DIAM.3
0007 01071808001 UNION 1 PCE
UNION MALE PORTE ORIFICE
0009 00000011570 SCREW ISO4762-M06X060-10.9 2 PCE
VIS CHC ISO4762-M06X060-10.9
0010 00000011566 SCREW ISO4762-M06X040-10.9 2 PCE
VIS CHC ISO4762-M06X040-10.9
0011 00000053070 SILENCER M2MB BSPT 1/4" 2 PCE
SILENCIEUX M2MB BSPT 1/4"
0012 00000114844 UNION 24°-SDAE-L10-G1/4 3 PCE
RACCORD 24°-SDAE-L10-G1/4

Description DISTRIBUTION BLOCK

Désignation BLOC DE DISTRIBUTION D'EAU
0000 01125066404 WATER DISTRIBUTION BLOCK 1 PCE
0001 01133873802 DISTRIBUTION BLOCK 2 PCE
0003 00000011931 SCREW CHC-M06X045/045-10.9 4 PCE
VIS CHC-M06X045/045-10.9
0004 00000014045 WASHER ISO7089-06-200HV 4 PCE

Sous-ensemble FRGM12158 Index 20
Description OVEN SBO20/24 12158

Désignation FOUR SBO20/24 12158
C601 01124225517 MODULE 1 PCE
MODULE AVANT
C601 01124325201 TIGHTENER DIA 90 H 56 MODULE AVANT 1 PCE
C601 01133777601 EJECTION CHUTE 1 PCE
GOULOTTE EJECTION
C602 01124258610 REAR MODULE 1 PCE
MODULE ARRIERE
C603 01129249401 OVEN SAFETY 1 PCE
SECURITE FOUR
C605 01124585102 TOOL 1 PCE
C607 01131431901 DETECTION 1 PCE
C620 01124638502 SPINDLE ROTATION CHAIN 1 PCE
CHAINE ROTATION TOURNETTE
C630 01133499302 OVEN TRANSMISSION SHAFT 1 PCE
ARBRE TRANSMISSION FOUR
C650 01126503504 TIGHTENER WHEEL 1 PCE
C660 01127220307 OVEN WHEEL 1 PCE
ROUE FOUR PAS DE 50
C665 01133987301 CENTRALIZED GREASING 1 PCE
C690 01131207705 PUMP FRAME 1 PCE
C691 01128098405 DUST REMOVAL WHEEL 1 PCE
C692 01127438706 DUST REMOVAL MODULE 1 PCE
C693 01127436805 TRANSFER WHEEL 1 PCE
ROUE DE TRANSFERT
C694 01128080303 SUCTION HOOD P50 1 PCE
HOTTE D ASPIRATION P50
C695 01127440606 ASPIRATION SYSTEM 1 PCE
SYSTEME D'ASPIRATION
C696 01127440903 DUST REMOVAL AIR SUPPLY 1 PCE
ALIMENTATION AIR DEPOUSSIERAGE GM
C701 01124236908 LAMP BASE VENTILATION 1 PCE
C711 01124293009 LAMP BASE VENTILATION 1 PCE
VENTILATION CULOTS LAMPES MODULE ARRIER


C730 01127771910 EJECTION 1 PCE
C740 01124923606 OVEN WATER SYSTEM 1 PCE
C750 01125188402 OVEN AIR SYSTEM 1 PCE
CIRCUIT AIR FOUR
C753 01124711902 PREFORM FEED AIR JET 1 PCE
C765 01124180405 FIXED GUIDE 1 PCE
C770 01126355603 THRUST KIT 4 PCE
KIT BUTEE PORTE FOUR
C770 01128371002 FLOOR ALIMENTATION GM 1 PCE
PLANCHER ALIMENTATION GM
C770 01128402505 EXTRACTOR Ø800 EQUIPE 1 PCE
C770 01128430701 RECUPERATION PREFORMS 1 PCE
BAC RECUPERATION PREFORMES MAL VETIES
C770 01128483502 FIXED CHUTE 1 PCE
GOULOTTE FIXE
C770 01131492103 DEDUST INFEED SIDE 1 PCE
C770 01131848501 OVEN LIFTING TOOL 1 PCE
C770 01132354001 FLOOR 1 PCE
PLANCHER FOUR
C771 01131569001 ELECTRICAL CHUTE 1 PCE
C777 01124348502 OVEN INITIALIZATION 1 PCE
INITIALISATION FOUR
C779 01124348802 TEMPERATURE PROBE § 1 PCE
C795 01124343703 CAMERA SUPPORT IR 1 PCE
SUPPORT CAMERA IR
E000 00000036447 BONDING STRIP 16MM2-L0405-Ø06 4 PCE
TRESSE DE MASSE 16MM2-L0405-Ø06
EC01 01126549001 LABEL 1 PCE
ETIQUETTE MACHINE
EC01 01131833202 CABINET TO MACHINE CONNECTION 1 PCE
LIAISON ARMOIRE MACHINE
EC02 01128885901 PROFIBUS WIRING 1 PCE
CABLAGE PROFIBUS DP STANDARD 20/24


EC02 01128886001 CONNECTION PROFIBUS STANDARD 20/24 1 PCE
LIAISON PROFIBUS STANDARD 20/24
EC03 01124551601 HEATING REGULATION§ 24 PCE
REGULATION CHAUFFE PWR-SDL OLICORP §
EC03 01131440501 OVEN PLUG WIRING 24 PCE
CABLAGE PRISE FOUR
EVM0 01132643401 OVEN VENTILATION MOTOR BOX 2 PCE
COFFRET MOTEURS VENTILATION FOURS
EVM1 01132642301 BOX 1 PCE
COFFRET MOTEURS VENTIL. FOURS-DEPARTS
EVM2 01132642501 BOX 1 PCE
COFFRET MOTEURS VENTIL. FOURS-DEPARTS
EVM3 01132643701 BOX MOTEURS RH28M VENTIL FOURS 2 PCE
COFFRET MOTEURS RH28M VENTIL FOURS
S600 01129248903 SIDE RAIL ASSEMBLIES 1 PCE
S606 01128349406 FRAME 1 PCE
S610 01125579309 SPINDLE 135 PCE
TOURNETTE 50
S621 01128170503 GUIDE AND ROTATION CHAIN 1 PCE
GUIDE ET CHAINE DE ROTATION
S680 01113239701 LAMPS 24 PCE
LAMPES PHILIPS
S680 01126480206 IR OVEN KIT 6 MODULES 2 PCE
S680 01131310102 EQUIPPED REFLECTOR 24 PCE
REFLECTEUR EQUIPEE SANS POUSSOIR
S681 01126481102 RAMP 4 PCE
S682 01128241301 GRIP ASSEMBLY SUPPORT STUD 24 PCE
S710 01129249104 HEATING BOX 2 PCE
CAISSON DE CHAUFFE 6 MODULES
S711 01131254805 VENTILATION MODULE 2 PCE
S714 01131254604 VENTILATION KIT 12 PCE
S740 01129887002 OVEN WATER SYSTEM HOSE 1 PCE
FLEXIBLE CIRCUIT EAU FOUR 24 MODULE
S770 01130562604 EXTRACTION HOOD 1 PCE
HOTTE D'EXTRACTION 24M


S770 01131392803 FRONT-SIDE 1 PCE
S770 01131393303 FRONT-SIDE 1 PCE
S770 01134314201 OVEN CONNECTION 1 PCE
JONCTION FOUR 24M

Description MODULE
Désignation MODULE AVANT
0000 01124224017 MODULE 1 PCE
MODULE AVANT
0001 01124224215 FRONT MODULE FRAME 1 PCE
CHASSIS MODULE AVANT
0002 01124225401 FLANGE 1 PCE
BRIDE
0003 01124224301 SUPPORT 2 PCE
SUPPORT
0004 01124224404 UNLOAD CAM 1 PCE
CAME DEVETISSAGE
0005 01124225004 RETRACTION CAM 1 PCE
CAME RETRAIT
0006 01124225203 LOADING CAM 1 PCE
CAME VETISSAGE
0007 01129933101 LIFTING BASE 2 PCE
PIED DE LEVAGE
0008 01119414001 LEVEL SCALE 4 PCE
BARRETTE DE NIVEAU
CALE PELABLE
0010 01129459602 CASING 1 PCE
CARTER
0015 00000118553 FOOT CR1520 150M20X200 2 PCE
PIED CR1520 150M20X200
0021 00000012515 SCREW ISO10642-M04X010-10.9 8 PCE
VIS FHC ISO10642-M04X010-10.9
0022 00000011561 SCREW ISO4762-M06X016-10.9 21 PCE
VIS CHC ISO4762-M06X016-10.9
0025 00000011603 SCREW ISO4762-M08X035-10.9 6 PCE
VIS CHC ISO4762-M08X035-10.9

Description MODULE
Désignation MODULE AVANT
0027 00000010120 SCREW ISO4017-M20X060-8.8 8 PCE
VIS H ISO4017-M20X060-8.8
0029 00000013013 NUT ISO4032-M20-10 8 PCE
0031 01126645002 RETRACTION CAM SUPPORT 1 PCE
SUPPORT CAME RETRAIT
0032 01126345402 TERMINAL BLOCK SUPPORT 1 PCE
SUPPORT REPARTITEUR
0034 00000011599 SCREW ISO4762-M08X016-10.9 8 PCE
VIS CHC ISO4762-M08X016-10.9
0035 00000010014 SCREW ISO4017-M05X010-8.8 4 PCE
VIS H ISO4017-M05X010-8.8
0037 01129459901 SCRAPER 1 PCE
RACLEUR
0038 01130825102 CASING 1 PCE
CARTER
0039 01130824501 CASING 1 PCE
CARTER
SUPPORT REPARTITEUR

Description TIGHTENER DIA 90 H 56 MODULE AVANT

Désignation TENDEUR DIA 90 H 56 MODULE AVANT
0000 01124325501 TENSIONER DIA 90 H 56 MODULE AVANT 1 PCE
SUPPORT GALET LONG
0002 01124325701 ROLLER 1 PCE
GALET MODULE AVANT
0003 01069992501 THRUST 1 PCE
BUTEE
VIS DE REGLAGE
0005 01071062501 RING 1 PCE
BAGUE
0006 01071858301 SPACER 1 PCE
ENTRETOISE
0007 01071858401 WASHER 1 PCE
RONDELLE
0009 00000002473 SPRING C 0244.0535X0460.0510 A 1 PCE
RESSORT C 0244.0535X0460.0510 A
0010 00000010149 SCREW ISO4017-M12X055-8.8 6 PCE
VIS H ISO4017-M12X055-8.8
0011 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0015 00000013009 NUT ISO4032-M12-10 1 PCE
0016 00000013214 NUT ISO4035-M12-05 2 PCE
0018 00000014050 WASHER ISO7089-12-200HV 4 PCE
0019 01073073802 SHORT PIN 1 PCE
AXE COURT
0020 01124225301 SHIM 1 PCE
CALE

Description EJECTION CHUTE

Désignation GOULOTTE EJECTION
0000 01133775001 EJECTION CHUTE 1 PCE
GOULOTTE EJECTION
0001 01133732401 CHUTE 1 PCE
GOULOTTE SUPERIEURE
0002 01133742901 CHUTE 1 PCE
GOULOTTE INFERIEURE
0003 00000010020 SCREW ISO4017-M06X016-8.8 4 PCE
VIS H ISO4017-M06X016-8.8

Description REAR MODULE

Désignation MODULE ARRIERE
0000 01124312710 MODULE 1 PCE
MODULE ARRIERE
0001 01124314509 FRAME 1 PCE
CHASSIS
PIED DE LEVAGE DROIT
PIED DE LEVAGE GAUCHE
0004 00000118553 FOOT CR1520 150M20X200 2 PCE
PIED CR1520 150M20X200
0007 00000013013 NUT ISO4032-M20-10 12 PCE
0008 00000010120 SCREW ISO4017-M20X060-8.8 12 PCE
VIS H ISO4017-M20X060-8.8
0010 00000014207 WASHER DEC M10 DIN6798 1 PCE
RONDELLE DEC M10 DIN6798
0012 00000010046 SCREW ISO4017-M10X020-8.8 1 PCE
VIS H ISO4017-M10X020-8.8
0014 01071468702 PROBE SUPPORT 2 PCE
SUPPORT DE SONDE
0015 00000011561 SCREW ISO4762-M06X016-10.9 4 PCE
VIS CHC ISO4762-M06X016-10.9
0016 00000012515 SCREW ISO10642-M04X010-10.9 8 PCE
VIS FHC ISO10642-M04X010-10.9
0017 01119414001 LEVEL SCALE 4 PCE
BARRETTE DE NIVEAU
CALE PELABLE

Description OVEN SAFETY

Désignation SECURITE FOUR
0000 01129249301 OVEN SAFETY 1 PCE
SECURITE FOUR
SUPPORT DETECTEUR
TIGE DE DETECTION
0004 00000011057 SCREW ISO4762-M03X025-10.9 4 PCE
VIS CHC ISO4762-M03X025-10.9
0005 00000033729 SWITCH MECA GALET ZCK-Y51 TELE. 1 PCE
INTERRUPTEUR MECA GALET ZCK-Y51 TELE.
0006 00000011562 SCREW ISO4762-M06X020-10.9 2 PCE
VIS CHC ISO4762-M06X020-10.9
0008 00000105947 HEAD MOUVEMENT ANGULAIRE ZCK-E09 TELE. 1 PCE
TETE MOUVEMENT ANGULAIRE ZCK-E09 TELE.

Description TOOL
Désignation OUTILLAGE ACCOUPLEMENT FOUR
0000 01124447902 OVEN COUPLING TOOL 1 PCE
0001 00000011590 SCREW ISO4762-M12X040-12.9 11 PCE
VIS CHC ISO4762-M12X040-12.9
0003 00000011738 SCREW ISO4762-M08X020-12.9 2 PCE
VIS CHC ISO4762-M08X020-12.9
0004 01122785501 GUIDING PLATE 1 PCE
PLAQUE DE GUIDAGE
0007 01122785401 THRUST 1 PCE
BUTEE
0008 01122785901 REWORK DRAWING - SCREW 1 PCE
PLAN DE REPRISE VIS
0009 01122785801 FINE SETTING SUPPORT 1 PCE
SUPPORT REGLAGE FIN
0010 01133212801 BRACKET 1 PCE
EQUERRE ALIGNEMENT
0012 01122785601 GUIDE PIN 1 PCE
AXE DE GUIDAGE
0013 01122785701 HOLDING PLATE 1 PCE
PLAQUE DE MAINTIEN
0017 00000014305 SCREW M12X050-10.9 2 PCE

Description DETECTION
Désignation DETECTION SYNCHRO ROUE/FOUR
0000 01131428401 OVEN-WHEEL SYNCHRO.DETECTION 1 PCE
DETECTION SYNCHRO ROUE-FOUR
SUPPORT DETECTEUR
0003 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9

Description SPINDLE ROTATION CHAIN

Désignation CHAINE ROTATION TOURNETTE
0000 01124638302 SPINDLE ROTATION CHAIN 1 PCE
CHAINE DE ROTATION TOURNETTE
0005 01124237201 FASTENER 1 PCE
ATTACHE
0006 00000091599 QUICK-RELEASE FASTENER NO 10 08B1 P12,7 4 PCE
ATTACHE RAPIDE NO 10 08B1 P12,7
0008 00000011601 SCREW ISO4762-M08X025-10.9 4 PCE
VIS CHC ISO4762-M08X025-10.9
0009 00000013009 NUT ISO4032-M12-10 4 PCE
0010 01124238702 TIGHTENER 1 PCE
TENDEUR
0011 01071057801 TIGHTENER SCREW 2 PCE
VIS TENDEUR
0012 01071057502 RING 2 PCE
BAGUE
0013 00000002068 SPRING T.3 20 X 28 X125 L=0097 2 PCE
RESSORT T.3

Description OVEN TRANSMISSION SHAFT

Désignation ARBRE TRANSMISSION FOUR
0000 01133353602 OVEN TRANSMISSION SHAFT 1 PCE
ARBRE TRANSMISSION FOUR MM GM P50
0001 01124164802 OVEN TRANSMISSION SHAFT 1 PCE
ARBRE DE TRANSMISSION FOUR
0002 01124165001 PULLEY AT15-54 TEETH 1 PCE
POULIE AT15-54 DENTS
0003 01124164701 INTERMEDIATE PINION 1 PCE
PIGNON INTERMEDIAIRE
0004 01132580001 PULLEY 1 PCE
POULIE 32 AT10 Z36
0005 01117342703 SWITCH SUPPORT 1 PCE
SUPPORT INTERRUPTEUR
0006 01071608801 FINE ADJUSTMENT 1 PCE
REGLAGE FIN
0007 00000093211 BELT 25 AT10/1860 SYN SD 1 PCE
COURROIE 25 AT10/1860 SYN SD
0009 00000093695 TORQUE LIMITER 4/451.415.0/50/SO 1 PCE
LIMITEUR DE COUPLE 4/451.415.0/50/SO
0010 00000001615 SUPPORTING BEARING Y FY 50 FM 1 PCE
PALIER Y APPLIQUE FY 50 FM
0011 00000001851 SUPPORTING BEARING 4T D50 1 PCE
PALIER APPLIQUE 4T D50
0014 00000001117 SELF-LUB.BEARING 1 PCE
COUSSINET AUTOLUB.

Description OVEN TRANSMISSION SHAFT

Désignation ARBRE TRANSMISSION FOUR
0023 00000013002 NUT ISO4032-M04-10 2 PCE
0024 00000013554 NUT ISO4032-M08-10 2 PCE
0025 00000011623 SCREW ISO4762-M10X035-10.9 6 PCE
VIS CHC ISO4762-M10X035-10.9
0026 00000011624 SCREW ISO4762-M10X040-10.9 4 PCE
VIS CHC ISO4762-M10X040-10.9
0027 00000011585 SCREW ISO4762-M06X020-12.9 2 PCE
VIS CHC ISO4762-M06X020-12.9
0028 00000011523 SCREW ISO4762-M04X020-10.9 2 PCE
VIS CHC ISO4762-M04X020-10.9
0029 00000011643 SCREW ISO4762-M12X020-10.9 1 PCE
VIS CHC ISO4762-M12X020-10.9
0030 00000012423 SCREW M08X055-45H-B.PL 2 PCE
0031 00000010093 SCREW ISO4017-M16X040-8.8 8 PCE
VIS H ISO4017-M16X040-8.8
GALET DIA 90 H31 FLASQUE

Description TIGHTENER WHEEL

Désignation ROUE TENDEUR P50 TOURNETTE 12D
0000 01126503904 TIGHTENER WHEEL 1 PCE
0001 01123951303 TENSIONER WHEEL BRACKET 2 PCE
PALIER ROUE TENDEUR
0002 01126353004 NOTCHED WHEEL 1 PCE
ROUE A ENCOCHES
0003 01123950802 GUIDING SHAFT 1 PCE
ARBRE DE GUIDAGE ROUE TENDEUR
0004 01123656201 TIGHTENER WHEEL PLATE 1 PCE
PLATEAU ROUE TENDEUR
0005 01123951202 HALF-PLATE 1 PCE
DEMI-PLATEAU
0006 01123951801 SPACER 1 PCE
ENTRETOISE
0007 01123951003 SPRING PIN 1 PCE
AXE RESSORT ROUE TENDEUR
0008 01123951102 WASHER 1 PCE
RONDELLE
RONDELLE D'APPUI
0010 00000000076 BEARING 6210 2RS 2 PCE
ROULEMENT 6210 2RS
0011 01126573401 NUT 1 PCE
ECROU HHM36
0013 00000011610 SCREW ISO4762-M08X070-10.9 4 PCE
VIS CHC ISO4762-M08X070-10.9
0014 00000002472 SPRING C 0540.0800.3200 A 1 PCE
RESSORT C 0540.0800.3200 A
0016 00000010091 SCREW ISO4017-M16X035-8.8 1 PCE
VIS H ISO4017-M16X035-8.8
0018 00000011624 SCREW ISO4762-M10X040-10.9 4 PCE
VIS CHC ISO4762-M10X040-10.9

Description OVEN WHEEL

Désignation ROUE FOUR PAS DE 50
0000 01127123007 OVEN WHEEL 1 PCE
ROUE FOUR 50
0001 01126367605 OVEN WHEEL 1 PCE
ROUE FOUR P50 36
0002 01126897603 FORK§ 36 PCE
FOURCHETTE §
0003 01124170905 PIN 36 PCE
AXE
0004 01124172201 ANTI-TORQUE PIN 36 PCE
AXE ANTI-COUPLE
0005 00000011110 SCREW M12X075-12.9 7 PCE
0006 01124233503 WASHER 72 PCE
RONDELLE
0007 01124209202 SPRING 36 PCE
RESSORT
0008 01000245900 CROWN RING 1 PCE
COURONNE ORIENT.06.0307.26.ZZ00
0015 00000013387 NUT ISO7719-M10-8 36 PCE
0016 00000013386 NUT ISO7719-M08-8 36 PCE
0017 00000011689 SCREW ISO4762-M12X065-12.9 8 PCE
VIS CHC ISO4762-M12X065-12.9
0018 00000011620 SCREW ISO4762-M10X020-10.9 9 PCE
VIS CHC ISO4762-M10X020-10.9
0019 00000014048 WASHER ISO7089-10-200HV 36 PCE
0020 00000014046 WASHER ISO7089-08-200HV 36 PCE
0023 00000013319 NUT ISO7040-M05-10 36 PCE

Description OVEN WHEEL

Désignation ROUE FOUR PAS DE 50
0026 00000115745 SELF-LUB.BEARING FP20 C _20/ 24X 20 72 PCE
COUSSINET AUTOLUB. FP20 C _20/ 24X 20
0027 00000109097 CAM FOLLOWER NATV 6 PP 36 PCE
GALET DE CAME NATV 6 PP
0028 00000115747 SELF-LUB.BEARING 36 PCE
COUSSINET AUTOLUB.
0029 01126830601 PIN§ 24 PCE
AXE INTERIEUR §
0030 01126825301 PIN § 12 PCE
AXE EXTERIEUR §
0033 00000000349 BALL-BEARING ROLLER LR 606 NPPU 36 PCE
GALET A BILLES LR 606 NPPU


Désignation GRAISSAGE CENTRALISE FOUR
0000 01134005401 OVEN CENTRALIZED GREASING 1 PCE
0001 01131835801 GREASING FIXING BRACKET 1 PCE
EQUERRE DE FIXATION GRAISSAGE
0002 01133985401 SUPPORT BRACKET 1 PCE
EQUERRE SUPPORT GRAISSAGE
REPARTITEUR FB1082
0004 01134009401 HOSE R1 SUR FOUR 1 PCE
0008 01134010001 HOSE SUR FOUR 1 PCE
FLEXIBLE SUR FOUR
0009 01127872201 LUBRICATOR BAR 1 PCE
BARRETTE 4 GRAISSEUR
0013 00000085625 MALE UNION AR 138-1/8 NPT-D6 5 PCE
UNION MALE AR 138-1/8 NPT-D6
0015 00000085469 CONNECTOR DROIT AR-101 4 PCE
CONNECTEUR DROIT AR-101
0017 00000003160 GREASER 9.20.00.01 HYD. 6X100 DROIT 1 PCE
GRAISSEUR 9.20.00.01 HYD. 6X100 DROIT
0019 00000014045 WASHER ISO7089-06-200HV 4 PCE
0020 00000013004 NUT ISO4032-M06-10 2 PCE


Désignation GRAISSAGE CENTRALISE FOUR
0021 00000011863 SCREW ISO4762-M06X012-12.9 2 PCE
VIS CHC ISO4762-M06X012-12.9
0022 00000011566 SCREW ISO4762-M06X040-10.9 2 PCE
VIS CHC ISO4762-M06X040-10.9
0023 00000011547 SCREW ISO4762-M05X040-10.9 2 PCE
VIS CHC ISO4762-M05X040-10.9
0024 00000011562 SCREW ISO4762-M06X020-10.9 2 PCE
VIS CHC ISO4762-M06X020-10.9
0025 00000013003 NUT ISO4032-M05-10 2 PCE

Description PUMP FRAME

Désignation ALIMENTATION PREFORME
0000 01131199105 PREFORM INFEED 1 PCE
0001 01130048504 INFEED RAIL SUPPORT 1 PCE
SUPPORT RAIL ALIMENTATION
0002 01130048602 SHAFT 1 PCE
ARBRE
0003 01128039002 PLATE SUPPORT 1 PCE
SUPPORT PLATEAU
CALE PELABLE DIA25 5X40
CALE PELABLE
0006 01131198901 RETRACTABLE GUIDE SUPPORT 1 PCE
SUPPORT GUIDE ESCAMOTABLE
CALE PELABLE
0008 00000014053 FLAT WASHER RENF.D.10 10,5X25X4 BRUN 1 PCE
RONDELLE PLATE RENF.D.10 10,5X25X4 BRUN
0009 01124291401 DETECTOR BRACKET 1 PCE
EQUERRE DETECTEUR
0010 01068148402 RIGHT THRUST 1 PCE
BUTEE DROITE
0011 01068148502 LEFT THRUST 1 PCE
BUTEE GAUCHE
0012 01124320301 BRACKET 1 PCE
EQUERRE
0013 01124321001 ORIENTING PLATE SUPPORT 1 PCE
SUPPORT PLATEAU ORIENTEUR
0014 01069949502 ORIENTATING PLATE 1 PCE
PLATEAU ORIENTEUR
0015 01071844002 CYLINDER ROD STRENGTHENING PIECE 1 PCE
RENFORT TIGE VERIN
0016 01071529902 CYLINDER ROD EXTENSION 1 PCE
RALLONGE TIGE DE VERIN
0017 01131199001 SPACER 1 PCE
ENTRETOISE
0018 01124301601 THRUST 1 PCE
BUTEE


0025 00000001213 SELF-LUB.RING BP25-016/020X032 1 PCE
BAGUE AUTOLUB. BP25-016/020X032
0028 01124804601 CYLINDER ASSEMBLY 1 PCE
VERIN EQUIPE
0029 01124800801 CYLINDER ASSEMBLY 1 PCE
VERIN EQUIPE
0031 00000015033 ELASTIC RING DIN472-052X2,00 1 PCE
ANNEAU ELASTIQUE DIN472-052X2,00
0032 00000011130 SCREW ISO4762-M10X045-12.9 1 PCE
VIS CHC ISO4762-M10X045-12.9
0033 00000017273 KNURLED NUT 603 100 NLM M10 3 PCE
ECROU MOLETE 603 100 NLM M10
0034 00000011560 SCREW ISO4762-M06X010-10.9 3 PCE
VIS CHC ISO4762-M06X010-10.9
0035 00000011561 SCREW ISO4762-M06X016-10.9 7 PCE
VIS CHC ISO4762-M06X016-10.9
0036 00000011620 SCREW ISO4762-M10X020-10.9 1 PCE
VIS CHC ISO4762-M10X020-10.9
0037 00000011600 SCREW ISO4762-M08X020-10.9 3 PCE
VIS CHC ISO4762-M08X020-10.9
0038 00000011602 SCREW ISO4762-M08X030-12.9 2 PCE
VIS CHC ISO4762-M08X030-12.9
0039 00000011604 SCREW ISO4762-M08X040-10.9 4 PCE
VIS CHC ISO4762-M08X040-10.9
0040 00000100982 SCREW M08X050-45H-B.PL 1 PCE
0041 00000011647 SCREW ISO4762-M12X040-10.9 4 PCE
VIS CHC ISO4762-M12X040-10.9


0042 00000014045 WASHER ISO7089-06-200HV 5 PCE
0046 00000013042 NUT ISO4035-M08-04 1 PCE
0047 00000017916 STUD-BOLT M10- 35 BM15 8.8 A/B 3 PCE
GOUJON M10- 35 BM15 8.8 A/B
0048 01135035501 PULLEY 1 PCE
POULIE 32 AT10 Z40 AVEC FLASQUE
0049 00000001645 SUPPORTING BEARING Y FY 35 TF 1 PCE
PALIER Y APPLIQUE FY 35 TF
0051 01126823501 KNURLED SCREW 1 PCE
VIS MOLETEE
0054 00000011652 SCREW ISO4762-M12X045-10.9 4 PCE
VIS CHC ISO4762-M12X045-10.9
0055 00000013380 NUT ISO7040-M12-10 4 PCE
0056 01128033101 SPACER 1 PCE
ENTRETOISE DIA25X35 LONG42
0058 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9
0059 01128513602 EJECTION CHUTE 1 PCE
GOULOTTE EJECTION
0061 00000011565 SCREW ISO4762-M06X035-10.9 8 PCE
VIS CHC ISO4762-M06X035-10.9
SUPPORT CAPTEUR


SUPPORT DETECTEUR
0067 00000011236 SCREW ISO4762-M04X016-12.9 2 PCE
VIS CHC ISO4762-M04X016-12.9
0068 00000013002 NUT ISO4032-M04-10 2 PCE
0071 00000011585 SCREW ISO4762-M06X020-12.9 2 PCE
VIS CHC ISO4762-M06X020-12.9
0073 00000013004 NUT ISO4032-M06-10 2 PCE

Description CYLINDER ASSEMBLY

Désignation VERIN EQUIPE
0001 00000050123 ACTING CYLINDER MNI-D25-C25 1 PCE
VERIN MNI-D25-C25
0002 00000053046 DISTRIBUTOR 0.820.038.152 1 PCE

Description CYLINDER ASSEMBLY

Désignation VERIN EQUIPE
0001 00000050123 ACTING CYLINDER MNI-D25-C25 1 PCE
VERIN MNI-D25-C25
0003 00000052704 ROD BALL JOINT BASE PLATE 1 PCE
CHAPE ROTULEE DE TIGE 1 822 124 003
0004 00000104973 DISTRIBUTOR 0.820.038.652 1 PCE

Description DUST REMOVAL WHEEL

Désignation ROUE DE DEPOUSSIERAGE P50
0000 01128098305 DUST REMOVAL WHEEL 1 PCE
0001 01128098501 PLATE 1 PCE
PLATEAU P50
0002 01133299802 SHEATH 16 PCE
FOURREAU
0003 01135310101 BORED SNAP RING 16 PCE
JONC D'ALESAGE
0004 01133297001 CONTROL ROD 16 PCE
TIGE DE COMMANDE
0005 01128099101 DEDUST HEAD 16 PCE
TETE DE DEPOUSSIERAGE P50
0006 01123210802 DEDUST TUBE 32 PCE
TUBE DE DEPOUSSIERAGE
0007 01128099301 COLLAR 16 PCE
COLLET P50
0008 01133325901 FLANGE 8 PCE
BRIDE 2 TIGES P50
0009 01127727801 ROLLER PIN 8 PCE
AXE DE GALET
CALE PELABLE
0011 01127762504 SHAFT 1 PCE
ARBRE
0012 01127728102 CAM SUPPORT BEARING 1 PCE
PALIER SUPPORT CAME
0013 01127728202 POINT CAM 1 PCE
CAME POINT HAUT
0014 01127728603 GUIDE SUPPORT 1 PCE
SUPPORT GUIDE EXTERIEUR
0015 01135035801 PULLEY 1 PCE
SUPPORT DETECTEUR
0017 01133310901 NOTCHED NUT 16 PCE
ECROU A ENCOCHES
0018 01073273101 SPACER 1 PCE
ENTRETOISE
0019 01113639401 BUSHING 1 PCE
DOUILLE
0020 00000021378 V RING SEAL 40VS D.38 A 43 NBR 16 PCE
JOINT V-RING 40VS D.38 A 43 NBR


0021 00000103808 BUSHING IGLIDUR MSM-1824-20 16 PCE
COUSSINET IGLIDUR MSM-1824-20
0022 00000132432 BUSHING IGLIDUR MSM-2228-20 16 PCE
COUSSINET IGLIDUR MSM-2228-20
0023 00000011562 SCREW ISO4762-M06X020-10.9 16 PCE
VIS CHC ISO4762-M06X020-10.9
0024 00000014603 EXPANDABLE PLUG DIN470-D14-Z/B 32 PCE
BOUCHON EXPANSIBLE DIN470-D14-Z/B
0025 00000016555 SCREW ISO4762-M06X012-10.9 16 PCE
VIS CHC ISO4762-M06X012-10.9
0028 00000014054 WASHER ISO7089-16-200HV 16 PCE
0029 00000013330 NUT ISO7040-M16-10 16 PCE
0030 00000080929 MALE PLUG HC BSPT 3/8 LAITON 16 PCE
BOUCHON MALE HC BSPT 3/8 LAITON
0032 00000011625 SCREW CHC-M10X045/045-10.9 4 PCE
VIS CHC-M10X045/045-10.9
0039 00000011603 SCREW ISO4762-M08X035-10.9 8 PCE
VIS CHC ISO4762-M08X035-10.9
0040 00000135569 STAR-SHAPED BUTTON M12X 30 5 PCE
BOUTON ETOILE M12X 30


0042 00000011651 SCREW ISO4762-M12X060-10.9 3 PCE
VIS CHC ISO4762-M12X060-10.9
0043 00000013009 NUT ISO4032-M12-10 3 PCE
VIS MOLETEE
0050 00000011600 SCREW ISO4762-M08X020-10.9 10 PCE
VIS CHC ISO4762-M08X020-10.9
0052 00000010065 SCREW ISO4017-M12X030-8.8 3 PCE
VIS H ISO4017-M12X030-8.8
0053 00000106525 SPLIT STOP-RING BAF 2-18-ZX 8 PCE
BAGUE D'ARRET FENDUE BAF 2-18-ZX
CALE PELABLE
0055 00000128020 SUPPORTING BEARING 2T D38,1 1 PCE
PALIER APPLIQUE 2T D38,1
0056 00000011266 SCREW H-M12X030-10.9 2 PCE
VIS H-M12X030-10.9

Description DUST REMOVAL MODULE

Désignation MODULE DE DEPOUSSIERAGE
0000 01127439006 DEDUST MODULE 1 PCE
0001 01127809006 SIDE RAIL 1 PCE
LONGERON
0002 01127808902 BASE PLATE 1 PCE
PLAQUE DE BASE
0003 01127808802 SUPPORT 1 PCE
SUPPORT AVANT
0004 01127808502 SUPPORT 1 PCE
SUPPORT ARRIERE
0005 01111402502 TIGHTENER 1 PCE
TENDEUR DIAM. 90 H 56 $
0006 01130051402 BEARING SUPPORT 1 PCE
SUPPORT PALIER
0007 01068895701 LEVEL SCALE 4 PCE
BARRETTE DE NIVEAU
0009 00000135903 BELT 25 ATS10/2240 BFX DL SPL 1 PCE
COURROIE 25 ATS10/2240 BFX DL SPL
0011 00000010067 SCREW ISO4017-M12X040-8.8 4 PCE
VIS H ISO4017-M12X040-8.8
0012 00000011688 SCREW ISO4762-M12X030-12.9 4 PCE
VIS CHC ISO4762-M12X030-12.9
0013 00000010149 SCREW ISO4017-M12X055-8.8 5 PCE
VIS H ISO4017-M12X055-8.8
0014 00000013009 NUT ISO4032-M12-10 5 PCE
0016 00000011734 SCREW ISO4762-M08X050-12.9 2 PCE
VIS CHC ISO4762-M08X050-12.9
0017 00000013343 NUT NYL M 8 -6 Z/B 2 PCE
ECROU HMFR NYL M 8 -6 Z/B
0018 00000012515 SCREW ISO10642-M04X010-10.9 8 PCE
VIS FHC ISO10642-M04X010-10.9

Description DUST REMOVAL MODULE

CALE PELABLE

Description TIGHTENER
Désignation TENDEUR DIAM. 90 H 56 $
0000 01071859004 TIGHTENER -Ø90 H=56- 1 PCE
TENDEUR DIA. 90 H 56
SUPPORT GALET LONG
0002 01071858101 ROLLER 1 PCE
GALET
0003 01069992501 THRUST 1 PCE
BUTEE
VIS DE REGLAGE
0005 01071062501 RING 1 PCE
BAGUE
0006 01071858301 SPACER 1 PCE
ENTRETOISE
0007 01071858401 WASHER 1 PCE
RONDELLE
0009 00000002473 SPRING C 0244.0535X0460.0510 A 1 PCE
RESSORT C 0244.0535X0460.0510 A
0010 00000010067 SCREW ISO4017-M12X040-8.8 6 PCE
VIS H ISO4017-M12X040-8.8
0011 00000010066 SCREW ISO4017-M12X025-8.8 1 PCE
VIS H ISO4017-M12X025-8.8
0015 00000013009 NUT ISO4032-M12-10 1 PCE
0016 00000013214 NUT ISO4035-M12-05 2 PCE
0018 00000014050 WASHER ISO7089-12-200HV 4 PCE
0019 01073073802 SHORT PIN 1 PCE
AXE COURT

Description TRANSFER WHEEL

Désignation ROUE DE TRANSFERT
0000 01127436505 TRANSFER WHEEL 1 PCE
ROUE DE TRANSFERT
0001 01127438502 BEARING 1 PCE
PALIER
0002 01133437801 SHAFT 1 PCE
ARBRE
CALE PELABLE
0004 01133442201 PLATE SUPPORT 1 PCE
SUPPORT PLATEAU
0005 01133442501 PULLEY 1 PCE
POULIE 32 AT10 Z80
0006 01127933501 SWITCH SUPPORT 1 PCE
SUPPORT INTERRUPTEUR
0007 01133442801 BEARING SUPPORT 1 PCE
SUPPORT PALIER
0008 01135035201 PULLEY 32 AT10 Z40 AVEC FLASQUE 1 PCE
CALE PELABLE
VIS MOLETEE
0015 00000011647 SCREW ISO4762-M12X040-10.9 4 PCE
VIS CHC ISO4762-M12X040-10.9
0018 00000015033 ELASTIC RING DIN472-052X2,00 1 PCE
ANNEAU ELASTIQUE DIN472-052X2,00


0023 00000011564 SCREW ISO4762-M06X030-10.9 6 PCE
VIS CHC ISO4762-M06X030-10.9
0026 00000011236 SCREW ISO4762-M04X016-12.9 2 PCE
VIS CHC ISO4762-M04X016-12.9
0027 00000013002 NUT ISO4032-M04-10 2 PCE
0028 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9
0031 00000001590 SUPPORTING BEARING Y FY 25 FM 1 PCE
PALIER Y APPLIQUE FY 25 FM
0033 00000011600 SCREW ISO4762-M08X020-10.9 6 PCE
VIS CHC ISO4762-M08X020-10.9
0035 00000011623 SCREW ISO4762-M10X035-10.9 4 PCE
VIS CHC ISO4762-M10X035-10.9
0036 00000013408 NUT DIN 985-M10-05 4 PCE
0039 01128559802 ARM GUIDE 1 PCE
GUIDE BRAS
0040 01133442901 WASHER 1 PCE
RONDELLE

Description SUCTION HOOD P50

Désignation HOTTE D ASPIRATION P50
0000 01128080103 SUCTION HOOD 1 PCE
HOTTE D'ASPIRATION
0001 01127521302 ELBOW 1 PCE
COUDE
0002 01127520701 ELBOW SUPPORT 1 PCE
SUPPORT COUDE
0003 01127521001 SUPPORT 1 PCE
SUPPORT COUDE GAUCHE
0004 01128081701 HOOD CONNECTION 1 PCE
RACCORD HOTTE
0005 01128081401 HOOD 1 PCE
HOTTE
0006 01127519801 SPLIT STOP RING 3 PCE
BAGUE D'ARRET FENDUE
0007 01128082001 COLLAR 1 PCE
COLLERETTE
0008 01128081501 HOOD 1 PCE
HOTTE
0009 01122903502 SPACER 3 PCE
ENTRETOISE
0010 00000108579 SEAL FEUTRE 20 X 3 LMB30 1 PCE
JOINT FEUTRE 20 X 3 LMB30
0011 00000108576 SEAL 1011-24 118 CM
JOINT D'ETANCHEITE 1011-24
0012 00000108577 PROTECTION EDGE 1010-04-02 120 CM
BORDURE DE PROTECTION 1010-04-02
0013 00000135560 STAR-SHAPED BUTTON M 6X 20 3 PCE
BOUTON ETOILE M 6X 20
0014 00000011564 SCREW ISO4762-M06X030-10.9 6 PCE
VIS CHC ISO4762-M06X030-10.9
0015 00000011601 SCREW ISO4762-M08X025-10.9 12 PCE
VIS CHC ISO4762-M08X025-10.9
0018 00000014046 WASHER ISO7089-08-200HV 16 PCE
0020 00000013554 NUT ISO4032-M08-10 4 PCE

Description ASPIRATION SYSTEM

Désignation SYSTEME D'ASPIRATION
0000 01127440405 ASPIRATION SYSTEM 1 PCE
SYSTEME D ASPIRATION
0001 01128471102 ASPIRATION TUBE 1 PCE
TUBE ASPIRATION ALU D 170
0002 01128471204 SUCTION TUBE 1 PCE
TUBE ASPIRATION ALU D 170
0004 01123618601 SUPPORT 1 PCE
SUPPORT
0005 00000108579 SEAL FEUTRE 20 X 3 LMB30 2 PCE
JOINT FEUTRE 20 X 3 LMB30
0006 00000118975 CLAMP COLLAR RBD DN 32 STAUFF 1 PCE
COLLIER ETRIER RBD DN 32 STAUFF
0008 00000108238 PIPE MASTER-PUR DN180 317 CM
TUYAU MASTER-PUR DN180
0009 00000108237 COLLAR CV14 12 175-205 L12 D190 2 PCE
COLLIER CV14 12 175-205 L12 D190
0012 01133407001 ASPIRATOR 1 PCE
ASPIRATEUR ELECTROJET 8 VENTIL. 35-0.42
0013 00000118976 SOCKET UNION XGAI 8 LR 3/8 1 PCE
UNION FEMELLE XGAI 8 LR 3/8
0014 00000087857 EQUAL UNION GZ08LCF 1 PCE
UNION EGALE GZ08LCF
0016 01124941601 PRESSURE REGULATOR G3/8" 0.5-10BAR 1 PCE
REGULATEUR DE PRESSION G3/8" 0.5-10BAR
0017 00000108221 DOUBLE NIPPLE G3/8-G3/8 LAITON NICKELE 1 PCE
MAMELON DOUBLE G3/8-G3/8 LAITON NICKELE
0018 00000108220 UNEQUAL SLEEVE FF-G1/4-G3/8 1 PCE
MANCHON INEGAL FF-G1/4-G3/8
0019 01008742500 PIPE SPIRALE PUS 54 1 PCE
TUYAU SPIRALE PUS 54
0020 00000087075 MALE END 23SFIW13SXN 1 PCE
EMBOUT MALE 23SFIW13SXN
0021 00000127204 SELF-GRIPPING STRAP TT30X900 14 PCE
SANGLE AUTO-AGRIPPANTE TT30X900
0022 01131422501 COLLAR 1 PCE
COLLERETTE
0023 00000012551 SCREW ISO10642-M06X010-10-9 2 PCE
VIS FHC ISO10642-M06X010-10-9

Description ASPIRATION SYSTEM

Désignation SYSTEME D'ASPIRATION
0024 00000133714 TUBE CLAMP 582 _40X 40 2 PCE
ETRIER TUBE 582 _40X 40

Description ASPIRATOR
Désignation ASPIRATEUR ELECTROJET 8 VENTIL. 35-0.42
0001 00000129815 CARTRIDGE 38222140 4 PCE
KIT CARTOUCHE 38222140
0002 00000166061 MOTOR 91486010 @ 1 PCE
MOTEUR 91486010 @
0003 00000169395 CASTER ELECTROJET 8 VENTIL 35-0.42 @ 4 PCE
ROULETTE ELECTROJET 8 VENTIL 35-0.42 @
0004 00000185818 WHEEL 48621011 1 PCE
TURBINE (48621011)
0005 00000152637 CONTROLLER CDP 500V2-24V 31751000 1 PCE
CONTROLEUR CDP 500V2-24V 31751000

Description DUST REMOVAL AIR SUPPLY

Désignation ALIMENTATION AIR DEPOUSSIERAGE GM
0000 01127440703 DEDUST AIR SUPPLY 1 PCE
ALIMENTATION AIR DEPOUSSIERAGE
0001 01128503403 FILTER SUPPORT 1 PCE
SUPPORT FILTRE
0002 01123618801 BRACKET 1 PCE
EQUERRE
0003 01128519701 PIPE 1 PCE
TUBE
0004 01128521701 ANTI-TORQUE BAR 1 PCE
BARRE ANTI-COUPLE
0005 01125850801 7 BARS LINE 1 PCE
LIGNE 7 BARS
0006 01134066401 TUBE 1 PCE
TUBE INOX D 22 LG 986
0007 01130619001 HOSE 1 PCE
FLEXIBLE PL837-12R 45 C322 C322
0008 01130618901 HOSE PL837-12R 300 C322 C322 1 PCE
0009 01130094501 HOSE 1 PCE
FLEXIBLE 2802-16 0.80 14928LS-14928LS
0010 00000059832 FILTER MF 05/25 1 PCE
FILTRE MF 05/25
0011 00000104550 FILTER BODY AG0027 SUPERPLUS § 1 PCE
CORPS FILTRE AG0027 SUPERPLUS §
0012 00000020991 ROTARY UNION 1034 K2 1 PCE
RACCORD ROTATIF 1034 K2
0013 00000085505 NUT EO2 FM28LCF 4 PCE
ECROU EO2 FM28LCF
0014 00000119117 SOLENOID VALVE SCE238 A004 24VCC 1 PCE
ELECTROVANNE SCE238 A004 24VCC
0015 00000085320 TUBE INOX D 28.0-EP1.5-1.4571 8 CM
TUBE INOX D 28.0-EP1.5-1.4571
0017 00000081133 REDUCTION M/F-G1"1/4-G3/4" 1 PCE
REDUCTION M/F-G1"1/4-G3/4"


0022 00000125691 SWIVELLING ELBOW WEE22LROMDCF 1 PCE
COUDE ORIENTABLE WEE22LROMDCF
TE EGAL T22LA3CX
0028 00000082330 SWIVELLING ELBOW EVW28LA3C 2 PCE
COUDE ORIENTABLE EVW28LA3C
0029 00000108219 MALE END G1/4 1 PCE
EMBOUT FEMELLE G1/4
0030 00000082680 PARTITION TIE-BAR WGG44B1/4 EP4 1 PCE
TRAVERSE CLOISON WGG44B1/4 EP4
0032 00000010047 SCREW ISO4017-M10X025-8.8 2 PCE
VIS H ISO4017-M10X025-8.8
0033 00000011602 SCREW ISO4762-M08X030-12.9 4 PCE
VIS CHC ISO4762-M08X030-12.9
0034 00000011444 SCREW ISO4762-M08X055-12.9 2 PCE
VIS CHC ISO4762-M08X055-12.9
0035 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9
0039 00000013554 NUT ISO4032-M08-10 6 PCE
0040 00000126876 SWIVELLING ELBOW EV28LA3C 1 PCE
COUDE ORIENTABLE EV28LA3C
0041 00000085985 COLLAR SP 322 AL IS 7 PCE
COLLIER SP 322 AL IS


0042 00000086994 NUT EO2 FM22LCF 5 PCE
ECROU EO2 FM22LCF
0043 00000085875 UNION 24°-SWOSDS-L22-G3/4"-FKM-SS 1 PCE
RACCORD 24°-SWOSDS-L22-G3/4"-FKM-SS
0044 00000087878 EQUAL UNION G22ZLA3C 1 PCE
UNION EGALE G22ZLA3C
COUDE EGAL W22LA3CX
0046 01134069001 HOSE PL837-12R 100 C322 C322 1 PCE
0047 00000084504 TUBE INOX D 22,0-EP2,0-1.4571 138 CM
TUBE INOX D 22,0-EP2,0-1.4571
0048 00000084504 TUBE INOX D 22,0-EP2,0-1.4571 70 CM
TUBE INOX D 22,0-EP2,0-1.4571

Description 7 BARS LINE

Désignation LIGNE 7 BARS
0001 00000052861 SHUNT UNIT 18-026-986 1 PCE
BLOC DE DERIVATION 18-026-986
0002 00000110372 TRIPLE BASE 1/4" Y68A-AGN-N3N 1 PCE
EMBASE TRIPLE 1/4" Y68A-AGN-N3N
0003 00000105762 FILTER F68G-NNN-AR1 5 MICRONS 1 PCE
FILTRE F68G-NNN-AR1 5 MICRONS
0004 00000106777 REGULATOR FILTER B68G-NNK-AR3-RLN 1 PCE
FILTRE REGULATEUR B68G-NNK-AR3-RLN
0005 00000052849 SILENCER MB008B G1 IN 1 PCE
SILENCIEUX MB008B G1 IN
0006 00000052837 STRESS-RELIEF VALVE V15-003-NNMO 1 PCE
SOUPAPE DE DECHARGE V15-003-NNMO
0007 00000105951 SHUT OFF VALVE 3/2 T68C-AGB-B2N @ 1 PCE
VANNE D'ARRET 3/2 T68C-AGB-B2N @
0008 00000052878 SET OF FASTENING BRACKETS 18-001-978 1 PCE
JEU D'EQUERRES DE FIXATION 18-001-978
0009 00000052873 PRESSURE GAUGE D40 NORGREN 1/8 " 2 PCE
MANOMETRE D40 NORGREN 1/8 "
0010 00000052790 END UNIT 1" 5524-52 1 PCE
BLOC D'EXTREMITE 1" 5524-52

Description LAMP BASE VENTILATION

Désignation VENTILATION CULOTS DE LAMPE MODULE AVAN
0000 01124225908 LAMP BASE VENTILATION 1 PCE
0001 01124235102 FAN SUPPORT 1 PCE
SUPPORT VENTILATEUR
0002 01126349405 ELBOW 90 VENTILATION LAMPES 2 PCE
COUDE 90 VENTILATION LAMPES
0003 01132070902 VENTILATION DUCT SUPPORT 2 PCE
SUPPORT GAINE DE VENTILATION
0004 00000012533 SCREW ISO10642-M05X008-10-9 4 PCE
VIS FHC ISO10642-M05X008-10-9
0005 00000080839 PIPE MASTER-CLIP-PE D=100 (BASE) 139 CM
TUYAU MASTER-CLIP-PE D=100 (BASE)
0006 00000081848 COLLAR SERFLEX REF 5 DE 92 A 112 4 PCE
COLLIER SERFLEX REF 5 DE 92 A 112
0007 00000013007 NUT ISO4032-M10-10 4 PCE
0010 00000010254 SCREW H-M10X020-A4-80 4 PCE
VIS H-M10X020-A4-80
0011 00000011259 SCREW H-M10X030-10.9 4 PCE
VIS H-M10X030-10.9
0012 00000010222 SCREW M05X016/16-A4-70 B/P 8 PCE
VIS H M05X016/16-A4-70 B/P
0013 01134037401 FAN ASSEMBLY 1 PCE

Description FAN ASSEMBLY

Désignation VENTILATEUR SUPER COBRA EQUIPE
0001 00000133397 FAN 0,75KW SUPER COBRA 1 PCE
VENTILATEUR 0,75KW SUPER COBRA
0002 00000093857 FEMALE SLEEVE RF 100 1 PCE
MANCHON FEMELLE RF 100
0003 00000093858 TEE SQUARE TE100 1 PCE
TE EQUERRE TE100

Description LAMP BASE VENTILATION

Désignation VENTILATION CULOTS LAMPES MODULE ARRIER
0000 01124312509 LAMP BASE VENTILATION 1 PCE
VENTILATION CULOTS DE LAMPE MODULE ARRI
0001 01134252501 SUPPORT 2 PCE
SUPPORT VENTILATEUR
0002 01126349405 ELBOW 90 VENTILATION LAMPES 2 PCE
COUDE 90 VENTILATION LAMPES
0003 01132070902 VENTILATION DUCT SUPPORT 2 PCE
SUPPORT GAINE DE VENTILATION
0004 00000012533 SCREW ISO10642-M05X008-10-9 4 PCE
VIS FHC ISO10642-M05X008-10-9
0007 00000081848 COLLAR SERFLEX REF 5 DE 92 A 112 4 PCE
COLLIER SERFLEX REF 5 DE 92 A 112
0010 00000010254 SCREW H-M10X020-A4-80 4 PCE
VIS H-M10X020-A4-80
0011 00000011259 SCREW H-M10X030-10.9 4 PCE
VIS H-M10X030-10.9
0012 00000010222 SCREW M05X016/16-A4-70 B/P 8 PCE
VIS H M05X016/16-A4-70 B/P
0013 01134037401 FAN ASSEMBLY 1 PCE

Description FAN ASSEMBLY

Désignation VENTILATEUR SUPER COBRA EQUIPE
0001 00000133397 FAN 0,75KW SUPER COBRA 1 PCE
VENTILATEUR 0,75KW SUPER COBRA
0002 00000093857 FEMALE SLEEVE RF 100 1 PCE
MANCHON FEMELLE RF 100
0003 00000093858 TEE SQUARE TE100 1 PCE
TE EQUERRE TE100

Description EJECTION
Désignation EJECTION 3 PREFORMES 50
0000 01127764410 EJECTION 1 PCE
SUPPORT VERIN
0002 01127760903 CAM SUPPORT 1 PCE
SUPPORT CAME
0003 01127048801 SENSOR LOCATING BRACKET 1 PCE
EQUERRE POSITIONNEMENT CAPTEUR
SUPPORT CAPTEUR
0005 01130851401 NOZZLE 1 PCE
BUSE
0006 01128693901 SPACER 2 PCE
ENTRETOISE
0007 01128628101 SPLIT RING 1 PCE
BAGUE FENDUE
0008 00000119092 ACTING CYLINDER EMGQM80-25 1 PCE
VERIN EMGQM80-25
0009 00000051011 BASE 1 825 503 143 1 PCE
EMBASE 1 825 503 143
0010 00000052373 DISTRIBUTOR 0 820 024 102 1 PCE
DISTRIBUTEUR 0 820 024 102
0011 00000053171 SOLENOID VALVE 106 00 258 24V-CC 1 PCE
ELECTROVANNE 106 00 258 24V-CC
0012 00000100293 MALE UNION G08LREDOMDA3C 1 PCE
UNION MALE G08LREDOMDA3C
0013 00000083456 TEE ENCLIQUETABLE G1/4 D10 2 PCE
PIQUAGE ENCLIQUETABLE G1/4 D10
0014 00000084730 MALE UNION BSPP 1/4 - D8 1 PCE
UNION MALE BSPP 1/4 - D8
0017 00000050520 EXHAUST SILENCER 1827000001 1/4 2 PCE
SILENCIEUX ECHAPPEMENT 1827000001 1/4
0018 00000085871 MALE PLUG DIN906-HC-R1/8" ZING/BIC 2 PCE
BOUCHON MALE DIN906-HC-R1/8" ZING/BIC
0020 00000011688 SCREW ISO4762-M12X030-12.9 2 PCE
VIS CHC ISO4762-M12X030-12.9

Description EJECTION
Désignation EJECTION 3 PREFORMES 50
0021 00000011804 SCREW ISO4762-M12X025-12.9 5 PCE
VIS CHC ISO4762-M12X025-12.9
0022 00000011603 SCREW ISO4762-M08X035-10.9 4 PCE
VIS CHC ISO4762-M08X035-10.9
0023 00000011404 SCREW M08X016-10.9 1 PCE
0024 00000011601 SCREW ISO4762-M08X025-10.9 2 PCE
VIS CHC ISO4762-M08X025-10.9
0025 00000101016 SCREW ISO4014-M05X045-8.8 2 PCE
VIS H ISO4014-M05X045-8.8
0026 00000012440 SCREW CHC-M04X016-10.9 2 PCE
0031 00000083426 MALE UNION BSPP F4PB10-3/8 2 PCE
UNION MALE BSPP F4PB10-3/8
0032 00000013003 NUT ISO4032-M05-10 2 PCE
0033 00000086653 NUT EO2 FM08LCF 1 PCE
ECROU EO2 FM08LCF

Description OVEN WATER SYSTEM

Désignation CIRCUIT EAU FOUR AVEC POMPE
0000 01125099506 OVEN WATER SYSTEM 1 PCE
0001 01125114503 WATER COLLECTOR 1 PCE
COLLECTEUR EAU
0002 01127494901 HOSE ASSEMBLY PL837-06R 180 C512-C312-00 1 PCE
FLEXIBLE PL837-06R 180 C512-C312-00
0003 01133429001 HOSE PL837-06B 132 C512-C510-00@ 1 PCE
FLEXIBLE PL837-06B 132 C512-C510-00@
0004 01127487801 HOSE ASSEMBLY PL837-06R 143 C512-C510-00 1 PCE
FLEXIBLE PL837-06R 143 C512-C510-00
0005 01133428501 HOSE PL837-06B 120-C312-C512-00@ 1 PCE
FLEXIBLE PL837-06B 120-C312-C512-00@
0006 00000081576 MALE UNION GE12LREDOMDA3C 8 PCE
UNION MALE GE12LREDOMDA3C
0007 00000113142 CHECK STOP VALVE 301 005 3-4 2 PCE
CLAPET DE RETENUE 301 005 3-4
0008 00000127542 FLOWMETER 1 PCE
DEBITMETRE
0010 00000014046 WASHER ISO7089-08-200HV 2 PCE
0011 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0012 00000082433 UNION 24°-SWOSDS-L22-G3/4"-NBR 3 PCE
RACCORD 24°-SWOSDS-L22-G3/4"-NBR
TE EGAL T22LA3CX
0014 00000113462 CIRCULATOR SCX 32-80N§ 1 PCE
CIRCULATEUR SCX 32-80N§
0015 00000113465 ADAPTATION KITON RED 2634 G2/G1 VSB ST@ 1 PCE
KIT D'ADAPTATION RED 2634 G2/G1 VSB ST@
0016 00000085728 SOCKET UNION GAI42ZLRA3C 2 PCE
UNION FEMELLE GAI42ZLRA3C
0017 00000114554 UNEQUAL UNION GR42/28ZLA3C 1 PCE
UNION INEGALE GR42/28ZLA3C
0018 01127699401 WELDED TUBE 1 PCE
TUBE D28 SOUDE
0020 00000085807 MALE UNION GE28ZLREDA3C 2 PCE
UNION MALE GE28ZLREDA3C
0027 00000083126 EQUAL UNION G22LCFX 1 PCE
UNION EGALE G22LCFX

Description OVEN WATER SYSTEM

Désignation CIRCUIT EAU FOUR AVEC POMPE
0028 01127717701 HOSE PL837-12R 078 -C522-C322-00 1 PCE
FLEXIBLE PL837-12R 078 -C522-C322-00
0029 01130821801 HOSE PL837-12B 090 -C522-C522-0-90 1 PCE
FLEXIBLE PL837-12B 090 -C522-C522-0-90
0031 00000087080 SWIVELLING TEE EL28ZLA3C JV/V 1 PCE
TE ORIENTABLE EL28ZLA3C JV/V
0032 00000087907 TUBE REDUCTION RED28/22ZLA3C JV/V 1 PCE
REDUCTION TUBE RED28/22ZLA3C JV/V
0033 00000101126 NUT EO2 FM28LSSA 2 PCE
ECROU EO2 FM28LSSA
0034 00000083833 TUBE INOX D 28,0-EP2,0-1.4571 14 CM
TUBE INOX D 28,0-EP2,0-1.4571
0035 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 9 CM
TUBE INOX D 42,0-EP3,0-1.4571
0036 00000084505 TUBE INOX D 42,0-EP3,0-1.4571 20 CM
TUBE INOX D 42,0-EP3,0-1.4571
0037 00000101128 NUT EO2 FM42LSSA 4 PCE
ECROU EO2 FM42LSSA
0038 00000011421 NUT M42LCFX 1 PCE
ECROU M42LCFX
TE EGAL T42LA3CX
0040 00000082418 TUBE REDUCTION RED42/22LOMDCF 1 PCE
REDUCTION TUBE RED42/22LOMDCF
0041 01063593900 JOINT THROTTLE VALVE, JV/V 1 PCE
OBTURATEUR DE RACCORD JV/V

Description OVEN AIR SYSTEM

Désignation CIRCUIT AIR FOUR
0000 01125188002 OVEN AIR SYSTEM 1 PCE
CIRCUIT AIR FOUR
0001 00000083492 EQUAL TEE JPB14 1 PCE
TE EGAL JPB14
0002 00000086843 UNEQUAL COUPLING YJPK8 3 PCE
RACCORD INEGAL YJPK8
0003 00000087008 REDUCTION TR2PK 14-10 1 PCE
REDUCTION TR2PK 14-10
0004 00000086822 REDUCTION TR2PK 14-8 1 PCE
REDUCTION TR2PK 14-8

Description PREFORM FEED AIR JET

Désignation SOUFFLETTE ALIMENTATION PREFORME
0000 01124711402 PREFORM INFEED AIR JET 1 PCE
0002 00000053171 SOLENOID VALVE 106 00 258 24V-CC 1 PCE
ELECTROVANNE 106 00 258 24V-CC
0005 00000082965 EQUAL TEE JPB 08 1 PCE
TE EGAL JPB 08
0006 00000011522 SCREW ISO4762-M04X016-10.9 2 PCE
VIS CHC ISO4762-M04X016-10.9

Description FIXED GUIDE

Désignation GUIDE FIXE SORTIE FOUR
0000 01124179804 FIXED OVEN OUTFEED GUIDE 1 PCE
0001 01124178103 HOLDING COLUMN 2 PCE
COLONNE DE MAINTIEN
0002 00000011606 SCREW ISO4762-M08X050-10.9 1 PCE
VIS CHC ISO4762-M08X050-10.9
VIS MOLETEE POUR GUIDE FIXE
0007 00000011085 WASHER HEAD SCREW 1021-M 8X 40 2 PCE
VIS EPAULEE 1021-M 8X 40
0008 00000012043 SHOULDER KNURLED SCREW M 8X 35 1 PCE
VIS MOLETEE EPAULEE M 8X 35
CALE PELABLE
0012 01126790502 GUIDE HOLDING COLUMN 1 PCE
COLONNE DE MAINTIEN GUIDE

Description THRUST KIT

Désignation KIT BUTEE PORTE FOUR
0000 01126354003 OVEN DOOR THRUST 1 PCE
BUTEE PORTE FOUR
0001 01126355703 THRUST 1 PCE
BUTEE
0002 00000010034 SCREW ISO4017-M08X016-8.8 4 PCE
VIS H ISO4017-M08X016-8.8

Description FLOOR ALIMENTATION GM

Désignation PLANCHER ALIMENTATION GM
0000 01128371202 INFEED FLOOR 1 PCE
PLANCHER ALIMENTATION
0001 01128371502 INFEED FLOOR 1 PCE
PLANCHER D'ALIMENTATION
0002 01126970201 COVER PLATE 1 PCE
PLAQUE DE FERMETURE

Description EXTRACTOR Ø800 EQUIPE

Désignation EXTRACTEUR Ø800 EQUIPE
0000 01128403005 EXTRACTOR ASSEMBLY 1 PCE
0001 01128398902 EXTRACTOR SUPPORT 1 PCE
SUPPORT EXTRACTEUR Ø800
0002 00000118824 FAN AXALU AIR 80°C 800DT 1 PCE
VENTILATEUR AXALU AIR 80°C 800DT
0002 01133038702 REWORK DRAWING - FAN 1 PCE
PLAN DE REPRISE VENTILATEUR D800
0003 00000118812 NUT NOYE CYL LIS FR OUV M12 e1,7-3 8 PCE
ECROU NOYE CYL LIS FR OUV M12 e1,7-3
0005 00000011688 SCREW ISO4762-M12X030-12.9 8 PCE
VIS CHC ISO4762-M12X030-12.9
0009 00000105823 CHUTE UPS 24X27X1G+ COK27G 30 CM
GOULOTTE UPS 24X27X1G+ COK27G

Description RECUPERATION PREFORMS

Désignation BAC RECUPERATION PREFORMES MAL VETIES
0000 01128434601 MISLOADED PREF COLLECTING BIN 1 PCE
BAC RECUP PREF MAL VETIES
0001 01128430801 BIN SUPPORT 1 PCE
SUPPORT BAC
0003 00000117146 BIN 400X300X220-20L GREY 1 PCE
BAC 400X300X220-20L GREY

Description FIXED CHUTE

Désignation GOULOTTE FIXE
0000 01128483602 FIXED CHUTE 1 PCE
GOULOTTE FIXE
0001 01128483702 FIXED CHUTE 1 PCE
GOULOTTE FIXE

Description DEDUST INFEED SIDE

Désignation FACADE ALIM.DEPOUSSIERAGE
0000 01131492303 DEDUST INFEED SIDE 1 PCE
0001 01131499201 STRUCTURE 90X45 L=1528 1 PCE
0002 01127014001 STRUCTURE 1 PCE
0003 01131502501 STRUCTURE 1 PCE
0004 01131500201 STRUCTURE 1 PCE
0005 01128433501 STRUCTURE 90X45 2 PCE
STRUCTURE 90X45 CINTREE
0006 01128075501 STRUCTURE 2 PCE
STRUCTURE 1122170801 LG 1238,5 MM
0007 01128433701 STRUCTURE 1 PCE
0008 01128798901 STRUCTURE 3 PCE
0009 01128013401 STRUCTURE 3 PCE
0010 01127013601 STRUCTURE 1 PCE
0011 01128799101 STRUCTURE 1 PCE
0012 01124052201 STRUCTURE 1 PCE
0013 01131493901 QRCHED STRUCTURE 1 PCE
0014 01128433601 BRACKET 3 PCE
EQUERRE
0015 01128434501 BRACKET 2 PCE
EQUERRE
0016 01128434401 BRACKET 2 PCE
EQUERRE
0017 01128433901 BRACKET 1 PCE
EQUERRE
0018 01131496202 CONNECTION BRACKET 1 PCE
EQUERRE DE JONCTION
0019 01131495401 INFEED FLAP 1 PCE
BAVETTE ALIMENTATION
0020 01127072901 BRACKET 1 PCE
EQUERRE

Description DEDUST INFEED SIDE

Désignation FACADE ALIM.DEPOUSSIERAGE
0021 01128435101 STRIKE PLATE 1 PCE
GACHE
0022 01131495702 PANEL 1 PCE
PANNEAU
PANNEAU MOBILE BAS ALIM PREF
0024 01127285601 SCREEN 1 PCE
ECRAN ALIM
PANNEAU MOBILE HAUT ALIM PREF
0026 01131486402 DOOR 1 PCE
0027 01131384101 HINGE 2 PCE
0028 01131486803 DOOR 1 PCE
0029 01131384201 HINGE 2 PCE
0030 01128378902 PANEL 1 PCE
PANNEAU R650
0031 01131488201 PANEL 1 PCE
PANNEAU INFERIEURE DEPOUSSIERAGE EQUIPE
PIED EQUIPE
0033 01125982501 BRACKET 20 PCE
0034 01126040801 WASHER 2 PCE
RONDELLE
0035 01131506601 BRACKET 1 PCE
EQUERRE
0039 00000011522 SCREW ISO4762-M04X016-10.9 4 PCE
VIS CHC ISO4762-M04X016-10.9
VIS RLS M 8X 16/16 4-8 Z/B


Désignation PANNEAU MOBILE BAS ALIM PREF
PANNEAU MOBILE
0001 01126428502 PREFORM INFEED PANEL 1 PCE
PANNEAU ALIMENTATION PREFORME
0002 01127007301 EDGE 2 PCE
BORDURE 1122000601 LG 450 MM
0003 01127665501 EDGE 2 PCE
BORDURE 1122000601 LG 770 MM
0004 01124046401 EDGE 3 PCE
BORDURE 11220004 L=0111
0005 01124046501 EDGE 1 PCE
BORDURE 11220004 L=0066
0006 01122562901 EDGING 1 PCE
CHANT ARU ALIM
0007 01126122601 BRACKET 4 PCE
EQUERRE
0009 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9

Description SCREEN
Désignation ECRAN ALIM
0000 01127285001 FEEDER SCREEN 1 PCE
ECRAN ALIM
0001 01127283901 SCREEN 1 PCE
ECRAN
0002 01127284201 SCREEN 1 PCE
ECRAN GAUCHE
0003 01127284301 SCREEN BRACKET 2 PCE
EQUERRE ECRAN
0004 01127284501 SCREEN 1 PCE
ECRAN
0005 00000116893 FLUSH NUT MFO M 6-1.5/3 6 PCE
ECROU NOYE CYL MOL FR OUV M6 1,5-3
VIS RLS M 6X 20/20 4-8 Z/B
0008 00000013004 NUT ISO4032-M06-10 2 PCE


Désignation PANNEAU MOBILE HAUT ALIM PREF
PANNEAU MOBILE
0001 01126428702 PREFORM INFEED PANEL 1 PCE
PANNEAU ALIM. PREFORME
0002 01127007301 EDGE 2 PCE
BORDURE 1122000601 LG 450 MM
0003 01127665701 EDGE 2 PCE
BORDURE 1122000601 LG 400 MM
0008 01126122601 BRACKET 4 PCE
EQUERRE
0010 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9

Description DOOR
0001 01126432202 DOOR 1 PCE
PORTE
0002 01126054401 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126053401 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126740401 EDGE 1 PCE
BORDURE 1122000601 LG 1605 MM
0006 01126053201 DOOR WINDOW 1 PCE
VITRE PORTE
0007 01122000901 EDGE 3.092 MM
BORDURE 11220009 L 0622
0008 01127065401 EDGE 2 PCE
BORDURE 1122000801 LG 0504 MM
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0012 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0018 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0023 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description DOOR
Désignation PORTE CINTREE GAUCHE
0000 01131486903 DOOR 1 PCE
0001 01128369601 ARCHED DOOR 1 PCE
PORTE CINTREE
0003 01128370701 SEAL ARCHED EDGING 1 PCE
CHANT JOINT CINTRE
0004 01128370401 SEAL EDGE 1 PCE
CHANT JOINT
CHANT JOINT CINTRE
0006 01128369801 SEAL EDGE 1 PCE
CHANT JOINT
0007 01126740401 EDGE 1 PCE
BORDURE 1122000601 LG 1605 MM
0008 01128370801 ARCHED WINDOW EDGING 2 PCE
CHANT VITRE CINTREE
0009 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0010 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
VITRE CINTREE
0013 01122000901 EDGE 2.600 MM
BORDURE 11220009 L 0622
0014 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0017 00000012089 SCREW CHC-M04X012-12.9 2 PCE
0022 00000017779 CAM 1000-5046 1 PCE
CAME 1000-5046

Description DOOR
Désignation PORTE CINTREE GAUCHE
0024 01133587301 STRENGTHENING SHEET 1 PCE
TOLE DE RENFORT

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description PANEL
Désignation PANNEAU R650
0000 01128379002 PANEL 1 PCE
PANNEAU
0001 01128255101 PANEL 1 PCE
PANNEAU
0002 01126740401 EDGE 2 PCE
BORDURE 1122000601 LG 1605 MM
0003 01128379201 SEAL EDGE 1 PCE
CHANT JOINT
CHANT JOINT CINTRE
0005 01128379401 SEAL EDGE 1 PCE
CHANT JOINT
CHANT JOINT CINTRE
0007 01128379601 ARCHED WINDOW EDGING 2 PCE
CHANT VITRE CINTREE
0008 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0009 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
VITRE CINTREE
0012 01122000901 EDGE 2.530 MM
BORDURE 11220009 L 0622
0013 01128380302 REINFORCING BRACKET 1 PCE
EQUERRE DE RENFORT
EQUERRE DE RENFORT

Description PANEL
Désignation PANNEAU INFERIEURE DEPOUSSIERAGE EQUIPE
0000 01131488301 PANEL ASSEMBLY 1 PCE
PANNEAU INFERIEUR DEPOUSSIERAGE EQUIPE
0001 01131488501 PANEL 1 PCE
PANNEAU INFERIEUR DEPOUSSIERAGE
0002 00000011354 SCREW RLS M 8X 16/16 A2-70 11 PCE
VIS RLS M 8X 16/16 A2-70
0005 00000013554 NUT ISO4032-M08-10 6 PCE

Description OVEN LIFTING TOOL

Désignation OUTILLAGE DE LEVAGE FOUR 14-16-20M
0000 01131849501 OVEN LIFTING TOOL 1 PCE
0001 01127758202 OVEN TOOL 2 PCE
OUTILLAGE FOUR
0005 01127802605 TOOL 2 PCE
OUTILLAGE
0006 01127804202 TOOLS 1 PCE
OUTILLAGE
0007 01129186402 TOOL 2 PCE
OUTILLAGE ARRIERE
0009 00000011600 SCREW ISO4762-M08X020-10.9 14 PCE
VIS CHC ISO4762-M08X020-10.9

Description FLOOR
Désignation PLANCHER FOUR
0000 01132350301 OVEN FLOOR 1 PCE
PLANCHER FOUR
0001 01126795401 STRUCTURE 3 PCE
STRUCTURE 90x45 LG 1464 MM
0002 01132354301 FLOOR 1 PCE
PLANCHER FOUR F801040080
0003 01125982501 BRACKET 6 PCE
VIS RLS M 8X 25/25 4-8 Z/B
0006 00000014309 WASHER ISO7093-1-08-200HV 8 PCE

Description ELECTRICAL CHUTE

Désignation GOULOTTE ELECTRIQUE DEPOUSSIERAGE
0000 01131569201 ELECTRICAL CHUTE 1 PCE
0001 01129999001 ELBOW 1 PCE
COUDE
0002 01128399802 SELF-SUPPORTING CHUTE 1 PCE
GOULOTTE AUTOPORTEE
0003 01128400902 CHUTE 1 PCE
GOULOTTE GBS4 99GS
0004 01131569501 CHUTE 1 PCE
GOULOTTE GBS4 99
0005 01128409901 CHUTE 1 PCE
GOULOTTE GBS4 99GS
0006 01128410301 CHUTE 1 PCE
GOULOTTE GBS4 99GS
0007 01128411401 CHUTE 1 PCE
GOULOTTE GBS2 99GS
0008 01128411501 CHUTE 1 PCE
GOULOTTE GBS2 99GS
0009 01131570001 CHUTE 1 PCE
GOULOTTE GBS2 99
0010 01128414401 CHUTE SUPPORT 2 PCE
SUPPORT GOULOTTE
0011 01128405502 COVER 1 PCE
COUVERCLE CR99GS
0012 01131570501 CHUTE COVER 1 PCE
COUVERCLE GOULOTTE
0013 00000102474 BOLT TRCC M 6X 12 204161 8 PCE
BOULON TRCC M 6X 12 204161
0016 00000010035 SCREW ISO4017-M08X020-8.8 2 PCE
VIS H ISO4017-M08X020-8.8
0017 00000013554 NUT ISO4032-M08-10 2 PCE
0018 00000118665 ELBOW COVER 90° GBS4 1 PCE
COUVERCLE COUDE 90° GBS4
0019 00000118651 CHUTE COVER CR195 56 CM
COUVERCLE GOULOTTE CR195
0020 00000118966 CHUTE COVER CR99§ 334 CM
COUVERCLE GOULOTTE CR99§

Description OVEN INITIALIZATION

Désignation INITIALISATION FOUR
0000 01124348402 OVEN INITIALIZATION 1 PCE
INITIALISATION FOUR
SUPPORT CAPTEUR
0002 00000010015 SCREW ISO4017-M05X016-8.8 2 PCE
VIS H ISO4017-M05X016-8.8
0004 00000116735 SCREW ISO4017-M05X008-8.8 1 PCE
VIS H ISO4017-M05X008-8.8
0005 00000013096 WASHER CS-Z05-5,1X10X1-A2 1 PCE
RONDELLE CS-Z05-5,1X10X1-A2

Description TEMPERATURE PROBE §

Désignation SONDE DE TEMPERATURE §
0000 01124348702 TEMPERATURE PROBE § 1 PCE
0001 01071604202 PROBE SUPPORT 1 PCE
SUPPORT SONDE
RONDELLE SUPPORT SONDE
0003 00000011689 SCREW ISO4762-M12X065-12.9 1 PCE
VIS CHC ISO4762-M12X065-12.9
0004 00000013217 NUT DIN 985-M12-05 1 PCE

Description CAMERA SUPPORT IR

Désignation SUPPORT CAMERA IR
0000 01124343503 IR CAMERA 1 PCE
CAMERA IR
0001 01119122103 CAMERA SUPPORT 1 PCE
SUPPORT CAMERA
0002 01119122202 SUPPORT RING 1 PCE
BAGUE SUPPORT
0005 00000011567 SCREW ISO4762-M06X045-10.9 1 PCE
VIS CHC ISO4762-M06X045-10.9
0006 00000011863 SCREW ISO4762-M06X012-12.9 4 PCE
VIS CHC ISO4762-M06X012-12.9

Description CONNECTION PROFIBUS STANDARD 20/24

Désignation LIAISON PROFIBUS STANDARD 20/24
0020 00000112696 CABLE ECOFAST PRECON. L=0,6M HARTING 21 PCE
CABLE ECOFAST PRECON. L=0,6M HARTING
0040 00000112695 CABLE ECOFAST PRECON. L=2M HARTING 1 PCE
CABLE ECOFAST PRECON. L=2M HARTING

Description OVEN PLUG WIRING

Désignation CABLAGE PRISE FOUR
0000 01131440801 OVEN PLUG WIRING 1 PCE
CABLAGE PRISE FOUR
0010 01125414302 BASE PLATE 1 PCE
PLATINE POUR P-E
0020 00000030006 WIRE H07V-K 2,5MM2 (BK) 4.582 CM
CABLE H07V-K 2,5MM2 (BLACK)
0030 00000030001 CABLE H07V-K 2,5MM2 (G/Y) 194 CM
CABLE H07V-K 2,5MM2 (G/Y)
0040 00000112485 SHEATH DI=21 DE=26,4 STEEL 174 CM
GAINE DI=21 DE=26,4 STEEL
0050 00000112482 STRAIGHT FITTING M25 LAITON 2 PCE
RACCORD DROIT M25 LAITON
0060 00000110580 CHECK-NUT ISO M25 LAITON 1 PCE
CONTRE-ECROU ISO M25 LAITON
0070 00000112483 RETAINING CLIP 642554 CAPRI 1 PCE
CLIP DE MAINTIEN 642554 CAPRI
0080 01134801301 COVER ISO25 19300160446 HARTING @ 1 PCE
CAPOT ISO25 19300160446 HARTING @
0090 00000110439 PLUG 09320323001 HARTING 1 PCE
PRISE MALE 09320323001 HARTING
0100 00000109287 PIN CONNECTOR 09330006102 HARTING 18 PCE
CONNECTEUR MALE 09330006102 HARTING
0110 00000030492 TERMINAL BLOCK 2C 10POLES PAS7 4MM2 2 PCE
BORNIER 2C 10POLES PAS7 4MM2
0120 00000117058 TERMINAL LUG XCT 2,5-6 SIMEL 1 PCE
COSSE XCT 2,5-6 SIMEL

Sous-ensemble 01132643401 Index EVM0
Description OVEN VENTILATION MOTOR BOX

Désignation COFFRET MOTEURS VENTILATION FOURS
0000 01132643201 BOX MOTEURS VENTIL. FOURS-IMPLANT 1 PCE
COFFRET MOTEURS VENTIL. FOURS-IMPLANT
0010 01132702901 BOX 1 PCE
0135 00000132129 AMPLIFIER M40/M50 LAITON 1 PCE
AMPLIFICATEUR M40/M50 LAITON
0140 00000109703 CAP ISO M16 GREY 6 PCE

Sous-ensemble 01132643701 Index EVM3
Description BOX MOTEURS RH28M VENTIL FOURS

Désignation COFFRET MOTEURS RH28M VENTIL FOURS

Description SIDE RAIL ASSEMBLIES

Désignation LONGERONS EQUIPES 24M
0000 01129248703 BAR ASSEMBLY 1 PCE
0001 01129252702 INLET SIDE-BAR 1 PCE
LONGERON 24M ENTREE
0002 01129252902 SIDE RAIL 1 PCE
LONGERON 24M SORTIE
0003 01123995101 RAMP 1 PCE
RAMPE RETOURNEMENT ENTREE
0004 01123995301 RAMP 1 PCE
RAMPE RETOURNEMENT SORTIE
0005 01124304003 COUNTER-SLIDE 2 PCE
CONTRE-GLISSIERE
0006 01124304604 SLIDE 2 PCE
GLISSIERE
0007 01126273504 CENTRAL ROLLER GUIDE 1 PCE
GUIDE GALET CENTRAL LG 425 SORTIE
0008 01128327901 EXTERNAL REAR SLIDE 2 PCE
GLISSIERE ARRIERE EXTERIEURE 6M
GUIDE GALET ARRIERE 6M
0010 01124305803 SLIDE 2 PCE
GLISSIERE
0011 01128328501 INTERNAL REAR SLIDE 2 PCE
GLISSIERE ARRIERE INTERIEURE 6M
0012 01124344702 SKID SUPPORT 2 PCE
SUPPORT PATIN
0013 01124306703 INLET SKID 1 PCE
PATIN ENTREE
0014 01124306903 OUTLET SHOE 1 PCE
PATIN SORTIE
0015 01129253701 SLIDE SUPPORT 2 PCE
SUPPORT GLISSIERE USINE
0016 01129253001 SET OF SHIMS 4 PCE
CALE PELABLE
0017 01124304301 SLIDE SPACER 4 PCE
ENTRETOISE DE GLISSIERE
0018 01124306001 INLET SLIDE 1 PCE
GLISSIERE ENTREE
0019 01124306101 OUTFEED SLIDE 1 PCE
GLISSIERE SORTIE
0020 01124306802 INLET SHOE 1 PCE
PATIN ENTREE


0022 00000010037 SCREW ISO4017-M08X030-8.8 26 PCE
VIS H ISO4017-M08X030-8.8
0024 00000011037 SCREW ISO4014-M08X065-8.8 4 PCE
VIS H ISO4014-M08X065-8.8
0025 00000011603 SCREW ISO4762-M08X035-10.9 6 PCE
VIS CHC ISO4762-M08X035-10.9
0026 00000011601 SCREW ISO4762-M08X025-10.9 8 PCE
VIS CHC ISO4762-M08X025-10.9
0027 00000011600 SCREW ISO4762-M08X020-10.9 2 PCE
VIS CHC ISO4762-M08X020-10.9
0028 00000012552 SCREW ISO10642-M06X016-10.9 2 PCE
VIS FHC ISO10642-M06X016-10.9
0030 00000011562 SCREW ISO4762-M06X020-10.9 10 PCE
VIS CHC ISO4762-M06X020-10.9
0032 00000011697 SCREW ISO4762-M16X050-10.9 8 PCE
VIS CHC ISO4762-M16X050-10.9
0034 00000011604 SCREW ISO4762-M08X040-10.9 8 PCE
VIS CHC ISO4762-M08X040-10.9
0035 00000013322 NUT NYL M 8 -8 Z/B 8 PCE
0036 00000013554 NUT ISO4032-M08-10 2 PCE
GUIDE GALET
0038 01128695902 BOX SUPPORT 1 PCE
SUPPORT CAISSON COTE ENTREE
0039 00000011563 SCREW ISO4762-M06X025-10.9 4 PCE
VIS CHC ISO4762-M06X025-10.9
0041 01124284605 BOX SUPPORT 1 PCE
SUPPORT CAISSON COTE SORTIE


0042 01127936901 SKID 1 PCE
PATIN
0043 00000011547 SCREW ISO4762-M05X040-10.9 1 PCE
VIS CHC ISO4762-M05X040-10.9
0045 00000013003 NUT ISO4032-M05-10 1 PCE
0046 01129253901 TIGHTENING PLATE 4 PCE
PLAQUE DE SERRAGE

Description FRAME
Désignation CHASSIS INF POUR COFFRETS 24M
0000 01128349606 BOX FRAME 1 PCE
0002 01131775901 HALF-FRAME 1 PCE
DEMI-CHASSIS INF SBO24 ENTREE
0004 01132163601 CROSS-BAR 4 PCE
TRAVERSE SUR CHASSIS COFFRET
0005 01131777901 HALF-FRAME 1 PCE
DEMI-CHASSIS INF SBO24 SORTIE
0008 00000013004 NUT ISO4032-M06-10 72 PCE
0011 01128449704 INFEED CABLE TRAY 1 PCE
CHEMIN DE CABLE COTE ENTREE AV 24M
0012 01128449503 INFEED CHUTE SUPPORT 1 PCE
SUPPORT GOULOTTE ENTREE
0013 01132182201 FRAME SUPPORT 6 PCE
SUPPORT CHASSIS
0015 00000096540 ELASTIC STUD D20-H20-M6 48 PCE
PLOT ELASTIQUE D20-H20-M6
0020 00000011562 SCREW ISO4762-M06X020-10.9 24 PCE
VIS CHC ISO4762-M06X020-10.9
0021 00000011601 SCREW ISO4762-M08X025-10.9 10 PCE
VIS CHC ISO4762-M08X025-10.9
0022 00000013007 NUT ISO4032-M10-10 30 PCE
0024 00000011083 SCREW M10X030-12.9 26 PCE
0025 01128449604 OUTFEED CHUTE SUPPORT 1 PCE
SUPPORT GOULOTTE SORTIE
VIS RLS M 8X 16/16 4-8 Z/B
0030 01128449904 CABLE TRAY 1 PCE
CHEMIN DE CABLES COTE SORTIE AV 24M
0033 01128450102 CABLE TRAY COVER ASSEMBLY 3 PCE
COUVERCLE CHEMIN DE CABLES EQUIPE 24M
0036 01124925703 SUPPORT LUG 24 PCE
PATTE SUPP. SUR COFFRET

Description FRAME
Désignation CHASSIS INF POUR COFFRETS 24M
0037 00000011781 SCREW CHC M 6X 16/16 CL.12-9 24 PCE
VIS CHC M 6X 16/16 CL.12-9
EQUERRE DE RENFORT
0041 00000011623 SCREW ISO4762-M10X035-10.9 4 PCE
VIS CHC ISO4762-M10X035-10.9
0042 01132182001 CROSS-BAR 1 PCE
TRAVERSE SUP SUR CHASSIS COFFRET
0044 01132264001 BOX FRAME SUPPORT 1 PCE
SUPPORT CHASSIS COFFRET
0045 01129841602 BRACKET 1 PCE
EQUERRE
0046 01128450404 INFEED CABLE TRAY 1 PCE
CHEMIN DE CABLE COTE ENTREE AR 24M
0047 01128450604 CABLE TRAY 1 PCE
CHEMIN DE CABLES COTE SORTIE AR 24M
0048 00000108314 FOOT CR1516 150M16X200 2 PCE
PIED CR1516 150M16X200
0049 01128450002 CABLE TRAY COVER ASSEMBLY 1 PCE
COUVERCLE CHEMIN DE CABLES EQUIPE 24M
0052 00000011559 SCREW ISO4762-M05X012-10.9 2 PCE
VIS CHC ISO4762-M05X012-10.9
0053 00000013003 NUT ISO4032-M05-10 2 PCE
SUPPORT SUP CHASSIS COTE ENTREE
SUPPORT SUP CHASSIS COTE SORTIE

Description SPINDLE
Désignation TOURNETTE 50
0000 01125560809 SNAP HEAD SPINDLE 1 PCE
TOURNETTE BOUTEROLLEE
0001 01131773501 PIVOT 1 PCE
PIVOT PAS DE 50
0006 01128835303 BAYONET RING 2 PCE
BAGUE BAIONNETTE
0007 00000020041 O-RING _29,00X 3,00 SH70 NIT 2 PCE
0008 01128896501 SPRING 2 PCE
RESSORT
0009 01135548101 RING 2 PCE
BAGUE
0010 01125465203 LINK WITH PIN 1 PCE
MAILLON AVEC AXE
0011 01135990301 PINION FASTENING 1 PCE
0015 01124350303 SLEEVE 2 PCE
FOURREAU
0017 00000109521 BALL-BEARING ROLLER 1 PCE
GALET A BILLES
0019 01126240502 BUSHING 4 PCE
COUSSINET

Description PIVOT
Désignation PIVOT PAS DE 50
0000 01131770801 PIVOT 1 PCE
PIVOT PAS DE 50
0001 01125270702 CONVEX LINK § 1 PCE
OSSELET CUVETTE BOUTEROLLE §
0002 00000114657 BALL-BEARING 7200 BE-2RS 1 PCE
ROULEMENT A BILLES 7200 BE-2RS
0003 01125563504 SNAP HEAD PIN 1 PCE
AXE BOUTERELOLLE
0004 01125271003 SNAPPED CONCAVE LINK § 1 PCE
OSSELET COUPELLE BOUTEROLE §
0005 00000001241 SELF-LUB.RING PCMF 182012 E 4 PCE
BAGUE AUTOLUB. PCMF 182012 E
0006 01125572501 SPACER 1 PCE
ENTRETOISE

Description PINION FASTENING

Désignation SERTISSAGE PIGNON BAS
0001 01135990701 SPINDLE PIN§ 1 PCE
AXE TOURNETTE§
0002 01124352802 PINION§ 1 PCE
PIGNON 08B1 Z=12§

Désignation SERTISSAGE PIGNON BAS
0001 01124352802 PINION§ 1 PCE
PIGNON 08B1 Z=12§
0002 01135990701 SPINDLE PIN§ 1 PCE
AXE TOURNETTE§


Désignation SERTISSAGE PIGNON HAUT
0001 01135990701 SPINDLE PIN§ 1 PCE
AXE TOURNETTE§
0002 01124352802 PINION§ 1 PCE
PIGNON 08B1 Z=12§

Désignation SERTISSAGE PIGNON HAUT
0001 01124352802 PINION§ 1 PCE
PIGNON 08B1 Z=12§
0002 01135990701 SPINDLE PIN§ 1 PCE
AXE TOURNETTE§

Description GUIDE AND ROTATION CHAIN

Désignation GUIDE ET CHAINE DE ROTATION
0000 01128170603 GUIDE AND ROTATION CHAIN 1 PCE
GUIDE ET CHAINE DE ROTATION 24M
0001 01128173803 CHAIN GUIDE 4 PCE
GUIDE CHAINE 24M
0002 00000118732 CHAIN ISO606-08B1 916M 2 PCE
CHAINE ISO606-08B1 916M
0003 00000106258 SCREW H-M06X025-8.8 60 PCE
VIS H-M06X025-8.8
0005 00000013004 NUT ISO4032-M06-10 60 PCE

Description LAMPS
Désignation LAMPES PHILIPS
0000 01074175001 IR LAMP 1 PCE
LAMPE IR PHILIPS
0001 00000035746 LAMP IR 3000W 400V @ 1 PCE
LAMPE IR 3000W 400V @
0002 00000035741 LAMP IR 2500W 400V @ 8 PCE
LAMPE IR 2500W 400V @

Description IR OVEN KIT 6 MODULES

Désignation FOUR IR KIT 6 MODULES
0000 01126485706 IR OVEN 1 PCE
0001 01125369204 RACK 14 PCE
RATELIER
0002 01126484801 RACK SUPPORT TUBE 2 PCE
TUBE SUPPORT RATELIER 6M LC
0003 01132389501 ADJUSTMENT BLOCK 4 PCE
BLOC DE REGLAGE
0004 01131969301 SHIM 192 PCE
CALE
0006 01124485301 RACK COVER 14 PCE
COUVERCLE RATELIER
0007 01124262103 SHIM 14 PCE
CALE
0008 01124256401 RULER 4 PCE
REGLET
0009 01124248502 PIN 4 PCE
AXE
0010 01124263401 COVER THRUST 14 PCE
BUTEE COUVERCLE
TOLE DE FERMETURE RATELIER
0013 01124598206 SUPPORT 12 PCE
SUPPORT
0014 01124291002 BRACKET 4 PCE
EQUERRE
0015 01124486701 WASHER 4 PCE
RONDELLE
CARTER DE PROTECTION LAMPES IR
VIS DE REGLAGE
0018 00000052875 END-PIECE CARRE GNP 260 Q 8080 2 PCE
EMBOUT CARRE GNP 260 Q 8080
0019 01069837701 KNURLED NUT 4 PCE
ECROU MOLETE
TOLE DE FERMETURE RATELIER
0021 00000017938 LOCKING NUT 99N10-01A1 14 PCE
ECROU DE BLOCAGE 99N10-01A1
0022 00000010319 SCREW ISO4017-M10X035-8.8 4 PCE
VIS H ISO4017-M10X035-8.8

Description IR OVEN KIT 6 MODULES

Désignation FOUR IR KIT 6 MODULES
0028 00000011601 SCREW ISO4762-M08X025-10.9 8 PCE
VIS CHC ISO4762-M08X025-10.9
0029 00000017866 RETAINING WASHER 2600-SW 14 PCE
RONDELLE DE RETENUE 2600-SW
0030 00000017834 CLOSING PIN 99S10-07A1 14 PCE
AXE DE FERMETURE 99S10-07A1
0031 00000017964 RECEPTACLE 99R10-01A1 14 PCE
RECEPTACLE 99R10-01A1
0033 00000011562 SCREW ISO4762-M06X020-10.9 16 PCE
VIS CHC ISO4762-M06X020-10.9
0034 00000011602 SCREW ISO4762-M08X030-12.9 28 PCE
VIS CHC ISO4762-M08X030-12.9
0035 00000013007 NUT ISO4032-M10-10 4 PCE
0036 00000010418 SCREW CLS ISO1580-M03X005-4.8 8 PCE
VIS CLS ISO1580-M03X005-4.8
0037 00000017870 DISENGAGEABLE HANDLE MR.63P-M 8X20 41511 4 PCE
POIGNEE DEBRAY. MR.63P-M 8X20 41511
0039 00000014499 WASHER DIN2093-A-012.5X006.2X00.7 8 PCE
RONDELLE DIN2093-A-012.5X006.2X00.7
0040 00000012492 SCREW CLS ISO1481-ST3,5X16-C Z/B 48 PCE
VIS CLS ISO1481-ST3,5X16-C Z/B

Description RACK
Désignation RATELIER
0000 01124201004 RACK 1 PCE
RATELIER
0001 01124200704 RACK § 1 PCE
RATELIER COQUILLE GAUCHE §
0002 01124213704 RACK § 1 PCE
RATELIER COQUILLE DROIT E §
0003 00000013552 NUT ISO4032-M05-A4-70 1 PCE
ECROU H ISO4032-M05-A4-70

Description EQUIPPED REFLECTOR

Désignation REFLECTEUR EQUIPEE SANS POUSSOIR
0000 01131309302 REFLECTOR ASSY WITHOUT THRUST 1 PCE
REFLECTEUR EQUIPE SANS POUSSOIR
0001 01131309402 REFLECTOR SUPPORT WITHOUT THRUST 1 PCE
SUPPORT REFLECTEUR SANS POUSSOIR
0002 01124872802 REFLECTOR§ 1 PCE
REFLECTEUR§

Description RAMP
Désignation RAMPE 6 MODULES EQUIPE
0000 01126492802 RAMP 1 PCE
0001 01124747401 SHIM POUR RAMPE 4 MODULES 14 PCE
CALE POUR RAMPE 4 MODULES
0002 01126493002 RAMP 1 PCE
RAMPE 6 MODULES
0003 00000010022 SCREW ISO4017-M05X035-8.8 7 PCE
VIS H ISO4017-M05X035-8.8
0004 00000082327 MALE ELBOW 90 XWE 12 LR 2 PCE
COUDE MALE 90 XWE 12 LR

Description GRIP ASSEMBLY SUPPORT STUD

Désignation PLOT SUPPORT PINCE EQUIPE
0000 01128240901 GRIP ASSEMBLY SUPPORT STUD 1 PCE
0001 01128232501 GRIP SUPPORT STUD 1 PCE
PLOT SUPPORT PINCE
0002 01061449801 LAMP HOLDER (GRIPPER) 1 PCE
PINCE DIA.10
0003 01128237001 WASHER 1 PCE
RONDELLE
0004 00000014369 WASHER ISO7093-1-04-200HV 2 PCE
0005 00000010008 SCREW ISO4017-M04X020-8.8 1 PCE
VIS H ISO4017-M04X020-8.8
0006 00000013002 NUT ISO4032-M04-10 3 PCE
0007 00000010496 SCREW ISO4017-M03X016-8.8 1 PCE
VIS H ISO4017-M03X016-8.8
0008 00000014198 WASHER DEC M03 DIN6798 1 PCE
RONDELLE DEC M03 DIN6798
0009 00000013518 KNURLED NUT EPAULE 16-070-3 1 PCE
ECROU MOLETE EPAULE 16-070-3
0011 01128236601 SHIM 1 PCE
CALE PASSE FIL

Description HEATING BOX

Désignation CAISSON DE CHAUFFE 6 MODULES
0000 01129249004 HEATING BOX ASSEMBLY 1 PCE
CAISSON CHAUFFE EQUIPE 6 MODULES
0001 01124284605 BOX SUPPORT 7 PCE
SUPPORT CAISSON COTE SORTIE
GUIDE GALET 6M
0003 01128695902 BOX SUPPORT 7 PCE
SUPPORT CAISSON COTE ENTREE
0004 01126481901 INFEED SLIDE 1 PCE
GLISSIERE EXTERIEURE ENTREE 6M
0005 01124272806 ADJUSTMENT BLOCK SUPPORT 4 PCE
SUPPORT BLOC DE REGLAGE
0006 01126482101 OUTFEED SLIDE 1 PCE
GLISSIERE EXTERIEURE SORTIE 6M
0007 01126481601 SLIDE 2 PCE
GLISSIERE INTERIEURE 6M
0008 00000011563 SCREW ISO4762-M06X025-10.9 28 PCE
VIS CHC ISO4762-M06X025-10.9
0009 00000013554 NUT ISO4032-M08-10 4 PCE
0010 00000010037 SCREW ISO4017-M08X030-8.8 24 PCE
VIS H ISO4017-M08X030-8.8
0011 00000127778 CAP BOLT 05260-081 4 PCE
VIS A EMBOUT 05260-081
0015 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9
0016 00000012854 DISENGAGEABLE HANDLE MR.40P-M06X20 4 PCE
ORANG
POIGNEE DEBRAY. MR.40P-M06X20 ORANG
0017 00000011604 SCREW ISO4762-M08X040-10.9 14 PCE
VIS CHC ISO4762-M08X040-10.9

Description VENTILATION MODULE

Désignation MODULE DE VENTILATION 6M
0000 01131282005 VENTILATION MODULE 1 PCE
0001 01123844002 BOX INSERT 7 PCE
INTERCALAIRE CAISSON
0002 01133162101 BOX SPACER 24 PCE
ENTRETOISE CAISSON
0003 01126510001 COOLING RAMP 2 PCE
RAMPE DE REFROIDISSEMENT 6M LC
0004 01131286502 ADJUSTABLE FLAP 2 PCE
VOLET REGLABLE
0005 01126387901 REWORK DRAWING - MALE UNION 4 PCE
PLAN DE REPRISE UNION MALE
0006 01124246502 REFLECTOR SLIDE 14 PCE
GLISSIERE REFLECTEUR
0007 01124247501 REFLECTOR 12 PCE
REFLECTEUR
0008 01124247401 REFLECTOR 12 PCE
REFLECTEUR
0009 01124263301 ADJUSTING WASHER 4 PCE
RONDELLE DE REGLAGE RAMPE
0010 01133572602 BOX SUPPORT 2 PCE
SUPPORT COFFRET FOUR
0011 01130802201 RAMP SHIM 6 PCE
CALE RAMPE
0012 00000014097 SPLINED PIN GO7 _4X24 Z/B 8 PCE
GOUPILLE CANNELEE GO7 _4X24 Z/B
0013 00000010066 SCREW ISO4017-M12X025-8.8 50 PCE
VIS H ISO4017-M12X025-8.8
0014 00000100908 SCREW CHC-M10X060/060-10.9 4 PCE
VIS CHC-M10X060/060-10.9
0015 00000013007 NUT ISO4032-M10-10 4 PCE
0016 00000013043 NUT ISO4035-M10-05 4 PCE
0017 00000014050 WASHER ISO7089-12-200HV 4 PCE

Description VENTILATION MODULE

Désignation MODULE DE VENTILATION 6M
0024 00000035905 ELECTRICAL CHUTE GM610 51X24 328 CM
GOULOTTE ELECTRIQUE GM610 51X24
0025 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9
0027 00000011599 SCREW ISO4762-M08X016-10.9 4 PCE
VIS CHC ISO4762-M08X016-10.9

Description VENTILATION KIT

Désignation KIT VENTILATION MONO TURBINE
0000 01131255104 VENTILATION KIT 1 PCE
0001 01131257904 FLANK 2 PCE
FLANC
0002 01131258501 DEFLECTOR SHEET 1 PCE
TOLE DEFLECTEUR
0003 01131258802 FAN SHEET METAL PLATE 1 PCE
TOLE VENTILATEUR
0004 00000094065 MOTOR TURBINE RH 28M 2DK 3F 1R 1 PCE
MOTOTURBINE RH 28M 2DK 3F 1R
0005 00000128556 CLAMP COLLAR 594-6X19D S=18,5 2 PCE
COLLIER ETRIER 594-6X19D S=18,5
0006 00000116111 PROTECTION EDGE 1010-10 30 CM
BORDURE DE PROTECTION 1010-10
0007 00000125924 BLIND RIVET POP 4,0X 8 ALU S=4 24 PCE
RIVET AVEUGLE POP 4,0X 8 ALU S=4
0009 00000010019 SCREW ISO4017-M06X012-8.8 4 PCE
VIS H ISO4017-M06X012-8.8
0010 00000013287 WING NUT M 6 ZING/BIC 2 PCE
ECROU A OREILLES M 6 ZING/BIC

Description OVEN WATER SYSTEM HOSE

Désignation FLEXIBLE CIRCUIT EAU FOUR 24 MODULE
0000 01129886902 OVEN WATER HOSE 1 PCE
FLEXIBLE EAU FOUR 24 MODULES
0001 01126347301 HOSE ASSEMBLY PL837-06R 053-C510-C510-00 1 PCE
FLEXIBLE PL837-06R 053-C510-C510-00
0002 01008425700 HOSE PL837-06R 053-C312-C312-00 1 PCE
FLEXIBLE PL837-06R 053-C312-C312-00
0003 01129888901 HOSE 1 PCE
FLEXIBLE PL837-06B 807-C512-C312-00@
0004 01133481601 HOSE 1 PCE
FLEXIBLE PL837-06R 777-C512-C510-00@
0005 01133483201 HOSE 1 PCE
FLEXIBLE PL837-06R 777-C312-C512-00@
0006 01129889001 HOSE 1 PCE
FLEXIBLE PL837-06B 777-C512-C510-00@
0007 01133465201 HOSE PL837-06B 053-C510-C510-00@ 1 PCE
FLEXIBLE PL837-06B 053-C510-C510-00@
0008 01133465101 HOSE PL837-06B 053-C312-C312-00@ 1 PCE
FLEXIBLE PL837-06B 053-C312-C312-00@

Description EXTRACTION HOOD

Désignation HOTTE D'EXTRACTION 24M
0000 01130562404 HOOD 1 PCE
HOTTE VERSION LONGUE
0001 01130554302 SHEET METAL PLATE 2 PCE
TOLE EMBOUT HOTTE GR
0002 01130500304 SHEET METAL PLATE 1 PCE
TOLE MILIEU HOTTE
0003 01129897701 STRUCTURE 8 PCE
0005 00000011562 SCREW ISO4762-M06X020-10.9 8 PCE
VIS CHC ISO4762-M06X020-10.9
0007 01132944901 BRACKET 8 PCE
EQUERRE
0008 01125982501 BRACKET 8 PCE
0009 00000013004 NUT ISO4032-M06-10 8 PCE
0010 00000105823 CHUTE UPS 24X27X1G+ COK27G 269 CM
GOULOTTE UPS 24X27X1G+ COK27G

Désignation FACADE ARRIERE FOUR 24M
0000 01131392903 OVEN SIDE 1 PCE
0001 01129369401 STRUCTURE 2 PCE
0003 01127014001 STRUCTURE 1 PCE
0004 01127013601 STRUCTURE 3 PCE
0005 01129998601 STRUCTURE 90X45 L=2330 2 PCE
0008 01129998301 STRUCTURE 90X45 L=0786 1 PCE
0009 01131384101 HINGE 5 PCE
0010 01131384201 HINGE 6 PCE
0012 01125991601 HINGE 1 PCE
0013 01131380002 OVEN DOOR 1 PCE
PORTE FOUR 0870 GAUCHE EQUIPEE
0014 01131391802 OVEN DOOR 2 PCE
0015 01131390901 OVEN DOOR 2 PCE
0017 01131729902 HEAT OVEN UPRIGHT ASSEMBLY 1 PCE
0018 01129989301 PANEL 1 PCE
0019 01129924001 PANEL 2 PCE
0020 01133585901 OVEN FLAP 1 PCE
BAVETTE FOUR
0021 01133586001 OFENGUMMILAPPEN 1 PCE
BAVETTE FOUR
PIED EQUIPE
0025 01125982501 BRACKET 17 PCE

Désignation FACADE ARRIERE FOUR 24M
0028 00000011522 SCREW ISO4762-M04X016-10.9 4 PCE
VIS CHC ISO4762-M04X016-10.9
0030 01126040801 WASHER 5 PCE
RONDELLE

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description OVEN DOOR

Désignation PORTE FOUR 0870 GAUCHE EQUIPEE
0000 01131379902 OVEN DOOR ASSEMBLY 1 PCE
PORTE FOUR GAUCHE EQUIPEE
0001 01126249102 OVEN DOOR 1 PCE
PORTE FOUR
0002 01126169301 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126169201 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126740401 EDGE 1 PCE
BORDURE 1122000601 LG 1605 MM
0006 01126754201 EDGE 2 PCE
BORDURE 1122000801 LG 0674 MM
0007 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0008 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0010 01126170601 OVEN DOOR WINDOW 1 PCE
VITRE PORTE FOUR
0011 01122000901 EDGE 3.432 MM
BORDURE 11220009 L 0622
0012 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0018 00000017448 CAM 1000-26 1 PCE
CAME 1000-26
0020 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9
0021 00000113859 ADHESIVE FILM CS PANTHER 5 NOIR 3M 65 CM
FILM ADHESIF CS PANTHER 5 NOIR 3M


Désignation PORTE FOUR 6M DROITE EQUIPEE
0001 01128323301 OVEN DOOR 1 PCE
PORTE FOUR 6M DROITE
0002 01128323201 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01128323101 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127492501 DOOR EDGE 1 PCE
BORDURE PORTE
0006 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0008 01126172303 LOCK 1 PCE
0010 01131405801 CHUTE 1 PCE
GOULOTTE LG 1045
0015 01131405901 PROTECTION 1 PCE

Description LOCK
Désignation VERROU 3 POINTS PORTE FOUR
0000 01126172603 LOCK 1 PCE
0001 01126637201 ROLLER ROD 1 PCE
0002 01126172402 ROLLER ROD 1 PCE
TRINGLE GALET INF
0004 00000017435 ROD GUIDE 1001 U11 4 PCE
0005 00000017436 ADAPTER 1000-U 49 2 PCE
0006 00000106957 CAM 1000-U 27 1 PCE
CAME 1000-U 27
0007 00000012502 SCREW ISO4026-M06X025-45H 4 PCE


Désignation PORTE FOUR 6M GAUCHE EQUIPEE
0000 01131390801 OVEN DOOR 1 PCE
0001 01128323001 OVEN DOOR 1 PCE
PORTE FOUR 6M GAUCHE
0002 01128323201 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01128323101 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126192102 DOOR STOP 1 PCE
BUTEE PORTE FOUR GAUCHE 4M
0006 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR

Description HEAT OVEN UPRIGHT ASSEMBLY

Désignation BATTANT FOUR RECUP EQUIPE
0000 01131727402 BATTEN 1 PCE
0001 01131729402 OVEN PLATE 1 PCE
PANNEAU FOUR
0002 01126254601 OVEN BATTEN EDGE 1 PCE
BORDURE BATTANT FOUR
0003 01126254701 OVEN FLAP EDGING 1 PCE
BORDURE BATTANT FOUR
0004 01126744401 EDGE 1 PCE
BORDURE 1122000601 LG 2205 MM
0006 01126740601 EDGE 2 PCE
BORDURE 1122000801 LG 0234 MM
0007 01127665101 EDGE 1 PCE
BORDURE 1122000801 LG 0600 MM
0008 01127665201 EDGE 1 PCE
BORDURE 1122000801 LG 0370 MM
CLE CADRE VITRE
0010 01126254402 PANEL 1 PCE
PANNEAU BATTANT FOUR
0011 01122000901 EDGE 1.664 MM
BORDURE 11220009 L 0622
0012 01127768401 BATTEN CLOSING BRACKET 1 PCE
EQUERRE DE FERMETURE BATTANT
0016 00000014045 WASHER ISO7089-06-200HV 8 PCE
0017 00000010020 SCREW ISO4017-M06X016-8.8 8 PCE
VIS H ISO4017-M06X016-8.8
0018 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9
0019 01127763501 LOCKING 1 PCE
VERROUILLAGE 3PTS BATTANT RECUP

Description HEAT OVEN UPRIGHT ASSEMBLY

Désignation BATTANT FOUR RECUP EQUIPE
0023 01122562901 EDGING 1 PCE
CHANT ARU ALIM
0024 01130118101 EDGE 2 PCE
BORDURE 1122000401 LG 0061 MM
0025 01131739101 EDGE 1 PCE
BORDURE 11220004 L=0076
0026 01131738901 EDGE 1 PCE
BORDURE 11220004 L=0121

Description LOCKING
Désignation VERROUILLAGE 3PTS BATTANT RECUP
0000 01127766801 LOCKING 1 PCE
VERROUILLAGE 3PTS
0001 01122477901 ROLLER ROD 1 PCE
TRINGLE GALET INFERIEUR
0002 01126637201 ROLLER ROD 1 PCE
0003 00000113820 LOCK 1000 U51-U164-U5 1 PCE
VERROU 1000 U51-U164-U5
0004 00000017435 ROD GUIDE 1001 U11 5 PCE
0005 00000017436 ADAPTER 1000-U 49 2 PCE
0006 00000105136 CAM 1000-U 34 1 PCE
CAME 1000-U 34
0007 00000012502 SCREW ISO4026-M06X025-45H 5 PCE

Description PANEL
Désignation PANNEAU INFERIEUR PORTE 870
0000 01129994401 PANEL 1 PCE
0001 01129995701 PANEL DOOR 1 PCE
PANNEAU INFERIEUR PORTE
0002 00000011354 SCREW RLS M 8X 16/16 A2-70 6 PCE
VIS RLS M 8X 16/16 A2-70

Description PANEL
Désignation PANNEAU INFERIEUR 6M
0000 01129924101 PANEL 1 PCE
0001 01129924201 PANEL 1 PCE
0002 00000011354 SCREW RLS M 8X 16/16 A2-70 10 PCE
VIS RLS M 8X 16/16 A2-70

Désignation FACADE AVANT FOUR 24M
0000 01131393203 OVEN FRONT-SIDE 1 PCE
0001 01129754901 STRUCTURE 1122170801 LG 2419 2 PCE
STRUCTURE 1122170801 LG 2419
0003 01127014001 STRUCTURE 2 PCE
0004 01127013601 STRUCTURE 2 PCE
0005 01129998601 STRUCTURE 90X45 L=2330 2 PCE
0008 01129998301 STRUCTURE 90X45 L=0786 1 PCE
0009 01131384101 HINGE 5 PCE
0010 01131384201 HINGE 5 PCE
0013 01131379202 OVEN DOOR 1 PCE
PORTE FOUR 0870 DROITE EQUIPEE
0014 01131391802 OVEN DOOR 2 PCE
0015 01131390901 OVEN DOOR 2 PCE
0018 01129989301 PANEL 1 PCE
0019 01129924001 PANEL 2 PCE
0020 01133585801 OFENGUMMILAPPEN 1 PCE
BAVETTE FOUR
0021 01133585701 OVEN FLAP 1 PCE
BAVETTE FOUR
PIED EQUIPE
0023 01124706602 PLATE 3 PCE
PLAQUE JONCTION EQUIPEE
0024 01127072901 BRACKET 1 PCE
EQUERRE
0025 01125982501 BRACKET 16 PCE
0027 00000011522 SCREW ISO4762-M04X016-10.9 2 PCE
VIS CHC ISO4762-M04X016-10.9

Désignation FACADE AVANT FOUR 24M
0030 01126040801 WASHER 5 PCE
RONDELLE

Description HINGE
0001 01131383501 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9

Description HINGE
0000 01131383601 HINGE 1 PCE
0001 01131383901 HINGE 1 PCE
0002 00000012528 SCREW ISO10642-M05X016-10-9 2 PCE
VIS FHC ISO10642-M05X016-10-9


Désignation PORTE FOUR 0870 DROITE EQUIPEE
PORTE FOUR DROITE EQUIPEE
0001 01126170702 OVEN DOOR 1 PCE
PORTE FOUR DROITE
0002 01126169201 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01126169301 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126740401 EDGE 1 PCE
BORDURE 1122000601 LG 1605 MM
0006 01126754201 EDGE 2 PCE
BORDURE 1122000801 LG 0674 MM
0007 01124039101 EDGE 1 PCE
BORDURE 11220008 L=1044
0008 01124038701 EDGE 1122000801 LG 814 MM 1 PCE
BORDURE 1122000801 LG 0814 MM
CLE CADRE VITRE
0010 01126170601 OVEN DOOR WINDOW 1 PCE
VITRE PORTE FOUR
0011 01122000901 EDGE 3.432 MM
BORDURE 11220009 L 0622
0012 01124046401 EDGE 3 PCE
BORDURE 11220004 L=0111
0013 01124046501 EDGE 1 PCE
BORDURE 11220004 L=0066
0014 01122562901 EDGING 1 PCE
CHANT ARU ALIM
0015 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0021 00000017448 CAM 1000-26 1 PCE
CAME 1000-26


Désignation PORTE FOUR 0870 DROITE EQUIPEE
0023 00000106944 SCREW ISO4762-M04X012-10.9 2 PCE
VIS CHC ISO4762-M04X012-10.9
0024 00000113859 ADHESIVE FILM CS PANTHER 5 NOIR 3M 65 CM
FILM ADHESIF CS PANTHER 5 NOIR 3M


Désignation PORTE FOUR 6M DROITE EQUIPEE
0001 01128323301 OVEN DOOR 1 PCE
PORTE FOUR 6M DROITE
0002 01128323201 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01128323101 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01127492501 DOOR EDGE 1 PCE
BORDURE PORTE
0006 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR
0008 01126172303 LOCK 1 PCE
0010 01131405801 CHUTE 1 PCE
GOULOTTE LG 1045
0015 01131405901 PROTECTION 1 PCE

Description LOCK
Désignation VERROU 3 POINTS PORTE FOUR
0000 01126172603 LOCK 1 PCE
0001 01126637201 ROLLER ROD 1 PCE
0002 01126172402 ROLLER ROD 1 PCE
TRINGLE GALET INF
0004 00000017435 ROD GUIDE 1001 U11 4 PCE
0005 00000017436 ADAPTER 1000-U 49 2 PCE
0006 00000106957 CAM 1000-U 27 1 PCE
CAME 1000-U 27
0007 00000012502 SCREW ISO4026-M06X025-45H 4 PCE


Désignation PORTE FOUR 6M GAUCHE EQUIPEE
0000 01131390801 OVEN DOOR 1 PCE
0001 01128323001 OVEN DOOR 1 PCE
PORTE FOUR 6M GAUCHE
0002 01128323201 SEAL EDGE 1 PCE
BORDURE JOINT
0003 01128323101 SEAL EDGE 1 PCE
BORDURE JOINT
0005 01126192102 DOOR STOP 1 PCE
BUTEE PORTE FOUR GAUCHE 4M
0006 01131314903 HANDLE 1 PCE
POIGNEE PORTE FOUR

Description PANEL
Désignation PANNEAU INFERIEUR PORTE 870
0000 01129994401 PANEL 1 PCE
0001 01129995701 PANEL DOOR 1 PCE
PANNEAU INFERIEUR PORTE
0002 00000011354 SCREW RLS M 8X 16/16 A2-70 6 PCE
VIS RLS M 8X 16/16 A2-70

Description PANEL
Désignation PANNEAU INFERIEUR 6M
0000 01129924101 PANEL 1 PCE
0001 01129924201 PANEL 1 PCE
0002 00000011354 SCREW RLS M 8X 16/16 A2-70 10 PCE
VIS RLS M 8X 16/16 A2-70

Description OVEN CONNECTION

Désignation JONCTION FOUR 24M
0000 01134314501 OVEN CONNECTION 1 PCE
JONCTION FOUR 24M
0001 01126795401 STRUCTURE 3 PCE
0002 01126826401 STRUCTURE 2 PCE
0003 01128321101 IR PROTECTION 2 PCE
PROTECTION IR 6M COURTE
PROTECTION IR 6M LONGUE
PROTECTION IR
0006 01122482101 IR SPACER 11 PCE
ENTRETOISE IR
EQUERRE DE FIXATION
TOLE FERMETURE FOUR
0010 01126320201 SHEET FASTENING LUG 2 PCE
PATTE FIXATION TOLE
0011 01133802101 CONNECTION BOX PROTECTION 2 PCE
PROTECTION BOITE CONNEXION 5_2
0012 01125982501 BRACKET 10 PCE
0015 00000124553 SCREW ISO4762-M08X030-10.9 11 PCE
VIS CHC ISO4762-M08X030-10.9
0016 00000013554 NUT ISO4032-M08-10 18 PCE
0017 00000010034 SCREW ISO4017-M08X016-8.8 18 PCE
VIS H ISO4017-M08X016-8.8
0018 01125982501 BRACKET 2 PCE

Sous-ensemble ARGM12158 Index 30
Description CABINET SBO20/24 12158

Désignation ARMOIRE SBO20/24 12158
0000 01132314601 ELECTRICAL CABINET FIXING 1 PCE
0010 01131829702 CABINET EQUIPMENT 1 PCE
EQUIPEMENT ARMOIRE
0020 01131829801 METAL WORKING FOR CABINET 1 PCE
TOLERIE ARMOIRE
0030 01131830001 CABINET FRAME 1 PCE
CHASSIS ARMOIRE
0040 01131830301 CABINET TERMINAL BLOCK 1 PCE
BORNIER ARMOIRE
0050 01131832302 CABINET OUTLET 1 PCE
DEPART ARMOIRE
DEPART ARMOIRE SBO20
0055 01131833001 CABINET DRILLING 1 PCE
PERCAGE ARMOIRE PLAQUE DE TOIT
0056 01131837901 CABLEWAY PLATE 1 PCE
PLAQUE PASSE-CABLE
0060 01131833101 LAYOUT 1 PCE
IMPLANTATION ETIQUETTES ARMOIRE
0070 01124519627 CABINET LABELS IN ENGLISH/RUSSIAN 1 PCE
ETIQUETTES ARMOIRE - ANGLAIS/RUSSE
0080 01124519327 WARNING LABELS - ENGLISH/RUSSIAN 1 PCE
ETIQUETTES AVERTISSEMENT - ANGLAIS/RUSSE
0090 01118242627 COOLING UNIT LABEL ANG/RUS 1 PCE
ETIQUETTE GROUPE REFROIDISSEMENT
ANG/RUS
0100 01131833901 POWER SUPPLY 1250 A 1 PCE
ALIMENTATION ELECTRIQUE 1250 A
01A0 01124139602 PLC POWER SUPPLY 1 PCE
03A0 01124713201 CONNECTION PROFIBUS STANDARD 1 PCE
03B0 01124076302 CONNECTION 1 PCE
LIAISON BUS DP CRITIQUE
0470 01124141303 AUXILIARY EQUIPMENT POWER SUPPLY 16KW 1 PCE
ALIMENTATION PERIPHERIQUE 16KW
047R 01128637701 AUXILIARY EQUIPMENT POWER SUPPLY 1 PCE
RE.35KW
ALIMENTATION PERIPHERIQUE RE.35KW
069B 01124078101 DOOR SAFETY 1 PCE
SECURITE PORTE


069C 01131335101 WHEEL ROT. 1 PCE
069C 01131350301 WHEEL ROT.SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR ROT.ROUE 7,5KW
069C 01131350302 WHEEL ROT.SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR ROT.ROUE 7,5KW
069E 01128638301 DOOR SAFETY 1 PCE
SECURITE PORTE REMPLISSEUSE
087A 01124141801 LAMP VENTILATION 1 PCE
VENTILATION LAMPES
087C 01132640801 OVEN VENTILATION 1 PCE
087D 01131352701 FAN SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR VENTILATION
087D 01131352702 FAN SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR VENTILATION
087D 01132640201 OVEN VENTILATION 1 PCE
VENTILATION FOURS
087H 01131336001 EXTRACTION HOOD 1 PCE
087H 01131355901 HOOD SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR HOTTE - 7,5KW
087H 01131355902 HOOD SPEED DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR HOTTE - 7,5KW
087I 01131830901 PUMP 1 PCE
POMPE DE GRAISSAGE ROUE
087I 01131831101 PUMP 1 PCE
POMPE DE GRAISSAGE CAMES
1090 01124142201 MACHINE LIGHTING 1 PCE
ECLAIRAGE MACHINE
13A0 01128920201 CABINET COOLING 1 PCE
9A01 01124140001 OVEN HEATING 1 PCE
CHAUFFE FOURS 1 & 2
CHAUFFE FOURS 3 & 4
CHAUFFE FOURS 5 & 6
CHAUFFE FOURS 7 & 8


A000 01131444401 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR A0>A2
A300 01124079601 ALL-OR-NOTHING OUTPUT - A3>A5 1 PCE
SORTIE TOR - A3>A5
A500 01129427801 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE GRAISSAGE
A600 01128885601 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR A6>A8
E000 01124492701 ON OFF CONTROL INPUT E0 1 PCE
ENTREE TOR E0
E200 01124078901 ON OFF CONTROL INPUT 1 PCE
ENTREE TOR - E2
ENTREE TOR E4
ENTREE TOR - E50>E51
E530 01131432701 PLC ON OFF INPUT 1 PCE
ENTREE TOR AUTOMATE - E53
E530 01131434201 PLC EQUIPMENT 1 PCE
E550 01133487501 ALL-OR-NOTHING PLC INPUT 1 PCE
ENTREE AUTOMATE TOR - E55
ENTREE TOR AUTOMATE
EA00 01124142503 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE - ARMOIRE
EQUIPEMENT AUTOMATE REMPLISSEUSE


EA00 01128656001 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR A0 A2
EQUIPEMENT AUTOMATE 24
EP01 01118894805 CONSOLE LAYOUT 1 PCE
EP02 01133794001 CONTROL STATION SUPPLY 1 PCE
EP02 99000753504 No description available for: EN 1 PCE
PUPITRE DE COMMANDE
EW10 01124080001 ANALOG INPUT 1 PCE
EW10 01124142401 ANALOG INPUT - EW1000>EW1010 1 PCE
EW10 01129987601 OUTPUT CARD 1 PCE
EQUIPEMENT AUTO-*RECUP. CHALEUR/HOTTE
OP00 01117487201 KEY LOCK 1242E PCC 1 PCE
SERRURE A CLE 1242E PCC
OP00 01129365002 OPTION SERRURE A CLE 1242E ARMOIRE 1 PCE
OPTION SERRURE A CLE 1242E ARMOIRE
OP70 01131833301 CONNECTION 1 PCE
LIAISON REMPLISSEUSE
OP75 01131348501 DEDUST MODULE 1 PCE
OPGC 01129427901 CAM GREASING 1 PCE
GRAISSAGE CAME OPTION
OPGR 01126659401 LUBRICATION 1 PCE
OPTION GRAISSAGE ROUE
OPHF 01133057301 OVEN HOOD 1 PCE
HOTTE FOUR
OPIC 01132052101 OPTION FILTER AIR RECOVERY 1 PCE
OPTION FILTRE AIR DEGAZAGE
OPMD 01131348502 DEDUST MODULE 1 PCE

Description ELECTRICAL CABINET FIXING
Désignation FIXATION ARMOIRE ELECTRIQUE
0000 01132315501 ELECTRICAL CABINET FIXING 1 PCE
0001 01132154601 BASE UNDER CABINET 1 PCE
SOCLE SOUS ARMOIRE 800
0002 01132310901 BASE SURROUND 1 PCE
HABILLAGE SOCLE DROIT
0003 01132311001 BASE SURROUND 1 PCE
HABILLAGE SOCLE GAUCHE
0004 01125498803 CABINET BRACKET 1 PCE
EQUERRE ARMOIRE
0005 01125498602 BRACKET 1 PCE
EQUERRE
0006 01125607701 TRANSPORT LUG 2 PCE
PATTE DE TRANSPORT
0007 01125509701 FLAP 2 PCE
BAVETTE FACE SOCLE
0008 01132310801 FLAP 2 PCE
BAVETTE
0009 01125510201 FLAP 2 PCE
BAVETTE FOND SOCLE
0010 01125508901 REWORK DRAWING - SCREW 6 PCE
PLAN DE REPRISE VIS HC M12
0011 00000118553 FOOT CR1520 150M20X200 4 PCE
PIED CR1520 150M20X200
0013 00000013003 NUT ISO4032-M05-10 12 PCE
0014 00000013007 NUT ISO4032-M10-10 14 PCE
0015 00000013009 NUT ISO4032-M12-10 4 PCE
0016 00000014044 WASHER ISO7089-05-200HV 2 PCE
0017 00000013537 WASHER ISO7092-05-200HV 24 PCE

Description ELECTRICAL CABINET FIXING
Désignation FIXATION ARMOIRE ELECTRIQUE
0022 00000011541 SCREW ISO4762-M05X010-10.9 6 PCE
VIS CHC ISO4762-M05X010-10.9
VIS FHC ISO10642-M05X010-10-9
0024 00000010015 SCREW ISO4017-M05X016-8.8 14 PCE
VIS H ISO4017-M05X016-8.8
0025 00000010047 SCREW ISO4017-M10X025-8.8 2 PCE
VIS H ISO4017-M10X025-8.8
0026 00000010067 SCREW ISO4017-M12X040-8.8 4 PCE
VIS H ISO4017-M12X040-8.8
0027 00000010072 SCREW ISO4017-M12X080-8.8 2 PCE
VIS H ISO4017-M12X080-8.8
0028 00000010117 SCREW ISO4017-M20X040-8.8 6 PCE
VIS H ISO4017-M20X040-8.8
0029 00000012260 SCREW ISO4026-M10X030-45H 4 PCE
0030 00000011259 SCREW H-M10X030-10.9 4 PCE
VIS H-M10X030-10.9

Description CABINET EQUIPMENT

Désignation EQUIPEMENT ARMOIRE
0000 01131829302 CABINET LAYOUT 1 PCE
IMPLANTATION ARMOIRE
0020 00000032226 TERMINAL SAKG54/35II 240MM2 063812 WEID 1 PCE
BORNE SAKG54/35II 240MM2 063812 WEID
0030 00000117126 BAR 2X40X1 LG=2M - 552690 ERIFLEX 2 PCE
BARRE 2X40X1 LG=2M - 552690 ERIFLEX
0040 00000032218 SUPPORT DE BARRE 50225110 SOCOMEC 6 PCE
SUPPORT DE BARRE 50225110 SOCOMEC
0050 00000115106 BAR CUIVRE 80X10 L=0800 3 PCE
BARRE CUIVRE 80X10 L=0800
0060 00000036008 BAR CUIVRE 25X5 L.1750 PERCAGE 1 RANG@ 1 PCE
BARRE CUIVRE 25X5 L.1750 PERCAGE 1 RANG@
0070 00000117119 ASSEMBLY RAIL 4178.000 RITTAL 2 PCE
RAIL DE MONTAGE 4178.000 RITTAL
0100 00000114724 SEALING RING MULTI M25 1 PCE
BAGUE D'ETANCHEITE MULTI M25
0110 00000112334 STUFFING BOX M32 4X5,5 DELAUNAY 1 PCE
PRESSE-ETOUPE M32 4X5,5 DELAUNAY

Description CABINET EQUIPMENT

Désignation EQUIPEMENT ARMOIRE
0240 00000110647 CAP ISO M32 GREY 1 PCE
0280 00000118950 PLUG PG36 POLYAMIDE 7721 DELAUNAY 3 PCE
0310 00000126068 PLUG PG42 POLYAMIDE 7722 DELAUNAY 2 PCE
0320 00000113440 ISOLATED SHUNT IBS 50-330-10 1 PCE
SHUNT ISOLE IBS 50-330-10

Description METAL WORKING FOR CABINET

Désignation TOLERIE ARMOIRE
0010 01131855901 CABINET 1600X2000X800 RITTAL 1 PCE
ARMOIRE 2 CELLULES 1600X2000X800 RITTAL

Description CABINET 1600X2000X800 RITTAL

Désignation ARMOIRE 2 CELLULES 1600X2000X800 RITTAL
0001 00000174989 HANDLE 8611270 1 PCE
POIGNEE 8611270
0002 00000174990 LOCK 2467000 1 PCE
SERRURE 2467000

Description CABINET FRAME

Désignation CHASSIS ARMOIRE
0010 01131856101 FRAME 1 PCE
CHASSIS ALU SP127-SP128-SP129

Description CABINET TERMINAL BLOCK

Désignation BORNIER ARMOIRE
0000 01131830201 CABINET TERMINAL BLOCK 1 PCE
BORNIER ARMOIRE

Description CABINET OUTLET

Désignation DEPART ARMOIRE
DEPART ARMOIRE
DEPART ARMOIRE
0010 00000030288 CABLE H05VV5-F 7G1MM2 1 CM
0020 00000111952 BASE 10B 1XISO20 19300101225 HARTING 1 PCE
EMBASE 10B 1XISO20 19300101225 HARTING
0030 00000039650 CONNECTOR 10P+T 09330102716 HARTING 1 PCE
CONNECTEUR 10P+T 09330102716 HARTING
HARTING
0070 00000030108 CABLE H05VV5-F 18G1MM2 1 CM
0080 00000111953 BASE HARTING 19300161226 1 PCE
EMBASE HARTING 19300161226
HARTING
0130 00000109080 CABLE H05VV5-F 25G1MM2 1 CM
HARTING


0190 00000110647 CAP ISO M32 GREY 1 PCE
0200 00000030108 CABLE H05VV5-F 18G1MM2 1 CM
0210 00000111953 BASE HARTING 19300161226 1 PCE
EMBASE HARTING 19300161226
HARTING
0260 00000030299 CABLE H07RN-F 3G1,5MM2 1 CM
HARTING
0320 00000030288 CABLE H05VV5-F 7G1MM2 1 CM
0330 00000030205 WIRE H07 VK 1,5 MM2 BLEU CLAIR 1 CM
CABLE H07 VK 1,5 MM2 BLEU CLAIR
0340 00000030023 WIRE H07V-K 1,5 MM2 (BK) 1 CM
CABLE H07 VK 1,5 MM2 NOIR
0350 00000030028 CABLE H07V-K 6MM2 (G/Y) 1 CM
CABLE H07V-K 6MM2 (G/Y)
0360 00000111989 SHEATH ADAPTALOK STD29 1 CM
GAINE ADAPTALOK STD29


HARTING
0410 00000110647 CAP ISO M32 GREY 1 PCE
0420 00000111987 STRAIGHT FITTING ISO M32 D=34,5 BLACK 2 PCE
RACCORD DROIT ISO M32 D=34,5 BLACK
0430 00000111986 CHECK-NUT ISO M32 POLYA-BLACK 1 PCE
CONTRE-ECROU ISO M32 POLYA-BLACK
0440 00000110054 WIRE ETHERNET TP FC 6XV18402AH10 SIEM. 1 CM
CABLE ETHERNET TP FC 6XV18402AH10 SIEM.
0450 00000133259 CONNECTOR ETH M12 M 21032811405 HART 2 PCE
CONNECTEUR ETH M12 M 21032811405 HART
0480 00000133260 MULTI RING M25 2X6 8931 DELAUNAY 2 PCE
BAGUE MULTI M25 2X6 8931 DELAUNAY
0490 00000030249 CABLE H07RN-F 4G6MM2 1 CM
CABLE H07RN-F 4G6MM2
0510 00000034207 FEMALE INSERT 09310062701 HARTING 1 PCE
INSERT FEMELLE 09310062701 HARTING
HARTING
0550 00000110647 CAP ISO M32 GREY 1 PCE
0560 00000030294 CABLE H07RN-F 3G25MM2 1 CM
0570 00000109117 COVER LATERAL 19300060447 HARTING 6 PCE
CAPOT LATERAL 19300060447 HARTING
0580 00000109118 MODULE FRAME PROTECTION 09140060303 HAR 6 PCE
PROTECTION CADRE MODULE 09140060303 HAR


0600 00000109410 END-PIECE POUR CABLE 09140009913 HARTING 6 PCE
EMBOUT POUR CABLE 09140009913 HARTING
0610 00000036252 STUFFING BOX 09000005106 HARTING 6 PCE
PRESSE-ETOUPE 09000005106 HARTING
0630 00000109262 ADAPTER M32/PG29 6 PCE
ADAPTATEUR M32/PG29
0640 00000030297 CABLE H07RN-F 4G1,5MM2 1 CM
HARTING
0700 00000030300 CABLE H07RN-F 4G2,5MM2 1 CM
HARTING
0760 00000030112 CABLE H07RN-F 1X50MM2 300 CM
CABLE H07RN-F 1X50MM2
0770 00000036304 TERMINAL LUG 50-10R D=10 52MM2 2 PCE
COSSE SERTILEC 50-10R D=10 52MM2


Désignation DEPART ARMOIRE SBO20
0010 00000030294 CABLE H07RN-F 3G25MM2 1 CM
0020 00000109117 COVER LATERAL 19300060447 HARTING 18 PCE
CAPOT LATERAL 19300060447 HARTING
0050 00000109410 END-PIECE POUR CABLE 09140009913 HARTING 18 PCE
EMBOUT POUR CABLE 09140009913 HARTING
0060 00000036252 STUFFING BOX 09000005106 HARTING 18 PCE
PRESSE-ETOUPE 09000005106 HARTING
0080 00000109262 ADAPTER M32/PG29 18 PCE
ADAPTATEUR M32/PG29

Description CABLEWAY PLATE

Désignation PLAQUE PASSE-CABLE
0010 01131856001 CABLEWAY PLATE RITTAL @ 1 PCE
PLAQUE PASSE-CABLE RITTAL @

Description POWER SUPPLY 1250 A

Désignation ALIMENTATION ELECTRIQUE 1250 A
ALIMENTATION ELECTRIQUE
0010 01124734301 FUSERBLOCK 1 PCE
FUSERBLOC TRI T.4 1250 36SG3120 SOCOMEC@
0020 00000031201 FUSE T.4 GG1250A A PERCUTEUR 3 PCE
FUSIBLE T.4 GG1250A A PERCUTEUR
0030 00000110287 ISOLATING SWITCH TRI10X38 LS1D32 TELE 1 PCE
SECTIONNEUR TRI10X38 LS1D32 TELE
0040 00000031312 FUSE 10X38 AM 16A HPC 3 PCE
FUSIBLE 10X38 AM 16A HPC
0050 00000108818 CIRCUIT BREAKER TRI NC100H 10A-C 27177 M 1 PCE
DISJONCTEUR TRI NC100H 10A-C 27177 MG
0080 00000108819 CIRCUIT BREAKER TETRA C60N 10A-C 24483 M 1 PCE
DISJONCTEUR TETRA C60N 10A-C 24483 MG
0090 00000036598 CIRCUIT BREAKER C60N BIC10A(UL)24449 MG 1 PCE
DISJONCTEUR C60N BI C 10A (UL) 24449 MG
0100 00000109010 CIRCUIT BREAKER NC100H BI D 10A 27344 MG 1 PCE
DISJONCTEUR NC100H BI D 10A 27344 MG
0110 00000108821 CIRCUIT BREAKER C60N BI D 10A 24522 MG 1 PCE
DISJONCTEUR C60N BI D 10A 24522 MG
0120 00000036601 CIRCUIT BREAKER NS100N TRI TM25D 29634 M 1 PCE
DISJONCTEUR NS100N TRI TM25D 29634 MG
0130 00000035425 AUXILIARY CONTACT 1OF OU 1SD 29450 MG 3 PCE
CONTACT AUXILIAIRE 1OF OU 1SD 29450 MG
0140 00000030394 TERMINAL COVER TRI 29321 MG 3 PCE
CACHE BORNES COURT TRI 29321 MG
0150 00000033475 FUSE HOLDER 1PH 10X38 DF6AB10 TELE § 1 PCE
PORTE-FUSIBLE 1PH 10X38 DF6AB10 TELE §
0160 00000031319 FUSE 10X38 GG 6A HPC WITH INDICATOR 1 PCE
FUSIBLE 10X38 GG 6A HPC AVEC VOYANT
0180 00000035435 TERMINAL SHUNT 2P GR 281-402 WAGO 4 PCE
SHUNT BORNES 2P GR 281-402 WAGO


0220 00000108823 SIGNALLING MODULE 6EP1961-3BA10 1 PCE
MODULE DE SIGNALISATION 6EP1961-3BA10
XB4BVB1TELE
0260 00000108825 CONTACTOR TETRA 24V= LC1-DT203BL TELE 2 PCE
CONTACTEUR TETRA 24V= LC1-DT203BL TELE
0270 00000108825 CONTACTOR TETRA 24V= LC1-DT203BL TELE 1 PCE
CONTACTEUR TETRA 24V= LC1-DT203BL TELE
0280 00000103986 AUXILIARY CONTACT 2F LADN203 TELE 1 PCE
CONTACT AUXILIAIRE 2F LADN203 TELE
0290 00000108826 SAFETY RELAY PNOZ X2.8P PILZ @ 1 PCE
RELAIS DE SECURITE PNOZ X2.8P PILZ @
0300 00000103529 KEY SWITCH HEAD C24114 1 PCE
ZB4BG2C24114TELE@
BT TETE 2POS.CLEC24114 ZB4BG2C24114TELE@
0310 00000101790 BUTTON BODY 2O ZB4BZ104 SCHNEIDER 1 PCE
CORPS BOUTON 2O ZB4BZ104 SCHNEIDER
0320 00000103561 EMERGENCY BUTTON ZB4BS54 1 PCE
BOUTON D'ARRET D'URGENCE ZB4BS54
0330 00000033873 CLEAR LABEL 1AK JAUNE KLOC.MOELLER 1 PCE
ETIQUETTE VIERGE 1AK JAUNE KLOC.MOELLER
0340 00000103515 AUX.CONTACT 1O ZBE102 SCHNEIDER 1 PCE
CONTACT AUX. 1O ZBE102 SCHNEIDER
0370 00000033873 CLEAR LABEL 1AK JAUNE KLOC.MOELLER 1 PCE
ETIQUETTE VIERGE 1AK JAUNE KLOC.MOELLER


0420 00000032147 CASING 1 PER. D22 80X80 XAPM1501 TELE 8 PCE
BOITIER 1 PER. D22 80X80 XAPM1501 TELE
0450 00000103577 P.BUTTON BODY GREEN ILLUM ZB4BW0B33 1 PCE
TELE
BP CORPS DEL24V~= VERT 2F ZB4BW0B33 TELE
0460 00000104232 FLUSH PUSH-BUTTON HEAD ZB4BW333 TELE 1 PCE
BP TETE DEL VERT AFFLEUR. ZB4BW333 TELE
0480 00000103548 BP RED HEAD ZB4BL4 TELE 1 PCE
BP TETE ROUGE DEPASSANT ZB4BL4 TELE
0490 00000108827 TRANSFORMER 2.5KVA 4AM65428JD401FA1 1 PCE
TRANSFORMATEUR 2.5KVA 4AM65428JD401FA1
0500 00000113506 TRANSDUCER CSAP3FNE 179Y3333 SOCOMEC 1 PCE
TRANSDUCTEUR CSAP3FNE 179Y3333 SOCOMEC
0510 00000115116 TRANSFORMER TCB55-80 1250/5A 192T8193 2 PCE
TRANSFORMATEUR TCB55-80 1250/5A 192T8193

Description FUSERBLOCK
Désignation FUSERBLOC TRI T.4 1250 36SG3120 SOCOMEC@
0001 00000106879 CONTROL 39995115 @ 1 PCE
COMMANDE 39995115 @
0002 00000198310 DEVICE 39941312 @ 1 PCE
DISPOSITIF 39941312 @
0003 00000184200 CONTACT 39990051 @ 1 PCE
CONTACT 39990051 @
0004 00000100523 HANDLE 3999 6012 SOCOMEC 1 PCE
POIGNEE 3999 6012 SOCOMEC
0005 00000033737 PIN EXTENSION 27993012 SOCOMEC 1 PCE
PROLONGEMENT D'AXE 27993012 SOCOMEC

Sous-ensemble 01124139602 Index 1A0
Description PLC POWER SUPPLY

Désignation ALIMENTATION AUTOMATE TEMPO
0000 01124076002 PLC POWER SUPPLY 1 PCE
0010 00000036604 CIRCUIT BREAKER C60N BIC2A (UL) 24443 MG 1 PCE
0020 00000035854 VIGI UNIT C60 BI 30MA 220/415V 26509 MG 1 PCE
BLOC VIGI C60 BI 30MA 220/415V 26509 MG
0030 00000113746 ELECTRICAL SOCKET 2X16A+T A9A15306 SCHNE 1 PCE
PRISE FEMELLE 2X16A+T A9A15306 SCHNE
0040 00000103039 TIME-SET RELAY 2OF RE7MA13BU TELE 1 PCE
RELAIS TEMPORISE 2OF RE7MA13BU TELE

Description CONNECTION PROFIBUS STANDARD

Désignation LIAISON PROFIBUS STANDARD
0000 01124076201 CONNECTION 1 PCE
LIAISON BUS DP STANDARD
0010 00000109306 REPEATER PROFIBUS 6ES79720AA020XA0 SI 1 PCE
REPETEUR PROFIBUS 6ES79720AA020XA0 SI

Description AUXILIARY EQUIPMENT POWER SUPPLY 16KW

Désignation ALIMENTATION PERIPHERIQUE 16KW
0000 01124077603 AUXILIARY EQUIPMENT 1 PCE
PERIPHERIQUE 16KW-DISTRIBUTEUR
0010 00000105522 CIRCUIT BREAKER NS100N TM40D 29633 MG 1 PCE
DISJONCTEUR NS100N TM40D 29633 MG
0040 00000119348 TRI CONTACTOR 1F+1O 24V LC1D383BL TELE 1 PCE
CONTACTEUR TRI 1F+1O 24V LC1D383BL TELE
0050 00000135011 TERMINAL BLOCK 6MM2 LAD331 1 PCE
BORNIER 6MM2 LAD331

Sous-ensemble 01128637701 Index 47R
Description AUXILIARY EQUIPMENT POWER SUPPLY RE.35KW

Désignation ALIMENTATION PERIPHERIQUE RE.35KW
0000 01128637501 AUXILIARY EQUIPMENT POWER SUPPLY 1 PCE
ALIMENTATION PERIPHERIQUE REMPLISS. 35KW
0010 00000030443 CIRCUIT BREAKER NS100N TRI TM63D 29632MG 1 PCE
DISJONCTEUR NS100N TRI TM63D 29632 MG
0040 00000104383 CONTACTOR TRI 1F+1O 24V= LC1-D65BD TELE 1 PCE
CONTACTEUR TRI 1F+1O 24V= LC1-D65BD TELE
0050 00000109006 SPARK SUPPRESSOR 24 V= LA4DB3B TELE 1 PCE
ANTIPARASITE 24 V= LA4DB3B TELE
0060 00000109737 AUX. CONTACTOR 3F+2O 24V= CAD323BL TELE 6 PCE
CONTACTEUR AUX.3F+2O 24V= CAD323BL TELE

Sous-ensemble 01131335101 Index 69C
Description WHEEL ROT.

Désignation ROTATION ROUE - 7,5KW
0000 01131335001 WHEEL ROT. 1 PCE
0010 00000039627 CIRCUIT BREAKER TRI 18A GV2L20 TELE 1 PCE
DISJONCTEUR TRI 18A GV2L20 TELE
0020 00000103981 AUXILIARY CONTACT 1F+1O GVAE113 TELE 1 PCE
CONTACT AUXILIAIRE 1F+1O GVAE113 TELE
0030 01131638001 SPEED VARIATOR 1 PCE
VARIATEUR 7.5KW FC301 DANFOSS @
0040 00000128973 BRAKING RESISTANCE 175U0990 DANFOSS 2 PCE
RESISTANCE DE FREINAGE 175U0990 DANFOSS
0050 00000128929 SUPPORT RESISTANCE 175U0086 DANFOSS 1 PCE
SUPPORT RESISTANCE 175U0086 DANFOSS
0060 00000108832 CONTACTOR TRI 1F+1O 24V LC1D253BL TELE 1 PCE
0070 01131439401 HOUR METER § 1 PCE
COMPTEUR HORAIRE 5/240 ACDC HENGSTLER@
§
0080 00000030300 CABLE H07RN-F 4G2,5MM2 600 CM
HARTING
0160 00000110858 REDUCTEUR ISO20/ISO16 3277 DELAUNAY 1 PCE
REDUCTEUR ISO20/ISO16 3277 DELAUNAY

Sous-ensemble 01128638301 Index 69E
Description DOOR SAFETY

Désignation SECURITE PORTE REMPLISSEUSE
0000 01128638201 DOOR SAFETY REMPLISSEUSE 1 PCE
SECURITES PORTES - REMPLISSEUSE
0010 00000109066 SAFETY RELAY AWAX26XXL COMITRONIC 1 PCE
RELAIS DE SECURITE AWAX26XXL COMITRONIC
0020 00000118503 CONTACT BLOCK C4SX COMITRONIC/BTI 1 PCE
BLOC DE CONTACT C4SX COMITRONIC/BTI
0030 00000103984 AUXILIARY CONTACT 1F+1O LADN113 TELE 1 PCE
CONTACT AUXILIAIRE 1F+1O LADN113 TELE

Sous-ensemble 01124141801 Index 87A
Description LAMP VENTILATION

Désignation VENTILATION LAMPES
0000 01124078301 LAMP VENTILATION 1 PCE
VENTILATION LAMPES
0010 00000104034 CIRC.BREAKER TRI 1,60-2,50A GV2ME073TEL 2 PCE
DISJONCTEUR TRI 1,60-2,50A GV2ME073TELE
0030 00000104032 CIRCUIT BREAKER 0,63-1,00A GV2ME053TELE 1 PCE

Sous-ensemble 01132640801 Index 87C
Description OVEN VENTILATION

Désignation VENTILATION FOUR - 2 MODULES
0000 01132640101 OVEN VENTILATION 1 PCE
0000 01132640201 OVEN VENTILATION 1 PCE
VENTILATION FOURS
0030 00000104033 CIRC.BREAKER TRI 1,00-1,60A GV2ME063TEL 12 PCE
0050 01131439301 SPEED VARIATOR 131B1421 DANFOSS @ 1 PCE
VARIATEUR 7,5KW FC301 131B1421 DANFOSS @
0060 00000104559 INDUCTOR 3MH 16A 195N3110 DANFOSS § 1 PCE
INDUCTANCE 3MH 16A 195N3110 DANFOSS §

Sous-ensemble 01131336001 Index 87H
Description EXTRACTION HOOD

Désignation HOTTE D'EXTRACTION - 7,5KW
0000 01131335901 EXTRACTION HOOD 1 PCE
0030 01131439301 SPEED VARIATOR 131B1421 DANFOSS @ 1 PCE
VARIATEUR 7,5KW FC301 131B1421 DANFOSS @

Sous-ensemble 01131830901 Index 87I
Description PUMP
Désignation POMPE DE GRAISSAGE ROUE
0000 01126658401 LUBRICATING PUMP 1 PCE
POMPES DE GRAISSAGE
0010 00000104031 CIRC.BREAKER TRI 0,40-0,63A GV2ME043TEL§ 1 PCE
DISJONCTEUR TRI 0,40-0,63A GV2ME043TELE§
0040 00000030297 CABLE H07RN-F 4G1,5MM2 600 CM
HARTING

Sous-ensemble 01131831101 Index 87I
Description PUMP
Désignation POMPE DE GRAISSAGE CAMES
0000 01126658401 LUBRICATING PUMP 1 PCE
POMPES DE GRAISSAGE
0010 00000104031 CIRC.BREAKER TRI 0,40-0,63A GV2ME043TEL§ 1 PCE
DISJONCTEUR TRI 0,40-0,63A GV2ME043TELE§
0040 00000030297 CABLE H07RN-F 4G1,5MM2 600 CM
HARTING

Description MACHINE LIGHTING

Désignation ECLAIRAGE MACHINE
0000 01124078701 MACHINE LIGHTING 1 PCE
ECLAIRAGE MACHINE
0010 00000036598 CIRCUIT BREAKER C60N BIC10A(UL)24449 MG 1 PCE
0040 00000109173 LIGHT ETANCHE ABYSSE 1X18W LAMDALUX 11 PCE
LUMINAIRE ETANCHE ABYSSE 1X18W LAMDALUX
0050 00000114416 FLUO TUBE 18W/840 LG600 DOUBLE PEAU GE @ 11 PCE
TUBE FLUO 18W/840 LG600 DOUBLE PEAU GE @

Description CABINET COOLING

Désignation REFROIDISSEMENT ARMOIRE
0000 01128920101 CABINET COOLING 1 PCE
0010 00000104037 MOTOR CIRCUIT BREAKER 6-10A GV2ME143 SCH 1 PCE
DISJONCTEUR MOTEUR 6-10A GV2ME143 SCH
0030 00000120472 DOOR CLIMATISEE 2500W G 8300173 RIT.@ 1 PCE
PORTE CLIMATISEE 2500W G 8300173 RIT.@
0040 00000114917 DOOR SWITCH SZ 4127.000 RIT 3 PCE
INTERRUPTEUR DE PORTE SZ 4127.000 RIT

Description OVEN HEATING

Désignation CHAUFFE FOURS 1 & 2
0000 01124076401 OVEN HEATING 1 PCE
CHAUFFE FOURS 1 & 2
0010 00000035448 CIRCUIT BREAKER NS100N TET TM63D 29652MG 1 PCE
DISJONCTEUR NS100N TET TM63D 29652 MG
0030 00000035426 TERMINAL COVER 29322 MG 1 PCE
CACHE BORNES COURT TETRA 29322 MG
0040 00000109056 CONTACTOR TETRA 24V= LP1D65004BD TELE 1 PCE
CONTACTEUR TETRA 24V= LP1D65004BD TELE
0060 01124551601 HEATING REGULATION§ 2 PCE


CHAUFFE FOURS 3 & 4


CHAUFFE FOURS 5 & 6


CHAUFFE FOURS 7 & 8

















Sous-ensemble 01131444401 Index A000

Désignation SORTIE TOR A0>A2
0000 01131443901 PLC ON-OFF OUTPUT 1 PCE
SORTIE TOR AUTOMATE
0010 00000109405 FIXED LIGHT LED 24V YELLOW XVB-C2B8 TELE 1 PCE
VOYANT FIXE LED 24V JAUNE XVB-C2B8 TELE
0020 00000108213 FIXED LIGHT LED 24V RED XVB-C2B4 TELE 1 PCE
VOYANT FIXE LED 24V ROUGE XVB-C2B4 TELE
0030 00000108215 LIGHT ELEMENT XVBC2B3 LED GN SCHNEID 1 PCE
ELEMENT LUMINEUX XVBC2B3 LED GN SCHNEID
0040 00000108216 FIXED LIGHT LED 24V BLUE XVB-C2B6 TELE 1 PCE
VOYANT FIXE LED 24V BLEU XVB-C2B6 TELE
0050 00000106230 COLUMN BASE XVBC21 SCHNEIDER 1 PCE
EMBASE COLONNE XVBC21 SCHNEIDER
0060 00000128803 LIGHT COLUMN SUPPORT 1 PCE
SUPPORT COLONNE LUMINEUSE
0090 00000119629 ALARM SIREN 105N 1 PCE
ALARME SONORE 105N

Sous-ensemble 01129427801 Index A500

Désignation EQUIPEMENT AUTOMATE GRAISSAGE
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01124492701 Index E000
Description ON OFF CONTROL INPUT E0

Désignation ENTREE TOR E0
0000 01124078801 PLC ON OFF INPUT 1 PCE
ENTREE TOR AUTOMATE - E0
0010 00000103577 P.BUTTON BODY GREEN ILLUM ZB4BW0B33 1 PCE
TELE
BP CORPS DEL24V~= VERT 2F ZB4BW0B33 TELE
0020 00000103509 LAMP DEL 24V=~ VERT ZBV-B3 TELE 1 PCE
LAMPE DEL 24V=~ VERT ZBV-B3 TELE
0030 00000104232 FLUSH PUSH-BUTTON HEAD ZB4BW333 TELE 1 PCE
BP TETE DEL VERT AFFLEUR. ZB4BW333 TELE


ENTREE TOR - E4


Désignation EQUIPEMENT AUTOMATE - EB53
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01124142503 Index EA00

Désignation EQUIPEMENT AUTOMATE - ARMOIRE
0010 00000030387 FRAME BASE (UR2) 6ES74001JA010AA0 SIEM 1 PCE
CHASSIS BASE (UR2) 6ES74001JA010AA0 SIEM
0020 00000030376 BATTERY, LITHIUM 3,6V 1,9AH 6ES79710BA00 2 PCE
PILE LITHIUM 3,6V 1,9AH 6ES79710BA00S §
0030 00000030374 PLC POWER SUPPLY 6ES74070KA020AA0 1 PCE
ALIMENTATION AUTOMATE 6ES74070KA020AA0
0040 00000133261 PROCESSOR CPU 6ES7414-3EM06-0AB0 SIEM 1 PCE
PROCESSEUR CPU 6ES7414-3EM06-0AB0 SIEM
0050 00000114770 INTERFACE PROFIBUS-DP 6ES79642AA040AB0§ 1 PCE
INTERFACE PROFIBUS-DP 6ES79642AA040AB0§
0060 00000107915 MEMORY FLASH 1MO 6ES7952-1KK00-0AA0SIEM 1 PCE
EPROM FLASH 1MO 6ES7952-1KK00-0AA0SIEM§
0080 00000114054 CABLE ETHERNET TX5E RJ45/RJ45 3M PANDUIT 1 PCE
CABLE ETHERNET TX5E RJ45/RJ45 3M PANDUIT
0090 00000120073 CONNECTOR IE FC RJ45 6GK19011BB102AA0 2 PCE
CONNECTEUR IE FC RJ45 6GK19011BB102AA0
0095 01133834701 SWITCH ETHERNET 8 PORTS MOXA @ 1 PCE
COMMUTATEUR ETHERNET 8 PORTS MOXA @
0100 00000106295 COUPLER 6GK7 443-1EX11-0XE0 SIEMENS 1 PCE
COUPLEUR 6GK7 443-1EX11-0XE0 SIEMENS
0120 00000030391 ON/OFF CON. INPUTS. 6ES74211BL010AA0 SIE 2 PCE
ENTREE TOR 32 24V= 6ES74211BL010AA0 SIEM
0130 00000030392 CONNECTOR 48PTS 6ES74921AL000AA0 SIEM 2 PCE
CONNECTEUR 48PTS 6ES74921AL000AA0 SIEM
0150 00000030410 CONNECTOR DE BUS 6ES79720BB410XA0 SIEM 1 PCE
CONNECTEUR DE BUS 6ES79720BB410XA0 SIEM
ALIMENTATION 10A
0190 00000108996 EMBASE UNIV 2 3 PCE
EMBASE UNIV 2 X 6
0200 00000109222 MODULE 2DO RELAIS 6ES71324HB100AB0 SIEM. 2 PCE
MODULE 2DO RELAIS 6ES71324HB100AB0 SIEM.


Désignation EQUIPEMENT AUTOMATE - ARMOIRE
0210 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0240 00000108997 MODULE 4D0- 2A 6ES7132-4BD32-0AA0 SIEM@ 2 PCE
MODULE 4D0- 2A 6ES7132-4BD32-0AA0 SIEM@
0250 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0290 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
0300 00000108999 INPUT CARD 6ES7134-4GB11-0AB0 2AI 2 PCE
CARTE ENTREE 6ES7134-4GB11-0AB0 2AI
0310 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6


Désignation EQUIPEMENT AUTOMATE REMPLISSEUSE
0020 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
0030 00000030955 COUPLER DP/DP 6ES71580AD010XA0 SIEM 1 PCE
COUPLEUR DP/DP 6ES71580AD010XA0 SIEM
0050 00000030410 CONNECTOR DE BUS 6ES79720BB410XA0 SIEM 2 PCE
CONNECTEUR DE BUS 6ES79720BB410XA0 SIEM


Désignation SORTIE TOR A0 A2


Désignation EQUIPEMENT AUTOMATE 24
ALIMENTATION 10A
0030 00000108997 MODULE 4D0- 2A 6ES7132-4BD32-0AA0 SIEM@ 1 PCE
MODULE 4D0- 2A 6ES7132-4BD32-0AA0 SIEM@
0040 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6


Désignation EQUIPEMENT AUTOMATE - EB55
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01118894805 Index EP01
Description CONSOLE LAYOUT

Désignation IMPLANTATION PUPITRE
0000 01118894905 CONSOLE LAYOUT 1 PCE
0010 01127347901 METAL PANELLING FOR REMOTE CONSOLE 1 PCE
TOLERIE PUPITRE DEPORTE SAME @
0030 00000035908 DRILLED SMALL PLATE 500X400 02634 MG 1 PCE
PLATINE PERFOREE 500X400 02634 MG
0050 00000036066 CHUTE GO 43X 42 F30 WATTOHM § 120 CM
GOULOTTE GO 43X 42 F30 WATTOHM §
0110 00000104210 WALL SUPPORT REF: 29600100 ROSE 1 PCE
SUPPORT MURAL REF: 29600100 ROSE
0130 00000111951 BASE 09200100321 HARTING 1 PCE
EMBASE 09200100321 HARTING

Description CONTROL STATION SUPPLY

Désignation ALIMENTATION PUPITRE
0000 01133794301 CONTROL STATION SUPPLY 1 PCE
0020 00000035854 VIGI UNIT C60 BI 30MA 220/415V 26509 MG 1 PCE
BLOC VIGI C60 BI 30MA 220/415V 26509 MG
0040 01127758501 FAN 230V-50/60 IP43 8300171 RIT@ 1 PCE
0050 01127758601 FILTER DE SORTIE 8300172 RITTAL @ 1 PCE
0060 01126359901 UPS SYSTEM RS 500VA R.BR500I APC@ 1 PCE
ONDULEUR BACK-UPS RS 500VA R.BR500I APC@

Description FILTER DE SORTIE 8300172 RITTAL @

Désignation FILTRE DE SORTIE 8300172 RITTAL @
0010 00000199134 CARTRIDGE 3322700 1 PCE
CARTOUCHE 3322700

Description UPS SYSTEM RS 500VA R.BR500I APC@

Désignation ONDULEUR BACK-UPS RS 500VA R.BR500I APC@
0010 00000112555 BATTERY RECHANGE POUR BR5001 RBC2 APC 1 PCE
BATTERIE RECHANGE POUR BR5001 RBC2 APC
0020 00000112554 WIRE COMMUNICATION SERIAL ONDULEUR §@ 1 PCE
CABLE DE COMMUNICATION SERIE
ONDULEUR§@

Description No description available for: EN

Désignation PUPITRE DE COMMANDE
0000 01133793501 CONTROL PANEL 1 PCE
PUPITRE DE COMMANDE
0010 01145222201 FLAT PC DC94F8-HFE08041§ 1 PCE
PC PLAT DC94F8-HFE08041§
0015 01133834801 INKJET PRINTER HP SERIE K5000 1 PCE
IMPRIMANTE JET D'ENCRE SERIE K5000 HP @
0020 00000120073 CONNECTOR IE FC RJ45 6GK19011BB102AA0 2 PCE
CONNECTEUR IE FC RJ45 6GK19011BB102AA0
0030 00000114054 CABLE ETHERNET TX5E RJ45/RJ45 3M PANDUIT 3 PCE
CABLE ETHERNET TX5E RJ45/RJ45 3M PANDUIT
0040 00000030288 CABLE H05VV5-F 7G1MM2 3.000 CM
0050 00000030205 WIRE H07 VK 1,5 MM2 BLEU CLAIR 1 CM
CABLE H07 VK 1,5 MM2 BLEU CLAIR
0060 00000030023 WIRE H07V-K 1,5 MM2 (BK) 1 CM
CABLE H07 VK 1,5 MM2 NOIR
0070 00000030028 CABLE H07V-K 6MM2 (G/Y) 1 CM
CABLE H07V-K 6MM2 (G/Y)
0080 00000111989 SHEATH ADAPTALOK STD29 1.400 CM
0100 00000034881 PLUG 16P+T 09330162616 1 PCE
PRISE MALE 16P+T 09330162616
HARTING
0150 00000110054 WIRE ETHERNET TP FC 6XV18402AH10 SIEM. 3.400 CM
CABLE ETHERNET TP FC 6XV18402AH10 SIEM.
0160 00000133264 CONNECTOR M12 4P F 21032812405 HARTING 2 PCE
CONNECTEUR M12 4P F 21032812405 HARTING
0190 00000133260 MULTI RING M25 2X6 8931 DELAUNAY 1 PCE
BAGUE MULTI M25 2X6 8931 DELAUNAY

Description No description available for: EN

Désignation PUPITRE DE COMMANDE
0200 01133834701 SWITCH ETHERNET 8 PORTS MOXA @ 1 PCE
COMMUTATEUR ETHERNET 8 PORTS MOXA @
0210 00000124332 SUPPORT D 22,5 1 PCE
SUPPORT D 22,5
0220 00000103545 BT 2 POSITIONS 1F CLE455 XB4BG21 TELE @ 1 PCE
BT 2 POSITIONS 1F CLE455 XB4BG21 TELE @
0240 01134307101 COMMUNIC.MODULE 1 PCE
MODULE DE COMM. SENSIDE @

Description FLAT PC DC94F8-HFE08041§

Désignation PC PLAT DC94F8-HFE08041§
0010 00000165602 HARD DISC DC94XX+XP SANS LICENCE SATA§ 1 PCE
DISQUE DUR DC94XX+XP SANS LICENCE SATA§
0020 00000165603 MEMORY PCC DIMM 2GO DDR3 2 PCE
MEMOIRE PCC DIMM 2GO DDR3
0030 00000165604 PLAYER DVDRW/RAM SATA REF:PCC-DVDROM 1 PCE
LECTEUR DVDRW/RAM SATA REF:PCC-DVDROM
0040 00000141638 BATTERY BAT-DC94FX § 1 PCE
BATTERIE BAT-DC94FX §
0050 99000468749 SUPPLY BLOCK 750A0086 1 PCE
BLOC ALIMENTATION 750A0086
0060 00000165605 SCREEN TACTILE FACE AVANT PCC 100A1420 1 PCE
ECRAN TACTILE FACE AVANT PCC 100A1420
0070 99000468752 VENTILATION KIT 100A1415 1 PCE
KIT VENTILATION SORTIE PCC 100A1415@
0080 00000169329 CARD MERE 118A0551-552 § 1 PCE
CARTE MERE 118A0551-552 §
0081 00000184066 SCREEN TFT 17 “ DCII N5510151B 1 PCE
ECRAN TFT 17 “ DCII N5510151B
0082 00000193171 RACK DP25-SL-COMPLET @ 1 PCE
RACK DP25-SL-COMPLET @
0083 00000225980 CARD KMT BOARD 110A0499 1 PCE
CARTE KMT BOARD 110A0499
0084 00000237388 FAN X29310017 @ § 1 PCE
VENTILATEUR X29310017 @ §

Description INKJET PRINTER HP SERIE K5000

Désignation IMPRIMANTE JET D'ENCRE SERIE K5000 HP @
0001 00000136478 CARTRIDGE NOIRE C9385A 1 PCE
CARTOUCHE NOIRE C9385A
0002 00000136479 CARTRIDGE CYAN C9386A 1 PCE
CARTOUCHE CYAN C9386A
0003 00000136480 CARTRIDGE MAGENTA C9387A 1 PCE
CARTOUCHE MAGENTA C9387A
0004 00000136481 CARTRIDGE JAUNE C9388A 1 PCE
CARTOUCHE JAUNE C9388A
0005 00000136482 PRINTHEAD NOIR/JAUNE C9382A 1 PCE
TETE D'IMPRESSION NOIR/JAUNE C9382A
0006 00000136483 PRINTHEAD MAGENTA/CYAN C9382A 1 PCE
TETE D'IMPRESSION MAGENTA/CYAN C9382A

Sous-ensemble 01124142401 Index EW10

0000 01124079901 ANALOG INPUT - EW1000>EW1010 1 PCE
0010 00000030727 TEMPERATURE SENSOR PT100OHMS -20+70°C 1 PCE
SONDE DE TEMPERATURE PT100OHMS -20+70°C
0020 01003072600 THERMOCOUPLE J 0-400°C CTRMTC CORREGE 1 PCE
THERMOCOUPLE J 0-400°C CTRMTC CORREGE
0025 01125877201 ELEMENT PT100 OHMS 0/100°C CORREGE @ 1 PCE
ELEMENT PT100 OHMS 0/100°C CORREGE @
0030 00000109172 CAMERA IN5DC/PL/700MB2 IMPAC § 1 PCE
CAMERA IN5DC/PL/700MB2 IMPAC
0040 00000113937 FLOWMETER DW181/C/023/B/ES DN25 1 PCE
DEBITMETRE DW181/C/023/B/ES DN25

Sous-ensemble 01129987601 Index EW10
Description OUTPUT CARD

Désignation EQUIPEMENT AUTO-*RECUP. CHALEUR/HOTTE
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01117487201 Index OP00
Description KEY LOCK 1242E PCC

Désignation SERRURE A CLE 1242E PCC
0010 00000104412 LOCK EMKA 1048-U7 CLE 1242E 2 PCE
SERRURE EMKA 1048-U7 CLE 1242E

Description OPTION SERRURE A CLE 1242E ARMOIRE

Désignation OPTION SERRURE A CLE 1242E ARMOIRE
0010 00000120080 CABINET HANDLES 8611270 RITTAL 2 PCE
POIGNEE ARMOIRE 8611270 RITTAL
0020 00000120081 INSERT LOCK WITH KEY 242E 2467009 RITTA 2 PCE
BARRILLET A CLE 1242E 2467009 RITTAL
0030 00000120078 LOCK WITH KEY 1242E 2576009 RITTAL 3 PCE
SERRURE A CLE 1242E 2576009 RITTAL

Description CONNECTION
Désignation LIAISON REMPLISSEUSE
0010 00000030288 CABLE H05VV5-F 7G1MM2 1.800 CM
0030 00000126179 COVER 10P 19300101540 HARTING 1 PCE
CAPOT 10P 19300101540 HARTING
HARTING
0070 00000030102 CABLE H05VV5-F 12G1MM2 1.800 CM
HARTING
0120 00000102319 FLEXIBLE CABLE PROFIBUS 6XV1830-3EH10 § 1.800 CM
0140 00000111947 COVER HAN 6B 19300060546 HARTING 1 PCE
CAPOT HAN 6B 19300060546 HARTING
0160 00000110570 MODULE QUINTAX MALE 09140023001 1 PCE
MODULE QUINTAX MALE 09140023001
0170 00000110571 PIN CONNECTOR 09150043013 HARTING 1 PCE
CONNECTEUR MALE 09150043013 HARTING
0180 00000110572 CONTACT DORE MALE 09150006125 2 PCE
CONTACT DORE MALE 09150006125

Description CONNECTION
Désignation LIAISON REMPLISSEUSE
0230 00000112689 CONNECTOR M12 DROIT M 8A4006315 WOOD 1 PCE
CONNECTEUR M12 DROIT M 8A4006315 WOOD

Description DEDUST MODULE

0030 00000104036 MOTOR CIRCUIT BREAKER GV2ME103 1 PCE
SCHNEIDER
DISJONCTEUR MOTEUR GV2ME103 SCHNEIDER
0060 00000034189 VERTICAL COVER PG11 09200031440 HARTING 1 PCE
CAPOT VERTICAL PG11 09200031440 HARTING
0070 00000034198 EXTENSION CORD COVER 09200031750 HARTING 1 PCE
CAPOT PROLONGATEUR 09200031750 HARTING
0090 00000034163 ELECTRICAL SOCKET 3P+T 09200032711 HARTI 1 PCE
PRISE FEMELLE 3P+T 09200032711 HARTI
0100 00000101402 GLAND PG11 09000005013 HARTING 1 PCE
PRESSE-ETOUPE PG11 09000005013 HARTING
0110 00000117974 CON. WIRE M12/B DIN 10M D850A0A58M100 @ 1 PCE
CORDON M12/B DIN 10M D850A0A58M100
WOOD@
WOOD@
0150 00000104551 ADAPTATOR ALARM REPORT 301304 1 PCE
ADAPTATEUR REPORT D'ALARME 301304
0190 00000103081 PLUG 4P+T 09200042611 1 PCE
PRISE MALE 4P+T 09200042611
0200 00000103082 ELECTRICAL SOCKET 4P+T 09200042711HARTIN 1 PCE
PRISE FEMELLE 4P+T 09200042711HARTIN



Sous-ensemble 01129427901 Index OPGC
Description CAM GREASING

Désignation GRAISSAGE CAME OPTION
0020 00000030297 CABLE H07RN-F 4G1,5MM2 600 CM
HARTING

Sous-ensemble 01126659401 Index OPGR
Description LUBRICATION
Désignation OPTION GRAISSAGE ROUE
0010 00000132110 LEAD M12 COUDE M/F 885031E02M050 1 PCE
CORDON M12 COUDE M/F 885031E02M050
0020 00000030297 CABLE H07RN-F 4G1,5MM2 600 CM
HARTING

Sous-ensemble 01133057301 Index OPHF
Description OVEN HOOD

Désignation HOTTE FOUR
0010 00000030300 CABLE H07RN-F 4G2,5MM2 1.000 CM
0020 01133027701 THERMOCOUPLE J 0-400° CTRMTC LG 150 1 PCE
THERMOCOUPLE J 0-400° CTRMTC LG 150 @

Sous-ensemble 01132052101 Index OPIC
Description OPTION FILTER AIR RECOVERY

Désignation OPTION FILTRE AIR DEGAZAGE
0020 00000112689 CONNECTOR M12 DROIT M 8A4006315 WOOD 1 PCE
CONNECTEUR M12 DROIT M 8A4006315 WOOD

Sous-ensemble 01131348502 Index OPMD

0030 00000104036 MOTOR CIRCUIT BREAKER GV2ME103 1 PCE
SCHNEIDER
DISJONCTEUR MOTEUR GV2ME103 SCHNEIDER
0090 00000034163 ELECTRICAL SOCKET 3P+T 09200032711 HARTI 1 PCE
PRISE FEMELLE 3P+T 09200032711 HARTI
WOOD@
WOOD@
0150 00000104551 ADAPTATOR ALARM REPORT 301304 1 PCE
ADAPTATEUR REPORT D'ALARME 301304
0190 00000103081 PLUG 4P+T 09200042611 1 PCE
PRISE MALE 4P+T 09200042611
0200 00000103082 ELECTRICAL SOCKET 4P+T 09200042711HARTIN 1 PCE
PRISE FEMELLE 4P+T 09200042711HARTIN

Sous-ensemble 01131348502 Index OPMD

0250 00000030092 CABLE H05VV5-F 3G1MM2 500 CM
0260 01128780401 BOX K2 1 PCE

Description BOX K2
0000 01128775001 BOX 1 PCE
0010 00000032234 SMALL BAR CONNEXION KS6 6P 014062 WEIDM 1 PCE
BARRETTE CONNEXION KS6 6P 014062 WEIDM
0030 00000109703 CAP ISO M16 GREY 2 PCE
0050 00000109703 CAP ISO M16 GREY 2 PCE
0060 00000032143 BOX 70X100X40,5 K 2 034210 WEIDM 1 PCE
COFFRET 70X100X40,5 K 2 034210 WEIDM

Sous-ensemble DRGM12158 Index 40
Description PREFORM DISPENSER SBO20/24 12158

Désignation DISTRIBUTEUR DE PREFORMES SBO20/24 12158
0001 01129365201 KEY LOCK 1 PCE
SERRURE A CLE 1242E COFFRET ALIMENTATEUR
0010 01131804803 HOPPER 1 PCE
0020 01131678803 ELEVATING COLUMN 1 PCE
0030 01132647803 ORIENTING ROLLER 1 PCE
0031 01132698702 ROLLER FRAME SHELL ASSY 1 PCE
0040 01133364401 MODULE 1 PCE
MODULE ESCALIER MM GM
0041 01133364901 MODULE 1 PCE
MODULE AVANT GM
0042 01133365201 MODULE 1 PCE
MODULE CENTRAL GM
0043 01133365401 MODULE 1 PCE
MODULE ARRIERE GM
0050 01125210203 UNSCRAMBLER 1 PCE
DEMELEUR STEP3
0060 01131749004 RECYCLING CHUTE 1 PCE
0070 01125501302 INFEED RAIL 1 PCE
0080 01132741401 SUPPORT 1 PCE
SUPPORT RAIL STANDARD
0090 01128358104 ROLLER OUTFEED RAIL WITH EJECTION 1 PCE
RAIL SORTIE ROULEAUX AVEC EJECTION
0130 01129007103 HOPPER COWLING 1 PCE
CAPOTAGE TREMIE STEP3
0135 01129298004 CAPOTAGE TREMIE MODULABLE STEP3 1 PCE
E000 01124680718 CONNECTION 1 PCE
LIAISON
E000 01124792406 ROLLER CABIN LAYOUT 1 PCE
IMPLANTATION COFFRET ROULEAU
E000 01124804103 HOPPER BOX EQUIPMENT 1 PCE
EQUIPEMENT COFFRET TREMIE
E000 01127105704 DRILLING 1 PCE
PERCAGE COFFRET ROULEAUX


E000 01127105802 BOX DRILLING 1 PCE
PERCAGE COFFRET TREMIE
E000 01127933010 CONNECTOR WIRING 1 PCE
CABLAGE PRISE
E000 01132051201 CLIENT INFORMATION 1 PCE
INFORMATION CLIENT
E000 01134830001 MACHINE LAYOUT 1 PCE
IMPLANTATION MACHINE ROULEAUX
E100 01124784204 PLC ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR E100
E103 01127945904 ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR E103
E105 01124784703 PLC INPUTS 1 PCE
ENTREE TOR ET200S - E121
E122 01124838101 PLC CARD 1 PCE
CARTE AUTOMATE E122
E1K0 01124767808 ROLLER BOX POWER SUPPLY 1 PCE
ALIMENTATION COFFRET ROULEAU
E1X0 01124776601 BOX POWER SUPPLY 1 PCE
E3AA 01124677304 CONNECTION 1 PCE
E47A 01124776702 TIPPER INFEED 1 PCE
E69A 01124780802 DOOR SAFETY 1 PCE
SECURITE PORTE ROULEAU
E69A 01124781102 HOPPER DOOR SAFETY 1 PCE
SECURITE PORTE TREMIE
E69E 01124781208 ELEVATOR 1 PCE
ELEVATEUR
E69E 01126652202 VARIATOR § 1 PCE
VARIATEUR 0,75KW §
E69E 01127924102 BELT 1 PCE
TAPIS TREMIE
E69E 01131716201 VARIABLE SPD DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR COLONNE F
FICHE DE REGL.VARIATEUR COLONNE B
FICHE DE REGL.VARIATEUR TAPIS F


FICHE DE REGL.VARIATEUR TAPIS B
E69F 01124782104 ORIENTATING DEVICE 1 PCE
ORIENTEUR
E69F 01124782303 RECYCLING CONVEYOR 1 PCE
CONVOYEUR RECYCLAGE
E69F 01124782502 UNSCRAMBLER 1 PCE
DEMELEUR 45°
E69F 01131716101 VARIABLE SPD DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR ROULEAUX F
E69F 01131716102 VARIABLE SPD DRIVE DATA SHEET 1 PCE
FICHE DE REGL.VARIATEUR ROULEAUX B
E69H 01124783707 COWLING 1 PCE
CAPOTAGE NIVEAU 3 VERIN
E69H 01124829201 LEVEL TIPPER SLAVING 3 1 PCE
ASSERVISSEMENT BASCULEUR NIVEAU 3
ENTREE TOR E70
ENTREE TOR AUTOMATE ET200S E73
E740 01124839101 PLC CARD 1 PCE
CARTE AUTOMATE E74
E750 01124679802 ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR AUTOMATE E75
E750 01124839302 PLC CARD 1 PCE
CARTE AUTOMATE E75
E760 01124839401 PLC CARD 1 PCE
CARTE AUTOMATE E76
E770 01124839701 PLC CARD E77 1 PCE
CARTE AUTOMATE E77
ENTREE TOR E78
ENTREE TOR E80
E800 01130937902 BLOCKAGE 1 PCE
BOURRAGE TETE DE COLONNE
EQUIPEMENT AUTOMATE TREMIE
EA10 01128380601 PLC OUTPUT A100 1 PCE
SORTIE AUTOMATE A100
EA70 01124680301 ALL-OR-NOTHING OUTPUT 1 PCE
SORTIE TOR ET200S


EA71 01124838401 PLC CARD A71 1 PCE
CARTE AUTOMATE A71
EA72 01124838501 PLC CARD A72 1 PCE
CARTE AUTOMATE A72
EA75 01131829201 PLC CARD 1 PCE
CARTE AUTOMATE
EAR0 01124830701 PLC EQUIPMENT 1 PCE
EQUIPEMENT AUTOMATE
ECE0 01129058902 WIRING 1 PCE
CABLAGE COLONNE ELEVATRICE
ECR0 01124805604 MACHINE WIRING 1 PCE
CABLAGE MACHINE ROULEAUX
ECR0 01124820202 ROLL PROFIBUS LINK 1 PCE
LIAISON PROFIBUS ROULEAUX
ECT0 01124819803 MACHINE WIRING 1 PCE
CABLAGE MACHINE TREMIE
ECT0 01124820302 HOPPER PROFIBUS LINK 1 PCE
LIAISON PROFIBUS TREMIE
EIMC 01134830601 MACHINE LAYOUT 1 PCE
IMPLANTATION MACHINE COLONNE
EVT0 01129770802 HOPPER EMPTYING 1 PCE
VIDAGE TREMIE
EX10 01124717503 TERMINAL BLOCK 1 PCE
BORNIER X1
BORNIER X2
BORNIER X21
BORNIER X4
BORNIER X5
EXC1 01125730301 TERMINAL BLOCK 1 PCE
BORNIER XCOM1
EXC1 01125730401 TERMINAL BLOCK 1 PCE
BORNIER XCOM11
EXP1 01132050801 TERMINAL BLOCK 1 PCE
BORNIER XDP1
EXP2 01132050901 TERMINAL BLOCK 1 PCE
BORNIER XDP2
EZZZ 01124856027 BOX LABEL ANGLAIS/RUSSE 1 PCE
ETIQUETTE COFFRET ANGLAIS/RUSSE

Description KEY LOCK

Désignation SERRURE A CLE 1242E COFFRET ALIMENTATEUR
0001 00000120078 LOCK WITH KEY 1242E 2576009 RITTAL 2 PCE
SERRURE A CLE 1242E 2576009 RITTAL

Description HOPPER
Désignation TREMIE 4M3 MILLESIME
0000 01131766003 HOPPER 1 PCE
0001 01131734002 HOPPER FRAME 2 PCE
CHASSIS TREMIE
0002 01131730502 APRON 1 PCE
TABLIER TAPIS EXTRACTEUR
0003 01131876101 HOPPER FRAME 1 PCE
CADRE TREMIE
0004 01131734502 HOPPER 1 PCE
TREMIE SIMPLE DECOUPEE
SUPPORT MOTEUR
0006 00000127895 MOTOR DRUM TM135-0.09-12-0.04 B=350 1 PCE
TAMBOUR MOTEUR TM135-0.09-12-0.04 B=350
0007 00000118027 RETURN DRUM D113 L0350 1 PCE
TAMBOUR DE RENVOI D113 L0350
0008 01132854801 BELT 1 PCE
BANDE LARGEUR 350
TOLE DE FERMETURE
0010 01131740901 DEFLECTING ROLLER 2 PCE
ROULEAU DE DETOUR
0011 01131749902 BEAM 1 PCE
POTENCE AVANT
0012 01131750803 BEAM 1 PCE
POTENCE ARRIERE
0013 01131744601 LOCKING SUPPORT 1 PCE
SUPPORT VERROUILLAGE
0014 01131744301 FLANK 1 PCE
FLANC DROIT
0015 01131744402 FLANK 1 PCE
FLANC GAUCHE
0016 01131745601 HINGE SUPPORT 1 PCE
SUPPORT CHARNIERE
0017 01131745302 GATE 1 PCE
TRAPPE VIDAGE
0018 01131745801 STRIKE PLATE 1 PCE
GACHE
0019 01131745901 FLAG 1 PCE
DRAPEAU
0020 01131746001 HANDLE 1 PCE
POIGNEE

Description HOPPER
0021 01131742001 FALL CUSHIONER STRUCTURE 1 PCE
ARMATURE BRISE-CHUTE
0022 01131899501 PROTECTION 2 PCE
PROTECTION ARMATURE
0023 01131743201 BOTTLE FALL CUSHIONER§ 1 PCE
BRISE-CHUTE ROTOMOULE§
0024 01131901801 CHUTE CLOSING SHEET 1 PCE
TOLE DE FERMETURE GOULOTTE
0025 01131758901 CHUTE 1 PCE
GOULOTTE
0026 01131924001 BRACKET 4 PCE
EQUERRE
0027 01131929501 HALF-CASING 1 PCE
DEMI-CARTER ARRIERE
0028 01131929702 HALF-CASING 1 PCE
DEMI-CARTER AVANT
0029 01131931201 CHUTE 1 PCE
GOULOTTE
TOLE DE FERMETURE
0031 01131931801 BRACKET 2 PCE
EQUERRE
0032 01131931901 CHUTE 2 PCE
GOULOTTE 50X52
0033 01131927002 CHUTE 1 PCE
GOULOTTE 50X52 A DROITE
0034 01131928102 CHUTE 1 PCE
GOULOTTE A GAUCHE
0035 01124054001 STRUCTURE 2 PCE
0036 01130006801 STRUCTURE 1 PCE
0037 01131751602 CELL SUPPORT 1 PCE
SUPPORT CELLULE HAUT
SUPPORT CAPTEUR
0039 01132938701 EMERGENCY STOP SUPPORT 2 PCE
SUPPORT ARRET D'URGENCE
0040 00000116522 METAL PIPE END-PIECE CARRE M20 4 PCE
EMBOUT TUBE CARRE M20
0041 00000103891 ADJUSTMENT BASE BSF80VM20X200 4 PCE
PIED DE REGLAGE BSF80VM20X200

Description HOPPER
0042 00000125689 SASH BOLT 87 7 9212 1 PCE
TARGETTE 87 7 9212
0043 00000118651 CHUTE COVER CR195 1 CM
0044 00000118651 CHUTE COVER CR195 1 CM
0045 00000133164 HINGE CFA 49B M5 2 PCE
CHARNIERE CFA 49B M5
0046 01125982501 BRACKET 2 PCE
0050 00000118032 BLIND RIVET POP 4.8X18 INOXA2 S 12 24 PCE
RIVET AVEUGLE POP 4.8X18 INOXA2 S 12
0051 00000015305 THREADED ROD M10 ELZN 46 CM
TIGE FILETEE M10 ELZN
0052 00000125685 SCREW RLS M10X100/38 4-8 Z/B 8 PCE
VIS RLS M10X100/38 4-8 Z/B
0053 00000131294 SCREW M08X120-45H-B.PL 2 PCE
0054 00000010393 SCREW H-M12X075/075-8.8 4 PCE
VIS H-M12X075/075-8.8
0056 00000011674 SCREW ISO4014-M08X070-8.8 8 PCE
VIS H ISO4014-M08X070-8.8
0057 00000011256 SCREW H-M08X025-10.9 26 PCE
VIS H-M08X025-10.9
0058 00000010035 SCREW ISO4017-M08X020-8.8 15 PCE
VIS H ISO4017-M08X020-8.8
0059 00000010034 SCREW ISO4017-M08X016-8.8 4 PCE
VIS H ISO4017-M08X016-8.8
0060 00000131296 SCREW ISO4017-M06X065-8.8 4 PCE
VIS H ISO4017-M06X065-8.8
0061 00000010049 SCREW ISO4014-M06X035-8.8 2 PCE
VIS H ISO4014-M06X035-8.8
0062 00000010448 SCREW ISO4017-M06X020-8.8 29 PCE
VIS H ISO4017-M06X020-8.8
0063 00000010020 SCREW ISO4017-M06X016-8.8 7 PCE
VIS H ISO4017-M06X016-8.8

Description HOPPER
0064 00000129240 SCREW ISO4017-M06X012-10.9 1 PCE
VIS H ISO4017-M06X012-10.9
0065 00000010015 SCREW ISO4017-M05X016-8.8 4 PCE
VIS H ISO4017-M05X016-8.8
0066 00000011547 SCREW ISO4762-M05X040-10.9 4 PCE
VIS CHC ISO4762-M05X040-10.9
0067 00000012552 SCREW ISO10642-M06X016-10.9 20 PCE
VIS FHC ISO10642-M06X016-10.9
0068 00000107618 SCREW ISO4762-M05X050-A2-70 4 PCE
VIS FHC ISO10642-M05X010-10-9
0070 00000014109 WASHER ISO7093-1-10-200HV 4 PCE
0080 00000013997 WASHER ISO7092-27-200HV 2 PCE
0081 00000013013 NUT ISO4032-M20-10 4 PCE
0082 00000013007 NUT ISO4032-M10-10 16 PCE
0084 00000013326 NUT NYL M12 -8 Z/B 4 PCE
ECROU HFR NYL M12 -8 Z/B
0085 00000013322 NUT NYL M 8 -8 Z/B 4 PCE

Description HOPPER
0086 00000013320 NUT NYL M 6 -8 Z/B 38 PCE
0087 00000013319 NUT ISO7040-M05-10 11 PCE
0088 00000013114 NUT NYL M10 -8 Z/B 2 PCE
ECROU HFR NYL M10 -8 Z/B
0089 00000131137 BONDING STRIP 25MM2-L0230-Ø08Ø10 2 PCE
TRESSE DE MASSE 25MM2-L0230-Ø08Ø10
0092 01132665001 SHIM 2 PCE
CALE
0093 01132665801 SHIM 1 PCE
CALE
0094 00000011097 SCREW H-M05X020-8.8 3 PCE
VIS H-M05X020-8.8
0095 00000010025 SCREW ISO4014-M05X040-8.8 7 PCE
VIS H ISO4014-M05X040-8.8
0097 00000013003 NUT ISO4032-M05-10 3 PCE
0098 01132676401 SHIM 1 PCE
CALE
0099 01133855301 ARM 1 PCE
BRAS
0100 00000133165 POSITIONING PIN 32 140 6 14 1 PCE
DOIGT D'INDEXAGE 32 140 6 14
0101 00000124532 SCREW M06X030-10.9 1 PCE
0102 00000102449 SCREW M04X006-10-9 2 PCE
VIS FHC M04X006-10-9
0103 01133867001 PROFILE 1 PCE
PROFIL PROTECTION L=1255@

Description ELEVATING COLUMN

Désignation COLONNE ELEVATRICE GM MILLESIME
0000 01131678403 ELEVATING COLUMN 1 PCE
0001 01133287801 COLUMN FRAME 1 PCE
CHASSIS COLONNE
0002 01131702303 APRON 1 PCE
TABLIER GM
0003 01132853501 CLEATED BELT 1 PCE
BANDE A TASSEAUX GM LARG 224
0004 01130944301 RETURN DRUM 1 PCE
TAMBOUR DE RENVOI 110 UT 222 SID
0005 01131650801 STRUT 2 PCE
JAMBE DE FORCE MM
TOLE DE FERMETURE
0007 01133111101 SUPPORT TUBE 1 PCE
TUBE SUPPORT
0008 01127781402 ADJUSTABLE PLATE 1 PCE
TOLE REGLABLE
0009 01133288701 COLUMN CONNECTION 1 PCE
LIAISON COLONNE
0010 01131688001 GATE 1 PCE
TRAPPE BASSE
0011 01127777602 TUNNEL 1 PCE
TUNNEL
0012 01131690102 TUNNEL 1 PCE
TUNNEL BAS
0013 01131691302 TUNNEL 1 PCE
TUNNEL OUVRANT
0014 01131239005 HEAD CHUTE 1 PCE
GOULOTTE TETE
0015 01130865001 GUIDE 2 PCE
GUIDE TUNNEL
0016 01131240003 GATE 1 PCE
TRAPPE LATERALE
0017 01131240502 NON-RETURN FLAP 1 PCE
BAVETTE ANTI-RETOUR
0018 01127779202 FLAP 1 PCE
BAVETTE
0019 01127779301 HOLDING FLAT SECTION 4 PCE
PLAT DE MAINTIEN
0020 01128692201 FLAP 2 PCE
BAVETTE


0021 01127778702 FLAP SUPPORT 1 PCE
SUPPORT BAVETTE
0022 01127778302 FLAP 1 PCE
BAVETTE
0023 01131291801 FLAP BRACE 1 PCE
RENFORT BAVETTE
0024 01131922301 CHUTE 1 PCE
GOULOTTE 100X52 LG3000
0025 01131923002 CHUTE 1 PCE
0026 01131923901 CHUTE 1 PCE
0027 00000116522 METAL PIPE END-PIECE CARRE M20 6 PCE
EMBOUT TUBE CARRE M20
0028 00000103891 ADJUSTMENT BASE BSF80VM20X200 4 PCE
PIED DE REGLAGE BSF80VM20X200
0029 00000116554 FINNED PIPE END STOPPER 10 PCE
BOUCHON A LAMELLES
0030 00000117231 MOTOR DRUM 110-2 0.15/0.22KW L=250 1 PCE
TAMBOUR MOTEUR 110-2 0.15/0.22KW L=250
0031 00000117232 BLIND RIVET TP-4,0X16 ALU-ST 4 PCE
RIVET AVEUGLE TP-4,0X16 ALU-ST
0032 00000119645 HINGE CA 01 BB-00 8 PCE
CHARNIERE CA 01 BB-00
0034 00000013013 NUT ISO4032-M20-10 6 PCE
0035 00000131294 SCREW M08X120-45H-B.PL 2 PCE
0036 00000012611 SCREW M08X080-45H-B.PL 1 PCE
0038 00000010071 SCREW ISO4014-M12X070-8.8 4 PCE
VIS H ISO4014-M12X070-8.8
0040 00000011259 SCREW H-M10X030-10.9 2 PCE
VIS H-M10X030-10.9
0041 00000124965 SCREW H-M10X075/075-8.8 4 PCE
VIS H-M10X075/075-8.8


0043 00000011254 SCREW H-M06X020-10.9 4 PCE
VIS H-M06X020-10.9
0044 00000011541 SCREW ISO4762-M05X010-10.9 8 PCE
VIS CHC ISO4762-M05X010-10.9
0045 00000013537 WASHER ISO7092-05-200HV 8 PCE
0047 00000013775 NUT ISO7040-M06-A4-70 34 PCE
ECROU HFR ISO7040-M06-A4-70
0048 01131923501 CHUTE 1 PCE
0049 00000014358 WASHER ISO7094-08-100HV 28 PCE
0050 00000010035 SCREW ISO4017-M08X020-8.8 22 PCE
VIS H ISO4017-M08X020-8.8
0051 00000011417 SCREW RLS M 4X 16/16 A2-70 6 PCE
VIS RLS M 4X 16/16 A2-70
0052 00000014156 WASHER ISO7089-04-200HV 5 PCE
0053 00000013318 NUT ISO7040-M04-10 5 PCE
0054 00000012553 SCREW ISO10642-M06X020-10.9 21 PCE
VIS FHC ISO10642-M06X020-10.9
0055 01131301701 BELT HOLDING FLAT 1 PCE
PLAT DE MAINTIEN BANDE BAS
0056 00000114870 SAFETY CATCH 1 PCE
CROCHET
0057 00000129101 METAL PIPE END-PIECE CARRE 123.161 2 PCE
EMBOUT TUBE CARRE 123.161
0058 01128692501 FLAP 1 PCE
BAVETTE
0059 01131243001 RETAINING METAL SHEET 1 PCE
TOLE DE MAINTIEN BASSE
0060 01128799301 HINGE BRACE 4 PCE
CALE CHARNIERE
0061 01128807802 CHUTE 1 PCE
GOULOTTE U24X24X24 LG225
0062 01128808802 COVER 1 PCE
COUVERCLE U18X30GS LG225


RONDELLE M ISO7089-04-200HV-A4
0065 00000107903 NUT ISO7040-M04-A2-70 55 PCE
0066 00000116623 CLOSURE A RESSORT SANS PORTE CADENAS 3 PCE
FERMETURE A RESSORT SANS PORTE CADENAS
CROCHET
0068 00000119609 SCREW ISO7380-1-M04X010-A2-70 4 PCE
VIS CBHC ISO7380-1-M04X010-A2-70
0069 00000107665 SCREW ISO10642-M04X016-A2-70 14 PCE
VIS FHC ISO10642-M04X016-A2-70
0070 00000107666 SCREW ISO10642-M04X020-A4-70 2 PCE
0071 01131693503 BELT 1 PCE
BANDE
0072 01128941502 HOLDING FLAT SECTION 1 PCE
PLAT DE MAINTIEN
0073 01131240403 FLAP SUPPORT 1 PCE
SUPPORT BAVETTE
0074 01131293001 FLAP HOLDING FLAT 1 PCE
PLAT DE MAINTIEN BAVETTE
0075 01130669402 BELT SUPPORT 1 PCE
SUPPORT BANDE
0076 01130646401 NUT PLATE 16 PCE
PLAQUE ECROU
0077 00000012115 SCREW ISO10642-M06X025-10.9 1 PCE
VIS FHC ISO10642-M06X025-10.9
0078 01130872601 SPACER 1 PCE
ENTRETOISE
0079 00000104289 SCREW H-M10X130/130-8.8 4 PCE
VIS H-M10X130/130-8.8
0080 00000013007 NUT ISO4032-M10-10 4 PCE
0081 00000129123 SCREW H-M20X250/250-8.8 2 PCE
VIS H-M20X250/250-8.8
0082 00000011601 SCREW ISO4762-M08X025-10.9 2 PCE
VIS CHC ISO4762-M08X025-10.9
0083 00000012552 SCREW ISO10642-M06X016-10.9 10 PCE
VIS FHC ISO10642-M06X016-10.9


0084 00000011562 SCREW ISO4762-M06X020-10.9 4 PCE
VIS CHC ISO4762-M06X020-10.9
0086 00000013003 NUT ISO4032-M05-10 3 PCE
0087 00000013317 NUT ISO7040-M03-10 2 PCE
0088 00000013319 NUT ISO7040-M05-10 6 PCE
0089 00000013441 NUT ISO7040-M05-A4-70 1 PCE
0093 00000011057 SCREW ISO4762-M03X025-10.9 2 PCE
VIS CHC ISO4762-M03X025-10.9
0094 00000104742 SCREW ISO10642-M04X012-A4-70 2 PCE
0095 00000124677 SCREW ISO10642-M04X025-A4-70 32 PCE
0096 00000011097 SCREW H-M05X020-8.8 3 PCE
VIS H-M05X020-8.8
0097 00000010025 SCREW ISO4014-M05X040-8.8 6 PCE
VIS H ISO4014-M05X040-8.8
0098 00000017974 STAR-SHAPED BUTTON D40-M08X020 PUR/ZING 10 PCE
BOUTON ETOILE D40-M08X020 PUR/ZING
0099 01132665001 SHIM 2 PCE
CALE
0100 01132707901 GATE 1 PCE
TRAPPE
0101 01132690601 CELL BRACKET 1 PCE
EQUERRE CELLULE
0102 01132718001 REFLECTOR FIXING PLATE 1 PCE
TOLE FIXATION REFLECTEUR
0103 00000013322 NUT NYL M 8 -8 Z/B 2 PCE
0104 00000127513 HANDLE BEC DE CAME 1000-U14 1 PCE
POIGNEE BEC DE CAME 1000-U14


0105 00000017689 CAM 1000-22 1 PCE
CAME 1000-22

Description ORIENTING ROLLER

Désignation ROULEAU ORIENTEUR GM
0000 01132644003 ORIENTING ROLLER 1 PCE
0001 01132696402 ORIENTING ROLLERS FRAME 1 PCE
CHASSIS ROULEAUX ORIENTEURS
0002 01129684301 ORIENTING ROLLER STEP3 AUTONOME 2 PCE
ROULEAU ORIENTEUR STEP3 AUTONOME
0003 00000131458 MOTOR DRUM 110/0.15/0.3/250/AC/AT/A 1 PCE
TAMBOUR MOTEUR 110/0.15/0.3/250/AC/AT/A
0004 00000131459 RETURN DRUM D133 L0250 1 PCE
TAMBOUR DE RENVOI D133 L0250
0005 01129676601 PIN 2 PCE
AXE
0006 01129676301 SPACER 2 PCE
ENTRETOISE
0007 01125425202 ROLLER SUPPORT 1 PCE
SUPPORT ROULEAU AV DROIT
0008 00000113583 CARRIAGE WJUM 01-10 16 PCE
CHARIOT WJUM 01-10
0009 00000113584 GUIDING RAIL WS 10-40 L=0300 2 PCE
RAIL DE GUIDAGE WS 10-40 L=0300
SUPPORT ROULEAU AV GAUCHE
0011 01125468901 THREADED ROD 1 PCE
TIGE FILETEE
0012 00000125887 SOLE PLATE BEARING D=30 2 PCE
PALIER A SEMELLE D=30
SUPPORT ROULEAU AR DROIT
SUPPORT ROULEAU AR GAUCHE
0015 01129690001 ROLLER PULLEY 2 PCE
POULIE ROULEAU
TIGE FILETEE M12 MOYENNE
0018 01125542701 GUIDE 2 PCE
GUIDE
0019 01132649201 DEFLECTOR 1 PCE
DEFLECTEUR DROIT
0020 01125462001 DEFLECTOR SUPPORT 1 PCE
SUPPORT DEFLECTEUR DROIT


0021 01132650301 DEFLECTOR GAUCHE 1 PCE
DEFLECTEUR GAUCHE
SUPPORT DEFLECTEUR
TIGE FILETEE
0024 01125426601 WIRE GUIDE 2 PCE
GUIDE CABLE
0025 01125422901 CABLE SUPPORT 2 PCE
SUPPORT CABLE
0026 01126090001 REDUCER MOTOR§ 1 PCE
MOTOREDUCTEUR§
0027 01125432201 MOTOR SHAFT 1 PCE
ARBRE MOTEUR
0028 01125432101 MOTOR PULLEY 1 PCE
POULIE MOTEUR
0029 01124945902 HEIGHT SPACER 1 PCE
ENTRETOISE HAUTEUR
0030 01123339702 SPACER 1 PCE
ENTRETOISE DE HAUTEUR
0031 01123319101 PIVOT 4 PCE
PIVOT
0032 01132687101 SUPPORT 1 PCE
SUPPORT DROIT
0033 01132684901 SUPPORT 1 PCE
SUPPORT GAUCHE
0034 01125542903 TENSIONER SUPPORT 1 PCE
SUPPORT TENDEUR
0035 00000113586 TENSIONER TA2-RU-218 1 PCE
TENDEUR TA2-RU-218
0036 00000113587 BELT 25 AT10/1250 BFX DL 1 PCE
COURROIE 25 AT10/1250 BFX DL
0037 01132758701 NON-RETURN PLATE 1 PCE
TOLE ANTI-RETOUR
0038 01131276802 CELL BRACKET 1 PCE
EQUERRE POUR CELLULE
SUPPORT CELLULE
0040 01129625102 CELL SUPPORT TUBE 1 PCE
TUBE SUPPORT CELLULE
SUPPORT CELLULE


COQUE CHASSIS ROULEAU EQUIPEE
0043 01125947802 ROLLER GAP GUIDE 1 PCE
GUIDE ECART ROULEAU AV DROIT
0044 01125947902 ROLLER GAP GUIDE 1 PCE
GUIDE ECART ROULEAU AV GAUCHE
SUPPORT DEFLECTEUR DROIT BAS
SUPPORT DEFLECTEUR GAUCHE BAS
0047 01132685301 COVER 2 PCE
COUVERCLE
0048 01126092502 ROLLERS OUTFEED CASING 1 PCE
CARTER SORTIE ROULEAUX
0049 01126092803 CLOSING GATE 1 PCE
TRAPPE FERMETURE
0050 01132692802 PANEL 1 PCE
PANNEAU CENTRAL GAUCHE
0051 01132693202 PANEL 1 PCE
PANNEAU CENTRAL DROIT
0052 01132693301 PANEL 1 PCE
PANNEAU LATERAL ARRIERE
0053 01132741001 PANEL 1 PCE
PANNEAU LATERAL AVANT
0054 01132688301 CASING 1 PCE
CARTER ARRIERE
0055 01132650701 CABLE SUPPORT SHEET 1 PCE
TOLE PORTE-CABLE
0056 01132651501 CASING 1 PCE
CARTER AVANT
TOLE FERMETURE ARRIERE
0058 01126091703 CLOSING GATE 1 PCE
TRAPPE DE FERMETURE AR.
0059 01126091301 PORT HOLE 2 PCE
HUBLOT
0060 01126093601 PORT HOLE 2 PCE
HUBLOT
0061 01132688501 MAINTENANCE GATE 1 PCE
TRAPPE DE VISITE
0062 01126092302 MOTOR GATE 1 PCE
TRAPPE MOTEUR


0063 01129671601 SCREW CASING 1 PCE
CARTER VIS SUPERIEUR
0064 01132719502 CLEATED BELT - WIDTH+250 LG=8540 1 PCE
BANDE A TASSEAUX LARG=250 LG=8540
0066 00000011621 SCREW ISO4762-M10X025-10.9 8 PCE
VIS CHC ISO4762-M10X025-10.9
0067 00000104448 SCREW M08X070-45H-B.PL 1 PCE
0068 00000012136 SCREW M08X110-45H-B.PL 2 PCE
0070 00000011562 SCREW ISO4762-M06X020-10.9 30 PCE
VIS CHC ISO4762-M06X020-10.9
0071 00000013320 NUT NYL M 6 -8 Z/B 50 PCE
0072 00000016555 SCREW ISO4762-M06X012-10.9 8 PCE
VIS CHC ISO4762-M06X012-10.9
0073 00000014498 WASHER DIN2093-C-020.0X010.2X00.5 6 PCE
RONDELLE DIN2093-C-020.0X010.2X00.5
0074 00000013007 NUT ISO4032-M10-10 12 PCE
0075 00000013324 NUT ISO7040-M10-10 3 PCE
0076 00000025320 KNURLED NUT 16-030-10 3 PCE
ECROU MOLETE 16-030-10
0077 00000013043 NUT ISO4035-M10-05 3 PCE
0078 00000113890 STAR-SHAPED BUTTON 15-285-63-10 3 PCE
BOUTON ETOILE 15-285-63-10
0079 00000106775 BALL JOINT BEARING 2205E-2RS1 2 PCE
ROULEMENT A ROTULE 2205E-2RS1
0081 00000013449 NUT DIN 985-M16-05 2 PCE
0082 00000011564 SCREW ISO4762-M06X030-10.9 5 PCE
VIS CHC ISO4762-M06X030-10.9
0083 00000113588 SCREW ISO7380-1-M05X020-10.9 4 PCE
VIS CBHC ISO7380-1-M05X020-10.9


0084 00000010553 SCREW H-M14X020-8.8 4 PCE
VIS H-M14X020-8.8
0087 00000011561 SCREW ISO4762-M06X016-10.9 17 PCE
VIS CHC ISO4762-M06X016-10.9
0088 00000011560 SCREW ISO4762-M06X010-10.9 2 PCE
VIS CHC ISO4762-M06X010-10.9
0089 00000013004 NUT ISO4032-M06-10 2 PCE
0090 00000096997 CABLE ACIER GALV. ENROBE NYLON D=3 608 CM
CABLE ACIER GALV. ENROBE NYLON D=3
0091 00000012014 SCREW ISO4026-M04X010-45H 2 PCE
0092 00000113891 SCREW EYE M5X30X 8 4 PCE
PITON M5X30X 8
0093 00000114127 WIRE CLAMP SCA103 D=3 2 PCE
SERRE-CABLE SCA103 D=3
0094 00000013039 NUT ISO4035-M05-05 4 PCE
0096 00000011542 SCREW ISO4762-M05X016-10.9 32 PCE
VIS CHC ISO4762-M05X016-10.9
0097 01132728501 FLAP 1 PCE
BAVETTE AVANT
0098 00000012551 SCREW ISO10642-M06X010-10-9 4 PCE
VIS FHC ISO10642-M06X010-10-9
0099 00000011571 SCREW ISO4762-M06X065-10.9 1 PCE
VIS CHC ISO4762-M06X065-10.9
0100 00000113589 SCREW ISO7380-1-M05X016-A2-70 42 PCE
0101 00000010029 SCREW ISO4014-M06X030-8.8 4 PCE
VIS H ISO4014-M06X030-8.8
0102 00000018020 PARALLEL KEY FA _6X 6X 25 1 PCE
CLAVETTE PARALLELE FA _6X 6X 25
0103 00000014358 WASHER ISO7094-08-100HV 2 PCE
0104 00000010461 SCREW ISO4014-M08X040-8.8 1 PCE
VIS H ISO4014-M08X040-8.8


0105 00000017474 PARALLEL KEY FORME A _8X 7X 25 1 PCE
CLAVETTE PARALLELE FORME A _8X 7X 25
0106 00000010034 SCREW ISO4017-M08X016-8.8 1 PCE
VIS H ISO4017-M08X016-8.8
0107 00000011170 SCREW CZHC-M06X008-8.8 1 PCE
VIS CZHC-M06X008-8.8
0109 00000011644 SCREW ISO4762-M12X025-10.9 1 PCE
VIS CHC ISO4762-M12X025-10.9
0110 00000092639 TENSIONER PULLEY PTP60X60 M12 1 PCE
POULIE TENDEUR PTP60X60 M12
0111 00000113308 SCREW ISO7380-1-M06X020-A2-70 16 PCE
0112 00000012440 SCREW CHC-M04X016-10.9 8 PCE
0114 00000013318 NUT ISO7040-M04-10 28 PCE
0115 00000106787 SCREWABLE HINGE 1056-U18 9 PCE
CHARNIERE A VISSER 1056-U18
0116 00000012115 SCREW ISO10642-M06X025-10.9 18 PCE
VIS FHC ISO10642-M06X025-10.9
0117 01133038801 LOCKING SPACER 9 PCE
ENTRETOISE DE BLOCAGE
0118 00000012554 SCREW ISO10642-M06X030-10-9 18 PCE
VIS FHC ISO10642-M06X030-10-9
0119 01132674301 PLAQUETTE DE REGLAGE 3 PCE
PLAQUETTE DE REGLAGE
0121 01132688001 FLAT 2 PCE
PLAT
0124 00000103467 SCREW ISO7380-1-M05X016-10-9 74 PCE
VIS CBHC ISO7380-1-M05X016-10-9
0125 01131488001 SPACER 1 PCE
ENTRETOISE TUBE


0126 00000128654 WELDING PLATE SPAD 4S ZINGUE 2 PCE
PLAQUE A SOUDER SPAD 4S ZINGUE
0127 00000011057 SCREW ISO4762-M03X025-10.9 6 PCE
VIS CHC ISO4762-M03X025-10.9
0129 01132760501 FLAP 1 PCE
BAVETTE
0130 00000013317 NUT ISO7040-M03-10 6 PCE
0131 01131307902 FLAP PLATE 1 PCE
PLAQUE BAVETTE
0132 01132700001 SPACER 2 PCE
ENTRETOISE
0133 01132693801 SPACER 3 PCE
ENTRETOISE
0134 01132674101 SMALL BAR 4 PCE
BARRETTE
0135 01132733301 SUPPORT 1 PCE
SUPPORT
0136 00000013364 NUT ISO7040-M08-10 7 PCE
0137 00000107808 SCREW M08X150-10.9 4 PCE
0138 00000013403 NUT DIN 985-M06-05 15 PCE
VIS RLS M 6X 12/12 4-8 Z/B
0140 01132651201 PARTITION FRAME 3 PCE
TOLE SEPARATRICE
0141 00000128643 RING D:18MM 2 PCE
ANNEAU D:18MM
0142 01126631602 SEPARATION SHEET 3 PCE
TOLE DE SEPARATION
0143 00000011616 SCREW ISO4762-M08X100-10.9 4 PCE
VIS CHC ISO4762-M08X100-10.9
0144 00000015810 SCREW RLS M 6X 16/16 A2-70 6 PCE
VIS RLS M 6X 16/16 A2-70
0145 00000013407 NUT NYL M 5 -8 Z/B 32 PCE
ECROU HMFR NYL M 5 -8 Z/B
0146 01126670201 PORT HOLE 1 PCE
HUBLOT


0147 01132720701 PANEL 1 PCE
PANNEAU LATERAL AVANT HAUT
0148 01132709701 FLAP 1 PCE
BAVETTE
0149 01132709801 FLAP 1 PCE
BAVETTE
0150 00000014369 WASHER ISO7093-1-04-200HV 20 PCE
0151 00000128012 BLIND RIVET POP 4,0X16 ALU S=7 8 PCE
RIVET AVEUGLE POP 4,0X16 ALU S=7
0152 01132684201 BAVETTE 1 PCE
BAVETTE
0153 01131369301 PLATE 1 PCE
PLAQUE
0154 01128097202 INTERMEDIATE FLAP 1 PCE
BAVETTE INTERMEDIAIRE
SUPPORT CELLULE
0156 00000119819 COLLAR 4030 PA DPAL-AS 6 PCE
COLLIER 4030 PA DPAL-AS
0157 01129651001 AMPLIFIER SUPPORT 1 PCE
SUPPORT AMPLIFICATEUR
0158 01132686301 COVER 1 PCE
COUVERCLE
0159 01132693701 PANEL 1 PCE
PANNEAU LATERAL AVANT
0160 01131392101 PLATE 1 PCE
PLAQUE CELLULE
0161 01132746001 FLAP 1 PCE
BAVETTE
0162 01132735201 FLAP 2 PCE
BAVETTE
0163 01132735301 FLAP 2 PCE
BAVETTE
0164 00000012280 SCREW FHC M 4X 20/20 10-9 Z/B 4 PCE
VIS FHC M 4X 20/20 10-9 Z/B
0165 00000117233 HINGE 120° 2 PCE
CHARNIERE 120°
0166 00000011523 SCREW ISO4762-M04X020-10.9 8 PCE
VIS CHC ISO4762-M04X020-10.9
0167 00000011008 SCREW ISO4017-M04X025-8.8 6 PCE
VIS H ISO4017-M04X025-8.8


0168 00000101073 ADHESIVE SEAL 10X3 1.120 CM
JOINT ADHESIF 10X3
0169 00000105165 SCREW H-M08X030-8.8 4 PCE
VIS H-M08X030-8.8
0170 01132697401 GOULOTTE 200X100 LG 1810 1 PCE
GOULOTTE 200X100 LG 1810
0171 00000011254 SCREW H-M06X020-10.9 8 PCE
VIS H-M06X020-10.9
0172 00000118651 CHUTE COVER CR195 180 CM
0173 00000012553 SCREW ISO10642-M06X020-10.9 2 PCE
VIS FHC ISO10642-M06X020-10.9
0174 00000010481 SCREW ISO4017-M04X016-8.8 2 PCE
VIS H ISO4017-M04X016-8.8
0175 00000014362 WASHER ISO7094-06-100HV 3 PCE
0176 00000114675 RIVET POP F120° 3,2X11 ALU 4 PCE
RIVET POP F120° 3,2X11 ALU
RENFORT ARRIERE
RENFORT AVANT
0179 00000011097 SCREW H-M05X020-8.8 2 PCE
VIS H-M05X020-8.8
0180 00000101016 SCREW ISO4014-M05X045-8.8 4 PCE
VIS H ISO4014-M05X045-8.8
0181 00000131653 LATCH PETIT MODELE 19 401 6 2 PCE
LOQUET PETIT MODELE 19 401 6
0182 01133053201 PANEL 1 PCE
PANNEAU CENTRAL GAUCHE HAUT
0183 01133055901 PANEL 1 PCE
PANNEAU CENTRAL DROIT HAUT
0184 01133887001 HOLDING BRACKET 1 PCE
EQUERRE DE MAINTIEN
0185 01133931601 PLATE 1 PCE
PLAQUE
0186 00000011563 SCREW ISO4762-M06X025-10.9 2 PCE
VIS CHC ISO4762-M06X025-10.9

Description ROLLER FRAME SHELL ASSY

Désignation COQUE CHASSIS ROULEAU EQUIPEE GM
0001 01132684001 ROLLER FRAME HALF-SHELL 1 PCE
DEMI-COQUE CHASSIS ROULEAU AV GAUCHE
DEMI-COQUE CHASSIS ROULEAU AR GAUCHE
DEMI-COQUE CHASSIS ROULEAU AV DROITE
DEMI-COQUE CHASSIS ROULEAU AR DROITE
SUPPORT MOTEUR
0006 01132709401 DEFLECTOR 1 PCE
DEFLECTEUR AVANT
0007 01125946202 RAIL SUPPORT 1 PCE
SUPPORT RAIL ARRIERE
SUPPORT RAIL AVANT
0009 01131400501 CELL SUPPORT CROSS-BAR 1 PCE
TRAVERSE SUPPORT CELLULE
0010 01125946701 BELT SUPPORT CROSS-BAR 1 PCE
TRAVERSE SUPPORT BANDE
TRAVERSE SUPPORT CELLULE
0012 01125946901 SPACER 2 PCE
ENTRETOISE
0013 01131413402 SHELL JUNCTION SPACER 1 PCE
ENTRETOISE JONCTION COQUE
0014 01133905001 SHELL JUNCTION SPACER 1 PCE
ENTRETOISE JONCTION COQUE INTERMEDIAIRE
0015 01132698201 SHELL BOTTOM PLATE 1 PCE
TOLE FOND COQUE
0016 01132709001 SHELL BAR 1 PCE
LONGERON COQUE GAUCHE
0017 01132709301 SHELL BAR 1 PCE
LONGERON COQUE DROITE
0018 01132716901 BELT GUIDE 4 PCE
GUIDE TAPIS
0019 01126106802 CHUTE 1 PCE
0020 01126107002 CHUTE 1 PCE
GOULOTTE

Description ROLLER FRAME SHELL ASSY

Désignation COQUE CHASSIS ROULEAU EQUIPEE GM
0021 01126107602 CHUTE 1 PCE
GOULOTTE
0022 01126107702 CHUTE 1 PCE
GOULOTTE
0023 01126107801 CHUTE 1 PCE
GOULOTTE
0024 01126107901 CHUTE 2 PCE
GOULOTTE
0025 01126108301 CHUTE 1 PCE
GOULOTTE
0026 01126107202 CHUTE 1 PCE
0027 01126107102 CHUTE 1 PCE
GOULOTTE
0028 00000113308 SCREW ISO7380-1-M06X020-A2-70 88 PCE
0030 00000013320 NUT NYL M 6 -8 Z/B 131 PCE
0031 00000011562 SCREW ISO4762-M06X020-10.9 29 PCE
VIS CHC ISO4762-M06X020-10.9
0032 00000012553 SCREW ISO10642-M06X020-10.9 1 PCE
VIS FHC ISO10642-M06X020-10.9
0033 00000012115 SCREW ISO10642-M06X025-10.9 56 PCE
VIS FHC ISO10642-M06X025-10.9
0034 00000114675 RIVET POP F120° 3,2X11 ALU 4 PCE
RIVET POP F120° 3,2X11 ALU
0035 00000089819 BLIND RIVET TP-4,0X10 ALU-ST 22 PCE
RIVET AVEUGLE TP-4,0X10 ALU-ST
0036 01126581801 CHUTE 1 PCE
GOULOTTE
TRAVERSE SUPPORT CELLULE AVANT
0039 01132732901 SLIDE PLATE 1 PCE
PLAQUE DE GLISSEMENT

Description MODULE
Désignation MODULE AVANT GM
0001 00000132702 FOOT BSF80VM20 L125 2 PCE
PIED BSF80VM20 L125
0002 00000147730 PLINTH 890-F801040600-100 1 PCE
PLINTHE 890-F801040600-100
0003 00000147733 END-PIECE F80104600-090-04 2 PCE
EMBOUT F80104600-090-04

Description UNSCRAMBLER
Désignation DEMELEUR STEP3
DEMELEUR STEP3
0001 01125210702 UNSCRAMBLER PIN 1 PCE
AXE DEMELEUR
0002 01131411701 UNSCRAMBLER SUPPORT 1 PCE
SUPPORT DEMELEUR INCLINE
0003 01122774501 UNSCRAMBLER PADDLE 4 PCE
PALE DEMELEUR
0004 01122779801 UNSCRAMBLER PLATE 4 PCE
PLAQUE DEMELEUR
0005 01131411901 UNSCRAMBLER PLATE 1 PCE
PLAQUE DEMELEUR
0007 00000013011 NUT ISO4032-M16-10 2 PCE
0008 01126120001 REDUCER MOTOR 1 PCE
MOTOREDUCTEUR
0009 00000013118 WASHER CS-Z06-6,1X12X1,2-A2 8 PCE
RONDELLE CS-Z06-6,1X12X1,2-A2
0010 00000109404 SCREW ISO7380-1-M06X016-A2-70 12 PCE
0011 00000012080 SCREW M06X020-A4-70 4 PCE
0012 00000104762 SCREW ISO10642-M06X025-A4-70 4 PCE
0013 00000013775 NUT ISO7040-M06-A4-70 4 PCE
0015 00000011446 SCREW ISO4028-M06X016-45H 2 PCE

Description RECYCLING CHUTE

Désignation GOULOTTE DE RECYCLAGE GM MILLESIME
GOULOTTE DE RECYCLAGE
0002 01131754403 INTERMEDIATE CHUTE 1 PCE
GOULOTTE INTERMEDIAIRE
0003 01126239601 RECYCLING ELBOW 125° 2 PCE
COUDE DE RECYCLAGE 125°
0004 01131749702 TUBE § 2 PCE
TUBE GM MILLESIME §
0005 01126425001 RECYCLING ELBOW 145° 2 PCE
COUDE DE RECYCLAGE 145°
0006 01129920801 RECYCLING TUBE 1 PCE
TUBE DE RECYCLAGE AVEC TRAPPE
SUPPORT GOULOTTE
0008 01128205401 CHUTE SUPPORT PLATE 2 PCE
PLAQUE SUPPORT GOULOTTE
0009 01131956101 GATE 1 PCE
TRAPPE POUR TUBE
0010 01131750301 HINGE SHIM 2 PCE
CALE CHARNIERE
0011 01131750201 SLIDE 1 PCE
GLISSIERE
0012 01131750901 WINDOW 1 PCE
HUBLOT
0013 01131750601 CAP 1 PCE
BOUCHON
0014 01130501201 PIANO HINGE 1 PCE
CHARNIERE A PIANO
SUPPORT DETECTEUR
0016 01129255301 DETECTOR PLATE 1 PCE
PLAQUE DETECTEUR CAPACITIF
0017 01133177801 SENSOR WINDOW 1 PCE
HUBLOT DETECTEUR
0018 00000119819 COLLAR 4030 PA DPAL-AS 2 PCE
COLLIER 4030 PA DPAL-AS
0019 00000114086 COLLAR A BRIDE COB D=200 2 PCE
COLLIER A BRIDE COB D=200
CROCHET


0021 00000116623 CLOSURE A RESSORT SANS PORTE CADENAS 4 PCE
FERMETURE A RESSORT SANS PORTE CADENAS
0022 00000125656 STAR-SHAPED BUTTON D25-M05X010 PUR/ZING 1 PCE
BOUTON ETOILE D25-M05X010 PUR/ZING
0023 00000128012 BLIND RIVET POP 4,0X16 ALU S=7 14 PCE
RIVET AVEUGLE POP 4,0X16 ALU S=7
0025 00000107665 SCREW ISO10642-M04X016-A2-70 2 PCE
0027 00000107903 NUT ISO7040-M04-A2-70 4 PCE
0029 00000011601 SCREW ISO4762-M08X025-10.9 4 PCE
VIS CHC ISO4762-M08X025-10.9
0030 00000013554 NUT ISO4032-M08-10 8 PCE
0031 00000011428 SCREW H-M08X070-8.8 2 PCE
VIS H-M08X070-8.8
0033 00000013427 SCREW ISO4017-M06X016-10.9 4 PCE
VIS H ISO4017-M06X016-10.9
0034 00000013004 NUT ISO4032-M06-10 4 PCE
0035 00000012088 SCREW ISO10642-M08X025-A4-70 4 PCE
0036 00000013322 NUT NYL M 8 -8 Z/B 4 PCE
0037 00000105105 SCREW ISO7380-1-M08X020-A2-70 2 PCE
0038 00000011549 SCREW ISO4762-M05X050-10.9 4 PCE
VIS CHC ISO4762-M05X050-10.9
0040 00000012656 SCREW ISO10642-M04X016-A4-70 2 PCE
0041 00000107651 SCREW CLS ISO1580-M04X010-4.8-PHO 24 PCE
VIS CLS ISO1580-M04X010-4.8-PHO


0042 01125485101 RECYCLING TUBE 1 PCE
TUBE DE RECYCLAGE
0043 00000130352 TOGGLE CATCH AC.113 2 PCE
CROCHET GRENOUILLERE AC.113
0044 00000130353 TOGGLE GP2012 2 PCE
GRENOUILLERE GP2012
0047 00000010248 SCREW H-M08X020-A4-80 2 PCE
VIS H-M08X020-A4-80
0048 01132965901 WASHER 4 PCE
RONDELLE
0049 01133203201 HOPPER DEFLECTOR 1 PCE
DEFLECTEUR TREMIE DROIT
0050 01133213601 HOPPER DEFLECTOR 1 PCE
DEFLECTEUR TREMIE GAUCHE
0051 00000012087 SCREW ISO10642-M06X016-A4-70 8 PCE
0053 00000013775 NUT ISO7040-M06-A4-70 8 PCE
SUPPORT GOULOTTE

Description INFEED RAIL

Désignation RAIL D'ALIMENTATION 1,5M
0000 01125502602 INFEED RAIL 1 PCE
0001 01120071502 FASTENING PIN 1 PCE
AXE D'ACCROCHAGE
0002 01119395402 CONNECTOR BAR 2 PCE
PONTET GAUCHE
0003 01068724504 CONNECTION 1 PCE
LIAISON
0004 01125503301 GUIDE UNDER NECK 1 PCE
GUIDE SOUS COL GAUCHE
0005 01122649801 PIPE 4 PCE
TUBE D=10 EP=1.5 L=20MM SUIV.73868002
0006 01125503401 SUPPORT TUBE 2 PCE
TUBE SUPPORT
PONTET GAUCHE
0008 01068726104 CONNECTION 1 PCE
LIAISON
0009 01125548401 RETRACTABLE GUIDE UNDER NECK 1 PCE
GUIDE SOUS COL ESCAMOTABLE
0010 01119926501 SUPPORT RING 4 PCE
BAGUE SUPPORT
0011 01118521102 REFLECTOR SUPPORT 2 PCE
SUPPORT REFLECTEUR
0012 01125503101 GUIDE UNDER NECK 1 PCE
GUIDE SOUS COL
0013 01118477302 PIN 8 PCE
AXE ETAU PORTE GUIDE
0014 01119887001 FOAM SUPPORT 2 PCE
SUPPORT MOUSSE
PONTET DROIT
0016 01125502901 GUIDE ON NECK RIM 1 PCE
GUIDE SUR BUVANT
0017 01118534301 BODY GUIDE 1 PCE
GUIDE CORPS
0018 01118534201 BODY GUIDE 1 PCE
GUIDE CORPS
0019 01125503501 BODY GUIDE 2 PCE
GUIDE CORPS
0020 01125548001 UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL


0021 01119401602 RIGHT BRIDGE GUIDE 1 PCE
PONTET DROIT
SUPPORT CELLULE
0023 01119395003 ADJUSTMENT PIN 2 PCE
AXE DE REGLAGE
0024 01119394902 GUIDE PIN 1 PCE
AXE DE GUIDAGE
0025 01119395103 BRIDGE GUIDE 2 PCE
PONTET
0026 00000011632 SCREW ISO4762-M10X080-10.9 1 PCE
VIS CHC ISO4762-M10X080-10.9
0027 00000011730 SCREW CHC-M06X010/010-12.9 8 PCE
VIS CHC-M06X010/010-12.9
0028 00000011604 SCREW ISO4762-M08X040-10.9 8 PCE
VIS CHC ISO4762-M08X040-10.9
0029 00000011601 SCREW ISO4762-M08X025-10.9 2 PCE
VIS CHC ISO4762-M08X025-10.9
0032 00000011543 SCREW ISO4762-M05X020-10.9 8 PCE
VIS CHC ISO4762-M05X020-10.9
0033 00000013003 NUT ISO4032-M05-10 8 PCE
0036 00000013004 NUT ISO4032-M06-10 10 PCE
0037 00000013007 NUT ISO4032-M10-10 2 PCE
0039 00000013040 NUT ISO4035-M06-05 1 PCE
0040 01127176701 REWORK DRAWING 2 PCE
PLAN DE REPRISE ECROU MOLETE
0041 00000012296 SCREW RLS M 6X 30/30 A2-70 6 PCE
VIS RLS M 6X 30/30 A2-70


0044 00000104416 GUIDE SUPPORT VICE 82-66861 8 PCE
ETAU SUPPORT GUIDE 82-66861
0045 00000011640 SCREW ISO4762-M04X006-10.9 4 PCE
VIS CHC ISO4762-M04X006-10.9
0046 00000104354 KNURLED NUT 16-030-06 12 PCE
0047 00000018000 STAR-SHAPED BUTTON 15-521-32- 5 1 PCE
BOUTON ETOILE 15-521-32- 5
0049 01125547801 GUIDE ON NECK RIM 1 PCE
GUIDE SUR BUVANT
0050 00000106095 SHOULDERED PIN 31-510-6 LG 10 1 PCE
AXE EPAULE 31-510-6 LG 10
0051 00000104352 SPRING CLIP 26-031-00 1 PCE
SAUTERELLE 26-031-00
0052 00000113599 KNURLED KNOB DI08-DE60-H51 2 PCE
BOUTON MOLETE DI08-DE60-H51
0053 00000100596 SCREW M06X012-10.9 2 PCE
0056 00000013415 SCREW M06X020-10.9 4 PCE
0059 00000105488 PROTECTIVE FOAM TYPE:A J/N 2 PCE
MOUSSE DE PROTECTION TYPE:A J/N

Description SUPPORT
Désignation SUPPORT RAIL STANDARD
SUPPORT RAIL
0001 01125934001 BASE PLATE 1 PCE
PLATINE TRIPODE
SUPPORT RAIL
SUPPORT RAIL SUPERIEUR
SUPPORT RAIL
0005 01125903802 PROTECTIVE FOAM 2 PCE
MOUSSE DE PROTECTION
0006 00000017685 FOOT KFB80M16X60 3 PCE
PIED KFB80M16X60
0007 00000116554 FINNED PIPE END STOPPER 1 PCE
BOUCHON A LAMELLES
0008 00000013011 NUT ISO4032-M16-10 6 PCE
0010 00000105165 SCREW H-M08X030-8.8 4 PCE
VIS H-M08X030-8.8
0011 00000011037 SCREW ISO4014-M08X065-8.8 2 PCE
VIS H ISO4014-M08X065-8.8
0012 00000013322 NUT NYL M 8 -8 Z/B 4 PCE
0013 00000124904 SCREW H-M08X085-A4-70 2 PCE
VIS H-M08X085-A4-70
0014 00000010035 SCREW ISO4017-M08X020-8.8 2 PCE
VIS H ISO4017-M08X020-8.8

Description ROLLER OUTFEED RAIL WITH EJECTION

Désignation RAIL SORTIE ROULEAUX AVEC EJECTION
0000 01128316904 ROLLER OUTFEED RAIL 1 PCE
RAIL SORTIE ROULEAUX DE STABILISATION
0001 01128317603 RAIL LEFT 1 PCE
RAIL COTE GAUCHE
0002 01128317203 RAIL RIGHT 1 PCE
RAIL COTE DROIT
0003 01125696101 EJECTION SUPPORT 1 PCE
SUPPORT EJECTION
0004 01128317502 RAIL 1 PCE
RAIL AVAL COTE DROIT
0005 01125696201 GATE BRACKET 1 PCE
EQUERRE TRAPPE
0006 01128317402 GATE 1 PCE
TRAPPE
0007 01125696401 BRACKET 1 PCE
EQUERRE
0008 01125157803 NECK RIM RETAINER 1 PCE
APPUI BUVANT
0009 01125158301 BODY GUIDE SUPPORT 7 PCE
SUPPORT GUIDE CORPS
0010 01123271602 SLIDE 1 PCE
GLISSIERE
0011 01125700002 BODY GUIDE 1 PCE
GUIDE CORPS
0012 01125700202 RIGHT BODY GUIDE 1 PCE
GUIDE CORPS DROIT
0013 01125700402 RETRACTABLE BODY GUIDE 1 PCE
GUIDE CORPS ESCAMOTABLE
0014 01125700502 DOWNSTREAM BODY GUIDE 1 PCE
GUIDE CORPS AVAL
0015 01124842501 RAIL DEFLECTOR 1 PCE
DEFLECTEUR RAIL
0016 01125700701 NECK GUIDE 1 PCE
GUIDE COL
0017 01123263801 NECK GUIDE 1 PCE
GUIDE COL AMONT
0018 01127415702 GATE NECK GUIDE 1 PCE
GUIDE COL TRAPPE
SUPPORT DETECTEUR
0020 01121322501 SPRING BLADE 1 PCE
LAME RESSORT


0021 01126180801 DISTRIBUTOR SUPPORT BRACKET 1 PCE
EQUERRE SUPPORT DISTRIBUTEUR
0022 00000113885 ACTING CYLINDER GUIDE CGT016020B16DX 1 PCE
VERIN GUIDE CGT016020B16DX
0024 00000013415 SCREW M06X020-10.9 8 PCE
0026 00000011059 SCREW ISO4014-M05X025-8.8 2 PCE
VIS H ISO4014-M05X025-8.8
0027 00000011545 SCREW ISO4762-M05X030-10.9 4 PCE
VIS CHC ISO4762-M05X030-10.9
0028 00000011559 SCREW ISO4762-M05X012-10.9 9 PCE
VIS CHC ISO4762-M05X012-10.9
0029 00000101078 CYLINDRICAL PIN _3X 5 501 2 PCE
GOUPILLE CYLINDRIQUE _3X 5 501
0030 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9
0031 00000104354 KNURLED NUT 16-030-06 11 PCE
0034 00000011543 SCREW ISO4762-M05X020-10.9 6 PCE
VIS CHC ISO4762-M05X020-10.9
0035 00000011542 SCREW ISO4762-M05X016-10.9 10 PCE
VIS CHC ISO4762-M05X016-10.9
0037 00000011565 SCREW ISO4762-M06X035-10.9 4 PCE
VIS CHC ISO4762-M06X035-10.9
0039 00000100596 SCREW M06X012-10.9 7 PCE
0041 00000011640 SCREW ISO4762-M04X006-10.9 2 PCE
VIS CHC ISO4762-M04X006-10.9


0042 00000010015 SCREW ISO4017-M05X016-8.8 4 PCE
VIS H ISO4017-M05X016-8.8
0043 01126178801 DISTRIBUTION UNIT 1 PCE
SUPPORT VERIN
0046 01125701501 PREFORM TRUST 1 PCE
BUTEE PREFORME
0047 00000113887 ACTING CYLINDER ISO 6432 D=8 C=20 1 PCE
VERIN ISO 6432 D=8 C=20
0048 00000113888 COUPLING ELBOW D=4 M5 4 PCE
RACCORD COUDE D=4 M5
0049 00000011525 SCREW ISO4762-M04X030-10.9 2 PCE
VIS CHC ISO4762-M04X030-10.9
0050 00000013311 NUT DIN 985-M04-05 2 PCE
0051 00000080217 PIPE RILSAN _2,7X 4 NATUREL 74 CM
TUYAU RILSAN _2,7X 4 NATUREL
0052 01126515201 BRACKET 1 PCE
EQUERRE
0053 00000014362 WASHER ISO7094-06-100HV 4 PCE
0054 01129858401 PROTECTIVE SHEET 1 PCE
TOLE PROTECTION
0055 01129864701 RAIL DEFLECTOR 1 PCE
DEFLECTEUR RAIL
0056 01131933701 CELL SUPPPORT 1 PCE
SUPPORT CELLULE

Description DISTRIBUTION UNIT

Désignation BLOC DE DISTRIBUTION
0002 99000435796 SILENCER 1/4 PLASTIQUE SE25K - N005126 2 PCE
SILENCIEUX 1/4 PLASTIQUE SE25K - N005126
0005 00000151750 DISTRIBUTOR L01SA4594G00061 4/2 3 PCE
DISTRIBUTEUR L01SA4594G00061 4/2
0007 00000151749 SILENCER 1/8 PLASTIQUE 1 PCE
SILENCIEUX 1/8 PLASTIQUE
0999 00000158612 THRUST 239-582 N-000981 1 PCE
BUTEE 239-582 N-000981


Désignation GOULOTTE ELECTRIQUE GM A DROITE
GOULOTTE AUTOPORTEE
0002 00000118651 CHUTE COVER CR195 24 CM
0003 00000118650 PLANE CHANGE CONVEXE GBS4 2 PCE
CHANGEMENT DE PLAN CONVEXE GBS4
0004 00000118653 COVER CHANGEMENT PLAN CONVEXE GBS4 2 PCE
COUVERCLE CHANGEMENT PLAN CONVEXE
GBS4
GOULOTTE AUTOPORTEE MECANOSOUDEE
0006 01129992401 CHUTE COVER 1 PCE
COUVERCLE GOULOTTE
0008 00000118651 CHUTE COVER CR195 44 CM
0009 00000118649 TEE GBS4 1 PCE
TE GBS4
0010 00000118654 COVER TE GBS4 1 PCE
COUVERCLE TE GBS4
0012 00000118651 CHUTE COVER CR195 161 CM
0014 00000118651 CHUTE COVER CR195 188 CM
EQUERRE DE FIXATION
0016 01133178301 FIXING LUG 1 PCE
PATTE DE FIXATION
0017 01133179801 BRACKET 1 PCE
EQUERRE
0018 01128137301 BRACKET 2 PCE
EQUERRE
0019 00000132446 TUBE CLAMP 582 _80X 80 1 PCE
ETRIER TUBE 582 _80X 80
0020 00000102474 BOLT TRCC M 6X 12 204161 28 PCE
BOULON TRCC M 6X 12 204161


Désignation GOULOTTE ELECTRIQUE GM A DROITE
0022 00000000687 SCREW ISO4017-M06X010-8.8 4 PCE
VIS H ISO4017-M06X010-8.8
0024 00000010035 SCREW ISO4017-M08X020-8.8 4 PCE
VIS H ISO4017-M08X020-8.8
0025 00000013554 NUT ISO4032-M08-10 4 PCE
0026 00000010020 SCREW ISO4017-M06X016-8.8 3 PCE
VIS H ISO4017-M06X016-8.8
0027 00000013320 NUT NYL M 6 -8 Z/B 3 PCE

Description HOPPER COWLING

Désignation CAPOTAGE TREMIE STEP3
0000 01129006903 HOPPER COWLING 1 PCE
CAPOTAGE TREMIE
0001 01129007902 FIXED FRAME 1 PCE
CADRE FIXE
0002 01129012902 COVER 1 PCE
COUVERCLE
0004 00000011562 SCREW ISO4762-M06X020-10.9 4 PCE
VIS CHC ISO4762-M06X020-10.9
0005 00000119994 ADHESIVE SEAL 1016-174 340 CM
0007 00000011861 SCREW ISO4762-M10X120-12.9 4 PCE
VIS CHC ISO4762-M10X120-12.9
0008 00000127139 SELF-ADHESIVE LABEL 202 1 PCE
ETIQUETTE AUTOCOLLANTE 202

Description CAPOTAGE TREMIE MODULABLE STEP3

Désignation CAPOTAGE TREMIE MODULABLE STEP3
0000 01129297804 MODULAR HOPPER COWLING 1 PCE
0001 01129018004 MODULAR FRAME 1 PCE
CADRE MODULABLE
0002 01129779202 SLIDE 1 PCE
GLISSIERE
0003 01129772802 SLIDE 1 PCE
GLISSIERE
0006 01129783402 COVER 1 PCE
COUVERCLE
0007 01129792102 COVER 1 PCE
COUVERCLE
RENFORT
0009 01129104002 WORM SCREW 1 PCE
VIS SANS FIN
SUPPORT DETECTEUR
0011 01129109302 END OF STROKE SUPPORT 2 PCE
SUPPORT FIN DE COURSE
0012 01129190102 CHUTE 1 PCE
GOULOTTE
0013 01129190202 CHUTE 1 PCE
GOULOTTE
0014 01129190502 CHUTE 1 PCE
GOULOTTE
0015 01129190602 GOULOTTE SYM 50x52 Lg245 1 PCE
GOULOTTE SYM 50x52 Lg245
0016 01129190701 CHUTE 1 PCE
GOULOTTE
0017 01129191001 COVER 1 PCE
COUVERCLE
0018 01129191101 CHUTE 1 PCE
GOULOTTE
0019 01129191301 COVER 1 PCE
COUVERCLE
0020 01129191501 SPACER 1 PCE
ENTRETOISE
0021 00000123054 MOTOR DT71D8 /Z 1 PCE
MOTEUR DT71D8 /Z
0022 01133605901 KIT 1 PCE
KIT LIMITEUR ACCOUPLE MAYR REF F0590313


0023 01129334201 THREADED NUT 1 PCE
ECROU A COLLERETTE WFRM 2835TR16X2
0024 00000125406 CAP GPN 270 R 80404 3 PCE
BOUCHON GPN 270 R 80404
0025 00000119994 ADHESIVE SEAL 1016-174 810 CM
0027 00000011848 SCREW RLS M10X 20/20 A2-70 28 PCE
VIS RLS M10X 20/20 A2-70
0028 00000011566 SCREW ISO4762-M06X040-10.9 10 PCE
VIS CHC ISO4762-M06X040-10.9
0029 00000014137 WASHER CS-NFE25511-Z05-5,1X10X1 2 PCE
RONDELLE CS-NFE25511-Z05-5,1X10X1
0030 00000011544 SCREW ISO4762-M05X025-10.9 2 PCE
VIS CHC ISO4762-M05X025-10.9
0031 00000011561 SCREW ISO4762-M06X016-10.9 9 PCE
VIS CHC ISO4762-M06X016-10.9
0032 00000017530 PARALLEL KEY FORME A _5X 5X 15 1 PCE
CLAVETTE PARALLELE FORME A _5X 5X 15
0033 00000012173 SCREW ISO4026-M05X010-45H 1 PCE
0035 00000011257 SCREW H-M10X020-8.8 1 PCE
VIS H-M10X020-8.8
0036 00000123892 SOLE PLATE BEARING KSTM-18 1 PCE
PALIER A SEMELLE KSTM-18
0039 00000013113 NUT ISO7040-M06-10 4 PCE
0040 00000011563 SCREW ISO4762-M06X025-10.9 2 PCE
VIS CHC ISO4762-M06X025-10.9
0042 00000011901 SCREW CHC-M08X085-12.9 2 PCE
0043 00000013364 NUT ISO7040-M08-10 2 PCE
0044 00000011861 SCREW ISO4762-M10X120-12.9 6 PCE
VIS CHC ISO4762-M10X120-12.9


0045 00000010029 SCREW ISO4014-M06X030-8.8 4 PCE
VIS H ISO4014-M06X030-8.8
0046 01130171902 GUIDE 1 PCE
GUIDE
0047 00000011245 SCREW ISO4762-M08X012-12.9 2 PCE
VIS CHC ISO4762-M08X012-12.9
CALE PELABLE
CALE PELABLE
0050 01130499701 REFLECTOR PLATE 1 PCE
TOLE REFLECTEUR
0051 01130500101 FOAM ADHESIVE SEAL 1 PCE
JOINT MOUSSE ADHESIF
0052 01130505601 SHIM 2 PCE
CALE
0053 00000012553 SCREW ISO10642-M06X020-10.9 4 PCE
VIS FHC ISO10642-M06X020-10.9
0054 01130506601 FOAM ADHESIVE SEAL 2 PCE
JOINT MOUSSE ADHESIF 50x25
0055 00000127139 SELF-ADHESIVE LABEL 202 2 PCE
ETIQUETTE AUTOCOLLANTE 202
0056 00000127140 TRIANGULAR PICTOGRAM DANGER D'ECRASE 3 PCE
PICTOGRAMME TRIANGULAIRE DANGER
D'ECRASE
0057 01130552501 CHUTE 1 PCE
GOULOTTE U24X24X24 LG450
0058 01130552601 COVER 1 PCE
COUVERCLE U18X30GS LG450
0059 00000016046 BLIND RIVET POP 4,8X12,5 ALU 3 PCE
RIVET AVEUGLE POP 4,8X12,5 ALU
0060 01130580001 GUIDE 1 PCE
GUIDE

Description ROLLER CABIN LAYOUT

Désignation IMPLANTATION COFFRET ROULEAU
0000 01124680806 SMALL BOX LAYOUT 1 PCE
IMPLANTATION COFFRET ROULEAUX
0010 01132086501 BOX 1 PCE
0020 00000114741 DOCUMENT CASE A4 SZ2514.000 RITTAL 1 PCE
PORTE DOCUMENT A4 SZ2514.000 RITTAL
0070 00000104991 CHUTE 25X80 - 21165 - WATTOHM 1 PCE
GOULOTTE 25X80 - 21165 - WATTOHM
0090 00000035458 TERMINAL BLOCK -FRONT 282601 WAGO 3 PCE
BORNE 2C PAS 8 6MM2 FRONTALE 282601 WAGO
0100 00000035457 TERMINAL BLOCK-GROUND.FRONT 282607 1 PCE
WAGO
BORNE 2C PAS 8 6MM2 FRONT.V/J 282607WAGO
0110 00000035456 END PLATE EP4 ORANGE 282317 WAGO 1 PCE
PLAQUE EXTREMITE EP4 ORANGE 282317 WAGO
0123 00000035458 TERMINAL BLOCK -FRONT 282601 WAGO 3 PCE
BORNE 2C PAS 8 6MM2 FRONTALE 282601 WAGO
0124 00000035457 TERMINAL BLOCK-GROUND.FRONT 282607 1 PCE
WAGO
BORNE 2C PAS 8 6MM2 FRONT.V/J 282607WAGO


0190 00000132287 OBTURATOR ISO M16 56 PCE
OBTURATEUR ISO M16
OBTURATEUR ISO M20
OBTURATEUR ISO M25
0320 00000030405 TERMINAL BLOCK-SIDE 282101 WAGO 12 PCE
BORNE 2C PAS 8 6MM2 LATER. 282101 WAGO
0350 00000031066 BRIDGING CONTACT 2P GRIS 282402 WAGO 9 PCE



Description HOPPER BOX EQUIPMENT

Désignation EQUIPEMENT COFFRET TREMIE
0000 01124680903 SMALL BOX LAYOUT 1 PCE
IMPLANTATION COFFRET TREMIE
0010 01132086601 BOX 1 PCE
0020 00000114741 DOCUMENT CASE A4 SZ2514.000 RITTAL 1 PCE
PORTE DOCUMENT A4 SZ2514.000 RITTAL
0090 00000037545 COVER PLATE CRH 24 ILME 1 PCE
PLAQUE DE FERMETURE CRH 24 ILME
OBTURATEUR ISO M16
OBTURATEUR ISO M25

Description HOPPER BOX EQUIPMENT

Désignation EQUIPEMENT COFFRET TREMIE
OBTURATEUR ISO M20
0230 00000132719 BASE 09200030327 HARTING 1 PCE
EMBASE 09200030327 HARTING
0240 00000109408 PLUG 09120062694 HARTING 1 PCE
PRISE MALE 09120062694 HARTING
0245 00000034151 ELECTRICAL PLUG 1,5² 09150006101 HART. 4 PCE
FICHE MALE 1,5² 09150006101 HART.
0250 00000129049 BLACK COVER 09200035409 HARTING 1 PCE
COUVERCLE NOIR 09200035409 HARTING
0260 00000034176 FLUSH BASE 09300160301 HARTING 1 PCE
EMBASE ENCASTREE 09300160301 HARTING
0270 00000034206 MALE INSERT 6P+T 09310062601 HARTING 1 PCE
HARTING
0300 00000039660 LING RONDE 20T LG UT 4,70M 1 PCE
REDUCTEUR EMBASE 24PTS/16PTS CRZ16 ILME
0310 00000030405 TERMINAL BLOCK-SIDE 282101 WAGO 12 PCE
BORNE 2C PAS 8 6MM2 LATER. 282101 WAGO
0340 00000031066 BRIDGING CONTACT 2P GRIS 282402 WAGO 9 PCE

Description PLC ON/OFF CONTROL INPUTS

ENTREE TOR ET200S
0010 00000128571 CELL PHOTO.10-55V= OJ5126 IFM 1 PCE
CELLULE PHOTO.10-55V= OJ5126 IFM
0020 00000118486 REFLECTOR D.50 E20956 IFM 1 PCE
REFLECTEUR D.50 E20956 IFM
0090 00000103548 BP RED HEAD ZB4BL4 TELE 1 PCE
BP TETE ROUGE DEPASSANT ZB4BL4 TELE
0110 00000104194 LABEL HOLDER ZBZ-34 TELE 1 PCE
PORTE-ETIQUETTE ZBZ-34 TELE
0120 00000104195 ETIQUETTE STOP ZBY-02304 TELE 1 PCE
ETIQUETTE STOP ZBY-02304 TELE
0130 00000103546 BP TETE VERT AFFLEURANT ZB4BA3 TELE 1 PCE
BP TETE VERT AFFLEURANT ZB4BA3 TELE
0140 00000103590 PUSHBUTTON BODY 2F VIS ZB4BZ103 TELE 1 PCE
BP CORPS 2F VIS ZB4BZ103 TELE
0150 00000103517 AUX.CONTACT 1F ZBE101 SCHNEIDER 1 PCE
CONTACT AUX. 1F ZBE101 SCHNEIDER
0160 00000104194 LABEL HOLDER ZBZ-34 TELE 1 PCE
PORTE-ETIQUETTE ZBZ-34 TELE
0170 00000104196 LABEL I ZBY-02147 TELE 1 PCE
ETIQUETTE I ZBY-02147 TELE
0180 00000110895 FRONT-PANEL ALU 3 PER XAPE303 SCH 1 PCE
PLASTRON ALU 3 PER XAPE303 SCH
0190 00000110897 PROTECTION ARR 3 POSTES XAPE903 SCH 1 PCE
PROTECTION ARR 3 POSTES XAPE903 SCH

Description PLC ON/OFF CONTROL INPUTS


Description ON/OFF CONTROL INPUTS

ENTREE TOR ET200S
0020 00000117360 LEAD M8 COUDE F 404001E02M100 WOODDH 1 PCE
CORDON M8 COUDE F 404001E02M100 WOODDH

Description PLC INPUTS

Désignation ENTREE COMPTEUR AUTOMATE EB105
0000 01124679103 PLC COUNTER INPUT 1 PCE
0010 00000119055 FIBREOPTICS AMPLIFIER OO5000 IFM 1 PCE
AMPLIFICATEUR FIBRE OPTIQUE OO5000 IFM
0020 00000119842 LEAD 8POLES-M12-FEMELLE COUDE L=5M 1 PCE
CORDON 8POLES-M12-FEMELLE COUDE L=5M
0030 00000126180 PHOTOCELL E20753 IFM 1 PCE
PHOTOCELLULE E20753 IFM

Description PLC CARD

Désignation CARTE AUTOMATE E122
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01124767808 Index E1K0
Description ROLLER BOX POWER SUPPLY

Désignation ALIMENTATION COFFRET ROULEAU
0000 01124677108 ROLLER BOX POWER SUPPLY 1 PCE
ALIMENTATION COFFRET ROULEAUX
0010 00000120049 SWITCH-ISOLATING SWITCH 3X 32 VBF1 TELE 1 PCE
INTERRUPTEUR-SECTIONNEUR 3X 32 VBF1 TELE
0020 00000106549 PROTECTION COVER VZ 8 TELE 1 PCE
CAPOT DE PROTECTION VZ 8 TELE
0030 00000112687 AUXILIARY CONTACT 1O+1F VZ-7 TELE 1 PCE
CONTACT AUX. 1O+1F VZ-7 TELE
0050 00000109735 CIRCUIT BREAKER C60N BI C 1A(UL) 24442 1 PCE
DISJONCTEUR C60N BI C 1A(UL) 24442 MG
0080 00000103863 CIRCUIT BREAKER C60N UNI C4A(UL)24428MG 1 PCE
DISJONCTEUR C60N UNI C 4A (UL) 24428 MG
XB4BVB1TELE
0170 01127758501 FAN 230V-50/60 IP43 8300171 RIT@ 1 PCE
0200 00000108829 VIGI UNIT 30MA 26547 MG 1 PCE
BLOC VIGI 30MA 26547 MG

Sous-ensemble 01124767808 Index E1K0
Description ROLLER BOX POWER SUPPLY

Désignation ALIMENTATION COFFRET ROULEAU


0010 00000199134 CARTRIDGE 3322700 1 PCE
CARTOUCHE 3322700

Sous-ensemble 01124776601 Index E1X0
Description BOX POWER SUPPLY

Désignation ALIMENTATION COFFRET TREMIE
0000 01124677201 BOX POWER SUPPLY 1 PCE
0010 00000030595 ISOLATING SWITCH 3X20 VBF01 TELE 1 PCE
INTERRUPTEUR-SECTIONNEUR 3X 20 VBF01 TE.
0020 00000106549 PROTECTION COVER VZ 8 TELE 2 PCE
CAPOT DE PROTECTION VZ 8 TELE
0025 00000112687 AUXILIARY CONTACT 1O+1F VZ-7 TELE 1 PCE
CONTACT AUX. 1O+1F VZ-7 TELE
0040 00000109735 CIRCUIT BREAKER C60N BI C 1A(UL) 24442 1 PCE
DISJONCTEUR C60N BI C 1A(UL) 24442 MG
0060 00000103863 CIRCUIT BREAKER C60N UNI C4A(UL)24428MG 1 PCE
DISJONCTEUR C60N UNI C 4A (UL) 24428 MG
XB4BVB1TELE
0140 01127758501 FAN 230V-50/60 IP43 8300171 RIT@ 1 PCE


0010 00000199134 CARTRIDGE 3322700 1 PCE
CARTOUCHE 3322700

Sous-ensemble 01124776702 Index E47A
Description TIPPER INFEED

Désignation ALIMENTATION BASCULEUR
0000 01124677402 DUMPER INFEED 1 PCE
0010 00000113467 CIRCUIT BREAKER C60N TRIC10A(UL)24466MG 1 PCE
DISJONCTEUR C60N TRI C 10A (UL)24466 MG
0040 00000030300 CABLE H07RN-F 4G2,5MM2 1.500 CM

Description DOOR SAFETY

Désignation SECURITE PORTE ROULEAU
0000 01124677802 SAFETY PORTES ROULEAUX 1 PCE
SECURITE PORTES ROULEAUX
0030 00000110581 SAFETY SENSOR ANATOM 78S 4 PCE
CAPTEUR DE SECURITE ANATOM 78S
0070 00000102982 LABEL D60JAUNE SANSTEXTE ZBY9101TELE 3 PCE
ETIQUETTE D60JAUNE SANSTEXTE ZBY9101TELE
0080 00000110894 FRONT-PANEL 1 PER XAP E301 SCH 1 PCE
PLASTRON 1 PER XAP E301 SCH
0090 00000110896 PROTECTION ARR 1 POSTE XAPE901 SCHNEIDER 1 PCE
PROTECTION ARR 1 POSTE XAPE901 SCHNEIDER

Description HOPPER DOOR SAFETY

Désignation SECURITE PORTE TREMIE
0000 01124677902 DOOR SAFETY 1 PCE
SECURITE PORTES TREMIE
0030 00000110581 SAFETY SENSOR ANATOM 78S 3 PCE
CAPTEUR DE SECURITE ANATOM 78S
0075 00000110894 FRONT-PANEL 1 PER XAP E301 SCH 2 PCE
PLASTRON 1 PER XAP E301 SCH
0076 00000110896 PROTECTION ARR 1 POSTE XAPE901 SCHNEIDER 2 PCE
PROTECTION ARR 1 POSTE XAPE901 SCHNEIDER
0080 00000102982 LABEL D60JAUNE SANSTEXTE ZBY9101TELE 2 PCE
ETIQUETTE D60JAUNE SANSTEXTE ZBY9101TELE

Sous-ensemble 01124781208 Index E69E
Description ELEVATOR
Désignation ELEVATEUR
0000 01124678008 ELEVATOR 1 PCE
ELEVATEUR
0010 00000109240 CIRCUIT BREAKER TRI 10A GV2LE14 TELE 1 PCE
DISJONCTEUR TRI 10A GV2LE14 TELE
0040 00000109740 CONTACTOR TRI INV.1F+1O LC2D093BL TELE§ 1 PCE
CONTACTEUR TRI INV.1F+1O LC2D093BL TELE

Description VARIATOR §
Désignation VARIATEUR 0,75KW §
0010 01131759701 SPEED VARIATOR 0.75KW FC301 DANFOSS @ 1 PCE

Description BELT
Désignation TAPIS TREMIE
0000 01127864302 BELT 1 PCE
TAPIS TREMIE

Sous-ensemble 01124782104 Index E69F
Description ORIENTATING DEVICE

Désignation ORIENTEUR
0000 01124678204 ORIENTATING DEVICE 1 PCE
ORIENTEUR

Description RECYCLING CONVEYOR

Désignation CONVOYEUR RECYCLAGE
0000 01124678303 RECYCLING CONVEYOR 1 PCE
CONVOYEUR RECYCLAGE

Description UNSCRAMBLER
Désignation DEMELEUR 45°
DEMELEUR 45°
0010 00000104030 CIRC.BREAKER TRI 0,25-0,40A GV2ME033 TEL 1 PCE

Sous-ensemble 01124783707 Index E69H
Description COWLING
Désignation CAPOTAGE NIVEAU 3 VERIN
0000 01124678707 COWLING 1 PCE
CAPOTAGE
0030 00000109740 CONTACTOR TRI INV.1F+1O LC2D093BL TELE§ 1 PCE
CONTACTEUR TRI INV.1F+1O LC2D093BL TELE
0040 00000105726 CONTROL BOX 3PER. XALD03H7 TELE 1 PCE
BOITE A BOUTON 3PER. XALD03H7 TELE
0050 00000105727 PUSH BUTTON WHITE HEAD ZB5AA334 TELE 1 PCE
BP TETE BLANC AFFLEURANT ZB5AA334 TELE
0060 00000105728 PUSHBUTTON BODY 1F VIS ZENL1111 TELE 1 PCE
BP CORPS 1F VIS ZENL1111 TELE
0070 00000105729 PUSH BUTTON BLACK HEAD ZB5AA335 TELE 1 PCE
BP TETE NOIR AFFLEURANT ZB5AA335 TELE
0090 00000105730 PUSHBUTTON HEAD 2POS CLE455 ZB5AG2 TELE 1 PCE
BP TETE 2POS CLE455 ZB5AG2 TELE
0110 00000105731 PUSHBUTTON BODY 1O VIS ZENL1121 TELE 1 PCE
BP CORPS 1O VIS ZENL1121 TELE
0120 00000030297 CABLE H07RN-F 4G1,5MM2 1.000 CM
0130 00000030099 CABLE H05VV5-F 5G1MM2 1.000 CM
0152 00000117075 INDUCTIVE DETECTOR M8 IE5327 IFM 1 PCE
DETECTEUR INDUCTIF M8 IE5327 IFM
0155 00000117077 DETECTOR NDUCT. M18 NF 24V= IGS206 IFM 2 PCE
DETECTEUR NDUCT. M18 NF 24V= IGS206 IFM
0160 00000030236 CABLE H05VV5-F 4G1MM2(EX.CNOMO) 1.000 CM
CABLE H05VV5-F 4G1MM2(EX.CNOMO)

Sous-ensemble 01124829201 Index E69H
Description LEVEL TIPPER SLAVING 3

Désignation ASSERVISSEMENT BASCULEUR NIVEAU 3
0000 01124678703 COWLING 1 PCE
ASSERVISSEMENT NIVEAU 3
0010 00000030108 CABLE H05VV5-F 18G1MM2 1.500 CM


ENTREE TOR ET200S
0010 00000110300 DETECTOR KD5018 IFM 2 PCE
DETECTEUR KD5018 IFM


0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6


0000 01124679802 ON/OFF CONTROL INPUTS 1 PCE
ENTREE TOR AUTOMATE E75
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6


0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Description PLC CARD E77

0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6


ENTREE TOR ET200S
0010 00000110300 DETECTOR KD5018 IFM 1 PCE
DETECTEUR KD5018 IFM
0030 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Description ON OFF CONTROL INPUT

ENTREE TOR ET200S E80
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Description BLOCKAGE
Désignation BOURRAGE TETE DE COLONNE


Désignation EQUIPEMENT AUTOMATE TREMIE
ALIMENTATION 10A
0060 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0100 00000108996 EMBASE UNIV 2 3 PCE
EMBASE UNIV 2 X 6

Description PLC OUTPUT A100

Désignation SORTIE AUTOMATE A100
SORTIE TOR ET200S
SORTIE TOR ET200S
SORTIE TOR ET200S
0010 00000112356 LEAD B IND 10M E462A3A10K2RS0H WOODHE 3 PCE
CORDON B IND 10M E462A3A10K2RS0H WOODHE

Description PLC CARD A71

Désignation CARTE AUTOMATE A71
0000 01124680401 ALL-OR-NOTHING OUTPUT ET200S 1 PCE
SORTIE TOR ET200S
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Description PLC CARD A72

Désignation CARTE AUTOMATE A72
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6


Désignation CARTE AUTOMATE
SORTIE TOR ET200S
0020 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01124830701 Index EAR0

Désignation EQUIPEMENT AUTOMATE
ALIMENTATION 10A
0060 00000108996 EMBASE UNIV 2 2 PCE
EMBASE UNIV 2 X 6
ALIMENTATION 10A
0100 00000108996 EMBASE UNIV 2 5 PCE
EMBASE UNIV 2 X 6
0110 00000109747 MODULE COUNTER 6ES7138-4DA04-0AB0 1 PCE
MODULE COUNTER 6ES7138-4DA04-0AB0
0120 00000108996 EMBASE UNIV 2 1 PCE
EMBASE UNIV 2 X 6

Sous-ensemble 01129058902 Index ECE0
Description WIRING
Désignation CABLAGE COLONNE ELEVATRICE
0000 01124681102 MACHINE LAYOUT 1 PCE
IMPLANTATION MACHINE
0010 00000035841 CABLE H07RN-F 7G1,5MM2 850 CM
0020 00000030092 CABLE H05VV5-F 3G1MM2 1.000 CM
0040 00000030288 CABLE H05VV5-F 7G1MM2 850 CM
HARTING
0075 00000110647 CAP ISO M32 GREY 1 PCE
0090 00000110647 CAP ISO M32 GREY 1 PCE
HARTING
0130 00000111989 SHEATH ADAPTALOK STD29 50 CM
0160 00000109635 AMPLIFIER M20/M25 POLYA 1 PCE
AMPLIFICATEUR M20/M25 POLYA

Sous-ensemble 01129058902 Index ECE0
Description WIRING
Désignation CABLAGE COLONNE ELEVATRICE

Sous-ensemble 01124805604 Index ECR0
Description MACHINE WIRING

Désignation CABLAGE MACHINE ROULEAUX
0010 00000030249 CABLE H07RN-F 4G6MM2 1.100 CM
0020 00000030297 CABLE H07RN-F 4G1,5MM2 6.000 CM
0030 00000030092 CABLE H05VV5-F 3G1MM2 2.000 CM
0040 00000030099 CABLE H05VV5-F 5G1MM2 1.000 CM
0060 00000030288 CABLE H05VV5-F 7G1MM2 2.000 CM
HARTING

Sous-ensemble 01124820202 Index ECR0
Description ROLL PROFIBUS LINK

Désignation LIAISON PROFIBUS ROULEAUX
0000 01124681001 WIRING 1 PCE
CABLAGE PROFIBUS STANDARD
0010 00000117522 CABLE ECOFAST HYBRIDE 6XV18307AH10 SIEM. 1.100 CM
CABLE ECOFAST HYBRIDE 6XV18307AH10 SIEM.
0020 00000117525 COVER PG11 09200030426 HARTING 1 PCE
CAPOT PG11 09200030426 HARTING
0030 00000109121 PLUG 09120063001 HART 1 PCE
PRISE MALE 09120063001 HART
0050 00000034151 ELECTRICAL PLUG 1,5² 09150006101 HART. 4 PCE
FICHE MALE 1,5² 09150006101 HART.

Sous-ensemble 01124819803 Index ECT0

Désignation CABLAGE MACHINE TREMIE
0010 00000030249 CABLE H07RN-F 4G6MM2 3.000 CM
0020 00000030297 CABLE H07RN-F 4G1,5MM2 1.000 CM
0030 00000035841 CABLE H07RN-F 7G1,5MM2 850 CM
0040 00000030092 CABLE H05VV5-F 3G1MM2 500 CM
0060 00000030288 CABLE H05VV5-F 7G1MM2 1.500 CM
0070 00000109080 CABLE H05VV5-F 25G1MM2 1.000 CM
0100 00000109586 COVER LATERAL ISOM25 19300161521 HAR 1 PCE
CAPOT LATERAL ISOM25 19300161521 HAR
HARTING
HARTING


Désignation CABLAGE MACHINE TREMIE
HARTING

Description HOPPER PROFIBUS LINK

Désignation LIAISON PROFIBUS TREMIE
0000 01124681001 WIRING 1 PCE
CABLAGE PROFIBUS STANDARD
0010 00000117522 CABLE ECOFAST HYBRIDE 6XV18307AH10 SIEM. 2.200 CM
CABLE ECOFAST HYBRIDE 6XV18307AH10 SIEM.
0020 00000117525 COVER PG11 09200030426 HARTING 1 PCE
CAPOT PG11 09200030426 HARTING
0030 00000109629 ELECTRICAL SOCKET 09120063111 HARTING 1 PCE
PRISE FEMELLE 09120063111 HARTING
0040 00000034838 SOCKET CONTACT 0915006204 HARTING 2 PCE
CONTACT FEMELLE 0915006204 HARTING
0050 00000034161 PLUG SOCKET 1,5² 09150006201 HART. 4 PCE
FICHE FEMELLE 1,5² 09150006201 HART.

Sous-ensemble 01129770802 Index EVT0
Description HOPPER EMPTYING

Désignation VIDAGE TREMIE
0020 00000133375 LEAD M12 DROIT F 804000E02M050 1 PCE
CORDON M12 DROIT F 804000E02M050

Sous-ensemble VRGM12158 Index 50
Description TOOL SUPPLIED WITH SBO20/24 12158

Désignation OUTILLAGES LIVRES AVEC SBO20/24 12158
0001 01137470101 ARM LAYING TOOL 1 PCE
0002 01130710101 HEIGHT SYNCHRO TOOL 1 PCE
OUTILLAGE HAUTEUR-SYNCHR BRASV4
0003 01134475701 TOOL 1 PCE
OUTILLAGE BARREAU
0004 01125068103 NOZZLE CYLINDER TOOLS 1 PCE
OUTILLAGE VERIN DE TUYERE 2T D50
0005 01127795720 TOOL COMMUN UNIVERSAL 1 PCE
OUTILLAGE COMMUN UNIVERSAL
0006 01127798402 TOOL CONSOMMABLE SERIE 3 1 PCE
OUTILLAGE CONSOMMABLE SERIE 3
0008 01127802501 START UP TOOL SERIE 3 1 PCE
OUTILLAGE DE MISE EN ROUTE SERIE 3
0009 01128032902 TOOLS 1 PCE
OUTILLAGE TRANSPORT GRAND MODELE
0030 01127411602 PLATE 1 PCE
PLAQUE C E
0031 01127191101 INDICATION PLATE 6 PCE
PLAQUE D'INDICATION DE MASSE
0032 01128730002 MACHINE SHIM 1 PCE
CALE MACHINE DE 2 A 30MM
0033 01131856601 TOOL 1 PCE
0034 01135187601 TOOL 1 PCE
0035 01134511002 TOOL 1 PCE

Description ARM LAYING TOOL

Désignation OUTILLAGE POSE DE BRAS
0001 01137467701 ARM LAYING TOOL 1 PCE

Description HEIGHT SYNCHRO TOOL

Désignation OUTILLAGE HAUTEUR-SYNCHR BRASV4
0000 01130710001 TOOL 1 PCE
OUTILLAGE HAUTEUR ET SYNCHRO BRAS V4
0001 01130710201 EQUIPPED DUMMY ARM HEAD TOOL V4 1 PCE
OUTILLAGE FAUSSE TETE DE BRAS EQUIPEE V4
0002 01130816301 TOOL 1 PCE
OUTILLAGE AXE
0003 00000014048 WASHER ISO7089-10-200HV 1 PCE
0004 00000013007 NUT ISO4032-M10-10 1 PCE

Description EQUIPPED DUMMY ARM HEAD TOOL V4

Désignation OUTILLAGE FAUSSE TETE DE BRAS EQUIPEE V4
0000 01130710301 TOOL 1 PCE
OUTILLAGE FAUSSE TETE BRAS EQUIPEE V4 §
0001 01130710401 TOOL 1 PCE
OUTILLAGE SEMELLE
0002 01130710501 TOOL 1 PCE
OUTILLAGE U
0003 00000011548 SCREW ISO4762-M05X045-10.9 2 PCE
VIS CHC ISO4762-M05X045-10.9

Description NOZZLE CYLINDER TOOLS

Désignation OUTILLAGE VERIN DE TUYERE 2T D50
0000 01125068203 NOZZLE CYLINDER TOOL § 1 PCE
OUTILLAGE VERIN DE TUYERE 2T D50 §
0001 01125068401 PUSHING DEVICE 1 PCE
POUSSOIR 2T D50
0002 01125068501 CHUCK 1 PCE
MANDRIN 2T D50
0003 01125068601 SIZING SLEEVE 1 PCE
MANCHON DE CALIBRAGE 2T D50
0004 01125068702 SCRAPER SEAL TOOL 1 PCE
0005 01125069301 GUIDE CHUCK 1 PCE
MANDRIN DE GUIDAGE PISTON 2T D50
0006 01125069501 SLEEVE 1 PCE
MANCHON 2T D50
0007 00000020179 O-RING _71,00X 2,00 SH70 NIT 1 PCE
0008 00000113457 SCRIBER FACOM 1 PCE
POINTE A TRACER FACOM

Description TOOL COMMUN UNIVERSAL

Désignation OUTILLAGE COMMUN UNIVERSAL
0001 01127795809 TOOL BOX 1 PCE
COFFRET D'OUTILLAGE
0002 00000088192 GREASE PUMP 7280+7282 @ 1 PCE
POMPE A GRAISSE 7280+7282 @
0003 00000105782 STAPLE FOR LUBRICATOR 5044 1 PCE
AGRAFE A TIRER POUR GRAISSEUR 5044
0004 00000196710 TENSION CONTROLLER TYPE TSM5 BINDER 1 PCE
CONTROLEUR DE TENSION TYPE TSM5 BINDER
0005 01111329701 COMPARATOR SUPPORT 1 PCE
SUPPORT COMPARATEUR $
0021 00000106120 GREASE CERAN WR2 (425G) 2 PCE
GRAISSE CERAN WR2 (425G)
0022 01147331801 SHOULDER GUIDE RING 1 PCE
BAGUE DE GUIDAGE EPAULEE 14 X 9.8
0024 00000116407 GREASE NEVASTANE HT/AW2 (400GR)§ 1 PCE
GRAISSE NEVASTANE HT/AW2 (400GR)§
0025 01125998904 SPINDLE WRENCH TOOL 1 PCE
OUTILLAGE CLE TOURNETTE
0029 00000116862 FOOTPLATE ALUMINIUM 2X4 1 PCE
MARCHEPIED ALUMINIUM 2X4
0039 00000009947 PAIR OF GLOVES FOR HANDLING 2 PCE
PAIRE DE GANTS MANUTENTION
0042 01128010601 HOSE ASSEMBLY PL837-06V 16 C310 PB12PL6 1 PCE
FLEXIBLE PL837-06V 16 C310 PB12PL6
0043 01128466302 LADDER ALU 8 BARREAUX 1 PCE
ECHELLE ALU 8 BARREAUX
0047 00000097453 OIL FP150L (3,79L) § 1 PCE
HUILE LUBRIPLATE FP150L (3,79L) §
0048 00000097111 ADHESIVE LOCTITE 243 FREIN FILET NORMAL 1 PCE
COLLE LOCTITE 243 FREIN FILET NORMAL
0049 00000097805 LOCTITE JS563 SILICOMET HT 300ML 1 PCE
LOCTITE JS563 SILICOMET HT 300ML
0069 01145236701 SUITCASE KIT INDICE DE RIZNAR + CHLORURE 1 PCE
VALISE KIT INDICE DE RIZNAR
0072 00000097187 ADHESIVE LOCTITE 222 FREIN FILET FAIBLE 1 PCE
COLLE LOCTITE 222 FREIN FILET FAIBLE

Description TOOL BOX

Désignation COFFRET D'OUTILLAGE
0002 00000089909 SET OF WRENCHES 1 PCE
JEU DE CLES MALES 83 SHJP9
0003 00000089100 HAMMER 1 PCE
MASSETTE "SERIE LEGERE" 208 A-40 CB
0004 00000089938 DIAGONAL CUTTING PLIERS 391-16 CPY 1 PCE
PINCE COUPANTE DIAGONALE 391-16 CPY
0005 00000088828 MULTIGRIP PLIERS 180E 1 PCE
PINCE MULTIPRISE GAINEE 180E
0006 00000088390 DRIFT PUNCH DE 2 A 10 1 PCE
CHASSE-GOUPILLE DE 2 A 10
0007 00000089150 SCREWDRIVER AC 2 X 75 2 PCE
TOURNEVIS AC 2 X 75
0008 00000089946 SLOTTED SCREWDRIVER AY 2.5X50VSE 2 PCE
TOURNEVIS ROND A FENTE AY 2.5X50VSE
0009 00000089949 SLOTTED SCREWDRIVER 1 PCE
TOURNEVIS A FENTE AZFH 6.5X150
0010 00000089950 WOOD SLOTTED SCREWDRIVER 8 X 200 1 PCE
TOURNEVIS BOIS A FENTE 8 X 200
0011 00000089930 THICKNESS GAUGE REF. 1666.05 1 PCE
JAUGE D'EPAISSEUR REF. 1666.05
0012 00000088387 PADLOCK LARGEUR 40 1 PCE
CADENAS LARGEUR 40
0013 00000089084 RIVETING HAMMER DE 30 MM 1 PCE
MARTEAU RIVOIR DE 30 MM
0014 00000089951 CROSS-HEAD SCREWDRIVER AZDH 2X125 1 PCE
TOURNEVIS CRUCIFORME AZDH 2X125
0015 00000089952 CROSS-HEAD SCREWDRIVER AZP 1X75 1 PCE
TOURNEVIS CRUCIFORME AZP 1X75
0016 00000089953 MECHANICAL COMPARATOR SUPPORT 1 PCE
SUPPORT COMPARATEUR MECANIQUE
0017 00000087013 COMPARATOR 60651 COURSE 0 A 25MM 1 PCE
COMPARATEUR 60651 COURSE 0 A 25MM
0018 00000089954 CAGE 1 PCE
CAISSE D'EMBALLAGE
0022 00000089956 TORQUE WRENCH 10-50NM 3/8 IN 1 PCE
CLE DYNAMOMETRIQUE 10-50NM 3/8 IN
0023 00000089957 OPEN-END WRENCH 55MM 1 PCE
CLE A FOURCHE GROS EFFORTS 55MM
0024 00000103153 ADAPTER FEMELLE 3/8 MALE 1/2 1 PCE
ADAPTATEUR FEMELLE 3/8 MALE 1/2
0028 01116099703 BOX CLE MIXTES 1 PCE
BOITE CLE MIXTES


0030 00000088591 OPEN-END WRENCH 44-17*19 1 PCE
CLE A FOURCHE 44-17*19
0031 00000089160 SAW A METAUX 1 PCE
SCIE A METAUX
0032 00000089093 STIFF HAND SAW 10 DTS 2 PCE
LAME SCIE A MAIN ULTRA 10 DTS
0047 00000088835 BAR CLAMP 1 PCE
SERRE-JOINTS 272 A- 300
0052 00000103154 GRIPPER 1 PCE
PINCE A CIRCLIPS EXTERIEURE 10 A 25
0053 00000103155 GRIPPER 1 PCE
PINCE A CIRCLIPS INTERIEURE 10 A 25
0055 00000088028 WRENCH 1 PCE
CLE MALE REF 82-14
0059 00000116865 OPEN-END WRENCH 45-50 1 PCE
CLE A FOURCHE GROS EFFORTS 45-50
0060 00000116866 MIRROR 1 PCE
MIROIR ORIENTABLE FLEXIBLE 829
0061 00000089812 PADLOCK CITY 30 5 PCE
CADENAS CITY 30
0062 00000033288 KEY WITH DOUBLE BIT 1 PCE
CLE A PANNETON DOUBLE SZ2531 RITTAL
0063 00000116867 STRAP WRENCH 1 PCE
CLE A SANGLE NYLON 138A 48
0065 00000088607 OPEN-END WRENCH 44-30*32 1 PCE
CLE A FOURCHE 44-30*32
0066 00000125457 PAINTBRUSH PLAT CRINS NYLON BLANC LG.30 2 PCE
PINCEAU PLAT CRINS NYLON BLANC LG.30
0067 00000125466 GUN A MASTIC 1 PCE
PISTOLET A MASTIC
0068 00000125456 GAUGE 1 PCE
JAUGE DE PROFONDEUR DE 200
0071 00000117210 CHALK LINE DELA 13299 30 1 PCE
CORDEAU A TRACER DELA 13299 30
0072 00000088637 OPEN RING SPANNER 42-22*24 1 PCE
CLE A TUYAUTER 42-22*24
0074 00000133552 SCREWDRIVER BOST 625070 1 PCE
TOURNEVIS BOST 625070
0075 00000108272 OPEN-END WRENCH GROS EFFORTS 45-60 1 PCE
0076 00000088030 OPEN END WRENCH REF.45-46 1 PCE


0077 03000124601 MARKER PEN NON ERASABLE BLACK 2 PCE
MARQUEUR INDELEBILE NOIR
0078 01144700101 BUSH BOX STANLEY E194670 1 PCE
COFFRET DOUILLE STANLEY E194670
0079 00000102509 ANGLED SOCKET WRENCH 1 PCE
CLE A PIPE STANDARD DE 8
0082 00000173341 POWDER TRAVER 1 PCE
POUDRE A TRAVER FACOM
0083 00000173342 FILE FACOM 1 PCE
LIME FACOM
0084 00000173343 FILE FACOM 1 PCE
LIME FACOM
0085 00000173344 LOCK-GRIP PLIERS FACO 1 PCE
PINCE ETAU A BOUTONNIERE FACO
0086 00000173345 CUTTER FACOM 1 PCE
CUTTER FACOM
0087 00000173346 BLADE CUTTER FACOM 1 PCE
LAME CUTTER FACOM
0088 00000173347 GRIP ERGOT CREMAILLERE 1 PCE
PINCE ERGOT CREMAILLERE
0089 00000173348 OIL DE COUPE 200ML 1 PCE
HUILE DE COUPE 200ML
0090 00000207476 BIT HOLDER BUSHING 3/8" 1/4" 1 PCE
DOUILLE PORTE-EMBOUT 3/8" 1/4"
0091 00000207477 REDUCER 1/2" 3/8" 1 PCE
REDUCTEUR 1/2" 3/8"

Description COMPARATOR SUPPORT

Désignation SUPPORT COMPARATEUR $
0000 01072406001 COMPARATOR SUPPORT 1 PCE
SUPPORT COMPARATEUR $ §
0001 01072405801 COLUMN 1 PCE
COLONNE
0002 01072405701 COLUMN 1 PCE
COLONNE
0003 01072405901 GRIP 1 PCE
PINCE DE FIXATION COMPARATEUR
0004 00000012053 SCREW ISO4029-M10X025-45H 1 PCE
0005 00000011604 SCREW ISO4762-M08X040-10.9 2 PCE
VIS CHC ISO4762-M08X040-10.9

Description SUITCASE KIT INDICE DE RIZNAR + CHLORURE

Désignation VALISE KIT INDICE DE RIZNAR
0001 01145276401 KIT REACTIF INDICE DE RIZNAR + CHLORURE 1 PCE
KIT REACTIF INDICE DE RIZNAR + CHLORURE

Description TOOL CONSOMMABLE SERIE 3

Désignation OUTILLAGE CONSOMMABLE SERIE 3
0001 01116091901 KIT ELECTRICIEN @ 1 PCE
KIT ELECTRICIEN @
0004 00000083910 COUPLING BSPP GG44B 1/4X1/2 1 PCE
MANCHON INEGAL BSPP GG44B 1/4X1/2
0005 00000087082 EQUAL TEE 3104 08 00 1 PCE
TE EGAL 3104 08 00
0007 00000082982 PIPE RILSAN 11X14 NATUREL 200 CM
0008 00000097001 FILM PROPLAN 0.4 X 100 1 PCE
FILM PROPLAN 0.4 X 100
0009 01995280101 SCREW KIT 1 PCE
LOT VIS SERIE2#
0011 00000087636 MALE END 23SFAK13SXN 1 PCE
EMBOUT MALE 23SFAK13SXN
CALE PELABLE
CALE PELABLE
0017 01116092201 SET DE FORETS, ALESOIRS ET DE TARAUDS 1 PCE
JEU DE FORETS, ALESOIRS ET DE TARAUDS
CALE PELABLE

Description START UP TOOL SERIE 3

Désignation OUTILLAGE DE MISE EN ROUTE SERIE 3
0001 00000103887 SOLID STEEL RULE 750 X 50 X 10 @ 1 PCE
REGLE PLEINE ACIER 750 X 50 X 10
0002 00000103886 EXTENSION 500MM CARRE 1/2" S217 2 PCE
RALLONGE 500MM CARRE 1/2" S217
0003 01114780301 SLIDE PLATE 8 PCE
PLAQUE DE GLISSEMENT
0004 00000117208 RULER 2000 X 100 X 18 1 PCE
REGLE TYPE MACONNERIE 2000 X 100 X 18

Description TOOLS
Désignation OUTILLAGE TRANSPORT GRAND MODELE
0001 00000117374 SLING LG5400 1420009 2 PCE
ELINGUE 10T LG UT 5,40M
0002 00000117375 SLING RONDE 10T LG UT 5,17M 2 PCE
ELINGUE RONDE 10T LG UT 5,17M
0003 00000117368 SHACKLE LYRE D32 9500KG 4 PCE
MANILLE LYRE D32 9500KG

Description MACHINE SHIM

Désignation CALE MACHINE DE 2 A 30MM
0000 01128729802 MACHINE SHIM 1 PCE
CALE MACHINE
0001 01117028501 WHEEL SHIM 22 PCE
CALE ROUE
0002 01117028601 WHEEL SHIM 11 PCE
CALE ROUE
0003 01117028701 WHEEL SHIM 11 PCE
CALE ROUE
0004 01117028801 WHEEL SHIM 11 PCE
CALE ROUE
EQUERRE DE FIXATION

Description TOOL
Désignation OUTILLAGE ACCOUPLEMENT
0000 01131846201 COUPLING TOOL 1 PCE
0001 01128976601 COLUMN 1 PCE
COLONNE
0002 01131846601 COLUMN 2 PCE
COLONNE
0003 01128976802 RULE 1 PCE
REGLE
0004 01117157901 POSITIONNING PLATE 1 PCE
PLAQUE DE POSITIONNEMENT
0005 01131846401 RULER 1 PCE
REGLE
0006 00000012218 SCREW ISO4026-M12X040-45H 2 PCE
0007 00000012174 SCREW ISO4026-M08X045-45H 1 PCE
0008 00000013214 NUT ISO4035-M12-05 2 PCE
0009 00000013042 NUT ISO4035-M08-04 1 PCE
0010 01131849401 WASHER 1 PCE
RONDELLE

Description TOOL
Désignation OUTILLAGE FAUX SECTEUR ROUE FOUR
0000 01135187701 TOOL 1 PCE
0001 01135187801 TOOL 1 PCE
OUTILLAGE FAUX SECTEUR
0002 01135187901 TOOL 1 PCE
OUTILLAGE PLAQUE PAS 50 MM
0002 01135188001 TOOL 1 PCE
OUTILLAGE PLAQUE PAS 40 MM
0004 00000011620 SCREW ISO4762-M10X020-10.9 3 PCE
VIS CHC ISO4762-M10X020-10.9
0005 00000011542 SCREW ISO4762-M05X016-10.9 1 PCE
VIS CHC ISO4762-M05X016-10.9

Description TOOL
Désignation OUTILLAGE FAUSSE PINCE
0000 01134510902 DUMMY GRIP TOOL 1 PCE
0001 01134475602 TOOL 1 PCE
0002 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9

Sous-ensemble PPER20798 Index 100
Description PERSO PARTS.SBO20 12158 1L5 11016350

Désignation PERSO.SBO20 12158 1L5 11016350
0000 PFO/10203081/01 -PCO 1 PCE
-PCO
0000 PFO/11016350/01 LEBEDIANSKI-1L5-PET-42g 1 PCE
LEBEDIANSKI-1L5-PET-42g
0000 PFO/11027067/01 LEBEDYANSKY-45G 1 PCE
LEBEDYANSKY-45G
0010 01130535401 BENT RAIL 1 PCE
RAIL COUDE
0020 01124922501 KIT FOR CUSTOMIZED ELBOW 1 PCE
0030 01127115701 BODY GUIDE 1 PCE
0040 01112359901 FEELER GAUGE AND SPACER 1 PCE
PIGE ET ENTRETOISE
0050 01111877501 RAIL ADJUSTMENT 1 PCE
REGLAGE DE RAIL
0060 01129269902 KIT FOR INFEED WHEEL PERSO PART 1 PCE
0070 01132661402 INFEED WHEEL 1 PCE
0080 01129602101 INFEED NECK GUIDE 1 PCE
GUIDE COL ALIMENTATION
0090 01129329502 KIT FOR DEDUST WHEEL PERSO PT. 1 PCE
KIT PERSO.ROUE DE DEPOUSSIERAGE
0100 01132664701 DEDUSTWHEEL P50 1 PCE
ROUE DEPOUSSIERAGE P50
0110 01129602701 DEDUST NECK GUIDE 1 PCE
0120 01129603003 DEDUST CAM 1 PCE
0130 01129329602 KIT-PREFORM TRANSF.WHEEL PERSO PT 1 PCE
ROUE TRANSFERT
0150 01129603302 NECK GUIDE TRANSFER 1 PCE
GUIDE COL TRANSFERT
0160 01130537401 INFEED PLATE 1 PCE
0170 01131202001 OVEN OUTFEED GUIDE 1 PCE
GUIDE SORTIE FOUR
0180 01130670601 SPINDLE NOSE 274 PCE
NEZ DE TOURNETTE U

Description PERSO PARTS.SBO20 12158 1L5 11016350

Désignation PERSO.SBO20 12158 1L5 11016350
0190 01130104503 TRANSFER GRIP 11 PCE
PINCE TRANSFERT
0200 01126859403 ERTALYTE STD GRIPPER CUSTOM KIT 22 PCE
KIT PERSO PINCE ERTALYTE STD
0210 01128552902 PERSO PART-KIT 1 PCE
KIT PERSO. PLATEAU
0220 01129654002 TRAY 1 PCE
PLATEAU
0230 01128662901 KIT 1 PCE
0240 01130507202 BOTTLE GUIDE 1 PCE
GUIDE BOUTEILLE
0250 01128750502 BODY GUIDE KIT 1 PCE
KIT GUIDES CORPS FIXE
0260 01129879204 FIXED GUIDE BELOW NECK 1 PCE
GUIDE SOUS COL FIXE
0270 01128964802 ON-NECK GUIDE FIXE 1 PCE
GUIDE SUR COL FIXE
0280 01129714401 CIRCULAR GUIDE 2 PCE
GUIDE CIRCULAIRE
0290 01129213701 UNDER-NECK GUIDE KIT MOBILE 1 PCE
0300 01129704502 MOBILE GUIDE UNDER NECK 1 PCE
0310 01125223803 BOTTLE GUIDE BODY GUIDE 1 PCE
GUIDE BOUTEILLE GUIDE CORPS BTL 0-5
0320 01129278701 GUIDE LATERAL MOBILE 2 PCE
0330 01133257101 THRUST 20 PCE
BUTEE ELONGATION C 334 A 382
0340 01130979401 STRETCHING ROD 21 PCE
TIGE D'ELONGATION
0350 01128697503 KIT FOR STRETCH ROD 21 PCE
KIT PERSO TIGE ELONGATION
APPUI BUVANT
0370 01114974103 BELL SEAL 21 PCE
JOINT CLOCHE
0380 01133275303 SCREWED WASHER 21 PCE
RONDELLE VISSEE

Description BENT RAIL

Désignation RAIL COUDE
0001 01130535501 BENT INFEED RAIL 1 PCE
RAIL D'ALIMENTATION COUDE 90 A DROITE

Description KIT FOR CUSTOMIZED ELBOW

Désignation KIT PERSO COUDE 90 A DROITE R320
0000 01124923501 KIT 1 PCE
0001 01091519600 PERSO PART 1 PCE
PERSO.
0002 01091519600 PERSO PART 1 PCE
PERSO.
0003 01125090401 OMEGA 1 PCE
OMEGA
0004 01125024101 PREFORM STABILIZER 1 PCE
GUIDE D'APPUI SUR BUVANT
0005 01120428301 ADJUSTABLE SUPPORT 2 PCE
SUPPORT REGLAGE
0006 01091519600 PERSO PART 2 PCE
PERSO.
0007 01091519600 PERSO PART 2 PCE
PERSO.
0009 01118477302 PIN 8 PCE
0010 00000104354 KNURLED NUT 16-030-06 10 PCE
0013 00000011543 SCREW ISO4762-M05X020-10.9 8 PCE
VIS CHC ISO4762-M05X020-10.9
0014 00000013003 NUT ISO4032-M05-10 8 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 4 PCE
VIS CHC ISO4762-M08X016-10.9
0018 00000018001 MALE COVER 306-2N D=06 DR 2 PCE
CHAPE MALE 306-2N D=06 DR
0019 01072447901 SPACER 2 PCE
ENTRETOISE
0020 00000017968 TRUNNION NUT 06160-406 M 6 FEM. 2 PCE
ECROU CROISILLON 06160-406 M 6 FEM.

Description KIT FOR CUSTOMIZED ELBOW

Désignation KIT PERSO COUDE 90 A DROITE R320
0021 00000013569 CAP NUT H NFE27453-M06-6 2 PCE
ECROU BORGNE H NFE27453-M06-6
0025 00000100596 SCREW M06X012-10.9 4 PCE
0026 00000017370 CONCAVE WASHER 07420-208 FORME D 4 PCE
RONDELLE CONCAVE 07420-208 FORME D
0027 00000017369 SPHERICAL WASHER DIN6319-D08-C 4 PCE
RONDELLE SPHERIQUE DIN6319-D08-C

Description BODY GUIDE

Désignation GUIDE CORPS 90° A DROITE DIAMETRE MOYEN
0010 01127115601 BODY GUIDE 2 PCE
GUIDE CORPS INTERIEUR 20-35 90° A DROITE
0020 01127115501 BODY GUIDE 2 PCE
GUIDE CORPS EXTERIEUR 20-35 90° A DROITE

Description FEELER GAUGE AND SPACER

Désignation PIGE ET ENTRETOISE
0001 01069332301 RAIL PIN GAUGE 1 PCE
PIGE RAIL
0002 01068278401 SPACER 8 PCE
ENTRETOISE

Description RAIL ADJUSTMENT

Désignation REGLAGE DE RAIL
REGLAGE RAIL
0001 01091524100 CUSTOM PART 1 PCE
PIECE PERSO.(PIGE)
0002 01091519500 CUSTOM PART 8 PCE
PIECE PERSO.(ENTRETOISE)

Description KIT FOR INFEED WHEEL PERSO PART

Désignation KIT PERSO.ROUE D'ALIMENTATION
0000 01129540102 KIT FOR INFEED WHEEL 1 PCE
KIT ROUE D'ALIMENTATION
0001 01098003800 CUSTOM PART 1 PCE
PIECE PERSO.(PLATEAU ALIMENTATION)
0002 01091555100 PERSO PART 1 PCE
PIECE PERSO. (GUIDE SOUS COL)
0003 01091553000 PERSO PART 1 PCE
PIECE PERSO. (GUIDE COL)
0004 01098004300 RETRACTABLE GUIDE 1 PCE
PIECE PERSO. (GUIDE ESCAMOTABLE)
0005 01098011000 CUSTOM PART 1 PCE
PIECE PERSO.(GUIDE DROIT)
0006 01098011100 CUSTOM PART 1 PCE
PIECE PERSO.(GUIDE GAUCHE)
0007 01128163401 U-BOLT 2 PCE
ETRIER
0008 01125054002 SHOE 1 PCE
PATIN
0009 01127971902 NECK RIM GUIDE 1 PCE
GUIDE BUVANT
0010 01125054801 NECK RIM GUIDE SUPPORT 3 PCE
SUPPORT GUIDE BUVANT
0014 00000011483 SCREW CHC-M06X075-10.9 7 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9
0018 00000013003 NUT ISO4032-M05-10 4 PCE
0019 00000017529 HANDLE 11-511-20-100 100X47 M6 1 PCE
POIGNEE 11-511-20-100 100X47 M6
0020 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9

Description INFEED WHEEL

Désignation ROUE D'ALIMENTATION DEPOUSSIERAGE P50
GUIDE SOUS COL
GUIDE ESCAMOTABLE
0005 01129288202 GUIDE 1 PCE
GUIDE DROIT
0006 01129288401 LEFT GUIDE 1 PCE
GUIDE GAUCHE

Description INFEED NECK GUIDE

Désignation GUIDE COL ALIMENTATION
0003 01129554801 OUTFEED NECK GUIDE 1 PCE
GUIDE COL SORTIE

Description KIT FOR DEDUST WHEEL PERSO PT.

Désignation KIT PERSO.ROUE DE DEPOUSSIERAGE
0000 01129541502 DEDUST WHEEL KIT 1 PCE
0001 01091555100 PERSO PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091553000 PERSO PART 1 PCE
0004 01091553000 PERSO PART 1 PCE
0005 01098019900 CUSTOM PART 1 PCE
PIECE PERSO.(PLATEAU)
0006 99000139377 CAM (CUSTOM) 1 PCE
CAME MONTE ET BAISSE (PERSO)

Description DEDUSTWHEEL P50

Désignation ROUE DEPOUSSIERAGE P50
0001 01131241301 OUTFEED UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL SORTIE
0002 01131241401 INFEED UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL ENTREE
0005 01132664001 DEDUST PLATE 1 PCE
PLATEAU DEPOUSSIERAGE

Description DEDUST NECK GUIDE

Désignation GUIDE COL DEPOUSSIERAGE
GUIDE COL ENTREE
GUIDE COL SORTIE

Description DEDUST CAM

Désignation CAME DE DEPOUSSIERAGE COURSE 143
0001 01128639703 UP DOWN CAM 1 PCE
CAME MONTE ET BAISSE COURSE 143

Description KIT-PREFORM TRANSF.WHEEL PERSO PT

Désignation KIT PERSO.ROUE DE TRANSFERT PREF.
0000 01129544202 TRANSFER WHEEL KIT 1 PCE
KIT ROUE TRANSFERT
0001 01098003800 CUSTOM PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091532500 OUTFEED GUIDE 1 PCE
PIECE PERSO.(GUIDE SUPERIEUR)
GUIDE BUVANT
0005 01091553000 PERSO PART 1 PCE
0010 00000011483 SCREW CHC-M06X075-10.9 3 PCE
0012 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9


Désignation ROUE TRANSFERT
GUIDE SOUS COL

Description NECK GUIDE TRANSFER

Désignation GUIDE COL TRANSFERT
0003 01127978402 NECK GUIDE 1 PCE
GUIDE COL
GUIDE COL ENTREE

Description INFEED PLATE

Désignation PLATEAU D'ALIMENTATION

Description OVEN OUTFEED GUIDE

Désignation GUIDE SORTIE FOUR
GUIDE SORTIE FOUR

Description SPINDLE NOSE

Désignation NEZ DE TOURNETTE U
0000 01130670701 SPINDLE NOSE 1 PCE
NEZ DE TOURNETTE
0001 01127997403 EJECTOR 1 PCE
EJECTEUR
0002 01129841002 SPACER 1 PCE
ENTRETOISE
0003 01128000303 RADIATOR 1 PCE
RADIATEUR
0004 01127997601 END-PIECE 1 PCE
EMBOUT
0005 01074396401 RING 1 PCE
BAGUE 3 SECTEURS
0006 00000027967 O-RING __9,00X 4,00 SH45 VIT 1 PCE
JOINT TORIQUE __9,00X 4,00 SH45 VIT

Description TRANSFER GRIP

Désignation PINCE TRANSFERT
0008 01130101002 PREFORM GRIP 1 PCE
PINCE PREFORME
PINCE PREFORME
0009 01130101803 BOTTLE GRIP 1 PCE
PINCE BOUTEILLE
0009 01130102003 BOTTLE GRIP 1 PCE
PINCE BOUTEILLE

Description ERTALYTE STD GRIPPER CUSTOM KIT

Désignation KIT PERSO PINCE ERTALYTE STD
0000 01126828703 KIT FOR GRIP PERSO PART § 1 PCE
KIT PERSO.PINCE §
RONDELLE D'APPUI
0002 01124040101 GRIP RETURN SPRING 1 PCE
RESSORT RAPPEL PINCES
0003 00000014107 WASHER ISO7093-1-06-200HV 1 PCE
0004 00000013427 SCREW ISO4017-M06X016-10.9 1 PCE
VIS H ISO4017-M06X016-10.9
0006 00000001756 SPRING WASHER EL6-EL7-R5 EP0,8 4 PCE
RONDELLE ELASTIQUE EL6-EL7-R5 EP0,8
0007 01125480401 GRIP ROTATING RING 1 PCE
BAGUE ROTATION PINCE
0008 01098169000 BOTTLE TRANSFER GRIP RIGHT § 1 PCE
PINCE TRANSFERT BOUTEILLE §
0009 01098169000 BOTTLE TRANSFER GRIP RIGHT § 1 PCE
PINCE TRANSFERT BOUTEILLE §

Description PERSO PART-KIT

Désignation KIT PERSO. PLATEAU
0000 01128552702 PERSO PART-KIT 1 PCE
KIT PERSO. PLATEAU
0001 01098019900 CUSTOM PART 1 PCE
0002 01128666101 HUB 1 PCE
MOYEU
0003 01128652702 SHEATH 1 PCE
FOURREAU
0006 00000011937 SCREW M08X030-A4-70 4 PCE
0008 00000011938 SCREW M08X035-A4-70 1 PCE

Description TRAY
Désignation PLATEAU
0001 01129654102 PLATE 1 PCE
PLATEAU

Description KIT
Désignation KIT GUIDE BOUTEILLE ROUE COMBI
0000 01128661401 KIT 1 PCE
0001 01128661301 SLEEVE 1 PCE
FOURREAU
0002 01091519200 CUSTOM PART 2 PCE
PIECE PERSO.(ETOILE)
0003 01128666101 HUB 2 PCE
MOYEU
0006 00000011937 SCREW M08X030-A4-70 8 PCE
0007 00000011938 SCREW M08X035-A4-70 2 PCE


Désignation GUIDE BOUTEILLE
0009 01130507302 BODY GUIDE 1 PCE
GUIDE CORPS
0009 01130507302 BODY GUIDE 1 PCE
GUIDE CORPS

Description BODY GUIDE KIT

Désignation KIT GUIDES CORPS FIXE
0000 01128750402 FIXED BODY GUIDE KIT 1 PCE
KIT GUIDE CORPS FIXE
0006 01124035001 SUPPORT COLUMN 2 PCE
COLONNE SUPPORT
0008 00000112103 SCREW ISO4017-M06X012-A2-70 2 PCE
VIS H ISO4017-M06X012-A2-70
0009 01091690500 CUSTOM PART 2 PCE
PIECE PERSO.(GUIDE CORPS)
0010 00000016015 INTERSCREW SCT S250M06 CEMENTE Z/B 4 PCE
INTERVIS SCT S250M06 CEMENTE Z/B

Description FIXED GUIDE BELOW NECK

Désignation GUIDE SOUS COL FIXE
0001 01129828104 FIXED UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL FIXE

Description ON-NECK GUIDE FIXE

Désignation GUIDE SUR COL FIXE
0006 01128936302 FIXED NECK GUIDE 1 PCE
GUIDE COL FIXE
0016 00000106258 SCREW H-M06X025-8.8 2 PCE
VIS H-M06X025-8.8

Description CIRCULAR GUIDE

Désignation GUIDE CIRCULAIRE
GUIDE CIRCULAIRE

Description UNDER-NECK GUIDE KIT MOBILE

Désignation KIT GUIDE SOUS COL MOBILE

Description MOBILE GUIDE UNDER NECK

Désignation GUIDE SOUS COL MOBILE
0005 01129704702 MOBILE UNDER-NECK GUIDE 1 PCE

Description BOTTLE GUIDE BODY GUIDE

Désignation GUIDE BOUTEILLE GUIDE CORPS BTL 0-5
0000 01125223603 MOBILE BODY GUIDE KIT 1 PCE
KIT GUIDE CORPS MOBILE
COLONNE SUPPORT
0009 99000051828 PERSO PART-BODY GUIDE 2 PCE
PERSO.GUIDE CORPS SORTIE BOUTEILLE

Description GUIDE LATERAL MOBILE

Désignation GUIDE LATERAL MOBILE
0005 01129253301 MOBILE BODY GUIDE 1 PCE
GUIDE CORPS MOBILE

Description THRUST
Désignation BUTEE ELONGATION C 334 A 382
0000 01133213801 STRETCHING THRUST 1 PCE
BUTEE D' ELONGATION C 334 A 382
0001 01133248201 STRETCHING THRUST § 1 PCE
BUTEE D'ELONGATION §
0002 01133210601 SUPPORT 1 PCE
SUPPORT BUTEE ELONGATION
0003 00000013044 NUT ISO8675-M16X1,5-05 1 PCE

Description STRETCHING ROD

Désignation TIGE D'ELONGATION
TIGE D'ELONGATION

Description KIT FOR STRETCH ROD

Désignation KIT PERSO TIGE ELONGATION
0000 01128630103 KIT FOR STRETCHING ROD PERSO.PART 1 PCE
0001 01128630201 CLAMP (HALF) 2 PCE
CLAME
0002 00000011407 SCREW ISO4762-M06X016-12.9 2 PCE
VIS CHC ISO4762-M06X016-12.9
0004 01091694901 PERSO PART-STRETCHING ROD 1 PCE
PERSO.TIGE D'ELONGATION

Description NECK RIM RETAINER

Désignation APPUI BUVANT
APPUI BUVANT

Description BELL SEAL

Désignation JOINT CLOCHE
0001 01114973403 HEEL NOZZLE SEAL 1 PCE
JOINT TUYERE A TALON

Description SCREWED WASHER

Désignation RONDELLE VISSEE
RONDELLE VISSEE

Description Adaptation parts 0.33L sbo 20 # 12158

Désignation Adaptation parts 0.33L sbo 20 # 12158
0000 PFO/11028489/01 ISBT-PCO 1 PCE
ISBT-PCO
0000 PFO/11064252/01 PROGRESS-0.33L-PET-17.2G 1 PCE
PROGRESS-0.33L-PET-17.2G
0000 PFO/11065191/01 PROGRESS-14.5G 1 PCE
PROGRESS-14.5G
0010 01130535401 BENT RAIL 1 PCE
RAIL COUDE
0020 01124923503 KIT FOR ELBOW PERSO PART 1 PCE
0030 01127115701 BODY GUIDE 1 PCE
PIGE ET ENTRETOISE
REGLAGE DE RAIL
0070 01158614901 INFEED WHEEL DEPOUSSIERAGE P50 1 PCE
0100 01158615301 DEDUSTWHEEL 1 PCE
ROUE DEPOUSSIERAGE
0120 01129660307 DEDUST CAM COURSE 46 1 PCE
ROUE DE TRANSFERT
GUIDE COL TRANSFERT
0160 01128043602 PLATE D' ALIMENTATION 1 PCE
GUIDE SORTIE FOUR
0180 01143354104 SPINDLE NOSE 276 PCE


PINCE TRANSFERT
0200 01132554101 PERSO PART-KIT VIS PINCE 22 PCE
0210 01128552704 PLATE PERSO PART KIT 1 PCE
KIT PERSO.PLATEAU
0220 01129654005 PLATE 1 PCE
PLATEAU
0230 01128661404 COMBI WHEEL BOTTLE GUIDE KIT 1 PCE
0240 01155366001 BODY GUIDE 1 PCE
GUIDE CORPS
0250 01128750503 KIT GUIDES CORPS FIXE § 1 PCE
GUIDE SOUS COL FIXE
GUIDE SUR COL FIXE
GUIDE CIRCULAIRE
0310 01125223804 KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5 1 PCE
GUIDE CORPS MOBILE
0330 01126827304 STRETCH STROKE THRUST 20 PCE
BUTEE ELONGATION COURSE 154 A 214
TIGE D'ELONGATION
0350 01128630106 STRETCHING ROD PERSO PART KIT 21 PCE
APPUI BUVANT
0370 01114974104 BELL SEAL 67 PCE
JOINT CLOCHE
RONDELLE VISSEE



Description KIT FOR ELBOW PERSO PART

Désignation KIT PERSO.COUDE 90 A DROITE R320
0001 01091519600 PERSO PART 1 PCE
PERSO.
0002 01091519600 PERSO PART 1 PCE
PERSO.
0004 01125024103 GUIDE ON NECK EDGE 1 PCE
GUIDE APPUI SUR BUVANT
0005 01120428302 ADJUSTMENT SUPPORT 2 PCE
SUPPORT REGLAGE
0006 01091519600 PERSO PART 2 PCE
PERSO.
0007 01091519600 PERSO PART 2 PCE
PERSO.
0009 01118477302 PIN 8 PCE
0010 00000104354 KNURLED NUT 16-030-06 10 PCE
0013 00000011543 SCREW ISO4762-M05X020-10.9 8 PCE
VIS CHC ISO4762-M05X020-10.9
0014 00000013003 NUT ISO4032-M05-10 8 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 4 PCE
VIS CHC ISO4762-M08X016-10.9
0019 01072447901 SPACER 2 PCE
ENTRETOISE
0021 00000013569 CAP NUT H NFE27453-M06-6 10 PCE


0025 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9
0028 01137211401 BRACKET 1 PCE
EQUERRE
0029 01137211501 BRACKET 1 PCE
EQUERRE
0030 01137211601 GUIDE SUPPORT FLAT 1 PCE
PLAT SUPPORT GUIDE
0031 01137276801 STOP FLAT 2 PCE
PLAT D'ARRET
0033 00000011521 SCREW ISO4762-M04X010-10.9 4 PCE
VIS CHC ISO4762-M04X010-10.9


0010 01127115601 BODY GUIDE 2 PCE
0020 01127115501 BODY GUIDE 2 PCE


PIGE RAIL
0002 01068278401 SPACER 8 PCE
ENTRETOISE


REGLAGE RAIL
0001 01091524100 CUSTOM PART 1 PCE
PIECE PERSO.(PIGE)
0002 01091519500 CUSTOM PART 8 PCE


0001 01098003800 CUSTOM PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091553000 PERSO PART 1 PCE
0005 01098011000 CUSTOM PART 1 PCE
0006 01098011100 CUSTOM PART 1 PCE
0007 01128163401 U-BOLT 2 PCE
ETRIER
0008 01125054002 SHOE 1 PCE
PATIN
GUIDE BUVANT
0014 00000011483 SCREW CHC-M06X075-10.9 7 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9
0018 00000013003 NUT ISO4032-M05-10 4 PCE
0019 00000017529 HANDLE 11-511-20-100 100X47 M6 1 PCE
POIGNEE 11-511-20-100 100X47 M6
0020 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9

Description INFEED WHEEL DEPOUSSIERAGE P50

GUIDE SOUS COL
GUIDE ESCAMOTABLE
0005 01136213002 GUIDE 1 PCE
GUIDE DROIT
0006 01136213103 GUIDE 1 PCE
GUIDE GAUCHE


GUIDE COL SORTIE

Description DEDUST WHEEL KIT

Désignation KIT ROUE DEPOUSSIERAGE
0001 01091555100 PERSO PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091553000 PERSO PART 1 PCE
0004 01091553000 PERSO PART 1 PCE
0005 01091408500 CUSTOM PART 1 PCE
PIECE PERSO.(ROUE)
0006 99000139377 CAM (CUSTOM) 1 PCE

Description DEDUSTWHEEL
Désignation ROUE DEPOUSSIERAGE
0001 01158615001 DEDUST OUTFD UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL SORTIE DEPOUSS.


GUIDE COL ENTREE
GUIDE COL SORTIE

Description DEDUST CAM COURSE 46

0001 01128643207 CAM UP AND DOWN 1 PCE


KIT ROUE TRANSFERT
0001 01098003800 CUSTOM PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
GUIDE BUVANT
0005 01091553000 PERSO PART 1 PCE
0010 00000011483 SCREW CHC-M06X075-10.9 3 PCE
0012 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9


GUIDE SOUS COL


0003 01134479602 NECK GUIDE 1 PCE
GUIDE COL
GUIDE COL ENTREE

Description PLATE D' ALIMENTATION

Désignation PLATEAU D' ALIMENTATION


GUIDE SORTIE FOUR


Désignation NEZ DE TOURNETTE UNIVERSAL
NEZ DE TOURNETTE
0001 01141108602 EJECTOR 1 PCE
EJECTEUR
0002 01141789501 SPACER 1 PCE
ENTRETOISE
0003 01141789702 RADIATOR 1 PCE
RADIATEUR
0004 01136506701 END-PIECE 1 PCE
EMBOUT
0005 01074396401 RING 1 PCE
BAGUE 3 SECTEURS
0006 00000027967 O-RING __9,00X 4,00 SH45 VIT 1 PCE


PINCE PREFORME
0009 01141892501 BOTTLE GRIP 1 PCE
PINCE BOUTEILLE
0010 0100Y257000 CHUCK 1 PCE
MANDRIN 4.07133 D.25,70

Description PERSO PART-KIT VIS PINCE

Désignation KIT PERSO. VIS PINCE
0000 01133823601 PERSO PART-FIXING KIT 1 PCE
KIT DE FIXATION PERSO.
0022 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9
0023 00000130217 WASHER ANTI-PERTE 5,3X10X1 2 PCE
RONDELLE ANTI-PERTE 5,3X10X1

Description PLATE PERSO PART KIT

Désignation KIT PERSO.PLATEAU
0001 01098019900 CUSTOM PART 1 PCE
0002 01151473201 HUB 1 PCE
MOYEU
0003 01128652702 SHEATH 1 PCE
FOURREAU
0006 00000107641 SCREW ISO4762-M08X030-A4-70 4 PCE
0008 00000107642 SCREW ISO4762-M08X035-A4-70 1 PCE

Description PLATE
0001 01129654105 PLATE 1 PCE
PLATEAU

Description COMBI WHEEL BOTTLE GUIDE KIT

0001 01137066801 SHEATH 1 PCE
FOURREAU
0002 01091519200 CUSTOM PART 2 PCE
0003 01128666102 HUB 2 PCE
MOYEU
0006 00000011937 SCREW M08X030-A4-70 8 PCE
0007 00000011938 SCREW M08X035-A4-70 2 PCE


Désignation GUIDE CORPS
0009 01155365901 BODY GUIDE 2 PCE
GUIDE CORPS

Description KIT GUIDES CORPS FIXE §

Désignation KIT GUIDES CORPS FIXE §
COLONNE SUPPORT
0008 00000109364 SCREW ISO4017-M08X025-A4-70 2 PCE
VIS H ISO4017-M08X025-A4-70
0009 01091690500 CUSTOM PART 2 PCE

Description FIXED UNDER-NECK GUIDE

GUIDE SOUS COL FIXE


GUIDE COL FIXE
0016 00000106258 SCREW H-M06X025-8.8 2 PCE
VIS H-M06X025-8.8

Description CIRCULAR GUIDE

Désignation GUIDE CIRCULAIRE
GUIDE CIRCULAIRE



Description MOBILE UNDER-NECK GUIDE

0012 01129704704 RETRACTABLE UNDER-NECK GUIDE 1 PCE

Description KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5

Désignation KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5
0000 01125223604 BOTTLE GUIDE KIT 1 PCE
KIT GUIDE BOUTEILLE GUIDE CORPS MOBILE
COLONNE SUPPORT

Description MOBILE BODY GUIDE

Désignation GUIDE CORPS MOBILE
GUIDE CORPS MOBILE

Description STRETCH STROKE THRUST

Désignation BUTEE ELONGATION COURSE 154 A 214
0000 01126794204 STRETCHING STROKE THRUST 1 PCE
BUTEE ELONGATION COURSE
BUTEE D'ELONGATION
0002 01126777104 STRETCHING THRUST SUPPORT 1 PCE
0003 00000013044 NUT ISO8675-M16X1,5-05 1 PCE


TIGE D'ELONGATION

Description STRETCHING ROD PERSO PART KIT

Désignation KIT PERSO.TIGE D'ELONGATION
0001 01138772404 CLAMP 2 PCE
CLAME
0002 00000153911 SCREW ISO4762-M06X016-12.9 PE 2 PCE
VIS CHC ISO4762-M06X016-12.9 PE


APPUI BUVANT


0001 01114973404 SEAL NOZZLE 34,0 x 61,1 x 9,4 1 PCE
JOINT DE TUYERE 34,0 x 61,1 x 9,4


RONDELLE VISSEE


0000 PFO/11028489/01 ISBT-PCO 1 PCE
ISBT-PCO
0000 PFO/11062674/01 -16.84G 1 PCE
-16.84G
0000 PFO/11064269/01 PROGRESS-0.5L-PET-20.7G 1 PCE
PROGRESS-0.5L-PET-20.7G
0000 PFO/11065179/01 PROGRESS-18G 1 PCE
PROGRESS-18G
0010 01130535401 BENT RAIL 1 PCE
RAIL COUDE
0020 01124923503 KIT FOR ELBOW PERSO PART 1 PCE
0030 01127115701 BODY GUIDE 1 PCE
PIGE ET ENTRETOISE
REGLAGE DE RAIL
0070 01158614901 INFEED WHEEL DEPOUSSIERAGE P50 1 PCE
0100 01158615301 DEDUSTWHEEL 1 PCE
ROUE DEPOUSSIERAGE
0120 01129660307 DEDUST CAM COURSE 46 1 PCE
ROUE DE TRANSFERT
GUIDE COL TRANSFERT
0160 01128043602 PLATE D' ALIMENTATION 1 PCE
GUIDE SORTIE FOUR


0180 01143354104 SPINDLE NOSE 276 PCE
PINCE TRANSFERT
0210 01128552704 PLATE PERSO PART KIT 1 PCE
KIT PERSO.PLATEAU
0220 01129654005 PLATE 1 PCE
PLATEAU
0230 01128661404 COMBI WHEEL BOTTLE GUIDE KIT 1 PCE
0240 01128259502 BOTTLE GUIDE 1 PCE
GUIDE BOUTEILLE
0250 01128750503 KIT GUIDES CORPS FIXE § 1 PCE
GUIDE SOUS COL FIXE
GUIDE SUR COL FIXE
0280 01129656402 CIRCULAR GUIDE LATERAUX 1 PCE
GUIDE CIRCULAIRE LATERAUX
0310 01125223804 KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5 1 PCE
0320 01129708501 SIDE GUIDE 1 PCE
0330 01126827404 STRETCHING THRUST C=214 A 274 20 PCE
BUTEE D'ELONGATION C=214 A 274
TIGE D'ELONGATION
0350 01128630106 STRETCHING ROD PERSO PART KIT 21 PCE
APPUI BUVANT
0370 01114974104 BELL SEAL 67 PCE
JOINT CLOCHE
RONDELLE VISSEE




0001 01091519600 PERSO PART 1 PCE
PERSO.
0002 01091519600 PERSO PART 1 PCE
PERSO.
0004 01125024103 GUIDE ON NECK EDGE 1 PCE
GUIDE APPUI SUR BUVANT
0005 01120428302 ADJUSTMENT SUPPORT 2 PCE
SUPPORT REGLAGE
0006 01091519600 PERSO PART 2 PCE
PERSO.
0007 01091519600 PERSO PART 2 PCE
PERSO.
0009 01118477302 PIN 8 PCE
0010 00000104354 KNURLED NUT 16-030-06 10 PCE
0013 00000011543 SCREW ISO4762-M05X020-10.9 8 PCE
VIS CHC ISO4762-M05X020-10.9
0014 00000013003 NUT ISO4032-M05-10 8 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 4 PCE
VIS CHC ISO4762-M08X016-10.9
0019 01072447901 SPACER 2 PCE
ENTRETOISE
0021 00000013569 CAP NUT H NFE27453-M06-6 10 PCE


0025 00000011561 SCREW ISO4762-M06X016-10.9 8 PCE
VIS CHC ISO4762-M06X016-10.9
0028 01137211401 BRACKET 1 PCE
EQUERRE
0029 01137211501 BRACKET 1 PCE
EQUERRE
0030 01137211601 GUIDE SUPPORT FLAT 1 PCE
PLAT SUPPORT GUIDE
0031 01137276801 STOP FLAT 2 PCE
PLAT D'ARRET
0033 00000011521 SCREW ISO4762-M04X010-10.9 4 PCE
VIS CHC ISO4762-M04X010-10.9


0010 01127115601 BODY GUIDE 2 PCE
0020 01127115501 BODY GUIDE 2 PCE


PIGE RAIL
0002 01068278401 SPACER 8 PCE
ENTRETOISE


REGLAGE RAIL
0001 01091524100 CUSTOM PART 1 PCE
PIECE PERSO.(PIGE)
0002 01091519500 CUSTOM PART 8 PCE


0001 01098003800 CUSTOM PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091553000 PERSO PART 1 PCE
0005 01098011000 CUSTOM PART 1 PCE
0006 01098011100 CUSTOM PART 1 PCE
0007 01128163401 U-BOLT 2 PCE
ETRIER
0008 01125054002 SHOE 1 PCE
PATIN
GUIDE BUVANT
0014 00000011483 SCREW CHC-M06X075-10.9 7 PCE
0016 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9
0018 00000013003 NUT ISO4032-M05-10 4 PCE
0019 00000017529 HANDLE 11-511-20-100 100X47 M6 1 PCE
POIGNEE 11-511-20-100 100X47 M6
0020 00000011561 SCREW ISO4762-M06X016-10.9 2 PCE
VIS CHC ISO4762-M06X016-10.9

Description INFEED WHEEL DEPOUSSIERAGE P50

GUIDE SOUS COL
GUIDE ESCAMOTABLE
0005 01136213002 GUIDE 1 PCE
GUIDE DROIT
0006 01136213103 GUIDE 1 PCE
GUIDE GAUCHE


GUIDE COL SORTIE

Description DEDUST WHEEL KIT

Désignation KIT ROUE DEPOUSSIERAGE
0001 01091555100 PERSO PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
0003 01091553000 PERSO PART 1 PCE
0004 01091553000 PERSO PART 1 PCE
0005 01091408500 CUSTOM PART 1 PCE
PIECE PERSO.(ROUE)
0006 99000139377 CAM (CUSTOM) 1 PCE

Description DEDUSTWHEEL
Désignation ROUE DEPOUSSIERAGE
0001 01158615001 DEDUST OUTFD UNDER-NECK GUIDE 1 PCE
GUIDE SOUS COL SORTIE DEPOUSS.


GUIDE COL ENTREE
GUIDE COL SORTIE

Description DEDUST CAM COURSE 46

0001 01128643207 CAM UP AND DOWN 1 PCE


KIT ROUE TRANSFERT
0001 01098003800 CUSTOM PART 1 PCE
0002 01091555100 PERSO PART 1 PCE
GUIDE BUVANT
0005 01091553000 PERSO PART 1 PCE
0010 00000011483 SCREW CHC-M06X075-10.9 3 PCE
0012 00000011599 SCREW ISO4762-M08X016-10.9 3 PCE
VIS CHC ISO4762-M08X016-10.9


GUIDE SOUS COL


0003 01134479602 NECK GUIDE 1 PCE
GUIDE COL
GUIDE COL ENTREE

Description PLATE D' ALIMENTATION

Désignation PLATEAU D' ALIMENTATION


GUIDE SORTIE FOUR


Désignation NEZ DE TOURNETTE UNIVERSAL
NEZ DE TOURNETTE
0001 01141108602 EJECTOR 1 PCE
EJECTEUR
0002 01141789501 SPACER 1 PCE
ENTRETOISE
0003 01141789702 RADIATOR 1 PCE
RADIATEUR
0004 01136506701 END-PIECE 1 PCE
EMBOUT
0005 01074396401 RING 1 PCE
BAGUE 3 SECTEURS
0006 00000027967 O-RING __9,00X 4,00 SH45 VIT 1 PCE


PINCE PREFORME
0009 01141892501 BOTTLE GRIP 1 PCE
PINCE BOUTEILLE
0010 0100Y257000 CHUCK 1 PCE
MANDRIN 4.07133 D.25,70


0022 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9

Description PLATE PERSO PART KIT

Désignation KIT PERSO.PLATEAU
0001 01098019900 CUSTOM PART 1 PCE
0002 01151473201 HUB 1 PCE
MOYEU
0003 01128652702 SHEATH 1 PCE
FOURREAU
0006 00000107641 SCREW ISO4762-M08X030-A4-70 4 PCE
0008 00000107642 SCREW ISO4762-M08X035-A4-70 1 PCE

Description PLATE
0001 01129654105 PLATE 1 PCE
PLATEAU

Description COMBI WHEEL BOTTLE GUIDE KIT

0001 01137066801 SHEATH 1 PCE
FOURREAU
0002 01091519200 CUSTOM PART 2 PCE
0003 01128666102 HUB 2 PCE
MOYEU
0006 00000011937 SCREW M08X030-A4-70 8 PCE
0007 00000011938 SCREW M08X035-A4-70 2 PCE


Désignation GUIDE BOUTEILLE
0009 01128259402 BODY GUIDE 2 PCE
GUIDE CORPS

Description KIT GUIDES CORPS FIXE §

Désignation KIT GUIDES CORPS FIXE §
COLONNE SUPPORT
0008 00000109364 SCREW ISO4017-M08X025-A4-70 2 PCE
VIS H ISO4017-M08X025-A4-70
0009 01091690500 CUSTOM PART 2 PCE

Description FIXED UNDER-NECK GUIDE

GUIDE SOUS COL FIXE


GUIDE COL FIXE
0016 00000106258 SCREW H-M06X025-8.8 2 PCE
VIS H-M06X025-8.8

Description CIRCULAR GUIDE LATERAUX

Désignation GUIDE CIRCULAIRE LATERAUX
GUIDE CIRCULAIRE



Description MOBILE UNDER-NECK GUIDE

0012 01129704704 RETRACTABLE UNDER-NECK GUIDE 1 PCE

Description KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5

Désignation KIT FOR BOTTLE GUIDE BODY GUIDE BTL 0-5
0000 01125223604 BOTTLE GUIDE KIT 1 PCE
KIT GUIDE BOUTEILLE GUIDE CORPS MOBILE
COLONNE SUPPORT

Description SIDE GUIDE

Désignation GUIDE LATERAL MOBILE
GUIDE CORPS MOBILE

Description STRETCHING THRUST C=214 A 274

Désignation BUTEE D'ELONGATION C=214 A 274
BUTEE D'ELONGATION COURSE 214 A 274
BUTEE D'ELONGATION
0002 01126790304 STRETCHING THRUST SUPPORT 1 PCE
0003 00000013044 NUT ISO8675-M16X1,5-05 1 PCE


TIGE D'ELONGATION

Description STRETCHING ROD PERSO PART KIT

Désignation KIT PERSO.TIGE D'ELONGATION
0001 01138772404 CLAMP 2 PCE
CLAME
0002 00000153911 SCREW ISO4762-M06X016-12.9 PE 2 PCE
VIS CHC ISO4762-M06X016-12.9 PE


APPUI BUVANT


0001 01114973404 SEAL NOZZLE 34,0 x 61,1 x 9,4 1 PCE
JOINT DE TUYERE 34,0 x 61,1 x 9,4


RONDELLE VISSEE

Description PERSO.SBO20 12158 REINF.TRANSFER ARMS

Désignation PERSO.SBO20 12158 REINF.TRANSFER ARMS
0000 PFO/11028489/01 ISBT-PCO 1 PCE
ISBT-PCO
PINCE TRANSFERT


PINCE PREFORME
0009 01141892501 BOTTLE GRIP 1 PCE
PINCE BOUTEILLE
0010 0100Y257000 CHUCK 1 PCE
MANDRIN 4.07133 D.25,70


0022 00000011541 SCREW ISO4762-M05X010-10.9 2 PCE
VIS CHC ISO4762-M05X010-10.9

Sous-ensemble VXBO35442 Index 200
Description MOULE 1.50L # 11064273.01

Désignation COQ150 AL ST 1.5L PROGRESS MSO1
0000 01158867901 ASSEMBLY 1 PCE
ENSEMBLE
0001 99000431256 DEFINED ENGRAVING 1 PCE
IDENTIFICATION FOND CLIENT DEFINIE
0002 01133740801 MONOBLOC UNIVERSAL PEDESTAL ( 25 à 65MM) 1 PCE
ENTRETOISE GEN UNIVERSAL X=27,46 MM
1000 01158935001 SAP CONNECTION 1 PCE
LIAISON SAP

Description ASSEMBLY
Désignation ENSEMBLE
0001 01158902501 MODEL 1 PCE
MAQUETTE
0002 01158868201 ASSY SHELL UNIVERSAL 1 PCE
0003 01158868001 ASSY BASE UNIVERSAL DIAM MAXI 101,4 MM 1 PCE
0101 01158868401 CENTERING RING UNIVERSAL 1 PCE
BAGUE DE CENTRAGE UNIVERSAL
0104 00000137776 SCREW CZHC-DIN7984-M05X010-10.9-PE 4 PCE
VIS CZHC-DIN7984-M05X010-10.9-PE

Description ASSY SHELL UNIVERSAL

Désignation ENS COQUILLE UNIVERSAL
0102 01158868301 SHELL 1 PCE
COQUILLE
0103 01130639101 BODY WEAR RING replace by 11306320 1 PCE
RONDELLE D'USURE remplacer par 11306320

Description ASSY BASE UNIVERSAL DIAM MAXI 101,4 MM

Désignation ENS FOND UNIVERSAL DIAM MAXI 101,4 MM
0201 01158868101 RETRACTABLE BASE 1 PCE
FOND ESCAMOTABLE
0202 01144688501 WEAR RING 1 PCE
BAGUE D'USURE
0203 01144944601 COVER UNIVERSAL 1 PCE
COUVERCLE UNIVERSAL
0204 00000020251 O-RING _68,00X 2,00 SH70 VITON 1 PCE
JOINT TORIQUE _68,00X 2,00 SH70 VITON
0205 00000014497 EXPANDABLE PLUG DIN470-D10-Z/B 2 PCE
BOUCHON EXPANSIBLE DIN470-D10-Z/B
0206 00000011564 SCREW ISO4762-M06X030-10.9 4 PCE
VIS CHC ISO4762-M06X030-10.9

Description MONOBLOC UNIVERSAL PEDESTAL ( 25 à 65MM)

Désignation ENTRETOISE GEN UNIVERSAL X=27,46 MM
0000 01128887501 MONOBLOC UNIVERSAL PEDESTAL (25 TO 65) § 1 PCE
EFM MONOBLOC UNIVERSAL (25 A 65) §
0001 01128375401 SOLE PLATE ENTRETOISE 1 PCE
SEMELLE ENTRETOISE
0002 01129714601 LOCKING PIN 1 PCE
AXE DE VERROUILLAGE
0003 01128011001 COUPLER ALLONGE LONG:92MM 2 PCE
COUPLEUR ALLONGE LONG:92MM
0005 00000017260 GUIDING BUSH 10/15L10 1 PCE
DOUILLE DE GUIDAGE 10/15L10
0006 00000020915 O-RING _10,00X 2,00 SH70 VIT/V 2 PCE
JOINT TORIQUE _10,00X 2,00 SH70 VIT/V
0008 00000011564 SCREW ISO4762-M06X030-10.9 4 PCE
VIS CHC ISO4762-M06X030-10.9


0001 01158678001 ASSEMBLY 1 PCE
ENSEMBLE
0003 01158680701 MODULAR SPACER =169.13MM 1 PCE
MODULAIRE SPACER=169.13MM
1000 01167854201 SAP CONNECTION CAS D'EMPLOI 1 PCE
LIAISON SAP CAS D'EMPLOI

0002 01158678401 ASSY BASE UNIVERSAL DIAM MAXI 63.4 MM 1 PCE
ENS FOND UNIVERSAL DIAM MAXI 63.4 MM
0003 01158677301 CAVITY 1 PCE
CAVITE


0102 01158678201 SHELL 1 PCE
COQUILLE
0105 00000011562 SCREW ISO4762-M06X020-10.9 6 PCE
VIS CHC ISO4762-M06X020-10.9

Description ASSY BASE UNIVERSAL DIAM MAXI 63.4 MM

Désignation ENS FOND UNIVERSAL DIAM MAXI 63.4 MM
FOND ESCAMOTABLE
0202 01133353304 WEAR RING replace by 011360486 1 PCE
BAGUE D'USURE remplace par 011360486
0203 01136040601 COVER DIAM82,5_56 1 PCE
COUVERCLE DIAM82,5_56
0206 00000011546 SCREW ISO4762-M05X035-10.9 5 PCE
VIS CHC ISO4762-M05X035-10.9

Description MODULAR SPACER =169.13MM

Désignation MODULAIRE SPACER=169.13MM
0001 01140909001 ASSY SPACER 1 PCE
ENS ENTRETOISE

Description ASSY SPACER

Désignation ENS ENTRETOISE
0001 01140908101 SOLE PLATE SUPERIEURE 1 PCE
SEMELLE SUPERIEURE
0002 01137604301 PROFILE 1 PCE
PROFILE
0003 01137596301 SOLE PLATE INFERIEURE 1 PCE
SEMELLE INFERIEURE
0004 01129714601 LOCKING PIN 1 PCE
AXE DE VERROUILLAGE
0009 00000022191 O-RING _25,00X 1,50 SH70 NIT 1 PCE
0011 00000011545 SCREW ISO4762-M05X030-10.9 4 PCE
VIS CHC ISO4762-M05X030-10.9
0012 00000011542 SCREW ISO4762-M05X016-10.9 8 PCE
VIS CHC ISO4762-M05X016-10.9


0001 01158677401 ASSEMBLY 1 PCE
ENSEMBLE
0003 01158679401 MODULAR SPACER UNIVERSAL X=137.64MM 1 PCE
MODULAR SPACER UNIVERSAL X=137.64MM

0002 01158677801 ASSY BASE UNIVERSAL DIAM MAXI 73,4 MM 1 PCE
0003 01158676901 CAVITY 1 PCE
EMPREINTE


0102 01158677601 SHELL 1 PCE
COQUILLE

Description ASSY BASE UNIVERSAL DIAM MAXI 73,4 MM

Désignation ENS FOND UNIVERSAL DIAM MAXI 73,4 MM
FOND ESCAMOTABLE
0202 01133419101 WEAR RING replace by 11376566 1 PCE
BAGUE D'USURE remplace par 11376566
0203 01135866001 COVER DIAM82,5_63 01140275201 1 PCE
COUVERCLE DIAM82,5_63
0207 00000011547 SCREW ISO4762-M05X040-10.9 4 PCE
VIS CHC ISO4762-M05X040-10.9

Description MODULAR SPACER UNIVERSAL X=137.64MM

Désignation MODULAR SPACER UNIVERSAL X=137.64MM
0000 01137641701 ASSY SPACER UNIVERSAL V2 1 PCE
ENS ENTRETOISE

Description ASSY SPACER UNIVERSAL V2
Désignation ENS ENTRETOISE
0401 01137596301 SOLE PLATE INFERIEURE 1 PCE
SEMELLE INFERIEURE
0402 01137604301 PROFILE 1 PCE
PROFILE
0403 01137592501 SOLE PLATE SUPERIEURE 1 PCE
SEMELLE SUPERIEURE
0404 01129714601 LOCKING PIN 1 PCE
AXE DE VERROUILLAGE
JOINT TORIQ. 16,00X 2,00 SH70 VITON
0411 00000011545 SCREW ISO4762-M05X030-10.9 4 PCE
VIS CHC ISO4762-M05X030-10.9
0412 00000011542 SCREW ISO4762-M05X016-10.9 8 PCE
VIS CHC ISO4762-M05X016-10.9

Sous-ensemble VXMO30137 Index 203
Description MOLDS COMPLEMENTAIRES MOULERIE VXMO35443

Désignation BC P/VXBO35443 PROGRESS MSO4
0000 SWD/11586780/01 ASSEMBLY 1 PCE
ENSEMBLE
0003 01158677301 CAVITY 1 PCE
CAVITE
1000 01167854201 SAP CONNECTION CAS D'EMPLOI 1 PCE
LIAISON SAP CAS D'EMPLOI

Blower

Uploaded by

Copyright:

Available Formats

You might also like

Blower

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Blower

Uploaded by

Copyright:

Available Formats

Technical Documentation

Product Parts List

© Sidel Blowing & Services

Publication Date 27/03/2018

SIDEL - Avenue de la Patrouille de France - 76930 Octeville-sur-Mer, FRANCE

All rights reserved.

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Description MACHINE SBO20 12158 PROGRESS

Sub-Unit Table of contents

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Description WHEEL SBO20/24 12158

Sub-Unit Table of contents

Sub-Unit Table of contents

Description FRAME ASSEMBLY

Sub-Unit Table of contents

Description FRAME ASSEMBLY

Sub-Unit Table of contents

Sub-Unit Table of contents

Description LOCKING PIN
