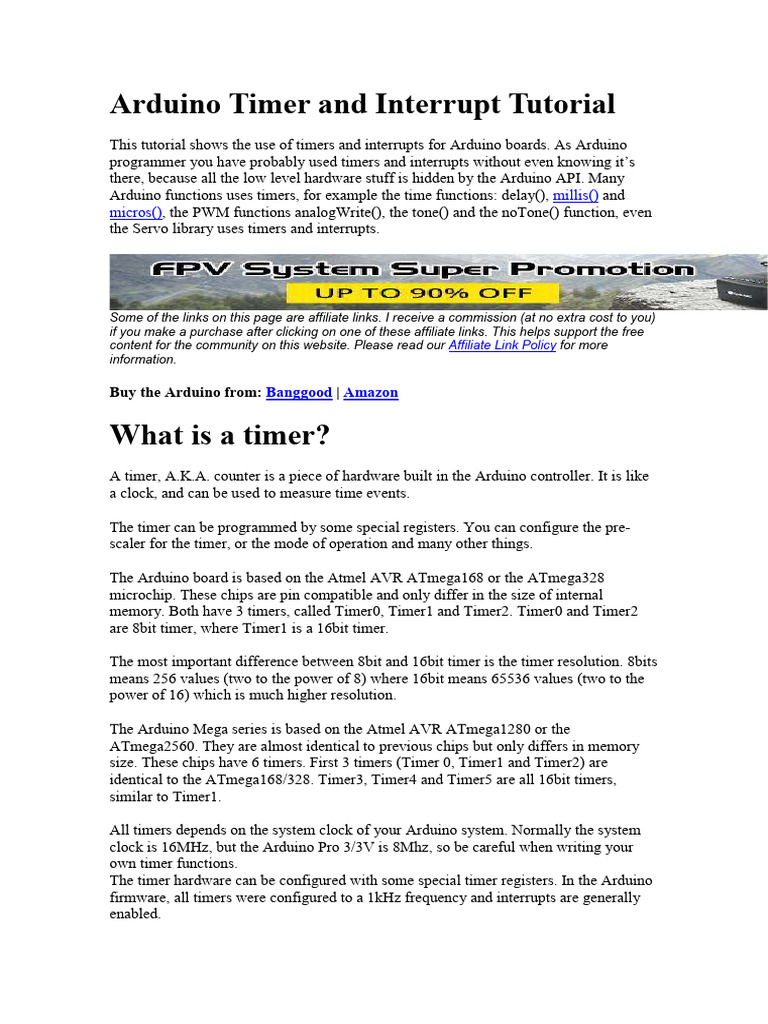

Arduino Timer and Interrupt Tutorial

This tutorial shows the use of timers and interrupts for Arduino boards. As Arduino
programmer you have probably used timers and interrupts without even knowing it’s
there, because all the low level hardware stuff is hidden by the Arduino API. Many
Arduino functions uses timers, for example the time functions: delay(), millis() and
micros(), the PWM functions analogWrite(), the tone() and the noTone() function, even
the Servo library uses timers and interrupts.

Some of the links on this page are affiliate links. I receive a commission (at no extra cost to you)
if you make a purchase after clicking on one of these affiliate links. This helps support the free
content for the community on this website. Please read our Affiliate Link Policy for more
information.

Buy the Arduino from: Banggood | Amazon

What is a timer?
A timer, A.K.A. counter is a piece of hardware built in the Arduino controller. It is like
a clock, and can be used to measure time events.

The timer can be programmed by some special registers. You can configure the pre-
scaler for the timer, or the mode of operation and many other things.

The Arduino board is based on the Atmel AVR ATmega168 or the ATmega328
microchip. These chips are pin compatible and only differ in the size of internal
memory. Both have 3 timers, called Timer0, Timer1 and Timer2. Timer0 and Timer2
are 8bit timer, where Timer1 is a 16bit timer.

The most important difference between 8bit and 16bit timer is the timer resolution. 8bits
means 256 values (two to the power of 8) where 16bit means 65536 values (two to the
power of 16) which is much higher resolution.

The Arduino Mega series is based on the Atmel AVR ATmega1280 or the
ATmega2560. They are almost identical to previous chips but only differs in memory
size. These chips have 6 timers. First 3 timers (Timer 0, Timer1 and Timer2) are
identical to the ATmega168/328. Timer3, Timer4 and Timer5 are all 16bit timers,
similar to Timer1.

All timers depends on the system clock of your Arduino system. Normally the system
clock is 16MHz, but the Arduino Pro 3/3V is 8Mhz, so be careful when writing your
own timer functions.
The timer hardware can be configured with some special timer registers. In the Arduino
firmware, all timers were configured to a 1kHz frequency and interrupts are generally
enabled.
To summarize:

Timer0: Timer0 is a 8bit timer. In the Arduino world Timer0 is been

used for the timer functions, like delay(), millis() and micros(). If
you change Timer0 registers, this may influence the Arduino timer
function. So you should know what you are doing. Timer1: Timer1 is a
16bit timer. In the Arduino world the Servo library uses Timer1 on
Arduino Uno (Timer5 on Arduino Mega). Timer2: Timer2 is a 8bit timer
like Timer0. In the Arduino work the tone() function uses Timer2.
Timer3, Timer4, Timer5: Timer 3,4,5 are only available on Arduino Mega
boards. These timers are all 16bit timers. Timer Register You can
change the Timer behaviour through the timer register. The most
important timer registers are:
 TCCRx - Timer/Counter Control Register. The pre-scaler can be
configured here.
 TCNTx - Timer/Counter Register. The actual timer value is stored
here.
 OCRx - Output Compare Register
 ICRx - Input Capture Register (only for 16bit timer)
 TIMSKx - Timer/Counter Interrupt Mask Register. To
enable/disable timer interrupts.
 TIFRx - Timer/Counter Interrupt Flag Register. Indicates a
pending timer interrupt.

Clock select and timer frequency

Different clock sources can be selected for each timer independently. To calculate the
timer frequency (for example 2Hz using Timer1) you will need:

1. CPU frequency 16Mhz for Arduino

2. maximum timer counter value (256 for 8bit, 65536 for 16bit timer)
3. Divide CPU frequency through the chosen pre-scaler (16000000 / 256 = 62500)
4. Divide result through the desired frequency (62500 / 2Hz = 31250)
5. Verify the result against the maximum timer counter value (31250 < 65536 success)
if fail, choose bigger pre-scaler.
Timer modes
Timers can be configured in different modes.

PWM (Pulse width modulation) mode – the OCxy outputs are used to generate PWM
signals
CTC (Clear timer on compare match) mode – When the timer counter reaches the
compare match register, the timer will be cleared.

What is an interrupt?
The program running on a controller is normally running sequentially instruction by
instruction. An interrupt is an external event that interrupts the running program and
runs a special interrupt service routine (ISR). After the ISR has been finished, the
running program is continued with the next instruction. Instruction means a single
machine instruction, not a line of C or C++ code.

Before an pending interrupt will be able to call a ISR the following conditions must be
true:

 Interrupts must be generally enabled

 the according Interrupt mask must be enabled

Interrupts can generally enabled or disabled with the function interrupts() or

noInterrupts(). By default in the Arduino firmware interrupts are enabled. Interrupt
masks are enabled / disabled by setting or clearing bits in the Interrupt mask register
(TIMSKx).

When an interrupt occurs, a flag in the interrupt flag register (TIFRx) is been set. This
interrupt will be automatically cleared when entering the ISR or by manually clearing
the bit in the interrupt flag register.

The Arduino functions attachInterrupt() and detachInterrupt() can only be used for
external interrupt pins. These are different interrupt sources, not discussed here.

Timer interrupts
A timer can generate different types of interrupts. The register and bit definitions can be
found in the processor data sheet (Atmega328 or Atmega2560) and in the I/O definition
header file (iomx8.h for Arduino, iomxx0_1.h for Arduino Mega in the
hardware/tools/avr/include/avr folder). The suffix x stands for the timer number (0..5),
the suffix y stands for the output number (A,B,C), for example TIMSK1 (Timer1
interrupt mask register) or OCR2A (Timer2 output compare register A).

Table of Contents

o Timer Overflow:
o Output Compare Match:
o Timer Input Capture:
 Usefull 3rd party libraries
 Blinking LED with timer overflow interrupt
 Reading quadrature encoders with a timer

Timer Overflow:

Timer overflow means the timer has reached is limit value. When a timer overflow
interrupt occurs, the timer overflow bit TOVx will be set in the interrupt flag register
TIFRx. When the timer overflow interrupt enable bit TOIEx in the interrupt mask
register TIMSKx is set, the timer overflow interrupt service routine
ISR(TIMERx_OVF_vect) will be called.
Output Compare Match:

When a output compare match interrupt occurs, the OCFxy flag will be set in the
interrupt flag register TIFRx . When the output compare interrupt enable bit OCIExy in
the interrupt mask register TIMSKx is set, the output compare match interrupt service
ISR(TIMERx_COMPy_vect) routine will be called.

Timer Input Capture:

When a timer input capture interrupt occurs, the input capture flag bit ICFx will be set
in the interrupt flag register TIFRx. When the input capture interrupt enable bit ICIEx in
the interrupt mask register TIMSKx is set, the timer input capture interrupt service
routine ISR(TIMERx_CAPT_vect) will be called.

PWM and timer

There is fixed relation between the timers and the PWM capable outputs. When you
look in the data sheet or the pinout of the processor these PWM capable pins have
names like OCRxA, OCRxB or OCRxC (where x means the timer number 0..5). The
PWM functionality is often shared with other pin functionality.

The Arduino has 3 timers and 6 PWM output pins. The relation between timers and
PWM outputs is:

 Pins 5 and 6: controlled by Timer0

 Pins 9 and 10: controlled by Timer1
 Pins 11 and 3: controlled by Timer2

On the Arduino Mega we have 6 timers and 15 PWM outputs:

 Pins 4 and 13: controlled by Timer0

 Pins 11 and 12: controlled by Timer1
 Pins 9 and10: controlled by Timer2
 Pin 2, 3 and 5: controlled by timer 3
 Pin 6, 7 and 8: controlled by timer 4
 Pin 46, 45 and 44:: controlled by timer 5

Usefull 3rd party libraries

Some 3rd party libraries exists, that uses timers:

 Ken Shirrifs IR library using Timer2 – Send and receive any kind of IR remote
signals
 Timer1 and Timer3 library using Timer1 or tiner3 – easy way to write your own
timer interrupt service routines.

Examples
Blinking LED with compare match interrupt
The first example uses the Timer1 in CTC mode and the compare match interrupt to
toggle a LED. The timer is configured for a frequency of 2Hz. The LED is toggled in
the interrupt service routine.

[sourcecode language=”cpp”]

/*
* timer and interrupts
* Timer1 compare match interrupt example
* more infos: https://oscarliang.com
*/

#define ledPin 13

void setup()
{
pinMode(ledPin, OUTPUT);

// initialize Timer1
noInterrupts(); // disable all interrupts
TCCR1A = 0;
TCCR1B = 0;
TCNT1 = 0;

OCR1A = 31250; // compare match register 16MHz/256/2Hz

TCCR1B |= (1 &lt;&lt; WGM12); // CTC mode
TCCR1B |= (1 &lt;&lt; CS12); // 256 prescaler
TIMSK1 |= (1 &lt;&lt; OCIE1A); // enable timer compare interrupt
interrupts(); // enable all interrupts
}
ISR(Timer1_COMPA_vect) // timer compare interrupt service routine
{
digitalWrite(ledPin, digitalRead(ledPin) ^ 1); // toggle LED pin
}

void loop()
{
// your program here…
}

[/sourcecode]

Blinking LED with timer overflow interrupt

same example like before but now we use the timer overflow interrupt. In this case
Timer1 is running in normal mode.

The timer must be pre loaded every time in the interrupt service routine.

[sourcecode language=”cpp”]
/*
* timer and interrupts
* Timer1 overflow interrupt example
* more infos: https://oscarliang.com
*/

#define ledPin 13

void setup()
{
pinMode(ledPin, OUTPUT);

// initialize Timer1
noInterrupts(); // disable all interrupts
TCCR1A = 0;
TCCR1B = 0;

TCNT1 = 34286; // preload timer 65536-16MHz/256/2Hz

TCCR1B |= (1 &lt;&lt; CS12); // 256 prescaler
TIMSK1 |= (1 &lt;&lt; TOIE1); // enable timer overflow interrupt
interrupts(); // enable all interrupts
}

ISR(Timer1_OVF_vect) // interrupt service routine that wraps a user defined function

supplied by attachInterrupt
{
TCNT1 = 34286; // preload timer
digitalWrite(ledPin, digitalRead(ledPin) ^ 1);
}
void loop()
{
// your program here…
}

[/sourcecode]

Reading quadrature encoders with a timer

The next example uses Timer2 and the compare match interrupt to read the encoder
inputs.

Timer2 is initialized by default to a frequency of 1kHz (1ms period). In the interrupt

service routine the state of all encoder pins is read and a state machine is used to
eliminate false readings. Using the timer interrupt is much easier to handle than using 4
input change interrupts.

The signals of a quadrature encoder is a 2bit Gray code. Only 1 bit is changing from
state to state. A state machine is perfect to check the signal and count the encoder ticks.
The timer must be fast enough, to recognize each state change. For the Pololu wheel
encoders used here, the 1ms timer is fast enough.

The following example has been modified to work with Arduino V1.x

[sourcecode language=”cpp”]

/*
* timer and interrupts
* Timer2 compare interrupt example. Quadrature Encoder
* more infos: https://oscarliang.com
*
* Credits:
* based on code from Peter Dannegger
* http://www.mikrocontroller.net/articles/Drehgeber
*/
#if ARDUINO &gt;= 100
#include “Arduino.h”
#else
#include “WConstants.h”
#endif

// Encoder Pins
#define encLtA 2
#define encLtB 3
#define encRtA 11
#define encRtB 12
#define ledPin 13

#define LT_PHASE_A digitalRead(encLtA)

#define LT_PHASE_B digitalRead(encLtB)
#define RT_PHASE_A digitalRead(encRtA)
#define RT_PHASE_B digitalRead(encRtB)

static volatile int8_t encDeltaLt, encDeltaRt;

static int8_t lastLt, lastRt;
int encLt, encRt;

ISR( Timer2_COMPA_vect )
{
int8_t val, diff;

digitalWrite(ledPin, HIGH); // toggle LED pin

val = 0;
if( LT_PHASE_A )
val = 3;
if( LT_PHASE_B )
val ^= 1; // convert gray to binary
diff = lastLt – val; // difference last – new
if( diff &amp; 1 ){ // bit 0 = value (1)
lastLt = val; // store new as next last
encDeltaLt += (diff &amp; 2) – 1; // bit 1 = direction (+/-)
}

val = 0;
if( RT_PHASE_A )
val = 3;
if( RT_PHASE_B )
val ^= 1; // convert gray to binary
diff = lastRt – val; // difference last – new
if( diff &amp; 1 ){ // bit 0 = value (1)
lastRt = val; // store new as next last
encDeltaRt += (diff &amp; 2) – 1; // bit 1 = direction (+/-)
}
digitalWrite(ledPin, LOW); // toggle LED pin
}
void QuadratureEncoderInit(void)
{
int8_t val;

cli();
TIMSK2 |= (1&lt;&lt;OCIE2A);
sei();
pinMode(encLtA, INPUT);
pinMode(encRtA, INPUT);
pinMode(encLtB, INPUT);
pinMode(encRtB, INPUT);

val=0;
if (LT_PHASE_A)
val = 3;
if (LT_PHASE_B)
val ^= 1;
lastLt = val;
encDeltaLt = 0;

val=0;
if (RT_PHASE_A)
val = 3;
if (RT_PHASE_B)
val ^= 1;
lastRt = val;
encDeltaRt = 0;

encLt = 0;
encRt = 0;
}

int8_t QuadratureEncoderReadLt( void ) // read single step encoders

{
int8_t val;

cli();
val = encDeltaLt;
encDeltaLt = 0;
sei();
return val; // counts since last call
}

int8_t QuadratureEncoderReadRt( void ) // read single step encoders

{
int8_t val;

cli();
val = encDeltaRt;
encDeltaRt = 0;
sei();
return val; // counts since last call
}

void setup()
{
Serial.begin(38400);
pinMode(ledPin, OUTPUT);
QuadratureEncoderInit();
}
void loop()
{
encLt += QuadratureEncoderReadLt();
encRt += QuadratureEncoderReadRt();
Serial.print(“Lt: “);
Serial.print(encLt, DEC);
Serial.print(” Rt: “);
Serial.println(encRt, DEC);
delay(1000);
}
[/sourcecode]

arduinotutorial
previous post

Simple MVC framework tutorial part 2

next post

Ten eye pleasing colors and hex

Leave a Comment
 Sign me up for the newsletter!

By using this form, you agree with the storage and handling of your data by this
website. Note that all comments are held for moderation before appearing.

21 comments

Fashion Styles 27th April 2022 - 5:46 pm

I used to be very happy to seek out this web-site.I needed to thanks for your time for
this wonderful read!! I definitely enjoying every little little bit of it and I’ve you
bookmarked to take a look at new stuff you weblog post.

Reply
Dimas Ramalho 18th January 2019 - 8:28 pm

Congratulations!

A simple, easy to understand explanation on how to use Timer and interupt on Arduino.

Thank You.

Reply
Gonzalo 12th April 2017 - 8:11 pm

I would really appreciate if you could help me with a problem. It seems there’s a way to
initiate the ATMEGA 2560 timer in order to generate a PWM waveform, but I’ve tried
quite many configurations and none of them could make my board to change a LED
intensity in a basic LED-Resistance circuit. The sketch I worte seems like this:

void setup()
{
pinMode(3,OUTPUT); // Set pin 3 as output to use it as PWM source.

noInterrupts(); // Keep interruptions inactive

TCCR3A = 0; // Clean Timer 3 register A

TCCR3B = 0; // Clean Timer 3 register B
TCNT3 = 0; // Set timer to 0x0000

OCR3A = 0x01FF; // I Have a problem here, don’t understand if this is a comparison

value or counter resolution
// or both depending on the use.. I read it many times from the ATMEGA 2560
datasheet and
// couldn’t arrive to a conclusion.

TCCR3A |= (1 << WGM30); // Setting TCCR3A for fast PWM mode

(WGM30=WGM31=WGM32=WGM33=1);
TCCR3A |= (1 << WGM31); // Same as before..
TCCR3A |= (1 << COM3A0); // Clear output as count increases, and set as count
decreases.
TCCR3B |= (1 << WGM32); // Same as three lines before…
TCCR3B |= (1 << WGM33); // Same as four lines before…
TCCR3B |= (1 << CS30); // Not clock frequency prescaling

// TIMSK3 |= (1 << OCIE3A); // Commented because I don't know if have to use

interruptions.

interrupts(); // Interruptions activated

}

//ISR(TIMER3_COMPA_vect){
//digitalWrite(3, digitalRead(3) ^ 1); // I think interruption might be like this in the case
to exist, but it's still commented
//TIFR3 |= (1 << OCF0A); // when I uncomment it, my LED circuit works, but I cannot
introduce any intensity
// control.
//}

void loop() {
}

If somebody could succesfully use some PWM control with ATMEGA 2560, please tell
me how did you manage to attain it, although it were using a specific Arduino library.

Thanks!

Reply
river 24th February 2017 - 10:52 am

Wishing to try something very simple which actually compiles. So I tried the first
example, just to blink the LED on pin13 of a UNO. The sketch compiles with errors.
Actually, have yet to find any simple such sketch, which blinks the LED on and off
under timer interrupt that does compile.

Reply
mahadevi 11th March 2019 - 4:57 am

how to set 70k frequency in timer 1 and prescalar . plz reply me with some examples

Reply
Maxim 7th December 2016 - 11:05 am

Thanks, Oscar!
I writing my library to work with 1-digit and 4-digits 7-segments led display. In case of
4 digits I need refresh display 24-30 times per second. As you explain timer 0 used by
Arduino for delay(). I use timer 1 interrupt. But when I use delay() in loop() nothing
work.
void setup()
{
noInterrupts();

TCCR1A = 0; // set entire TCCR1A register to 0

TCCR1B = 0; // same for TCCR1B

// set compare match register to desired timer count:

OCR1A = 15624;
// turn on CTC mode:
TCCR1B |= (1 << WGM12);
// Set CS10 and CS12 bits for 1024 prescaler:
TCCR1B |= (1 << CS10);
// TCCR1B |= (1 << CS12);
// enable timer compare interrupt:
TIMSK1 |= (1 << OCIE1A);

interrupts();
}

ISR(TIMER1_COMPA_vect)
{
Led1.Refresh();
}

void loop()
{
Led1.Print4("ABCD");
// delay(1000);
Led1.Print4("1234");
// delay(100);
Led1.Print4("5678");
// delay(10);
}

With delay() commented display change value 1 time per second. If I uncomment it
show first value (ABCD) and stop. Can you help me why?

Reply
HijoDePuta 16th November 2016 - 2:02 pm

ISR(Timer1_COMPA_vect) // timer compare interrupt service routine

{
digitalWrite(ledPin, digitalRead(ledPin) ^ 1); // toggle LED pin
}

Timer1_COMPA_vect is not the correct interrupt vector the right is

TIMER1_COMPA_vect

Reply
Reibel 6th October 2016 - 8:14 pm

Hi
Very interesting tuto on timers and interrupts.
I get an arduino m0pro board. I would like to know what to do to adapt your examples
to the relevant IDE and microprocessor ?

Many thanks

Daniel

Reply
Stefan 10th June 2015 - 2:57 pm

Hi,
I need some help. i have 2 libraries that use one timer, How can I change the timer on
one of them. I use arduino uno , ethernet shield, rf transmitter and receiver.
These are libraries that use:
#include
#include
#include

This is the function that use a timer.(form VirtualWire.h)

void vw_setup(uint16_t speed)

{
uint16_t nticks; // number of prescaled ticks needed
uint8_t prescaler; // Bit values for CS0[2:0]

#ifdef __AVR_ATtiny85__

// figure out prescaler value and counter match value

prescaler = _timer_calc(speed, (uint8_t)-1, &nticks);

if (!prescaler)
{
return; // fault
}

TCCR0A = 0;
TCCR0A = _BV(WGM01); // Turn on CTC mode / Output Compare pins disconnected

// convert prescaler index to TCCRnB prescaler bits CS00, CS01, CS02

TCCR0B = 0;
TCCR0B = prescaler; // set CS00, CS01, CS02 (other bits not needed)

// Number of ticks to count before firing interrupt

OCR0A = uint8_t(nticks);
// Set mask to fire interrupt when OCF0A bit is set in TIFR0
TIMSK |= _BV(OCIE0A);

#elif defined(__arm__) && defined(CORE_TEENSY)

// on Teensy 3.0 (32 bit ARM), use an interval timer

IntervalTimer *t = new IntervalTimer();
t->begin(TIMER1_COMPA_vect, 125000.0 / (float)(speed));

#else // ARDUINO

// This is the path for most Arduinos

// figure out prescaler value and counter match value
prescaler = _timer_calc(speed, (uint16_t)-1, &nticks);

if (!prescaler)
{
return; // fault
}

TCCR1A = 0; // Output Compare pins disconnected

TCCR1B = _BV(WGM12); // Turn on CTC mode

// convert prescaler index to TCCRnB prescaler bits CS10, CS11, CS12

TCCR1B |= prescaler;

// Caution: special procedures for setting 16 bit regs

// is handled by the compiler
OCR1A = nticks;

// Enable interrupt

#ifdef TIMSK1

// atmega168
TIMSK1 |= _BV(OCIE1A);

#else

// others
TIMSK |= _BV(OCIE1A);
#endif // TIMSK1

#endif // __AVR_ATtiny85__

// Set up digital IO pins

pinMode(vw_tx_pin, OUTPUT);
pinMode(vw_rx_pin, INPUT);
pinMode(vw_ptt_pin, OUTPUT);
digitalWrite(vw_ptt_pin, vw_ptt_inverted);
}

thanks in advance
