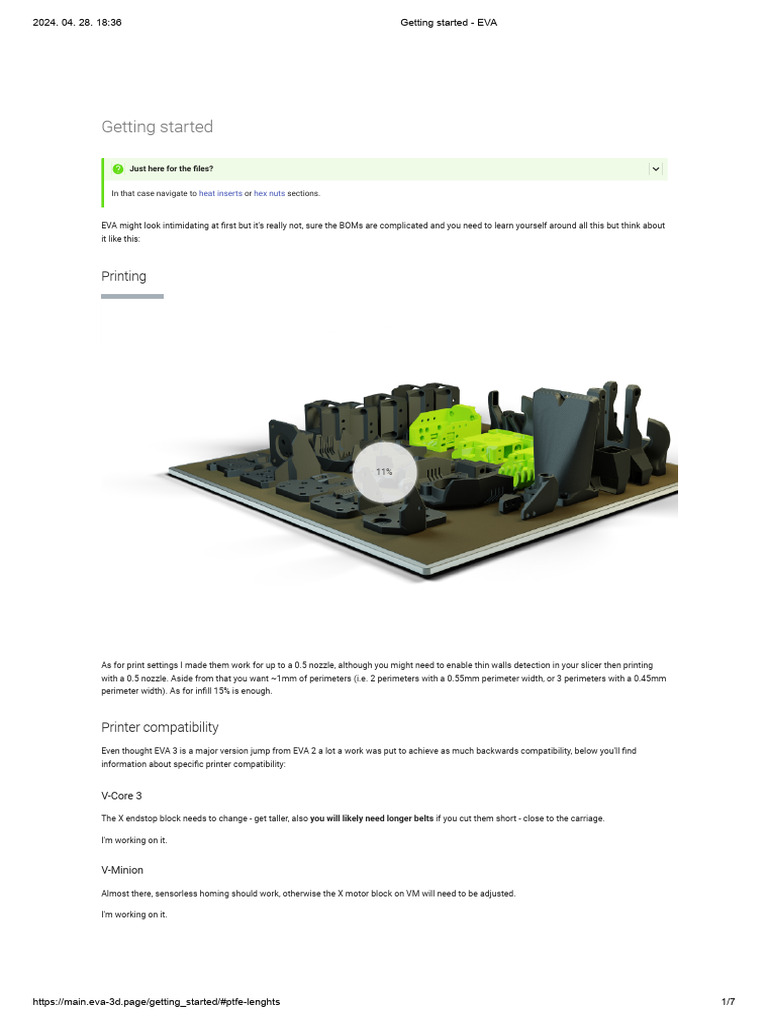

Getting started
EVA might look intimidating at first but it's really not, sure the BOMs are complicated and you need to learn yourself around all this but think about
it like this:
Printing
11%
As for print settings I made them work for up to a 0.5 nozzle, although you might need to enable thin walls detection in your slicer then printing
with a 0.5 nozzle. Aside from that you want ~1mm of perimeters (i.e. 2 perimeters with a 0.55mm perimeter width, or 3 perimeters with a 0.45mm
perimeter width). As for infill 15% is enough.
Printer compatibility
Even thought EVA 3 is a major version jump from EVA 2 a lot a work was put to achieve as much backwards compatibility, below you'll find
information about specific printer compatibility:
V-Core 3
The X endstop block needs to change - get taller, also you will likely need longer belts if you cut them short - close to the carriage.
V-Minion
Almost there, sensorless homing should work, otherwise the X motor block on VM will need to be adjusted.
https://main.eva-3d.page/getting_started/#ptfe-lenghts 1/7
2024. 04. 28. 18:36 Getting started - EVA
V-Cast
Not, depending on the demand and time I might port it but his will require some work.
Parts explained
Core
Let's define the 4 main components as the Core, this would be:
Drive
The component that goes on top of the top and front parts - specific to your chosen extruder option.
https://main.eva-3d.page/getting_started/#ptfe-lenghts 2/7
2024. 04. 28. 18:36 Getting started - EVA
Hotend
Component wrapping the hotend around provided mounting for the hotend fan and interfaces with the front part.
https://main.eva-3d.page/getting_started/#ptfe-lenghts 3/7
2024. 04. 28. 18:36 Getting started - EVA
Cooling Inlet
Component specific to your layer cooling fan option, attaches to the back .
https://main.eva-3d.page/getting_started/#ptfe-lenghts 4/7
2024. 04. 28. 18:36 Getting started - EVA
Cable Management
Provides means to attach or organize cables routed to the carriage, attaches to the back .
Bed Probe
Goes on the front allows to mount the bed probe of your choosing.
https://main.eva-3d.page/getting_started/#ptfe-lenghts 5/7
2024. 04. 28. 18:36 Getting started - EVA
PTFE Lenghts
You will need one piece of a PTFE tube going from the drive to the hotend. The length of that tube is different for each drive and hotend combo.
To learn how much PTFE you need you can take a look at the BOM tables of you chosen drive and hotend and sum the two values (do not cut into
two pieces).
below is an example of the Nova hotend and LGX as the drive. Nova needs 39.65 mm to the "roof" of the universal front, LGX needs 20.8 mm
which gives us 60.45 mm. Those are the measurements taken from CAD, in the real world there's usually a 0.2mm difference. A good way to
measure exactly is to assemble everything and put the PTFE cut to the calculated length into the hotend so it already goes through the top of the
universal face and down the the heat break, then put your drive assembly on top and shave off any amount that is too long. You don't have to be
super precise there.
