AUDIO / VIDEO RADIO ANTENNA CORD INSTALLATION

CAUTION / NOTICE / HINT

HINT:
· Use the same procedure for RHD and LHD vehicles.
· The procedure listed below is for LHD vehicles.

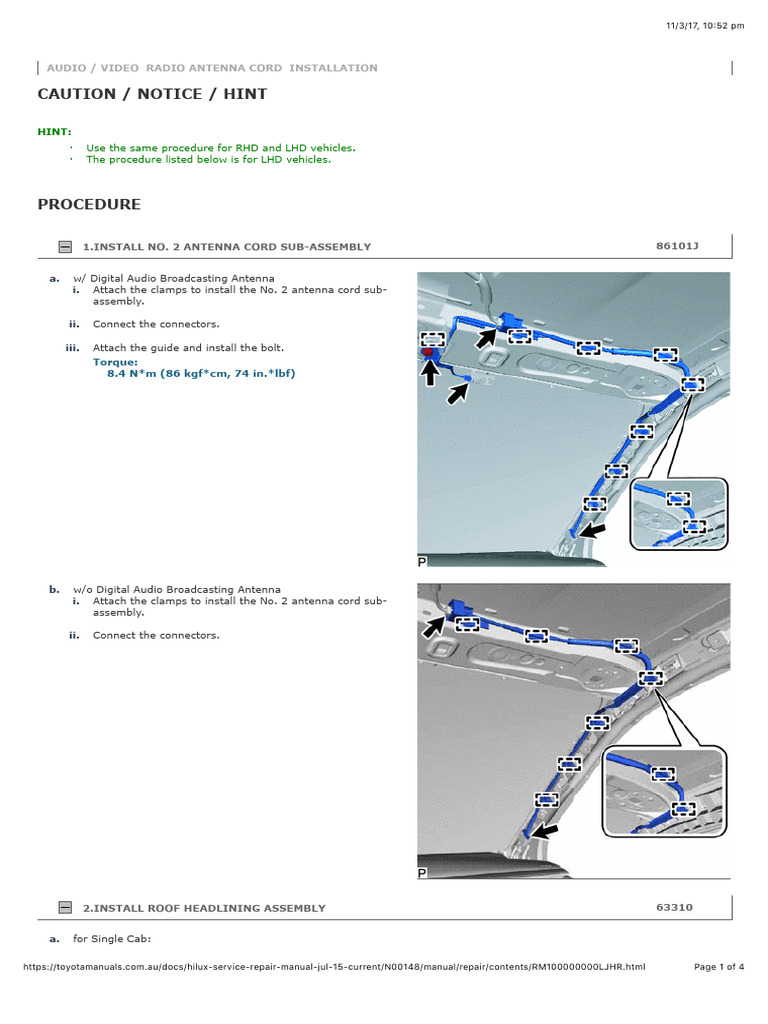

PROCEDURE

1.INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY 86101J

a. w/ Digital Audio Broadcasting Antenna

i. Attach the clamps to install the No. 2 antenna cord sub-
assembly.

ii. Connect the connectors.

iii. Attach the guide and install the bolt.

Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)

b. w/o Digital Audio Broadcasting Antenna

i. Attach the clamps to install the No. 2 antenna cord sub-
assembly.

ii. Connect the connectors.

2.INSTALL ROOF HEADLINING ASSEMBLY 63310

a. for Single Cab:

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-jul-15-current/N00148/manual/repair/contents/RM100000000LJHR.html Page 1 of 4
 11/3/17, 10(52 pm

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING(for Single Cab)>INSTALLATION

b. for Smart Cab:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING(for Smart Cab)>INSTALLATION

c. for Double Cab:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING(for Double Cab)>INSTALLATION

3.INSTALL ANTENNA CORD SUB-ASSEMBLY (for LHD) 86101

a. w/ Navigation System:
i. Install the antenna cord sub-assembly with the bolt.
Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)

ii. Attach the clamps shown in the illustration.

iii. Connect the connector.

b. w/o Navigation System:

i. Install the antenna cord sub-assembly with the bolt.
Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)

ii. Attach the clamps shown in the illustration.

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-jul-15-current/N00148/manual/repair/contents/RM100000000LJHR.html Page 2 of 4
 11/3/17, 10(52 pm

iii. Connect the connector.

4.INSTALL ANTENNA CORD SUB-ASSEMBLY (for RHD) 86101

a. w/ Navigation System:
i. Install the antenna cord sub-assembly with the bolt.
Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)

ii. Attach the clamps shown in the illustration.

iii. Connect the connector.

b. w/o Navigation System:

i. Install the antenna cord sub-assembly with the bolt.
Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)

ii. Attach the clamps shown in the illustration.

iii. Connect the connector.

5.INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY 55302A

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-jul-15-current/N00148/manual/repair/contents/RM100000000LJHR.html Page 3 of 4
 11/3/17, 10(52 pm

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>INSTALLATION

6.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page
General>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION).

7.CHECK SRS WARNING LIGHT

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM(for Type B)>DIAGNOSIS SYSTEM
