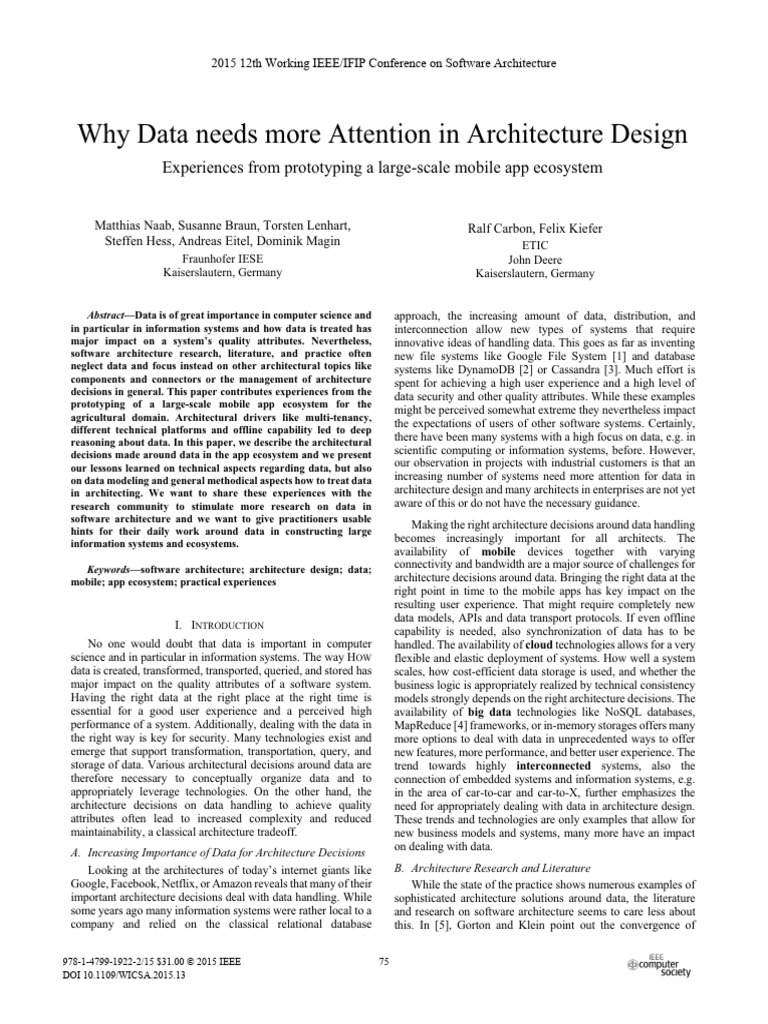

Why Data needs more Attention in Architecture Design
Experiences from prototyping a large-scale mobile app ecosystem
Matthias Naab, Susanne Braun, Torsten Lenhart,
Steffen Hess, Andreas Eitel, Dominik Magin
Fraunhofer IESE
Kaiserslautern, Germany
Abstract—Data is of great importance in computer science and
in particular in information systems and how data is treated has
major impact on a system’s quality attributes. Nevertheless,
software architecture research, literature, and practice often
neglect data and focus instead on other architectural topics like
components and connectors or the management of architecture
decisions in general. This paper contributes experiences from the
prototyping of a large-scale mobile app ecosystem for the
agricultural domain. Architectural drivers like multi-tenancy,
different technical platforms and offline capability led to deep
reasoning about data. In this paper, we describe the architectural
decisions made around data in the app ecosystem and we present
our lessons learned on technical aspects regarding data, but also
on data modeling and general methodical aspects how to treat data
in architecting. We want to share these experiences with the
research community to stimulate more research on data in
software architecture and we want to give practitioners usable
hints for their daily work around data in constructing large
information systems and ecosystems.
Keywords—software architecture; architecture design; data;
mobile; app ecosystem; practical experiences
I. INTRODUCTION
No one would doubt that data is important in computer
science and in particular in information systems. The way HOW
data is created, transformed, transported, queried, and stored has
major impact on the quality attributes of a software system.
Having the right data at the right place at the right time is
essential for a good user experience and a perceived high
performance of a system. Additionally, dealing with the data in
the right way is key for security. Many technologies exist and
emerge that support transformation, transportation, query, and
storage of data. Various architectural decisions around data are
therefore necessary to conceptually organize data and to
appropriately leverage technologies. On the other hand, the
architecture decisions on data handling to achieve quality
attributes often lead to increased complexity and reduced
maintainability, a classical architecture tradeoff.
A. Increasing Importance of Data for Architecture Decisions
Looking at the architectures of today’s internet giants like
Google, Facebook, Netflix, or Amazon reveals that many of their
important architecture decisions deal with data handling. While
some years ago many information systems were rather local to a
company and relied on the classical relational database
978-1-4799-1922-2/15 $31.00 © 2015 IEEE
DOI 10.1109/WICSA.2015.13
on Software
Architecture
Architecture
Ralf Carbon, Felix Kiefer
ETIC
John Deere
Kaiserslautern, Germany
approach, the increasing amount of data, distribution, and
interconnection allow new types of systems that require
innovative ideas of handling data. This goes as far as inventing
new file systems like Google File System [1] and database
systems like DynamoDB [2] or Cassandra [3]. Much effort is
spent for achieving a high user experience and a high level of
data security and other quality attributes. While these examples
might be perceived somewhat extreme they nevertheless impact
the expectations of users of other software systems. Certainly,
there have been many systems with a high focus on data, e.g. in
scientific computing or information systems, before. However,
our observation in projects with industrial customers is that an
increasing number of systems need more attention for data in
architecture design and many architects in enterprises are not yet
aware of this or do not have the necessary guidance.
Making the right architecture decisions around data handling
becomes increasingly important for all architects. The
availability of mobile devices together with varying
connectivity and bandwidth are a major source of challenges for
architecture decisions around data. Bringing the right data at the
right point in time to the mobile apps has key impact on the
resulting user experience. That might require completely new
data models, APIs and data transport protocols. If even offline
capability is needed, also synchronization of data has to be
handled. The availability of cloud technologies allows for a very
flexible and elastic deployment of systems. How well a system
scales, how cost-efficient data storage is used, and whether the
business logic is appropriately realized by technical consistency
models strongly depends on the right architecture decisions. The
availability of big data technologies like NoSQL databases,
MapReduce [4] frameworks, or in-memory storages offers many
more options to deal with data in unprecedented ways to offer
new features, more performance, and better user experience. The
trend towards highly interconnected systems, also the
connection of embedded systems and information systems, e.g.
in the area of car-to-car and car-to-X, further emphasizes the
need for appropriately dealing with data in architecture design.
These trends and technologies are only examples that allow for
new business models and systems, many more have an impact
on dealing with data.
B. Architecture Research and Literature
While the state of the practice shows numerous examples of
sophisticated architecture solutions around data, the literature
and research on software architecture seems to care less about
this. In [5], Gorton and Klein point out the convergence of
75
distribution, data, and deployment and the increasing complexity
and demands for new skills to make appropriate architecture
decisions in selecting and applying these technologies. This also
supports that more attention to data is necessary.
In classical architecture definitions and books, definitions
based on elements and their relationships play a major role (e.g.
[6]). However, these elements are typically interpreted like
components, modules, or computational nodes, but not in the
sense of data. Another direction of definitions for software
architecture sees architecture as the sum of fundamental
decisions (e.g. [7]). The term “architecture decision” is
extremely broad and easily allows covering also the decisions
around data as we did in this paper. However, this is also not
often seen in literature. Rather, the publications on decisions care
about architectural knowledge management [8], but not so much
about the content of the decisions. Consequently, data also plays
a minor role in most of today’s books on software architecture
and in guidelines on architecture design.
For architecture documentation, view frameworks provide
guidance. Unsurprisingly, also the common architecture view
frameworks like [9], [10], [11] and also others do not have much
focus on data but rather on the software parts realizing
functionality like components or modules. Motivated by
industrial needs, further view frameworks introduced and
emphasized the need to represent data like [12], [13], [14], [15],
or [16]. Strong focus is on the analysis and description of the
data model, but less on the connection to architectural
components and key decisions on treating the data. The result
can be observed in industry: Very seldom, architecture views can
be seen that explain data aspects beyond basic data flows or data
models, if at all. Thus, we included in our ACES-ADF view
framework data and their connection to components explicitly,
but the data aspect also needs more elaboration and guidance
[17]. More focus on documentation of data is put in Enterprise
Architecture Management (EAM), e.g. in the Zachman
Framework [18].
More attention to data is given in literature on system design
approaches. In particular in the area of object-orientation, there
is by definition the duality of functionality and data. This is also
reflected in books like [19], [20], or [21]. In [22], a visual
representation of a spiral is given that illustrates that
functionality and data are designed in an intertwined manner.
Although these books are highly useful in learning about how to
treat data, the link to the discipline of software architecture is too
weak as these books lack a focus on quality attributes. And
exactly architectural decisions to deal with quality attributes
often lead to massive changes of simple data and functionality
modeling with many implications on how to treat data.
In particular in the data management scientific community,
there are many publications with a strong focus on data.
Publications on building innovative data technologies impact the
possibilities of software architects in building systems, but they
are not really useful in assisting the architect who wants to
adequately use such technologies. Also in other communities
like on mobile computing, publications on aspects of data in
architectures can be found. In [23], there is a solution described,
which is also for the agricultural domain and it involves some
data aspects. Also [24] or [25] provide publications with data
76
aspects, but they also lack clear ways of describing data in
software architecture and stay rather vague about data (e.g. no
information on representation of data models, principles of data
modeling, or data transport granularity).
In the conclusion of the paper we will outline how the
architecture community could strengthen the focus on data and
provide direct benefits to practice.
C. Goals of this Paper and Contributions
The main goal of this paper is to emphasize the importance
of architecture decisions around data. The scope is mainly
information systems with a trend to mobile and cloud
computing. We want to support architects in practice how to
approach recurring challenges on a quality attribute level, on a
technical level and on architecture decisions around data.
Further, we want to stimulate more efforts and discussions in the
scientific architecture community on making and
documenting architecture decisions around data.
To achieve these goals, we summarize our experiences from
the prototyping of a large-scale app ecosystem. This app
ecosystem comes with several of the aspects pointed out in
Section I.A: it has a strong focus on mobile, but it has also
aspects of cloud computing, big data, and highly interconnected
systems. We describe the quality attributes and the detailing of
architecturally-significant requirements and how we
addressed them with architectural decisions. Additionally, we
analyzed our approach and our decisions and distilled lessons
learned. We contribute these lessons learned grouped along
different categories like technical aspects, data modeling, and
architecting around data in general.
This paper describes in Section II the mobile app ecosystem
for the agricultural domain, which John Deere and Fraunhofer
IESE prototyped. The design and development approach
towards the app ecosystem are outlined in Section III. The key
architectural decisions around data made in the app ecosystem
and the lessons learned are described in detail in Section IV. We
conclude with an overall discussion in Section V.
II. THE AGRICULTURAL MOBILE APP ECOSYSTEM
Farmer 1 Farmer n
«Computing ... «Computing ... «Computing ... «Computing ...
Tablet Phone Tablet Phone
App 1 App 3 App 1 App 3
App 2 App 4 App 2 App 4
«Computing Node»
Backend
«Computing Node» «Computing Node»
Weather Serv ice External Data Prov ider
Fig. 1: Architectural Overview of App Ecosystem
 Mobile devices offer great potentials to farmers as farming
work is mostly performed outside. By means of mobile apps
farmers can leverage IT support wherever they are currently
located. IT also plays a major role in so-called Precision
Farming. In a large-scale prototyping project performed over the
course of 1.5 years, Fraunhofer IESE and John Deere developed
various prototypes of members of a mobile app ecosystem to
support mobile farm management. The ecosystem is
characterized by a strong focus on the agricultural domain and
an openness that allows future apps to be contributed in order to
increase the overall attractiveness.
Fig. 1 depicts an architectural overview of the app
ecosystem. Farmers and their operators are the potential users of
the apps. They use native apps on tablet and phone devices (iOS
and Android). The system requires the availability of a central
backend for data management and exchange. The backend
works in a multi-tenancy way to allow efficient operation for all
customers with their apps on the same backend machines. The
backend is connected to external data sources, like for example
a weather data provider.
III. DESIGN AND DEVELOPMENT APPROACH
The app ecosystem was developed in a large-scale
prototyping project. That is, not a market-ready product was
developed but a high-quality prototype. The main goals behind
this procedure were the following: (1) Explore technologies and
architectural solutions in detail and gather experiences for
potential future system development. (2) Bring the apps to real
users and get early user feedback and adjust the requirements
and concepts accordingly. (3) Increase development speed for
fast learning, which is done by a completely parallel team, which
is not impacted by existing systems and can fully concentrate on
the app ecosystem.
The development approach was highly iterative and flexible.
The business stakeholders at John Deere were closely involved
in the development. As soon as a working version with a
meaningful feature set was available, it was provided to the first
real customer, a farmer, who used it and gave first feedback.
A strong focus of learning was on User Experience (UX) and
on an appropriate architecture. Thus, although a prototype was
developed, a strong focus was on high quality, in particular
concerning all relevant quality attributes. This is different to
many other prototyping development projects. The only
tradeoffs made with respect to quality attributes were reduced
scalability and less investment into reliability and stability.
The system architecture was defined based on the
Architecture-centric Engineering Solutions (ACES) approach of
Fraunhofer IESE [12]. A strong focus was on a detailed
elicitation of architectural drivers from all relevant stakeholders.
The architectural drivers were specified as architectural
scenarios, covering many quality attributes and resulting in more
than 60 scenarios. The architecture was designed incrementally
in parallel to the development project. Parts of the architecture
are described in the next section. The documentation of the
architecture was done with a mix of architecture decisions and
architectural views according to ACES.
77
IV. EXPERIENCES FROM
ARCHITECTURE DECISIONS AROUND DATA
A. Our Solution and Architecture Decisions around Data
In the following sections, we sketch parts of our architecture
solution by providing an excerpt of our architecture decisions
made around data. The grouping of decisions is similar as in our
architecture document but a bit optimized for the pure focus on
data. The decisions are described in a more condensed way in
this paper, not discussing all the details. The main goal is to
convey an impression about the multitude and diversity of
architectural decisions around data.
1) Decisions on Data Synchronization
Decision: Support for offline-capability and synchronization
Drivers x Availability of service and data even for rural areas and
addressed: farmland without cellular connectivity
x Usability
Rationale, x Apps will only be accepted by the users if they can be used
explanations in areas with no or only limited cellular connectivity
& tradeoffs: x Data assisting farm workers during a job on the field must be
available
x Data, created by the farm worker during the execution of his
job, like work records and status updates must be persisted
on the mobile device. It must be guaranteed that this data can
later be persisted into the backend system of the mobile app
ecosystem (synchronization).
x Tradeoff: Significant complexitiy added to the system
Implementing and designing sound synchronization for
individual software applications is one of the most challenging
tasks that software engineers and software architects can face.
As it is such a complex task, why offer support for offline
capability and data synchronization at all? Still, mobile networks
are massively expanded and will become even more wide-spread
in the next years. The main reason behind our decision was that
we wanted to provide outstanding usability. Our users will be
mainly operating in rural areas where experts expect to have
many spots with no or only limited cellular connectivity. If our
apps could only be used with network coverage, this would be
disastrous for the usability since farm workers are out on the
field for most of their working time. The two key requirements
for the synchronization mechanism are therefore: (1) Data
assisting the farm worker during his job on the field must be
available on the mobile device at any time. (2) Data created by
the farm worker during the execution of his job like work records
and status updates must be persisted on the mobile device. It
must be guaranteed that this data can later be persisted into the
backend system of the mobile app ecosystem (synchronization).
Decision: Design and implementation of a custom data
synchronization mechanism
Drivers x Dependencies between synchronization, business logic and
addressed: usability
x Fine-grained control over synchronization mechanism
Rationale, x Performance and scalability of the overall sytem depend
explanations heavily on the correct setup of the database replication and
& tradeoffs: synchronization mechanism
x Uncertainty whether real-world use cases of customer could
be realized with third-party products
x Existing out-of-the-box solutions of database system vendors
seem easy to use at first glance, but the complexity of the
overall topic is still there and must be adressed appropriately
by the development team
x Existing out-of-the-box solutions typically hide their internal
mechanisms and thus it is hard to estimate how they scale
x Existing out-of-the box solutions typically provide only
eventual consistency [26], which offers a quite low isolation
 level and often requires manual handling of conflicts
nevertheless
x Requirements engineers, usability experts and software
architects have to closely work together on this task. That
way you can find a solution that serves your specific
application in an optimal way, while at the same time it allows
you to ignore all the peculiarities and cases that need not be
considered for your special domain, exploiting that you do
not have to solve database replication and synchronization for
the general case
x Tradeoff: Complex, costly and challenging to design and
implement
Decision: Database entities are extended by a revision number
and a synchronization status
Drivers x Differential loading of updated entities
addressed: x Client-side tracking of update operations
Rationale, x In order to enable clients to load only entities that have been
explanations updated since their last synchronization we assign revision
& tradeoffs: numbers to entities.
x In order to track update operations on the client we add one
additional attribute that holds the update status of the entity
since the last synchronization operation.
x Current update statuses are: INSYNC (no update since last
synchronization), UPDATED, CREATED and DELETED
x Tradeoff: Extension of database entities with additional
technical attributes, Complete extension of all database
entities might not be possible in existing applications
In order to implement differential loading of updated entities
and conflict detection the entities of our persistence layer are
extended with a revision number (similar to Hibernate’s [27]
version number). If an entity is updated during a database
transaction on the backend the revision number of the entity is
increased. The mobile clients do not make any changes to the
revision number but they have to store it locally with the entities
as well. If a mobile client is updating an entity in its local replica
database this entity is marked as being dirty (status UPDATED).
When the client finally wants to synchronize its changes with
the master database the following steps are performed:
x The client collects all entities that have been marked as
dirty and sends them in one HTTP PUT request to the
backend (client delta)
x The backend starts a new database transaction
x The backend preprocesses the client delta and checks if
entities of the client delta are conflicting with other
concurrent modifications (conflict detection)
x If the backend detects conflicts it will merge the state of
the conflicting entities with their current database state
(conflict resolution)
x The backend assigns the revision number of the current
backend database transaction to all updated and merged
entities
x The backend persists the updated and merged entities
into the backend database
x The backend database transaction is committed and an
HTTP OK is sent to the client
x The client sends a HTTP GET request with the largest
revision number it has ever seen
x In a transaction, the backend collects all entities with a
revision number greater than the one sent by the client
and sends it back to the client (backend delta)
x The client applies the updates of the backend delta to its
local replica database in the context of a local transaction
78
Currently, synchronization is realized with two HTTP
roundtrips: one for the PUT operation and another one for the
GET operation. Although PUT and GET are realized
independently and seem to be loosely coupled, we discovered
two relatively strong limitations:
x Clients having dirty entities within their replicas must
perform PUT before they can perform a GET operation.
Otherwise the clients could accidently overwrite their
own not yet synchronized changes or would have to
implement conflict detection and resolution as well.
x Clients must immediately perform a GET operation after
the PUT operation. Otherwise, clients do not get the
updated revision numbers of the entities that have been
updated with their PUT operation. If the user would then
perform consecutive updates on the very same entities
the client would conflict with its own previous updates.
In consequence those two operations cannot be considered as
independent and therefore the decision to separate them might
be revised.
Decision: Sync GET and Sync PUT as independent operations
Drivers x GET and PUT are loosely coupled and can be performed
addressed: independently
Rationale, x Clients can perform GET independent of PUT and the other
explanations way round
& tradeoffs: x Clients can load updates of concurrent users but need to
transmit local changes
x Tradeoff: Two HTTP round trips instead of one. Design
weakness: with the current approach GET and PUT can not
be considered as independent.
Decision: Data is not physically deleted in the backend
Drivers x Differential load of changes
x Offline-capability
addressed:
Rationale, x Entities that have been deleted on the client are not
explanations physically deleted in the backend database but marked as
being deleted by setting the synchronization status to
& tradeoffs:
DELETED
x Also the revision number is increased
x That way, entity delete operations can be delievered to our
clients with the standard synchronization algorithm
x Tradeoffs: Data can not be physically deleted which is
conflicting with data privacy rules of many German
companies; Growth of database table sizes
2) Decisions on App Data Handling
Decision: Use CoreData as iOS client persistence technology
Drivers x CRUD operations at object-level
addressed: x Easier data access
x Automatic validation of object properties (mandatory fields,
to-many relationships, default values, …)
Rationale, x Mainly helps in auxiliary facets of an application
explanations x Management of save & undo functionalities
& tradeoffs: x Tracking of changes
x Easy way to access data and fill UI
x Creation of data model through a graphical object model
editor, allowing lists of objects, one-to-many or many-to-
many relationships, or constraints on object attributes
x Easy change and migration of datamodels
x Technical persistance: SQLite database
x Tradeoff: less influence on SQLite level, as CoreData is an
abstraction layer. Besides that, we have slightly different
data models and source code between the platforms.
Selecting CoreData as the persistence framework still leaves
many architectural decisions open. One is how to utilize the
concept of managed object contexts. We illustrate different
alternatives of using managed object contexts, as we first went
for one alternative and then decided later to go for the other one
and changed the implementation.
A managed object context represents a single “object space”
or scratchpad in an application and holds a “copy” of an object
in the SQLite store. CRUD operations are performed on a
managed object context. The initial solution for the sync concept
used a hierarchical order of contexts (see Fig. 2 a).
«Data» «Data»
WorkerCtx 1 WorkerCtx n
«Data»
UICtx
child
«Data» «Data»
RootCtx UICtx
data
access
«Component»
SQLite DB
Fig. 2: (a – left) Hierarchical order of managed object contexts |
(b – right) Parallel managed object contexts
The root context has direct access (through its persistent
store coordinator) to the SQLite store. It runs in a background
thread enabling CRUD operations having less impact on the
performance of the UI. The UI context runs in the main thread
and is responsible for providing data to the UI. As it is a child
context of the root context, it fetches its data from the root
context. When there is the need for synchronization to the
backend or for CRUD operations, a worker context is requested.
Each worker context is a child context of the UI context enabling
it operate separately from the UI context (e.g. CRUD operations
are only visible to the UI context if a save of the worker context
has been performed). To persist data from one worker context to
the database, three saves have to be performed (from worker to
UI, from UI to root, and from root to the database). Due to the
unnecessary complexity and maintainability problems, the
decision was discarded and the decision to use parallel managed
is used in the same way as in the previous concept whereas the
background context is either responsible for a sync or for CRUD
operations.
Decision: Use of parallel managed object contexts
Drivers x Performance issues during a save
addressed:
Rationale, x Hierarchical order of contexts slowed down saving to the
explanations database tremendously
& tradeoffs: x Parallel contexts allow a much better performance, as the UI
context is not beeing influenced by a save of a background
context
x Tradeoff: Only one background context available, which
reduces flexibility of dealing with data changes at the same
time
3) Decisions on Backend Data Handling
Decision: Realize multi-tenancy with discriminator ID for all
multi-tenancy-related entities
«Data» Drivers x Multi-tenancy capability of the backend: Has to serve apps of
BackgroundCtx
addressed: multiple customer organizations, all of them can have many
users
data
access
x Clear separation of data of multiple organizations. No one is
allowed to see data of other organizations
«Component» x Multi-tenancy should support cost-efficient operation of the
SQLite DB ecosystem and in particular of the backend for John Deere
Rationale, x Each customer organization (mainly farming companies) is
explanations treated as an individual tenant
& tradeoffs: x The data of all tenants is stored in the same database and in
the same tables. This makes the management of databases
easier and more cost-efficient than introducing new
databases for new customers
x Each customer organization is identified in the system with
an organizationID. This organizationID is added as an
attribute to each entity that has multi-tenancy-related data
(e.g. the fields of a farm belong always to a certain farm)
Decision: Allow mixture of provider-created data and tenant-
created data
Drivers x Not all data is purely tenant-specific. There is also data that
addressed: has to be provided by John Deere to the customers (e.g. list
of crops). This covers the most important data for all
customers.
x However, the possibility is needed that a customer can
extend such data for his own purpose only. Other
organizations must not be affected by this.
Rationale, x This decision is based on the previous decision how to
explanations realize multi-tenancy
& tradeoffs: x Data that is provider-created is marked with organizationId =
null, while tenant-created data is marked with the respective
organizationId of the tenant
x All data marked with organizationId = null is read-only for
the clients and accessible by all clients

object contexts was taken, resulting in a much simpler design. 4) Decisions on Data Modeling
Decision: Use of a hierarchical order of managed object contexts Decision: Keep data models on apps and backend conceptually as
(discarded later and replaced by parallel contexts) similar as possible
Drivers x Clear separation of operations (displaying of data, sync of Drivers x Maintainability: easy extension of data model with new
data, and CRUD operations on data) addressed: entities and attributes
addressed:
x Highest priority for UI Rationale, x Highly similar data models are easier to understand
Rationale, x Persisting data from root in the database runs on a explanations x Less modeling effort (only single model), clearer
explanations background thread resulting in the UI to not being blocked & tradeoffs: communication
& tradeoffs: by this operation x Highly similar data models allow for highly automated
x UI has up-to-date data, as it is a mediator between serialization / deserialization of data
sync/CRUD operations and the database/root. x Slight differences necessary for technical attributes (e.g.
x Data from worker contexts is not visible to the UI, only after annotating the organizationId to realize the multi-tenancy
a successful sync to the backend or save of a CRUD concept)
operation x Tradeoff: higher coupling of data models on app and
x Tradeoff: Lower understandability and maintainability by backend is less robust and introduces additional challenges
having multiple parallel Worker Contexts in parallel at the for evolution
same time
Decision: Different physical representations of conceptual data
Now, two contexts are used in parallel to access the SQLite model for different purposes and in different layers
store (see Fig. 2 b). The UI context runs on the main thread and Drivers x Deal with technical differences like object-orientation and
addressed: relational model
the background context on a background thread. The UI context

79
 x Comply with the enterprise rule to use REST-based APIs Decision: Weather data is fetched on the backend and in turn is
with JSON data format distributed to the relevant clients
x Deal with the specifics of technologies like CoreData on iOS Drivers x Weather data shall be available for all fields and customer
Rationale, x See Fig. 3 for the different technical representations and addressed: organizations
explanations where they are used: Relational tables used in the MySQL x The number of API calls to the weather provider should be
& tradeoffs: database, Java Entities for the business logic (Manager), Java minimized as API calls cost money
DTOs for the API Services, supporting multiple versions of Rationale, x Fetching the data directly from the clients would have
the services at the same time for evolotion scenarios, JSON resulted in redundant API calls since several clients would
DTOs for the transport between app/backend,, CoreData
explanations
& tradeoffs: have requested weather data for the same fields
objects in the iOS apps, Java Entities in the Android apps x With this approach, there is no provider-specific code on the
x Further technical differences exist: CoreData always clients
maintains bi-directional dependencies while the other models x Weather data can be stored on the backend for later analysis
are uni-directional, Java Entities and Relational Tables
x Tradeoffs: Some minor delay in the availability of data
realize relationship directions differently due to the nature of
because of the additional communication step (client ↔
the relational model
Weather Data API vs client ↔ backend ↔ Weather Data
x Tradeoff: While the technical representations are necessary API)
due to technical constraints and other architectural drivers,
they strongly decrease maintainability as each model change
has to be reflected in all technical representations Decision: Weather data is retrieved for geographical areas
instead of individual fields
Drivers x Weather data shall be available for all fields and customer
«Computing Node» «Computing Node» addressed: organizations
x The number of API calls to the weather provider should be
iOS Dev ice Android Dev ice

«Data» «Component» «Component»

«Data» minimized as API calls cost money
iOS App Android App
x Weather data typically comes with a granularity on city/zip
CoreData Jav a Entities
Obj ects Rationale,
explanations code level, i.e. fields that are located nearby a specific city
& tradeoffs: will get an identical forecast
uses
«Data» x The system therefore first maps fields to geographical areas
JSON DTOs
based on the closest city
x This mapping is achieved through passing the GPS
«Computing Node»
Backend coordinates of the field to a reverse geocoding service.
«Component»
Typically all Weather Data APIs offer such a service, but
Serv ice there are also free alternatives
«Data» data model
x For all fields that are located in the same area, the weather
Jav a DTOs usage data is requested only once with a single API call, no matter
«Component»
Manager
if these fields belong to the same or a different organization.
x This approach enables us to not only reuse weather data
within an organization, but also across all tenants of the
«Component»
system. This approach highly benefits from the multi-
Data Access Obj ect tenancy capability of the backend, as it can strongly reduce
«Data» cost for weather data for customer organizations
Jav a Entities
x Tradeoffs: Additional calls to the reverse geocoding service
«Component»
EntityManager
have to be executed for every field

6) Decicions on Security
«Data» «Computing Node»
Relational Tables Database Serv er (MySQL)
Fig. 3: Physical data representations of the conceptual model
Decision: Modeling of data in different domains with top-level
aggregates and access restrictions [20]
Drivers x Better understandability of individual parts of the data model
x Maintainability of the data model: independent changes in
addressed:
the domains
Rationale, x The data model is separated in domains like persons,
explanations (agricultural) fields, equipment, products, jobs, …, which
& tradeoffs: can have multiple entities
x Across domains, only references to the top-level entities of a
domain are allowed (to the aggregates), e.g. to a field
x This way of modeling typically implies a modelling direction
from the top-level entities to further detailed entities
x Tradeoff: It turned out, that some of the detailed entities
have much higher creation/change frequencies than the top-
level entities (e.g. the position of a machine changes much
more often than the machine data itself). This led to
problems with the synchronization mechanism as adding a
new detailed entitiy means to update the top-level entity,
which increases the likelihood of conflicts
5) Decisions on Data Import / Export
This section focuses on the integration of a weather service.
Decision: Data access authorization is completely handled by the
backend
Drivers x Simple client implementation regarding data access rules
addressed: x Maintainability: simple role management
Rationale, x Whenever data (or a subset of it) is delivered to an app, the
backend checks if it is allowed to be delivered. Authorization
explanations
& tradeoffs: is granted upon many attributes, such as user, role and
assigned company.
x The main advantages are that the user is allowed to read and
also modify every data which leaves the backend. Special
“read-only” data can be tagged to inform the client about this
constraint.
Decision: Encrypt communication and critical data storage
Drivers x Ensure confidentiality and integrity of data transfers
addressed: x Critical data, such as login credentials must be stored
encrypted
Rationale, x Data transfers must be confidential due to the sensitivity of
explanations data that is exchanged.
& tradeoffs: x The client as well as the backend have to store all credentials
encrypted. On iOS client side, for example, this is done by
using the systems keychain.
x Tradeoff: In case an iOS app gets deleted, the credentials
which have been stored into the keychain will not be deleted
and therefore are automatically used the next time, when a
ecosystem app is installed. To avoid this behavior, the user
must sign out before deleting the app.
x Another important aspect are backups of the entire client:
they must not contain any OAuth credentials. On the iOS
clients, for example, this is solved by instructing the
keychain to keep the data on the device only.

80
 Decision: Sharing OAuth Access Token via iOS keychain group
«Computing Node»
access for Single-Sign-On Mobile Dev ice
Drivers x Single-Sign-On mechanism for all apps of the ecosystem
addressed: x Usability: faster and comfortable app starts «Component»
High Frequency Data App
Rationale, x Enabling the apps of the ecosystem to perform a Single-Sign-
explanations On requires the use of just one client token and secret. Using
& tradeoffs: a different client token for every app would mean the
execution of the login procedure for every app.
x Depending on the platform used, there are multiple options
to share data between apps. On iOS clients for example, the «Computing Node»
iOS keychain with its group access concept is perfect for this «Data» Backend «Data»
StatusObj ect StatusUpdateEv ent
purpose.
x It is important to check every time the client starts or
uses
resumes, that the existing data belongs to the credentials
stored in the iOS keychain and that the access token hasn’t
changed. Thus an unique identifier is generated after every «Component» «Component»
Read Serv ice Write Serv ice
login. This one is stored locally within the client application
and within, e.g. the iOS keychain. If that identifier isn’t equal
when a client starts or resumes, all data must be deleted and
– if new login data is available – fetched again.
«Data» «Data»
Read Model StatusUpdateEv ent
The decisions on security show that authorization of data (preprocessed Queue
access strongly depends on how mobile devices are intended to StatusObj ects)
data model
be used (multiple users of same device, multiple apps with usage
single-sign-on). Additionally, they show that a very good «Component»
understanding of the relevant mobile frameworks is necessary to StatusUpdateEv entProcessor

be able to design adequate solutions (e.g. usage of keychain

group access to share credentials among isolated apps).
7) Decisions on High Performance
Decision: Treat data with high change frequency (~ 1 update /
second) with CQRS and Cassandra database (Fig. 4)
Drivers x At a quite late point in time, support for a new type of apps
addressed: became necessary: An app that can in near-real-time show
the positions and other critical information about machines.
The app is connected to a machine and can thus send the data
and display the data of other machines working in the same
team
x A manager wants to get an overview of all his machines with
the critical data points
x The desired update-frequency is, depending on the data
elements, between 1 second and a few minutes
Rationale, x This type of data is completely different compared to the
explanations master data and the transactional data treated in the system
before: The key differences are the change frequency, the
& tradeoffs:
data is written and never updated, and new data elements
always replace old ones (the new position of a machine
replaces the old position)
x Our concept of data exchange with the sync mechanism is
not usable at all for these requirements as sync takes too long
and introduces way too much overhead for this
communication.
x Thus, we introduced a new data connector between the
backend and the apps for this new data. The apps just write
bundled new data in the form of StatusUpdateEvents, and
they can read optimized StatusUpdateObjects, which bundle
all the relevant data for them
x In the backend, we used the CQRS pattern (Command Query
Responsibility Segregation) [29]. By that, reading and
writing can be independently scaled. Writing simply puts the
StatusUpdateEvents into the Cassandra database and writes
into a queue. Then, an EventProcessor reads the
StatusUpdateEvents and incorporates them into the read
model.
x The read model is prepared for the current data requestors
and kept in-memory for high-performance delivery of data
x Cassandra is used as it provides way higher write
performance than an traditional relational database and better
scalability. The data stored is mainly for historical analyses
but not needed for normal system operation.
x Tradeoff: Maintaining different databases and database types
leads to increased learning, maintenance, and operation
effort.
«Computing Node»
Database Serv er (Cassandra)
«Data»
StatusUpdateEv ent
Fig. 4: CQRS pattern & Cassandra for high-frequency data
Decision: Caching of entity references during data import
Drivers x Bad entity lookup performance
addressed:
Rationale, x When importing a new object into the client database, we
explanations made two fetches: one to make sure, that this object isn’t
already in our database and one to get the object to set its
& tradeoffs:
relationships (after the create/update phase). This works
quite well for small datasets but didn’t scale for large
imports.
x Optimizing this is possible by limiting the lookups so that
not more than one entity gets fetched.
x In addition, we’re caching the references to new and fetched
entities in a hashmap with their identifier as the key, so that
every further lookup is much faster.
Decision: Differentiate between initial and delta synchronization
Drivers x Bad data import performance
addressed:
Rationale, x During data import, we first lookup each object in the
explanations database before updating or creating it. Unfortunatly, this is a
& tradeoffs: mandatory step to avoid duplicates. Our measurement
reveals that this is a time-consuming step.
x In addition to the caching decision explained above, we
differentiate between the initial (no data exists in the
database) and delta (data already exists at least partly)
synchronization case. In case of the initial synchronization
the lookup for existing data can be completely skipped. With
these two measures, we significantly reduced the time of
theinitial data import part from 105 seconds to just 1.7
seconds when importing a test dataset.

81
 Decision: Forego inheritance in the core data model
Drivers x Big database files
addressed: x Bad save performance
Rationale, x The second time consuming task was persisting the core data
model in memory to the database. In our data model we used
explanations
& tradeoffs: inheritance to propagate some properties, such as a identifier,
to almost every entity.
x When using inheritance, core data creates a wide and tall
table to map this feature to its abstract data model. As a fact,
this table could cause a performance penalty and leads to
many NULL values in it. Besides that, it blows up the
database file in size.
x Avoiding inheritance by adding the properties of the super
entity to all other entities leads to a smaller database file and
a much faster core data performance. With all these
decisions, the overall synchronization time has been reduced
from about three minutes to less than a minute.
B. More Architecutural Drivers with Impact on Data
In addition to the decisions we described in the previous
section, we also had to deal with various other architectural
drivers that are directly or indirectly related to data. These are
briefly summarized below.
We prototyped our apps for Android and iOS devices. While
iOS is a closed ecosystem with relatively strict rules and policies,
Android is rather open, giving architects and developers
typically many alternative ways to realize a solution. Especially
regarding data model and persistence we had to take several
decisions to define an overall architecture that on the one hand
is as consistent as possible across all components, but on the
other hand also considers the specifics and strengths of each
particular platform.
Our data model and services had to support versioning. This
was especially important because the system is supposed to be
continuously extended over time, but also has to be able to
support older versions of the apps that are on customer devices
installed since it is typically not possible to force mobile users to
upgrade their apps instantly.
Another crucial requirement was the integration of a push
notification feature. Specific users have to be proactively
notified when specific data has been created, updated or deleted
by another user of the system. The main challenge here was to
design a module that intercepts the relevant data changes and
that also takes the decision when and to whom notifications
should be send.
Further sources of architectural challenges around data are
internationalization, media data and data validation.
C. Collected Experiences and Lessons Learned
The following lessons learned originate from our design and
implementation work in the prototyping of the described app
ecosystem. We generalized them in the light of other experiences
and we are confident that they can support researchers and
practitioners in many other contexts.
1) Lessons Learned on Technical Aspects
Offline synchronization does not come out of the box.
Although there is numerous database replication technology
around, this is often not enough to come up with a good offline
user experience. Thus, offline capability has to be treated in
close collaboration of UX designers and software architects to
come up with a solution that fits the needs of the system at hand.
82
Offline synchronization is really costly to develop. Our worst
under-estimation of effort was for the synchronization solution,
simply because we didn’t know enough about it and had to learn
it the hard way. Existing out-of-the-box solutions like
Couchbase seemed to be too risky and we went for a solution
developed from scratch. However, after all we learned a lot
about solution options and can transfer them now to product
development.
Data management frameworks like CoreData require in-
depth knowledge and deliberate architecture decisions.
Many people still think for the internals of an app there is no or
not much architecture necessary. Just looking at how to represent
data with a framework like CoreData shows us the opposite.
Without a clear architectural understanding of the internals of
the relevant technologies and clear architecture decisions on how
to use these, many hard to debug problems will occur.
2) Lessons Learned on Quality Attributes
High performance and great user experience needs many
architecture decisions to bring the right data to the right
place at the right point-in-time. These architecture decisions
deal with data partitioning, prefetching, selective loading,
caching, paging, etc. Such architecture decisions typically lead
to an increased technical complexity and make implementation
tasks harder as they cannot be completely hidden behind a
technical framework.
Security concepts like fine-grained access control of roles to
certain entities or even objects can be the cause of hard to
find bugs. Bugs like incorrect access control lists lead to the
delivery of data sets which are not consistent any more since
some objects are filtered out but still referenced. In particular, in
combination with the offline synchronization concept this leads
to hard to find bugs. A source of these bugs is that the evolution
of the data model and the physical data structures for the security
information have to be always consistent.
Upgradeability introduces additional technical complexity
of data handling. There is no possibility to upgrade all mobile
devices and the backend at the same time. That means that the
backend has to support at least two versions of the apps at the
same time. When the data model was changed, this means that
different APIs are needed and somehow have to be mapped to
the same databases. Such a redundancy of APIs with different
versions is challenging as in the end the data of old and new app
versions has to be treated in the same way in the same backend,
which can require additional physical data representations and
transformations.
Nearly all architecture decisions around data in favor of
other quality attributes have adverse impact on
maintainability. Improving quality attributes like performance,
security, or upgradeability nearly always introduces new
architectural concepts and often new technical representations of
data. The consequence is that the system becomes technically
more complex and this technical complexity often interferes
with the business complexity as it cannot be fully separated. This
on the one hand makes the system harder to understand and on
the other hand changes come with more impact. Finally, also
testing becomes more difficult and thus the overall
maintainability is reduced.
3) Lessons Learned on Data Modeling
Typically, there is not a single physical data model. Different
technologies require a technically adjusted representation of data
and the conceptual data model has to be mapped to the physical
representations (e.g. OO, relational, …). In the architecture, it
should be very clearly described how the physical
representations differ and which types of components / layers are
supposed to work with which of the physical representations.
JSON does not support natural serialization / deserialization
of polymorphic objects. JSON has become the standard way for
hybrid systems to communicate with each other for good
reasons. It has several advantages over potential alternatives like
XML, including readability and simplicity. However, when
exchanging complex data objects between higher programming
languages you will realize that JSON does not support
serialization/deserialization of polymorphic objects out of the
box. There are several ways to circumvent this problem (we
decided to introduce extension classes), but each comes with
some tradeoffs that have to be closely examined.
Change frequency of data can impact directions of
relationship. In order to avoid frequent updates of stable data
due to referenced objects, there should be a clear analysis and
categorization of the change frequency and the life-cycle of data.
As a rule of thumb, data with higher change frequency should
relate to master data. However, turning the directions of
relationships around often comes with changed ways of
accessing data, which often seems to be less intuitive.
Simply following guidelines of OOA / OOD [19] or DDD [20]
often does not lead to adequate architectures and data
models. OOA / OOD / DDD do not discuss the impact of data-
related decisions on quality attributes in enough detail. In
particular combined with the observation that there are several
physical representations of the data model, the combination of
data and logic as proposed by OO makes only sense in a kind of
domain / business logic layer.
Classifications of data like the one in “master data |
transaction data | reference data” [28] can support data
modeling but often leave questions open. In particular the
distinction between master data and transactional data supports
the analysis of change frequency and provides modeling
guidelines like: transactional data refers to master data and not
vice versa. However, data classifications are often not
conceptually unambiguous. Additionally, different data
classifications exist, which are not matching and also not
orthogonal. Thus, it is an architect’s task to select an appropriate
classification and to conclude what this means for modeling.
The reaction of the system to the deletion of master data has
to be clearly defined and consistently realized across all
components of the system. Master data can be seen as the glue
that binds the other types of data together. Nevertheless, from
time to time it might be necessary to delete portions of master
data because they are no longer relevant. In these cases it is
important to decide what should happen to other data that has
references to this master data. This might depend on the state of
the concerned entity or the importance of the respective master
data. However, for distributed systems like our prototypes, it is
crucial that all components treat deleted master data in the same
83
way, otherwise this will lead to inconsistencies and deadlocks
that can hardly be resolved.
Sometimes data redundancy should be accepted when this
reduces complexity of the data model. When designing data
models, you typically try to avoid redundancy of data. However,
under specific circumstances minor data redundancy should be
tolerated when this leads to a leaner data model or allows
improving performance.
4) Lessons Learned on Data in Architecting
Guidelines on data modeling are not well integrated in
architecture design methods / community. Although many
architectural decisions around data and data modeling have to be
made, they seem to be a disconnected field from the perspective
of software architecture. Thus, architects in practice have to be
trained in both areas and have to draw conclusions for their
architectural decisions. The architecture community should
provide more guidance on treating data and refer to appropriate
data modeling approaches and put them into architectural
context (elaborating in particular the impacts on quality
attributes).
Documentation of architecture decisions around data needs
more support in form of views and guidelines. In most of
today’s view frameworks for architecture documentation, data
does not play an important role or only partial aspects are
addressed. The focus is rather on the decomposition of the
system into components / modules. However, we found it very
helpful for communication to also visually represent aspects
around data, e.g. where data is created, where it is transported,
where it is stored, and where which transformation between
technical representations is done. Further visual representation
is necessary for higher-level grouping of concepts like domains
and the ownership of data in components.
Teaching of software design at universities has often no
architectural perspective, in particular when it comes to
data. Software design is often taught with OOA / OOD methods.
On the other hand, in database-related lectures, entity-
relationship modeling and relational models are in the focus. The
real importance of architecture decisions around data is mostly
neglected and with the emergence of new and more diverse
technologies like NoSQL databases it is obvious that universities
have to put more focus on data.
Be aware of overengineering: Do not design the system more
complex than necessary. There is no doubt that engineering
principles and best practices such as design patterns and
abstraction mechanisms are of great value and essential for
developing software systems in good quality. However, we have
to be careful that we do not apply them for their own sake, but
only when they really fit in the concrete situation. Aiming for
simplicity is a worth-while goal that is not easily achieved.
However, in the long-run it will pay off by improved
maintainability.
V. CONCLUSIONS
In this paper, we elaborated the need for more attention to
data in software architecture design, and in particular in the
architecture community. In order to underline the importance of
data, we contributed diverse conceptual and technological
architectural solutions around data from a large-scale app
ecosystem prototyping project. Additionally, we summarized
lessons learned with technical aspects and with respect to data
modeling.
The software architecture research community should
invest into efforts to give data a more prominent role in software
architecture research and thus to be of higher value for
practitioners. Architecture documentation should provide more
standardized ways how to represent the most important aspects
around data. In architecture design, there should be more
guidance provided which architectural decisions around data
have to be made and how certain quality attributes and scenarios
can be achieved. Data modeling guidelines, also from other
communities, should be integrated into architecture design in
order to give practitioners more guidance. Many great and
beneficial paradigms, architectural concepts and realizing
technologies around data handling exist, from other research
communities, from open source communities, and from
industry. The architecture research community could contribute
to make these more accessible to architects by better extracting
and documenting the architectural principles and impacts. A
great example for this is [5] and the tutorials of these authors. It
would be also beneficial to publish examples of architecture with
a strong focus on data and their appropriate documentation. We
tried to do a first step by sharing a real and large-scale example,
from which we also discovered the missing attention to data in
architecture design. Finally, the architecture research
community could move more closely to other communities, like
the data management community. Solutions for challenges like
data synchronization are so complex that they need contributions
from different communities.
Software architecture education should put more focus on
data in software architecture, too. The importance of data has to
be motivated and the wide impact of architectural decisions
around data has to be practically shown. The connection of data
in OOA/OOD or DDD and in software architecture has to be
made clearer. Larger-scale examples of well-elaborated and
documented architecture decisions around data have to be
presented. However, it has to be acknowledged that teaching
software architecture is in general difficult due to limited
experience of the students with large-scale systems.
Software architecture practitioners, if they haven’t
already done so in the past, should put more focus on data in the
design of software systems. Not only in architecture design, but
also in architecture evaluations, a closer look to decisions around
data is necessary due the high impact on the achievement of
quality attributes. We would like to encourage practitioners to
share their examples, experiences, and lessons learned as we did
with this paper in order to help other practitioners and to make
the research community aware of new challenges.
REFERENCES
[1] S. Ghemawat, H. Gobioff, S.T. Leung. The Google File System. ACM
SIGOPS Operating Systems Review, Volume 37 Issue 5, December
2003.
84
[2] G. DeCandia et al. Dynamo: Amazon’s Highly Available Key-Value
Store. ACM SIGOPS Operating Systems Review, Volume 41 Issue 6,
December 2007.
[3] A. Lakshman, P. Malik. Cassandra: a Decentralized Structured Storage
System. ACM SIGOPS Operating Systems Review, Volume 44 Issue 2,
April 2010.
[4] J. Dean, S. Ghemawat. MapReduce: Simplified Data Processing on
Large Clusters. Sixth Symposium on Operating System Design and
Implementation, 2004.
[5] I. Gorton, J. Klein. Distribution, Data, Deployment: Software
Architecture Convergence in Big Data Systems. SEI,
https://resources.sei.cmu.edu/asset_files/WhitePaper/2014_019_001_909
15.pdf, 2014.
[6] L. Bass, P. Clements, R. Kazman. Software Architecture in Practice, 3rd
ed. Addison Wesley, 2012.
[7] R.N. Tayler, N. Medvidovic, E.M. Dashofy. Software Architecture:
Foundations, Theory, and Practice. Wiley, 2009.
[8] M. Ali Babar, T. Dingsoyr, P. Lago, H. van Vliet. Software Architecture
Knowledge Management. Springer, 2009.
[9] P. Kruchten. 4+1 View Model of Software Architecture. IEEE Software
12 (6), November 1995.
[10] P. Clements et al.. Documenting Software Architectures: Views and
Beyond, 2nd ed.. Addison Wesley, 2010.
[11] C. Hofmeister, R. Nord, D. Soni. Applied Software Architecture.
Addison Wesley, 1999.
[12] J. Garland, R. Anthony. Large-Scale Software Architecture: A Practical
Guide Using UML. John Wiley & Sons, 2003.
[13] N. Rozanski, E. Woods. Software Systems Architecture: Working With
Stakeholders Using Viewpoints and Perspectives. Addison-Wesley
Professional, 2005.
[14] ISO Reference Model Open Distributed Computed (RM-ODP).
http://rm-odp.wikispaces.com/ODP+Viewpoints
[15] The Open Group. TOGAF 9.1 Online. 2015.
http://www.opengroup.org/subjectareas/enterprise/togaf
[16] P. Merson. Data Model as an Architectural View. CMU/SEI-2009-TN-
024, 2009.
[17] T. Keuler, J. Knodel, M. Naab. Fraunhofer ACES: Architecture-Centric
Engineering Solutions. Fraunhofer IESE, IESE-Report, 079.11/E, 2011.
[18] J. Zachman. Zachman Framework. http://www.zachman.com
[19] C. Larman. Applying UML and Patterns: An Introduction to Object-
Oriented Analysis and Design and Iterative Development, 3rd ed,
Prentice Hall, 2004.
[20] E. Evans. Domain-Driven Design: Tackling Complexity in the Heart of
Software. Addison Wesley, 2003.
[21] M. Fowler. Patterns of Enterprise Application Architecture. Addison
Wesley, 2002.
[22] C. Atkinson et al. Component-Based Product Line Engineering with
UML. Addison Wesley, 2001.
[23] R.K. Lomotey, R. Deters. Management of Mobile Data in a Crop Field,
International Conference on Mobile Services, 2014.
[24] A. Brodt, O. Schiller, S. Sathish, B. Mitschang. A Mobile Data
Management Architecture for Interoperability of Resource and Context
Data. Int. Conference on Mobile Data Management (MDM), 2011.
[25] W. Huaigu, L. Hamdi, N. Mahe. TANGO: A Flexible Mobility-Enabled
Architecture for Online and Offline Mobile Enterprise Applications. Int.
Conference on Mobile Data Management (MDM), 2010.
[26] W. Vogels. Eventually Consistent. Comm. of the ACM, 52:40. 2009.
[27] Hibernate. http://hibernate.org.
[28] Semarchy. Back to Basics: Transactional, Master, Golden and Reference
Data explained. http://www.semarchy.com/semarchy-
blog/backtobasics_data_classification/, 2012.
[29] M. Fowler. CQRS. http://martinfowler.com/bliki/CQRS.html, 2011.
