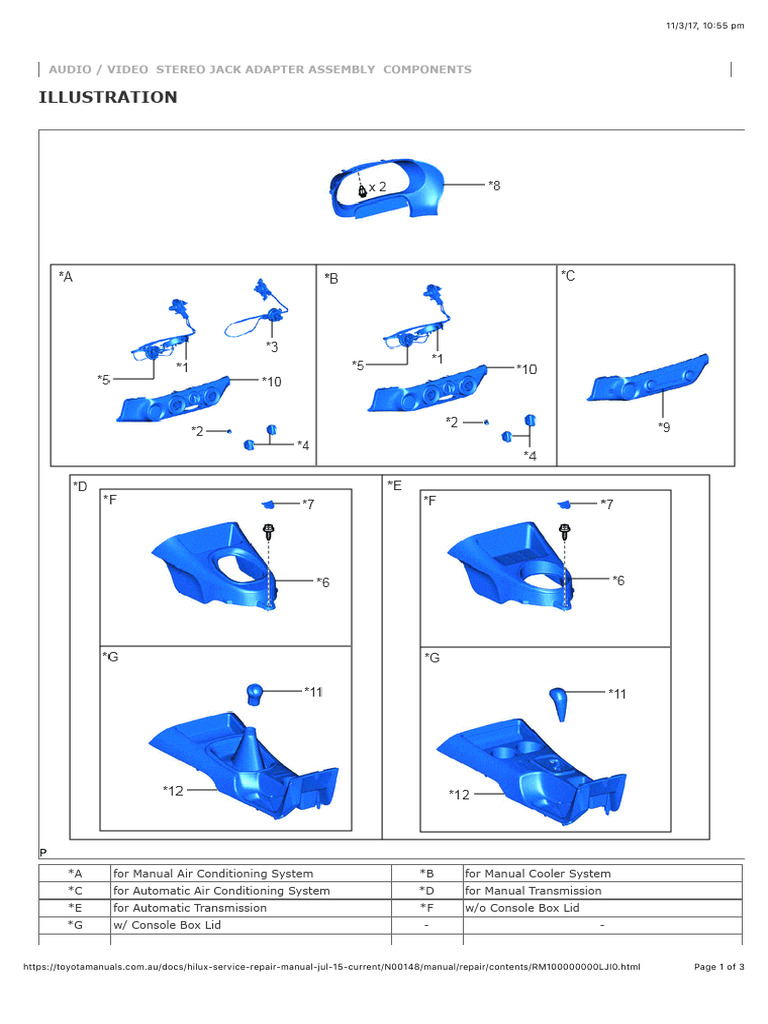

AUDIO / VIDEO STEREO JACK ADAPTER ASSEMBLY COMPONENTS

ILLUSTRATION

*A for Manual Air Conditioning System *B for Manual Cooler System

*C for Automatic Air Conditioning System *D for Manual Transmission
*E for Automatic Transmission *F w/o Console Box Lid
*G w/ Console Box Lid - -

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-jul-15-current/N00148/manual/repair/contents/RM100000000LJI0.html Page 1 of 3
 11/3/17, 10(55 pm

*1 AIR INLET DAMPER CONTROL CABLE SUB- *2 AIR INLET DAMPER CONTROL LEVER
ASSEMBLY
AIR MIX DAMPER CONTROL CABLE SUB-
*3 *4 CONTROL KNOB SUB-ASSEMBLY
ASSEMBLY
DEFROSTER DAMPER CONTROL CABLE SUB-
*5 *6 FRONT CONSOLE BOX
ASSEMBLY
INSTRUMENT CLUSTER FINISH PANEL
*7 FRONT CONSOLE BOX COVER *8
ASSEMBLY
INTEGRATION PANEL SUB-ASSEMBLY WITH AIR
*9 INTEGRATION PANEL SUB-ASSEMBLY *10
CONDITIONING CONTROL ASSEMBLY
*11 SHIFT LEVER KNOB SUB-ASSEMBLY *12 UPPER CONSOLE PANEL SUB-ASSEMBLY

ILLUSTRATION

*1 LOWER INSTRUMENT COVER SUB-ASSEMBLY *2 NO. 1 STEREO JACK ADAPTER ASSEMBLY

ILLUSTRATION

https://toyotamanuals.com.au/docs/hilux-service-repair-manual-jul-15-current/N00148/manual/repair/contents/RM100000000LJI0.html Page 2 of 3
 11/3/17, 10(55 pm

*1 RADIO WIRE - -
