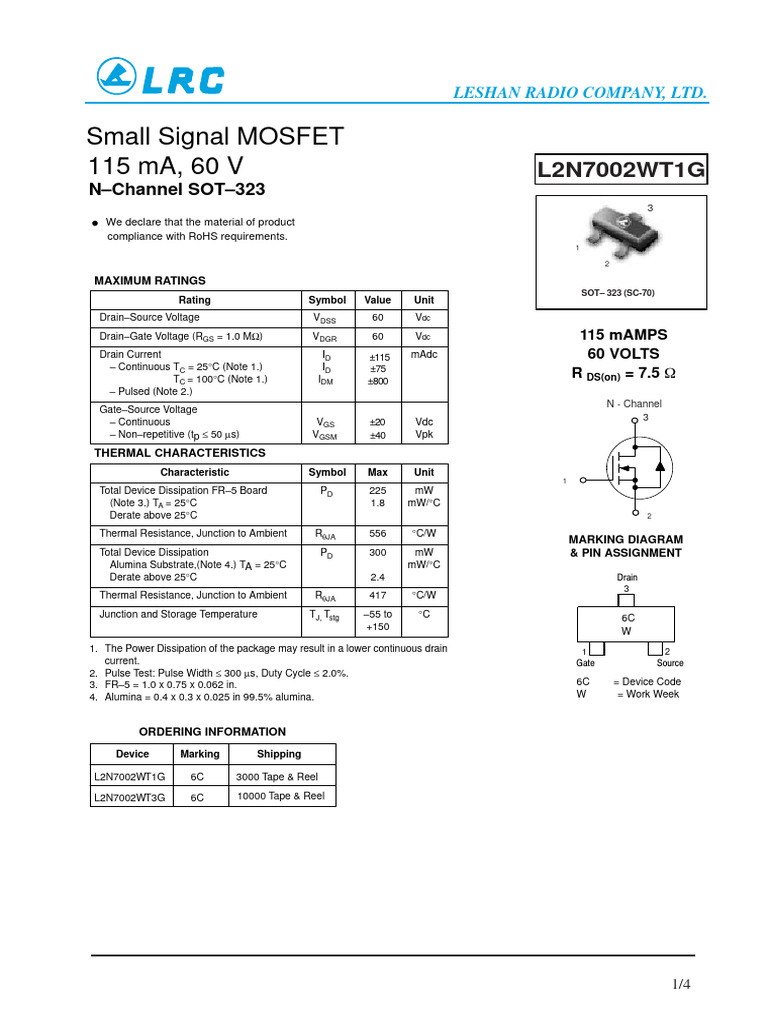

LESHAN RADIO COMPANY, LTD.

Small Signal MOSFET

115 mA, 60 V L2N7002WT1G
N–Channel SOT–323
3
• We declare that the material of product
compliance with RoHS requirements.
1

MAXIMUM RATINGS
SOT– 323 (SC-70)
Rating Symbol Value Unit
Drain–Source Voltage VDSS 60 Vdc
Drain–Gate Voltage (RGS = 1.0 MΩ) VDGR 60 Vdc 115 mAMPS
Drain Current ID ±115 mAdc 60 VOLTS
– Continuous TC = 25°C (Note 1.) ID
– Continuous TC = 100°C (Note 1.) IDM
±75
±800
R DS(on) = 7.5 W
– Pulsed (Note 2.)
N - Channel
Gate–Source Voltage
– Continuous VGS ±20 Vdc 3
– Non–repetitive (tp ≤ 50 µs) VGSM ±40 Vpk

THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
1
Total Device Dissipation FR–5 Board PD 225 mW
(Note 3.) TA = 25°C 1.8 mW/°C
Derate above 25°C 2

Thermal Resistance, Junction to Ambient RθJA 556 °C/W

MARKING DIAGRAM
Total Device Dissipation PD 300 mW & PIN ASSIGNMENT
Alumina Substrate,(Note 4.) TA = 25°C mW/°C
Derate above 25°C 2.4 Drain
3
Thermal Resistance, Junction to Ambient RθJA 417 °C/W
Junction and Storage Temperature TJ, Tstg –ā55 to °C 6C
+150
W
1. The Power Dissipation of the package may result in a lower continuous drain 1 2
current. Gate Source
2. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%.
3. FR–5 = 1.0 x 0.75 x 0.062 in. 6C = Device Code
4. Alumina = 0.4 x 0.3 x 0.025 in 99.5% alumina. W = Work Week

ORDERING INFORMATION

Device Marking Shipping

L2N7002WT1G 6C 3000 Tape & Reel

L2N7002WT3G 6C 10000 Tape & Reel

1/4
 LESHAN RADIO COMPANY, LTD.

L2N7002WT1G
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS
Drain–Source Breakdown Voltage V(BR)DSS 60 – – Vdc
(VGS = 0, ID = 10 µAdc)

Zero Gate Voltage Drain Current TJ = 25°C IDSS – – 1.0 µAdc

(VGS = 0, VDS = 60 Vdc) TJ = 125°C – – 500
Gate–Body Leakage Current, Forward IGSSF – – 100 nAdc
(VGS = 20 Vdc)
Gate–Body Leakage Current, Reverse IGSSR – – –100 nAdc
(VGS = –ā20 Vdc)

ON CHARACTERISTICS (Note 2.)

Gate Threshold Voltage VGS(th) 1.0 1.6 2.5 Vdc
(VDS = VGS, ID = 250 µAdc)
On–State Drain Current ID(on) 500 – – mA
(VDS ≥ 2.0 VDS(on), VGS = 10 Vdc)
Static Drain–Source On–State Voltage VDS(on) Vdc
(VGS = 10 Vdc, ID = 500 mAdc) – – 3.75
(VGS = 5.0 Vdc, ID = 50 mAdc) – – 0.375
Static Drain–Source On–State Resistance rDS(on) Ohms
(VGS = 10 V, ID = 500 mAdc) TC = 25°C – 1.4 7.5
TC = 125°C – – 13.5
(VGS = 5.0 Vdc, ID = 50 mAdc) TC = 25°C – 1.8 7.5
TC = 125°C – – 13.5
Forward Transconductance gFS 80 – – mmhos
(VDS ≥ 2.0 VDS(on), ID = 200 mAdc)

DYNAMIC CHARACTERISTICS
Input Capacitance Ciss – 17 50 pF
(VDS = 25 Vdc, VGS = 0, f = 1.0 MHz)
Output Capacitance Coss – 10 25 pF
(VDS = 25 Vdc, VGS = 0, f = 1.0 MHz)
Reverse Transfer Capacitance Crss – 2.5 5.0 pF
(VDS = 25 Vdc, VGS = 0, f = 1.0 MHz)

SWITCHING CHARACTERISTICS (Note 2.)

Turn–On Delay Time (V DD = 25 Vdc , ID ^ 500 mAdc, td(on) – 7 20 ns
Turn–Off Delay Time RG = 25 Ω, RL = 50 Ω, Vgen = 10 V) td(off) – 11 40 ns

BODY–DRAIN DIODE RATINGS

Diode Forward On–Voltage VSD – – –1.5 Vdc
(IS = 11.5 mAdc, VGS = 0 V)
Source Current Continuous IS – – –115 mAdc
(Body Diode)
Source Current Pulsed ISM – – –800 mAdc
2. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%.

2/4
 LESHAN RADIO COMPANY, LTD.

L2N7002WT1G

TYPICAL ELECTRICAL CHARACTERISTICS

2.0 1.0
1.8 TA = 25°C VDS = 10 V
-ā55°C 25°C
1.6 VGS = 10 V 0.8
I D, DRAIN CURRENT (AMPS)

125°C

ID, DRAIN CURRENT (AMPS)

1.4 9V
1.2 0.6
8V
1.0
7V
0.8 0.4
6V
0.6
0.4 5V 0.2
0.2 4V
3V
0
0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10
VDS, DRAIN SOURCE VOLTAGE (VOLTS) VGS, GATE SOURCE VOLTAGE (VOLTS)

Figure 1. Ohmic Region Figure 2. Transfer Characteristics

2.4 1.2
r DS(on) , STATIC DRAIN-SOURCE ON-RESISTANCE

VGS(th), THRESHOLD VOLTAGE (NORMALIZED)

2.2 1.05
VGS = 10 V VDS = VGS
2.0 1.1
ID = 200 mA ID = 1.0 mA
1.8 1.10
(NORMALIZED)

1.6 1.0
1.4 0.95
1.2 0.9
1.0 0.85
0.8 0.8
0.6 0.75
0.4 0.7
-ā60 -ā20 +ā20 +ā60 +ā100 +ā140 -ā60 -ā20 +ā20 +ā60 +ā100 +ā140
T, TEMPERATURE (°C) T, TEMPERATURE (°C)

Figure 3. Temperature versus Static Figure 4. Temperature versus Gate

Drain–Source On–Resistance Threshold Voltage

3/4
 LESHAN RADIO COMPANY, LTD.

L2N7002WT1G

SC−70 (SOT−323)

D
NOTES:
e1 1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3
MILLIMETERS INCHES
HE E DIM MIN NOM MAX MIN NOM MAX
1 2 A 0.80 0.90 1.00 0.032 0.035 0.040
A1 0.00 0.05 0.10 0.000 0.002 0.004
A2 0.7 REF 0.028 REF
b 0.30 0.35 0.40 0.012 0.014 0.016
b c 0.10 0.18 0.25 0.004 0.007 0.010
e D 1.80 2.10 2.20 0.071 0.083 0.087
E 1.15 1.24 1.35 0.045 0.049 0.053
e 1.20 1.30 1.40 0.047 0.051 0.055
e1 0.65 BSC 0.026 BSC
L 0.425 REF 0.017 REF
A A2 c HE 2.00 2.10 2.40 0.079 0.083 0.095

0.05 (0.002)
A1 L GENERIC
MARKING DIAGRAM

SOLDERING FOOTPRINT*
XXM
0.65
0.65 0.025
1
0.025
XX = Specific Device Code
M = Date Code

= Pb−Free Package
1.9
0.075 *This information is generic. Please refer to
device data sheet for actual part marking.
0.9 Pb−Free indicator, “G” or microdot “
”,
0.035 may or may not be present.

0.7
0.028
SCALE 10:1
inches
mm

4/4
 LESHAN RADIO COMPANY, LTD.

Tape & Reel and Packaging Specifications for

Small-Signal Transistors, FETs and Diodes
Embossed Tape and Reel is used to facilitate automatic pick and place equipment feed requirements. The tape is used as the
shipping container for various products and requires a minimum of handling. The antistatic/conductive tape provides a secure
cavity for the product when sealed with the “peel–back” cover tape.
• Two Reel Sizes Available (7"and 13",) • SOT–23, SC–70/SOT–323,
• Used for Automatic Pick and Place Feed Systems SC–89, SC–88/SOT–363, SC–88A/SOT–353,
• Minimizes Product Handling SOD–323, SOD-523 in 8 mm Tape
• EIA 481, –1, –2
Use the standard device title and add the required suffix as listed in the option table below (Table 1). Note that the individual
reels have a finite number of devices depending on the type of product contained in the tape. Also note the minimum lot size is
one full reel for each line item, and orders are required to be in increments of the single reel quantity.

SC-88, SOT-363 SC-88A, SOT-353

SOD-323 SC-59, SC-70, SC-75,SOT-23
T1 Orientation T1 Orientation
8 mm 8 mm
8 mm 8 mm

Direction of Feed

Typical Reel Orientations

Table 1. EMBOSSED TAPE AND REEL ORDERING INFORMATION

Tape Width Pitch Reel Size Devices Per Reel Device

Package (mm) mm mm(inch) and Minimum Suffix
Order Quantity
8 4 178 (7) 3,000 T1
SOT–23
8 330 (13) 10,000 T3
8 4 178 (7) 3,000 T1
SC–70/SOT–323
8 330 (13) 10,000 T3
8 4 178 (7) 3,000 T1
SC–89
8 330 (13) 10,000 T3

8 4 178 (7) 3,000 T1

SC–88/SOT-363
8 330 (13) 10,000 T3

8 4 178 (7) 3,000 T1

SC–88A/SOT-353
8 330 (13) 10,000 T3

8 4 178 (7) 3,000 T1

SOD-323
8 330 (13) 10,000 T3

8 4 178 (7) 3,000 T1

SOD-523
8 330 (13) 10,000 T3
 LESHAN RADIO COMPANY, LTD.

EMBOSSED TAPE AND REEL DATA FOR DISCRETES

CARRIER TAPE SPECIFICATIONS

10 Pitches Cumulative Tolerance on

P0 Tape ± 0.2mm( ± 0.008’’ )
K P2
t D
E
Top Cover
A0
Tape
F W
B1 K0 B0
See
P
Note 1 D1
Embossment Center Lines
For Components
of Cavity
2.0mm x 1.2mm and Larger

For Machine Reference Only

Including Draft and RADII
User Direction of Feed
Concentric Around B0

*Top Cover Tape

R Min Thickness(t 1 )
Bar Code Label
Tape and Components 0.10mm
(0.004’’ )Max.
Shall Pass Around
Radius “R”
Bending Radius Embossed Carrier
Without Damage 100 mm
o
10 Embossment
Maximum Component Rotation (3.937 ’’)
1 mm Max
Typical Component
Cavity Center Line
Tape
1 mm(.039’’ ) Max
250 mm
Typical Component
(9.843’’)
Center Line
Camber (Top View)
Allowable Camber To Be 1 mm/100 mm Nonaccumulative Over 250 mm

DIMENSIONS
Tape
B1 Max D D1 E F K P0 P2 RMin TMax WMax
Size
4.55mm 1.5+0.1mm 1.0Min 1.75 ± 0.1mm 3.5 ± 0.05mm 2.4mm Max 4.0 ± 0.1mm 2.0 ± 0.1mm 25mm 0.6mm 8.3mm
8mm
(.179’’) - 0.0 (.039’’) (.069±.004) (.138±.002’’) (.094’’) (.157 ± .004’’) (.079 ± .002’’) (.98’’) (.024’’) (.327’’)
8.2mm (.059+.004’’ 1.5mmMin 5.5 ± 0.05mm 6.4mm Max 30mm 12 ± .30mm
12mm
(.323’’) - 0.0) (.060’’) (.217 ± .002’’) (.252’’) (1.18’’) (.470 ± .012’’)
12.1mm 7.5 ± 0.10mm 7.9mm Max 16.3mm
16mm
(.476’’) (.295 ± .004’’) (.311’’) (.642’’)
20.1mm 11.5 ± 0.1mm 11.9mmMax 24.3mm
24mm
(.791’’) (.453 ± .004’’) (.468’’) (.957’’)

Metric dimensions govern - English are in parentheses for reference only.

NOTE 1: A 0 , B 0 , and K 0 are determined by component size. The clearance between the components and the cavity must be within
.05 mm min. to.50 mm max.,
NOTE 2: the component cannot rotate more than 10 o within the determined cavity.
NOTE 3: If B1 exceeds 4.2 mm (.165”) for 8 mm embossed tape, the tape may not feed through all tape feeders.
 LESHAN RADIO COMPANY, LTD.

EMBOSSED TAPE AND REEL DATA

FOR DISCRETES

T Max
Outside Dimension
Measured at Edge
13.0mm ± 0.5mm
1.5mm Min
(.512 ±.002’’)
(.06’’)

A 20.2mm Min 50mm Min

(.795’’) (1.969’’)

Full Radius

G
Inside Dimension
Measured Near Hub

Size A Max G T Max

330mm 8.4mm+1.5mm, -0.0 14.4mm

8 mm
(12.992’’) (.33’’+.059’’, -0.00) (.56’’)
330mm 12.4mm+2.0mm, -0.0 18.4mm
12mm
(12.992’’) (.49 ’’+ .079’’, -0.00) (.72’’)
360mm 16.4mm+2.0mm, -0.0 22.4mm
16mm
(14.173’’) (.646’’+.078’’, -0.00) (.882’’)
360mm 24.4mm+2.0mm, -0.0 30.4mm
24 mm
(14.173’’) (.961’’+.070’’, -0.00) (1.197’’)

Reel Dimensions
Metric Dimensions Govern –– English are in parentheses for reference only

Storage Conditions
Temperature: 5 to 40 Deg.C (20 to 30 Deg. C is preferred)
Humidity: 30 to 80 RH (40 to 60 is preferred )
Recommended Period: One year after manufacturing
(This recommended period is for the soldering condition only. The
characteristics and reliabilities of the products are not restricted to
this limitation)
