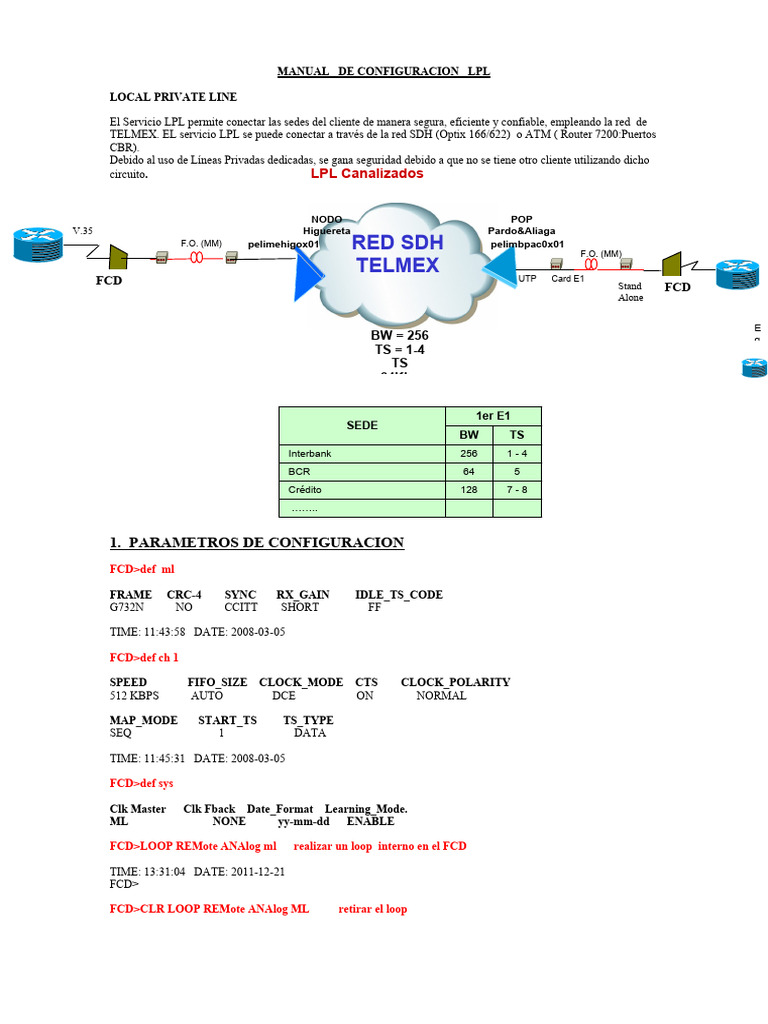

MANUAL DE CONFIGURACION LPL

LOCAL PRIVATE LINE

El Servicio LPL permite conectar las sedes del cliente de manera segura, eficiente y confiable, empleando la red de
TELMEX. EL servicio LPL se puede conectar a través de la red SDH (Optix 166/622) o ATM ( Router 7200:Puertos
CBR).
Debido al uso de Líneas Privadas dedicadas, se gana seguridad debido a que no se tiene otro cliente utilizando dicho
circuito. LPL Canalizados

NODO POP
V.35 Higuereta Pardo&Aliaga
F.O. (MM) pelimehigox01 RED SDH pelimbpac0x01
F.O. (MM)
TELMEX
E1 2/15Stand A
FCD UTP Card E1
Stand
UTP FCD
Card E1 Alone

E
BW = 256 q
TS = 1-4
TS
=64Kbps

1er E1
SEDE
BW TS
Interbank 256 1-4
BCR 64 5
Crédito 128 7-8
……..

1. PARAMETROS DE CONFIGURACION
FCD>def ml

FRAME CRC-4 SYNC RX_GAIN IDLE_TS_CODE

G732N NO CCITT SHORT FF

TIME: 11:43:58 DATE: 2008-03-05

FCD>def ch 1

SPEED FIFO_SIZE CLOCK_MODE CTS CLOCK_POLARITY

512 KBPS AUTO DCE ON NORMAL

MAP_MODE START_TS TS_TYPE

SEQ 1 DATA

TIME: 11:45:31 DATE: 2008-03-05

FCD>def sys

Clk Master Clk Fback Date_Format Learning_Mode.

ML NONE yy-mm-dd ENABLE

FCD>LOOP REMote ANAlog ml realizar un loop interno en el FCD

TIME: 13:31:04 DATE: 2011-12-21

FCD>

FCD>CLR LOOP REMote ANAlog ML retirar el loop

TIME: 13:45:25 DATE: 2011-12-21
FCD>

FCD>learn borrar configuracion

Learning e1 parameters please wait.
SIGNAL LOSS (LTU/DSU) DETECTED, LEARN FAILED
TIME: 13:16:30 DATE: 2011-12-21
FCD>

FCD>init db reiniciar

WARNING!!!
-----------
Database will be set to default and management connection will be lost.
Are you sure (Y/N) ? Yes

TIME: 04:47:22 DATE: 2011-12-21

FCD Supervisory Port On Line. Type 'H' for help

FCD Supervisory Port On Line. Type 'H' for help

FCD Self Test In Progress...Ok

FCD Supervisory Port on Line. Type 'H' for help

FCD>

FCD>DSP AGENT

AGENT PARAMETERS

AGENT NAME : FCD

IP ADDRESS IS : 0.0.0.0
TIME: 13:49:45 DATE: 2011-12-21
FCD>

2. PARAMETROS DE VERIFICACION

FCD>dsp ts

TIME SLOT MAPPING OF MAIN LINK

==============================

TS : 1 2 3 4 5 6 7 8 9 10
TYPE : DATA DATA DATA DATA DATA DATA DATA DATA NC NC
DEST : CH1 CH1 CH1 CH1 CH1 CH1 CH1 CH1 NA NA

TS : 11 12 13 14 15 16 17 18 19 20
TYPE : NC NC NC NC NC NC NC NC NC NC

DEST : NA NA NA NA NA NA NA NA NA NA

TS : 21 22 23 24 25 26 27 28 29 30 31
TYPE : NC NC NC NC NC NC NC NC NC NC NC

DEST : NA NA NA NA NA NA NA NA NA NA NA

TIME: 17:43:44 DATE: 2008-03-07

FCD>dsp alm

NAME = FCD NODE = 0

ALARM 43 RTS/CONTROL IS OFF CH1 OFF 17:45:34 2008-03-07

ALARM 43 RTS/CONTROL IS OFF CH1 ON 17:45:33 2008-03-07
ALARM 43 RTS/CONTROL IS OFF CH1 OFF 17:45:33 2008-03-07
ALARM 43 RTS/CONTROL IS OFF CH1 ON 17:45:17 2008-03-07

TIME: 17:46:27 DATE: 2008-03-07

FCD>clr alm /a
borrar alarmas del FCD

TIME: 17:46:34 DATE: 2008-03-07

FCD>help
SYSTEM CONFIGURATION COMMANDS

DATE TIME
DEF ML DEF CH {[1][2]}
DEF SYS DEF SP
DEF NODE DEF NAME
DEF PWD DEF ALM MASK
DEF CALL DEF PROMPT
DEF AGENT DEF AR
DEF DNLOAD ML
DEF MANAGER LIST DEF ROUTE
DEF BERT CH 1
DEF TERM [VT100][VT52][TV920]
[FREEDOM{[100][220]}]
F - Terminal Functions
INIT DB
TEST COMMANDS

FCD>LOOP REMote ANAlog ml realizar un loop interno en el FCD

LOOP LOCal {[ANAlog][DIGital]} ML

LOOP REMote ANAlog ML
LOOP {[LOCal][REMote]} CH {[1][2]}
LOOP {[BERT][INBAND]} CH 1
CLR LOOP LOCal {[ANAlog][DIGital]} ML
CLR LOOP REMote ANAlog ML
CLR LOOP {[LOCal][REMote]} CH {[1][2]}
CLR LOOP {[BERT][INBAND]} CH 1
CLR LOOP ML
CLR LOOP CH {[1][2]} CLR LP - same as CLR LOOP
SYSTEM STATUS COMMANDS
DSP ST SYS DSP TS
DSP PM ML[/C][/CA] DSP HDR TST
DSP ST ML[/R][/C]
DSP AGENT DSP REM AGENT
DSP ST CH {[1][2]} DSP MANAGER LIST
DSP ALM [/C][/CA] CLR ALM [/A]
DSP BERT CH 1 [/I][/S][/C][/R]
SYSTEM CONTROL COMMANDS
EXIT PWD
BYE RESET
LEARN
CTRL+A type last commands (up to 10 commands)
CTRL+D execute last command
Hit Space Bar to continue...
TIME: 13:30:10 DATE: 2011-12-21
3. VERIFICACION DE CONEXION

LED INDICADORES DE ESTADO

NAME TYPE/COLOR FUNCTION

Enciende cuando el equipo esta
PWR LED (VERDE) encendico

Enciende al perder sincronizacion

SYNC LOSS - LOC LED (ROJO) local en el enlace E1

Enciende al perder sincronizacion

SYNC LOSS - REM LED (ROJO) remota en el enlace E1
Enciende para indicar condicion
ALM – MAJ LED (ROJO) de Alarma Mayor
Enciende para indicar condicion
ALM –MIN LED (ROJO) de Alarma Menor
AUTOCONFIGURACION PRESIONAR BOTON Activa aprendizaje de E1
Enciende cuando el modo Test
TST LED (AMBAR) esta activo

Proporciona conexion mediante

CONTROL DCE CONECTOR Hyperterminal

http://www.bestdatasource.com/rad/DSAD/cRADFCDE1LBACV35.htm

yourname(config-if)#encapsulation ?
frame-relay Frame Relay networks
hdlc Serial HDLC synchronous
lapb LAPB (X.25 Level 2)
ppp Point-to-Point protocol
smds Switched Megabit Data Service (SMDS)
x25 X.25
