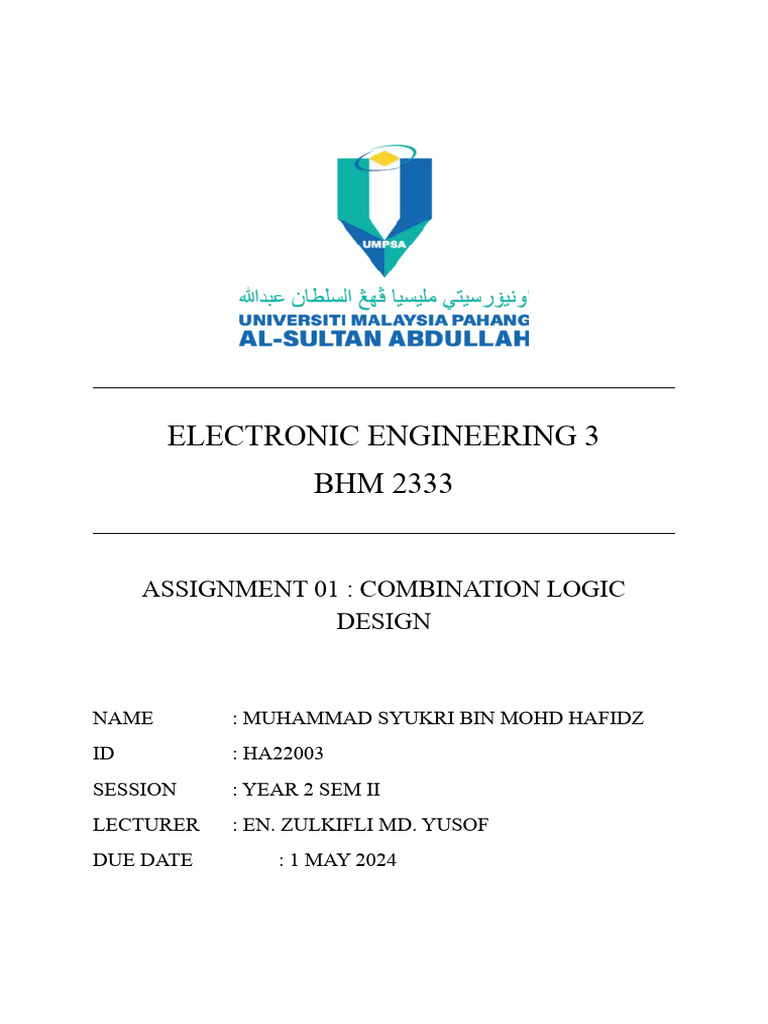

ELECTRONIC ENGINEERING 3

BHM 2333

ASSIGNMENT 01 : COMBINATION LOGIC

DESIGN

NAME : MUHAMMAD SYUKRI BIN MOHD HAFIDZ

ID : HA22003
SESSION : YEAR 2 SEM II
LECTURER : EN. ZULKIFLI MD. YUSOF
DUE DATE : 1 MAY 2024
 TABLE OF CONTENT

i. INTRODUCTION
ii. CONTEXT

1.0 IDENTIFICATION NUMBER

- TRUTH TABLE

2.0 KARNAUGH MAP & BOOLEAN EXPRESSION

2.1 CIRCUIT CONFIGURATION
o W OUTPUT (AND-OR)
o X OUTPUT (AND-OR & NAND-NAND)
o Y OUTPUT (AND-OR & OR-AND)
o Z OUTPUT (AND-OR & NOR-NOR)

3.0 COMBINATION LOGIC CIRCUIT

- 4 VARIABLE OUTPUT (W-X-Y-Z) CIRCUIT

4.0
INTRODUCTION
Combination Logic Circuit Design are memoryless digital logic circuits whose output at any
instant in time depends only on the combination of its input. As in this report, by using
identification number as reference, designing a Combination Logic Circuits is possible.
To design this Combination Logic Circuit, 4 variables of input, A, B, C, and D is acquired
from individual identification number, thus the result is that we can obtained 4 variables of
output, W, X, Y, and Z.

CONTEXT
This Combinational Logic Circuits are made up from basic logic AND, OR, NAND, NOR
and NOT gates that are “combined” or connected to produce more complicated switching
circuits. These logic gates are the building blocks of combinational logic circuits.

An example of a combinational circuit is a decoder, which converts the binary code data
present at its input into several different output lines, one at a time producing an equivalent
decimal code at its output.

There are three main ways of specifying the function of a combinational logic circuit:

Boolean Algebra
– This forms the algebraic expression showing the operation of the logic circuit for each input
variable either True or False that results in a logic “1” output.
Truth Table
– A truth table defines the function of a logic gate by providing a concise list that shows all
the output states in tabular form for each possible combination of input variable that the gate
could encounter.
Logic Diagram
– This is a graphical representation of a logic circuit that shows the wiring and connections of
each individual logic gate, represented by a specific graphical symbol, that implements the
logic circuit.
1.0 IDENTIFICATION NUMBER
0 3 0 1 1 2 0 4 0 2 8 3
0 3 A 1 B 2 C 4 D E 8 F

TRUTH TABLE
DEC W X Y Z
A B C D
.
0 0 0 0 0 = 0 0 1 1
1 0 0 0 1 = 1 0 1 1
2 0 0 1 0 = 1 1 0 0
3 0 0 1 1 = 1 0 1 0
4 0 1 0 0 = 1 1 0 1
5 0 1 0 1 = x x x X
6 0 1 1 0 = x x x x
7 0 1 1 1 = x x x x
8 1 0 0 0 = 1 1 1 1
9 1 0 0 1 = x x x x
A 1 0 1 0 = 0 0 0 1
B 1 0 1 1 = 0 0 1 0
C 1 1 0 0 = 0 1 0 0
D 1 1 0 1 = 1 1 1 0
E 1 1 1 0 = 1 0 0 0
F 1 1 1 1 = 0 0 0 0

KARNAUGH-REFERENCE POSITION
C̄ C̄ C C
D̄ D D D̄
Ā
0 1 3 2
B̄
Ā
4 5 7 6
B
A
12 13 15 14
B
A 8 9 11 10
B̄
2.0 KARNAUGH-MAP (K-MAP) & BOOLEAN
EXPRESSION

W OUTPUT Y OUTPUT
CD CD
00 01 11 10 00 01 11 10
AB AB
00 0(0) 1(1) 1(3) 1(2) 00 1(0) 1(1) 1(3) 0(2)
01 1(4) x(5) x(7) x(6) 01 0(4) x(5) x(7) x(6)
11 0(12) 1(13) 0(15) 1(14) 11 0(12) 1(13) 0(15) 0(14)
10 1(8) x(9) 0(11) 0(10) 10 1(8) x(9) 1(11) 0(10)

SOP: W = ĀB+ SOP: Y = B̄ C̄ +B̄ D+C̄ D+ĀBC

ĀC+C̄ D+AB̄ C̄ +BCD̄
POS: Y = (B+C̄ +D)(B̄ +C+D)
POS: W = (Ā+B+C̄ )(Ā+C̄ +D̄ ) (Ā+B̄ +C̄ )
(A+B+C+D)(Ā+B̄ +C+D)

X OUTPUT Z OUTPUT
CD CD
00 01 11 10 00 01 11 10
AB AB
00 0(0) 0(1) 0(3) 1(2) 00 1(0) 1(1) 0(3) 0(2)
01 1(4) x(5) x(7) x(6) 01 1(4) x(5) x(7) x(6)
11 1(12) 1(13) 0(15) 0(14) 11 0(12) 0(13) 0(15) 0(14)
10 1(8) x(9) 0(11) 0(10) 10 1(8) x(9) 0(11) 1(10)

SOP: X = ĀB+AC̄ +ĀCD̄ SOP: Z = B̄ C̄ +ĀB+AB̄ D̄

POS: X = (Ā+C̄ )(A+B+C)(A+B+D̄ ) POS: Z = (Ā+B̄ )(A+B+C̄ )(B+C̄ +D̄ )
2.1CIRCUIT CONFIGURATION

W OUTPUT (AND-OR)
 X OUTPUT (AND-OR)

X OUTPUT (NAND-NAND)
Y OUTPUT (AND-OR)

Y OUTPUT (OR-AND)
Z OUTPUT (AND-OR)

Z OUTPUT (NOR-NOR)
3.0 COMBINATION LOGIC CIRCUIT
FINAL COMBINATION CIRCUIT CONFIGURATION

VECTOR WAVEFORM
