LED LIGHT

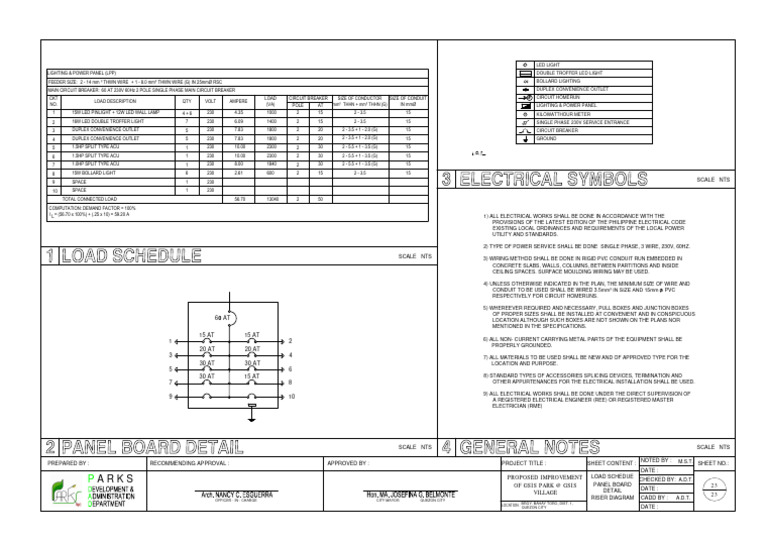

LIGHTING & POWER PANEL (LPP) DOUBLE TROFFER LED LIGHT

FEEDER SIZE: 2 - 14 mm BOLLARD LIGHTING

MAIN CIRCUIT BREAKER: 60 AT 230V 60Hz 2 POLE SINGLE PHASE MAIN CIRCUIT BREAKER DUPLEX CONVENIENCE OUTLET

CKT LOAD CIRCUIT BREAKER SIZE OF CONDUCTOR SIZE OF CONDUIT # CIRCUIT HOMERUN
LOAD DESCRIPTION QTY VOLT AMPERE
NO. (VA) POLE AT LIGHTING & POWER PANEL
1 15W LED PINLIGHT + 12W LED WALL LAMP 4+6 230 4.35 1000 2 15 2 - 3.5 15 M KILOWATTHOUR METER
2 16W LED DOUBLE TROFFER LIGHT 7 230 6.09 1400 2 15 2 - 3.5 15 SINGLE PHASE 230V SERVICE ENTRANCE
3 DUPLEX CONVENIENCE OUTLET 5 230 7.83 1800 2 20 2 - 3.5 + 1 - 2.0 (G) 15 CIRCUIT BREAKER
4 DUPLEX CONVENIENCE OUTLET 5 230 7.83 1800 2 20 2 - 3.5 + 1 - 2.0 (G) 15 GROUND

5 1.5HP SPLIT TYPE ACU 1 230 10.00 2300 2 30 2 - 5.5 + 1 - 3.5 (G) 15
6 1.5HP SPLIT TYPE ACU 1 230 10.00 2300 2 30 2 - 5.5 + 1 - 3.5 (G) 15 ELECTRICAL
7 1.0HP SPLIT TYPE ACU 1 230 8.00 1840 2 30 2 - 5.5 + 1 - 3.5 (G) 15
8 15W BOLLARD LIGHT 6 230 2.61 600 2 15 2 - 3.5 15
9 SPACE 1 230 SCALE NTS

10 SPACE 1 230
TOTAL CONNECTED LOAD 56.70 13040 2 50
COMPUTATION: DEMAND FACTOR = 100%
I L = (56.70 x 100%) + (.25 x 10) = 59.20 A 1) ALL ELECTRICAL WORKS SHALL BE DONE IN ACCORDANCE WITH THE
PROVISIONS OF THE LATEST EDITION OF THE PHILIPPINE ELECTRICAL CODE
EXISTING LOCAL ORDINANCES AND REQUIREMENTS OF THE LOCAL POWER
UTILITY AND STANDARDS.

2) TYPE OF POWER SERVICE SHALL BE DONE SINGLE PHASE, 3 WIRE, 230V, 60HZ.
SCALE NTS
3) WIRING METHOD SHALL BE DONE IN RIGID PVC CONDUIT RUN EMBEDDED IN
CONCRETE SLABS, WALLS, COLUMNS, BETWEEN PARTITIONS AND INSIDE
CEILING SPACES. SURFACE MOULDING WIRING MAY BE USED.

4) UNLESS OTHERWISE INDICATED IN THE PLAN, THE MINIMUM SIZE OF WIRE AND
CONDUIT TO BE USED SHALL BE WIRED 3.5 PVC
RESPECTIVELY FOR CIRCUIT HOMERUNS.

5) WHEREEVER REQUIRED AND NECESSARY, PULL BOXES AND JUNCTION BOXES

OF PROPER SIZES SHALL BE INSTALLED AT CONVENIENT AND IN CONSPICUOUS
60 AT LOCATION ALTHOUGH SUCH BOXES ARE NOT SHOWN ON THE PLANS NOR
MENTIONED IN THE SPECIFICATIONS.
15 AT 15 AT
6) ALL NON- CURRENT CARRYING METAL PARTS OF THE EQUIPMENT SHALL BE
1 2
PROPERLY GROUNDED.
20 AT 20 AT
3 4 7) ALL MATERIALS TO BE USED SHALL BE NEW AND OF APPROVED TYPE FOR THE
30 AT 30 AT LOCATION AND PURPOSE.
5 6
30 AT 15 AT 8) STANDARD TYPES OF ACCESSORIES SPLICING DEVICES, TERMINATION AND
7 8 OTHER APPURTENANCES FOR THE ELECTRICAL INSTALLATION SHALL BE USED.

9) ALL ELECTRICAL WORKS SHALL BE DONE UNDER THE DIRECT SUPERVISION OF

9 10
A REGISTERED ELECTRICAL ENGINEER (REE) OR REGISTERED MASTER
ELECTRICIAN (RME)

SCALE NTS SCALE NTS

PREPARED BY : RECOMMENDING APPROVAL : APPROVED BY : PROJECT TITLE : SHEET CONTENT : NOTED BY : M.S.T. SHEET NO.:
DATE :
PROPOSED IMPROVEMENT LOAD SCHEDUE CHECKED BY: A.D.T.
PARKS OF GSIS PARK @ GSIS PANEL BOARD 23
DETAIL DATE :
VILLAGE 23
OFFICER - IN - CHARGE CITY MAYOR QUEZON CITY
RISER DIAGRAM CADD BY : A.D.T.
BRGY. BAHAY TORO, DIST. 1,
LOCATION :
QUEZON CITY DATE :
