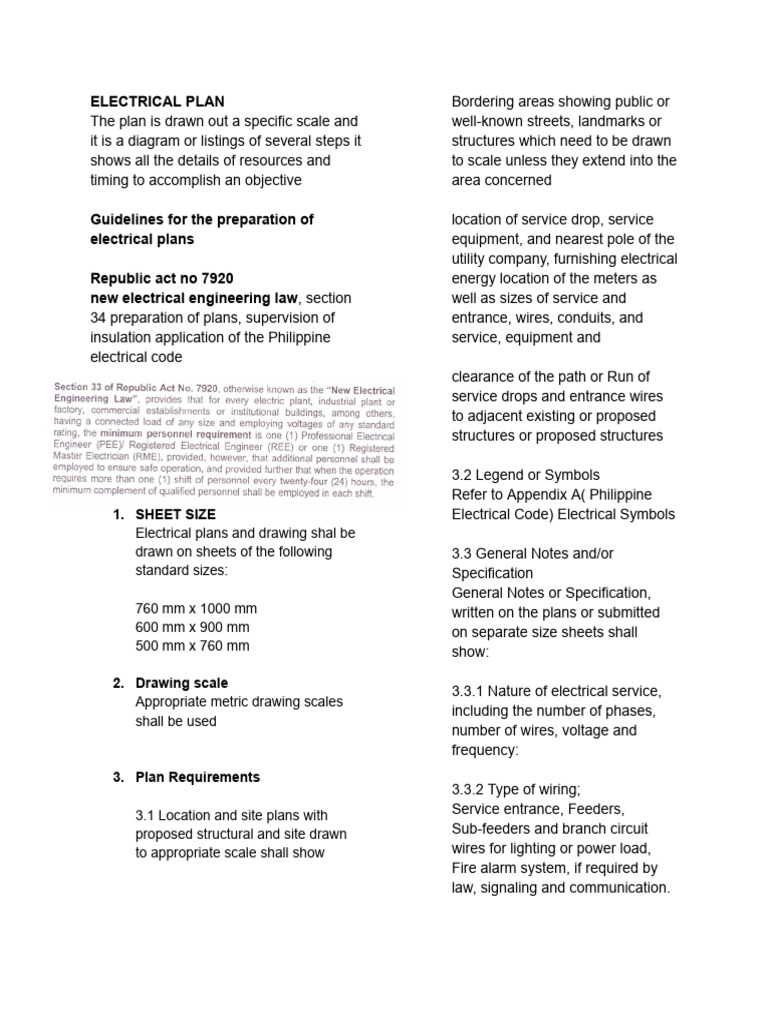

ELECTRICAL PLAN
The plan is drawn out a specific scale and
it is a diagram or listings of several steps it
shows all the details of resources and
timing to accomplish an objective
Guidelines for the preparation of
electrical plans
Republic act no 7920
new electrical engineering law, section
34 preparation of plans, supervision of
insulation application of the Philippine
electrical code
1. SHEET SIZE
Electrical plans and drawing shal be
drawn on sheets of the following
standard sizes:
760 mm x 1000 mm
600 mm x 900 mm
500 mm x 760 mm
2. Drawing scale
Appropriate metric drawing scales
shall be used
3. Plan Requirements
3.1 Location and site plans with
proposed structural and site drawn
to appropriate scale shall show
Bordering areas showing public or
well-known streets, landmarks or
structures which need to be drawn
to scale unless they extend into the
area concerned
location of service drop, service
equipment, and nearest pole of the
utility company, furnishing electrical
energy location of the meters as
well as sizes of service and
entrance, wires, conduits, and
service, equipment and
clearance of the path or Run of
service drops and entrance wires
to adjacent existing or proposed
structures or proposed structures
3.2 Legend or Symbols
Refer to Appendix A( Philippine
Electrical Code) Electrical Symbols
3.3 General Notes and/or
Specification
General Notes or Specification,
written on the plans or submitted
on separate size sheets shall
show:
3.3.1 Nature of electrical service,
including the number of phases,
number of wires, voltage and
frequency:
3.3.2 Type of wiring;
Service entrance, Feeders,
Sub-feeders and branch circuit
wires for lighting or power load,
Fire alarm system, if required by
law, signaling and communication.
3.3.3 Special equipment to be
installed, indicating ratings and
classification of service or duty
cycle of;

Rectifiers,
Heaters,
X-ray apparatus,
Electric welding equipment, and
others
‘
D
 LEGENDS:

WHAT IS AN ELECTRICAL PLAN?

The electrical plan is sometimes called as

electrical drawing or wiring diagram.

It is a type of technical drawing that

delivers visual representation and
describes circuits and electrical systems.

It consists of electrical symbols and lines

that showcase the engineer’s electrical
design to its clients. In short, an electrical
plan describes the position of all the
electrical apparatus.
PURPOSE OF ELECTRICAL PLAN

BENEFITS OF ELECTRICAL PLAN

HOW TO DRAFT AN ELECTRICAL

PLAN?
TIPS OF MAKING ELECTRICAL PLANS

COMMON ELECTRICAL SYMBOLS

ELECTRICAL NOTES
AMPERE (I)
The practical meter kilogram second unit
of electric current that is equivalent to a
flow of one coulomb per second or to the
steady current produced by one volt
applied across a resistance of one ohm

The base unit of electric current in the

international system of units that is
defined by setting the fixed numerical
value of the elementary charge to
1.602176634 x 10^-19 ampere seconds

Ampere can be measured by the use of

ammeter
