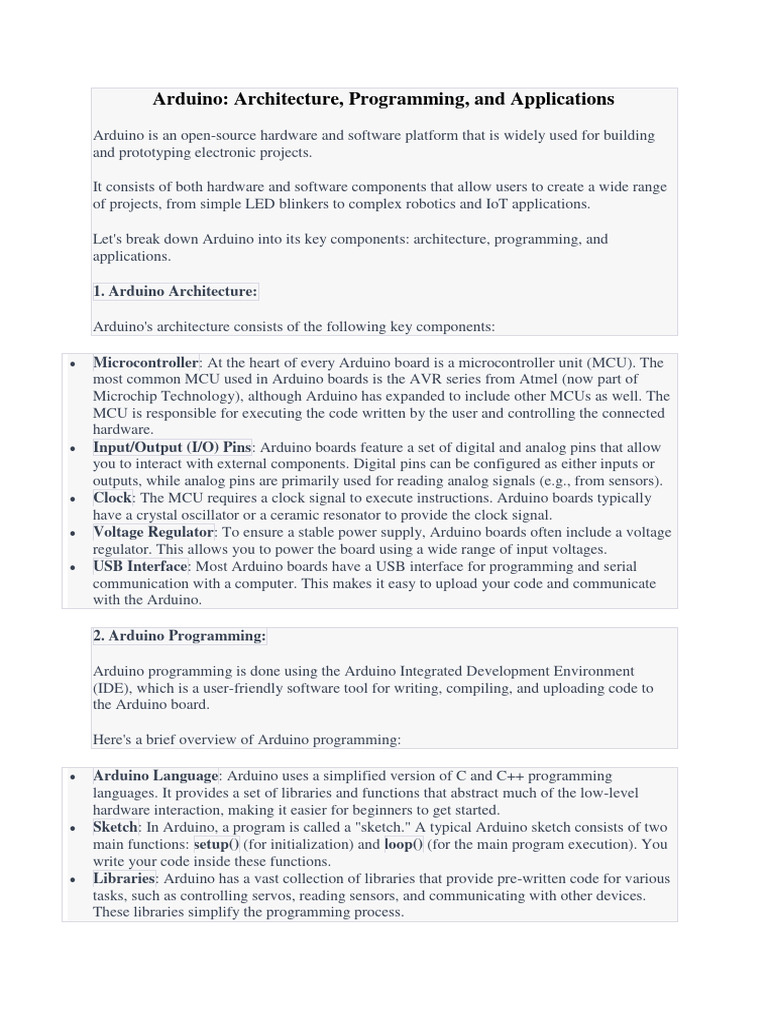

Arduino: Architecture, Programming, and Applications

Arduino is an open-source hardware and software platform that is widely used for building
and prototyping electronic projects.

It consists of both hardware and software components that allow users to create a wide range
of projects, from simple LED blinkers to complex robotics and IoT applications.

Let's break down Arduino into its key components: architecture, programming, and
applications.

1. Arduino Architecture:

Arduino's architecture consists of the following key components:

 Microcontroller: At the heart of every Arduino board is a microcontroller unit (MCU). The
most common MCU used in Arduino boards is the AVR series from Atmel (now part of
Microchip Technology), although Arduino has expanded to include other MCUs as well. The
MCU is responsible for executing the code written by the user and controlling the connected
hardware.
 Input/Output (I/O) Pins: Arduino boards feature a set of digital and analog pins that allow
you to interact with external components. Digital pins can be configured as either inputs or
outputs, while analog pins are primarily used for reading analog signals (e.g., from sensors).
 Clock: The MCU requires a clock signal to execute instructions. Arduino boards typically
have a crystal oscillator or a ceramic resonator to provide the clock signal.
 Voltage Regulator: To ensure a stable power supply, Arduino boards often include a voltage
regulator. This allows you to power the board using a wide range of input voltages.
 USB Interface: Most Arduino boards have a USB interface for programming and serial
communication with a computer. This makes it easy to upload your code and communicate
with the Arduino.

2. Arduino Programming:

Arduino programming is done using the Arduino Integrated Development Environment

(IDE), which is a user-friendly software tool for writing, compiling, and uploading code to
the Arduino board.

Here's a brief overview of Arduino programming:

 Arduino Language: Arduino uses a simplified version of C and C++ programming

languages. It provides a set of libraries and functions that abstract much of the low-level
hardware interaction, making it easier for beginners to get started.
 Sketch: In Arduino, a program is called a "sketch." A typical Arduino sketch consists of two
main functions: setup() (for initialization) and loop() (for the main program execution). You
write your code inside these functions.
 Libraries: Arduino has a vast collection of libraries that provide pre-written code for various
tasks, such as controlling servos, reading sensors, and communicating with other devices.
These libraries simplify the programming process.
 Upload: Once you've written your code, you can upload it to the Arduino board via the USB
interface. The Arduino IDE compiles your code and sends it to the board.

3. Arduino Applications:

Arduino is incredibly versatile and finds applications in various domains, including:

 Electronics Prototyping: Arduino is an excellent platform for quickly prototyping electronic

circuits and testing ideas. It's commonly used by hobbyists, students, and professionals to
build and test electronic projects.
 Robotics: Arduino is widely used in robotics projects for controlling motors, sensors, and
other hardware components. It's a popular choice for building robotic vehicles and arms.
 IoT (Internet of Things): Arduino can be used to create IoT devices that collect data from
sensors and communicate it over the internet. It's used in home automation, environmental
monitoring, and more.
 Automation and Control: Arduino can be used to automate tasks and control various
systems, from home automation (smart lighting, thermostat control) to industrial automation
(process control, data logging).
 Educational Purposes: Arduino is an excellent tool for teaching electronics and
programming concepts. Many educational institutions use Arduino as a hands-on learning
platform.

In summary, Arduino is a versatile platform that combines a specific hardware architecture, a

simplified programming environment, and a wide range of applications. Whether you're a
beginner looking to learn electronics or an experienced engineer working on a project,
Arduino offers a flexible and accessible way to bring your ideas to life.

Arduino Pin Configuration

Arduino Uno (R3)
As we know that Arduino Uno is the most standard board available and probably the best choice
for a beginner.

We can directly connect the board to the computer via a USB Cable which performs the function
of supplying the power as well as acting as a serial port.
Vin: This is the input voltage pin of the Arduino board used to provide input supply from an
external power source.

5V: This pin of the Arduino board is used as a regulated power supply voltage and it is used to
give supply to the board as well as onboard components.

3.3V: This pin of the board is used to provide a supply of 3.3V which is generated from a voltage
regulator on the board

GND: This pin of the board is used to ground the Arduino board.

Reset: This pin of the board is used to reset the microcontroller. It is used to Resets the
microcontroller.

Analog Pins: The pins A0 to A5 are used as an analog input and it is in the range of 0-5V.

Digital Pins: The pins 0 to 13 are used as a digital input or output for the Arduino board.

Serial Pins: These pins are also known as a UART pin. It is used for communication between
the Arduino board and a computer or other devices. The transmitter pin number 1 and receiver
pin number 0 is used to transmit and receive the data resp.

External Interrupt Pins: This pin of the Arduino board is used to produce the External interrupt
and it is done by pin numbers 2 and 3.

PWM Pins: This pins of the board is used to convert the digital signal into an analog by varying
the width of the Pulse. The pin numbers 3,5,6,9,10 and 11 are used as a PWM pin.

SPI Pins: This is the Serial Peripheral Interface pin, it is used to maintain SPI
communication with the help of the SPI library. SPI pins include:

1. SS: Pin number 10 is used as a Slave Select

2. MOSI: Pin number 11 is used as a Master Out Slave In
3. MISO: Pin number 12 is used as a Master In Slave Out
4. SCK: Pin number 13 is used as a Serial Clock

LED Pin: The board has an inbuilt LED using digital pin-13. The LED glows only when the
digital pin becomes high.

AREF Pin: This is an analog reference pin of the Arduino board. It is used to provide a reference
voltage from an external power supply.
