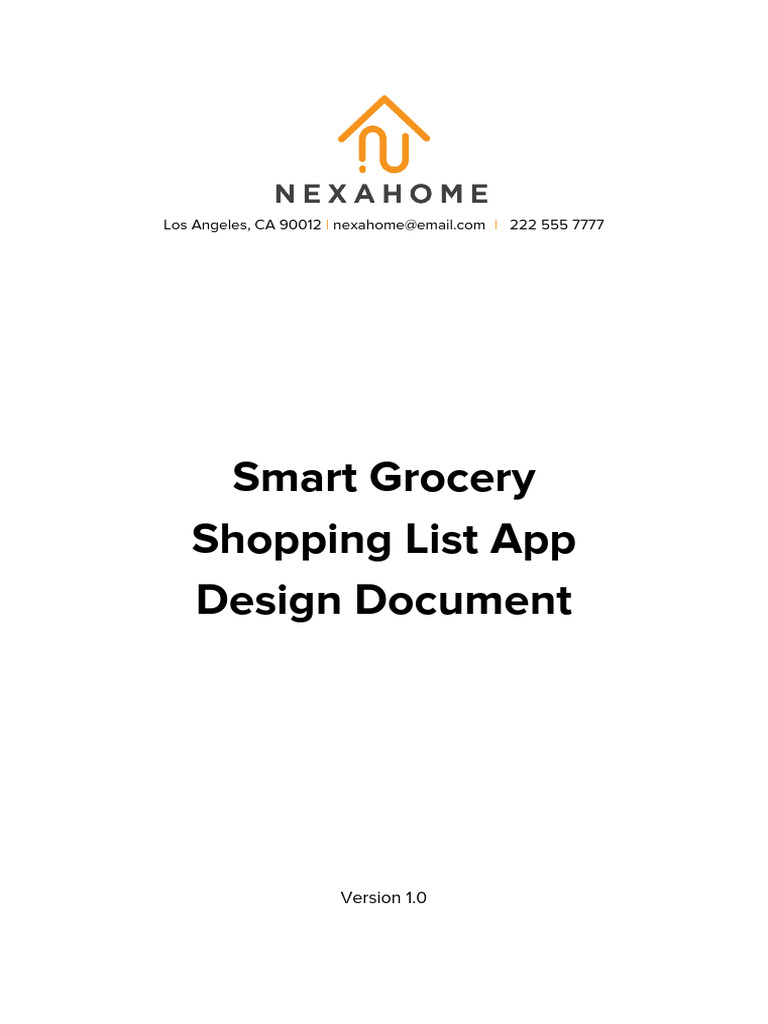

Smart Grocery
Shopping List App
Design Document
Version 1.0
The "Smart Grocery Shopping List App" is designed to revolutionize the way users
approach their grocery shopping. Traditional grocery list apps allow users to manually
add items they need to purchase. Our application, however, goes several steps
further. Not only does it facilitate the creation of a grocery list, but it also offers
dynamic suggestions based on users' past purchases, checks against current home
inventory, and even aligns with selected recipes to ensure every ingredient is
accounted for. This proactive approach minimizes the chances of users forgetting
essential items and promotes efficient and economical shopping habits.
Scope
This design document will detail the architecture, components, data flow, user
interface, and other technical aspects of the "Smart Grocery Shopping List App". The
design will cover:
While the primary focus is on the mobile application, future versions might extend to
web platforms and integration with smart home devices. This document does not
cover marketing strategies, business partnerships with grocery chains, or detailed
user behavior analysis, which will be handled in separate business and analytic
documents.
System Architecture
The System Architecture section provides an overview of the holistic structure of the
"Smart Grocery Shopping List App". It delineates the major components of the
application, their interrelationships, and how they interact with external entities. This
section ensures that the reader gains a comprehensive understanding of the app's
high-level design and its underlying mechanisms.
The app utilizes a three-tier architecture:
Component Descriptions
● Profile Creation: Allows users to create and manage profiles. Users can input
personal preferences, dietary restrictions, and favorite recipes.
● Authentication & Authorization: Ensures security by verifying user credentials.
Also manages what actions a user can perform based on their profile.
● List Creation & Editing: Users can create multiple lists (e.g., "Weekly Groceries",
"Party Supplies"). Items can be added, edited, or removed.
● Smart Suggestions: Provides item suggestions based on past shopping habits
and current inventory. For instance, if a user frequently purchases milk every
week and hasn't added it, the app may suggest it.
Inventory Tracker
● Inventory Input & Update: Users can input current home inventory items and
update quantities as they consume or add more.
● Expiration Alerts: Notify users when a product in their inventory is nearing its
expiration date.
Recipe Matcher
● Recipe Selection: Users can browse and select from a catalog of recipes.
● Ingredient Check & List Addition: After selecting a recipe, the app checks the
ingredients against the user's inventory and automatically adds missing items
to the shopping list.
● Shopping Habit Analysis: Analyzes user shopping habits to provide better item
suggestions in the future.
● Price Comparison (Future Feature): Integrates with local grocery store
databases to compare prices on items in the user's list, helping them find the
best deals.
Data Design
In the Data Design section, we delve into the specifics of how data is structured,
stored, accessed, and managed within our application. This encompasses the data
entities, their attributes, and the relationships between them. By understanding the
data design, stakeholders can better grasp the flow of information and the app's
reliance on various data elements.
1-to-Many with
ShoppingList
Stores user UserID, Name, Email,
User
profile info Password
1-to-Many with
Inventory
Many-to-One with
Represents User
ListID, ListName,
ShoppingList each list a user
DateCreated
creates Many-to-Many with
Item
Many-to-One with
Items the user User
InventoryID, Quantity,
Inventory currently
PurchaseDate
possesses Many-to-One with
Item
Collection of
RecipeID, Many-to-Many with
Recipe recipes for
RecipeName Item
users
Interface Design
Algorithm Descriptions
The Algorithm Descriptions section illuminates the logic and sequences that power
the core functionalities of the app. From item prioritization algorithms to recipe
suggestion mechanisms, this segment ensures that the reader comprehends the
computational procedures that transform user input and data into meaningful outputs.
1. Retrieve user's dietary preferences and restrictions from the User entity.
2. Fetch the current inventory items for the user.
3. Scan the Recipe entity to find recipes that match user's dietary preferences
and utilize a majority of the items in the user's inventory.
4. Rank these recipes based on:
● Number of items already in inventory.
● Popularity of the recipe among other users.
● Dietary alignment.
5. Display the top 5 recipes to the user on the dashboard.
1. For each item in the user's Inventory, check the purchase date and the average
expiry date (from the Item entity).
2. Calculate the difference between the current date and the predicted expiry
date.
3. If the difference is less than or equal to 3 days, flag the item for warning.
4. Display flagged items on the user's dashboard with a visual warning.
User Interface Design focuses on the visual and interaction aspects of the app. This
section provides insights into the layout, flow, and aesthetics of the app, ensuring it's
both user-friendly and functionally robust. By exploring this section, stakeholders will
gain an understanding of the user's journey and the design decisions made to
enhance their experience.
+---------------------+
[Logo]
Email: [_______ ]
Password: [______]
[Login Button]
[Forgot Password?]
[Register Link]
+---------------------+
+--------------------------------------+
[Logout Button]
+--------------------------------------+
Error
Description Handling Logging
Code
Log duplicate
Adding an item
Display "This item is addition with
UIE.2 that's already in
already in your list.". timestamp and
the list.
user ID.
Purpose To ensure that the app maintains user privacy, data integrity, and
resistance against malicious activities.
● All user passwords will be hashed using bcrypt with individual salt per user
before storing in the database. No plaintext passwords will be stored.
● All data transactions will be encrypted using SSL/TLS protocols.
● The app's API will use OAuth2 for authentication and authorization.
● Rate limiting will be implemented to prevent DDoS attacks.
● User data will not be shared with third parties without explicit user consent.
● Users will have the right to request data deletion, in compliance with data
protection regulations.
● The app will undergo periodic security audits to identify and patch
vulnerabilities.
● All third-party libraries and dependencies will be regularly updated to their
latest secure versions.
● Regular backups of the database will be taken to ensure data can be restored
in the event of data loss or corruption.
● A disaster recovery plan will be in place to address any potential catastrophic
events.
