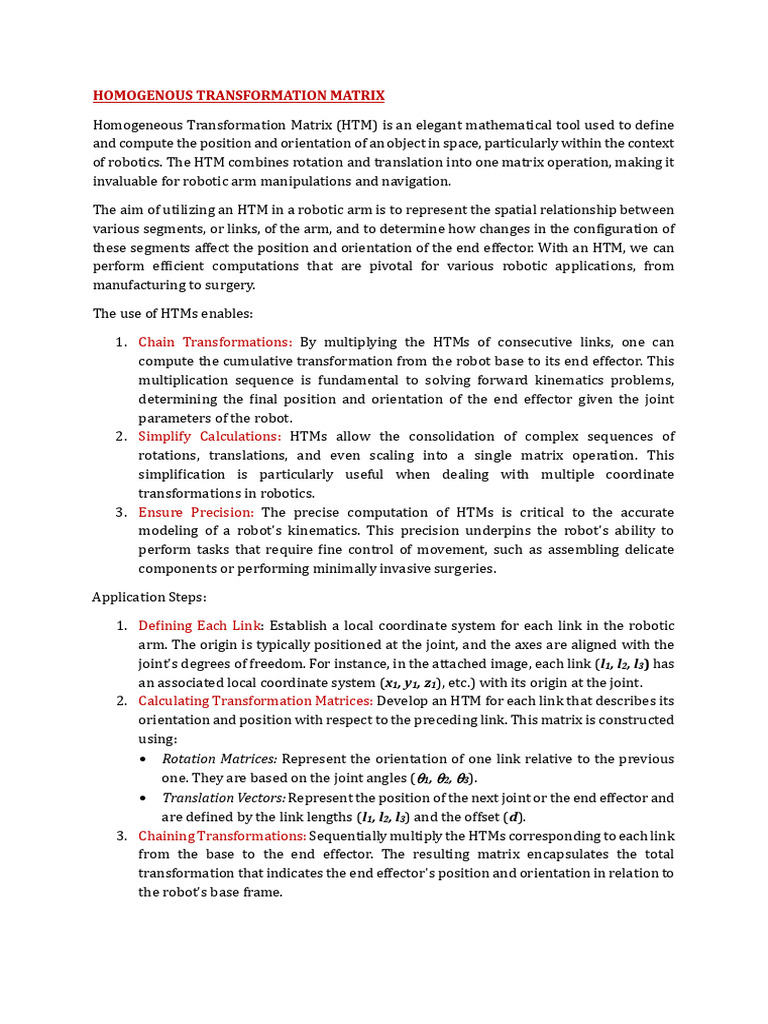

HOMOGENOUS TRANSFORMATION MATRIX

Homogeneous Transformation Matrix (HTM) is an elegant mathematical tool used to de�ine

and compute the position and orientation of an object in space, particularly within the context
of robotics. The HTM combines rotation and translation into one matrix operation, making it
invaluable for robotic arm manipulations and navigation.

The aim of utilizing an HTM in a robotic arm is to represent the spatial relationship between
various segments, or links, of the arm, and to determine how changes in the con�iguration of
these segments affect the position and orientation of the end effector. With an HTM, we can
perform ef�icient computations that are pivotal for various robotic applications, from
manufacturing to surgery.

The use of HTMs enables:

1. Chain Transformations: By multiplying the HTMs of consecutive links, one can

compute the cumulative transformation from the robot base to its end effector. This
multiplication sequence is fundamental to solving forward kinematics problems,
determining the �inal position and orientation of the end effector given the joint
parameters of the robot.
2. Simplify Calculations: HTMs allow the consolidation of complex sequences of
rotations, translations, and even scaling into a single matrix operation. This
simpli�ication is particularly useful when dealing with multiple coordinate
transformations in robotics.
3. Ensure Precision: The precise computation of HTMs is critical to the accurate
modeling of a robot's kinematics. This precision underpins the robot's ability to
perform tasks that require �ine control of movement, such as assembling delicate
components or performing minimally invasive surgeries.

Application Steps:

1. De�ining Each Link: Establish a local coordinate system for each link in the robotic
arm. The origin is typically positioned at the joint, and the axes are aligned with the
joint's degrees of freedom. For instance, in the attached image, each link (l1, l2, l3) has
an associated local coordinate system (x1, y1, z1), etc.) with its origin at the joint.
2. Calculating Transformation Matrices: Develop an HTM for each link that describes its
orientation and position with respect to the preceding link. This matrix is constructed
using:
• Rotation Matrices: Represent the orientation of one link relative to the previous
one. They are based on the joint angles (θ1, θ2, θ3).
• Translation Vectors: Represent the position of the next joint or the end effector and
are de�ined by the link lengths (l1, l2, l3) and the offset (d).
3. Chaining Transformations: Sequentially multiply the HTMs corresponding to each link
from the base to the end effector. The resulting matrix encapsulates the total
transformation that indicates the end effector's position and orientation in relation to
the robot's base frame.
Example Calculation:

To illustrate how HTMs are applied let's use the image above of the robotic arm.
