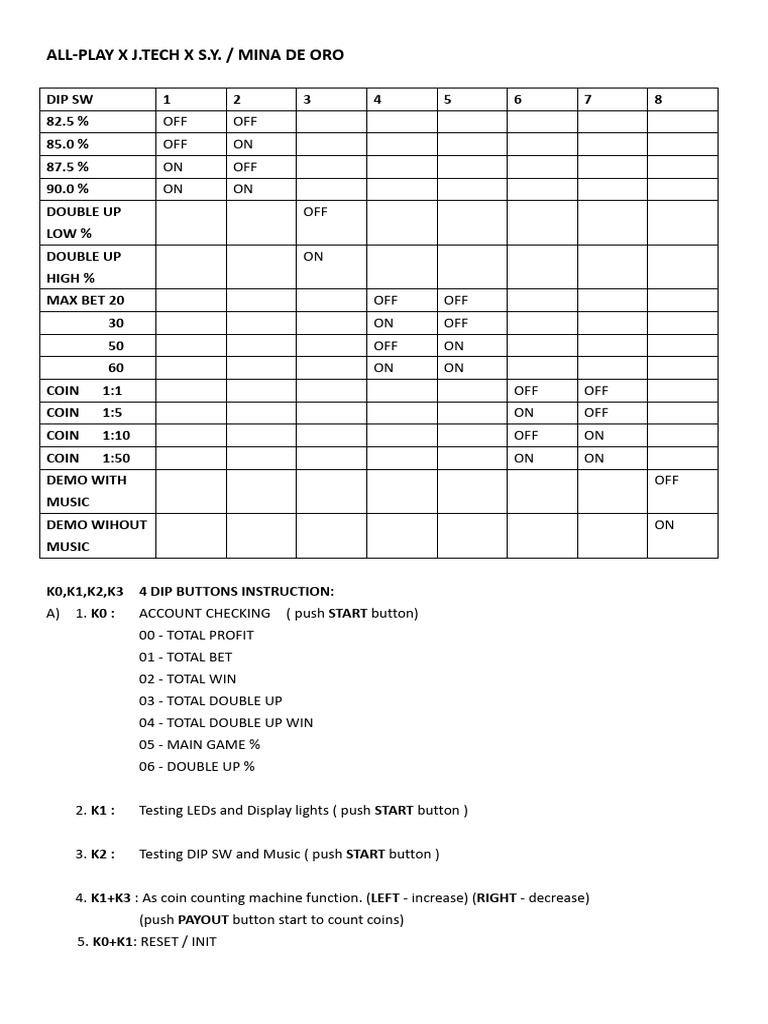

ALL-PLAY X J.TECH X S.Y.

/ MINA DE ORO

DIP SW 1 2 3 4 5 6 7 8
82.5 % OFF OFF
85.0 % OFF ON
87.5 % ON OFF
90.0 % ON ON
DOUBLE UP OFF
LOW %
DOUBLE UP ON
HIGH %
MAX BET 20 OFF OFF
30 ON OFF
50 OFF ON
60 ON ON
COIN 1:1 OFF OFF
COIN 1:5 ON OFF
COIN 1:10 OFF ON
COIN 1:50 ON ON
DEMO WITH OFF
MUSIC
DEMO WIHOUT ON
MUSIC

K0,K1,K2,K3 4 DIP BUTTONS INSTRUCTION:

A) 1. K0 : ACCOUNT CHECKING ( push START button)
00 - TOTAL PROFIT
01 - TOTAL BET
02 - TOTAL WIN
03 - TOTAL DOUBLE UP
04 - TOTAL DOUBLE UP WIN
05 - MAIN GAME %
06 - DOUBLE UP %

2. K1 : Testing LEDs and Display lights ( push START button )

3. K2 : Testing DIP SW and Music ( push START button )

4. K1+K3 : As coin counting machine function. (LEFT - increase) (RIGHT - decrease)

(push PAYOUT button start to count coins)
5. K0+K1: RESET / INIT
ERROR CODE :
33 COIN ERROR
44 HOPPER SW ERROR
55 KEY OUT SW ERROR
77 PROFIT OVER 50,000 (PLASE INIT)
99 MEMORY CHIP ERROR

CONNECTOR DIAGRAM :
CN4 CN2
01 +12V 01 +5V
02 G 02 +5V
03 G 03 G
04 +5 04 G
05 G 05 SSR
06 HP-SW 06 +12V
07 KEY-OUT
08 KEY-IN
09 G
10 +5V

CN3
01 IN meter
02 OUT meter
03 +5V
04 +12V
05 +12V
06 +12V
07 Speaker
08 G
09 COIN
10 G
