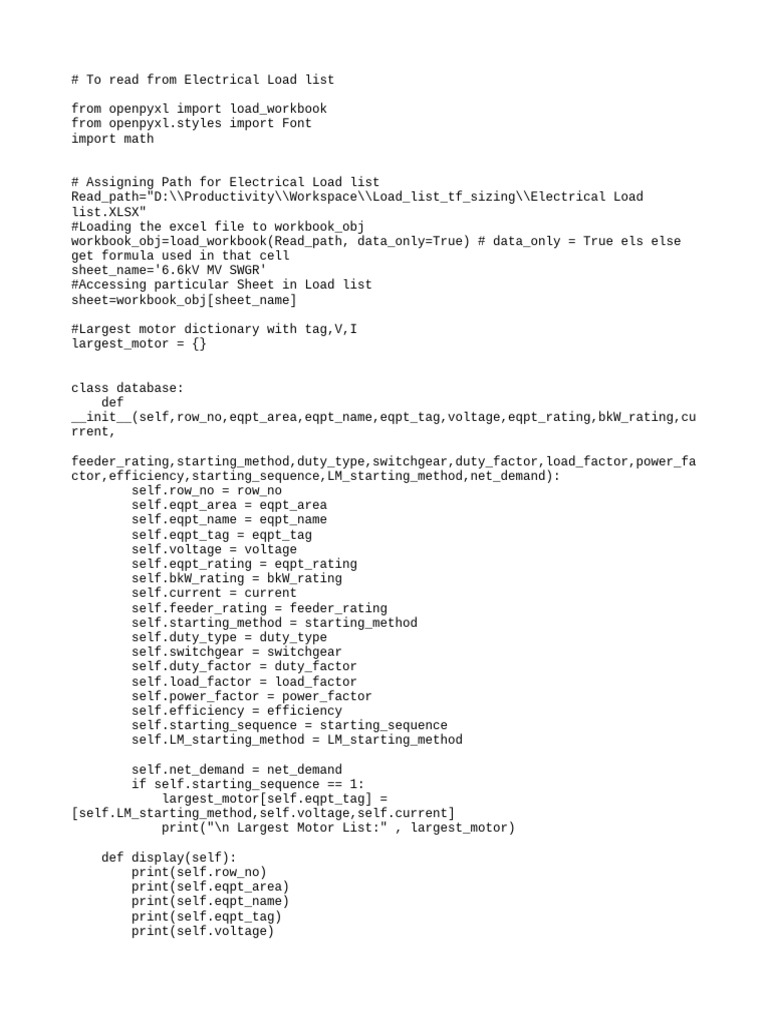

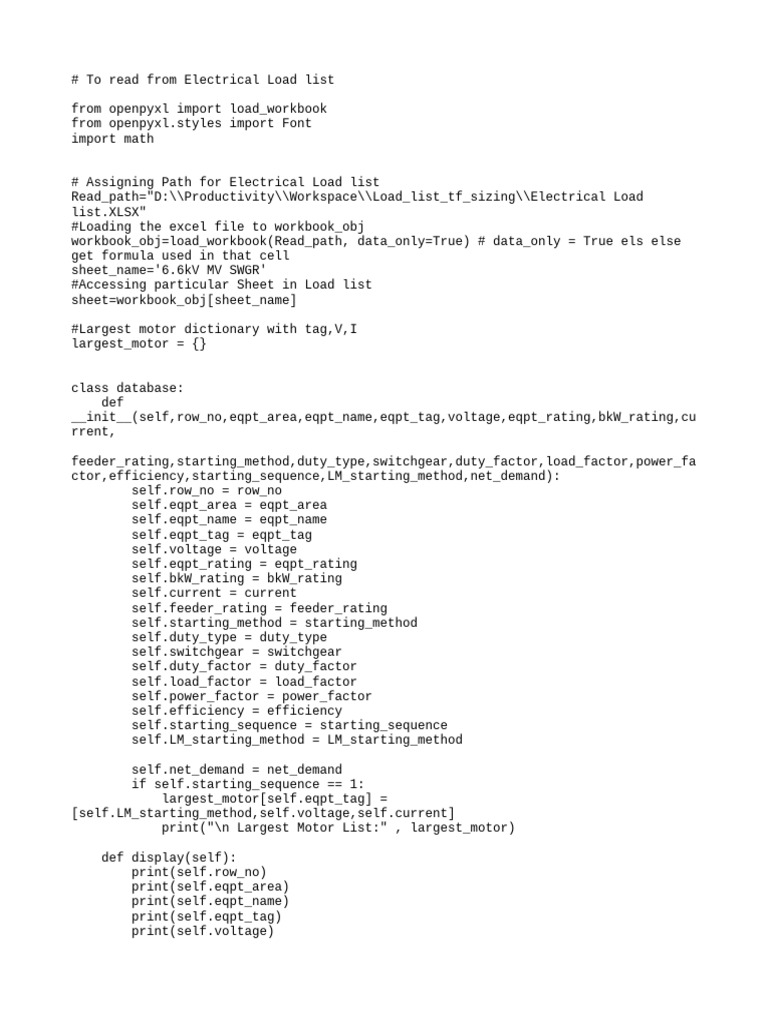

# To read from Electrical Load list

from openpyxl import load_workbook

from openpyxl.styles import Font
import math

# Assigning Path for Electrical Load list

Read_path="D:\\Productivity\\Workspace\\Load_list_tf_sizing\\Electrical Load
list.XLSX"
#Loading the excel file to workbook_obj
workbook_obj=load_workbook(Read_path, data_only=True) # data_only = True els else
get formula used in that cell
sheet_name='6.6kV MV SWGR'
#Accessing particular Sheet in Load list
sheet=workbook_obj[sheet_name]

#Largest motor dictionary with tag,V,I

largest_motor = {}

class database:
def
__init__(self,row_no,eqpt_area,eqpt_name,eqpt_tag,voltage,eqpt_rating,bkW_rating,cu
rrent,

feeder_rating,starting_method,duty_type,switchgear,duty_factor,load_factor,power_fa
ctor,efficiency,starting_sequence,LM_starting_method,net_demand):
self.row_no = row_no
self.eqpt_area = eqpt_area
self.eqpt_name = eqpt_name
self.eqpt_tag = eqpt_tag
self.voltage = voltage
self.eqpt_rating = eqpt_rating
self.bkW_rating = bkW_rating
self.current = current
self.feeder_rating = feeder_rating
self.starting_method = starting_method
self.duty_type = duty_type
self.switchgear = switchgear
self.duty_factor = duty_factor
self.load_factor = load_factor
self.power_factor = power_factor
self.efficiency = efficiency
self.starting_sequence = starting_sequence
self.LM_starting_method = LM_starting_method

self.net_demand = net_demand
if self.starting_sequence == 1:
largest_motor[self.eqpt_tag] =
[self.LM_starting_method,self.voltage,self.current]
print("\n Largest Motor List:" , largest_motor)

def display(self):
print(self.row_no)
print(self.eqpt_area)
print(self.eqpt_name)
print(self.eqpt_tag)
print(self.voltage)
 print(self.eqpt_rating)
print(self.bkW_rating)
print(self.current)
print(self.feeder_rating)
print(self.starting_method)
print(self.duty_type)
print(self.switchgear)
print(self.duty_factor)
print(self.load_factor)
print(self.power_factor)
print(self.efficiency)
print(self.net_demand)
print(self.starting_sequence)
print(self.LM_starting_method)
print("\n")

#Here element is the TO EQUIPMENT AREA LIST

element=[]

#row to tag dictionary

row_to_tag={}
#counting number of active rows

#class for storing data

for x in range(9,50):
row_no = x
eqpt_area = sheet['G'+str(x)].value
## eqpt_name = sheet['F'+str(x)].value
eqpt_tag = sheet['E'+str(x)].value

#print(temp)
if eqpt_area == None:
break
element.append(eqpt_area)
row_to_tag[row_no]=eqpt_tag

print('\n')
print("Row to Tag dic:",row_to_tag)
print("\n")
print(f"Element:{element}")
print("\n Type of Element:",type(element))
print("Length of element:",len(element))
title=list(sorted(set(element))) #Title Value
print("Title list :",title)
print(type(title))

#DATA PROCESSING

#Count dulicate
sort_element=sorted(element) #element sort
print("Sorted ELEMENT:",sort_element)
##title=list(set(sort_element))
##print("Title element:",title)
len_title=len(title) #length of title
len_sort_element=len(sort_element) #Length of sort element

print("Length of title:",len_title)
print("Length of sort_element:",len_sort_element)
#print("Title list:",title[0])

#Dictionary for duplicate entry

title_duplicate_count={}
eqpt_mapper_wrto_area={}

#print(title_duplicate_count)
for x in range(0,len_title):
count=0
temp_list=[]
for c in range(0,len_sort_element):
if title[x] == sort_element[c]:
count += 1
temp_list.insert(count-1,sheet['F'+str(c+9)].value)

title_duplicate_count[title[x]]=count
eqpt_mapper_wrto_area[title[x]]=temp_list

print("Count Dictionary:",title_duplicate_count)
print("\n\n Mapper Dictionary:",eqpt_mapper_wrto_area)
for keys,value in eqpt_mapper_wrto_area.items():
print(f'\n{keys}:{value}')

#calculation function
def round_of(current):
rounded=math.ceil(current/10.0)*10
return rounded

def round_of_thousand(value):
r = math.ceil(value/1000)*1000
return r

# function for duty factor

def duty_fac(duty_type):
if duty_type == 'C':
return 1
elif duty_type == 'I':
return 0.2
elif duty_type == 'S':
return 0

total_demand = 0
for g in range(9,len_sort_element+9):
row_no = g
eqpt_area = sheet['G'+str(g)].value
eqpt_name = sheet['F'+str(g)].value
eqpt_tag = sheet['E'+str(g)].value
 voltage = sheet['I'+str(g)].value
voltage=round(voltage)
eqpt_rating = sheet['J'+str(g)].value
eqpt_rating = round(eqpt_rating,2)
bkW_rating = sheet['J'+str(g)].value
bkW_rating = round(bkW_rating,2)
current = sheet['M'+str(g)].value
current=round(current,2)
starting_method = sheet['N'+str(g)].value
duty_type = sheet['O'+str(g)].value
switchgear = sheet['P'+str(g)].value
power_factor = sheet['Q'+str(g)].value
power_factor = round(power_factor,3)
efficiency = sheet['S'+str(g)].value
efficiency = round(efficiency,3)
feeder_rating = round_of(current)
duty_factor = duty_fac(duty_type)
load_factor = round(bkW_rating/eqpt_rating)
starting_sequence = sheet['T'+str(g)].value
LM_starting_method = sheet['U'+str(g)].value
net_demand = round((eqpt_rating * load_factor * duty_factor)/(power_factor))

row_to_tag[row_no] =
database(row_no,eqpt_area,eqpt_name,eqpt_tag,voltage,eqpt_rating,bkW_rating,

current,feeder_rating,starting_method,duty_type,switchgear,duty_factor,

load_factor,power_factor,efficiency,starting_sequence,LM_starting_method,net_demand
)

row_to_tag[row_no].display()
total_demand += row_to_tag[row_no].net_demand
print("\n Total_demand =", total_demand) # We get total demand
print("\n")

margin = round(total_demand * 1.1)

proposed_transformer = round_of_thousand(margin) #Transformer value with margin
print('Margin:',margin)
print('set_transformer:',proposed_transformer) # We get proposed transformer Rating

def starting_kVA(s_type,V,I):
if s_type == 'DOL':
x_time = 6.6
elif s_type == 'VFD':
x_time = 2.5
motor_starting_kVA = math.ceil(((math.sqrt(3)*V*I*x_time)/(1000)))
return motor_starting_kVA

#LARGEST MOTOR FINDING

tag_list_largest_motor = list(largest_motor.keys()) # we get first sequence tags as
list
print('tag list of largest motor :',tag_list_largest_motor)
largest_motor_tag={}

for j in range(0,len(tag_list_largest_motor)):
 Temp = largest_motor[tag_list_largest_motor[j]]
start_type = Temp[0]
Potential = Temp[1]
Ampere = Temp[2]
largest_kVA = starting_kVA(start_type,Potential,Ampere)
largest_motor_tag[tag_list_largest_motor[j]] = largest_kVA # we get
{tag:rating,'fds,:10390,'df':87238}
print("Largest_motor_tag_list :",largest_motor_tag)

def value_to_key(dics,value_of_dic):
for key,value in dics.items():
if value_of_dic == value:
return key

#L_Motor_tag = max(largest_motor_tag.keys()) #we get largest motor tag

lmotor_value = max(largest_motor_tag.values())

#The above line is set comprehension for more information

https://www.almabetter.com/bytes/tutorials/python/set-comprehension-in-python

L_Motor_tag = value_to_key(largest_motor_tag,lmotor_value)

print("Largest motor tag ",L_Motor_tag,"Largest Motor value:",lmotor_value)

print("Type of motor tag :",type(L_Motor_tag),'type of motor
value :',type(lmotor_value))

Largest_motor_starting_kVA_consumption = lmotor_value #we get largest starting

kva value

L_motor_row = value_to_key(row_to_tag,L_Motor_tag)

print('L motor Row number :',L_motor_row)

Required_Transformer_Rating = total_demand + Largest_motor_starting_kVA_consumption

- row_to_tag[L_motor_row].net_demand

cyclic_loading = proposed_transformer * 1.5

while cyclic_loading <= Required_Transformer_Rating:

proposed_transformer += 1000
cyclic_loading = proposed_transformer * 1.5
print("Proposed Transformer rating:",proposed_transformer)
print("cyclic loading value:",cyclic_loading)

# TO WRITE IN TRANSFORMER SIZING

#path for TF sizing excel

Write_path = "D:\\Productivity\\Workspace\\Load_list_tf_sizing\\UAT Transformer
sizing.xlsx"

wr_workbook=load_workbook(Write_path)
#select the required sheet from excel
wr_sheet_name='UAT'
wr_sheet=wr_workbook[wr_sheet_name]
# Writing the value in write file
print("Title 0 :",title[0])

initial_row=7

#The below function give the respective equipment Based on Area

def fetch(rows,title_index):
temp_list=eqpt_mapper_wrto_area[title[title_index]]
for x in range(1,len(temp_list)+1):
if rows == x:
return temp_list[x-1]

#Function for working and standby

def working_standby(row_num,read_row):
D_value = 0
E_value = 0
if(row_to_tag[read_row].duty_type == 'C'):
D_value = 1
wr_sheet['D'+str(row_num)]= 1
wr_sheet['E'+str(row_num)]= 0
if(row_to_tag[read_row].duty_type == 'S'):
E_value = 1
wr_sheet['D'+str(row_num)]= 0
wr_sheet['E'+str(row_num)]= 1

#Function for Bus entry

def bus(row_num,read_row):
if(row_to_tag[read_row].switchgear == 1):
wr_sheet['G'+str(row_num)]= 1
wr_sheet['H'+str(row_num)]= 0
if(row_to_tag[read_row].switchgear == 2):
wr_sheet['G'+str(row_num)]= 0
wr_sheet['H'+str(row_num)]= 1

#Function for kw,current,V,Load type,Duty_cycle,PF,Efficiency entry

def total_entry(row_num,read_row):
wr_sheet['J'+str(row_num)]= row_to_tag[read_row].eqpt_rating
wr_sheet['I'+str(row_num)]= row_to_tag[read_row].bkW_rating
wr_sheet['L'+str(row_num)]= row_to_tag[read_row].current
wr_sheet['M'+str(row_num)]= row_to_tag[read_row].feeder_rating
wr_sheet['N'+str(row_num)]= row_to_tag[read_row].voltage
wr_sheet['O'+str(row_num)]= row_to_tag[read_row].starting_method
wr_sheet['R'+str(row_num)]= row_to_tag[read_row].duty_type
wr_sheet['S'+str(row_num)]= row_to_tag[read_row].duty_factor
wr_sheet['T'+str(row_num)]= row_to_tag[read_row].load_factor
wr_sheet['U'+str(row_num)]= row_to_tag[read_row].power_factor
wr_sheet['V'+str(row_num)]= row_to_tag[read_row].efficiency
wr_sheet['C'+str(row_num)]= row_to_tag[read_row].eqpt_tag

def AB_bus(row_num,read_row):
if(row_to_tag[read_row].switchgear == 1):
wr_sheet['Q'+str(row_num)]= 'A'
wr_sheet['W'+str(row_num)] = row_to_tag[read_row].net_demand
wr_sheet['Y'+str(row_num)] = row_to_tag[read_row].net_demand
#return row_to_tag[read_row].net_demand
 elif(row_to_tag[read_row].switchgear == 2):
wr_sheet['Q'+str(row_num)]= 'B'
wr_sheet['X'+str(row_num)] = row_to_tag[read_row].net_demand
wr_sheet['Y'+str(row_num)] = row_to_tag[read_row].net_demand
#return row_to_tag[read_row].net_demand

def write():
global current_row
current_row =7
global read_row
read_row =9
global total_demand
total_demand =0
S_no = 1
for total_iterate in range(1,len(title)+1):
if total_iterate != 1:
current_row +=1
wr_sheet['B'+str(current_row)]=title[total_iterate-1]
wr_sheet['B'+str(current_row)].font = Font(bold=True)
for rows in range(1,title_duplicate_count[title[total_iterate-1]]+1):
current_row +=1
if rows != 1:
read_row +=1
#wr_sheet.insert_rows(idx=current_row)
#two writing method
wr_sheet['A'+str(current_row)] = S_no
S_no += 1
wr_sheet['B'+str(current_row)]=fetch(rows,total_iterate-1)
##sheet['C10']=int(input("Enter the Value to feed:"))
working_standby(current_row,read_row)
##sheet.cell(row=11, column=3, value=3.14) # Assign 3.14 to cell C11
bus(current_row,read_row)
total_entry(current_row,read_row)
#total_demand += AB_bus(current_row,read_row)

#print('Total demand:',total_demand)
margin = round(total_demand * 1.1)
Req_transformer = round_of(margin)
print('Margin:',margin)
print('set_transformer:',Req_transformer)

write()
# We can only able to save the loaded workbook
wr_workbook.save(Write_path)
