HARAMAYA UNIVERSITY ECEg 3071: Applied Electronics II

HARAMAYA INSTITUTE OF TECHNOLOGY Class Year- 3rd, Semester- II, Year 2023/24
SCHOOL OF ELECTRICAL AND COMPUTER ENGINEERING

Applied Electronics II (ECEg 3071) Group Assignment – II

Instructor: Mr.Biruk Simaani(MSc.) Group members: Four
Maximum points: 10%
Submission Date: Final Exam Schedule
---------------------------------------------------------------------------------------------------------------------

Instruction: Do the following questions neatly, show all the necessary steps.

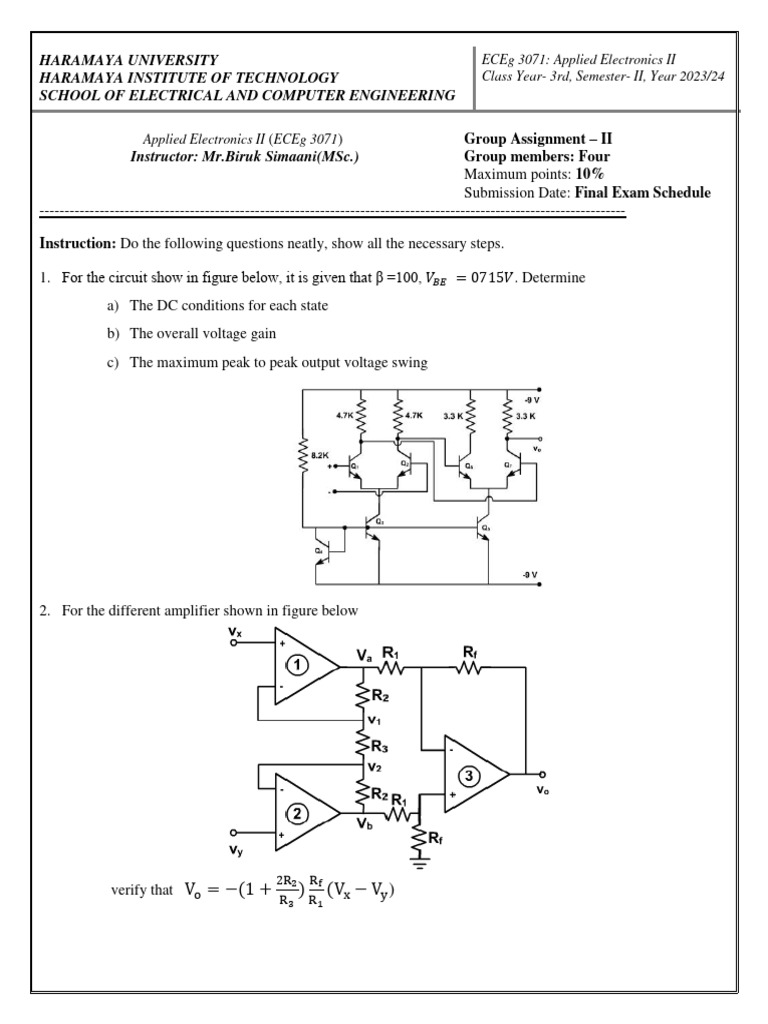

1. For the circuit show in figure below, it is given that β =100, 𝑉𝐵𝐸 = 0715𝑉. Determine
a) The DC conditions for each state
b) The overall voltage gain
c) The maximum peak to peak output voltage swing

2. For the different amplifier shown in figure below

2R2 Rf
verify that Vo = −(1 + ) (Vx − Vy )
R3 R1
HARAMAYA UNIVERSITY ECEg 3071: Applied Electronics II
HARAMAYA INSTITUTE OF TECHNOLOGY Class Year- 3rd, Semester- II, Year 2023/24
SCHOOL OF ELECTRICAL AND COMPUTER ENGINEERING

3. Characterize the astable mulitvibrator shown in figure below and establish the frequency range.

𝑉𝑓 1
4. For the network shown in Figure below prove that = 1
𝑉𝑜 3+𝑗(𝜔𝑅𝐶−𝜔𝑅𝐶)

This network is used with an OPAMP to form an oscillator. Show that the frequency of oscillation is
1
𝑓 = 2𝜋𝑅𝐶 and the gain must exceed 3.

5. Write a comprehensive note on principle of operation, construction and frequency response analysis of
Single and Double Tuned Voltage Amplifiers.
