Version 7.2.

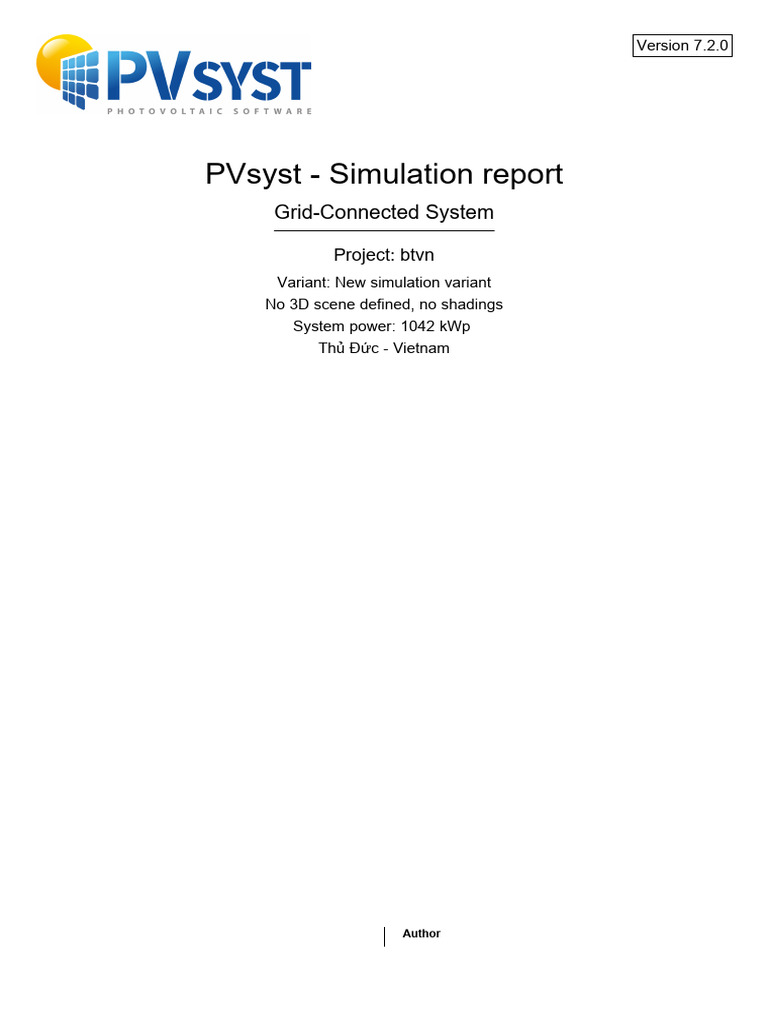

PVsyst - Simulation report

Grid-Connected System

Project: btvn
Variant: New simulation variant
No 3D scene defined, no shadings
System power: 1042 kWp
Thủ Đức - Vietnam

Author
 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

Project summary
Geographical Site Situation Project settings
Thủ Đức Latitude 10.85 °N Albedo 0.20
Vietnam Longitude 106.77 °E
Altitude 29 m
Time zone UTC+7

Meteo data
trường Đại Học Sư Phạm Kĩ Thuật
Meteonorm 8.0 (1996-2015), Sat=100% - Synthetic

System summary
Grid-Connected System No 3D scene defined, no shadings

PV Field Orientation Near Shadings User's needs

Fixed plane No Shadings Monthly values
Tilt/Azimuth 14 / 0 °

System information
PV Array Inverters
Nb. of modules 3360 units Nb. of units 8 units
Pnom total 1042 kWp Pnom total 800 kWac
Pnom ratio 1.302

Results summary
Produced Energy 1546 MWh/year Specific production 1484 kWh/kWp/year Perf. Ratio PR 82.70 %
Solar Fraction SF 48.30 %

Table of contents
Project and results summary 2
General parameters, PV Array Characteristics, System losses 3
Main results 4
Loss diagram 5
Special graphs 6
P50 - P90 evaluation 7

11/03/24 PVsyst Licensed to Page 2/7

 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

General parameters
Grid-Connected System No 3D scene defined, no shadings

PV Field Orientation
Orientation Sheds configuration Models used
Fixed plane No 3D scene defined Transposition Perez
Tilt/Azimuth 14 / 0 ° Diffuse Perez, Meteonorm
Circumsolar separate

Horizon Near Shadings User's needs

Free Horizon No Shadings Monthly values

Jan. Feb. Mar. Apr. May June July Aug. Sep. Oct. Nov. Dec. Year
1.03 0.93 1.03 1.00 1.03 1.00 1.03 1.03 1.00 1.03 1.00 1.03 12.2 MWh/mth

PV Array Characteristics
PV module Inverter
Manufacturer AE Solar Manufacturer SMA
Model AE 310M6-60 (1500) Model Sunny Highpower Peak 3 - SHP100-20
(Original PVsyst database) (Original PVsyst database)
Unit Nom. Power 310 Wp Unit Nom. Power 100 kWac
Number of PV modules 3360 units Number of inverters 8 units
Nominal (STC) 1042 kWp Total power 800 kWac
Modules 160 Strings x 21 In series Operating voltage 590-1000 V
At operating cond. (50°C) Pnom ratio (DC:AC) 1.30
Pmpp 948 kWp
U mpp 636 V
I mpp 1489 A

Total PV power Total inverter power

Nominal (STC) 1042 kWp Total power 800 kWac
Total 3360 modules Nb. of inverters 8 units
Module area 5500 m² Pnom ratio 1.30
Cell area 4953 m²

Array losses
Thermal Loss factor DC wiring losses Module Quality Loss
Module temperature according to irradiance Global array res. 7.2 mΩ Loss Fraction -0.4 %
Uc (const) 20.0 W/m²K Loss Fraction 1.5 % at STC
Uv (wind) 0.0 W/m²K/m/s

Module mismatch losses Strings Mismatch loss IAM loss factor

Loss Fraction 2.0 % at MPP Loss Fraction 0.1 % ASHRAE Param: IAM = 1 - bo(1/cosi -1)
bo Param. 0.05

11/03/24 PVsyst Licensed to Page 3/7

 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

Main results
System Production
Produced Energy 1546 MWh/year Specific production 1484 kWh/kWp/year
Performance Ratio PR 82.70 %
Solar Fraction SF 48.30 %

Normalized productions (per installed kWp) Performance Ratio PR

Balances and main results

GlobHor DiffHor T_Amb GlobInc GlobEff EArray E_User E_Solar E_Grid EFrGrid
kWh/m² kWh/m² °C kWh/m² kWh/m² MWh MWh MWh MWh MWh
January 137.5 71.85 26.44 151.7 147.8 133.4 1.033 0.485 131.1 0.549
February 138.4 69.47 27.20 148.4 144.9 129.3 0.933 0.447 127.0 0.486
March 163.9 81.30 28.51 167.8 163.7 144.8 1.033 0.507 142.3 0.526
April 174.8 80.92 29.14 170.7 165.8 146.8 1.000 0.497 144.3 0.503
May 166.7 80.76 28.87 156.5 151.5 135.3 1.033 0.517 133.0 0.517
June 156.3 78.68 27.60 143.8 138.8 126.0 1.000 0.500 123.8 0.500
July 157.0 83.61 27.57 145.9 140.8 128.2 1.033 0.517 126.0 0.517
August 153.6 85.33 27.56 147.5 142.9 129.4 1.033 0.515 127.1 0.518
September 133.0 78.60 26.88 132.7 128.7 116.4 1.000 0.482 114.3 0.518
October 163.3 78.45 27.07 172.5 168.3 150.1 1.033 0.482 147.6 0.551
November 116.1 76.54 26.70 123.9 120.3 109.9 1.000 0.458 108.0 0.542
December 119.9 67.35 26.62 132.6 129.1 117.0 1.033 0.469 115.0 0.564
Year 1780.5 932.87 27.52 1793.9 1742.5 1566.6 12.167 5.876 1539.5 6.290

Legends
GlobHor Global horizontal irradiation EArray Effective energy at the output of the array
DiffHor Horizontal diffuse irradiation E_User Energy supplied to the user
T_Amb Ambient Temperature E_Solar Energy from the sun
GlobInc Global incident in coll. plane E_Grid Energy injected into grid
GlobEff Effective Global, corr. for IAM and shadings EFrGrid Energy from the grid

11/03/24 PVsyst Licensed to Page 4/7

 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

Loss diagram
1781 kWh/m² Global horizontal irradiation
+0.8% Global incident in coll. plane

-2.87% IAM factor on global

1743 kWh/m² * 5500 m² coll. Effective irradiation on collectors

efficiency at STC = 19.05% PV conversion

1826 MWh Array nominal energy (at STC effic.)

-0.74% PV loss due to irradiance level

-10.90% PV loss due to temperature

+0.40% Module quality loss

-2.10% Mismatch loss, modules and strings

-1.03% Ohmic wiring loss

1571 MWh Array virtual energy at MPP
-1.34% Inverter Loss during operation (efficiency)
-0.17% Inverter Loss over nominal inv. power
0.00% Inverter Loss due to max. input current
0.00% Inverter Loss over nominal inv. voltage
0.00% Inverter Loss due to power threshold
-0.09% Inverter Loss due to voltage threshold
grid
-0.01% Night consumption
consumption
1545 MWh Available Energy at Inverter Output

6 6 1539 MWh Energy injected into grid

to user to user to grid

from grid from solar

11/03/24 PVsyst Licensed to Page 5/7

 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

Special graphs
Daily Input/Output diagram

System Output Power Distribution

11/03/24 PVsyst Licensed to Page 6/7

 Project: btvn
Variant: New simulation variant

PVsyst V7.2.0
VC0, Simulation date:
11/03/24 14:37
with v7.2.0

P50 - P90 evaluation

Meteo data Simulation and parameters uncertainties
Meteo data Meteonorm
source 8.0 (1996-2015), Sat=100% PV module modelling/parameters 1.0 %
Kind Not defined Inverter efficiency uncertainty 0.5 %
Year-to-year variability(Variance) 0.5 % Soiling and mismatch uncertainties 1.0 %
Specified Deviation Degradation uncertainty 1.0 %

Global variability (meteo + system) Annual production probability

Variability (Quadratic sum) 1.9 % Variability 28.9 MWh
P50 1545.6 MWh
P90 1508.5 MWh
P95 1498.0 MWh

Probability distribution

11/03/24 PVsyst Licensed to Page 7/7
