Round Diffuser

diffuser series

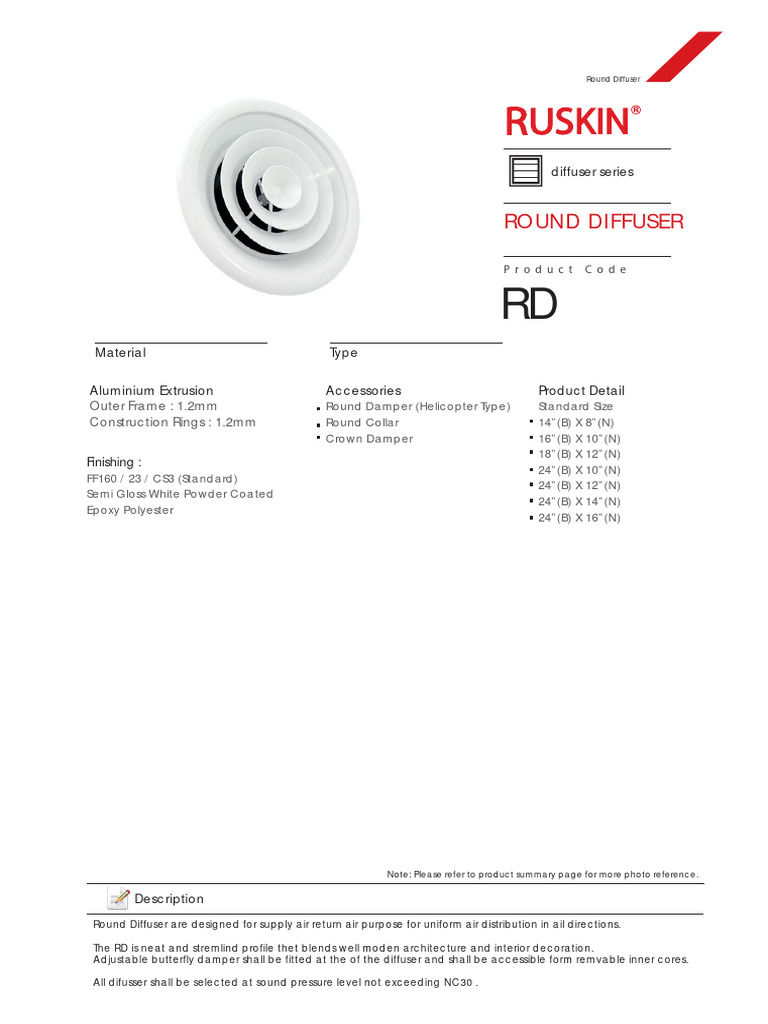

ROUND DIFFUSER

P r o d u c t C o d e

RD
Material Type

Aluminium Extrusion Accessories Product Detail

Outer Frame : 1.2mm Round Damper (Helicopter Type) Standard Size
Construction Rings : 1.2mm Round Collar 14”(B) X 8”(N)
Crown Damper 16”(B) X 10”(N)
18”(B) X 12”(N)
Finishing :
24”(B) X 10”(N)
FF160 / 23 / CS3 (Standard)
24”(B) X 12”(N)
Semi Gloss White Powder Coated
24”(B) X 14”(N)
Epoxy Polyester
24”(B) X 16”(N)

Note: Please refer to product summary page for more photo reference.

Description

Round Diffuser are designed for supply air return air purpose for uniform air distribution in ail directions.

The RD is neat and stremlind profile thet blends well moden architecture and interior decoration.
Adjustable butterfly damper shall be fitted at the of the diffuser and shall be accessible form remvable inner cores.

All difusser shall be selected at sound pressure level not exceeding NC30 .
Diffuser
Round Diffuser

Dimensions

FRONT VIEW SIDE VIEW

ISOMETRIC VIEW STANDAED SIZE

Face Size Neck Size

475 (inch) (inch)

14” 8”
̴
̴

16” 10”
̴
̴

18” 12”
̴

24” 10”
̴

235 24” 12”

̴

24” 14”
̴
̴

24” 16”
̴

Right to alterations reserved

is a registered trade mark

copyright RUSKIN 2003 - All Rights Reserved
Diffuser
Round Diffuser

PERFORMANCE DATA

TESTED 2.0 2.5 3.0 3.5 4.0 4.5 5.0 6.0 7.0
VELOCITY (m/s)
NECK NECK
Static Pressure
SIZE AREA 6.8 11.0 15.9 21.2 26.8 34.6 41.5 62.2 81.5
(PA)
(mm) (m²)
Velocity
2.4 3.9 5.4 7.3 9.8 12.2 15.4 22.4 30.5
Pressure (PA)

Airflow (l/s) 35 44 53 62 71 79 88 106 124

150 0.0177 Throw(m) 1.2 1.5 1.5 1.8 2.1 2.1 2.4 2.7 2.7
̴

NC - 15 18 24 28 32 34 40 45

Airflow (l/s) 63 79 94 110 126 141 157 188 220

200 0.0314 Throw(m) 1.5 1.8 1.8 2.1 2.4 2.7 2.7 3.3 3.6
̴

NC - 16 20 25 30 32 36 41 45
Airflow (l/s) 98 123 147 172 196 221 245 294 344
250 0.0491 Throw(m) 1.8 2.1 2.4 2.7 2.7 3.1 3.3 3.6 4.2
̴

NC - 16 22 27 30 33 36 42 46
Airflow (l/s) 141 177 212 247 283 318 353 424 495

300 0.0707 Throw(m) 1.8 2.4 2.7 3.1 3.3 3.6 3.9 4.5 4.8
̴

NC 11 16 22 26 30 34 38 43 48

Airflow (l/s) 192 240 289 337 385 433 481 577 673
350 0.0962 Throw(m) 2.1 2.4 3.1 3.4 3.7 4.2 4.5 5.1 5.7
̴

NC 11 18 24 26 30 34 38 43 47

Airflow (l/s) 251 314 377 440 503 565 628 754 879
400 0.1257 Throw(m) 2.4 2.7 3.3 3.6 4.2 4.5 5.1 6.1 6.4
̴

NC 12 18 23 27 31 35 38 44 48

Right to alterations reserved

is a registered trade mark

copyright RUSKIN 2003 - All Rights Reserved
Diffuser
Round Diffuser

TYPE OF ROUND DIFFUSER

Round Diffuser

Circular Round Diffuser

Right to alterations reserved

is a registered trade mark

copyright RUSKIN 2003 - All Rights Reserved
Diffuser
Round Diffuser

ACCESSORIES

Opposed Blade Damper (Fen)

Opposed Blade Damper (Radia)

Opposed Blade Damper (Butterfly)

Right to alterations reserved

is a registered trade mark

copyright RUSKIN 2003 - All Rights Reserved
Diffuser
Round Diffuser

ORDER DETAILS

R - X - X - X - X -X

MATERIAL ACCESSORIES
AL = Aluminium RD = Round Damper
RC = Round Collar

PRODUCT
RD = Round Diffuser

NECK
NORMINAL SIZE N = Neck Size

DRDER SAMPLE

STANDARD

MAKE : RUSKIN

TYPE : R-AL-RD-N-(N)-RD

QUANTITY : 1 NOS
