Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted
1 September 26, 2022

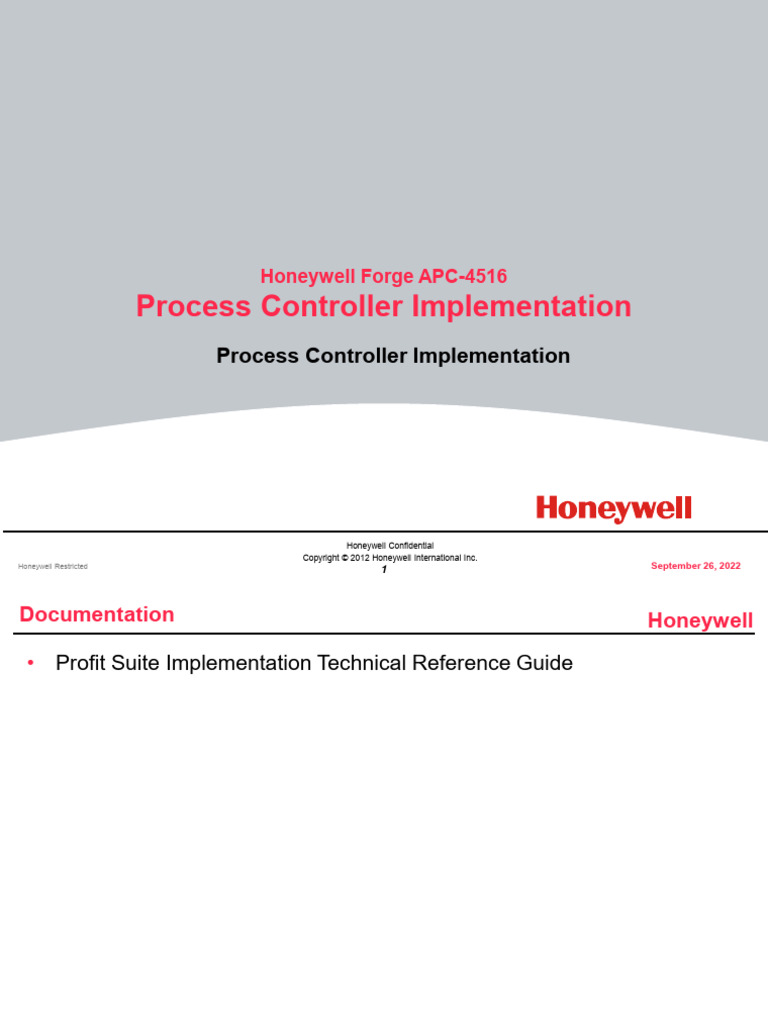

Documentation Honeywell
• Profit Suite Implementation Technical Reference Guide
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 2 September 26, 2022
Interfacing Choice Honeywell
Honeywell supports both Physical and Virtual nodes for hosting Profit Suite
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
3 September 26, 2022
Flavors of Implementation Honeywell
• We will consider the following
– Four Implementation Options:
• Implement on EAS node using Experion OPC Server
• Implement on EAS node using TPN Server on AppNode
– All Experion Releases
– Mixed system implementation (TPS and Experion PKS)
• Implement on existing server grade AppNode using TPN Server
• Implement on non Honeywell DCS
– How to build the Watchdog (TPS or Experion PKS)
• TPS – Watchdog AM custom point
• Experion PKS – Watchdog Controller Module Point
• Non Honeywell DCS – No Watchdog Point
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 4 September 26, 2022
Implement on EAS node using TPN server Honeywell
• Using interface points
– Build interface points as needed if they do not exist
– Build controller in PSRS using HW_LCNInterface… BLCs
– Make sure CL Server is installed on AppNode
– Access R300 DVD from AppNode and
• Execute \Installations\ProfitController\vcredist_x86.exe
– This install MS files needed for the R300 Proxy to execute on the
AppNode
– From the AppNode execute AllowRemoteURTAccess.exe
• Needed for DCOM security reasons
– Copy URT_Proxy.exe in EAS Bin folder to:
• \HWIAC\Databases\CLFiles
• Rename to RC_Proxy.exe on AppNode
– Copy PSApplications.xml in EAS Config folder to \Users\HiSpec\Config
• Edit PSApplications.xml (see next slide)
– Recommended: Create a new user on the EAS node (TPSApp) with same
credentials as the local user on AppNode
– Activate controller from Master Controller point
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 5 September 26, 2022
Edit PSApplications.xml Honeywell
• File is found in C:\Users\HiSpec\Config
• Use Notepad or XML Editor
• Inline instructions provided
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 6 September 26, 2022
Implement on AppNode using TPN server Honeywell
• Using interface points
– Build interface points if they do not exist
– Build controller in PSRS using HW_LCNInterface… BLCs
– Make sure CL Server is installed on AppNode
• If interface points are not used then there is no need for the CL Server
– Copy URT_Proxy.exe in Bin folder to:
• \HWIAC\Databases\CLFiles
• Rename to RC_Proxy.exe
– Activate controller from Master Controller point
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 7 September 26, 2022
Implement on AppNode using TPN server Honeywell
• Without the use of interface points
– Build controller in PSRS using HW_LCN… BLCs
– Activate controller from URT Explorer
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 8 September 26, 2022
Controller scheduling – two options Honeywell
• Use Master Control point to schedule controller
– Via Proxy
– CL server must be installed
– Data item urtPeriodicExternalDemand = True
• Use of Self-scheduling:
– Set data item urtPeriodicExternalDemand = False
– Make sure urtInterval has a non negative value
• E.g. 00:00:15:000 schedules the controller every 15 seconds
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 9 September 26, 2022
Implement on EAS node using Experion PKS OPC server Honeywell
– Build controller in PSRS using HW_EPKS… BLCs
– Activate controller from URT Explorer
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 10 September 26, 2022
TPN Server Considerations Honeywell
• Private TPN Server
– Included in Base Software
– Use with Honeywell DCS System
– May have to install if not already installed
• Public TPN Server
– Additional cost for license
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 11 September 26, 2022
TPS Interface Points Honeywell
• Interface points generated in R205.1
– New interface points may be added using traditional method of generating
.EB file in PDS Runtime Configuration
– Not all CDS parameters on interface points are supported
• BLC Templates connect to LCN interface points
– The following naming convention has been used to identify these templates
HW_LCNInterface…
• e.g.. HW_LCNInterface_CV_PV_TPNServer
• These points are accessed through TPN Server (Hci.TPNServer) on an
APP node.
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 12 September 26, 2022
Non Honeywell Interface DCS Points Honeywell
• For non-Honeywell systems we were required to implement all the
following functions:
– MV Mode shedding - This is to put the MV in shed mode, when the
controller or individual MV is turned OFF and vice versa.
– Watchdog - This is for communication check
– MV SP tracking - For bump less data transfer
– The DCS graphics
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
13 September 26, 2022
TPS Watchdog Point1 Honeywell
– Watchdog point is an AM Custom point – (ControllerName_WD)
• PSRS generates .EB & .EL file for the watchdog point
• Point should reside in APP Node where TPN Server is running
• CDS Package WD_CDS attached to point
• Compile parameter list WD_PL
• RMPC_WD.AO is linked to the point
– Platform writes to CDS parameters
• Platform enables the CL to execute by setting the ENABLED parameter
• Broadcasts a pulse to the PULSE parameter to indicate that the platform
is alive
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 14 September 26, 2022
TPS Watchdog Point2 Honeywell
– If the platform quits broadcasting for a time period longer then the value
stored in the DELAYTIM parameter
• CL execution will shed the downstream controllers listed in the
DSC_PTS array
• Shedding execution will set the controllers to the shed modes defined in
the SHED_MA (mode attribute) and SHED_MD (mode) arrays
• Values in the CTRL_MA and CTRL_MD CDS arrays are used to
determine if the controllers are controllable
– If the controller is not controllable (in RMPCT control), the controller will not
be shed since it is probably under operator control already
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 15 September 26, 2022
TPS Watchdog Point3 Honeywell
• Watchdog Point Parameters
– OPC Server: OPC server the watchdog connects to.
– Watchdog Point: ControllerName_WD+WatchdogIndex
• Mixed mode
– Pulse Param: URT platform broadcasts a pulse to the LCN watchdog point -
PULSE
– Delay Time Param – shed all downstream controllers
• Should watchdog point lose the connection with the platform for longer
than a period of time DELAYTIME - DELAYTIM
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 16 September 26, 2022
TPS Watchdog Point4 Honeywell
– Interval/Interval Offset – watchdog in the platform is individually scheduled
and sends out a pulse at every interval
• Interval is the scheduler’s execution interval.
• Watchdog point will wait for “interval + intervalOffset” for the next pulse
to come.
• Watchdog interval default is 0.8 * controller’s execution interval, and is
clamped between 1 second and 2000 seconds.
• Watchdog interval offset default is 3 * watchdog interval and is clamped
between 3 seconds and 6000 seconds.
• In the example shown, the controller execution interval is 60 seconds
and thus default watchdog interval and default watchdog interval offset
are 48 seconds and 144 seconds.
• Watchdog interval cannot be greater than 0.8 * controller’s execution
interval and must be between 1 and 2000 seconds. Watchdog interval
offset must be between 3 and 6000 seconds.
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 17 September 26, 2022
TPS Watchdog Point5 Honeywell
• TDC3000 Watchdog installation procedure
– Use the Profit Controller Watchdog.lcn file on the installation disk to mount
the Emulated Bernoulli disk, in order to copy the files on the HM
• Create the following directories on the LCN side if not existing already:
– NET>AO, NET>CDSG, NET>PL
– Transfer the following files to the HM:
• RMPC_WD.AO to the NET>AO directory
• WD_CDS.CL NET>CDSG directory
• PL>BLC_PL.CL to the NET>PL directory
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 18 September 26, 2022
TPS Watchdog Point6 Honeywell
• Compile the following files:
– WD_CDS.CL
– BLC_PL.CL
• From the command prompt run:
• EC NET>WDIR>COMPILE.EC NET
– Build the watchdog point from the ControllerName_WD.EB file.
– Link the CL code to the watchdog point
• From the command prompt run:
• EC NET>WDIR>ControllerName_WD.EC NET
– Activate the watchdog point ControllerName_WD
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 19 September 26, 2022
TPS Watchdog Point7 Honeywell
• LCN Message Summary
– Messages generated when then controller is shed by the watchdog
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 20 September 26, 2022
Building a TPS Controller6 Honeywell
• Dialog box indicating a new Controller platform has been created
– Clicking OK will open up PSRS to complete the controller configuration
• Remainder of the controller configuration is the same as the EPKS
controller
Honeywell Confidential
Copyright © 2012 Honeywell International Inc.
Honeywell Restricted 21 September 26, 2022
