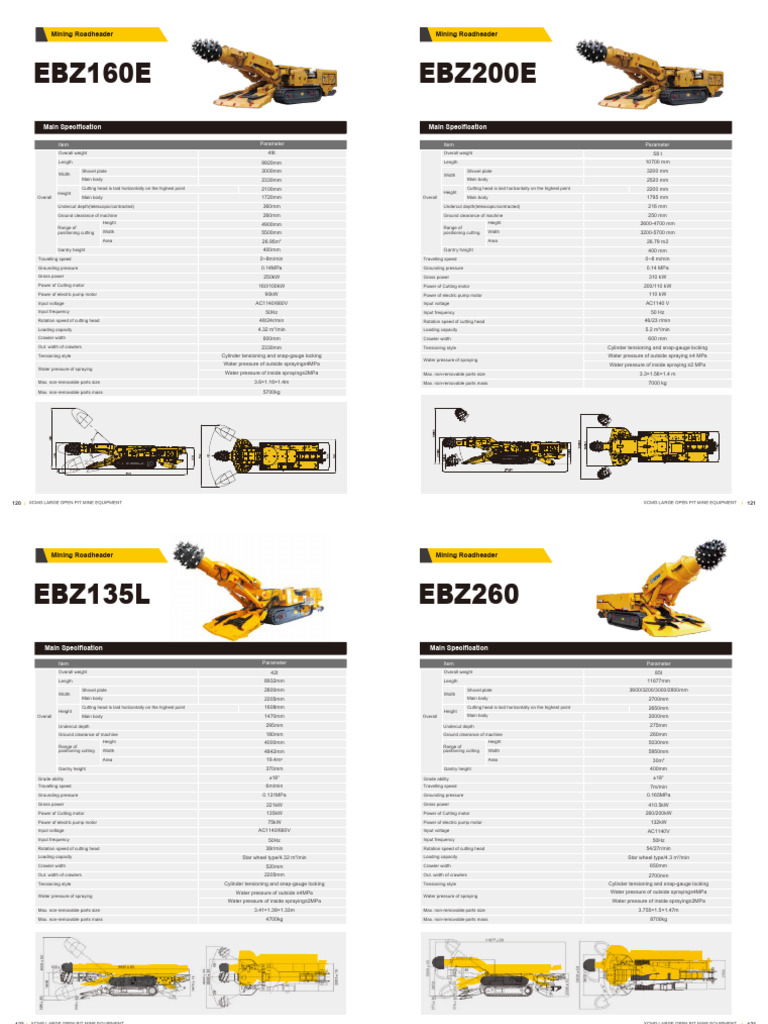

Mining Roadheader Mining Roadheader

EBZ160E EBZ200E
Main Specification Main Specification

Item Ｐａｒａｍｅｔｅｒ Item Ｐａｒａｍｅｔｅｒ

Overall weight 49t Overall weight 58 t
Length 9920mm Length 10700 mm
Shovel plate 3000mm Shovel plate 3200 mm
Width Width
Main body 2330mm Main body 2520 mm
Cutting head is laid horizontally on the highest point 2100mm Cutting head is laid horizontally on the highest point 2200 mm
Height Height
Overall Main body 1720mm Overall Main body 1795 mm
Undercut depth(telescopic/contracted) 360mm Undercut depth(telescopic/contracted) 216 mm
Ground clearance of machine 260mm Ground clearance of machine 250 mm
Height 4900mm Height 2600-4700 mm
Range of Range of
positioning cutting Width 5500mm positioning cutting Width 3200-5700 mm
Area 26.95m 2 Area 26.79 m2
Gantry height 400mm Gantry height 400 mm
Travelling speed 0~8m/min Travelling speed 0~8 m/min
Grounding pressure 0.14MPa Grounding pressure 0.14 MPa
Gross power 250kW Gross power 310 kW
Power of Cutting motor 160/100kW Power of Cutting motor 200/110 kW
Power of electric pump motor 90kW Power of electric pump motor 110 kW
Input voltage AC1140/660V Input voltage AC1140 V
Input frequency 50Hz Input frequency 50 Hz
Rotation speed of cutting head 48/24r/min Rotation speed of cutting head 46/23 r/min
Loading capacity 4.32 m3/min Loading capacity 5.2 m³/min
Crawler width 600mm Crawler width 600 mm
Out. width of crawlers 2330mm Tensioning style Cylinder tensioning and snap-gauge locking
Tensioning style Cylinder tensioning and snap-gauge locking Water pressure of outside spraying ≥4 MPa
Water pressure of spraying
Water pressure of outside spraying≥4MPa Water pressure of inside spraying ≥2 MPa
Water pressure of spraying
Water pressure of inside spraying≥2MPa Max. non-removable parts size 3.3×1.56×1.4 m
Max. non-removable parts size 3.6×1.16×1.4m Max. non-removable parts mass 7000 kg
Max. non-removable parts mass 5700kg

120 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 121
 Mining Roadheader Mining Roadheader

EBZ135L EBZ260
Main Specification Main Specification

Item Ｐａｒａｍｅｔｅｒ Item Ｐａｒａｍｅｔｅｒ

Overall weight 42t Overall weight 85t
Length 8932mm Length 11677mm
Shovel plate 2800mm Shovel plate 3600/3200/3000/2800mm
Width Width
Main body 2205mm Main body 2700mm
Cutting head is laid horizontally on the highest point 1608mm Cutting head is laid horizontally on the highest point 2650mm
Height Height
Overall Main body 1470mm Overall Main body 2000mm
Undercut depth 295mm Undercut depth 275mm
Ground clearance of machine 180mm Ground clearance of machine 260mm
Height 4000mm Height 5030mm
Range of Range of
positioning cutting Width 4842mm positioning cutting Width 5950mm
Area 19.4m 2 Area 30m2
Gantry height 370mm Gantry height 400mm
Grade ability ±18° Grade ability ±18°
Travelling speed 6m/min Travelling speed 7m/min
Grounding pressure 0.131MPa Grounding pressure 0.165MPa
Gross power 221kW Gross power 410.5kW
Power of Cutting motor 135kW Power of Cutting motor 260/200kW
Power of electric pump motor 75kW Power of electric pump motor 132kW
Input voltage AC1140/660V Input voltage AC1140V
Input frequency 50Hz Input frequency 50Hz
Rotation speed of cutting head 38r/min Rotation speed of cutting head 54/27r/min
Loading capacity Star wheel type/4.32 m3/min Loading capacity Star wheel type/4.3 m3/min
Crawler width 520mm Crawler width 650mm
Out. width of crawlers 2205mm Out. width of crawlers 2700mm
Tensioning style Cylinder tensioning and snap-gauge locking Tensioning style Cylinder tensioning and snap-gauge locking
Water pressure of outside ≥4MPa Water pressure of outside spraying≥4MPa
Water pressure of spraying Water pressure of spraying
Water pressure of inside spraying≥2MPa Water pressure of inside spraying≥2MPa
Max. non-removable parts size 3.41×1.38×1.33m Max. non-removable parts size 3.755×1.5×1.47m
Max. non-removable parts mass 4700kg Max. non-removable parts mass 8700kg

122 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 123
 Mining Roadheader Mining Roadheader

EBZ320 EML360
Main Specification Main Specification

Item Ｐａｒａｍｅｔｅｒ Parameters ＥＢＺ２６０Ｍ－２

Overall weight 120t
Length 65000 kg
Length 13000mm
Shovel plate 3800mm Shovel plate width 11790 mm
Width
Main body 3000mm
Cutting head is laid horizontally on the highest point 2890mm Roller width 3300 mm
Height
Overall Main body 2295mm
Undercut depth 250mm Body height 2056 mm

Ground clearance of machine 290mm

Height
Dinting depth 210 mm
5700mm
Range of
positioning cutting Width 7100mm
Ground clearance 205 mm
Area 40.47m2
Gantry height 400mm Cutting height 4650 mm
Grade ability ±18°
Travelling speed 0~6.3/10m/min Cutting width 3300 mm
Grounding pressure 0.165MPa
Gross power 568.5kW Compressive strength ≤50 MPa
Power of Cutting motor 320/240kW
Travel speed 0-18 m/min
Power of electric pump motor 230kW
Input voltage AC1140V
Cutting motor power 2×180 kW
Input frequency 50Hz
Rotation speed of cutting head 54/27r/min Pump station motor power 45 kW
Loading capacity Star wheel type/4.3 m3/min
Crawler width 720mm Gross power 640 kW
Out. width of crawlers 2930mm
Tensioning style Cylinder tensioning and snap-gauge locking Supply voltage AC1140 V 50Hz
Water pressure of outside spraying≥4MPa
Water pressure of spraying Water pressure of spray 4 MPa
Water pressure of inside spraying≥2MPa
Max. non-removable parts size 3.4×1.5×1.7m
Max. non-removable parts mass 10500kg

124 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 125
 Mining Roadheader Mining Roadheader

EBZ160M-2/ EBZ200RM-2/
EBZ200M-2 EBZ230M-2
Main Specification Main Specification

Parameters ＥＢＺ１６０Ｍ－２ ＥＢＺ２００Ｍ－２ Parameters ＥＢＺ２００ＲＭ－２ ＥＢＺ２３０Ｍ－２

Length 10660 mm Length 11470 mm

Body width 3200/2800 mm Body width 3200 mm

Dimension Dimension
Width of shovel plate 2560 mm Width of shovel plate 2700 mm

Max. height of cutting head placed horizontally 2630 mm Max. height of cutting head placed horizontally 2794 mm

Body height 1795 mm Body height 1975 mm

Overall weight 58 t Overall weight 83 t

Suitable roadway height 3400-5060 mm Suitable roadway height 3446-4800 mm

Suitable roadway width 3400-6450 mm Suitable roadway width 4163-6030 mm

Dinting depth 490 mm Dinting depth 225 mm

Ground clearance 250 mm Ground clearance 220 mm

Positioning cutting height 5060 mm Positioning cutting height 3662-4800 mm

Positioning cutting width 6450 mm Positioning cutting width 4200-6040 mm

Whole machine Positioning cutting area 32.6 ㎡ Whole machine Positioning cutting area 14-29 ㎡

Compressive strength ≤70/50 MPa Compressive strength ≤70/60 MPa

Climbability ±18° Climbability ±18°

Travel speed 7 m/min Travel speed 7 m/min

Ground pressure 0.142 MPa Ground pressure 0.15 MPa

Gross power 270 kW 310 kW Gross power 347 kW

Power of cutting motor 160/110 kW 200/110 kW Power of cutting motor 200/150 kW

Power of pump station motor 110 kW Power of pump station motor 132 kW

Supply voltage AC1140/660 V AC1140 V Supply voltage AC1140 V

Drilling diameter Φ28—Φ32 mm Drilling diameter Φ28—Φ32 mm

Suitable drill rod B19/B22 Suitable drill rod B19/B22

Top anchoring clearance 1000-3200 mm Top anchoring clearance 1130-3230 mm

Top anchoring height (from grouond) 2415-3360 mm Top anchoring height (from grouond) 2340-3285 mm
Roof bolter Roof bolter
Top anchoring height (horizontal) 3495-4445 mm Top anchoring height (horizontal) 3425-4375 mm

Side anchoring height (from ground) 1075-2175 mm Side anchoring height (from ground) 1000-2100 mm

Side anchoring height (horizontal) 2155-3220 mm Side anchoring height (horizontal) 2130-3230 mm

Side anchoring width 3840-5800 mm Side anchoring width 3940-5900 mm

Support area 2503×3542 mm Support area 2687×2834 mm

Support Support height (from ground) 3585-4485 mm Support Support height (from ground) 3254-4144 mm

Support height (horizontal) 4215-5075 mm Support height (horizontal) 4105-4965 mm

126 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 127
 Mining Roadheader Mining Roadheader

EBZ260M-2 EBZ260M-2H/
EBZ260M-4H
Main Specification Main Specification

Parameters ＥＢＺ２６０Ｍ－２ Parameters ＥＢＺ２６０Ｍ－２Ｈ ＥＢＺ２６０Ｍ－４Ｈ

Length 11755 mm Length 12500 mm

Body width 3100 mm
Body width 3600/3200 mm
Dimension Dimension Width of shovel plate 3600 mm
Width of shovel plate 2700 mm
Max. height of cutting head placed horizontally 2900 mm
Max. height of cutting head placed horizontally 3054 mm Body height 2500 mm 2850 mm
Body height 2056 mm Overall weight 100 t 105 t
Overall weight 88 t Suitable roadway height 3700-4500 mm 3700-6000 mm
Suitable roadway width 4000-6500 mm
Suitable roadway height 3600-5030 mm
Cutting height 5150 mm
Suitable roadway width 4000-6030 mm
Cutting width 5200 mm
Dinting depth 275 mm
Dinting depth 250 mm
Ground clearance 260 mm Ground clearance 250 mm
Positioning cutting height 5030 mm Gantry height 400 mm

Positioning cutting width 5950 mm Climbability ±16°

Whole machine Whole machine Travel speed 7 m/min

Positioning cutting area 30 ㎡
Ground pressure 0.16 MPa 0.17 MPa
Compressive strength ≤80/60 MPa
Width of crawlers retracted/extended 2700 mm
Climbability ±18° Gross power 392 kW
Travel speed 7 m/min Power of cutting motor 260/200 kW
Ground pressure 0.165 MPa Power of pump station motor 132 kW
Supply voltage AC1140 V
Gross power 392 kW
Rotate speed of cutting head 54/27 r/min
Power of cutting motor 260/200 kW
Loading capacity 4.3 m³/min(star wheel)
Power of pump station motor 132 kW
Transport capacity 5.2 m³/min
Supply voltage AC1140 V Water pressure of spray Outside spray ≥4 MPa, inside spray ≥2 MPa
Drilling diameter Φ28—Φ32 mm Size of the biggest non-removable part （L×W×H） 3300×1500×1600

Suitable drill rod B19/B22 Weight of the biggest non-removable part 9t

Num of drilling rigs 2 4
Top anchoring clearance 1200-3400 mm
Rated rotate speed 500 r/min
Top anchoring height (from grouond) 2380-3325 mm
Rated torque 300 N·m
Roof bolter Roof bolter
Top anchoring height (horizontal) 3785-4735 mm Drilling diameter ≤42 mm
Side anchoring height (from ground) 1080-2180 mm Thrust force of drilling arm 12 kN

Side anchoring height (horizontal) 2490-3590 mm Single drilling distance of front arm 1400 mm 2600 mm
Single drilling distance of rear arm 1400 mm 1600 mm
Side anchoring width 4010-5970 mm
Rated working resistance 20 kN
Support area 2687×2834 mm
Rated working pressure 22 MPa
Support Support height (from ground) 3530-4378 mm Support
Support height 3000-5300 mm
Support height (horizontal) 4347-5195 mm Support area 2600×2100 mm

128 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 129
 Mining Roadheader Mining Roadheader

130 XCMG LARGE OPEN PIT MINE EQUIPMENT XCMG LARGE OPEN PIT MINE EQUIPMENT 131
