2.

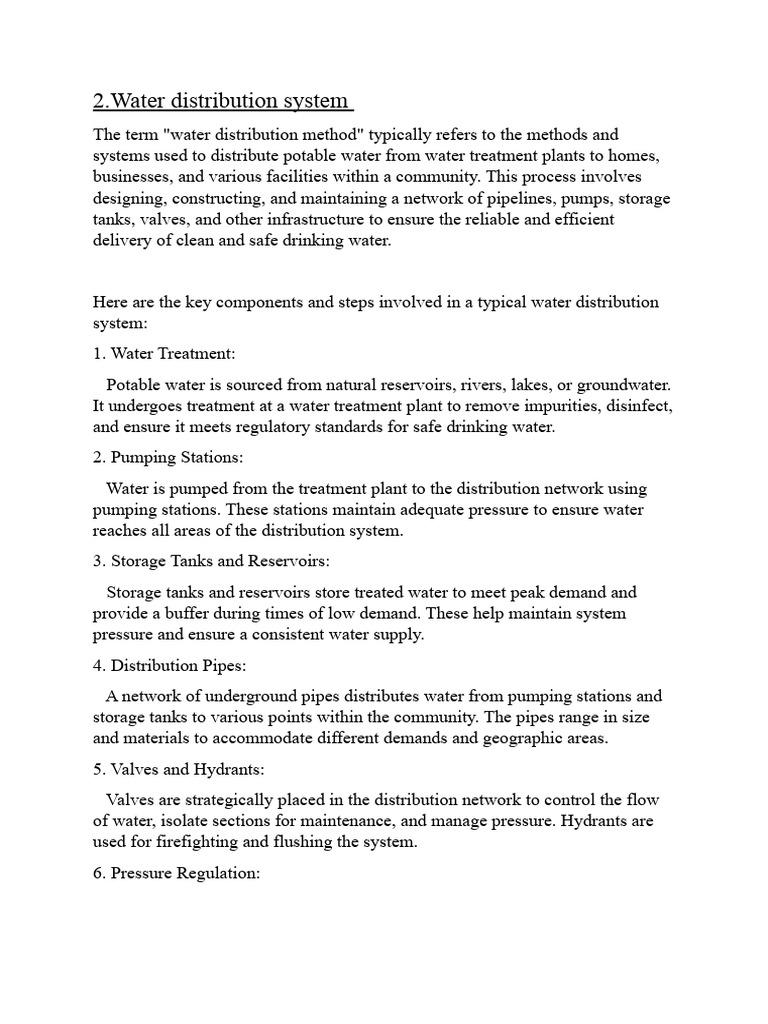

Water distribution system

The term "water distribution method" typically refers to the methods and
systems used to distribute potable water from water treatment plants to homes,
businesses, and various facilities within a community. This process involves
designing, constructing, and maintaining a network of pipelines, pumps, storage
tanks, valves, and other infrastructure to ensure the reliable and efficient
delivery of clean and safe drinking water.

Here are the key components and steps involved in a typical water distribution
system:
1. Water Treatment:
Potable water is sourced from natural reservoirs, rivers, lakes, or groundwater.
It undergoes treatment at a water treatment plant to remove impurities, disinfect,
and ensure it meets regulatory standards for safe drinking water.
2. Pumping Stations:
Water is pumped from the treatment plant to the distribution network using
pumping stations. These stations maintain adequate pressure to ensure water
reaches all areas of the distribution system.
3. Storage Tanks and Reservoirs:
Storage tanks and reservoirs store treated water to meet peak demand and
provide a buffer during times of low demand. These help maintain system
pressure and ensure a consistent water supply.
4. Distribution Pipes:
A network of underground pipes distributes water from pumping stations and
storage tanks to various points within the community. The pipes range in size
and materials to accommodate different demands and geographic areas.
5. Valves and Hydrants:
Valves are strategically placed in the distribution network to control the flow
of water, isolate sections for maintenance, and manage pressure. Hydrants are
used for firefighting and flushing the system.
6. Pressure Regulation:
 Pressure-reducing valves (PRVs) are installed at specific points to regulate
water pressure, ensuring it remains within acceptable levels throughout the
system.
7. Water Meters:
Water meters are installed at individual properties to measure water usage,
enabling accurate billing and monitoring of consumption.

8. Customer Service Connections:

Service connections deliver water from the distribution system to homes,
businesses, and other properties. These connections include metering devices
and often have shut-off valves for maintenance.
9. Routine Maintenance and Repairs:
Regular maintenance, inspections, and repairs are essential to keep the
distribution system functioning efficiently, prevent leaks, and address any issues
promptly.
3.Types of network analysis.
Network analysis in environmental engineering involves studying and analyzing
networks of interconnected systems to understand, design, and optimize
processes related to environmental systems. Various types of network analysis
are applied in this field to address specific environmental challenges. Here are
some key types:

1. Water Distribution Network Analysis:

Analyzes the water distribution system to ensure efficient and reliable water
supply. It involves hydraulic modeling to determine flow rates, pressure levels,
and water quality throughout the network.
2. Wastewater Collection and Treatment Network Analysis:
Focuses on analyzing the wastewater collection and treatment system. It
includes hydraulic modeling to design sewer systems, estimate wastewater flow
rates, assess treatment plant capacities, and optimize sewage treatment
processes.
3. Stormwater Management and Drainage Network Analysis:
Involves analyzing stormwater drainage systems to prevent flooding and
manage stormwater runoff. Hydraulic modeling helps design effective drainage
systems and evaluate their performance under varying weather conditions.
4. Air Quality Monitoring and Dispersion Analysis:
Analyzes air pollution dispersion patterns using dispersion models. These
models predict the dispersion of pollutants from emission sources, aiding in
understanding air quality impacts and designing effective pollution control
strategies.
5. Solid Waste Management Network Analysis:
Focuses on optimizing the collection, transportation, and disposal of solid
waste. It involves route optimization for waste collection, landfill site selection,
and waste-to-energy plant placement to improve waste management efficiency.
6. Environmental Monitoring Network Analysis:
Analyzes the design and placement of environmental monitoring stations to
gather data on various environmental parameters such as air quality, water
quality, noise levels, and more. Optimization of monitoring locations is crucial
for effective environmental assessment.
7. Energy Distribution Network Analysis:
Analyzes the distribution of energy resources, such as electricity and heat, to
optimize their use and minimize environmental impacts. It includes load flow
analysis, network optimization, and integration of renewable energy sources.
8. Ecological Network Analysis:
Focuses on analyzing ecological systems, such as food webs and habitats, to
understand species interactions, biodiversity, and ecosystem health. It helps in
conservation efforts and ecosystem restoration planning.
9. Network Flow Analysis for Material and Resource Management:
Analyzes the flow of materials and resources within industrial or urban
systems. It helps optimize resource use, waste reduction, recycling, and
sustainability in material flows.
10. Social Network Analysis (SNA) in Environmental Decision Making:
Utilizes SNA techniques to study social interactions, communication patterns,
and relationships among stakeholders involved in environmental decision-
making processes. SNA aids in understanding stakeholder influence and
forming effective partnerships.
4.Types of valve.
Valves are mechanical devices that control the flow of fluids (liquids, gases, or
slurries) by opening, closing, or partially obstructing passageways. There are
several types of valves, each designed for specific applications and purposes.
Here are some common types of valves:

1. Ball Valve:
- Uses a spherical ball to control flow through a hollowed-out passageway.
The ball has a hole that aligns with the pipe to allow flow when open and blocks
flow when closed.

2. Gate Valve:
- Features a sliding gate or wedge that moves perpendicular to the flow path to
either fully open or fully close the passageway.

3. Butterfly Valve:
- Uses a flat, disc-shaped closure element (the "butterfly") that rotates around
an axis to control flow. It's more compact and lighter compared to other valves.

4. Globe Valve:
- Has a disc-shaped closure element that moves up and down to regulate flow.
The disc is perpendicular to the flow when closed and parallel when open.

5. Check Valve:
- Allows flow in one direction only, preventing backflow. It typically consists
of a flap or a disc that opens in the direction of forward flow and closes to block
reverse flow.

6. Plug Valve:
- Uses a cylindrical or conical plug with a passage to control flow. The plug
can be rotated within the valve body to open or close the flow path.
7. Diaphragm Valve:
- Utilizes a flexible diaphragm to control the flow. When the diaphragm is
pressed against the seat, it blocks the flow, and when released, it allows flow.

8. Needle Valve:
- Has a long, tapered needle-like plunger that fits into a valve seat. It's used for
precise flow control in low-flow applications.

9. Pressure Relief Valve:

- Automatically releases excess pressure to prevent equipment damage. It
opens at a predetermined pressure and reseals once the pressure decreases.

10. Solenoid Valve:

- Uses an electromagnetic solenoid coil to control the valve opening and
closing. It's often used for automation and remote operation.

11. Pinch Valve:

- Controls flow by pinching a flexible tube or sleeve. When the tube is
pinched, flow is blocked, and releasing the pinch allows flow.

12. Rotary Valve:

- Uses a rotating disc or drum to control flow. It's suitable for applications
with powders or granular materials.

These are just a few examples of the many types of valves available, each with
its own design, mechanism, and application suitability. The choice of valve
depends on factors such as the application, pressure, temperature, flow rate, and
the specific requirements of the system.
5.Advantages and Disadvantages of Cast Iron Pipe and
Cement Pipe
Both cast iron pipes and cement pipes have distinct advantages and
disadvantages, which influence their suitability for different applications. Here's
a comparison of the advantages and disadvantages of cast iron pipes and cement
pipes:

Cast Iron Pipes:

Advantages:
1. Strength and Durability:
- Cast iron pipes are known for their high strength and durability, making
them suitable for handling heavy loads and withstanding internal and external
pressure.
2. Fire Resistance:
- Cast iron is inherently fire-resistant, providing added safety in case of a fire.
3. Long Lifespan:
- Cast iron pipes have a long lifespan and can last for several decades when
properly installed and maintained.
4. Good Corrosion Resistance:
- Cast iron has natural resistance to corrosion from certain substances
commonly found in wastewater.
5. Noise Reduction:
- Cast iron pipes are effective in dampening noise from flowing water, making
them suitable for applications where noise reduction is important.

Disadvantages:
1. Weight and Installation Difficulty:
- Cast iron pipes are heavy, which can make handling and installation
challenging and costly. Specialized equipment and expertise are often required.
2. Susceptible to Impact Damage:
- Cast iron pipes can be vulnerable to damage from heavy impacts or external
forces, leading to cracks or breaks.
3. Limited Joint Flexibility:
- The joints in cast iron pipes may be less flexible compared to other types,
potentially limiting their adaptability to varying site conditions.

Cement Pipes (Concrete Pipes):

Advantages:
1. Strength and Durability:
- Cement pipes are strong and durable, capable of withstanding high pressure,
making them suitable for applications with heavy loads.
2. Corrosion Resistance:
- Concrete pipes exhibit good resistance to corrosion from wastewater and
many chemicals.
3. Long Lifespan:
- Cement pipes have a long service life and can last for decades with proper
installation and maintenance.
4. Smooth Interior Surface:
- Concrete pipes can have a smooth interior surface, allowing for efficient
flow of fluids.
5. Cost-Effectiveness:
- Cement pipes are often cost-effective compared to some other pipe
materials.
Disadvantages:
1. Brittleness:
- Cement pipes can be brittle and may crack under excessive stress or ground
movement.
2. Installation Challenges:
- Installing cement pipes can be labor-intensive and requires skilled labor and
proper handling to prevent damage.
3. Weight:
- Cement pipes are heavy, making transportation and installation more
challenging compared to lighter materials.
4. Setting Time:
- Cement pipes require sufficient curing and setting time, which can delay the
construction process.

6.Different Forces Acting On Pipe.

 When a pipe is in use, various forces can act on it, impacting its
structural integrity and performance. These forces can be categorized into
internal forces, external forces, and environmental forces. Here's an overview of
different forces that can act on a pipe:

1. Internal Forces:
a. Pressure Force:
- The pressure force is the force exerted by the fluid (liquid or gas) inside the
pipe on the walls. It's determined by the pressure of the fluid and the cross-
sectional area of the pipe.
b. Axial Force:
- Axial force refers to the force acting along the axis of the pipe. It can be a
result of pressure, thermal expansion or contraction, or other internal factors.
c. Torsional Force:
- Torsional force is a twisting or rotational force applied to the pipe. It can
result from torque applied to rotating machinery connected to the pipe.
d. Bending Moment:
- Bending moment is a result of bending forces applied to the pipe, often
caused by uneven loading, support conditions, or thermal expansion.

2. External Forces:
a. Weight of the Pipe:
- The weight of the pipe itself can exert a downward force, especially in
vertical or inclined installations.
b. External Pressure:
- External pressure can come from soil, backfill, or any external load on the
pipe's surface. This is particularly relevant for buried or submerged pipes.
c. Ground Settlement and Movement:
- Ground movements, settling, or subsidence can apply external forces on the
pipe, potentially leading to deformation or damage.
d. Traffic Loads:
 - In case of pipes located under roads or pathways, traffic loads (from
vehicles, pedestrians) can exert additional pressure or impact forces.
e. Dynamic Loads:
- Vibrations or sudden impacts from machinery, construction activities, or
seismic events can impose dynamic loads on the pipe.

3. Environmental Forces:
a. Temperature Changes:
- Temperature fluctuations can cause thermal expansion or contraction in the
pipe, generating stress due to differential expansion.
b. Corrosion and Abrasion:
- Chemical reactions and abrasion from the fluid or external environment can
weaken the pipe over time, affecting its structural integrity.
c. Frost and Freezing:
- Freezing conditions can lead to ice formation inside the pipe, potentially
causing damage due to expansion.

8.Pipe corrosion control method.

Corrosion control in pipes is essential to extend the life of the pipe and maintain
its structural integrity. There are several effective methods to control corrosion
in pipes, each with its own advantages and applications. Here are some common
methods for pipe corrosion control:
1. Coating:
- Internal Coating: Applying a protective coating on the inside surface of the
pipe to prevent direct contact of the pipe material with the fluid, reducing the
risk of internal corrosion.
- External Coating: Coating the exterior surface of the pipe to provide a
barrier against environmental corrosive factors, such as moisture, soil, or
chemicals.
2. Cathodic Protection:
- Galvanic Cathodic Protection: Using a sacrificial anode made of a more
reactive metal (e.g., zinc, magnesium) connected to the pipe. The sacrificial
anode corrodes instead of the pipe, protecting it from corrosion.
- Impressed Current Cathodic Protection: Using an external power source to
apply a direct electric current to the pipe, creating a protective environment and
preventing corrosion.
3. Inhibitors:
- Adding corrosion inhibitors to the fluid inside the pipe to minimize the
corrosive action on the pipe material. Inhibitors work by forming a protective
layer on the pipe surface.
4. Material Selection:
- Choosing corrosion-resistant materials for pipe construction, such as
stainless steel, plastic, or corrosion-resistant alloys. These materials naturally
resist corrosion and degradation over time.
5. Monitoring and Maintenance:
- Regularly inspecting and monitoring the pipes for signs of corrosion and
implementing timely maintenance measures can help prevent corrosion-related
issues and ensure the effectiveness of corrosion control methods.

6. Linings:
 - Installing linings made of materials like rubber, epoxy, or polyethylene
inside the pipe to act as a protective layer, shielding the pipe from corrosive
fluids.
7. Passivation:
- Treating the pipe surface with passivating agents to create a protective oxide
layer that helps prevent further corrosion.
8. Cathodic Inhibition:
- Controlling the cathodic reaction through pH adjustment or by adding
substances that reduce the rate of cathodic reactions, thus mitigating corrosion.
9. Design Improvements:
- Optimizing the pipe's design to reduce areas prone to corrosion, improve
flow dynamics, and enhance accessibility for maintenance and inspection.
10. Isolation Joints:
- Using isolation joints to separate dissimilar metals or sections of the pipe,
preventing galvanic corrosion.
11. Fluid Quality Control:
- Ensuring that the fluid flowing through the pipe is properly treated and its
corrosivity is minimized through appropriate additives or treatments.
