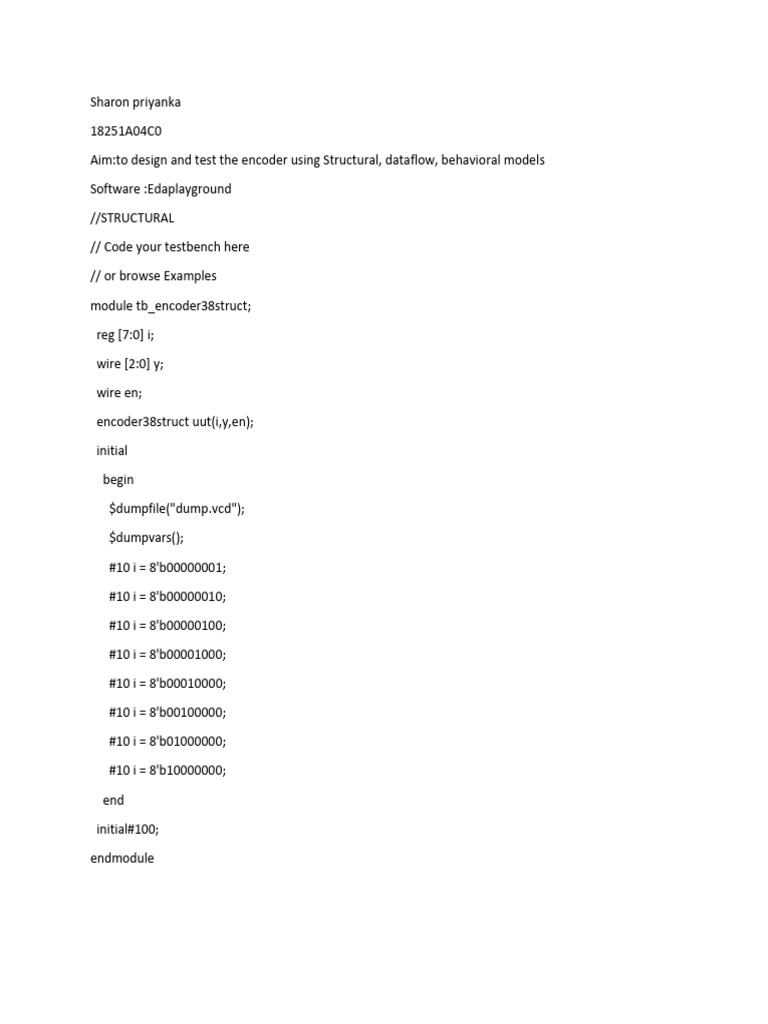

Sharon priyanka

18251A04C0

Aim:to design and test the encoder using Structural, dataflow, behavioral models

Software :Edaplayground

//STRUCTURAL

// Code your testbench here

// or browse Examples

module tb_encoder38struct;

reg [7:0] i;

wire [2:0] y;

wire en;

encoder38struct uut(i,y,en);

initial

begin

$dumpfile("dump.vcd");

$dumpvars();

#10 i = 8'b00000001;

#10 i = 8'b00000010;

#10 i = 8'b00000100;

#10 i = 8'b00001000;

#10 i = 8'b00010000;

#10 i = 8'b00100000;

#10 i = 8'b01000000;

#10 i = 8'b10000000;

end

initial#100;

endmodule
// Code your design here

module encoder38struct(

input [7:0] i,

output [2:0] y,

output en

);

or (y[0] , i[1] , i[3] , i[5] , i[7]);

or (y[1] , i[2] , i[3] , i[6] , i[7]);

or (y[2] , i[4] , i[5] , i[6] , i[7]);

or (en , i[0] , i[1] , i[2], i[3] , i[4] , i[5] , i[6] , i[7]);

endmodule
// DATAFLOW

// Code your testbench here

// or browse Examples

module tb_en8data;

reg [7:0] i; reg en;

wire [2:0] y;

en8data uut(i,en,y);

initial

begin

$dumpfile("dump.vcd");

$dumpvars();

en=1;

#10 i = 8'b00000001;

#10 i = 8'b00000010;

#10 i = 8'b00000100;

#10 i = 8'b00001000;

#10 i = 8'b00010000;

#10 i = 8'b00100000;

#10 i = 8'b01000000;

#10 i = 8'b10000000;

end

initial#100;

endmodule
// Code your design here

module en8data(input[7:0] i,input en,output [2:0] y);

assign y[0]=(en & (i[1] | i[3] |i[5] | i[7]));

assign y[1]=(en & (i[2] | i[3] | i[6] | i[7]));

assign y[2]=(en & (i[4] | i[5] | i[6] | i[7]));

endmodule
//BEHAVIOURAL

// Code your testbench here

// or browse Examples

module tb_encoder83behave;

reg [7:0] i;

reg en;

wire [2:0] y;

encoder83behave uut(i,en,y);

initial

begin

$dumpfile("dump.vcd");

$dumpvars();

en=1;

#10 i = 8'b00000001;

#10 i = 8'b00000010;

#10 i = 8'b00000100;

#10 i = 8'b00001000;

#10 i = 8'b00010000;

#10 i = 8'b00100000;

#10 i = 8'b01000000;

#10 i = 8'b10000000;

end

initial#100;

endmodule
// Code your design here

module encoder83behave(input[7:0] i, input en, output reg [2:0] y);

always @(i or en)

begin

if(en==1)

begin

case (i)

8'b00000001: y=3'b000;

8'b00000010 : y=3'b001;

8'b00000100 : y=3'b010;

8'b00001000 : y=3'b011;

8'b00010000 : y=3'b100;

8'b00100000 : y=3'b101;

8'b01000000 : y=3'b110;

8'b10000000 : y=3'b111;

default : y = 3'bxxx;

endcase

end

end

endmodule
// PRIORITY ENCODER behavioural

// Code your testbench here

// or browse Examples

module tb_priorityencoder83behave;

reg [7:0] i ;

reg en;

wire [2:0] y;

priorityencoder83behave uut(i,en,y);

initial

begin

$dumpfile("dump.vcd");

$dumpvars();

en=1;

#10 i = 8'b00000001;

#10 i = 8'b0000001x;

#10 i = 8'b000001xx;

#10 i = 8'b00001xxx;

#10 i = 8'b0001xxxx;

#10 i = 8'b001xxxxx;

#10 i = 8'b01xxxxxx;

#10 i = 8'b1xxxxxxx;

end

initial #100;

endmodule
// Code your design here

module priorityencoder83behave(input [7:0] i,input en, output reg [2:0] y );

always @(i or en)

begin

if (en==1)

begin

case (i)

8'b00000001: y=3'b000;

8'b0000001x: y=3'b001;

8'b000001xx: y=3'b010;

8'b00001xxx: y=3'b011;

8'b0001xxxx: y=3'b100;

8'b001xxxxx: y=3'b101;

8'b01xxxxxx: y=3'b110;

8'b1xxxxxxx: y=3'b111;

default : y = 3'bxxx;

endcase

end

end

endmodule
Result : encoder is realized in data flow, behavioral, structural methods using eda software
