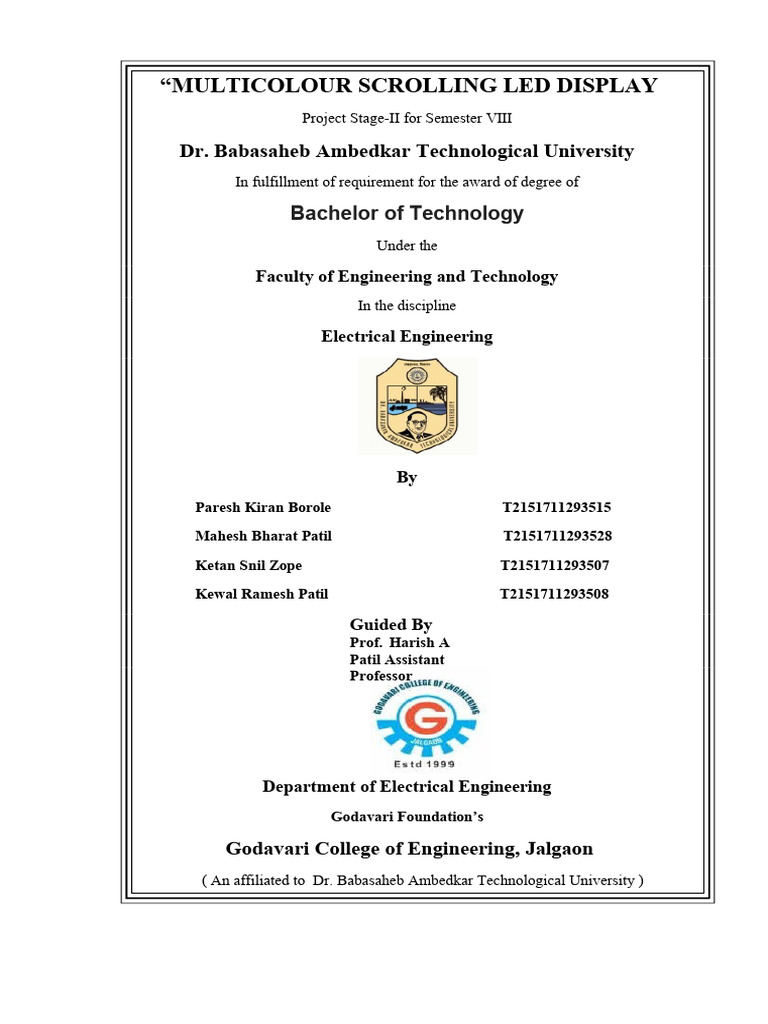

“MULTICOLOUR SCROLLING LED DISPLAY
Project Stage-II for Semester VIII
Dr. Babasaheb Ambedkar Technological University

In fulfillment of requirement for the award of degree of
Bachelor of Technology
Under the
Faculty of Engineering and Technology

In the discipline
Electrical Engineering
By
Paresh Kiran Borole T2151711293515
Mahesh Bharat Patil T2151711293528
Ketan Snil Zope T2151711293507
Kewal Ramesh Patil T2151711293508
Guided By
Prof. Harish A
Patil Assistant
Professor
Department of Electrical Engineering

Godavari Foundation’s
Godavari College of Engineering, Jalgaon

( An affiliated to Dr. Babasaheb Ambedkar Technological University )
YEAR 2023-2024
Godavari College of Engineering, Jalgaon

(An affiliated to Dr. Babasaheb Ambedkar Technological University)
CERTIFICATE
This is to certify that the L.Y.Electrical Final Project Stage-II for Semester VIII
(BTEEM802) “MULTICOLOUR SCROLLING LED DISPLAY, submitted by Paresh Kiran
Borole, Mahesh Bharat Patil, Ketan Snil Zope, Kewal Ramesh
Patil In fulfillment of the degree of Bachelor of Technology in the Department of
ELECTRICAL ENGINEERING, Godavari College of engineering, Dr. Babasaheb
Ambedkar Technological University, Lonere is a bonafide record of work carried out
by him in the Department of Electrical Engineering, Dr. Babasaheb Ambedkar
Technological University, Lonere under my guidance and supervision. In my opinion
this work has attained the standard fulfilling the requirements of the regulations of the
University.
Date:
Place: Jalgaon
Prof. Harish A Patil. Prof. M. H. Patil.
GUIDE H.O.D
Internal Examiner External Examiner
Dr. V.H.PATIL
PRINCIPAL
GODAVARI COLLEGE OF ENGINEERING, JALGAON
DECLARATION / UNDERTAKING
I hereby declare that the work presented in this Final Project Stage-II for Semester VIII
(BTEEM802) “SMART DEFENDER”, was carried out by me under the supervision of
guide from July 2023 to June 2024 Semester- VIII.
This work or any part of this work is based on original research and has not been
submitted by me to any University/Institution for the award of any degree.
Date:
Place : Jalgaon.
Paresh Kiran Borole
Mahesh Bharat Patil
Ketan Snil Zope
Kewal Ramesh Patil

Acknowledgment
This Project is the Result of collaborative effort with the member of the
staff, Department of Electrical Engineering.
I would like to take this opportunity to express deep sense of gratitude
and gratefulness to my guide Prof. Harish A. patil for continuous motivation
and guidance during the course of completion of this project report. It gives me
great pleasure to thank H.O.D. and all staff of the Department of Electrical
Engineering for his invaluable suggestion in the developmentof this work. I am
highly indebted to our principal for his encouragement and providing necessary
facilities for completion of my project work. Lastly I express my sincere thanks
toall those who have helped me directly or indirectly in successful completion
of this work.
Paresh Kiran
Borole Mahesh
Bharat Patil
Ketan Sunil Zope
Keval Ramesh
Patil
PAGE INDEX
Title Page No.

1. INTRODUCTION 01
2. SCOPE OF WORK 02
3. ORGANIZATION OF REPORT 04
4. LITERATURE REVIEW 06
5. SPECIFICATION 07
5.1 Information of P10 LED. 08
5.1.1 Working of a P10 module. 09
5.1.2 Application of P10 LED Display. 10
5.1.3 P-10 LED Display Image.
5.2.1 WF2 Controller 12

5.2.2Features Of WF2 Controller. 13
5.2.3Definition Of WF2 Controller 14
5.2.4 Setup Diagram Of WF2 Controller. 15
5.2.5 Appearance DescriptioWF2Controller 16
5.2.6 Basic Parameters Of WF2 Controller 17
5.2FRC cable 18
5.3.1 SMPS 19
5.3.2 Advantages of SMPS 20
5.3.3 Disadvantages of SMPS 21
5.3.4 SMPS Image 22
6. BLOCK DIAGRAM 23
7. SSD POSSIBILITIES 24
8. OPERATION PRINCIPLE 25
9. WORKING OF LED 26
10. ISIBLE LED 27
11.ADVANTAGES 28
12.DISADVANTAGES 29
13.APPLICATION 30
14.FEATURES 31
15.CONCLUSION 32
16.REFERENCES 33
‘’GF’S G.C.O.E JALGAON ‘’ Page i

LIST OF FIGURES
Figure No. Title Page No.
Fig.3.1 Display 04
Fig.5.1 Fractures of P10 LED 09
Fig.5.2 LED Display 11
Fig.5.3 Setup Diagram OF WF2 15
Fig.5.4 Wire 18
Fig.5.5 SMPS 22
‘’GF’S G.C.O.E JALGAON ‘’ Page ii

LIST OF TABLES
Figure No. Page No.

Title
5.1 Features of WF2 controller 13
5.2 Definition Of WF2 Controller 36
5.3 Basic parameters of Wf2 17
‘’GF’S G.C.O.E JALGAON ‘’ Page iii

MULTICOLOUR SCROLLING LED DISPLAY
1. Introduction
Visual impact is the most effective mode of influencing human minds

which is the main aim of adverstisements etc. A display device serves this
purpose. A display device is a device for presentation of information for visual or
tactile reception, acquired, stored, or transmitted in various forms. The display
devices used to display information on machines, clocks, railway departure
indicators and many other devices require a simple display of limited resolution.
The display consists of a matrix of lights or mechanical indicators arranged in a
rectangular configuration (other shapes are also possible, although not common)
such that by switching on or off selected lights, text or graphics can be displayed.
Various modifications has been made in the display board. Now LED display
panels are widely used throughout the world in all situations to create images for
visual displays in a variety of applications including communication and visual
display devices. LED array display board is a popular instrument for commercial
usage. Many banks, shops and cinemas are willing to install one piece of it
because of its versatility. LED array display board can be very bright and eye-
catching. Display signs used for advertising or for displaying direction or other
information to motorists have an important feature in common. They should be
eye-catching and their information should be easy to absorb. In advertising, a
signboard made of an LED display generally standing at a conspicuous location,
such as a bustling road, is widely used. The LED display comprises a plurality of
LEDs controlled by special hardware and software to perform moving images on
a screen thereof to attract the attention of passersby. The LED array display board
is used in a bank to show the current stock market value, currency exchange rate
and interests rate. It can also be used in a shop to tell people the prices and other
commercial information. LED display board serves the above purposes with
advantages rendered by LEDs
‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 2

2. SCOPE OF WORK
The model can be utilized to display temperature in case when

there is no message to be displayed. With proper use of interrupt routines the
incoming message will act as an interrupt, the temperature display is halted and
the control flow jumps over to the specific interrupt service routine which
displays the information field. Another improvement in this model can be of
broadcasting the same message to multiple display boards. This can be achieved
with the use of clone SIM cards. Multilingual message display can be another
variation in this model. The message can be first received, displayed in standard
language. The same message can be converted to another language and the
message can be displayed.

3. ORGANIZATION OF REPORT
We normally use a simple static LED display screen to convey a

message. Earlier, when we want to display large data, we used to change message
for every few instances. Now scrolling displays are more preferred to static. By
using a pre programmed controller, we can make LED display in scrolling
way. We can also make LED to adoptable by using PC controller based system.
Simple Outdoor LED Message Moving or Scrolling Sign Board, Electronic
projects using LED Scroller Generator for outdoor digital signs, Marketable LED
sign board with Message scrolling are the examples of the scrolling LED display
Fig.3.1 Display

4. LITERATURE REVIEW
LED display board is a cost-effective solution for display

ingmessages with different changing effects, the provide longlife, low cost,
efficiency, brightness, full range of colors. Because of these properties, they are
widely used for simple displays in electronic devices and can be found in
shoppingmalls, theaters, restaurants, public transportation, traffic signs, highways
signs, banks, pharmacies, churches and schools. These boards can be large LED
panels or LED dot matrixdisplays which could be in mono, bi, and
multicolor(Gowrishankar, Mritha, & Chandra, 2014), can display staticand
dynamic messages. Joy et al (2014) stated that ―LEDs aremore energy efficient
than the incandescent bulbs, halogen bulbs and even compact fluorescent light
bulbs‖ this shows that many number of applications using them will increasef
urther in near future. The automated Real-time LED Display board is aimed at the
department of computer science university of Jos for displaying academic
announcement suchas lecture attendance(semester timetable), and exams
timetable continuously during working hours. This research isbased on a message
display system using two cascaded 32*16dot-matrix LED which displays the
departmental semester timetable and incorporates the following features:
userinteraction by enabling users to change from one view toanother of the
display by selecting which day of the week toview its periods, courses and venues
using a 4*1 matrixkeypad, Arduino microcontroller for generating the
outputsignal to the dot-matrix LED to display the output using C programming
language, Ethernet shield which is for web-based configuration of the LED dot
matrix display board and saving the periods, courses and venues on the onboard
SD card of the Ethernet shield , and it will be implemented using C programing
language to drive the Arduino microcontroller to scan through the individual row
of the LED with the needed data toproduce the desired message and Setting the
color of the current day to green using a real time clock timer. Display technology
pervades all aspects of present day life, from televisions to automobile dashboards
‗‘GF‘S G.C.O.E
to laptop JALGAON
computers to digital‗‘cameras. Single coloured LED display Page 5
boards are very common nowadays. The same yellow or red coloured board is not
attractive .The introduction of multicoloured LEDs into the display boards make
them attractive. This project is oriented towards the development of a prototype of
a multicoloured LED display board which is being controlled by an LED driver.
The use of multicolour LED opens door to many applications. The display board
is made on readily available components. The important requirement is that the
display board should have long life expectancy, high tolerance to humidity, low
power consumption and minimal heat generation. The fundamental part is a 4X4
LED module which could be repeated column wise or row wise to enlarge the
display without any change in circuitry. Both single line and double line display
could be affected. Motivation towards the project was tomake available a readily
expandable multicolour display board which can be used for multiple purposes.

5. SPECIFICATIONS
P-10 LED panel 32*16=512 LED

Panel WF2 controller Wifi
controller
5V power supply
Connecting FRC cable 16 Pin
SMPS Input 240v AC Output 5v
DC

5.1 INFORMATION OF P10 LED

The standard part used in building any exciting LED display for
commercial or home use is the P10 LED display. The P10 LED display is an
array of 512 high- intensity LEDs arranged in a rectangular pattern on a plastic
backing. Each screen has a matrix of 32 LEDs per row and 16 LEDs per column,
and each of these hundreds of LEDs can be actuated independently in order to
create a variety of exciting multicolored and moving displays and patterns. Each
LED can also vary in brightness, giving you total control over the output display
of the P10 module
The P10 LED display screen has excellent technical specifications. With a 20-
watt maximum power load and 5-volt direct current voltage input, the P10 LED
display can output 3500 to 4500 nits of brightness. The P10 is especially useful
for application as floor or wall tiles, as it can be viewed from a high angle,
hasdramatic contrast between LEDs of different colors, and is rated waterproof to
IP65 regulations. While the standard P10 LED display generates colors using red,
green, and blue lights, the P10 full color LED display screen achieves an even
greater range of colors through more base colors for a more complete experience.

5.1.1 Working of a P10 module
A P10 LED Display Module is the most suitable for designing any size of outdoor
or indoor LED display advertisement board. This panel has a total of 512 high
brightness LEDs mounted on a plastic housing designed for best display results.
Any number of such panels can be combined in any row and column structures to
design an attractive LED signboard.The 32*16 module size means that there are
32 LEDs in each row and 16 LEDs in each column. So there is a total of 512
numbers of LEDs present in each module unit.
Fig.5.1.Features of a P10 LED Matrix Module
Brightness: 3500-4500nits
Max Power Consumption:
20W Voltage Input: DC 5V
IP65 Waterproof
1W Pixel
Configuration High
Viewing Angle High
Contrast Ratio
5.1.2 APPLICATION OF P10 LED DISPLAY
The P10 LED display is an immensely versatile tool for application

across a wide variety of industries and fields, and can be used for serious
industrial applications. Examples of this include mining enterprises, where a P10
LED panel can be used to illuminate walkways, provide bright directed light, or
reflect sensor information on air quality or other important safety regulations. In
any sort of factory, an array of P10 LED panels can be used for similar purposes,
guiding workers around the factory floor or displaying important information on
the factory's walls.
The P10 LED display can also be used in many applications relating to
transportation. Public metro or subway stations can use P10 LED panels to
display route information or timetables. Wharves can apply P10 LED panels to
supplement sunlight and extend working hours, or direct crews more efficiently to
their desired locations. Airports can use P10 LED technology in a similar fashion
to the previously mentioned applications, for providing information or routing to
busy customers. In addition, P10 LEDs can be used inairports to direct aircraft
along their landing strips, improving safety and efficiency in aircraft takeoff and
landing sequences.

5.1.3 P-10 LED DISPLAY IMAGE
Fig 5.2 Led Display

5.2.1 WF2 CONTROLLER
WF2（abbr. WF2）equipped with 2 lines HUB75E Port. It is

a full colour series of control card. It supports Wi-Fi and U disk to
update programs. It is suitable for door lintel led screens, store
signboard screens, Vehicle-mounted screen and other occasions.
Application software: HD2020 and LedArt (APP).The software
interface is simple, the operation is convenient, and the rich display
mode has the characteristics of low cost and high cost performance,
and supports various full-colour led modules.

5.2.2 FEATURES OF WF2 CONTROLLER
Functions Description
Support Module Support HUB75 port full colour module, support normal and
ICN2038 IC
Scan Mode Support static to 1/32S
Control Range 1280*32, 768*64, 384*128
Communication Port Wi-Fi, U-Disk
FLASH Capacity 8M Byte
Support RGB Full-colour module can display Red, Green, Blue, Yellow, Purple,
White
Grey Level 8 level, support full colour text
Program Quantity 999 programs, support switch the program by wifi remote
Area Quantity 20 pcs areas with separate zone and separate special effects and
border
Display Showing Text, Animated word, 3D Word, Image & Text（Picture, SWF),
Excel, Time, Temperature（humidity), Timing, Count, Lunar
Calendar.
Automatic Switch Support timer switch machine
Screen
Dimming Support brightness setting, time period brightness setting
Power supply Micro USB, Standard 5V
Certification CE, FCC, RoHS
Wifi Password 88888888
5.2.1 Table 5.1 FEATURES OF WF2 CONTROLLER

5.2.2 DEFINITION OF WF2 CONTROLLER.
One HUB75E Port

5.2.3 SETUP DIAGRAM OF WF2 COTROLLER
Fig.5.3 SETUP DIAGRAM OF WF2 COTROLLER

5.2.1 APPEARANCE DESCRIPTIOWF2CONTROLLER
1.5VStandard Power Connector, sharing with Micro-USB, can power to LED

module directly.2.USB Ports, for updating programs by U-disk.
3.HUB75E port for
connecting to LED
Display.4.Test Key, for
testing LED screen status

5.2.2 BASIC PARAMETERS OF WF2 CONTROLLER
Parameters Minimum Value Typical Value Maximum Value

Rated voltage（V） 4.2 5.0 5.5
Storage temperature（℃） -40 25 105
Work Environment Humidity（ -40 25 80

℃）
Work Environment Humidity（ 0.0 30 95
%）
Table 5.2 BASIC PARAMETERS OF WF2 CONTROLLER

5.3 FRC CABLE
5 Pin (16 Wire) Female to Female Connector Flat Ribbon Cable (FRC) Cable
consists of 16 conducting wires stuck together in parallel. Flat Ribbon Cable/FRC
is also known as multi-wire planar cable because they are the type of cables
formed by joining insulated wires in a flat plane forming the Ribbon shape. In
other words, Ribbon cable has many conducting wires running parallel to each
other on the same flat plane.These wires are commonly used for internal
peripherals in computers, such as hard drives, CD drives, wired robots, etc. This
ribbon cable allowed major companies to replace bulky, stiff round cables with
sleek, flexible ribbon cables.FRC is an ideal way to connect two devices digitally.
The resultant impedance for any two adjacent wires within the cable is 120 Ohms.
FRC also fold and bend readily, conforming to the mounting area, and they fasten
easily with clamps, adhesive, or double-faced tape. Sincethe conductors are
visible and in a fixed position within the dielectric coding, inspection and circuit
tracingare simplified.
Fig 5.4 WIRE

5.3.1 SMPS
A switched-mode power supply (SMPS) is an electronic circuit that converts

power using switching devices that are turned on and off at high frequencies,
and storage components such as inductors or capacitors to supply power when
the switching device is in its non-conduction state.Switching power supplies
have high efficiency and are widely used in a variety of electronic equipment,
including computers and other sensitive equipment requiring stable and
efficient power supply.A switched-mode power supply is also known as a
switch-mode power supply or switching-mode power supply.
Switched-mode power supplies are classified according to the type of input
and output voltages. Thefour major categories are:
AC to
DC
DC to
DC
DC to
AC
AC to
AC
A basic isolated AC to DC switched-mode power supply consists
of: Input rectifier and filter
Inverter consisting of switching devices such as MOSFETs
Transformer
Output rectifier and filter
Feedback and control
circuit

5.3.2 ADVANTAGES OF SMPS
Higher efficiency of 68% to 90%

Regulated and reliable outputs regardless of variations in input
supply voltage
Small size and lighter
Flexible technology
High power density

5.3.3 DISADVANTAGES OF SMPS
Generates electromagnetic interference

Complex circuit design
Expensive compared to linear supplies

5.3.4 SMPS IMAGE
Fig5.5 SMPS

6. Block diagram
240V AC
Input
WF2 Controller
SMPS 5V DC Output
Wifi Controller
P10 LED Display Pannel

7. SSD POSSIBILITIES

8. OPERATION PRINCIPLE
Led works on the principle of electroluminescence.
Electroluminescence (EL) is an optical phenomenon and electrical
phenomenon in which a materialsemits light in response to the passage of an
electric current through it or to a strong electric field
Electroluminescence is the result of radiative recombination
[2:39 pm, 23/05/2023] Rameshwar Mahajan: LED scrolling message display
matrix can be made to work, by connecting all the anodes to a microcontroller
and the columns are connected to shift register (74LS164). Every column
contains ‗N‘ LED‘s so that the total current flowing through the column is the
sum of current flowing through each LED. The current flowing through each
LED is 20mA and thetotal current is N*20mA .The shift register is not
capable to sink such a large current n*2mA, Here we need a large current
sinker (IC ULN 2803) which is capable to sink 500mA current.
[2:39 pm, 23/05/2023] Rameshwar Mahajan: Microcontroller provides the
data and clock control signals to the shift register. Microcontroller provides
the data sequence to shift register data pin, the first column in LED matrix is
connected to ground via ULN 2803 and the remaining other columns in the
matrix are left unconnected. Hence LEDs in that column will glow according
to port data providedby the micro controller.

9. Working of LED
Under forward bias majority carriers from both sides of the junction can cross
the depletion region andentering the material at the other side
These diffused carriers recombine with the majority carriers at the other
side The recombination causes light to be emitted
Such process is termed radiative recombination

10. VISIBLE LED

For LED which emit visible light, the band gap of the materials that we use must
be in the reagion of visible wavelength =390-770nm. This coincides with the
energy value of 3.18eV -1.61eV which corresponding to colours as staded below

11. ADVANTAGES
LED scrolling message boards don't use a lot of electricity. That's because LEDs are
efficient by nature—they
Low Voltage
Operation Flexible
and scalable Looks
great
Great for advertising
Efficient and cost-effective
Transign has everything you need

12. DISADVANTAGES
LEDs are more expensive than conventional lighting

technologies. LEDs can shift color due to age and temperature.
LED is a lot thinner than the LCD or
Plasma. Contrast ratios not consistent.
Much higher price

13. APPLICATIONS
The applications of the seven-segment display include the following.

Seven segment displays are mostly used in electronic meters, digital
calculators, clock radios, digital clocks, digital clocks, odometers, etc.
At present, most of the seven-segment display applications are with LCDs due
to low power consumption.
Thus, this is all about an overview of a 7 segment display and it‘s working
with applications. The interfacing of a seven-segment display with an Arduino
is used to display 0 to 9 digits with ease. So these display devices are mainly
applicable in bigger electronics projects like Alarm Clocks, object counters,
timer circuits, digital clocks, etc.

14. FEATURES
Absolutely waterproof. With IP67 protection grade can be used both indoor
and outdoor places.
High color uniformity.
High reliability. MTBF 6000 hours.
... High contrast ratio. Up to 5000:1.
Shorter lead time. Usually less than 15 working days.
High brightness. 6500nits

15. CONCLUSION
It is possible to display any single digit number on a 7-segment display by

sending a high digital signal to the specific segments that make up the
number. However, this method requires us to encode the letters manually. It is
not the best solution to output changing numbers for application such as
counters.
It is possible to display the decimal value of a binary number on a 7-segment
display using a BCD decoder.
However, this method will allow displaying only digits from 0 to 9 and letters A
to F.
The only way to display number more than 9 is to use a display that has more
than 7 segments or just using multiple 7-segment displays at once with the
corresponding BCD decoder.
In the case of the decoder circuit, any binary number between 1010 through
1111 (A to F) is an invalid input and would provide distorted shapes on the
LCD display.
Current limiting resistors of 150 ohms are connected in series between the
decoder and each of the LED display segment. They serve to limit the
maximum current flow and have no impact on the LCD display.
The usage of a 7-segment display paired with a BCD decoder is opening the
door for an application using digital computation requiring a human-readable
That application can be for instance: ―a clock, a timer, a calculator,
counter…‖

16. REFERENCES
"Seven Segment Displays". Archived from the original on 2012-04-04.
^ Rogers, Warren O. (1910-02-01). "Power Plant Signalling System". Power

and the Engineer. 32 (5):204–206. Archived from the original on 2014-03-31.
Retrieved 2016-10-06.
^ "IEE Apollo DA-2110 Numitron Tube (DA2110, RCA
DR- 2110) - IndustrialAlchemy".
www.industrialalchemy.org.
www.industrialalchemy.org.
^ "Numitron Tube Tutorial". 2011-12-21. Archived from the original on
2018- 09-25. Retrieved 2020-04-14.
^ "Incandescent Displays – the Vintage Technology Association".
Archived from the original on2018-02-17. Retrieved 2020-04-14.
^ "Alco MSM-5A Mosaic Indicator Incandescent
Display - IndustrialAlchemy". www.industrialalchemy.org.
^ "General Electric Y1938 – the Vintage Technology Association". Archived
from the original on2016-06-11. Retrieved 2020-11-13.
^ "Litronix Surface Mount Wristwatch LED Display – Industrial Alchemy".
Archived from theoriginal on 2018-08-31. Retrieved 2020-04-16.
^ "Litronix DL330 Series LED Displays (Siemens DL340M) - Industrial
Alchemy". Archived fromthe original on 2018-03-04. Retrieved 2020-04-16.
^ "Advert for RCA NUMITRON Display Devices". Electronic Design.
Hayden. 22 (12): 163. 1974-06-07. Archived from the original on 2014-03-31.
Retrieved 2012-06-22.
^ "Museum of Soviet Calculators - VEGA". 2010-09-29. Archived from
the original on 2010-09-29.
^ Jump up to:a b Elektrotechnik Tabellen Kommunikationselektronik
(3rd ed.). Braunschweig,Germany: Westermann Verlag. 1999. p. 110. ISBN
3142250379.
^ e.g. DCR 1050m Archived 31 March 2014 at the Wayback Machine.

Final Report

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Final Report

Uploaded by

Copyright:

Available Formats

“MULTICOLOUR SCROLLING LED DISPLAY

Project Stage-II for Semester VIII

Dr. Babasaheb Ambedkar Technological University

Faculty of Engineering and Technology

Department of Electrical Engineering

Godavari College of Engineering, Jalgaon

Godavari College of Engineering, Jalgaon

Prof. Harish A Patil. Prof. M. H. Patil.

Internal Examiner External Examiner

Paresh Kiran Borole

Mahesh Bharat Patil

Ketan Snil Zope

Kewal Ramesh Patil

Ketan Sunil Zope

Title Page No.

5.2.1 WF2 Controller 12

‘’GF’S G.C.O.E JALGAON ‘’ Page i

Figure No. Title Page No.

Fig.5.1 Fractures of P10 LED 09

Fig.5.2 LED Display 11

Fig.5.3 Setup Diagram OF WF2 15

‘’GF’S G.C.O.E JALGAON ‘’ Page ii

Figure No. Page No.

5.1 Features of WF2 controller 13

5.2 Definition Of WF2 Controller 36

5.3 Basic parameters of Wf2 17

‘’GF’S G.C.O.E JALGAON ‘’ Page iii

Visual impact is the most effective mode of influencing human minds

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 2

The model can be utilized to display temperature in case when

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 3

We normally use a simple static LED display screen to convey a

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 4

LED display board is a cost-effective solution for display

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 6

P-10 LED panel 32*16=512 LED

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 7

5.1 INFORMATION OF P10 LED

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 8

5.1.1 Working of a P10 module

Fig.5.1.Features of a P10 LED Matrix Module

5.1.2 APPLICATION OF P10 LED DISPLAY

The P10 LED display is an immensely versatile tool for application

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 10

5.1.3 P-10 LED DISPLAY IMAGE

Fig 5.2 Led Display

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 11

5.2.1 WF2 CONTROLLER

WF2（abbr. WF2）equipped with 2 lines HUB75E Port. It is

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 12

5.2.2 FEATURES OF WF2 CONTROLLER

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 13

5.2.2 DEFINITION OF WF2 CONTROLLER.

One HUB75E Port

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 14

5.2.3 SETUP DIAGRAM OF WF2 COTROLLER

Fig.5.3 SETUP DIAGRAM OF WF2 COTROLLER

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 15

5.2.1 APPEARANCE DESCRIPTIOWF2CONTROLLER

1.5VStandard Power Connector, sharing with Micro-USB, can power to LED

‗‘GF‘S G.C.O.E JALGAON ‗‘ Page 16

5.2.2 BASIC PARAMETERS OF WF2 CONTROLLER

Parameters Minimum Value Typical Value Maximum Value

Work Environment Humidity（ -40 25 80
