Windows – Key

Essential User Mode

Windows Components
Kernel Mode Components

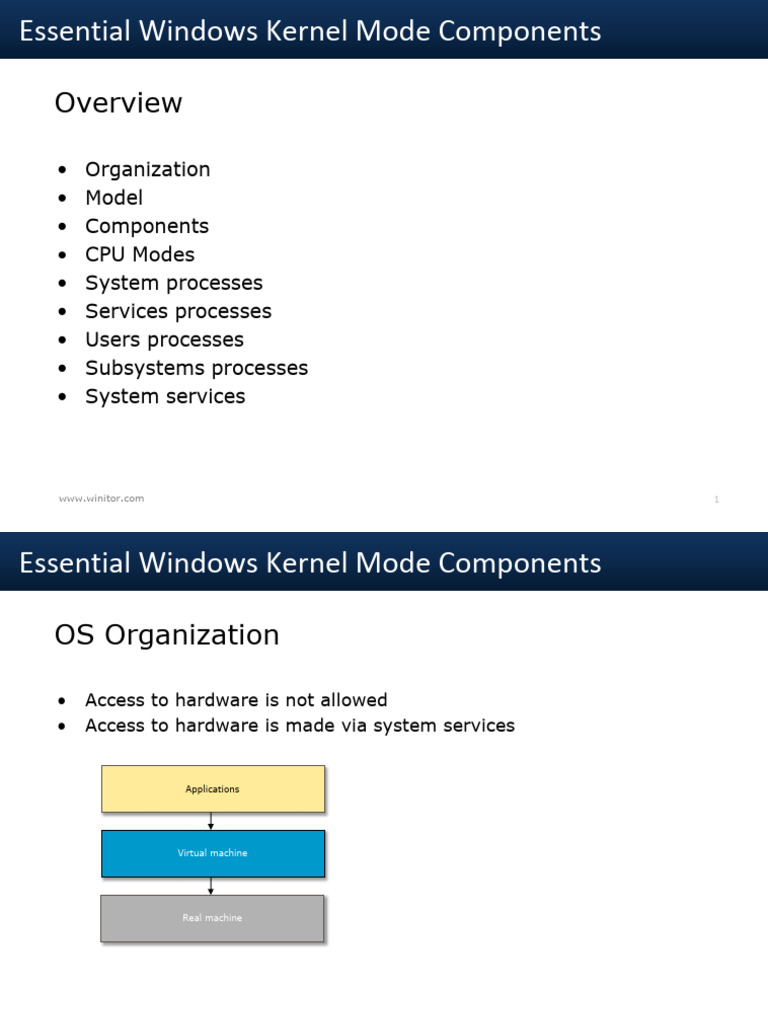

Overview

• Organization
• Model
• Components
• CPU Modes
• System processes
• Services processes
• Users processes
• Subsystems processes
• System services

www.winitor.com 1
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

OS Organization

• Access to hardware is not allowed

• Access to hardware is made via system services

Applications

Virtual machine

Real machine

www.winitor.com 2
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

OS Model

• Applications access the OS via one defined

Application Program Interface (API)

Application

API

OS

www.winitor.com 3
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

OS Contexts

Applications

CPU runs in user mode

CPU runs in kernel mode

OS

www.winitor.com 4
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

CPU Modes

• Protect critical system data from user applications

• User mode 3
2
• Kernel mode 1

www.winitor.com 5
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

CPU Modes - mechanism

• User programs typically run in both modes

• CPU mode switch <> CPU context switch

mode

time

www.winitor.com 6
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

CPU Modes - scenarios

user
kernel

www.winitor.com 7
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

TCB

• Context
• No CPU restriction in kernel
• No memory restriction in kernel
• No security check in kernel
• Definition administrators

• Portions of the system trusted to enforce applications

the security kernel

drivers
• Components
• Most hardware hardware

• All kernel code

• Some user code (SeTcbPrivilege)
• Administrators

www.winitor.com 8
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Memory Layout

• Each application occupies 4 GB of address space

• All applications share system memory space
memory address
Unprivileged

0x00000000

Application A Application B Application C ... Application Z

0x7FFFFFFF
memory address
Privileged

0xFFFFFFFF

www.winitor.com 9
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

OS Major Components

System processes Services processes User processes Environment processes

Session manager POSIX

… …

Logon manager
alerter pinball
Security manager Win32

… explorer
Services manager

System services
user

kernel

Executive

Hardware Abstraction Layer

Hardware

www.winitor.com 10
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems

• Definition
• Role
• Types
.,,

... Win16 application

... Win32 application Win16 application

Posix application Win32 application Win16 application

Posix application Win32 application WOW DOS application DOS application

NTVDM NTVDM …

Posix Win32

www.winitor.com 11
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems - interfaces

• Subsystem
• Process runs in a private address space
• Application
• Sends messages to subsystem
• Unaware of messages
• Implicitely linked with systems‘s interfaces (image = code +
metadata)
application.exe

Functions calls

Win32 API

Kernel32.dll Gdi32.dll ... User32.dll

Native API

Ntdll.dll

www.winitor.com 12
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems - strategy

Application Subsystem

Win32 API

Subsystem DLLs

Executive

www.winitor.com 13
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems - strategy

Application Subsystem

Win32 API

Subsystem DLLs

Native API CPU mode switch

Executive

www.winitor.com 14
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems - strategy

Application Subsystem

API

message CPU context switch

Subsystem DLLs

Native API CPU mode switch

Executive

www.winitor.com 15
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Environment Subsystems - strategy

Service implementation CPU mode switching CPU context switching Message sent

performance
User process No No No

Executive Yes No No

Server Yes Yes Yes

www.winitor.com 16
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Win16 Support

• MS-DOS applications
• One-one relation
• Win16 applications
• Many-one relation
< NT > NT

Windows MS-DOS

MS-DOS Windows

www.winitor.com 17
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

System processes

• Are started by the system

• Are running on every system
• Cannot be stopped

www.winitor.com 18
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Session Manager Subsystem

• Definition
• Role
• Particularities
• Part of the TCB
• Native user application

www.winitor.com 19
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Logon Manager

• Definition
• Role
• Interactive logon request management
• Authentication User interface management
• User profile initialization
• Shell creation
• TASKMGR management
Who you are
(identification)

What you know What you are

(authentication) (authentication)

www.winitor.com 20
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Local Security Authority Subsystem

• Definition
• Role

www.winitor.com 21
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

Service Control Manager

• Definition
• Role

www.winitor.com 22
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components

User Processes - creation

System

Smss

Permanent
Winlogon Csrss

Services Lsass

Userinit

Volatile (interactive)
Shell

...

www.winitor.com 23
Windows – Key
Essential User Mode
Windows Components
Kernel Mode Components
