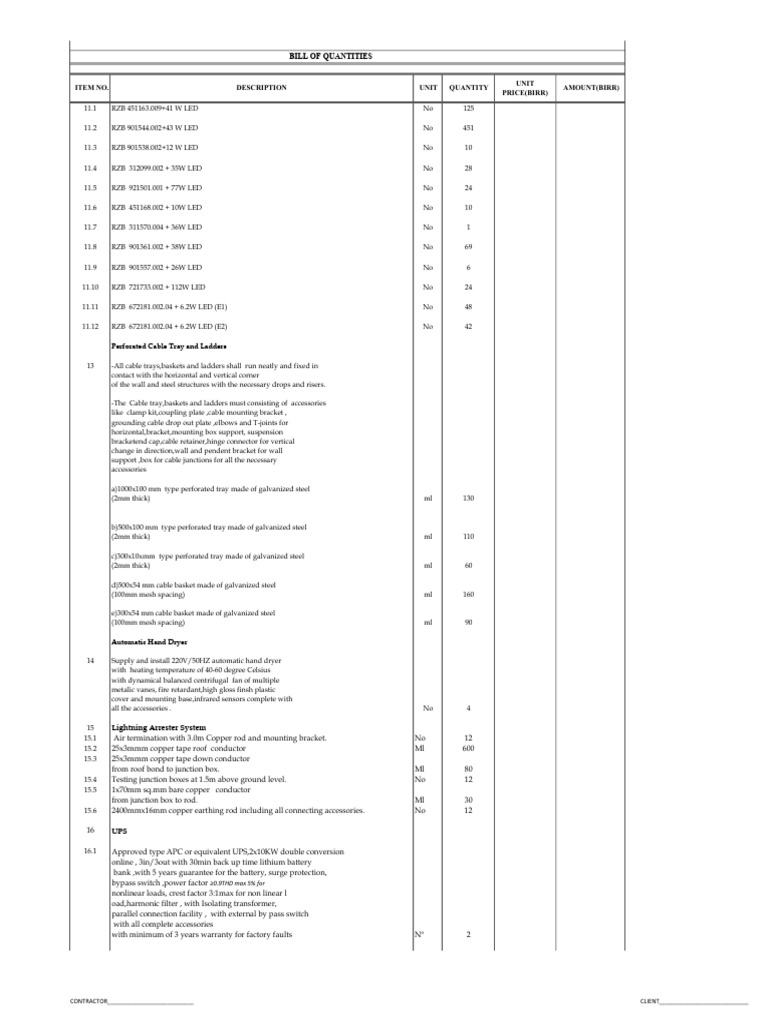

BILL OF QUANTITIES

UNIT
ITEM NO. DESCRIPTION UNIT QUANTITY AMOUNT(BIRR)
PRICE(BIRR)

11.1 RZB 451163.009+41 W LED No 125

11.2 RZB 901544.002+43 W LED No 451

11.3 RZB 901538.002+12 W LED No 10

11.4 RZB 312099.002 + 35W LED No 28

11.5 RZB 921501.001 + 77W LED No 24

11.6 RZB 451168.002 + 10W LED No 10

11.7 RZB 311570.004 + 36W LED No 1

11.8 RZB 901361.002 + 38W LED No 69

11.9 RZB 901557.002 + 26W LED No 6

11.10 RZB 721733.002 + 112W LED No 24

11.11 RZB 672181.002.04 + 6.2W LED (E1) No 48

11.12 RZB 672181.002.04 + 6.2W LED (E2) No 42

Perforated Cable Tray and Ladders

13 -All cable trays,baskets and ladders shall run neatly and fixed in
contact with the horizontal and vertical corner
of the wall and steel structures with the necessary drops and risers.

-The Cable tray,baskets and ladders must consisting of accessories

like clamp kit,coupling plate ,cable mounting bracket ,
grounding cable drop out plate ,elbows and T-joints for
horizontal,bracket,mounting box support, suspension
bracketend cap,cable retainer,hinge connector for vertical
change in direction,wall and pendent bracket for wall
support ,box for cable junctions for all the necessary
accessories

a)1000x100 mm type perforated tray made of galvanized steel

(2mm thick) ml 130

b)500x100 mm type perforated tray made of galvanized steel

(2mm thick) ml 110

c)300x10xmm type perforated tray made of galvanized steel

(2mm thick) ml 60

d)500x54 mm cable basket made of galvanized steel

(100mm mesh spacing) ml 160

e)300x54 mm cable basket made of galvanized steel

(100mm mesh spacing) ml 90

Automatic Hand Dryer

14 Supply and install 220V/50HZ automatic hand dryer

with heating temperature of 40-60 degree Celsius
with dynamical balanced centrifugal fan of multiple
metalic vanes, fire retardant,high gloss finsh plastic
cover and mounting base,infrared sensors complete with
all the accessories . No 4

15 Lightning Arrester System

15.1 Air termination with 3.0m Copper rod and mounting bracket. No 12
15.2 25x3mmm copper tape roof conductor Ml 600
15.3 25x3mmm copper tape down conductor
from roof bond to junction box. Ml 80
15.4 Testing junction boxes at 1.5m above ground level. No 12
15.5 1x70mm sq.mm bare copper conductor
from junction box to rod. Ml 30
15.6 2400mmx16mm copper earthing rod including all connecting accessories. No 12

16 UPS

16.1 Approved type APC or equivalent UPS,2x10KW double conversion

online , 3in/3out with 30min back up time lithium battery
bank ,with 5 years guarantee for the battery, surge protection,
bypass switch ,power factor ≥0.9THD max 5% for
nonlinear loads, crest factor 3:1max for non linear l
oad,harmonic filter , with Isolating transformer,
parallel connection facility , with external by pass switch
with all complete accessories
with minimum of 3 years warranty for factory faults Nº 2

CONTRACTOR__________________________ CLIENT___________________________
 BILL OF QUANTITIES

UNIT
ITEM NO. DESCRIPTION UNIT QUANTITY AMOUNT(BIRR)
PRICE(BIRR)

16.2 Approved type RZB LUXIFAIR KV 2000W central power

supply system for emergency lights with all complete accessories Nº 1

17 Compact Substation
Utility connection outdoor type compact substation , ABB,SIEMENS or
equivalent,with dry type distribution transformer 2000KVA, 33/0.4 KV with low
iron and copper losses , with 36KV,25KA,630A MV switchgear consisting of the
necessary circuit breaker ,disconnector,earthing switches , metering , voltage and
17.1
current transformers and the low voltage compartment with separate lockable door
for EEUactive and reactive power meters and all medium and low voltage side
switchgears and connection accessories and all the necessary accessories as per EEU
regulation and low voltage side consisting of
1pc main air circuit breaker of 4000A, 3-ph Icu = 150KA
3pcsof current transformer of 5000/5A
1pc of Ammeter range of 0-5000A
1pc of voltmeter range 500V with selector switch
1pc of surge arrester of 40 KA

With copper bus bar of 5000A and 25 % reserve space Nº 1

18 Generator
18.1 Approved type Caterpillar or equivalent standard diesel
generating setcomprizeses of diesel engine. AC brushless
altenator and prewired control panel. The engine and
alternator are coupled by means of flexible coupling and
are mounted on steel shock absorving base frame.
Technical data
Rating
Stand by power at site 1000KVA
Power factor 0.8 lagging
Voltage (5% adjustable) 400volts
Operation altitude :2600 meter
Frequency 50HZ
Ambient temperature 40ºC
Over load capacity 10% for 1hr in 12 hrs.
turbo engine with intercooler

Water cooled

Electronic governor
Control panel
Skid mounted control panel comprise of:-
Circuit breaker of suitable rating comprising/having
Under voltage release
Over current protection
Short circuit protection
Voltmeter
Voltmeter selector switch
Ammeter selector switch
Frequency meter
Current transformers of suitable ratio

Set of single pole MCBs

Trip relay (for thermal sensor)
Set of control fuses
Set of indications lamps
Gen CB"ON"
Generator tripped/off
Over crank
Low oil pressure (with protection)
High coolant temperature (with protection)
Over speed (with protection)
Lube oil pressure gauge
Battery charging ammeter
Run Hour counter meter
Engine control module
-12-24V electric starting system including heavy duty
dry charged battery pack
-Antivibration pad between engine /alternator and
-Silencer kit 2m flexiable pipe and flanges,critical muffler
sound level 70db(A) at 7m.
-Base mounted daily fuel tank for 8hr full load
operation complete with essential accessories
comprising filiter,breather feed and return
lines dial type content gauge
Key start switch
-4000A automatic transfer switch which is based on
motorized circuit breaker and all the necessary
accessoies
-Operation and maintenace manuals ,spare parts for

CONTRACTOR__________________________ CLIENT___________________________
 BILL OF QUANTITIES

UNIT
ITEM NO. DESCRIPTION UNIT QUANTITY AMOUNT(BIRR)
PRICE(BIRR)

4000 hours operation

catalougs circuit diagram and test report
with foundation as per the manufacturers
recommendation and protection mesh
including roofing
-10000 litre diesel oil storage tank made of steel with fuel pump system and
No 2
plumbing and all necessary acccessories for connection to the generator

18.2 Synchronizing panel for synchronizing two 1000 KVA generators No 1

ELECTRICAL SITE WORK

SUPPLY AND INSTALL

19 CENTRAL MAIN DISTRIBUTION BOARD

Surface mounting distribution board SDB-GH, located in the guard house in sheet steel
enclosure withlockable door and with phase, neutral, and earth bus-bars of 63A/3Pand
19.1 consisting of:-

1 pc main MCB of 50A/3P,Icu=10KA

2 pcs MCB of 20A/3P,Icu=10KA
2 pcs MCB of 10A/1P,Icu=6KA
2 pcs MCB of 16A/1P,Icu=6KA
3 pcs MCB of 25A/1P,Icu=6KA coupled with contactor and timer
25% reserve pitches No 2

20 POWER DISTRIBUTION SYSTEM

20.1 UNDERGROUND CABLES
a) PVC Sheathed PVC Insulsted Underground cable type NYY 0.6/1kV of (5x10) sqmm from
MDB-L to SDB-GH M 70
b) Ditto, but of (5x4) sqmm for the motor operated sliding gate M 40
c) Ditto, but of (3x6) sqmm for Perimeter street lights M 480
d) Ditto, but of (3x2.5) sqmm from pole fuse box to the street light fitting M 160

20.2 MV cable
1x95 sqmm, 36KV , XLPE ,SWA, insulated ,copper wire screen ,single core armoured and
sheathed copper cable Nexan or equivalent make Ml 660
20.3
20.4 UNDERGROUND DUCTS/PIPES
a) PVC Pipe of 110mm diameter. M 40
a) PVC Pipe of 50mm diameter. M 480

20.5 CABLE TRENCHES

a) Cable trench for perimeter street lighting, service cables & feeder cables of width 600mm
3
and depth of 600mm filled with sand. M 175

b) Cable trench for MV cables of width 600mm and depth of 1000mm filled with sand. 3
M 132

20.6 MANHOLES
a) Manhole in bricks and with concrete base internally of 1000x1000x1000mm including
metal cover with lifting handle. No 8
b) Manhole in bricks and with concrete base internally of 600x600x600mm including metal
cover with lifting handle. No 3

20.7 WARNING TAPES

100 mm wide plastic tape, coloured yellow with suitable
warning legend describing buried electrical lines M 770

21 EXTERNAL LIGHTING

21.1 LIGHT POLES

a) Street lighting pole of 10.0m height above ground level up to the fitting,with 1.5m arm
fitting mounting structure and free fixed door, including removable panel with clamps for
power cables, and protective fuse holder with 1x6A fuses. Price to include foundation work as
indicated on detail drawing and painting of poles. No 20

21.2 EXTERIOR LIGHT FITTING

a: FSL FSS801A2-120 or equivalent LED 120W Street Light
or equivalent approved. No 20

22 ELECTRIC FENCE
Five 1mm wire electric fence,with insulators,energizer(Wizord 4

or equivalent) ,with sounder strobe,appropriate signs

and 2400x16mm earthing rod at appropriate places with all
necessary devices and accessories to make the system complete LS 1

Total carried to summary

TOTAL FOR DIVISION 26 CARRIED TO SUMMARY

DIVISION 27. COMMUNICATIONS

1 Data /Telecom Points/Outlets

Data/telephone points fed through 2x(twisted pair category 6A UTP cable) inside PVC
1.1 No 64
conduit of 25mm diameter.

RJ 45 twin outlets type LEGRAND category 6A with 8 contacts complete with clip on
1.2 No 64
support frame

CONTRACTOR__________________________ CLIENT___________________________
