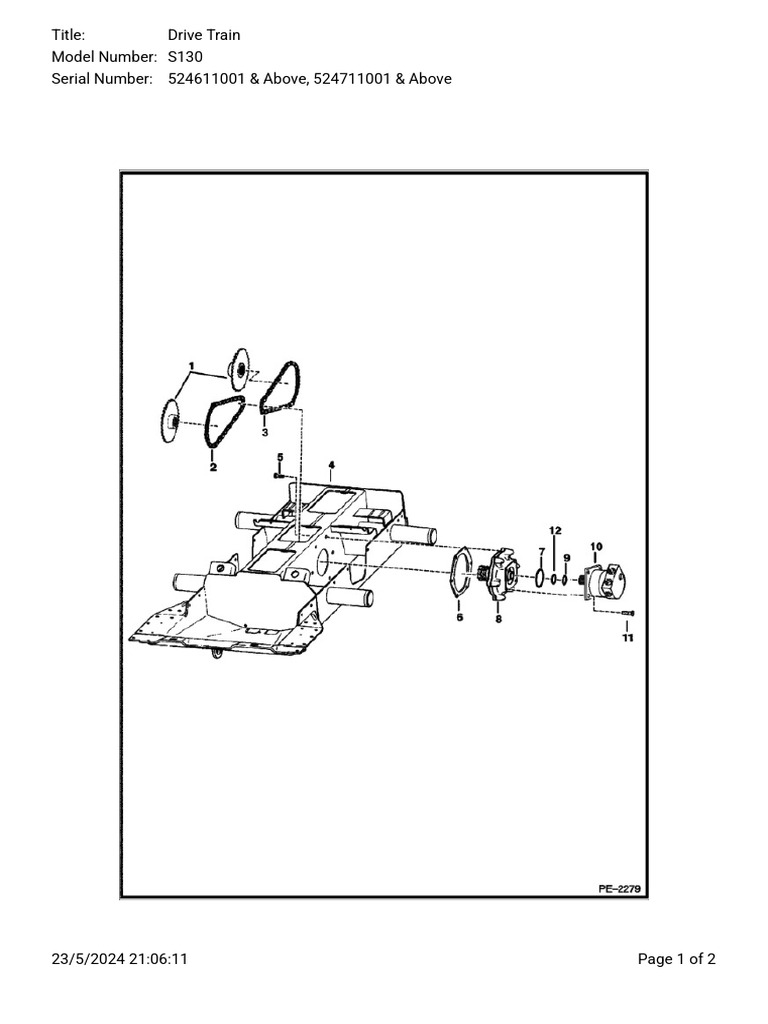

Title: Drive Train

Model Number: S130

Serial Number: 524611001 & Above, 524711001 & Above

23/5/2024 21:06:11 Page 1 of 2

Title: Drive Train
Model Number: S130
Serial Number: 524611001 & Above, 524711001 & Above

Ref Part # Description S/ Q-

# N ty

1 7134137 SPROCKET, Was 6577204, A 4

2 CHAIN, CHAIN, NLA - 58 pitch - hour glass shape link - Was 2

6579126, A

2 CHAIN, CHAIN, NLA - 58 pitch - oval shape link - Was 6731219, A 2

2 6689649 CHAIN, DRIVE, 58 pitch - hour glass shape link - Tsubaki 2

2 6510171 LINK, conn. - hour glass shape - Diamond x

2 6675332 CHAIN LNK, conn. - oval shape - Diamond x

2 6690709 LINK, conn. - hour glass shape - Tsubaki x

3 CHAIN, CHAIN, NLA - 62 pitch - hour glass shape link - Diamond - 2

Was 6579127, A

3 CHAIN, CHAIN, NLA - 62 pitch - oval shape link - Diamond - Was 2

6731218, A

3 6689651 CHAIN DRIVE, 62 link - 1.00 pitch - hourglass shape link - Tsubaki 2

3 6510171 LINK, conn. - hour glass shape - Diamond x

3 6675332 CHAIN LNK, conn. - oval shape - Diamond x

3 6690709 LINK, conn. - hour glass shape - Tsubaki x

4 6712827 CHAINCASE, Was NLA, A 1

5 35C1032 BOLT 12

6 6704878 GASKET, install W/rib toward chaincase 2

7 25K30508 O-RING 2

8 MOUNT ASSY., MOUNT ASSY., DRIVE MOTOR 2

9 54K30202 O-RING, Was 25K30202, A 2

10 MOTOR, MOTOR, W/Ref. 9 2

11 93G824 BOLT 8

12 6735505 SPACER, hardened - .25 in. (6,35 mm) thick x 6.25 in. (158,75 mm) 2
O.D.
