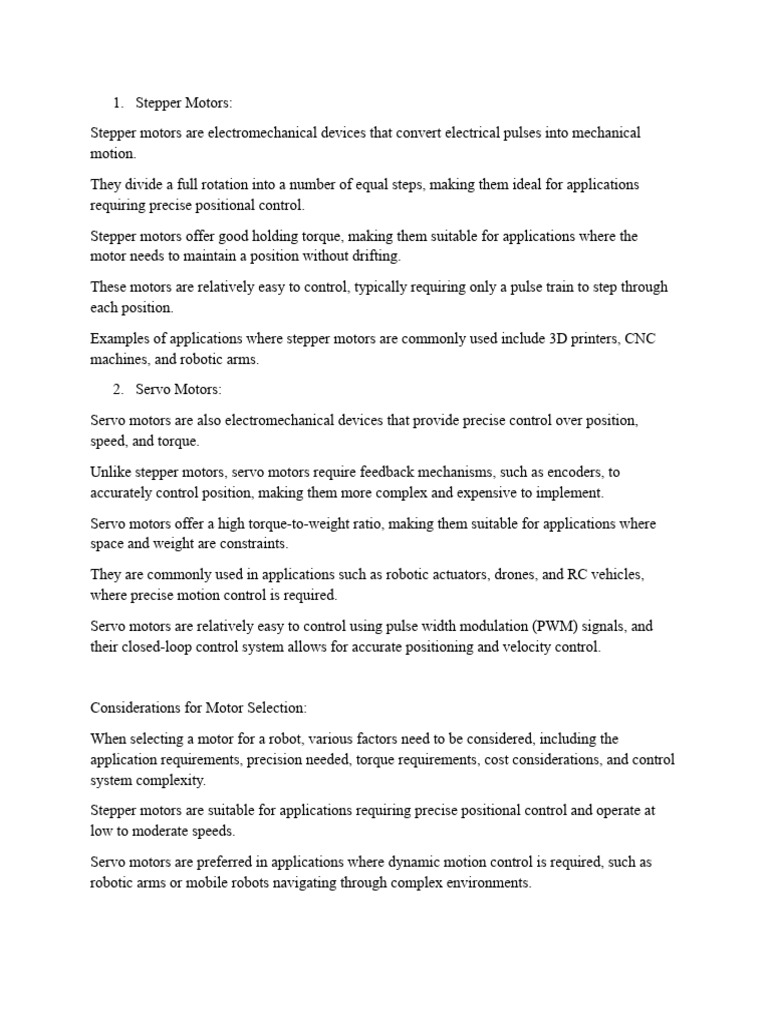

1.

Stepper Motors:
Stepper motors are electromechanical devices that convert electrical pulses into mechanical
motion.
They divide a full rotation into a number of equal steps, making them ideal for applications
requiring precise positional control.
Stepper motors offer good holding torque, making them suitable for applications where the
motor needs to maintain a position without drifting.
These motors are relatively easy to control, typically requiring only a pulse train to step through
each position.
Examples of applications where stepper motors are commonly used include 3D printers, CNC
machines, and robotic arms.
2. Servo Motors:
Servo motors are also electromechanical devices that provide precise control over position,
speed, and torque.
Unlike stepper motors, servo motors require feedback mechanisms, such as encoders, to
accurately control position, making them more complex and expensive to implement.
Servo motors offer a high torque-to-weight ratio, making them suitable for applications where
space and weight are constraints.
They are commonly used in applications such as robotic actuators, drones, and RC vehicles,
where precise motion control is required.
Servo motors are relatively easy to control using pulse width modulation (PWM) signals, and
their closed-loop control system allows for accurate positioning and velocity control.

Considerations for Motor Selection:

When selecting a motor for a robot, various factors need to be considered, including the
application requirements, precision needed, torque requirements, cost considerations, and control
system complexity.
Stepper motors are suitable for applications requiring precise positional control and operate at
low to moderate speeds.
Servo motors are preferred in applications where dynamic motion control is required, such as
robotic arms or mobile robots navigating through complex environments.
Advantages and Disadvantages of Stepper Motors
Advantages of Stepper Motors:
Precise Positional Control: Stepper motors can move in precise increments, making them
suitable for applications requiring accurate positioning, such as 3D printers and CNC machines.
Holding Torque: Stepper motors provide holding torque even when stationary, allowing them to
maintain position without the need for external brakes.
Open-loop Control: Stepper motors can be controlled using open-loop systems, simplifying the
control electronics and reducing costs.
Low Cost: Stepper motors are often more cost-effective than servo motors, making them a
preferred choice for budget-conscious applications.
Disadvantages of Stepper Motors:
Limited Speed and Torque: Stepper motors may not perform as well as servo motors at high
speeds or under heavy loads due to their design limitations.
Resonance Issues: Stepper motors can experience resonance issues at certain speeds, leading to
reduced performance and accuracy.
Higher Power Consumption: Stepper motors consume more power than servo motors, especially
when holding a position, which may impact overall energy efficiency.
Complex Control at High Speeds: Achieving precise control at high speeds with stepper motors
may require more advanced control algorithms and additional hardware.

Advantages and Disadvantages of Servo Motors

Advantages of Servo Motors:
Precise Positional Control: Servo motors offer precise control over position, speed, and torque,
making them ideal for applications requiring accurate motion control.
High Torque-to-Weight Ratio: Servo motors provide high torque output relative to their size and
weight, making them suitable for applications where space and weight are constraints.
Closed-Loop Control: Servo motors use feedback mechanisms, such as encoders, to maintain
accurate position control, resulting in improved performance and reliability.
Dynamic Motion Control: Servo motors excel at dynamic motion control, making them suitable
for applications such as robotic arms or mobile robots navigating through complex
environments.
Disadvantages of Servo Motors:
Higher Cost: Servo motors are typically more expensive than stepper motors due to their closed-
loop control system and feedback mechanisms.
Complexity: Implementing servo motors requires additional hardware, such as encoders and
feedback control systems, increasing system complexity and cost.
Power Consumption: Servo motors may consume more power than stepper motors, especially
under heavy loads or during rapid motion, which can impact energy efficiency.
Limited Continuous Rotation: Unlike stepper motors, which can rotate continuously, servo
motors are typically limited in their range of motion, making them less suitable for some
applications.

Additional Considerations for Motor Selection:

Application Requirements: Understanding the specific needs of your robot’s application is
crucial. Consider factors such as speed, precision, torque, size, weight, and environmental
conditions. Different applications may favor one type of motor over the other.
Control System Complexity: Stepper motors generally have simpler control systems, requiring
only a sequence of pulses to move to a desired position. On the other hand, servo motors require
closed-loop feedback control systems to maintain accurate position control, which can add
complexity to the overall system.
Power and Energy Efficiency: Consider the power requirements of your robot and its energy
efficiency goals. While stepper motors may consume more power when holding a position, servo
motors may be more efficient during dynamic motion. Choosing the right motor type can help
optimize power consumption.
Cost: Cost is a significant factor in motor selection. Stepper motors are often more cost-effective
than servo motors, making them a preferred choice for applications with budget constraints.
However, the overall system cost, including control electronics and feedback mechanisms,
should be taken into account.
Maintenance and Reliability: Consider the maintenance requirements and reliability of the
chosen motor type. Servo motors with closed-loop control systems may offer higher reliability
and require less maintenance due to their ability to detect and compensate for errors in position.
Integration with Control Systems: Evaluate how easily the chosen motor type integrates with the
overall control system of your robot. Consider compatibility with microcontrollers, motor
drivers, and other peripheral devices required for motor control.
Noise and Vibration: Stepper motors may produce more noise and vibration, especially at higher
speeds, due to their stepping operation. Servo motors, with their smoother operation and closed-
loop control, may offer quieter and more vibration-free performance.

3D Printing: Stepper motors are commonly used in 3D printers for their precise control over
position, allowing for accurate layer-by-layer deposition of material.

Robotic Arms: Servo motors are often preferred for robotic arms due to their dynamic motion
control capabilities, enabling precise and smooth movements for tasks such as pick-and-place
operations or assembly tasks.

CNC Machines: Both stepper motors and servo motors find applications in CNC machines.
Stepper motors are suitable for applications requiring precise positional control, such as milling
or engraving. Servo motors may be preferred for high-speed machining operations requiring
dynamic motion control and rapid acceleration/deceleration.

Robotics Education and Hobbyist Projects: Stepper motors are commonly used in educational
robotics kits and hobbyist projects due to their simplicity and affordability. They provide an
accessible platform for learning about motor control and robotics principles.

Week 3
OPERATION OF MOTORS USED IN ROBOTS
Operation Principles:
Fleming’s Left-Hand Rule: This rule describes the relationship between the direction of the
magnetic field, the direction of current flow, and the resulting force in a conductor.

Torque and Speed: The torque produced by a DC motor is proportional to the strength of the
magnetic field and the current flowing through the armature. Speed is determined by the applied
voltage and the motor’s mechanical load.
Components and Construction:
Armature: Typically, a coil of wire wound around a core, the armature is the rotating part of the
motor.
Field Magnets: Permanent magnets or electromagnets create the static magnetic field within
which the armature rotates.
Commutator and Brushes: In brushed DC motors, these components switch the direction of
current flow in the armature windings as it rotates.

Control and Feedback:

PWM Control: Pulse Width Modulation (PWM) is commonly used to control the speed of DC
motors by varying the duty cycle of the applied voltage.
Feedback Systems: Encoders, Hall effect sensors, or other feedback devices can provide
information about the motor’s position, speed, and direction, enabling closed-loop control for
precise motion control in robotics.
Applications in Robotics:
Mobility: DC motors power the wheels or tracks of mobile robots, allowing them to navigate
environments and perform tasks.
Manipulation: In robotic arms and grippers, DC motors provide the necessary torque and
precision for object manipulation and assembly tasks.
Sensory Feedback: Motors equipped with encoders or sensors can provide feedback on the
robot’s interactions with the environment, enabling adaptive behavior and safer operation.
Challenges and Advances:
Efficiency and Power Consumption: Improving the efficiency of DC motors contributes to
longer battery life and increased autonomy for mobile robots.
Miniaturization and Integration: Advances in motor design and manufacturing techniques enable
the development of compact and lightweight motors suitable for small-scale and agile robotic
platforms.
Motor Characteristics:
Speed-Torque Characteristics: DC motors exhibit different speed-torque curves based on the
applied voltage and mechanical load. Understanding these characteristics is crucial for selecting
the right motor for a specific robotic application.
Stall Torque: The maximum torque a motor can produce when the shaft is prevented from
rotating. It’s an important consideration for applications requiring high starting torque, such as
lifting heavy loads or overcoming friction.
Motor Control Techniques:
PID Control: Proportional-Integral-Derivative (PID) control is widely used for precise speed and
position control of DC motors in robotics. It adjusts the motor’s input voltage based on error
signals derived from desired and actual positions or speeds.
Trajectory Planning: Advanced robotics systems employ trajectory planning algorithms to
generate smooth motion profiles for the motors, minimizing jerk and ensuring efficient and
precise movement.
Motor Dynamics and Modeling:
Electrical Dynamics: The electrical dynamics of DC motors, including inductance and resistance,
affect their response to applied voltage changes. Models incorporating these dynamics help in
designing robust control systems.
Mechanical Dynamics: Factors such as inertia, friction, and compliance in the mechanical system
influence the motor’s response to control inputs. Dynamic modeling allows engineers to predict
and optimize the motor’s behavior in various operating conditions.

Motor Efficiency and Power Management:

Efficiency Optimization: Techniques such as field weakening in brushed DC motors or phase
advance control in BLDC motors are used to maximize motor efficiency over a range of
operating conditions.
Regenerative Braking: In certain robotic applications, regenerative braking systems capture
energy during deceleration and braking phases, returning it to the power source or storing it for
later use, enhancing overall energy efficiency.
Motor Selection and Integration:
Performance Requirements: Selecting the right motor involves considering factors such as
required torque, speed, power consumption, size, and weight, as well as environmental
conditions and reliability requirements.
Integration Challenges: Integrating motors into robotic systems involves mechanical, electrical,
and software considerations, including mounting, wiring, and interfacing with control systems
and sensors.
Emerging Trends and Technologies:
Smart Motors: Integration of sensors and onboard processing capabilities into motors enables
self-monitoring, diagnostics, and predictive maintenance, enhancing reliability and uptime.
Soft Robotics: Soft actuators, such as pneumatic artificial muscles or dielectric elastomer
actuators, offer alternative approaches to traditional motor-driven systems, enabling safe
interaction with humans and delicate objects.
