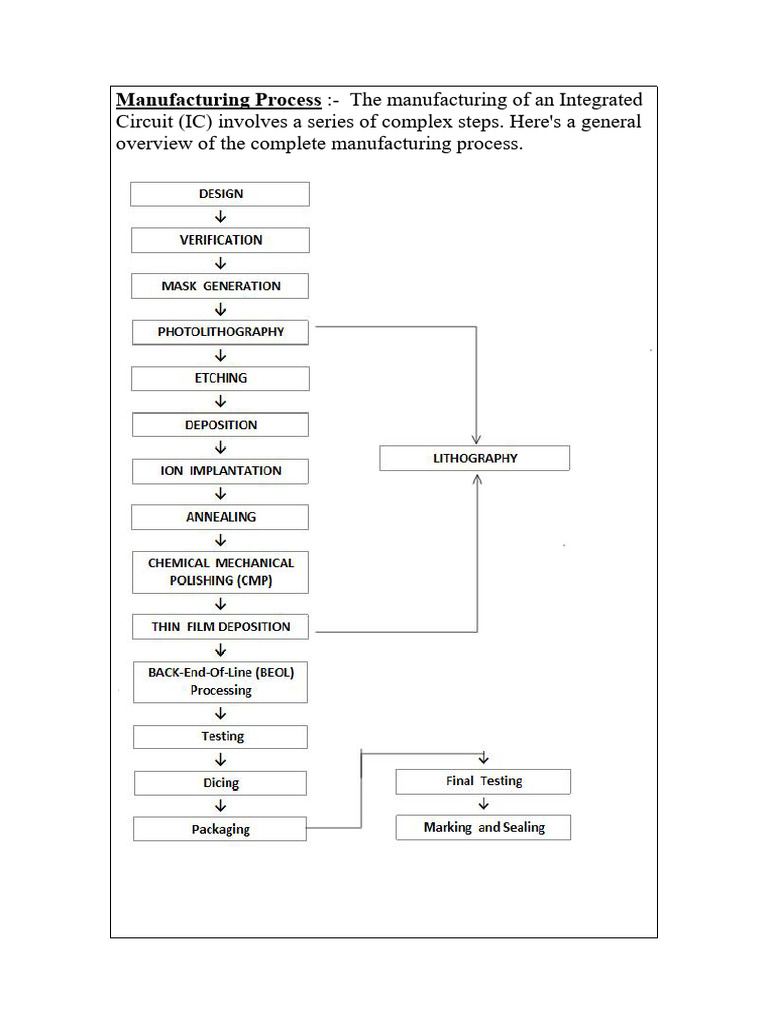

Manufacturing Process :- The manufacturing of an Integrated

Circuit (IC) involves a series of complex steps. Here's a general

overview of the complete manufacturing process.
1. Design: The IC design process involves creating a detailed
schematic and layout of the desired circuit. This step includes
logic design, circuit simulation, and physical layout.

2. Verification: The design is thoroughly verified through

simulations and other methods to ensure it meets specifications
and requirements.

3. Mask Generation: Masks, which are templates defining the

circuit patterns, are created based on the finalized design.

4. Photolithography: The semiconductor wafer is coated with a

light-sensitive material (photoresist) and exposed to light
through the masks, transferring the circuit patterns onto the
wafer.

5. Etching: Excess material on the wafer is removed using

chemical etching, leaving behind the desired circuit structures.

6. Deposition: Additional materials are deposited onto the wafer

to build up the various layers of the IC.

7. Ion Implantation: Specific regions of the wafer are

bombarded with ionized atoms to modify their electrical
properties.

8. Annealing: The wafer is heated to repair any damage caused

during ion implantation and to activate dopants.

9. Chemical Mechanical Polishing (CMP): The wafer surface

is polished to ensure a flat and smooth surface for subsequent
layers.

10. Thin Film Deposition: Additional thin films, such as

insulating layers or metal interconnects, are deposited onto the
wafer.
11. Lithography (Repeat): Steps 4 to 10 are repeated for each
layer of the IC.

12. Back-End-of-Line (BEOL) Processing: Interconnections

between different components of the IC, including metal layers
and vias, are created.

13. Testing: The fabricated wafer undergoes various tests,

including functional testing and performance testing, to identify
defects and ensure functionality.

14. Dicing: The wafer is cut into individual dies (chips) using a
process known as dicing.

15. Packaging: Each die is mounted and packaged to provide

protection and facilitate electrical connections.

16. Final Testing: Packaged ICs undergo final testing to verify

their functionality and quality.

17. Marking and Sealing: The packaged ICs are marked with
identification information, and the packages are sealed for
protection.
