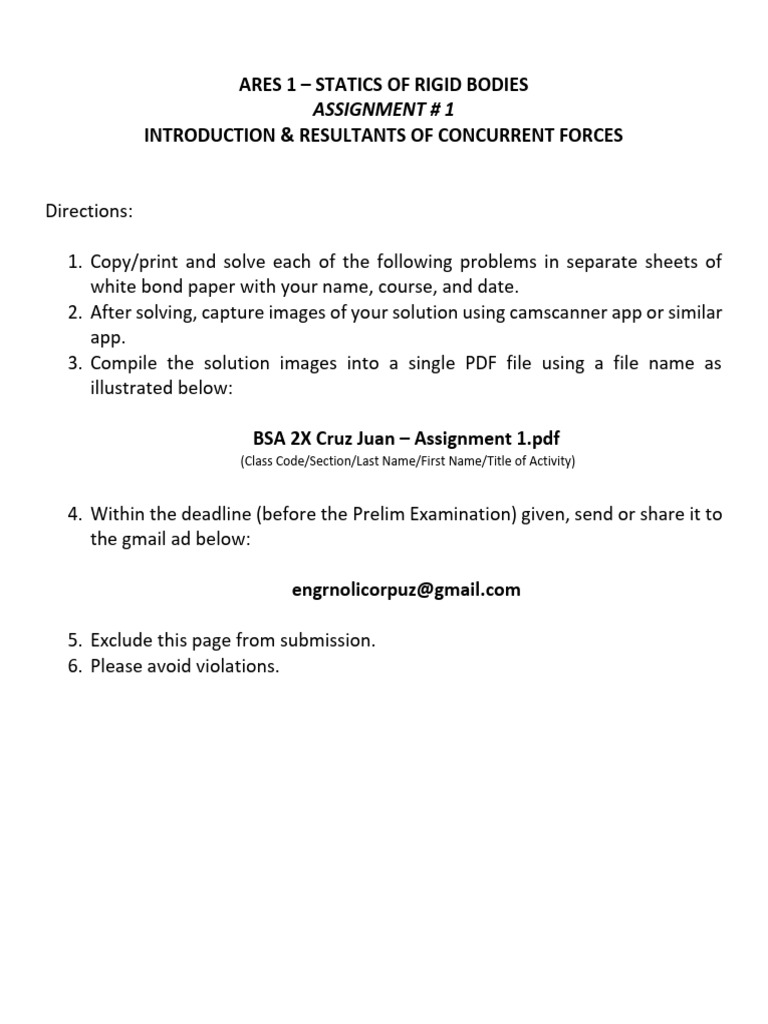

ARES 1 – STATICS OF RIGID BODIES

ASSIGNMENT # 1
INTRODUCTION & RESULTANTS OF CONCURRENT FORCES

Directions:

1. Copy/print and solve each of the following problems in separate sheets of

white bond paper with your name, course, and date.
2. After solving, capture images of your solution using camscanner app or similar
app.
3. Compile the solution images into a single PDF file using a file name as
illustrated below:

BSA 2X Cruz Juan – Assignment 1.pdf

(Class Code/Section/Last Name/First Name/Title of Activity)

4. Within the deadline (before the Prelim Examination) given, send or share it to
the gmail ad below:

engrnolicorpuz@gmail.com

5. Exclude this page from submission.

6. Please avoid violations.
 ARES 1 – STATICS OF RIGID BODIES
ASSIGNMENT # 1
INTRODUCTION & RESULTANTS OF CONCURRENT FORCES

NAME: RATING:
COURSE/YEAR/SECTION:
DATE:
01. If R is the resultant of the forces P and Q, find P and Q.

FINAL ANSWER/S:
02. Compute A x B and C x B for the position vectors shown.

FINAL ANSWER/S:
03. Calculate the resultant of the concurrent forces acting on the gusset plate of a bridge truss as shown. Express its
direction in acute angle measured from x-axis.

FINAL ANSWER/S:
04. The resultant of the concurrent forces acting on the bracket shown is 800 N acting along the u-axis. Find the
magnitude of the force F and its direction θ.

FINAL ANSWER/S:
05. The magnitudes of the three concurrent forces acting on the plate are T1 = 100 kN, T2 =80 kN, and T3
= 50 kN. Determine the resultant force R acting on the plate. Express your answer in rectangular form.
Also, find the coordinates of the point where R intersects the plate.

FINAL ANSWER/S:
06. The resultant R of the concurrent forces F, T, and Q acting on the screw eye has the magnitude and direction
shown. Determine the force Q. Express your answer in rectangular form.

FINAL ANSWER/S:
