Logan I /MCV/Pickup/Express (X90) 1.5 dCi 85 (K9K-796) 2007 - 2012

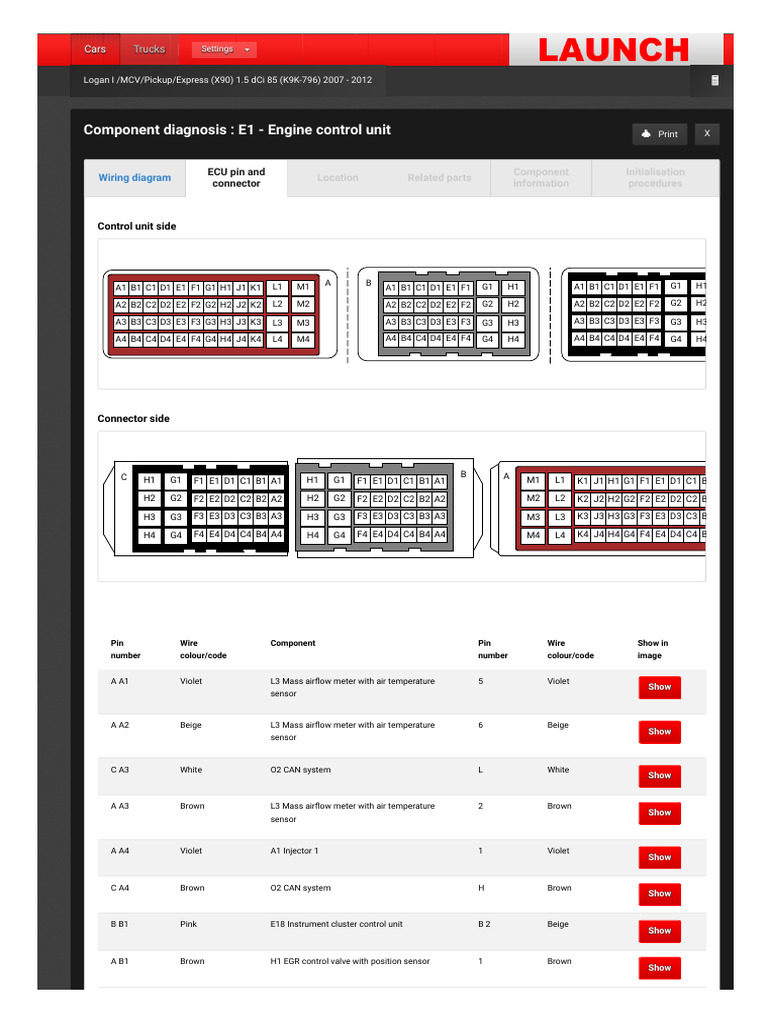

Component diagnosis : E1 - Engine control unit p Print X

ECU pin and Component Initialisation

Wiring diagram Location Related parts
connector information procedures

Control unit side

A B G1 H1
A1 B1 C1 D1 E1 F1 G1 H1 J1 K1 L1 M1 A1 B1 C1 D1 E1 F1 G1 H1 A1 B1 C1 D1 E1 F1

A2 B2 C2 D2 E2 F2 G2 H2 J2 K2 L2 M2 A2 B2 C2 D2 E2 F2 G2 H2 A2 B2 C2 D2 E2 F2 G2 H2

A3 B3 C3 D3 E3 F3 G3 H3 J3 K3 L3 M3 A3 B3 C3 D3 E3 F3 G3 H3 A3 B3 C3 D3 E3 F3 G3 H3
A4 B4 C4 D4 E4 F4 G4 H4 J4 K4 L4 M4 A4 B4 C4 D4 E4 F4 G4 H4 A4 B4 C4 D4 E4 F4 G4 H4

Connector side

C B A
H1 G1 F1 E1 D1 C1 B1 A1 H1 G1 F1 E1 D1 C1 B1 A1 M1 L1 K1 J1 H1 G1 F1 E1 D1 C1 B
H2 G2 F2 E2 D2 C2 B2 A2 H2 G2 F2 E2 D2 C2 B2 A2 M2 L2 K2 J2 H2 G2 F2 E2 D2 C2 B

H3 G3 F3 E3 D3 C3 B3 A3 H3 G3 F3 E3 D3 C3 B3 A3 M3 L3 K3 J3 H3 G3 F3 E3 D3 C3 B

H4 G4 F4 E4 D4 C4 B4 A4 H4 G4 F4 E4 D4 C4 B4 A4 M4 L4 K4 J4 H4 G4 F4 E4 D4 C4 B

Pin Wire Component Pin Wire Show in

number colour/code number colour/code image

A A1 Violet L3 Mass airflow meter with air temperature 5 Violet

Show
sensor

A A2 Beige L3 Mass airflow meter with air temperature 6 Beige

Show
sensor

C A3 White O2 CAN system L White

Show

A A3 Brown L3 Mass airflow meter with air temperature 2 Brown

Show
sensor

A A4 Violet A1 Injector 1 1 Violet

Show

C A4 Brown O2 CAN system H Brown

Show

B B1 Pink E18 Instrument cluster control unit B2 Beige

Show

A B1 Brown H1 EGR control valve with position sensor 1 Brown

Show
C B1 Pink R10 Cooling fan relay 2 A2 Pink
Show

A B2 Orange H1 EGR control valve with position sensor 5 Orange

Show

C B2 Beige E18 Instrument cluster control unit B 21 Beige

Show

B B2 Green E18 Instrument cluster control unit B3 White

Show

A B3 Green H1 EGR control valve with position sensor 3 Green

Show

C B3 Brown E4 Air-conditioning control unit B4 Brown

Show

C B4 Pink O6 Diagnostic connector 7 Pink

Show

B B4 Beige E18 Instrument cluster control unit 36 White

Show

A B4 White A1 Injector 1 2 White

Show

C C1 Violet R11 Air-conditioning compressor clutch relay B2 Violet

Show

A C1 Pink L15 Boost pressure sensor 1 Pink

Show

B C1 Violet R10 Cooling fan relay 1 2 Violet

Show

B C2 White R8 Interior heating relay 1 1 Violet

Show

A C2 Grey L15 Boost pressure sensor 3 Grey

Show

A C3 Violet L15 Boost pressure sensor 2 Violet

Show

B C3 Grey L10 Refrigerant pressure sensor C Grey

Show

B C4 Orange L10 Refrigerant pressure sensor B Orange

Show

A C4 Orange A1 Injector 3 1 Orange

Show

C D1 Yellow O7 Fuse F02 2 Yellow

Show

A D1 Green L2 Fuel pressure sensor 3 Green

Show

B D1 Violet E18 Instrument cluster control unit A4 Brown

Show

B D2 Pink R8 Interior heating relay 2 1 Green

Show

A D2 Beige L2 Fuel pressure sensor 1 Beige

Show

A D3 White L2 Fuel pressure sensor 2 White

Show

B D3 Orange E8 Glow plug control unit 3 Orange

Show

A D4 Grey A1 Injector 3 2 Grey

Show
B E1 Green E18 Instrument cluster control unit B 22 Green
Show

B E1 Green X3 Vehicle speed sensor 3 Green

Show

B E2 Black O10 Water separator sensor 1 Black

Show

A E2 Brown X5 Camshaft position sensor (Hall Effect/MRE 3 Brown

Show
type)

C E3 Pink S1 Brake pedal switch 3 Green

Show

A E3 Orange X5 Camshaft position sensor (Hall Effect/MRE 2 Orange

Show
type)

C E4 Orange S1 Brake pedal switch 1 Orange

Show

A E4 Beige A1 Injector 4 1 Beige

Show

A F1 White I2 Knock sensor 1 White

Show

B F1 Pink R1 Main relay 2 Pink

Show

A F2 Pink X1 Crankshaft position sensor (magnetic type) 1 Pink

Show

B F2 Violet E8 Glow plug control unit 8 Violet

Show

C F2 Beige G1 Accelerator pedal position sensor 5 Beige

Show

B F3 Brown O10 Water separator sensor 2 Brown

Show

C F3 Green G1 Accelerator pedal position sensor 6 Green

Show

A F3 Grey X1 Crankshaft position sensor (magnetic type) 2 Grey

Show

C F4 Violet G1 Accelerator pedal position sensor 1 Violet

Show

A F4 Brown A1 Injector 4 2 Brown

Show

C G1 Beige A6 Fuel delivery control valve 2 Beige

Show

C G1 Beige E1 Engine control unit B H2 Beige

Show

C G1 Beige E1 Engine control unit B G2 Beige

Show

C G1 Beige O7 Fuse F02.1 1 Beige

Show

C G1 Beige R10 Cooling fan relay 1 1 Beige

Show

C G1 Beige R11 Air-conditioning compressor clutch relay B1 Beige

Show

C G1 Beige R1 Main relay 5 Beige

Show
C G1 Beige R8 Interior heating relay 1 2 Beige
Show

C G1 Beige R8 Interior heating relay 2 2 Beige

Show

C G1 Beige V3 Turbo pressure control solenoid 2 Beige

Show

C G1 Beige X5 Camshaft position sensor (Hall Effect/MRE 1 Beige

Show
type)

A G1 Red I2 Knock sensor 2 Red

Show

C G2 Grey G1 Accelerator pedal position sensor 4 Grey

Show

B G2 Beige A6 Fuel delivery control valve 2 Beige

Show

B G2 Beige E1 Engine control unit B H2 Beige

Show

B G2 Beige E1 Engine control unit C G1 Beige

Show

B G2 Beige O7 Fuse F02.1 1 Beige

Show

B G2 Beige R10 Cooling fan relay 1 1 Beige

Show

B G2 Beige R11 Air-conditioning compressor clutch relay B1 Beige

Show

B G2 Beige R1 Main relay 5 Beige

Show

B G2 Beige R8 Interior heating relay 1 2 Beige

Show

B G2 Beige R8 Interior heating relay 2 2 Beige

Show

B G2 Beige V3 Turbo pressure control solenoid 2 Beige

Show

B G2 Beige X5 Camshaft position sensor (Hall Effect/MRE 1 Beige

Show
type)

A G2 Green T3 Fuel temperature sensor 1 Green

Show

B G3 Green L10 Refrigerant pressure sensor A Green

Show

A G3 Beige T3 Fuel temperature sensor 2 Beige

Show

C G4 Black E1 Engine control unit C H4 Black

Show

C G4 Black E1 Engine control unit C H1 Black

Show

C G4 Black L3 Mass airflow meter with air temperature 3 Black

Show
sensor

C G4 Black O8 Grounding point NH Black

Show

C G4 Black T1 Coolant temperature sensor 1 Black

Show
C G4 Black X3 Vehicle speed sensor 1 Black
Show

B G4 Orange E18 Instrument cluster control unit B4 Green

Show

A G4 Pink A1 Injector 2 1 Pink

Show

C H1 Black E1 Engine control unit C H4 Black

Show

C H1 Black E1 Engine control unit C G4 Black

Show

C H1 Black L3 Mass airflow meter with air temperature 3 Black

Show
sensor

C H1 Black O8 Grounding point NH Black

Show

C H1 Black T1 Coolant temperature sensor 1 Black

Show

C H1 Black X3 Vehicle speed sensor 1 Black

Show

C H2 Brown G1 Accelerator pedal position sensor 3 Brown

Show

B H2 Beige A6 Fuel delivery control valve 2 Beige

Show

B H2 Beige E1 Engine control unit B G2 Beige

Show

B H2 Beige E1 Engine control unit C G1 Beige

Show

B H2 Beige O7 Fuse F02.1 1 Beige

Show

B H2 Beige R10 Cooling fan relay 1 1 Beige

Show

B H2 Beige R11 Air-conditioning compressor clutch relay B1 Beige

Show

B H2 Beige R1 Main relay 5 Beige

Show

B H2 Beige R8 Interior heating relay 1 2 Beige

Show

B H2 Beige R8 Interior heating relay 2 2 Beige

Show

B H2 Beige V3 Turbo pressure control solenoid 2 Beige

Show

B H2 Beige X5 Camshaft position sensor (Hall Effect/MRE 1 Beige

Show
type)

A H2 Violet T1 Coolant temperature sensor 3 Violet

Show

A H3 Brown T1 Coolant temperature sensor 2 Brown

Show

B H3 Green E18 Instrument cluster control unit A 23 Green

Show

C H3 White G1 Accelerator pedal position sensor 2 White

Show
C H4 Black E1 Engine control unit C H1 Black
Show

C H4 Black E1 Engine control unit C G4 Black

Show

C H4 Black L3 Mass airflow meter with air temperature 3 Black

Show
sensor

C H4 Black O8 Grounding point NH Black

Show

C H4 Black T1 Coolant temperature sensor 1 Black

Show

C H4 Black X3 Vehicle speed sensor 1 Black

Show

A H4 Green A1 Injector 2 2 Green

Show

A J4 Green O1 Alternator circuit 2 Green

Show

A K2 Pink L3 Mass airflow meter with air temperature 1 Pink

Show
sensor

A L4 White H1 EGR control valve with position sensor 6 White

Show

A M2 White V3 Turbo pressure control solenoid 1 White

Show

A M3 Beige H1 EGR control valve with position sensor 2 Beige

Show

A M4 Grey A6 Fuel delivery control valve 1 Grey
