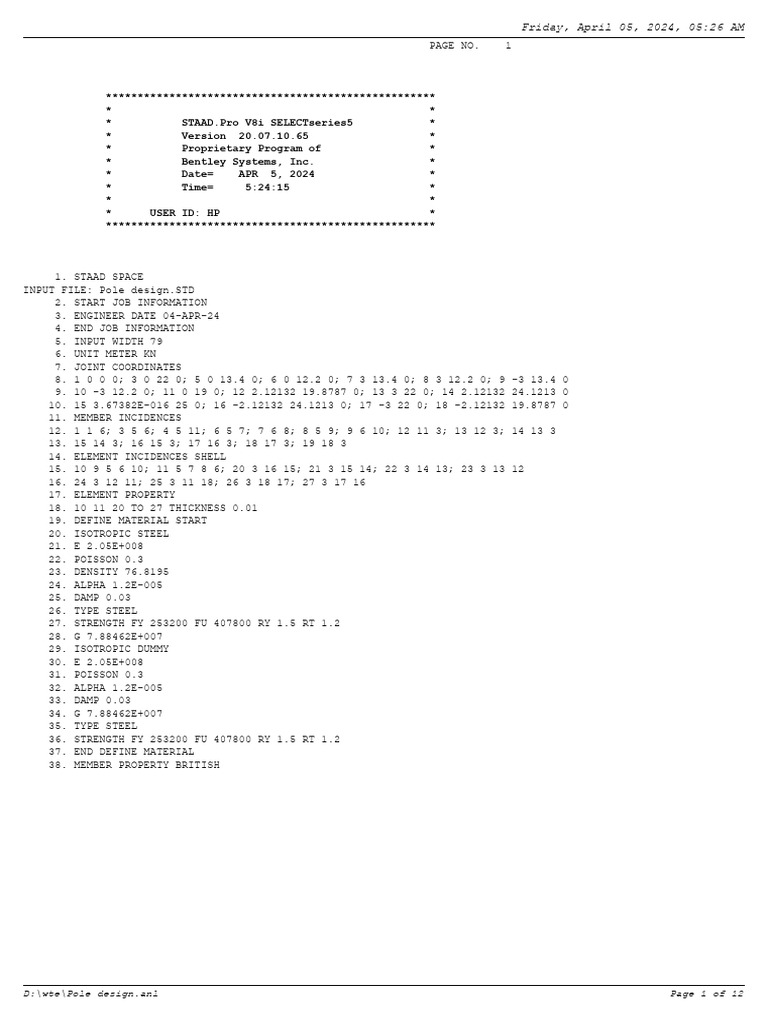

Friday, April 05, 2024, 05:26 AM

PAGE NO. 1

****************************************************
* *
* STAAD.Pro V8i SELECTseries5 *
* Version 20.07.10.65 *
* Proprietary Program of *
* Bentley Systems, Inc. *
* Date= APR 5, 2024 *
* Time= 5:24:15 *
* *
* USER ID: HP *
****************************************************

1. STAAD SPACE
INPUT FILE: Pole design.STD
2. START JOB INFORMATION
3. ENGINEER DATE 04-APR-24
4. END JOB INFORMATION
5. INPUT WIDTH 79
6. UNIT METER KN
7. JOINT COORDINATES
8. 1 0 0 0; 3 0 22 0; 5 0 13.4 0; 6 0 12.2 0; 7 3 13.4 0; 8 3 12.2 0; 9 -3 13.4 0
9. 10 -3 12.2 0; 11 0 19 0; 12 2.12132 19.8787 0; 13 3 22 0; 14 2.12132 24.1213 0
10. 15 3.67382E-016 25 0; 16 -2.12132 24.1213 0; 17 -3 22 0; 18 -2.12132 19.8787 0
11. MEMBER INCIDENCES
12. 1 1 6; 3 5 6; 4 5 11; 6 5 7; 7 6 8; 8 5 9; 9 6 10; 12 11 3; 13 12 3; 14 13 3
13. 15 14 3; 16 15 3; 17 16 3; 18 17 3; 19 18 3
14. ELEMENT INCIDENCES SHELL
15. 10 9 5 6 10; 11 5 7 8 6; 20 3 16 15; 21 3 15 14; 22 3 14 13; 23 3 13 12
16. 24 3 12 11; 25 3 11 18; 26 3 18 17; 27 3 17 16
17. ELEMENT PROPERTY
18. 10 11 20 TO 27 THICKNESS 0.01
19. DEFINE MATERIAL START
20. ISOTROPIC STEEL
21. E 2.05E+008
22. POISSON 0.3
23. DENSITY 76.8195
24. ALPHA 1.2E-005
25. DAMP 0.03
26. TYPE STEEL
27. STRENGTH FY 253200 FU 407800 RY 1.5 RT 1.2
28. G 7.88462E+007
29. ISOTROPIC DUMMY
30. E 2.05E+008
31. POISSON 0.3
32. ALPHA 1.2E-005
33. DAMP 0.03
34. G 7.88462E+007
35. TYPE STEEL
36. STRENGTH FY 253200 FU 407800 RY 1.5 RT 1.2
37. END DEFINE MATERIAL
38. MEMBER PROPERTY BRITISH

D:\wte\Pole design.anl Page 1 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 2

39. 3 4 12 TABLE ST PIP45710.0

40. 1 TABLE ST PIPE OD 0.733 ID 0.711
41. 6 TO 9 13 TO 19 TABLE ST TUB40403.0
42. CONSTANTS
43. MATERIAL DUMMY MEMB 6 TO 11 13 TO 27
44. MATERIAL STEEL MEMB 1 3 4 12
45. SUPPORTS
46. 1 FIXED
47. LOAD 1 LOADTYPE NONE TITLE DL
48. JOINT LOAD
49. 3 FY -30
50. 5 FY -7.5
51. SELFWEIGHT Y -1
52. LOAD 2 LOADTYPE NONE TITLE LL
53. MEMBER LOAD
54. 7 9 14 18 UNI GY -1.
55. LOAD 3 LOADTYPE NONE TITLE WL
56. MEMBER LOAD
57. 1 UNI GZ 1.53
58. 4 UNI GZ 1.17
59. ELEMENT LOAD
60. 20 TO 27 PR GZ 1.5
61. 10 11 PR GZ 1.4
62. LOAD COMB 201 201
63. 1 1.2 2 1.2 3 1.2
64. LOAD COMB 202 202
65. 1 1.4 3 1.4
66. LOAD COMB 203 203
67. 1 1.4 2 1.6
68. PERFORM ANALYSIS

P R O B L E M S T A T I S T I C S
-----------------------------------

NUMBER OF JOINTS 16 NUMBER OF MEMBERS 15

NUMBER OF PLATES 10 NUMBER OF SOLIDS 0
NUMBER OF SURFACES 0 NUMBER OF SUPPORTS 1

SOLVER USED IS THE OUT-OF-CORE BASIC SOLVER

ORIGINAL/FINAL BAND-WIDTH= 14/ 7/ 48 DOF

TOTAL PRIMARY LOAD CASES = 3, TOTAL DEGREES OF FREEDOM = 90
TOTAL LOAD COMBINATION CASES = 3 SO FAR.
SIZE OF STIFFNESS MATRIX = 5 DOUBLE KILO-WORDS
REQRD/AVAIL. DISK SPACE = 12.1/ 107993.5 MB

69. PARAMETER 1
70. CODE BS5950

D:\wte\Pole design.anl Page 2 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 3

71. KY 2 MEMB 1 3 4 12
72. KZ 2 MEMB 1 3 4 12
73. PY 355000 MEMB 1 3 4 12
74. TRACK 2 MEMB 1 3 4 12
75. LOAD LIST 201 TO 203
76. CHECK CODE MEMB 1 3 4 12

STAAD.Pro CODE CHECKING - (BSI )

***********************

PROGRAM CODE REVISION V2.13_5950-1_2000

D:\wte\Pole design.anl Page 3 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 4

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

* 1 ST PIPE FAIL BS-4.8.3.3.1 1.079 202

99.99 C 1664.69 0.00 -
=======================================================================
MATERIAL DATA
Grade of steel = S 275
Modulus of elasticity = 205 kN/mm2
Design Strength (py) = 354 N/mm2

SECTION PROPERTIES (units - cm)

Member Length = 1220.00
Gross Area = 249.50 Net Area = 249.50 Eff. Area = 249.50

z-z axis y-y axis

Moment of inertia : 162616.375 162616.375
Plastic modulus : 5734.381 5734.381
Elastic modulus : 4437.009 4437.009
Effective modulus : 4437.009 4437.009
Shear Area : 149.703 149.703

DESIGN DATA (units - kN,m) BS5950-1/2000

Section Class : SEMI-COMPACT
Squash Load : 8857.42
Axial force/Squash load : 0.011

z-z axis y-y axis

Compression Capacity : 4539.2 4539.2
Moment Capacity : 1575.1 1575.1
Reduced Moment Capacity : 1575.1 1575.1
Shear Capacity : 3188.7 3188.7

BUCKLING CALCULATIONS (units - kN,m)

(axis nomenclature as per design code)
x-x axis y-y axis
Slenderness : 95.576 95.576
Radius of gyration (cm) : 25.530 25.530
Effective Length : 24.400 24.400

LTB check unnecessary for this section

CRITICAL LOADS FOR EACH CLAUSE CHECK (units- kN,m):

CLAUSE RATIO LOAD FX VY VZ MZ MY

BS-4.2.3-(Z) 0.032 202 - - 102.9 - -
BS-4.7 (C) 0.026 203 119.2 - - - -

D:\wte\Pole design.anl Page 4 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 5

BS-4.8.3.2 1.069 202 100.0 0.0 102.9 1664.7 0.0

BS-4.8.3.3.1 1.079 202 100.0 - - 0.0 1664.7
BS-4.8.3.3.3 1.093 202 100.0 - - 0.0 1664.7
Torsion and deflections have not been considered in the design.
_________________________

D:\wte\Pole design.anl Page 5 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 6

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

* 3 ST PIP45710.0 FAIL BS-4.8.3.3.1 1.050 202

54.86 C 566.38 0.00 -
=======================================================================
MATERIAL DATA
Grade of steel = S 275
Modulus of elasticity = 205 kN/mm2
Design Strength (py) = 354 N/mm2

SECTION PROPERTIES (units - cm)

Member Length = 120.00
Gross Area = 140.00 Net Area = 140.00 Eff. Area = 140.00

z-z axis y-y axis

Moment of inertia : 35090.004 35090.004
Plastic modulus : 1998.000 1998.000
Elastic modulus : 1535.667 1535.667
Effective modulus : 1535.667 1535.667
Shear Area : 84.000 84.000

DESIGN DATA (units - kN,m) BS5950-1/2000

Section Class : SEMI-COMPACT
Squash Load : 4970.00
Axial force/Squash load : 0.011

z-z axis y-y axis

Compression Capacity : 4969.4 4969.4
Moment Capacity : 545.2 545.2
Reduced Moment Capacity : 545.2 545.2
Shear Capacity : 1789.2 1789.2

BUCKLING CALCULATIONS (units - kN,m)

(axis nomenclature as per design code)
x-x axis y-y axis
Slenderness : 15.159 15.159
Radius of gyration (cm) : 15.832 15.832
Effective Length : 2.400 2.400

LTB check unnecessary for this section

CRITICAL LOADS FOR EACH CLAUSE CHECK (units- kN,m):

CLAUSE RATIO LOAD FX VY VZ MZ MY

BS-4.2.3-(Z) 0.039 202 - - 69.6 - -
BS-4.7 (C) 0.014 203 68.6 - - - -

D:\wte\Pole design.anl Page 6 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 7

BS-4.8.3.2 1.050 202 56.7 0.0 69.6 566.4 0.0

BS-4.8.3.3.1 1.050 202 54.9 - - 0.0 566.4
BS-4.8.3.3.3 1.057 202 54.9 - - 0.0 566.4
Torsion and deflections have not been considered in the design.
_________________________

D:\wte\Pole design.anl Page 7 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 8

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

4 ST PIP45710.0 PASS BS-4.8.3.3.1 0.905 202

54.95 C 485.41 0.00 -
=======================================================================
MATERIAL DATA
Grade of steel = S 275
Modulus of elasticity = 205 kN/mm2
Design Strength (py) = 354 N/mm2

SECTION PROPERTIES (units - cm)

Member Length = 560.00
Gross Area = 140.00 Net Area = 140.00 Eff. Area = 140.00

z-z axis y-y axis

Moment of inertia : 35090.004 35090.004
Plastic modulus : 1998.000 1998.000
Elastic modulus : 1535.667 1535.667
Effective modulus : 1535.667 1535.667
Shear Area : 84.000 84.000

DESIGN DATA (units - kN,m) BS5950-1/2000

Section Class : SEMI-COMPACT
Squash Load : 4970.00
Axial force/Squash load : 0.011

z-z axis y-y axis

Compression Capacity : 3741.5 3741.5
Moment Capacity : 545.2 545.2
Reduced Moment Capacity : 545.2 545.2
Shear Capacity : 1789.2 1789.2

BUCKLING CALCULATIONS (units - kN,m)

(axis nomenclature as per design code)
x-x axis y-y axis
Slenderness : 70.744 70.744
Radius of gyration (cm) : 15.832 15.832
Effective Length : 11.200 11.200

LTB check unnecessary for this section

CRITICAL LOADS FOR EACH CLAUSE CHECK (units- kN,m):

CLAUSE RATIO LOAD FX VY VZ MZ MY

BS-4.2.3-(Z) 0.035 202 - - 62.6 - -
BS-4.7 (C) 0.017 203 64.5 - - - -

D:\wte\Pole design.anl Page 8 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 9

BS-4.8.3.2 0.901 202 54.9 0.0 62.6 485.4 0.0

BS-4.8.3.3.1 0.905 202 54.9 - - 0.0 485.4
BS-4.8.3.3.3 0.912 202 54.9 - - 0.0 485.4
Torsion and deflections have not been considered in the design.
_________________________

D:\wte\Pole design.anl Page 9 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 10

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

12 ST PIP45710.0 PASS BS-4.8.3.3.1 0.290 202

18.69 C 156.04 0.00 -
=======================================================================
MATERIAL DATA
Grade of steel = S 275
Modulus of elasticity = 205 kN/mm2
Design Strength (py) = 354 N/mm2

SECTION PROPERTIES (units - cm)

Member Length = 300.00
Gross Area = 140.00 Net Area = 140.00 Eff. Area = 140.00

z-z axis y-y axis

Moment of inertia : 35090.004 35090.004
Plastic modulus : 1998.000 1998.000
Elastic modulus : 1535.667 1535.667
Effective modulus : 1535.667 1535.667
Shear Area : 84.000 84.000

DESIGN DATA (units - kN,m) BS5950-1/2000

Section Class : SEMI-COMPACT
Squash Load : 4970.00
Axial force/Squash load : 0.004

z-z axis y-y axis

Compression Capacity : 4689.5 4689.5
Moment Capacity : 545.2 545.2
Reduced Moment Capacity : 545.2 545.2
Shear Capacity : 1789.2 1789.2

BUCKLING CALCULATIONS (units - kN,m)

(axis nomenclature as per design code)
x-x axis y-y axis
Slenderness : 37.899 37.899
Radius of gyration (cm) : 15.832 15.832
Effective Length : 6.000 6.000

LTB check unnecessary for this section

CRITICAL LOADS FOR EACH CLAUSE CHECK (units- kN,m):

CLAUSE RATIO LOAD FX VY VZ MZ MY

BS-4.2.3-(Z) 0.025 202 - - 44.8 - -
BS-4.7 (C) 0.005 203 21.6 - - - -

D:\wte\Pole design.anl Page 10 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 11

BS-4.8.3.2 0.290 202 18.7 0.0 44.8 156.0 0.0

BS-4.8.3.3.1 0.290 202 18.7 - - 0.0 156.0
BS-4.8.3.3.3 0.291 202 18.7 - - 0.0 156.0
Torsion and deflections have not been considered in the design.
_________________________

************** END OF TABULATED RESULT OF DESIGN **************

77. FINISH

D:\wte\Pole design.anl Page 11 of 12

 Friday, April 05, 2024, 05:26 AM
STAAD SPACE -- PAGE NO. 12

*********** END OF THE STAAD.Pro RUN ***********

**** DATE= APR 5,2024 TIME= 5:24:19 ****

************************************************************
