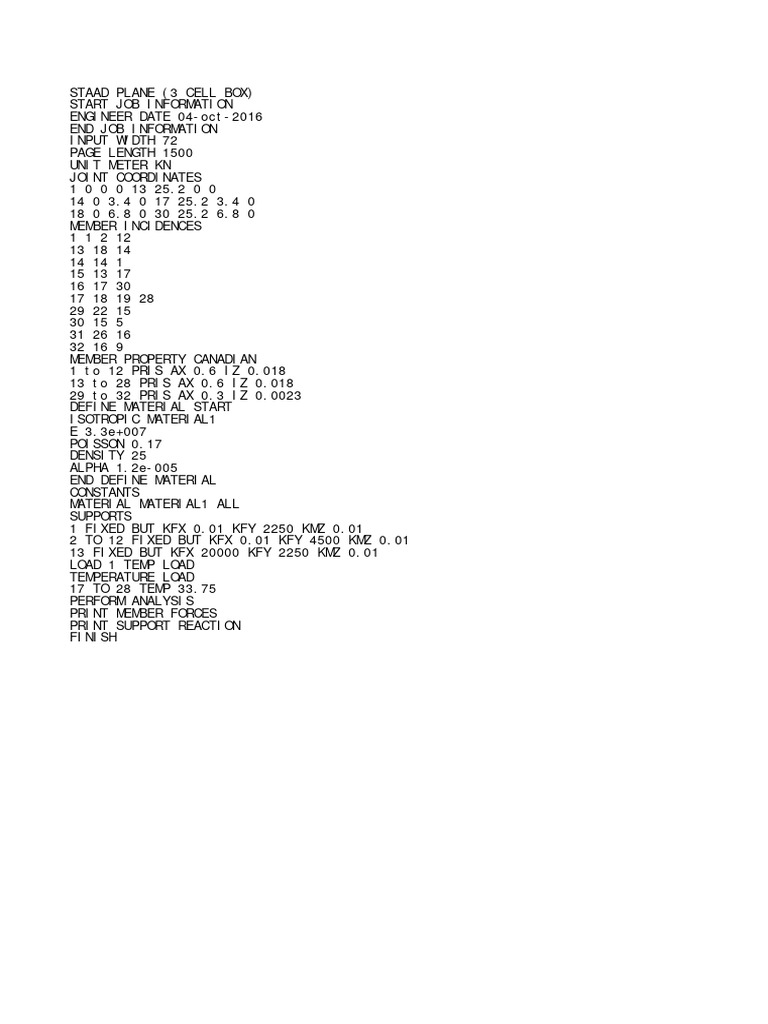

STAAD PLANE (3 CELL BOX)

START JOB INFORMATION

ENGINEER DATE 04-oct-2016
END JOB INFORMATION
INPUT WIDTH 72
PAGE LENGTH 1500
UNIT METER KN
JOINT COORDINATES
1 0 0 0 13 25.2 0 0
14 0 3.4 0 17 25.2 3.4 0
18 0 6.8 0 30 25.2 6.8 0
MEMBER INCIDENCES
1 1 2 12
13 18 14
14 14 1
15 13 17
16 17 30
17 18 19 28
29 22 15
30 15 5
31 26 16
32 16 9
MEMBER PROPERTY CANADIAN
1 to 12 PRIS AX 0.6 IZ 0.018
13 to 28 PRIS AX 0.6 IZ 0.018
29 to 32 PRIS AX 0.3 IZ 0.0023
DEFINE MATERIAL START
ISOTROPIC MATERIAL1
E 3.3e+007
POISSON 0.17
DENSITY 25
ALPHA 1.2e-005
END DEFINE MATERIAL
CONSTANTS
MATERIAL MATERIAL1 ALL
SUPPORTS
1 FIXED BUT KFX 0.01 KFY 2250 KMZ 0.01
2 TO 12 FIXED BUT KFX 0.01 KFY 4500 KMZ 0.01
13 FIXED BUT KFX 20000 KFY 2250 KMZ 0.01
LOAD 1 TEMP LOAD
TEMPERATURE LOAD
17 TO 28 TEMP 33.75
PERFORM ANALYSIS
PRINT MEMBER FORCES
PRINT SUPPORT REACTION
FINISH
