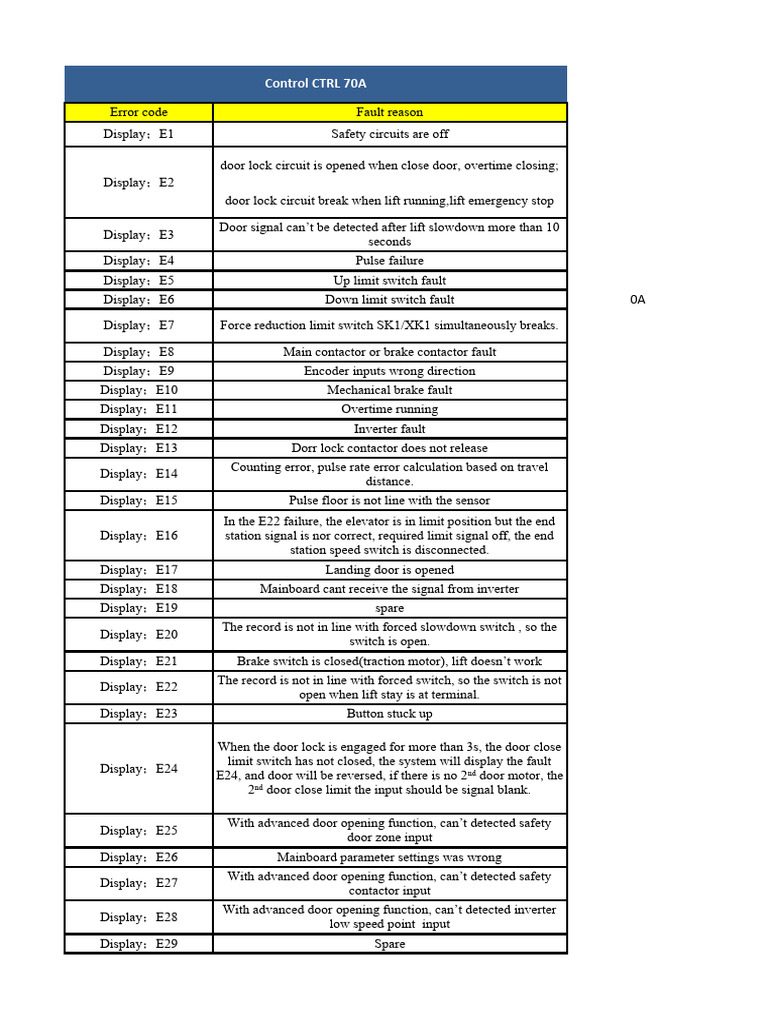

Control CTRL 70A

Error code Fault reason

Display；E1 Safety circuits are off

door lock circuit is opened when close door, overtime closing;

Display；E2
door lock circuit break when lift running,lift emergency stop

Door signal can’t be detected after lift slowdown more than 10

Display；E3
seconds
Display；E4 Pulse failure
Display；E5 Up limit switch fault
Display；E6 Down limit switch fault 0A
Display；E7 Force reduction limit switch SK1/XK1 simultaneously breaks.

Display；E8 Main contactor or brake contactor fault

Display；E9 Encoder inputs wrong direction
Display；E10 Mechanical brake fault
Display；E11 Overtime running
Display；E12 Inverter fault
Display；E13 Dorr lock contactor does not release
Counting error, pulse rate error calculation based on travel
Display；E14
distance.
Display；E15 Pulse floor is not line with the sensor
In the E22 failure, the elevator is in limit position but the end
Display；E16 station signal is nor correct, required limit signal off, the end
station speed switch is disconnected.
Display；E17 Landing door is opened
Display；E18 Mainboard cant receive the signal from inverter
Display；E19 spare
The record is not in line with forced slowdown switch , so the
Display；E20
switch is open.
Display；E21 Brake switch is closed(traction motor), lift doesn’t work
The record is not in line with forced switch, so the switch is not
Display；E22
open when lift stay is at terminal.
Display；E23 Button stuck up

When the door lock is engaged for more than 3s, the door close
limit switch has not closed, the system will display the fault
Display；E24
E24, and door will be reversed, if there is no 2 nd door motor, the
2nd door close limit the input should be signal blank.

With advanced door opening function, can’t detected safety

Display；E25
door zone input
Display；E26 Mainboard parameter settings was wrong
With advanced door opening function, can’t detected safety
Display；E27
contactor input
With advanced door opening function, can’t detected inverter
Display；E28
low speed point input
Display；E29 Spare
Display；E30 Safety window was opened
Leveling switch signal contacter failure, given the running
Display；E31
signal for 3s but no leveling signal
Display；E32 Motor over heat,lift keep opening
Display；E33 Car board communication fault
Safety modul feedback point is not released when there has
Display；E34
advencd open door then re-leveling function
Light curtain activate time is exceed parameter 2C setting in the
Display；E38
mainboard
when the speed control is analogue output, the actual speed is
Display；E39
higher than output speed
Display；E40 Speed monitoring board fault
Display；E41 Door operator fault
Display；E42 UCMP fault

Display；E43 KBC compensation chain elongation activate detect switch fault

Display；E44 UCMPfeedback point break

Use SETP advanced opening door modul, X16 is break, but UP

Display；E45
and Down leveling sensor is normal then display the fault

Door zone signal in the range of setting value of C04 is not

Display；E46
changed during UCMP
Display；E47 UCMP door lock is break

CTRL 71

Error code Fault reason

E1 Safety circuit disconnected
E2 Door not fully close
E3 Cannot detect the door zone signal
E4 No deceleration point detected
E5 Upper limit failure
E6 Down limit failure
E7 Slow down SW fault
E8 Power or brake contactor stuck
E9 Encoder input A, B reverse
E10 Brake feedback fault
E11 Running overtime
E12 Invertor fault
E13 Door lock contactor not release
E14 Counting error
E15 Door zone switch signal jitter
E16 The limit is off and slow down switch is on
E17 Sub landing door lock fault
E18 Invertor running signal fault
E20 Not at the end station and slow down switch off
E21 Mechanical brake feedback point adhesion
E22 Slow down SW is not off when lift is at end station
E23 External call button stuck
E24 Door fully close limit fault
 E30 Trap door SW error
E31 Leveling switch adhesion fault
E32 Motor overheat
E39 Running overspeed
E40 Speed monitoring board fault
E41 Car top board communication fault
E43 Check out the rope break switch

Wrong connection or rope broken switch action

E44 UMCP unexpected
movement detected Wiring error or UCMP switch action
E45 Leveling sensor
fault Wrong wiring or wire broken
E46
The upper and
lower level switch
is not connected
Wiring error or UCMP door zone anomaly,c04 set too
small
E47
The upper and
lower level switch
is constantly on
Wiring error or ucmp door lock contact failure
E48 Rope clip fault
E49
Safety module
feedback point
input failure
Abnormal security module or wiring error
E50
Safety module
feedback point
input adhesion
Abnormal security module or wiring error
E51
Door lock
contactor feedback
point abnorml
The high voltage door lock loop is connected, but the
feedback contactor input cannot be detected
E52
Door lock
contactor feedback
point adhesion
The high voltage door lock loop was disconnected, but
the feedback contactor was detected to be stuck
E53
The high voltage safety loop is connected, but the
feedback point input of safety contactor cannot be
detected
E54 Star seal contactor
fault
The microcomputer sealed star feedback has no
output, detected sealed star feedback has input
E55
Sealing star
feedback point
input fault
Sealed star output point output, but sealed star
feedback point no input
E56
Main contactor
feedback input
fault
CAN communication wiring error, or main control
board, car board damage
E57
E58 Brake check failed Check whether the brake force is insufficient
E59
E13-0(E60) The front door was
short-circuited
The door lock of the back door is faulty. Later, the
fault is uniformly changed to E13 fault, and the fault is
cancelled
