Safaricom Ethiopia

Enetek PSU commissioning guide for

offgrid CDC sites.

Power solution
Version 1.9

13.10.2022

1 © 2021 Nokia Confidential

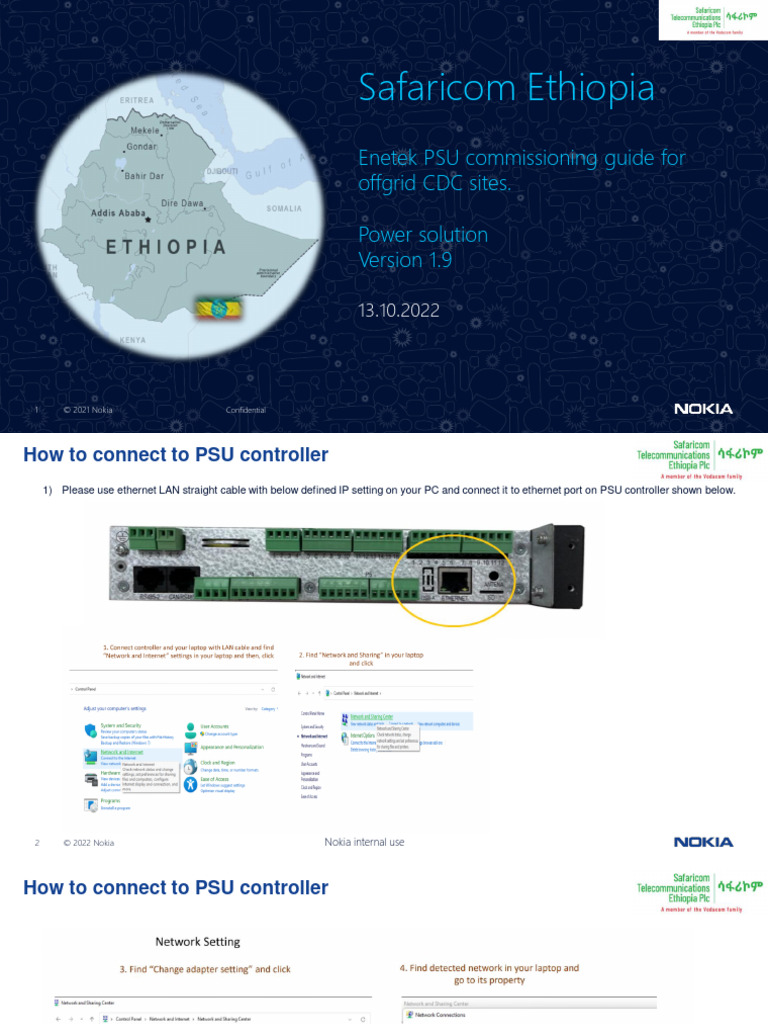

How to connect to PSU controller
1) Please use ethernet LAN straight cable with below defined IP setting on your PC and connect it to ethernet port on PSU controller shown below.

2 © 2022 Nokia Nokia internal use

How to connect to PSU controller

3 © 2022 Nokia Nokia internal use

How to connect to PSU controller (WEB based access)

192.168.1.201 for Power View

4 © 2022 Nokia Nokia internal use

How to connect to PSU controller

1) Log in with IP 192.168.1.200 on Power View access menu.

2) IP address should be changed on PC to 192.168.1.201 for Power View software
3) Open Power View program on your PC.
4) Set values as defined on below printscreen, click connect.

5 © 2022 Nokia Nokia internal use

How to connect to PSU controller
1) Go to Access menu and set parameters as on below printscreen.
2) Set login as 10000, then press Login.

6 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 1
Go to ‘Power Module’ menu and adjust ‘Output Current Limit to 54A’, click Apply - for edge site with 3 active rectifiers and 20KVA genset.
Adjust ‘No of Rectifiers to 3’, click Apply.

54A

7 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 2
Go to ‘Power Module’ menu and adjust ‘Output Current Limit to 54A’, click Apply - for HUB site with 6 active rectifiers and 30KVA genset.
Adjust ‘No of Rectifiers to 6’, click Apply.

54A

8 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 3
Go to ‘Power Module’ menu and adjust ‘Output Current Limit to 40A’, click Apply - for HUB site with 6 active rectifiers and 20KVA genset.
Adjust ‘No of Rectifiers to 6’, click Apply.

40A

9 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 4
1**) (25A CB temporary power) In case we have low AC voltage, example 140 Volts during the load for single phase – we should
calculate rectifier “Output Current Limit” for 25A CB(circuit breaker) as below:
25A-5A=20A (buffer 5A), 140V*20A=2800 watt; 2800watt / 50Volts = 56 A if one active rectifier, 56A / 2 = 28A if two active rectifiers,
56A / 3 = 18A if three active rectifiers.

2**) (32A CB temporary power) In case we have low AC voltage, example 150 Volts during the load for single phase – we should
calculate rectifier “Output Current Limit” for 32A CB(circuit breaker) as below:
32A-5A=27A (buffer 5A), 150V*27A=4050 watt; 4050watt / 50Volts = 81A if one active rectifier, 81A / 2 = 40A if two active rectifiers,
81A / 3 = 27A if three active rectifiers.

So that CB will not be tripped down due to overload.

All temporary settings for temporary power need to be updated as soon as permanent power is connected!!!

XX.0 A

10 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 5
Go to ‘Efficiency Setup’ menu and adjust ‘Power save mode to N+0’, click Apply.

11 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 6
Go to ‘DC-Voltage Settings’ menu and adjust ‘Float Voltage to 52.2V’, click Apply
Go to ‘DC-Voltage Settings’ menu and adjust ‘Boost Voltage to 54.5V’, click Apply

12 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 7
Go to ‘LVD Config’ menu and adjust setting as per below printscreen, click Apply for every modified value for LVD1 (Priority load) for all sites.
Set LVD1- LVD Disconnect voltage to 43.0V and 44.0V for reconnect voltage for all sites.

44.0V
43.0V

13 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 8
Go to ‘LVD Config’ menu and adjust setting as per below printscreen, click Apply for every modified value for LVD2 (non-priority load)
Set LVD2- LVD Disconnect voltage to 47.0V and 48.0V for reconnect voltage for all sites.

48.0V
47.0V

14 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 9
Go to ‘Battery-Config’ menu and adjust setting as per below printscreen, click Apply for every modified value.
Adjust ‘No of Bank’ value to actual number of batteries inside PSU if it differs from 3.

15 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 10
Go to ‘DG Config’ menu and adjust setting as per below printscreen, click Apply.

16 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 11
Go to ‘Alarm Config’ menu and adjust setting as per below printscreen, click Apply All.

17 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 12
Go to ‘Generator’ menu and adjust setting as per below printscreen, click Apply for all modified values. For all edge sites.
Set Genset Configuration-Start Voltage – 48.0V for all sites with DG.

48.0V

18 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 13
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites.

19 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 14
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites.

20 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 15
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. PSU door.

21 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 16
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. Battery fuse.

22 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 17
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. Rectifier module high temp.

23 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 18
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. PSU cabinet high temp.

24 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 19
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. LVD1 disconnected.

25 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 20
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. Low AC voltage.

26 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 21
Go to ‘Alarm config’ menu and adjust setting as per below printscreen, click Apply . For all sites. Door fan fail.

27 © 2022 Nokia Nokia internal use

How to adjust setting on ‘Power View’ – step 13 - Checking
1) After all setting adjusted – go through all menus of Power View and check if adjusted settings are still present.

2) Check for rectifier’s total output current is within set values. (during operation). Not higher!

3) Check for batteries charging current is within set values. (during operation). Not higher!

4) Check if DG start relay works as per settings

5) Check if DG stop relay works as per settings.

6) Check if battery disconnected alarm appears after one of the batteries is switched off.

7) Check if Enetek from ‘Power View’ can see the temperature, voltage, capacity of connected batteries via RS485/LAN cable.

8) For DWDM sites with 3 PSUs – commisioning parameters will be provided later.
