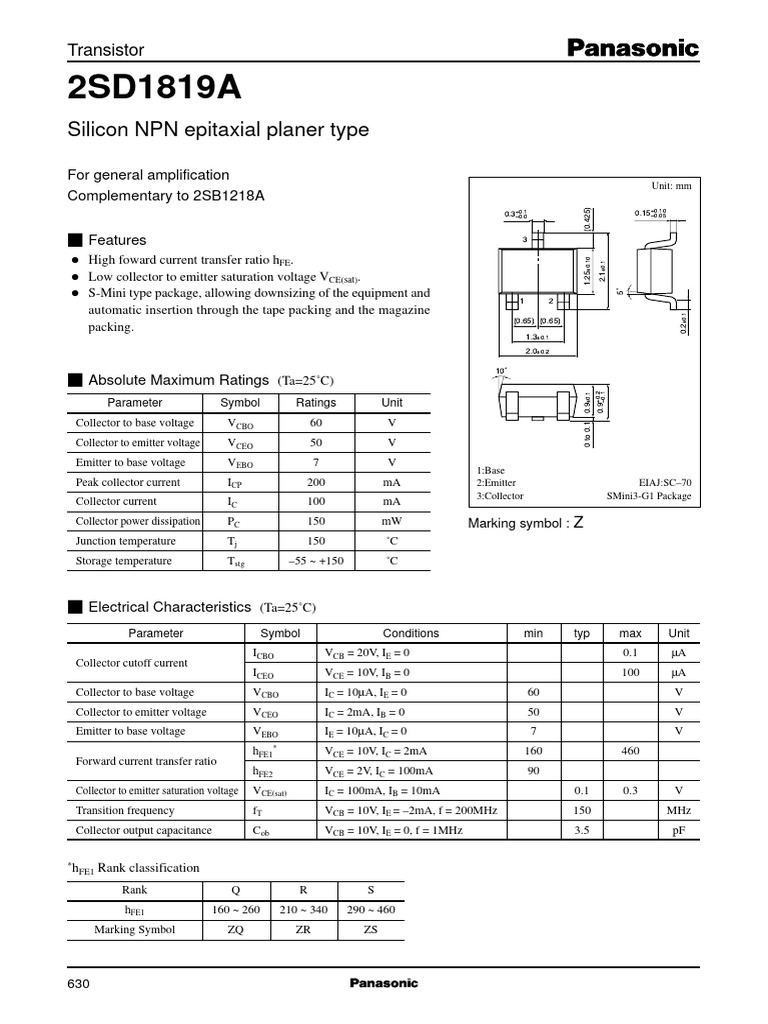

Transistor

2SD1819A
Silicon NPN epitaxial planer type

For general amplification

Unit: mm
Complementary to 2SB1218A

(0.425)
+0.1 +0.10
0.3Ð0.0 0.15Ð0.05

■ Features 3

● High foward current transfer ratio hFE.

1.25±0.10

2.1±0.1
● Low collector to emitter saturation voltage VCE(sat).

5û
● S-Mini type package, allowing downsizing of the equipment and 1 2

automatic insertion through the tape packing and the magazine

0.2±0.1
(0.65) (0.65)
packing.
1.3±0.1

2.0±0.2

10û

■ Absolute Maximum Ratings (Ta=25˚C)

+0.2
0.9Ð0.1
0.9±0.1
Parameter Symbol Ratings Unit
Collector to base voltage VCBO 60 V

0 to 0.1
Collector to emitter voltage VCEO 50 V
Emitter to base voltage VEBO 7 V
1:Base
Peak collector current ICP 200 mA 2:Emitter EIAJ:SC–70
3:Collector SMini3-G1 Package
Collector current IC 100 mA
Collector power dissipation PC 150 mW Marking symbol : Z
Junction temperature Tj 150 ˚C
Storage temperature Tstg –55 ~ +150 ˚C

■ Electrical Characteristics (Ta=25˚C)

Parameter Symbol Conditions min typ max Unit
ICBO VCB = 20V, IE = 0 0.1 µA
Collector cutoff current
ICEO VCE = 10V, IB = 0 100 µA
Collector to base voltage VCBO IC = 10µA, IE = 0 60 V
Collector to emitter voltage VCEO IC = 2mA, IB = 0 50 V
Emitter to base voltage VEBO IE = 10µA, IC = 0 7 V
hFE1 * VCE = 10V, IC = 2mA 160 460
Forward current transfer ratio
hFE2 VCE = 2V, IC = 100mA 90
Collector to emitter saturation voltage VCE(sat) IC = 100mA, IB = 10mA 0.1 0.3 V
Transition frequency fT VCB = 10V, IE = –2mA, f = 200MHz 150 MHz
Collector output capacitance Cob VCB = 10V, IE = 0, f = 1MHz 3.5 pF

*h Rank classification
FE1

Rank Q R S
hFE1 160 ~ 260 210 ~ 340 290 ~ 460
Marking Symbol ZQ ZR ZS

630
Transistor 2SD1819A

PC — Ta IC — VCE IB — VBE
240 60 1200
Ta=25˚C VCE=10V
Collector power dissipation PC (mW)

IB=160µA Ta=25˚C
200 50 1000

Collector current IC (mA)

140µA

Base current IB (µA)

160 40 120µA 800

100µA
120 30 600
80µA

80 20 60µA 400

40µA
40 10 200
20µA

0 0 0
0 20 40 60 80 100 120 140 160 0 2 4 6 8 10 0 0.2 0.4 0.6 0.8 1.0
Ambient temperature Ta (˚C) Collector to emitter voltage VCE (V) Base to emitter voltage VBE (V)

IC — VBE IC — I B VCE(sat) — IC
200 240 100

Collector to emitter saturation voltage VCE(sat) (V)

IC/IB=10
VCE=10V VCE=10V
Ta=25˚C
30
200
160
Collector current IC (mA)

Collector current IC (mA)

10

160
120 3

25˚C
120 1
Ta=75˚C –25˚C
80
0.3
80
25˚C
0.1 Ta=75˚C
40
40
–25˚C
0.03

0 0 0.01
0 0.4 0.8 1.2 1.6 2.0 0 200 400 600 800 1000 0.1 0.3 1 3 10 30 100
Base to emitter voltage VBE (V) Base current IB (µA) Collector current IC (mA)

hFE — IC fT — I E
600 300
VCE=10V VCB=10V
Ta=25˚C
Forward current transfer ratio hFE

Transition frequency fT (MHz)

500
240

400 Ta=75˚C
180
25˚C
300
–25˚C
120
200

60
100

0 0
0.1 0.3 1 3 10 30 100 – 0.1 – 0.3 –1 –3 –10 –30 –100
Collector current IC (mA) Emitter current IE (mA)

631
