DTC B0173 (DISPLAYS AND GAUGE...

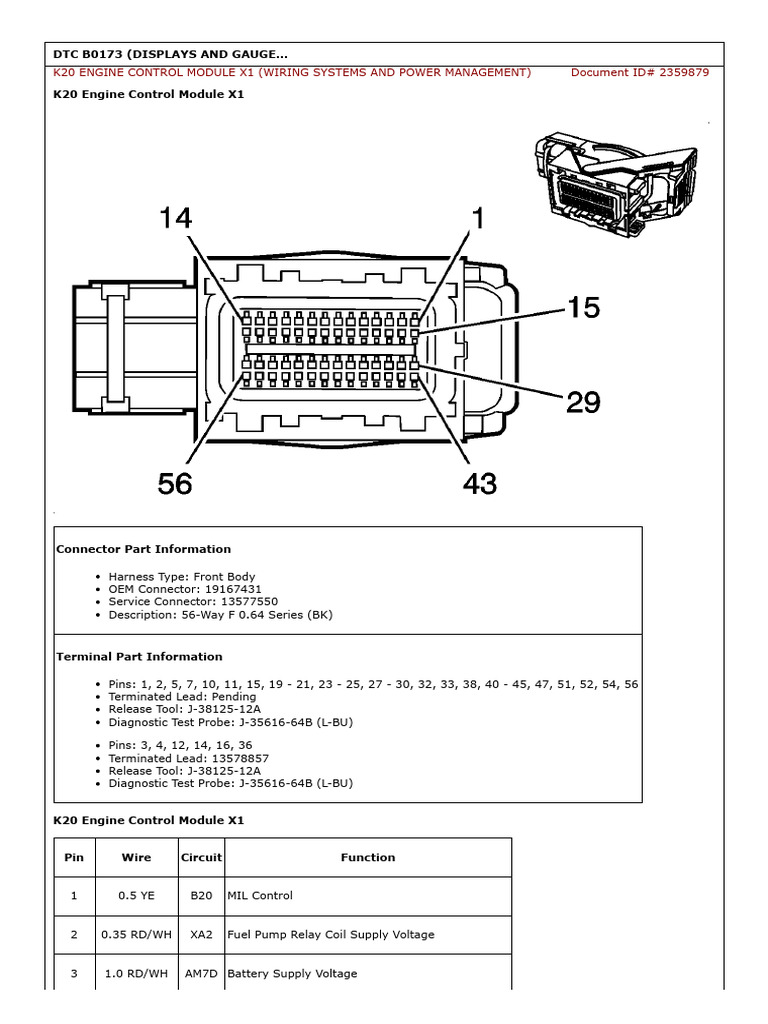

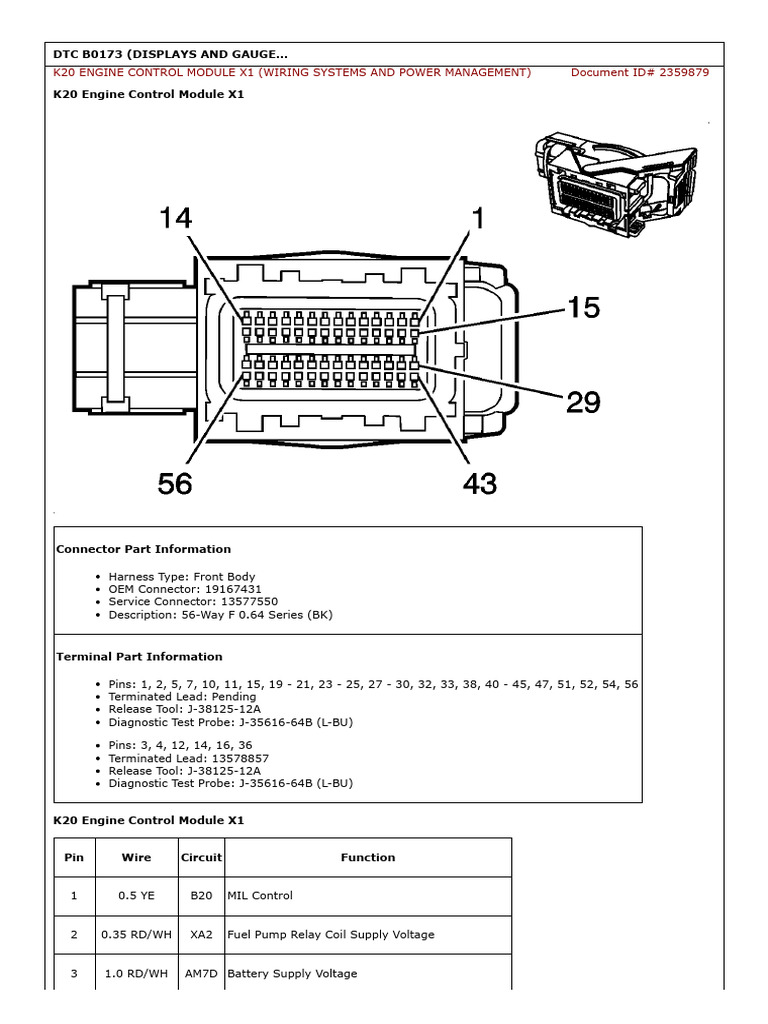

K20 ENGINE CONTROL MODULE X1 (WIRING SYSTEMS AND POWER MANAGEMENT) Document ID# 2359879
K20 Engine Control Module X1

Connector Part Information

Harness Type: Front Body

OEM Connector: 19167431
Service Connector: 13577550
Description: 56-Way F 0.64 Series (BK)

Terminal Part Information

Pins: 1, 2, 5, 7, 10, 11, 15, 19 - 21, 23 - 25, 27 - 30, 32, 33, 38, 40 - 45, 47, 51, 52, 54, 56
Terminated Lead: Pending
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)

Pins: 3, 4, 12, 14, 16, 36

Terminated Lead: 13578857
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)

K20 Engine Control Module X1

Pin Wire Circuit Function

1 0.5 YE B20 MIL Control

2 0.35 RD/WH XA2 Fuel Pump Relay Coil Supply Voltage

3 1.0 RD/WH AM7D Battery Supply Voltage

 4 1.0 RD/BK XF2 A/C Compressor Clutch Relay Control

5 0.5 RD/D-BU AP1 APP Sensor 2 5-Volt Reference

6 — — Not Used

7 .05 BN X16 VSS 5-Volt Reference

8–9 — — Not Used

10 0.5 D-GN U2C CAN High Bus Serial Data

11 0.5 WH M3C CAN Low Bus Serial Data

12 1.0 RD A14D Battery Supply Voltage

13 — — Not Used

14 0.75 BK F16D Fuel Pump Relay Supply Voltage

15 0.5 BN/WH XM3 Cooling Fan Speed Control Relay Control

16 1.0 BN/WH XM1 Engine Control Module Relay Control

17–18 — — Not Used

19 0.5 RD/WJH AM6 APP Sensor 1 5-Volt Reference

20 0.5 BN/D-BU XP21 Low Reference

21 0.5 BN/WH XM2 Low Reference

22 — — Not Used

23 0.5 BN X30 CPP Sensor Low Reference

24 1.0 RD/WH X15 MAF Sensor 5-Volt Reference

25 0.5 BK/YE FP6A Brake Lamp Switch Signal

26 — — Not Used

27 0.5 D-BU/RD PA2 VSS Low Reference

28 0.5 N/WH XM16 Backup Lamp Relay Switch Supply Voltage (PUP)

29 0.5 BN/RD XA1 Starter Relay Coil Supply Voltage

 30 0.5 GY/BK RF6 Cold Start Relay Control

31 — — Not Used

32 0.5 BK F30 CPP Sensor 5-Volt Reference

33 0.5 BN X14 A/C Refrigerent Pressure Sensor 5-Volt Reference

34–35 — — Not Used

36 0.75 BK F16C Fuel Pump Relay Supply Voltage

37 — — Not Used

38 0.5 D-BU/BK PF1 Low Reference

39 — — Not Used

40 0.5 WH/YE MB1 APP Sensor 2 Signal

41 0.5 BK/WH FM3 A/C Refrigerent Pressure Sensor Signal

42 0.5 WH/D-GN MU1 APP Sensor 1 Signal

43 0.5 RD/BK AF1 Cold Start Injector Control

44 0.5 BN/RD XA3 Cooling Fan Relay Control

45 0.5 BN/WH XM17 Low Reference

46 — — Not Used

47 0.5 BK F21 VSS Signal

48–50 — — Not Used

51 0.5 D-GN U6 MAF Sensor Signal

52 0.5 BN X1 Fuel Level Sensor Signal

53 — — Not Used

54 0.5 BN/RD XF4 Low Reference

55 — — Not Used

56 0.5 BN/RD XF30 CPP Sensor Signal
