Lecture 2

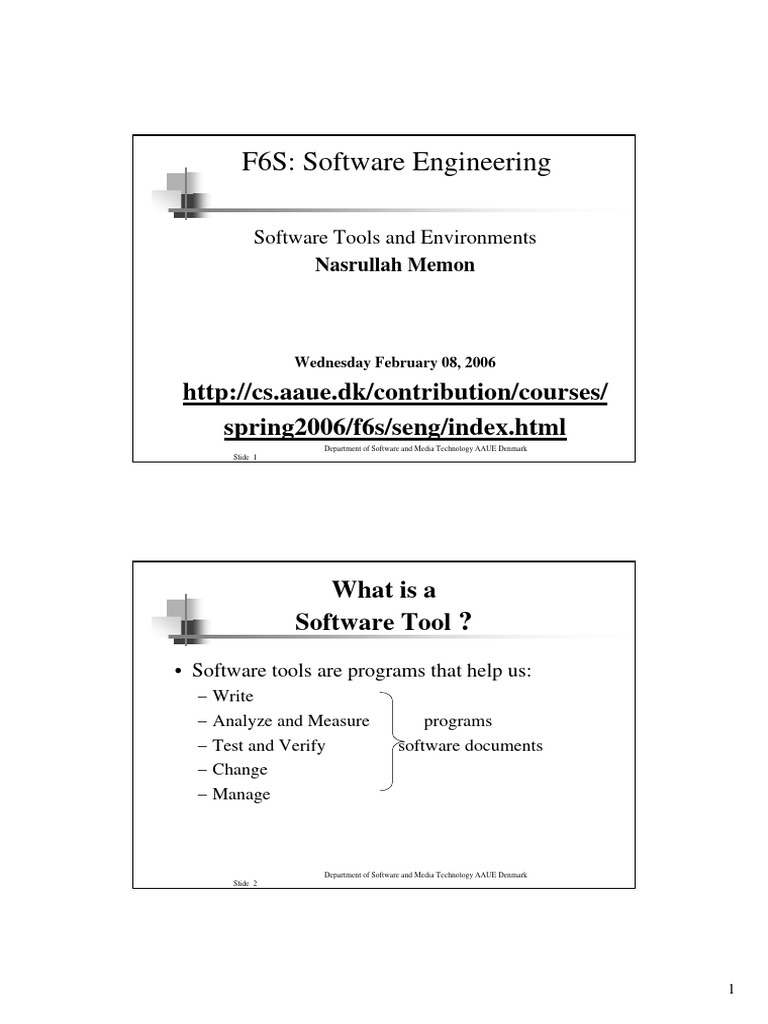

F6S: Software Engineering
Software Tools and Environments

Nasrullah Memon
Wednesday February 08, 2006
http://cs.aaue.dk/contribution/courses/
spring2006/f6s/seng/index.html
Department of Software and Media Technology AAUE Denmark
Slide 1
What is a
Software Tool ?
• Software tools are programs that help us:
– Write
– Analyze and Measure programs
– Test and Verify software documents
– Change
– Manage

Slide 2
1
What is a
Software Environment ?
• The collection of software tools:

– Environment
– Software Environment
– Software Development Environment (SDE)

Slide 3
What is an
Integrated Environment ?
• Most of the cases, tools of an environment are

integrated by some mechanisms:
– User Interface
– Product
– Software Process

Slide 4
2
The theme
• A tool can be used

– for personal productivity and/or
– for teamwork (workgroup, collaborative) productivity Æ Computer-
Supported Collaborative Work (CSCW) or workgroup computing
• Without adequate level of maturity, the use of a tool can hurt more than help
• A generic term for software engineering tools is Computer Assisted
Software Engineering (CASE)
• Tools that comprehensively assist programmers are termed Integrated
Development Environments (IDEs)

Slide 5
Software Requirement Tools
Tools for eliciting, recording, analyzing and

validating software requirements

Slide 6
3
Analyst Pro Version 5.0
Analyst Pro is a tool for requirements management, tracing and

analysis. It is an affordable, powerful, and easy-to-use
specification, requirements tracking and documentation tool. With
Analyst Pro, requirements can be traced throughout the design and
test process. It also provides integrated configuration management
to simplify your development process. Analyst Pro is a very
versatile tool that can be used for many software, systems and
product development projects. It can be used with any process such
as Agile, Incremental, Waterfall, Spiral, etc. This easy to install
and configure tool allows effective collaboration of dispersed
teams.

Slide 7
Software Design Tools
The tools for creating and checking software

design. There is a variety of such tools, with
much of this variety being a consequence of the
diversity notations and methods

Slide 8
4
Software Construction Tools
Program editors are tools used for creation and modification of

programs (and possibly associated documents). These tools can be
general purpose text or document editors, or they can be
specialized for a target language. Some environments provides
both interactive editing and compilation via interface. The
compilers topic also covers pre-processors, linkers/loaders, and
code generators. The debugging tools have been made a separate
topic since they support the construction process but are different
from program editors or compilers

Slide 9
Software Testing Tools
Testing tools can be categorized according to where in the testing

process they are used. Test generators assist the development of
test cases. Test execution frameworks enable the execution of test
cases in a controlled environment where the behavior of the object
under test is observed. Test evaluation tools support the
assessment of the results of test execution, helping to determine
whether the observed behavior conforms to the expected behavior.
Test management tools provide support for testing process.

Slide 10
5
Software Maintenance Tools
• The tools to assist human comprenhension programs. The tools

include visualization tools such as animators and program
slicers.
• The reverse engineering tools that assist the process of working
backwards from an existing product to create artifacts such as
design and specification descriptions.
• Re-engineering tools extend this approach by applying
transformations to generate a new product from an old one.
Such tools allow translation of a program to a new programming
language, or a database to a new format.
• Traceability tools to facilitate maintenance

Slide 11
SE Process Tools
• CASE tools or environments that cover multiple phases of

software development life cycle. Such tools perform multiple
functions and hence potentially interact with the software
process that is being enacted.
• Those environments that explicitly incorporate software process
information and that guide and monitor the user according to a
defined process.
• The tools to model and investigate software processes

Slide 12
6
Software Quality Tools
• The tools to support reviews and inspections

• The tools that analyze software artifacts, such as
syntactic and semantic analyzers, and data, control
flow and dependency analyzers. Such tools are
intended for checking software artifacts for
conformance or for verifying desired properties
• The tools deals with analysis of dynamic behavior or
performance

Slide 13
Software Configuration Management Tools
• Tools for configuration management have been

categorized as either related to version
management or to software release and build
management

Slide 14
7
SE Management Tools
Management tools have been subdivided in four

categories:
• Project Planning and Tracking
• Risk Analysis
• Risk Management and Measurement
• Tracking defects, enhancements, issues and problems

Slide 15
Infrastructure Support Tools
• Tools that provide interpersonal

communication, information retrieval, and
system administration and support

Slide 16
8
Classification of SE Tools
SE Tools can be classified into FOUR groups

1. Project Management Tools
2. System Modeling Tools (Traditionally known
as CASE tools)
3. Integrated Development Environments (IDEs)
4. Change and Configuration Management Tools

Slide 17
Project management tools

• Project management is about distribution and control of
budgets, time and people
• “if you can’t plan it, you can’t do it”
• “unless you know your past, you cannot properly plan your
future”
• Project management requires tools for effective scheduling and
controlling project activities, for estimating project costs, for
collecting metrics, etc
• Contemporary tools are frequently included in integrated
management support environments that tie together typical
project management with strategic planning, business modeling,
portfolio management, document management, workflows, etc.
• Many of traditional project management tools are available in
web-based versions
Slide 18
9
Categories of project management tools
1. Project scheduling and controlling

2. Aligning project and performance management with
strategic objectives
3. Unifying project management with web-based
collaboration and content management
4. Unifying project management with web-based
portfolio management
5. Integrating project management with metrics
6. Integrating project management with risk
management Department of Software and Media Technology AAUE Denmark
Slide 19
Project scheduling and controlling
• Activity network graphs identify events that must occur before

an activity can begin, specify the duration of each activity and
its due date, assign human and other resources to all activities,
etc.
– CPM (Critical Path Method) networks
– Gantt charts
• Project management tools are capable of generating activity
graphs once necessary project information is provided
• Project management tools adjust and rebuild schedules
whenever changes occur to an activity or to a resource
Slide 20
10
MS Project® (CPM chart)

Slide 21
Aligning project and performance management with

strategic objectives
• Project management is subservient to demands of effectiveness,

efficiency, and performance improvement
• Some project management tools are included in larger
environments to support a wide variety of managerial activities,
such as managing:
– goals
– development plans
– meetings
– e-mail
– documents
– performance reviews including annual reviews
Slide 22
11
Manage Pro™

Slide 23
Unifying project management with web-based

collaboration and content management
• Many software projects are distributed – they span

multiple people and cross organizational boundaries
• Project management becomes a “component” in a web-
based collaboration of knowledge workers
• Collaboration management includes support for
project stakeholders to lodge issues, define and assign
actions, document outcomes
• Content management for easy access and sharing of
documents and other informational content
Slide 24
12
eRoom (Gantt chart)

Slide 25
Unifying project management with web-based portfolio

management
• Portfolio management – process of enabling the enterprise to

align resources and investments with strategic objectives
• Tools in this category foster a web-based work environment for
– project discussions, tracking and work assignment
– team calendars and timesheets
– electronic meetings to reach consensus and take consultative decisions
– sharing project documents and maintaining versioning of them
– workflow automation and tracking of decisions
– conventional planning and scheduling with Gantt and CPM document
templates and patterns to encourage best practices
– aligning projects with strategic plans and business models
– managing individual and shared resources
– allocating skills to human resources and allocating resources to projects
– generation of cross project summaries and status indicators
Slide 26
13
eProject Enterprise

Slide 27
Integrating project management with metrics
• Metrics is the discipline of measuring software

development processes and products so that collected
information can aid future project planning
• Architectural design must be backed by metrics to
ensure system supportability, i.e. its understandability,
maintainability and scalability
• Metrics collection tools must be easy to use and not
obstructive
• What-If analysis
Slide 28
14
Small Worlds (what-if analysis)

Slide 29
Small Worlds (class internals analysis)

Slide 30
15
Integrating project management with risk management
• Risks – “potentially adverse circumstances that may impair the

development process and the quality of products”
• Risk management is a decision-making activity that assesses
the impact of risks (uncertainties) on decisions
– it weighs distributions of possible project outcomes versus
the probabilities of arriving at these outcomes
– given the acceptable level of tolerance on risk, it estimates
the likelihood with which a desired outcome will happen
• Tools that integrate project management with risk management
are frequently implemented as add-ins to conventional project
management tools (such as Microsoft Project), add-ins to
spreadsheets (such as Microsoft Excel), or as database
applications (e.g. on top of Microsoft Access).

Slide 31
Risk Radar™ (Risk data input)

Slide 32
16
@Risk (simulation outcomes)

Slide 33
System modeling tools
• Characteristics:
– visual
– present models at various level of abstraction
– traditionally known as CASE
– support teamwork (CSCW – computer supported cooperative
work)
• Can be classified into tools for:
– managing requirements
– visual UML modeling
– report generation
– database modeling
Slide 34
17
Managing requirements
• Requirements are text statements within a requirements document

– normally, one requirements document per use case
– defined at multiple levels of abstraction
– there is hierarchical arrangement between requirements
• Tool must facilitate team collaboration in:
– writing requirements document,
– identifying various categories of requirements in the documents,
– managing changes to requirements, and
– making requirements accessible to all developers.

Slide 35
IBM Rational Requisite Pro (requirements document)

Slide 36
18
IBM Rational Requisite Pro (requirements properties)

Slide 37
Visual UML modeling

• Tools in this category range from simple graphics-only tools to
repository-based tools supporting teamwork and allowing
customization of graphical representations
• The most sophisticated tools
– have a repository set up on a commercial database,
– provide complete integration of models,
– interface to other software engineering tools,
– support multiple versions of design artifacts and models,
– generate code for a variety of programming languages and
databases, etc.

Slide 38
19
IBM Rational Rose

Slide 39
Poseidon

Slide 40
20
Report generation
• So that visual models and related documentation can be shared

among all project stakeholders, not just developers
• Reports can be generated according to various templates and
various file formats
– templates determine the structure of documents
– users can specify required content
– file formats usually supported by modeling tools include
HTML, Microsoft Word, and/or Acrobat’s pdf
• tool generating HTML files should give an option to
generate HTML reports to one screen, thus allowing for
convenient printing

Slide 41
MagicDraw™ and IBM Rational Suite

Slide 42
21
Database modeling
• Database modeling requires unique set of capabilities
• Although high-level database models can be developed
using UML class diagrams, specific logical/physical
models require referencing tables, not classes
• Database specific concepts, not known to UML,
include also
– referential integrity,
– indexes,
– stored procedures,
– triggers.
• Differences between database management systems
must also be supported
Slide 43
Sybase PowerDesigner

Slide 44
22
Integrated Development Environments
(IDE)
• Software programming environments

• Standard capabilities of IDEs include
– code completion,
– support for programming standard features (code auditing),
– integration with the build tools such as Ant or make, etc.
• IDEs can be distinguished with regard to:
– integration with software modeling
– support for the scope and nature of application development
and required technologies
– integration with distributed development environments and
with change and configuration
Slide 45
Categories of IDE-s
• Routine programming tasks

– writing the program
– executing the program
– debugging the program
• Integration with software modeling
• Enterprise application development
• Integration with business components
• Integration with change and configuration management
Slide 46
23
Routine programming tasks (Sun ONE Studio)

Slide 47
Writing the program (Sun ONE Studio)

Slide 48
24
Writing the program (Sun ONE Studio)

Slide 49
Executing the program (Sun ONE Studio)

Slide 50
25
Debugging the program (Sun ONE Studio)

Slide 51
Integration with software modeling

(Together ControlCenter)

Slide 52
26
Enterprise application development
• In Java world, an enterprise IDE implies the support for the design,
development, and deployment of J2EE applications
• Enterprise-strength IDE is expected to support
– various templates to get job done quickly, including templates for JSP,
EJB, Java files, web services, etc.
– multiple GUI types
– immediate visualization in the code of changes in the GUI
– JDBC-compliant database connectivity
– reverse-engineering of preexisting database tables into entity beans ready
to be deployed on an application server

Slide 53
Sun ONE Studio for J2EE development

Slide 54
27
Integration with Business Components
• Business components constitute the middle-tier of a

multi-tier system architecture
• Business components are best deployed on a separate
server – an application server
• Development of a database back-end application is
usually performed in the following sequence:
– reverse engineer preexisting database schema/tables
– generate a set of GUI “views” that reflect the
database tables
– customize the views to apply business logic
Slide 55
BC4J application (Oracle JDeveloper)

Slide 56
28
Integration with change and configuration management
• Teamwork capabilities are frequently achieved by linking to

independent change and configuration management tools
• Configuration management tool differs from a version control
system (VCS) by being able to manage all modeling artifacts,
not just programming code
• Version control systems provide graphical “diff” tools to
perform comparisons between various versions of the code
• Configuration management tool allows developer to check-out
artifact objects to his/her workstation (private workspace) and
check-in back to the project repository on completion of the
task

Slide 57
Sun ONE Studio (version control

integration)

Slide 58
29
Perforce (version comparison)

Slide 59
Change and configuration management tools
• Change management tool records changes that have occurred during the
software lifecycle
• Version control is the domain of configuration management tools
• Steps in change and configuration management
– private workspace Ù public workspace
– configuration (stream) = set of versions
– to-do-list = required changes
– check-out of “change set”Æ check-in Æ marking change set as delivered
(visible to the team)
– creating a new baseline (build)
– promoting a baseline to “recommended baseline” Æ “rebasing” the
development configurations of developers

Slide 60
30
Features of change and configuration management tools
• Support for changes
• Support for versions
• Support for system building
• Support for reengineering

Slide 61
Support for changes

• Changes to or within a project must be managed, for otherwise
the changes will “manage” the project
• Project management is a form of change management
• Changes can be due to
– external or internal project conditions (budget, resources,
competition, etc.)
– changes in user requirements
– defects in software
– necessary software enhancements (future features)
• The change process should be defined in a workflow
– change management tool can integrate with a workflow
management tool
Slide 62
31
IBM Rational Clear Quest (managing defects)

Slide 63
IBM Rational Clear Quest (defect chart)

Slide 64
32
Support for versions
• A configuration management system has an internal

facility to maintain various version derivation graphs
• The graphs allow
– tracking changes applied to an artifact
– composing versions of various objects to create a
higher-level configuration of versions
• compare-and-merge capabilities – to compare the
differences between the current version of the artifact
and the baselined version
Slide 65
Microsoft SourceSafe (merging

versions)

Slide 66
33
Support for system building
• “System building is the process of compiling and linking software
components into a program which executes on a particular target
configuration” (Sommerville)
• The ultimate aim of system building is to create a distributable – an
executable version of software that can be distributed to its users
• The main challenge in system building is to
– adhere to all dependencies between software components and their
various versions
– resolve all references to data files
• Favorite Java-based build tool is Apache Ant (Another Neat Tool)
– Ant configuration files (build files) are written in XML and can be
extended using Java classes

Slide 67
Sun ONE Studio and Apache Ant

Slide 68
34
Support for reengineering
• Software reengineering is a branch of knowledge concerned
with methods, techniques, and tools for examining an altering
legacy systems to recover their designs an re-implement them in
a new form
• Reengineering consists of a range of technologies:
– reverse engineering
– re-documentation from source code
– restructuring of program logic
– re-targeting the system to a modern platform
– source code translation to another language
– data re-engineering (as opposed to process re-engineering)
– forward engineeringDepartment of Software and Media Technology AAUE Denmark
Slide 69
MagicDraw™ (reverse engineering)

Slide 70
35
MagicDraw™ (reversed code)

Slide 71
Summary
• Software engineering tools can be classified into four groups:
– project management tools,
– system modeling tools (traditionally known as CASE tools)
– Integrated Development Environments (IDEs), and
– change and configuration management tools
• Project management tools are concerned with project scheduling and controlling
– related functions are in the areas of performance management, web-based
collaboration, content management, portfolio management, metrics, and risk
management.
• System modeling tools embrace all tools that assist software engineers in
development tasks – from analysis via design to implementation
• IDEs are sophisticated programming workbenches that provide a friendly
programming environment to assist teams of programmers in all typical
programming tasks
• Change and configuration management tools are really two sides of the same coin
– change management tool records changes that have occurred during the
software lifecycle
– version control is the domain of configuration management tools
Slide 72
36

Lecture 2

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Lecture 2

Uploaded by

Copyright:

Available Formats

F6S: Software Engineering

Software Tools and Environments

Wednesday February 08, 2006

Department of Software and Media Technology AAUE Denmark

• The collection of software tools:

Department of Software and Media Technology AAUE Denmark

• Most of the cases, tools of an environment are

Department of Software and Media Technology AAUE Denmark

• A tool can be used

Department of Software and Media Technology AAUE Denmark

Software Requirement Tools

Tools for eliciting, recording, analyzing and

Department of Software and Media Technology AAUE Denmark

Analyst Pro is a tool for requirements management, tracing and

Department of Software and Media Technology AAUE Denmark

Software Design Tools

The tools for creating and checking software

Department of Software and Media Technology AAUE Denmark

Program editors are tools used for creation and modification of

Department of Software and Media Technology AAUE Denmark

Software Testing Tools

Testing tools can be categorized according to where in the testing

Department of Software and Media Technology AAUE Denmark

• The tools to assist human comprenhension programs. The tools

Department of Software and Media Technology AAUE Denmark

• CASE tools or environments that cover multiple phases of

Department of Software and Media Technology AAUE Denmark

• The tools to support reviews and inspections

Department of Software and Media Technology AAUE Denmark

Software Configuration Management Tools

• Tools for configuration management have been

Department of Software and Media Technology AAUE Denmark

Management tools have been subdivided in four

Department of Software and Media Technology AAUE Denmark

Infrastructure Support Tools

• Tools that provide interpersonal

Department of Software and Media Technology AAUE Denmark

SE Tools can be classified into FOUR groups

Department of Software and Media Technology AAUE Denmark

Project management tools

1. Project scheduling and controlling

Project scheduling and controlling

• Activity network graphs identify events that must occur before

Department of Software and Media Technology AAUE Denmark

Aligning project and performance management with

• Project management is subservient to demands of effectiveness,

Department of Software and Media Technology AAUE Denmark

Unifying project management with web-based

• Many software projects are distributed – they span

Department of Software and Media Technology AAUE Denmark

Unifying project management with web-based portfolio

• Portfolio management – process of enabling the enterprise to

Department of Software and Media Technology AAUE Denmark

Integrating project management with metrics

• Metrics is the discipline of measuring software

Department of Software and Media Technology AAUE Denmark

Small Worlds (class internals analysis)

Department of Software and Media Technology AAUE Denmark

• Risks – “potentially adverse circumstances that may impair the

Department of Software and Media Technology AAUE Denmark

Risk Radar™ (Risk data input)

Department of Software and Media Technology AAUE Denmark

Department of Software and Media Technology AAUE Denmark
