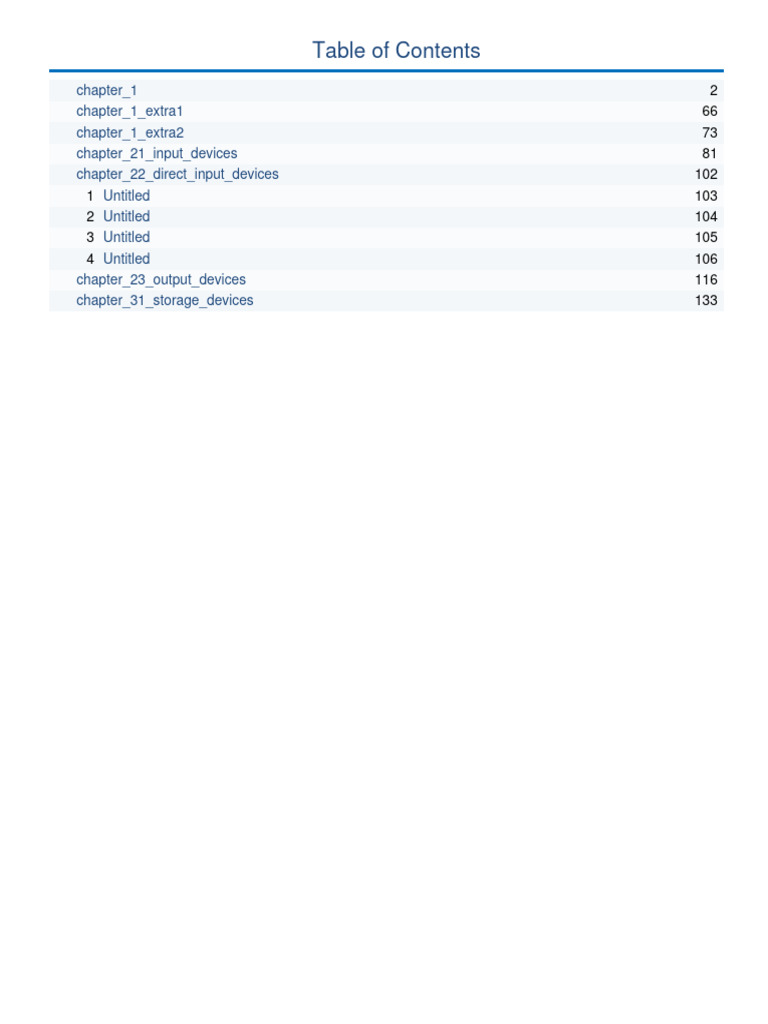

chapter_1 2
chapter_1_extra1 66
chapter_1_extra2 73
chapter_21_input_devices 81
chapter_22_direct_input_devices 102
1 Untitled 103
2 Untitled 104
3 Untitled 105
4 Untitled 106
chapter_23_output_devices 116
chapter_31_storage_devices 133
Chapter 1: Types and components
of a computer system
Cambridge IGCSE ICT
1
September-2021
© 2021 IGCSE ICT Notes by ZL
Chapter 1 - Sections
data info:
Hardware is the physical components of a computer system that you can touch.
• e.g., keyboard, mouse, monitor, printer, casing, power supply
Types of Hardware
• Internal - the motherboard, random access memory(RAM), read-only memory(ROM), video cards, sound cards, etc.
• External - keyboard, mouse, monitor
Motherboard
The motherboard is the backbone of the computer.
It is a printed circuit board (PCB) that contains buses, or electrical pathways, that interconnect the components.
• Basic input/output system (BIOS) chip and Unified Extensible Firmware Interface (UEFI) chip
• SATA connectors
• Internal USB connector
Buses on Motherboard
Network Card: A network card provides the computer with a network (internet connection) either through wireless
signals or a physical cable connection.
Graphic card: A graphics card is a device that attaches to the motherboard to enable the computer to process and
display graphics.
Internal Hard disk (HDD) : A hard disk drive is used to store information like software and files. The capacity of hard
drive ranges from GB to Tera Bytes.
Optical Disk Drive: The optical disk drive (CD/DVD/Blu-Ray) allows for optical disks to run on the computer. Some
optical disk drives are able to write “burn” data onto discs.
Power Supply: The power supply gives power to computer system. Power supply connects to all the main
components of the computer system including the motherboard, hard drive, optical drives, etc.
????
Types of software
• Application software
• System software
10
Application software are programs that allow users to do specific tasks. This may be to:
• Write a letter/Present information
• Browse the internet
• Manipulate data in a spreadsheet or database
• Manipulate graphics, sound or video.
11
Used to prepare reports, Use to create to organise and Database is used to insert and
school essays etc. manipulate numeric data. organise data using fields and
records.
• Create New or edit existing text • Use of various formulas to carry out set
documents. tasks:
• Create a table so that records can be
• Formatting tools • Sum, Max, Min, Average
inserted.
• Create font styles • Count, CountA
• Run queries using search criteria to
• Importing tables/images • CountIf & SumIF
find specific data.
• Spell Check • Lookups
• Create reports including labels from
• Copy/Paste • IF and Nested Ifs
the search criteria.
• Find/Replace • Apply various formatting to cells/
• Page layout • Create graphs (Ba/Pie charts)
12
• Contrast/Brightness • Pixels in bitmap images can be changed • Split and Trim videos
• Use of layers to produce a different image. • Create split screens
• Filter tools • Vector images use: • Rearranging order of clips.
• Lighting effects • Lines • Transitions between clips (Fade)
• Liquify (change features of a • Curves • Inserting Audio
face) • Text • Applying filters and using video
• Brush tools enhancement techniques
• Clone/Stamp tool
13
14
System software are programs that allow the hardware to run properly and allow the user to communicate with the
computer
System software are normally involved in the running of the computer:
• Operating systems to provide a user interface
• Device drivers which allow hardware components to work.
• Utility software which maintain the computer performance.
Compilers, linkers, Device Driver, Operating systems, Utilities programs are defined as system software.
15
16
17
18
A CPU Socket
Popular CPUs
19
Primary/Main Memory
• RAM
• ROM
• Secondary Memory
• HDD
• CD/DVD
• Flash Drive
• Pen Drive
• Cache memory
20
RAM
RAM stands for Random Access Memory.
RAM is volatile which means that when the computer is turned off all data is lost.
RAM works closely with CPU and stores data being used by the CPU while running applications.
RAM, like the CPU, also plugs in to sockets on the motherboard.
When a computer is running, its RAM will contain
• The operating system software
• The application software currently being used
• Any data that is being processed
21
22
Cache memory helps CPU for faster access
23
Inside of HDD 24
25
Different types of OS
26
It manages the computer’s memory, deciding what should be loaded into memory and what should be removed.
user account control (username, password,
It looks after computer security, preventing unauthorised access to the system.
biometric authentication,etc)
It manages the computer’s input and output hardware such as printers, etc. Access control (Firewall, Antivirus and
malware protection)
resource management eg., print spooling
resources in computer During large print jobs, the computer will have the pages read for the printer faster
than the printer can produce them.
The operating system keeps each page in a queue ready for printing. This process is
called print spooling.
27
28
The user would have to learn a whole set of strange commands so that they could make use of the computer
system.
Plus it was not very interesting look at – no visual clues to tell you what to do next.
This meant computers used to be quite difficult to use, so this type of interface is only really suitable for expert users.
But Command-line interfaces are still used today on many servers.
These computers need to use all of their computing power running networks, etc. so they do not use GUIs.
CLI is only suitable for expert users.
30
31
A windows manager looks after the interaction between windows, the applications and the windowing system.
To display all of the nice graphics takes a lot of computing power so quite a powerful computer is needed.
Today Touch screen phones use post-WIMP interaction, where fingers are in contact with the screen allowing actions
such as rotating.
Usage
GUI is widely used by the end-user who doesn’t have great knowledge of how a computer works.
32
Advantages Disadvantages
CLI • The user has more freedom to use specific command in • User needs to learn commands
interacting with the computer.
• commands must be byped in without errors.
• More control to computer system
• No visual aids.
• Can give direct command to computer system
GUI • The user does not need to learn any commands. • Takes up more memory than a CLI interface.
• The interface is easier to use. • Requires an operating system to operate.
• Can use a pointing device to clicks and select icons or • Require more computing power than CLI.
menu options.
33
https://www.nytimes.com/wirecutter/reviews/best-mini-desktop-pcs/
34
They are not portable since they are made of separate components.
It is necessary to copy files when you want to do some work elsewhere.
Many components so clutters up the desk space.
35
36
Not easy to add spare parts compared to desktop comptuer due to its
structure.
37
39
40
• Calendar functions
• Telephone banking
• Voice over Internet Protocol (VoIP)
• Streaming of videos, music
• Instant messaging SMS, Viber, ..
41
42
43
44
Their main purpose is to run commercial applications, such as banking, insurance companies, government
departments, where huge amounts of data need to be processed each day.
46
Disadvantages
Mainframe computers need to be permanently housed in a large room, so cannot be moved around.
They are very expensive to operate and maintain.
47
https://www.ibm.com/topics/mainframe
48
49
https://www.youtube.com/watch?v=j0z4FweCy4M&ab_channel=Tesla
© 2021 IGCSE ICT Notes by ZL
1.5 Impact of emerging technologies
Artificial Intelligence (AI) biometrics
Artificial intelligence (AI) is computer systems that can simulate human intelligence (able to make decisions typically
made by a human).
Artificial Intelligence (AI) biometrics use dynamic profiling technique to enhance the accuracy of biometric
identification systems. Computerised facial-recognition systems are confused by soft biometric changes like growing
facial hair, wearing glasses, age. New systems use AI to learn from scanning a number of faces and pick out these
soft biometric features.
Biometrics authentication is used as a form of identification which recognises individuals body parts. Biometrics uses
unique characteristics of the human which means it can not be replicated by other people.
e.g., fingerprint system, eye recognition system, facial recognition system
50
Eye Recognition
• The iris of the eye is scanned for recognition purposes.
• No physical contact is required to scan the iris which may be useful in some cultures.
• Immigration at airports use eye recognition to prevent people travelling with fraudulent documentation.
51
52
Night vision enhancement (NVE) amplifies infrared light and visible light so that an image can still be seen in
apparent darkness. The military use this technology to carry out surveillance at night.
53
54
55
https://arstechnica.com/cars/2019/01/amazon-begins-testing-deliveries-with-sidewalk-drones/
56
Cryptography
• the science of making a message unintelligible to any unauthorised user. (encryption)
https://crypto.interactive-maths.com/caesar-shift-cipher.html
57
58
All CAT software needs some post-editing by the user to remove errors from the translation process.
While not perfect, they are certainly more accurate than existing free online translators.
59
60
61
62
63
64
Chapter 1
ALu/CU Multi core
Embedded computers
▪ An embedded computer is a computer that is integrated into other devices and controls
the operations of that device.
▪ Embedded computers can be found in modern TV sets, motor vehicles, telephones, digital
cameras, washing machines, microwaves and dishwashers.
▪ Processors that contain in these devices are called microprocessors.
Microprocessor
- A microprocessor is the main part of an embedded computer which performs all the
calculations or decision making.
- The job of these processors is to manage the operation of these machines and devices.
▪ There are two main types of embedded processors: ordinary microprocessors and
microcontrollers.
▪ Do not require the processing power of standard devices such as desktop, laptops or
workstations.
▪ An embedded computer is programmed specifically for the work it is intended to do.
▪ It is not a general purpose like a mainframe or other computers.
▪ It is programmed to perform specific tasks.
▪ For example, a dishwasher has some main program settings but the processor will also
monitor water levels, temperature, pressures and so on. It will halt the dishwasher if it
detects a fault.
▪ Some embedded computers can connect to network or Internet and they can be updated
remotely. For example, processors in modern cars receive new updates of their programs
from their manufacturer.
Single-board computers
▪ Single-board computers (SBCs) are affordable computers used in education, embedded
computing projects and physical computing projects. The unit itself costs very little and
uses a cheap microSD card as its storage.
▪
▪ E.g., The Raspberry Pi Zero
▪ E.g., The meter in taxis, fully automatic washing machine
20/03/2022 6
IGCSE portable/connectivity(Wi-Fi, Bluetooth, SIM - mobile data, ph call, ICT
Internet email)
Specialist Phones
▪ Mobile phones use a SIM card to connect to a mobile phone network.
▪ SIM stands for subscriber identity module, and a SIM card is used to identify the
subscriber to a mobile phone network.
▪ Mobile phones with specialist features provide users with functions that meet particular
user needs.
▪ For example, an emergency button that is linked to a list of emergency contacts. When this
button is pressed, the phone will call each person on the list until someone answers.
Watch: https://www.verywellfamily.com/best-cell-phones-for-kids-5188569
Tablets
Tablet devices are bigger than smart phones. But have similar features.
For example, a tablet device has a touch screen, apps and Wi-Fi connectivity to provide access
to the internet. Some tablets devices have SIM card slots to allow internet connectivity using
the mobile phone network.
▪ Memory (RAM)
- Unlike laptop or desktop, RAM size is limited in tablet.
- Memory cannot be upgraded in tablet.
- General RAM requirements
o e.g., video playback, watch movies, internet email Wi-Fi - 1 GB to 4 GB
o video editing, photo edition - 4 GB to 8 GB
- Microsoft surface pro - up to 16 GB
▪ Wireless connectivity
- Tablets support common wireless standards are 802.11 b/g/n. ac
20/03/2022 7
IGCSE ICT
▪ Camera
- two cameras, front/rear camera
- Resolution of cameras in tablet continue increasing as they develop.
▪ Speakers
- very tiny and they produce low quality sound.
- Users use headphones to produce high quality sound.
▪ Output
- screen display, speaker
Battery life
tablet, smart phone, laptop , desktop,
▪ Factors that affect the battery
camcorder,
lifedigital camera, game console,
streaming, graphics
navigation aids, media player, entertainment system
size of battery, brightness of
(TV,the screen,
speaker systembacklight,
,etc) amount of time table is on, number of
apps running.
Camcorders
Quality of the lens - A good lens allows light to travel through it without introducing any
defects. It also allows the user to choose how much light can travel through it.
Image processor - A good image processor can compensate for poor lighting conditions.
Resolution of the sensor - Better-quality sensors can capture more detail and produce images
with a greater number of pixels. Digital images are made up of small dots called pixels.
4K
4000 pixels
1400x1024
20/03/2022 8
IGCSE ICT
▪ The advantage of camcorders over a device like a camera or phone that can record video is
that it is designed specifically for one task. As a result, it will have more video-related
features including often a hard disk for storing footage.
Game consoles
Watch: https://www.youtube.com/watch?v=R5ROTfHOvNI
20/03/2022 9
IGCSE ICT
Television
Sound system
▪ Sound systems can produce loud, rich sound using high-quality speakers and amplifiers.
▪ Sound systems can play music from CDs or from local storage.
▪ They can usually be connected to personal devices like smartphones, media players and
tablet devices using wired connections like USB or wireless connections like Bluetooth.
▪ Some sound systems can also connect to the internet to play music stored online.
▪ A software program or hardware device capable of playing media file or disc. For e.g.,
Windows Media player
▪ Hardware devices with the same function is called streaming devices. e.g., Amazon's
Firestick, Apple TV, iPod, etc.
▪ The content could be streamed directly from the internet or accessed from network or local
storage.
▪ Media players can be connected to a television directly or using a wired or wireless
network. USB, VGA, HDMI Bluetooth, Wi-Fi
20/03/2022 10
IGCSE ICT
How it works
▪ Satellite sends radio-wave signal to Earth.
▪ The receiver listens out for the signals.
▪ To know the precise location, the receiver's device picks up signals from 3 or 4 satellites.
▪ Radio waves from satellites travel by the speed of light.
▪ Each signal includes information about the satellite it came from and a time-stamp.
▪ The receiving devices can calculate how far it is from the sending satellite. Consequently,
the receiver can figure out its exact location on Earth.
▪ Mobile phone which can be used not only to make calls but also to do
o texting
o emailing
o taking photos
o recording video
o media playback including music and movies
o satellite navigation
o document processing
o web browsing
20/03/2022 11
IGCSE ICT
health and fitness flash light
calendar, event, schedule calculator
o clock and alarm
o gaming
▪ One type of emerging technology is a group of devices that can be used to create smart
homes.
▪ For example, home automation devices can connect a range of digital devices which sense
and control functions in the home, such as temperature and lighting.
▪ These functions can be controlled form apps on smartphones or the internet.
Watch: https://www.youtube.com/watch?v=NjYTzvAVozo
data - ADC
sensor ---> embedded computer ----> make deicision(control action)
20/03/2022 12
IGCSE ICT
Software
Utility software is a type of system software which carries out configuration and
maintenance tasks.
Help to manage and maintain computer resources and performance by running specific
tasks.
Backup
■ Creating a copy of your files is known as Backup.
■ Backups can be set to run automatically (usually at a time when the system is not in
use) or can be started by a user.
20/03/2022 8
IGCSE ICT
RAM
As data is stored to hard disk, some systems spread it across the disk wherever there is free
space.
This means that sometimes data is fragmented and stored out of order or out of sequence.
(fragmentation)
This takes extra time and slows down the process of loading a software by RAM.
magnetic HDD
Defragmentation means rearranging all the fragmented files of a software together in an
organized manner to reduce fragmentation and speed up the system.
Disk defragmentation utilities reorder the fragments of data so that they are stored as close
to each other as possible.
Defragmentation utilities are usually set to run automatically, but they can also be started
by a user.
Note: Modern storage device such as SSDs do not need to perform defragmentation.
Compression utilities
o reduce the original size of a file or set of files and produce a
new compressed file.
o Extract the compressed file in order to get the original file or
files.
The resulting compressed file is not usually readable by the original application.
Extracting the data from a compressed file so it can be read by the original application is
called decompressing.
Example
Where there are repeated patterns of data, rather
than storing every repeated instance, only the first
instance of the data is stored, alongside how many
times it is repeated. For example, in Figure 2.4,
there were eight instances of a, six instances of b
and two instances of c in the original file. This data
can be compressed to be stored as ‘a8b6c2’, which
reduces the amount of storage needed.
Formatting
Disk formatting is the configuring process of a data storage media such as hard disk drive,
floppy disk or flash drive for its initial usage.
Any existing files on the drive would be erased during a formatting.
It is usually done before initial installation or before installing a new OS.
This can also be done if it requires an additional storage in the computer.
20/03/2022 9
OS
HDD - NTFS
IGCSE C:/ Windows 100 GB ICT
D:/
Disk formatting utilities provide the user with the option to choose the file system, file unit
sizes and the name of the disk while formatting a disk.
Note: If a disk has already been used, then formatting will not actually erase data and make all
data on the disk unreadable by normal applications. But it can still be recovered using specialist
tools such as data recovery software.
shredder software
Question: How can data in the storage can be completely erased? -voltage apply
___________________________________________________________________________
Other Types of application software
Control Applications
Control applications are used to make something happen in the physical environment.
Used to automate the movement of control devices or actuators, such as motors.
How it works:
o It takes input from one or more sensor(s),
o Makes a decision based on the input value and then
o Outputs something, such as a command, as a result.
Often used in engineering, vehicles and building control systems and home automation
systems.
Some devices can be controlled via a smartphone app.
20/03/2022 10
IGCSE ICT
Used to help plan and track the individual tasks in a project, so that project managers
can make the most efficient use of the available resources.
Some tasks cannot be started until a previous task is completed or has been partly
completed, so it is important for a project manager to see which tasks are dependent on
others.
When all of these dependent tasks are combined together into a timeline, it is easy for
the project manager to see the critical path. timeline: a linear graphical
representation of events and the
These applications can also be used time and order in which they occur
o to set milestones.
critical path: the shortest time a
o to allocate tasks to individual people or groups of people. project will take to complete (if no
problems or failures are
o to track the costs and experienced)
o to arrange for resources to be delivered on time.
milestone: a time or date by which a
task must be completed
Communication Software
Communication software provides remote access to systems and allows users to contact
people using the internet.
It can be used to send files and messages as text, images, audio and video.
Web Browsers
Web browsers allow users to view web pages and websites created in web authoring
software and hosted on servers that are connected to the internet.
SMS
Simple Messaging Service
Usually found on mobile phones.
20/03/2022 11
IGCSE ICT
Allow users to send up to 160 text characters per message using the mobile phone
network.
They do not require an internet connection.
MMS
Multimedia messaging service (MMS)
Can deliver more than 160 characters per message and can include video, animations,
images and audio.
Like SMS, they are sent using the mobile phone network and do not require an internet
connection.
___________________________________________________________________________
Software Licensing
Users require a software licence to be able to install and use software on a computer.
There are many types of software licence and the details of software licensing are complicated.
Two types of software that are available:
free or open-source
proprietary.
Free Software – Licenses give users the right to study, modify, copy or distribute a
program. The software can be distributed free of charge or for a fee. The word ‘free’ refers
to the user’s freedom to change whatever they want because there are no restrictions on
the use of the software.
Linux: Open-source software – This license makes the source code available to users so that they
can modify how the software works or distribute the modified or unmodified software.
Windows Proprietary software – is software that is marketed and distributed by its owner under a
MS Office
brand name. The software owner can decide the fee for the software and whether or not the
software should be distributed.
Activity:
Why a software license is needed?
20/03/2022 12
IGCSE ICT
Software Updates
patch
Updates to software are released by software developers for the following reasons:
1. fixing security vulnerabilities or bugs
2. increasing compatibility with newer operating systems
3. improving performance and efficiency
4. introducing new features
5. improving usability.
Software updates are usually made available for download from a server on the internet.
Some updates can be scheduled to happen automatically when they are released.
Note:
Back up a system and files before updating software because updates can sometimes cause
problems such as removing software components that other software needs in order to function.
20/03/2022 13
IGCSE ICT
1. Command-line interface
2. Graphical user interface
3. Menu driven interface
4. Voice interface
5. Gesture based interface
Voice Interface
A voice interface allows the user to give spoken commands to a device.
The device has voice recognition software which matches the spoken words against a
library of words to find a match.
To save storage on the device, the library of words is often stored online, so these devices
usually require internet access.
Example uses
o modern luxury cars,
o personal assistant devices (Amazon Alexa, Google Siri, etc),
o Smart devices.
Advantage
- hands-free operation is possible.
- They are often used in vehicles in order to improve road safety.
Disadvantage
- sometimes user voice may be incorrectly translated by the system. Some systems today
learn the voice of their user and try to improve future matches.
20/03/2022 14
IGCSE ICT
Gesture Interface
A gesture interface allows the user to control the device by swiping their finger or fingers
across the screen, or by pinching their fingers together to zoom in or out.
Commonly found on devices with touch screens.
Example uses
o modern luxury vehicles (giving commands by gesture while driving),
o modern games, etc.
Advantage
- It is safer because user does not need to be in physical contact with the device like
touchscreen.
- It is very natural interface for a human.
Disadvantage
- User need to be fairly near to the operator camera or sensor (maximum of 1.5 metres)
- Only a limited number of movements may be accepted. (For example, it may take
several attempts to find out exactly what finger movements are recognised).
20/03/2022 15
Chapter 2: Input and Output
Devices
Cambridge IGCSE ICT
• Peripheral devices are devices that can be connected to a computer. Peripherals can be connected inside or
outside a computer and can be of three types:
• Input
• output
• Storage
• Output peripherals are connected to a computer and output the results of the computer’s processing in various
forms, including:
• Electronic display
• Printed text
• Video
• Audio
• Tactile(touch) forms.
• Storage peripherals are used to store and record data, and include internal and external hard drives, CD-ROM and
DVD drives, and flash memory drives.
• Keyboard
• Remote Control
• Touch Screen
• Scanners
• Digital Cameras
• Microphones
• Sensors
• Light Pens
• Graphic Tablet
• Web Cams
4
• Keyboard
• Numeric Key Pad calculator, mobile phones, as peripheral device, separate keypad in some standard keyboard
Advantages • Straight forward to enter numeric data like pins or prices at a POS.
• Pointing device
A pointer is used on a screen to select displayed objects. there are several types of device that allow you to control a
pointer. e.g., mouse, tracker ball, touchpad
• Mouse
• An optical mouse uses an optical sensor to recognise the movement of the device.
• A cordless or wireless mouse use a USB wireless receiver plugged into the computer to capture the movement.
• Easily Damaged
Disadvantages
• Flat surface required.
• Touchpad
Touchpads are used as a pointing device. It senses finger movements, touches and presses.
• Tracker ball
A tracker ball/trackball is rolled to move the pointer. Tracker balls do not physically move and fixed in one place.
• Can be a good alternative to a mouse for people with conditions such as Repetitive Strain
Injury(RSI).
• Used in an industrial control room environment where it is faster than a mouse to navigate
Use
through process screens.
• Used in some luxury cars to select functions such as radio, telephone, music, satnav and so
on.
• Easier to use compared to mouse
• More accurate positing of the pointer
Advantages • More robust than a mouse
• Require no space to move as it is fixed in one location
• Suitable for people with restricted hand movement and disability
• Remote Control
• A remote control is used for the operation of other devices using infrared signals.
• The buttons on the keypad are used to select options.
• Used to control:
- TV Channels and Menu options
Use
- Multimedia Systems
- Industrial applications
10
These devices are commonly used on games controllers to move sprites around the game.
Use • Used in video/ computer games and simulators(e.g., flight) to mimic actual controls.
11
• Touch Screen
Resistive - when a user presses on a resistive screen, the pressure causes two layers underneath the screen to touch
and make a connection.
More durable than capacitive ones. But they can only recognize one touch at a time.
not suitable for multi touch apps.
Capacitive - there is a layer of capacitive material. when a user touches the screen, a small amount of charge flows
away from their finger because humans are conductive. Often used in smartphones.
• Mobile/Tablets
• Point of Sale (POS)
Use
• Interactive White Boards
• Public information systems at airports, railway stations, etc.
12
Scanners
Scanners use light sensors to record physical documents as images which are then saved as files to the computer.
Types of scanners
• Hand Held e.g., barcode reader
• Flat Bed
• Sheet Fed
• Scan in documents and photographs and convert into a format for use in various software
packages.
Use
• Scan in old/valuable documents/books
• Scan in barcodes at POS terminals.
13
• Digital Cameras
They are used to take photographs and small video clips. Data can be transferred to computers.
14
• Microphones
• Microphones are either built into the computer or are external devices connected through the USB port or using
Bluetooth connectivity.
• A microphone converts sound waves into an electric current.
• The current produced is converted to a digital format so that a computer can process it or store it (for example,
on a CD).
sound card -
15
• Sensors
Sensors are used to monitor and capture physical conditions/data from real world/environment as
analogue data.
• Sensors are found in lots of devices such as burglar alarms, central heating system,
Use washing machines, etc.
• They can be used to input data to control certain devices.
• Cost to buy
Disadvantages
• Dirt and grease may effect performance.
17
• Light Pens
18
• Graphic Tablet
A graphic tablet is a flat pad that is used with a stylus. User can produce free hand drawing which can be input to
computer and stored.
• Expensive
Disadvantages
• Require more desk space
19
• Web Cams
These connect directly to the computer and don’t save the images; data is transmitted directly to the computer
for use in video conferencing or in video calls; the quality varies a lot depending on the lens and electronics.
20
21
2021
© 2021 IGCSE ICT Notes by ZL
Chapter 1 - Sections
• Identify the advantages and disadvantages of any of the above devices in comparison with others.
To do:
Try to compare DDE devices which have common uses.
Try to compare DDE devices and manual input devices which have common uses.
• Card readers
credit/debit card
security key/electronic room entry card
Magnetic Strip Readers magnetic stripe card gift card
identity card
Magnetic strip readers read data found on magnetic stripes found on the back of cards.
Chip and Pin Readers are used POS terminals to make a secure payment using a debit or credit card.
Chip and pin cards have an embedded microprocessor or memory chip.
Data on the card can be erased if the card is close to an electromagnetic source such as TV.
Users can make payment at shops, restaurants by simply inserting their credit/debit card into
Use
the chip and pin reader and typing in their pin.
https://www.youtube.com/watch?v=Ks0SOn8hjG8
6
Radio frequency identification (RFID) readers use radio waves to read and capture information stored on a tag.
The RFID tag is made up of two components:
• A microchip that stores and processes information
• An antenna that is used to receive and transmit data.
• Livestock tracking
• Retail – several tags can be read at the same time, thus speeding up the checkout process.
Use • Admission passes
• Libraries – books can be tracked in and out automatically by readers at the library
entrance.
• The tags can be read from a distance.
• It is a very robust and reliable technology.
Advantages • Very fast read rate.
• Bidirectional data transfer.
• Bulk detection is possible.
Tag collision
2. Radio waves are easy to jam or interrupt.
Disadvantages 3. It is easy to hack into the data.
4. RFID is more expensive than barcode system.
7
Use - Used to scan in marks from multiple choice exams, surveys, and lottery tickets.
- Very fast method of inputting data as user does not have to type.
Advantages - More accurate than OCR
- Less chance of errors
- Forms have to be completed correctly to avoid manual checks which would waste time.
Disadvantages - Limited amount of characters can be read.
OCR scans text/characters from hardcopies and converts it into an editable form which can be used and edited in a
range of software including word processors.
• Barcode scanner/reader
• A barcode is a pattern of lines and gaps that can be read by barcode scanners, which detect the width of lines in a
barcode.
• Barcodes are often used on parcels, so that they can be tracked and on items for sale in shops.
• Mostly, barcode scanner are handheld device or wands.
• There are two types of barcode: linear and matrix.
Barcode readers are typically used at point-of-sale (POS) in shops when customers are
Use
purchased goods.
• Far quicker and more accurate than typing in codes using a keypad.
Advantages • Stock database can easily be updated with new prices
• Barcodes would not need to be replaced.
• Barcode could be unreadable or missing.
• Barcode could be swapped.
Disadvantages
• Can be an expensive system.
• Can be more easily damaged than RFID tags or magnetic stripes.
10
Matrix barcodes are also known as QR codes. It is made up of a matrix of filled-in dark squares on a light
background. They are newer than linear barcodes and can hold much more information than linear barcodes and
can be scanned from any angle. A QR code can hold up to 4296 characters/7089 digits.
- Advertising products
- Giving automatic access to a website or contact address or number
- storing boarding pass at airports and train stations
Use - Link to apps
- Wi-fi authentication
- Augmented reality
- Virtual online store
- Can hold more information than barcode.
- Fewer errors than with barcodes.
Advantages
- Easier to read (by QR scanner or even mobile phone)
- Easy to share
- Barcode could be unreadable or missing.
- Barcode could be swapped.
Disadvantages
- Can be an expensive system.
- Can be more easily damaged than RFID tags or magnetic stripes.
11
• Biometric scanner
Biometric scanners match the unique pattern of human bodies against previously stored data files.
The most common are fingerprint, retina, iris, voice and face.
Fingerprint scanners read the patterns of arches, loops and whorls in a human fingerprint. Fingerprints are unique
to each individual person. But they can be obscured, damaged or changes, such as injury or disease.
Iris scanner - Like fingerprints, human iris has a unique pattern. It is more detailed and accurate than a fingerprint.
Facial scanner - identify the structure of human face in order to identify as individual.
Voice recognition - require to capture voice. then they compare the voice print against a saved original and check to
see whether the two prints match.
12
• Biometric scanner
13
4. What is OMR?
5. What is OCR?
14
2021
© 2021 IGCSE ICT Notes by ZL
Chapter 1 - Sections
• Output peripherals are connected to a computer and output the results of the computer’s processing in various
forms, including:
• Electronic display
• Printed text
• Video
• Audio
• Tactile(touch) forms
• Output devices
• Monitors ( CRT, LCD, LED) screen size, resolution, power consumption, cost, quality of output(color), uses
• Touch Screen
• Data/Multimedia projectors
• Printers technology to draw image, uses, cost, speed, healthy?, colour?, high volume?
• Graph plotter
• 3D printer
impact /non-impact
• Speaker
• Actuator
Monitors (screens)
• Monitors allow users to see the output from the computer on an electronic display.
• Features of monitors include:
• screen size, which is measured diagonally
• resolution, which is measured in pixels
• energy efficiency measures, such as low-power stand by mode if there is no input.
Use • Have taken over from CRT as primary output display for computers.
• Monitors (screens)
LED – LEDs are very popular today. An LED screen is made up of tiny light emitting diodes (LEDs).
It is used for large outdoor displays, due to the brilliance of the colours produced.
• LED monitors are generally used outdoors in store signs, destination signs and billboards
Use due to their level of brightness.
• LEDS produces better light which improves the colour definition and can be used outdoors
Advantages in different types of light.
slim and lightweight
• LED are also energy efficient and can last along time.
https://m.radianonline.co.zm/blog/post/all-you-need-to-know-about-lg-s-new-nanocell-led-tv-technology.html
6
• Touch Screen
A touch screen is a computer display screen that is also an input device. Users can interact with the screen by using
their fingers or a special stylus/pen.
₋ Mobile Phones/Tablets
Use
₋ Terminals at POS/Banks/Stations
Data or multimedia projectors allows users to display the computer screen to an audience by projecting the monitor
image onto a large screen.
They are used when projecting signals from various (Computer, TV) devices onto a large screen.
• Classrooms
Use • Offices
• Training Presentations
• Home cinema systems
• Is able to project onto a big screen allowing more people to see the output.
Advantages
• Users can gather around one screen –main focal point in classrooms.
Powdered ink from toner is fused onto paper by heat and pressure.
Laser printer is a non-impact printer that works in a similar way to a photocopier, using powdered ink(toner).
Laser printers are used when High output volumes are required.
Use • Schools
• Offices
https://www.youtube.com/watch?v=xcPE-r3zw5o
9
A non-impact printer in which the image is formed by ink that is sprayed onto the paper through small holes to
form a letter or an image.
10
Dot Matrix is a type of printing which uses a print head which presses against an inked ribbon whilst moving back
and forth.
https://www.youtube.com/watch?v=A_vXA058EDY
https://www.youtube.com/watch?v=Y_oBzIxhKb4
https://www.youtube.com/watch?v=O3OAr7tJDZE
11
Some plotters can also roll the paper backwards and forwards.
A plotter draws lines on paper using different coloured pens.
E.g, line detector test or earthquake plotters.
Used by product designers, architects, engineers and cartographers who need to print their
Use
design on large sheets of paper.
12
13
• Speakers
They output sounds that are produced by, or have been stored on, the computer.
Digital data from the computer is converted into analogue form using a digital to analogue converter (DAC).
14
• Actuators are transducers and are used to take signals from a computer and convert them into some form of
motion, for example operating motors. It can be mechanical or electromechanical device such as a relay, solenoid
or motor.
• Conversion of the digital signals form the computer to analogue is required (using a DAC).
Type Use
Motors • Washing machines, cookers
(Spins things • Control Fans
around) • Control Robot Arms in manufacturing
• Used in burglar alarms
Buzzer
• Microwave ovens and other household appliances
(Creates a noise)
• Sporting events/Game shows
Heater • Control heat in a central heating system
(Increases • Control heat in a green house
temperature) • Control heat in an oven
• Security lights
Lights
• Car Dashboard – e.g. to alert driver of low fuel.
(Creates light)
• Lights in greenhouse
15
• Actuators
• They allow remote operation of many devices (for example, pumps in a nuclear
reactor where remote operation is a big safety factor).
Advantages • They are relatively inexpensive devices.
16
1. Compare the use of dot matrix, inkjet and laser printers identifying advantages and disadvantages.
2. What is a plotter?
6. Describe the input devices and output devices used in a video conferencing system.
17
Magnetic Tape drive Hard disk drive Portable Hard disk drive Optical Disk Drive
Type of Serial Direct Direct Direct
access
Technolo Magnetic Magnetic Optical
gy
- Thin strip of plastic that - It is made up of many concentric platters. It makes up a Laser light is used to read data and to write
has been coated in a cylinder that spins on a central spindle. data on the surface of the disk.
magnetic layer. - The disk surface(platter) is coated in a magnetic film that • Both CDs and DVDs use a thin layer of
- They are read and written allows data to be stored by altering the magnetic properties metal alloy or light-sensitive organic dye to
to by a read/write head. (magnetic charge) to represent binary 1s or 0s (positive or store the data.
negative).
- Spin speeds are 5400 revolutions per minute(rpm) or 7200 • They use a single spiral track that runs from
rpm. the centre of the disk to the edge.
- It uses read/write heads to read/write data on disk’s surface. • The data is stored in ‘pits’ and ‘bumps’ on
The read/write head moves across the surface of the disk the spiral track.
retrieving and saving data. CD/DVD – use red laser to read/write data
Blu-Ray – use blue or violet laser and have
shorter wavelength then CD/DVD.
R (recordable) – write once only
ROM – can only be read
RW – can be written to or read from many
times
Data 50 to 60 seconds- slowest 5 to 10 milliseconds 5 to 10 milliseconds 30 to 50 ms
access Slower
time/spee Faster than optical drive Faster than optical drive
d Slower than solid state Slower than solid state
Maximu CD – 700 MB
m Several Terabytes Several Terabytes DVD – 4.7 GB(single-layer), 18 GB(double
capacity Several terabytes up to 185 TB layer)
currently BluRay – 25 GB(single layer) – 50
GB(double)
Cost per 0.02 $/GB - 500 GB – 35 USD Expensive than tape and optical Not expensive
GB Not expensive Expensive
(price)
Portabilit Not suitable Not suitable Portable portable
y
Durabilit 10 to 20 years 3 to 5 years 3 to 5 10
y&
Reliabilit - Durable, good for Long term - Not much robust - Not much robust - Not robust
y storage
Use Audio recording To store operating system. Used as backup system. To store music files and software, computer
Used in batch processing Files server for computer Used to transfer file/ data/ games, film, files, reference software.
applications such as clearing network. software.
bank cheques, utility billing, Storing application software. Use for data back in computer
pay slips , etc.; in which To backup data/files
processing order and speed is Used in applications where there is a real
not important. need to prevent the deletion or overwriting of
• Large organizations make important data.
daily backups of their networks
on to Magnetic Tapes.
• Long-term archiving of data.
Advanta Less expensive. High access speed. High access speed. Less expensive
ges Very robust technology. High data transfer rate. High data transfer rate. Can write data multiple times (CD/DVD
Huge storage capacity. High capacity of storage. Can be used to transfer files RW, Blu-ray RE)
Data transfer rate is fast between computer. Can be used to transfer data and files
Secure (virus cannot be infected to CD/DVD
ROM)
Disadvan - Very slow data access times - Can be easily damaged if - Can be easily damaged if the - Slower access time
tages - When updating, another the correct shut down correct shut down procedure - Disc becomes unusable if error occurred
tape is need to store the final procedure is not carried is not carried out. while writing.
updated version. out. - This can lead to a head crash - Can write data only once (CD/DVD/Blu-
- Can be affected by magnetic - This can lead to a head which would result in a loss ray R/ROM)
fields crash which would result of data.
in a loss of data. - Have many moving parts
- Have many moving parts when compared to, for - Data can be overwritten accidentally
when compared to, for example solid state drives (RW discs)
example solid state drives (SSDs).
(SSDs). - Their read/write operation
- Their read/write operation can be quite noisy compared
can be quite noisy to SSDs.
compared to SSDs.
Solid-state Media
Maximum capacity
120GB to 30.72TB
Portability Portable
Durability & Very durable and reliable
Reliability Cannot be damaged by dropping or magnetic fields.
Use • Laptops/Mobile phones/Tablets/Servers • Transporting flies between computers or • Storing photos on digital cameras.
• Used to store operating system and working used as a backup store. • Used as mobile phone memory cards.
data • Used as a security device to prevent • Used in MP3 players to store music files.
• Used for storing application software software piracy (known as a dongle). • Used as a backup store in hand-held computer
• Used in file servers for computer networks devices.
Advantages • They are more reliable (no moving parts to go • Very compact and portable media. • Very compact and can be easily removed and used
wrong). • Very robust. in another device or for transferring photos directly to
• They are considerably lighter (which makes • Doesn’t need additional software to work a computer or printer.
them suitable for laptops). on most computers. • Since they are solid state memories, they are very
• They don’t have to get ‘up to speed’ before they • They are not affected by magnetic fields. robust.
work properly.
• They have a lower power consumption.
• They run much cooler than HDDs (both these
points again
make them very suitable for laptop computers).
• Because there are no moving parts, they are
very thin.
• Data access is considerably faster than HDD.
Disadvantages - Expensive per gigabyte of memory when - It is not possible to write protect the - Expensive per gigabyte of memory when
compared to hard drive disks. data and files. compared to hard drive disks.
- Their small physical size means that - Have a infinite life regarding the number of times
they are easy to lose. they can be read from or written to.
- Incorrect removal can cause the drive Have a lower storage capacity than hard disks.
to be corrupted or useless.
8. Memory stick or USB stick is a good description of that type of storage. (true/false)
10. Floppy disks are very popular for high-capacity storage. (true/false)
14. Which is the correct capacity for each of the optical storage media? flopp disk 3.5 MB
CD 700 MB
a) DVD DVD 4.7 GB ( double layer ,
b) CD-ROM double sided - 16 GB
Blu-ray - 25 GB -
USB stick, flash memory
HDD -
SSD
Tape -
15. Bit is short for Binary Digit. (true/false)
16.
17. State two types of data that can be stored on an optical disc.
18. State two types of devices that could use solid state media as main storage technology.
19. Why solid-state storage is used in portable devices?
20. Give two advantages of using pen drive to store data.
17. sound(music) and software, video files, computer games, backup data files
18. laptops, mobile phones, tablets, game consoles, media player,
19. They are reliable, doesn't have any moving parts such as platters, r/w and they are lighter.
/ use less power.
20. they are very portable as they are small in size
they are not affected by magnetic fields as they store data electronically.
